Add up to 16TB of SSD Storage! Super High-speed Data Transfers

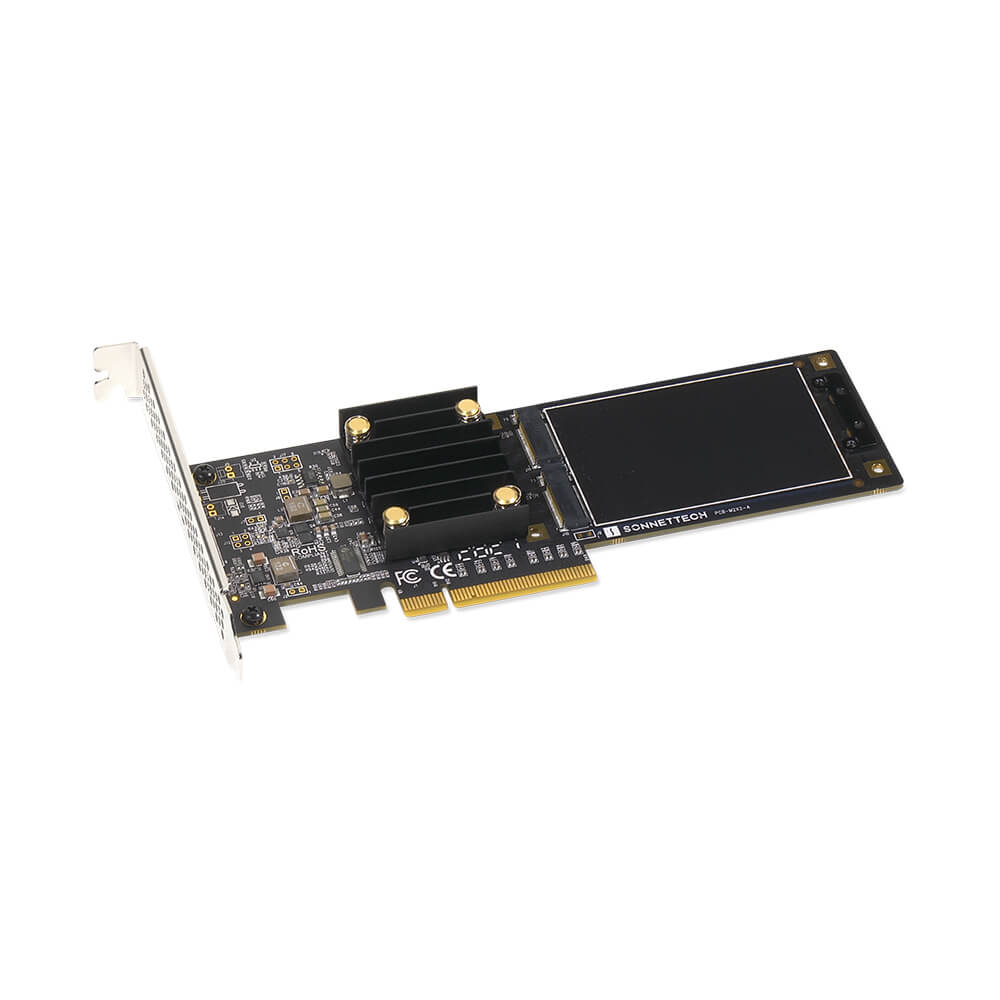

If you need to add internal storage to your computer and ultra-high-speed data transfers are critical to your work, you need NVMe SSD storage. While a single M.2 NVMe PCIe SSD offers tremendous performance — 10x more than that of a spinning drive — Sonnet’s M.2 2x4 Low-profile PCIe Card enables you to mount two of them into a single x8 card slot and combine their performance. No matter how you use it, this card can transform the way you work or play.
RAID 0 Performance

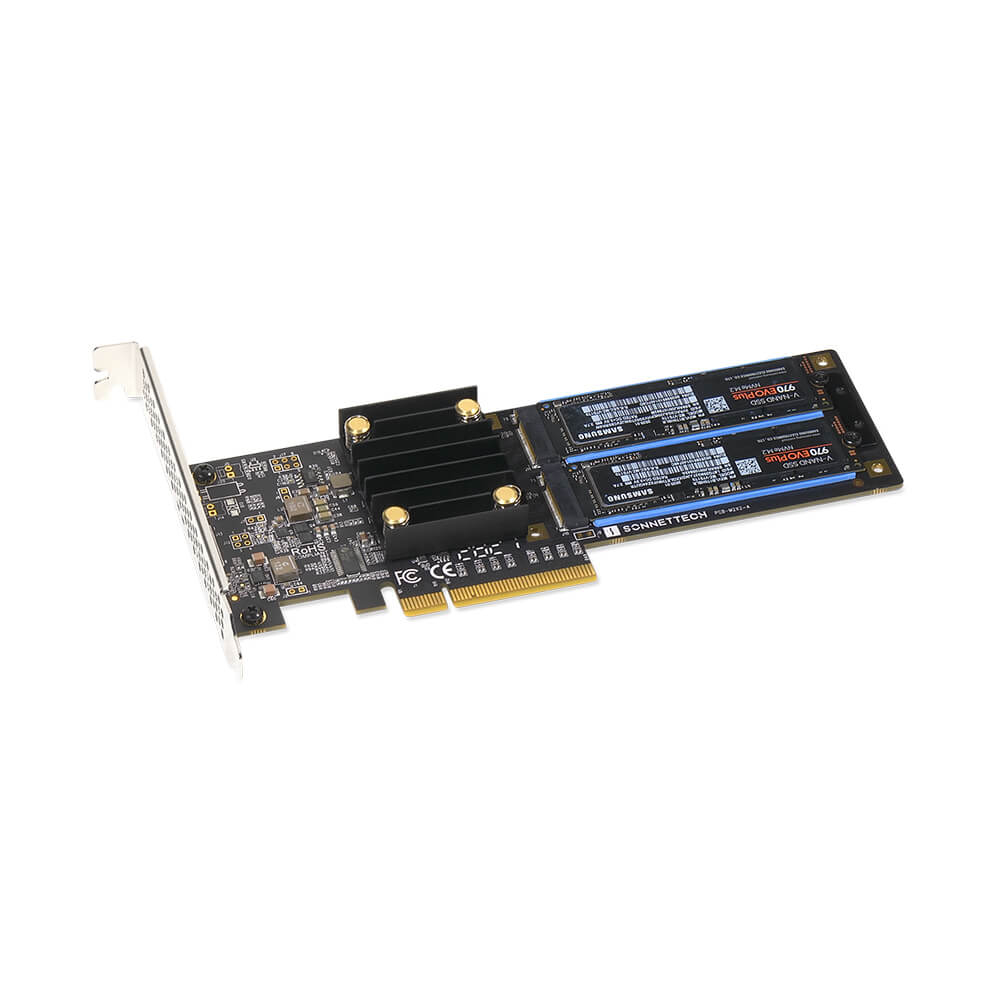

Install the M.2 2x4 Low-profile PCIe Card with your SSDs into your computer with PCIe 3.0 or 4.0 card slots, and then configure them as a RAID 0 set to obtain data transfers up to 6600 MB/s.
Easy Fit – Install in an x8 PCIe Card Slot
Sonnet’s M.2 2x4 Low-profile PCIe Card fits in almost any card space with an available x8 PCIe card slot, whether in a desktop tower, mini workstation, or server computer; or even in a Sonnet Thunderbolt expansion system. Included full-height and low-profile brackets enable a secure fit wherever you install it.

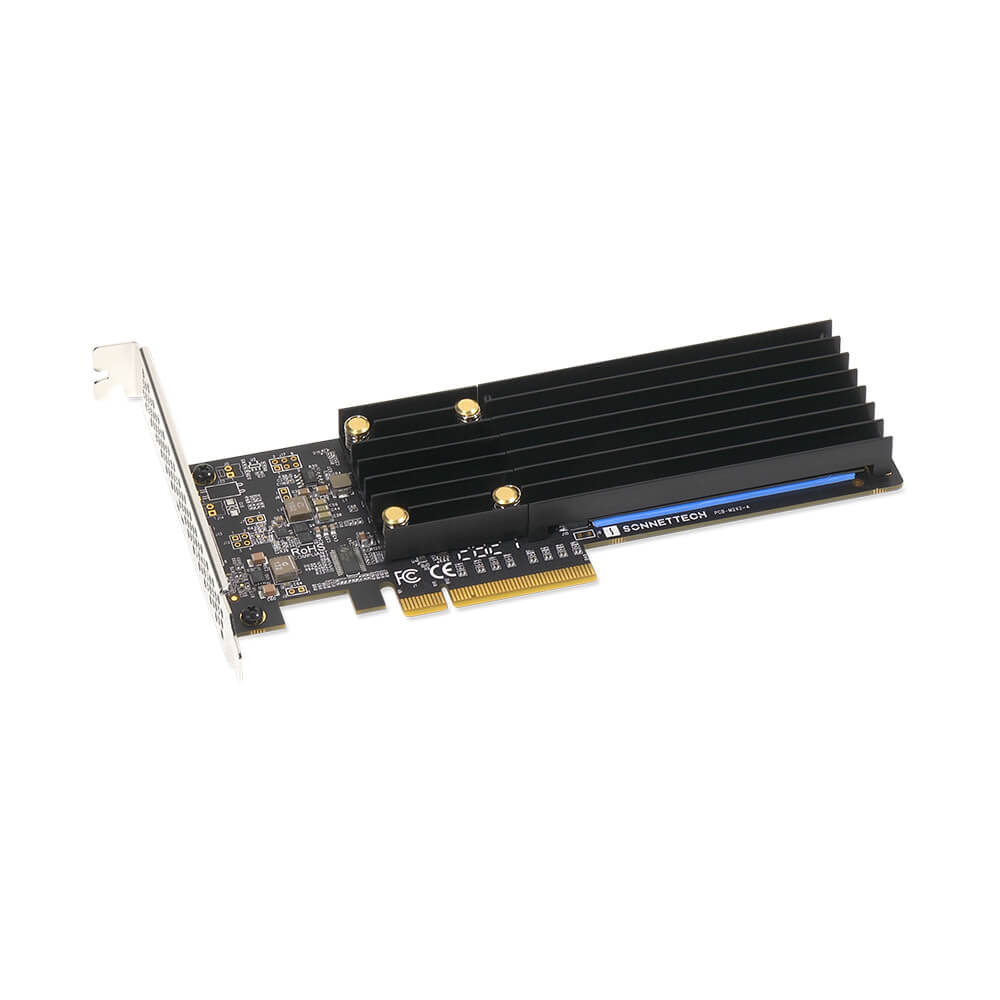

Silent and Cool Running – No Slowdowns. No Thermal Throttling. Full Performance.
SSDs heat up significantly while performing very large file transfers and will protect themselves from overheating by “thermal throttling” — a feature that drastically cuts SSDs’ performance until they cool off to a safe level. The Sonnet M.2 2x4 Low-profile PCIe Card’s silent SSD cooling solution works to keep SSDs always cool enough to eliminate the need for thermal throttling and enables your SSDs to always maintain their highest potential performance.
SSD IdeasmacOS Boot Supporter. Applications’ Scratch Disk. Time Machine Backup.
Mac users can install macOS® on one SSD to create a fast boot volume, and then use the other installed SSD for file storage; as a super-fast plug-in, media storage, or scratch disk; or even for use as a Time Machine® backup volume.
Thunderbolt Port? – Connect Two SSDs Through One Cable
Got a Thunderbolt connection, but no PCIe card slot? Sonnet’s M.2 2x4 Low-profile PCIe Card is ideal for use in any one of Sonnet’s Thunderbolt expansion systems. The combo enables you to add one or two SSDs to any Mac (M1, M2, M1 Pro, M1 Max, M1 Ultra, Intel®), Windows, or Linux computer with Thunderbolt ports.
Simple and S.M.A.R.T. – Easy System Integration
Integrating a Sonnet M.2 2x4 Low-profile PCIe Card into your system is easy — NVMe compliance ensures the necessary drivers are installed automatically. The M.2 2x4 uses the operating systems’ built-in drive formatting utilities to format the SSDs. SSD health monitoring is supported through S.M.A.R.T. (Self-Monitoring, Analysis and Reporting Technology) data reporting, too.
Do You Need Something More? More SSDs? More Connectivity?
Do you need to install more than two M.2 NVMe SSDs? Check out Sonnet’s M.2 4x4 PCIe Card with double the capacity and double the potential performance of the M.2 2x4 card. Or do you need more connectivity in addition to dual SSD support? Look at the McFiver™ PCIe Card; it offers the same performance of the M.2 2x4 card plus two 10Gbps USB-C® ports and a 10Gb Ethernet port.
|
Sonnet Technologies Sonnet M.2 2x4 Low-profile PCIe Card Specifications |
|
| Mac Compatibility |
Mac Pro 7,1 (2019)
Mac Pro 5,1 (Mid 2010 & Mid 2012) macOS 10.13.6+ macOS Ventura compatible |
| Windows Compatibility |
Windows computer with available x8 PCIe slot (PCIe bifurcation not required)
Windows 11 and 10 |
| Linux Compatibility |
Linux computer with available x8 PCIe slot (PCIe bifurcation not required)
Linux Kernel 5.0+ |
| Thunderbolt PCIe Expansion System Compatibility | - Mac (M1, M2, M1 Pro, M1 Max, M1 Ultra, and Intel®) with Thunderbolt ports via a Thunderbolt to PCIe card expansion system with available x8 PCIe card slot - Windows 10 computer with Thunderbolt 4 or Thunderbolt 3 ports via a Thunderbolt to PCIe card expansion system with available x8 PCIe card slot - Windows 11 will support this card in a Thunderbolt Expansion System beginning with 23H1 future release - Linux computer with Thunderbolt 4 or Thunderbolt 3 ports via a Thunderbolt to PCIe card expansion system with available x8 PCIe card slot |
| M.2 NVMe SSDs Compatibility | For a list of compatible M.2 NVMe SSDs, see the following PDF |
|
Hardware |
|
| Form Factor |
Low-profile PCIe computer card
Length 7.25 in. (185mm) |
| PCIe 3.0 Bridge Chip | PLX PEX 8724 |
| Internal Connectors | Two M-keyed (NVMe) M.2 sockets |
| SSDs Supported | M.2 2280 NVMe PCIe SSDs M.2 NVMe SSDs Compatiblity PDF |
| Boot Suppport | macOS - Only from a single SSD (not RAIDed) - Mac Pro 5,1 or Mac Pro 7,1 - Any Thunderbolt Mac Windows, Linux - No |
| RAID Support | macOS, Windows, Linux RAID 0 or RAID 1 |
| NVME Support | Yes |
| S.M.A.R.T. Status Data Reporting Support | Yes |
| RoHS Compliant | Yes |
- Sonnet M.2 2x4 Low-profile PCIe card
- Two mounting brackets (full-height and low-profile)
- Thermal transfer pads
- 2-years Limited Manufacturer's Warranty
