【Sonnet Technologies】M.2 4x4 Silent PCIe Card

  • Compatible with 2019 Mac Pro
  • Adds Ultra-Fast SSDs to Your System
  • Achieve Sustained RAID 0 speeds up to 11,700 MB/s
  • Great Way to Add Up to 32TB of M.2 SSD Storage to Computers with Thunderbolt
  • macOS, Windows, and Linux RAID Support
  • macOS Boot Support from Single (non-RAIDed) SSDs
  • S.M.A.R.T. Support
  • Designed in the USA

Local Delivery

CHINAM is currently shipping within Hong Kong and specific countries only. We use local courier service as our delivery company. We do not support shipping items in a single order to multiple shipping addresses. To ship items to an additional address, please place a new order to us. Unless otherwise specified, delivery charge at the rate of HK$300 will be imposed on each delivery. We currently offer free delivery for each order over HK$1,000.

For remote areas or outlying islands delivery service, please contact our sales team via email - sales@chinam.com.hk

International Delivery

We will do our best to ship internationally to countries where we do not have sales representation. Please register with us, we’ll keep you updated and notify you when this is about to happen and become available in your region. Please note, at this time the customer is responsible for the duties and taxes imposed by their country.

For international shipping please contact our sales team via email - sales@chinam.com.hk

Deliver Time

  • Once your order has been handed over to the carrier for delivery, you will receive a shipment notification email with an estimated delivery date. Please note that it is not possible to expedite your delivery and receive your package earlier than the scheduled delivery date. Therefore, we are unable to accept requests for expedited delivery. Our carriers are unable to provide an exact time of day for your delivery. If you ordered multiple items, you may receive separate shipments.
  • All estimates are based on business days. We only make deliveries in the specified areas of Hong Kong from Monday to Sunday except on the first two days of the Lunar New Year and when typhoon warning signal No. 8 or above or black rainstorm warning is in force.
  • All rescheduling of delivery, additional purchases, new sales memos and amendments must be made 3 days before the scheduled delivery date. Otherwise, a double delivery charge will be incurred.
  • We may deliver the merchandise in one or more installments, and some of the merchandises may be delivered directly from suppliers. Any times and dates given for dispatch of merchandise, or the length of time that merchandise will take to be delivered, are only estimates. If we are unable to meet any stated dispatch or delivery dates or times we will inform you as to the progress of your order. You agree and accept that under no circumstances will we accept cancellation of order or refund.

Signature On Delivery

  • Most of our shipments contain valuable items. If you will not be in attendance to accept delivery of your purchase, consider shipping to someone you trust will be able to sign for your package. For your convenience, you may prefer to have your order delivered to your office address. If you choose this option, please include the name of your business in the address. Please note, if you choose this option, goods may be left with reception or the Mail Room.
  • As our carriers require a signature on delivery, the carrier will leave a calling card if you are not at home. Please contact the carrier to reschedule delivery.
  • For postal deliveries, no signature is required and order status tracking is not available.
  • Delivery failure due to no one answering the door upon the arrival of goods at the appointed time, or to circumstantial limitations such as the entrance being too small, will require a rescheduled delivery and therefore incur double delivery charges.
  • We will deliver the merchandise ordered by you to the address you give us for delivery at the time you make your order through our staff or a third party provider. You agree to present your photo identification upon request when you acknowledge receipt of the merchandise. The merchandise shall be, and shall be deemed to be, delivered and accepted by you when the merchandise are delivered to the address you give us for delivery. You agree and accept that we are entitled, at our option, to charge you additional costs or cancel your order in the event of your failure to accept delivery for whatever reasons.

General

  • You will become the owner of the merchandise you have ordered when they have been delivered to you. Once merchandise has been delivered to you they will be held at your own risk and we will not be liable for the loss or damage.
  • You may not export any products purchased at CHINAM online store. We sells and ships products to end-user customers only. Notwithstanding order confirmation, CHINAM may cancel any order where it has reasonable grounds to believe the product is not being purchased for end use.
  • If there is any inconsistency or ambiguity between the English version and the Chinese version, the English version shall prevail.
  • We reserve the final right to terminate or alter the above terms and conditions. In the event of any dispute, our decision shall be final and conclusive.
In stock (contact us for lead time)
SKU
FUS-SSD-4X4-E3S
Write Your Own Review
You're reviewing:【Sonnet Technologies】M.2 4x4 Silent PCIe Card
Your Rating

Add up to 32TB of SSD Storage! Ultra-speed Data Transfers!

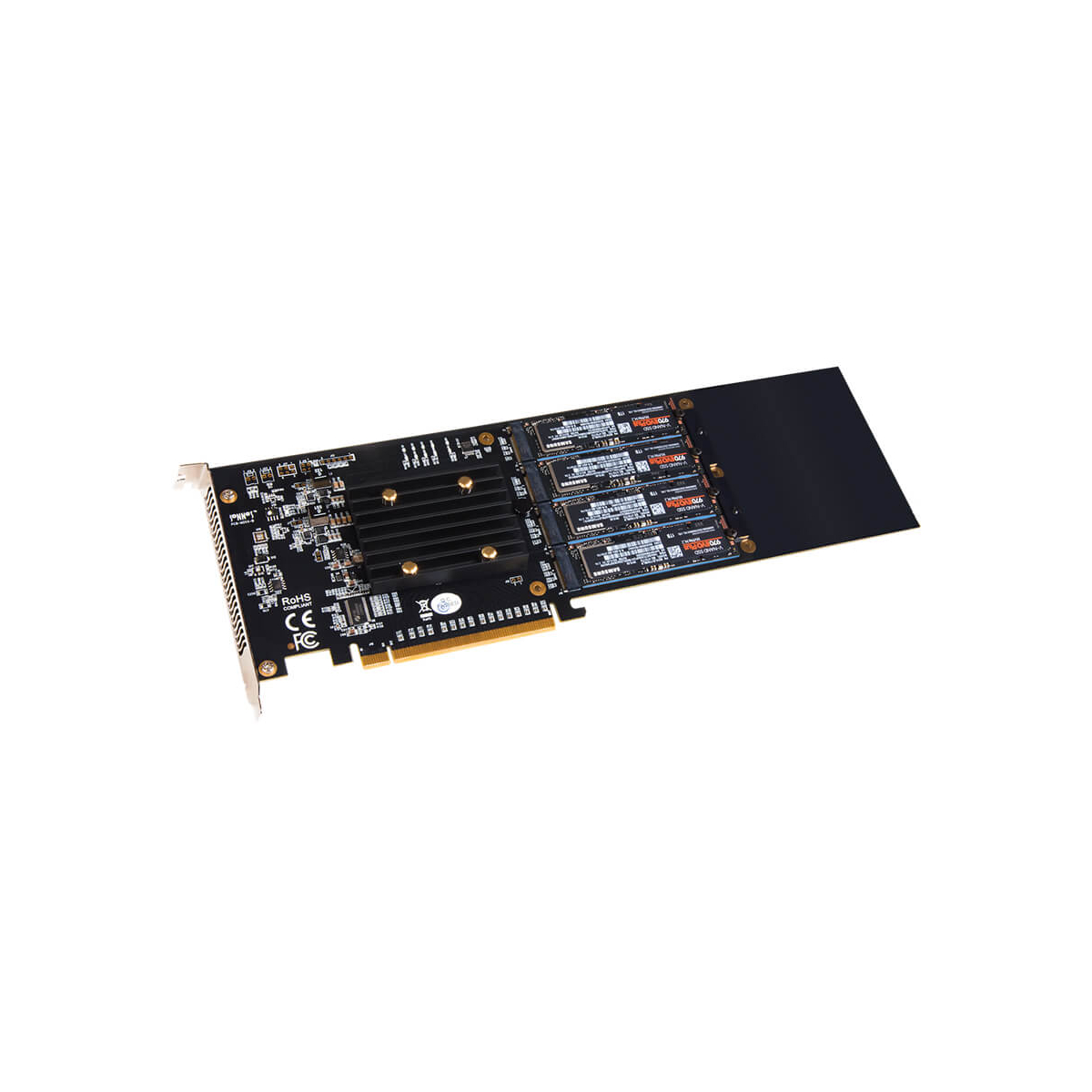

If you need to add internal storage to your computer and ultra high-speed data transfers are critical to your work, you need an NVMe SSD-based upgrade. Individually, M.2 NVMe PCIe SSDs offer tremendous performance, but Sonnet’s M.2 4x4 PCIe Card enables you to mount up to four of them into a single x16 card slot and combine their performance. No matter how you use it, this card can transform the way you work.

Use the Sonnet card for instant-access media storage or as a high-performance scratch disk in your Mac Pro® tower; Windows® or Linux® PC desktop or server; or Thunderbolt™ to PCIe card expansion system with an available x16 PCIe slot. Are you an Adobe After Effects user? Imagine being able to perform 4Kp60 work in 32-bit linear, or even 4Kp24 with high channel count EXRs (or effects in 8K) where your computer's onboard storage couldn’t keep up! Legacy Mac® users can install macOS® on one SSD to create an incredibly fast boot drive and create a RAID 0 set with the other installed SSDs and still obtain blazing-fast performance. No matter how you use it, this card can transform the way you work.

Full Performance Design – Sonnet Advantages

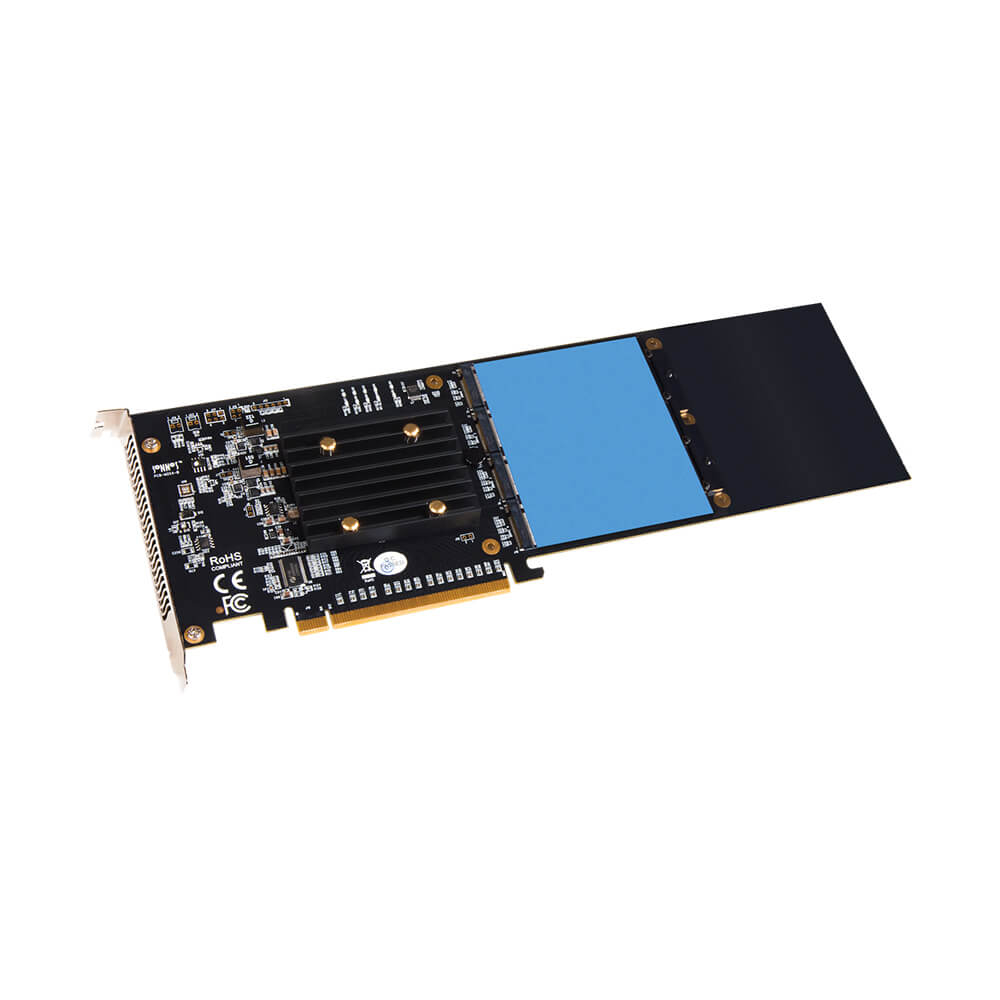

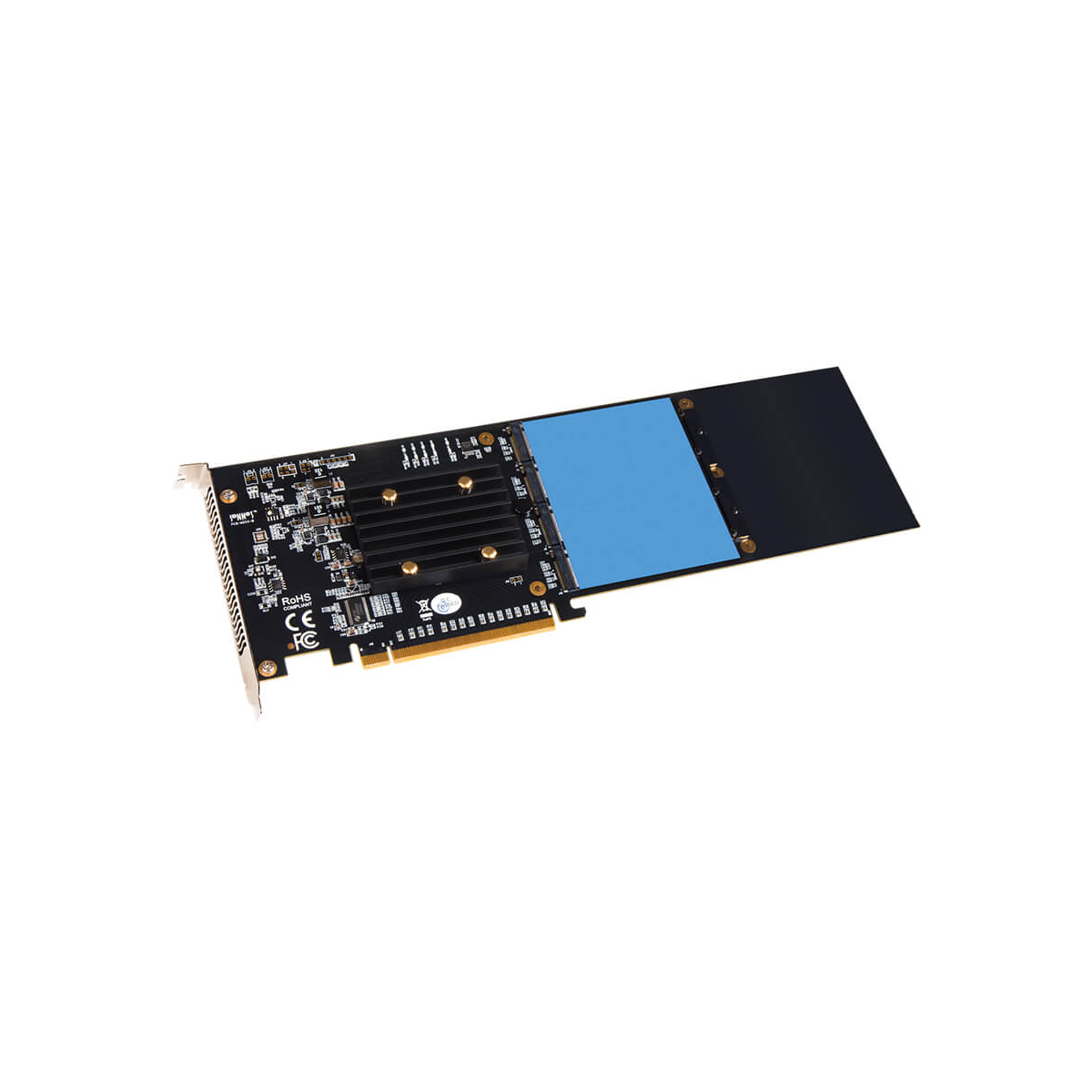

Sonnet’s M.2 4x4 PCIe card is a full-height, full-length PCIe 3.0 card with a 16-lane (x16) interface, designed to support full performance from four SSDs. Unlike “similar” adapter cards, the M.2 4x4:

  • Features a 16-lane (x16) and devotes four lanes of PCIe 3.0 bandwidth to every SSD you install (instead of limiting the x4 bandwidth to two SSDs at a time)
  • Is Mac, Windows®, and Linux® compatible
  • Works with a wide variety of single- and double-sided M.2 PCIe SSDs
  • Is self-contained and doesn’t require a specific motherboard to operate or specific SSDs to support RAID features; no PCIe bifurcation required

Adobe After Effects User?

Are you an Adobe® After Effects user? Imagine being able to perform 4Kp60 work in 32-bit linear, or even 4Kp24 with high channel count EXRs (or effects in 8K) where your computer’s onboard storage couldn’t keep up! Sonnet's M.2 4x4 PCIe Card makes it possible.

Mac Pro 5,1 User?

Mac Pro 5,1 users can install macOS® on one SSD to create an incredibly fast boot drive and create a RAID 0 set with the other installed SSDs and still obtain blazing-fast performance. Sonnet’s M.2 4x4 PCIe Card makes it possible.

Silent and Cool Running. No Slowdowns. No Thermal Throttling.

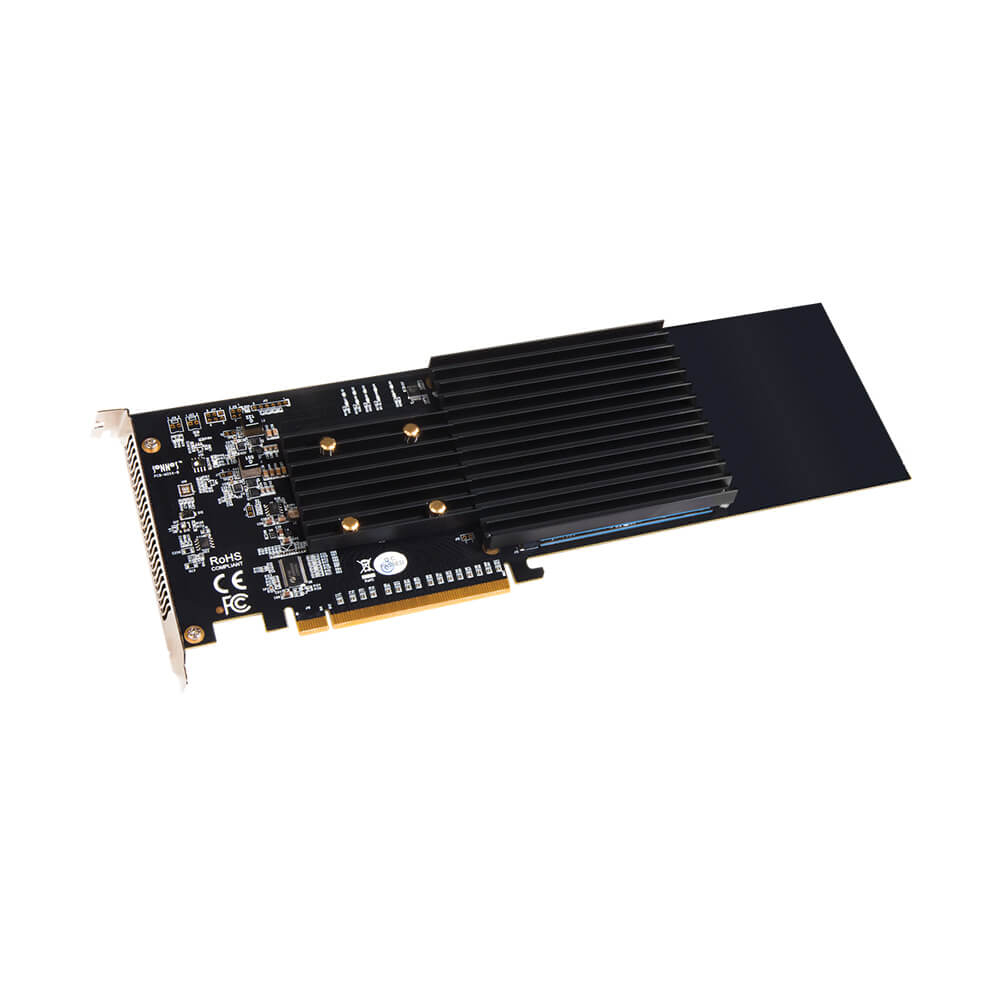

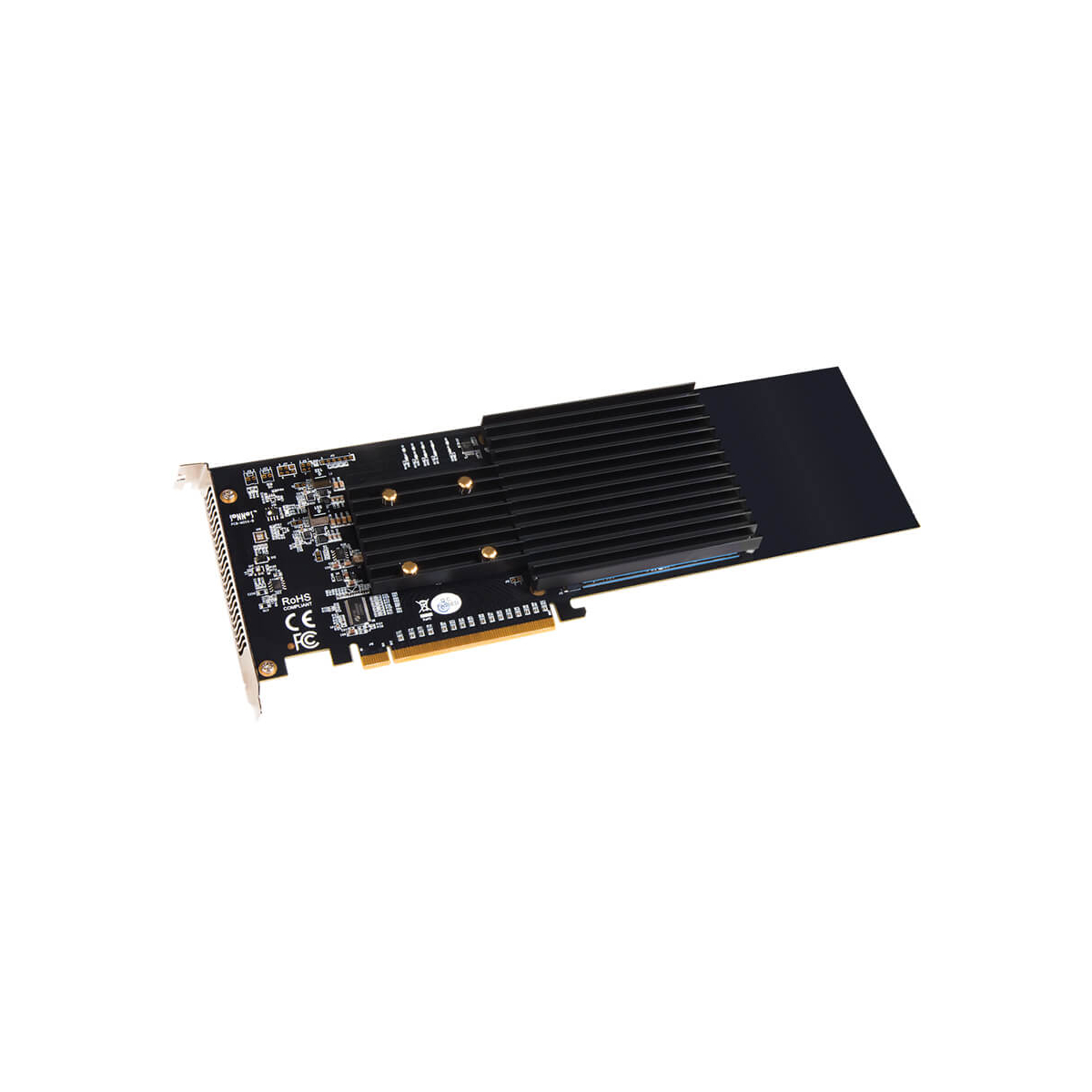

SSDs heat up significantly when performing very large file transfers. This presents a problem for most competing cards, as they provide inadequate cooling for this task and allow installed SSDs to activate their built-in thermal throttling protection feature — thermal throttling drastically cuts SSDs’ performance while allowing them to cool. Sonnet designed the M.2 4x4 PCIe Card with a silent cooling solution to prevent thermal throttling, enabling SSDs to maintain their high performance at all times.

Thunderbolt Port? Connect Four SSDs Through One Cable

Got a Thunderbolt connection, but no PCIe card slot? Sonnet’s M.2 4x4 PCIe Card is ideal for use in one of our Thunderbolt expansion systems that accept full-length PCIe cards. The combo enables you to add up to four SSDs to any Mac (M1, M2, M1 Pro, M1 Max, M1 Ultra, Intel), Windows, and Linux computer with Thunderbolt ports.

Simple and S.M.A.R.T

Integrating a Sonnet M.2 4x4 PCIe Card into your system is easy — NVMe compliance ensures the necessary drivers are installed automatically. The M.2 4x4 uses the operating systems’ built-in drive formatting utilities to format the SSDs. SSD health monitoring is supported through S.M.A.R.T. (Self-Monitoring, Analysis and Reporting Technology) data reporting, too.

Sonnet Technologies Sonnet M.2 4x4 Silent PCIe Card Specifications

Mac Compatibility
Mac Pro 7,1 (2019) – Use x16 PCIe slot (slot 3, 4, or 5) for full performance
Mac Pro 5,1(1) (Mid 2010 & Mid 2012) with available full-length x16 PCIe slot
macOS 10.13.6+
macOS Ventura compatible
Windows Compatibility
Windows computer with available full-length, full-height x16 PCIe slot (PCIe bifurcation not required)
Windows 11 and 10
Linux Compatibility Linux computer with available full-length, full-height x16 PCIe slot (PCIe bifurcation not required)
Linux Kernel 5.0+
Thunderbolt Compatibility Mac (M1, M2, M1 Pro, M1 Max, M1 Ultra, and Intel®) computer via a Thunderbolt PCIe card expansion system with available full-length x16 PCIe slot
Windows computer via a Thunderbolt PCIe card expansion system with available full-length x16 PCIe slot
Linux computer via a Thunderbolt PCIe card expansion system with available full-length x16 PCIe slot
M.2 NVMe SSDs Compatibility For a list of compatible M.2 NVMe SSDs, see the following PDF

Hardware

Form Factor
Full-length, full-height computer card
Internal Connectors Four M-keyed (NVMe) M.2 sockets
SSDs Supported Intel X540/X550 (subject to part availability)
Network Support Single-sided and double-sided(6) M.2 2280 NVMe PCIe SSDs
M.2 NVMe SSDs Compatiblity PDF
Boot Suppport macOS
- Only from a single SSD (not RAIDed)
- Mac Pro 5,1 or Mac Pro 7,1
- Any Thunderbolt Mac
Windows, Linux
- No
RAID Support macOS, Windows, Linux
- RAID 0, 1, or 5 (Stripe, Mirror, or Parity)
NVME Support Yes
S.M.A.R.T. Status Data Reporting Support Yes
RoHS Compliant Yes
  • Sonnet M.2 4x4 PCIe Card
  • Thermal transfer pads
  • SSD mounting screws
  • 2-years Limited Manufacturer's Warranty

View

Sonnet M.2 4x4 Silent PCIe Card Quick Start Guide

【Sonnet Technologies】M.2 4x4 Silent PCIe Card

HK$3,300.00
