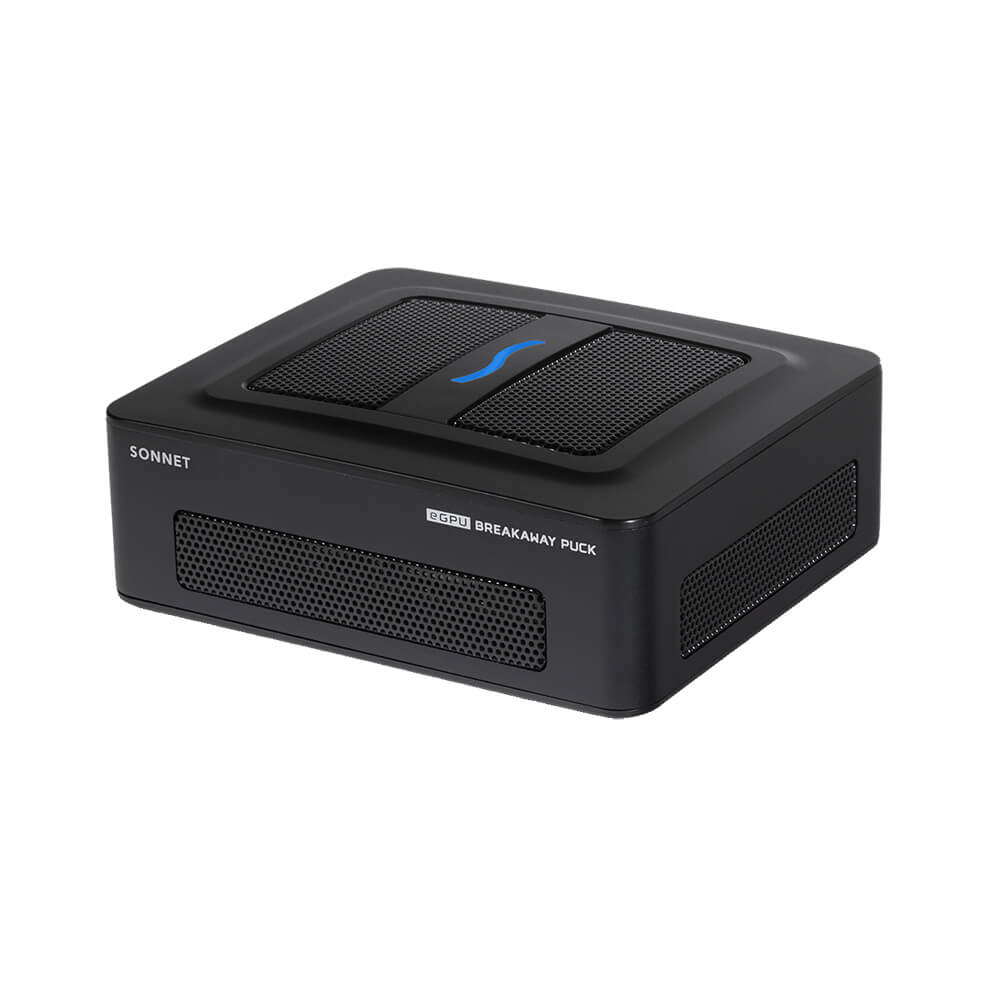

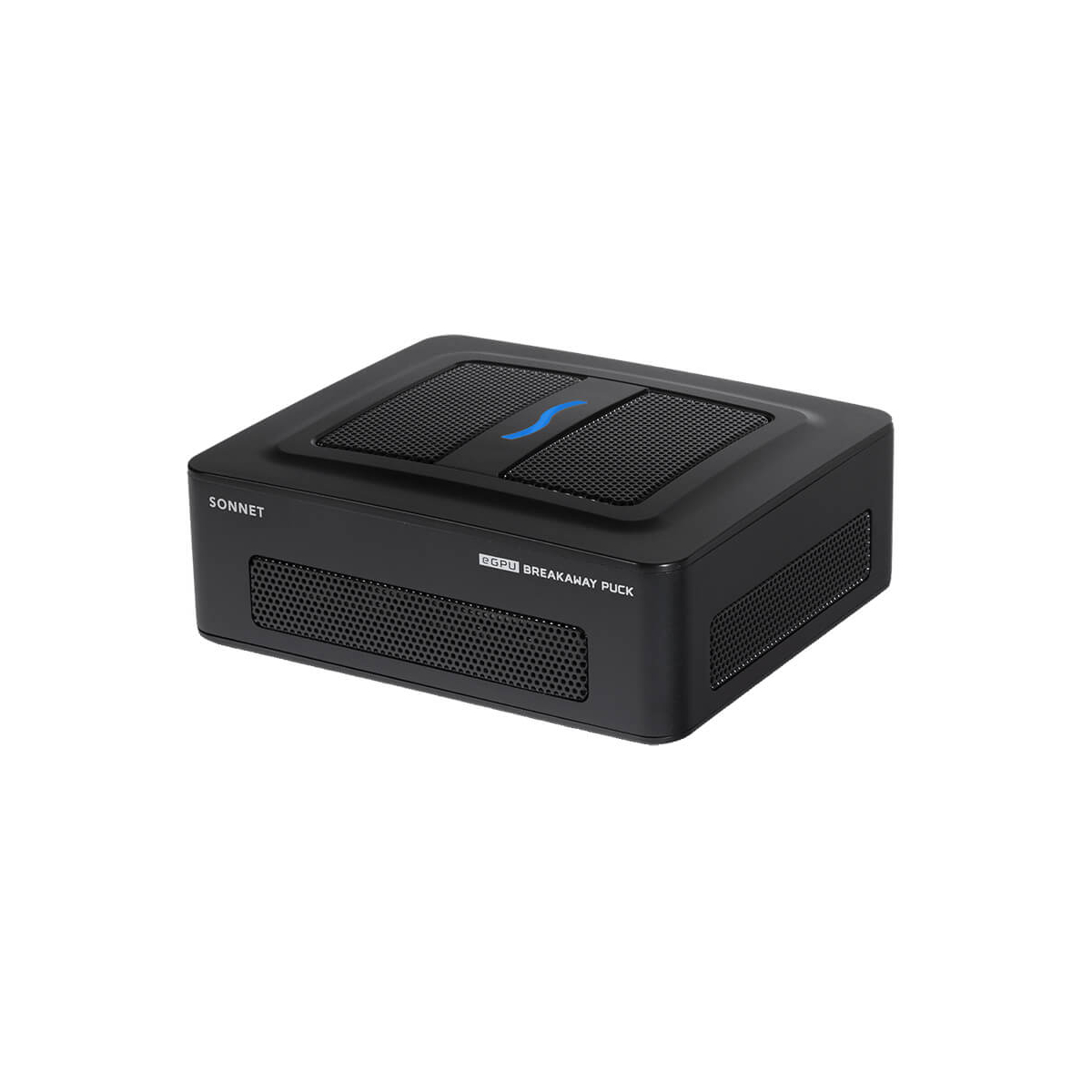

Enhance the capabilities of your Mac with the Radeon RX 5500XT eGPU Breakaway Puck from Sonnet. This portable design features a fully functioning Radeon RX 5500XT graphics card with 4GB of GDDR4 VRAM that connects to your Mac via a Thunderbolt 3 cable. Whether you are working on video editing or just playing games, the eGPU grants you the ability to use graphically demanding software with ease, making this ideal for anyone looking to expand into a more robust desktop workstation.
The eGPU features two USB 3.2 Gen 1 Type-A ports for your peripherals such as keyboards and mice. HDMI and DisplayPort outputs allow you to utilize multiple displays with resolutions up to 4K with 60 Hz refresh rate and 30-bit color HDR, giving you more screen real estate suitable for work and play. Dual Thunderbolt 3 ports allow you to fully embrace the power of the eGPU by giving you display support up to 6K resolution at 60 Hz and 60-watt power delivery for device charging. A secondary Thunderbolt 3 enabled monitor can be connected with an optional adapter, providing support for up to four displays simultaneously. Additionally, you can use an optional VESA mounting bracket kit to attach the eGPU to a monitor or desk to help save room.
Pro Application Acceleration
The eGPU delivers powerful acceleration, allowing you to use professional video applications such as Adobe Premiere, Davinci Resolve, Autodesk Maya, and Maxon Cinema 4D with ease.
Multi-Display Graphics Dock
Support up to three 4K displays simultaneously right out of the box with HDMI, DisplayPort, and Thunderbolt 3 outputs. A fourth display can be supported with an optional Thunderbolt 3 dual-display adapter. 5K and 6K displays, as well as Apple's Pro Display XDR, are also supported for an enhanced and clear picture.
Portable Design
Sporting a compact design allows you to bring this device with you, giving you workstation-like performance no matter where you go.
Thunderbolt 3 Interface
Designed for Intel-based Macs, you can experience a wide range of utility such as daisy-chaining, charging, and harnessing up to 40 Gb/s data-transfer speeds with the Thunderbolt 3 interface.
Sonnet Puck Radeon RX 5500XT Specification |
|
Form Factor | Portable External GPU System |
Video Memory | 4 GB GDDR6 |
External Connections | 2 x Thunderbolt 3 1 x DisplayPort 1 x HDMI 2 x USB 3.2 Type-A 1 x 4-Pin Power DIN |
Display Compatibility | Up to 6K Resolution at 60 Hz Thunderbolt 3 Port Up to 5K Resolution at 60 Hz USB Type-C Port Up to 4K Resolution at 60 Hz Monitor With DisplayPort 1.4 Port Up to 1440 Resolution at 60 Hz Dual DisplayPort 1.4 Ports Up to 4K Resolution at 60 Hz with HDMI 2.0b Port |
Supported Technologies | HDCP 2.2 HDR Intelligent Fan Control OpenCL 2.0 OpenGL 4.5 Metal |
Power Delivery | Provides Laptop Charging up to 60W |
Power Adapter | Universal 230W, 100 - 240 VAC, 50 - 60 Hz |
Operating Temperature | 32° to 95°F / 0° to 35°C |
Compliance | RoHS 3 (Directive 2015/863) IEC62368-1 & IEC62368-2 PSE Diamond Certified Power Supply |
Dimensions | Puck: 6 x 2 x 5.1" / 15.2 x 5.1 x 13 cm Power Supply: 3 x 1.2 x 6.1" / 7.5 x 3.1 x 15.5 cm |
Weight | Puck and Power Supply: 3.25 lb / 1.47 kg |
Warranty | Limited 2-Year Warranty |
- Sonnet Radeon RX 5500XT eGPU Breakaway Puck
- Power Cord & Adapter
- Thunderbolt 3 Cable
- Limited 2-Year Manufacturer Warranty
