USB Fusion
Make your online lectures and virtual events more engaging. Our USB Fusion hardware lets you combine camera and wired screenshare inputs into attractive live presentations for remote education, webinars, live streaming, video conferencing and more.
Capture and Combine

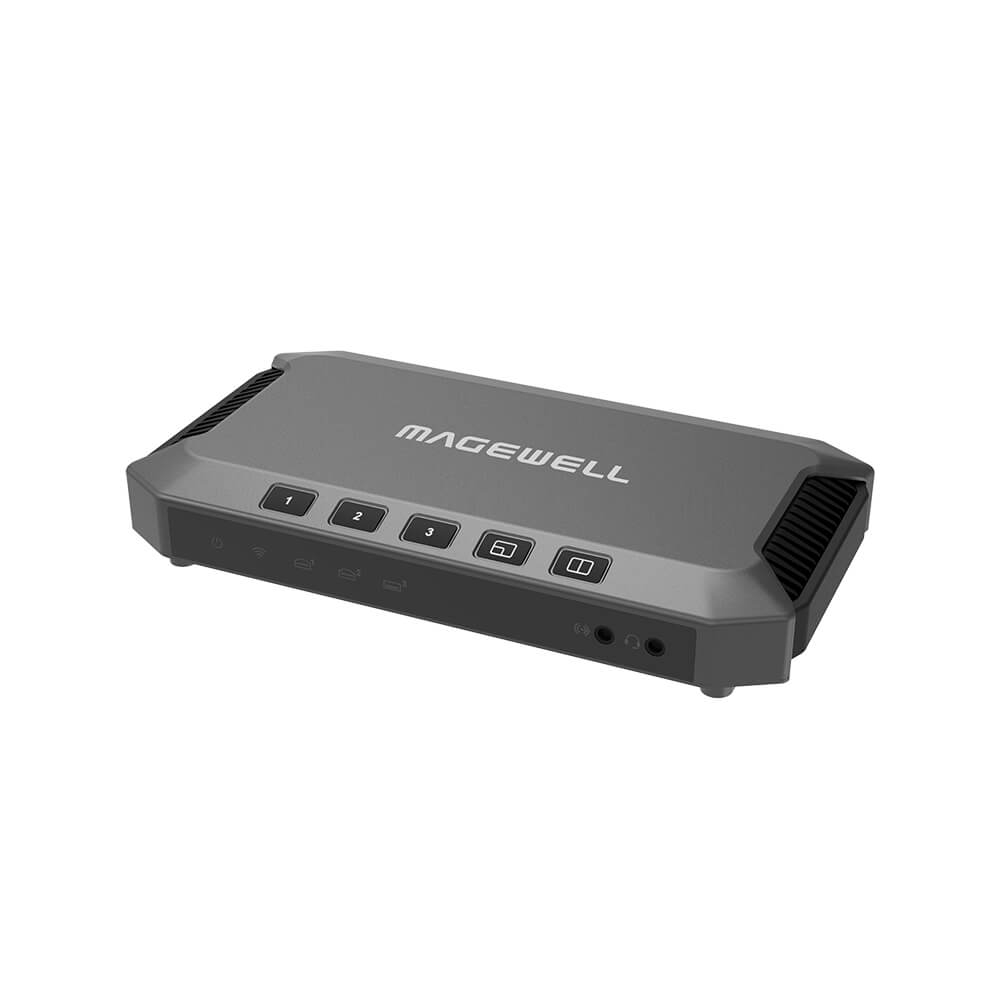

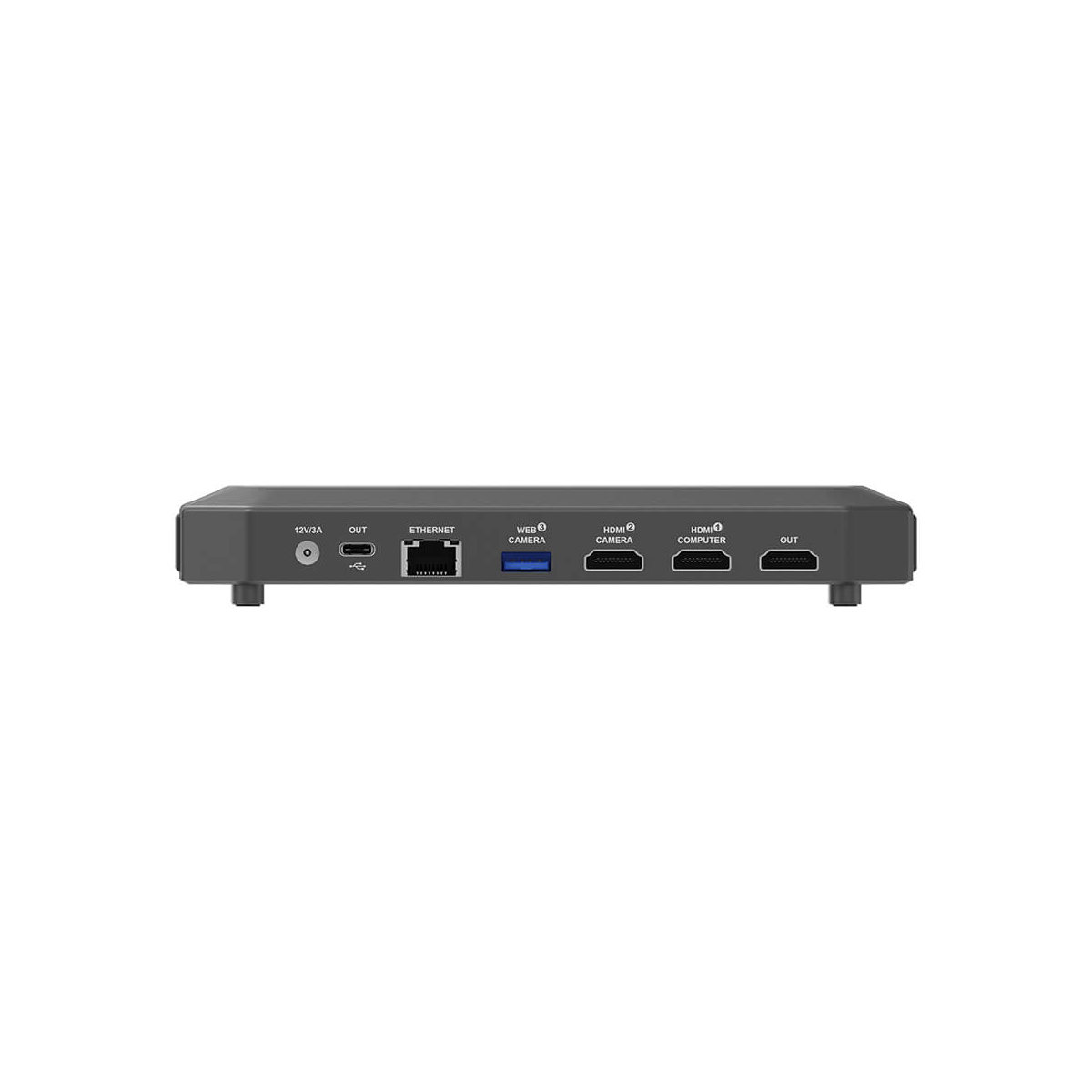

USB Fusion is a multi-input USB video capture device with integrated source switching and layout control. Offering two HDMI inputs and one USB webcam input, USB Fusion can switch between sources or combine two inputs simultaneously into one output (picture-in-picture or side-by-side) for capturing into popular software via its USB 3.0 interface.
Easy Setup and Flexible Features
As a standard UVC/UAC device with automatic, driver-free installation, USB Fusion is immediately compatible with a wide range of operating systems and software applications. Users or administrators can configure and manage the hardware through its built-in web GUI, while the free USB Fusion companion tablet app provides additional features to augment your presentations.
Engaging Presentations
Using the USB Fusion companion app, teachers and event hosts can create presentation playlists in advance and incorporate pre-recorded audio and other media files into their sessions. The app’s annotation tools can be used to mark up presentation materials, and the annotations can be exported to a file for sharing after the class or event. Sessions can also be recorded through the app to the USB Fusion hardware’s built-in storage for subsequent playback.
Flexibly Incorporate Media Files
Users can import media files including images, video clips, background music, PDFs and web pages into USB Fusion’s 128GB built-in storage for incorporation into their presentations.
Configure Through Web GUI
Users or administrators can configure and manage the hardware through its built-in web GUI.
USB Fusion APP
The intuitive tablet app for USB Fusion provides expanded layout controls and lets you add pictures, imported or captured video clips, background music and handwritten notes into your online presentations. While you are switching scenes or annotating your presentations, you can also record the output or take screenshots of important moments.
USB Fusion APP - Edit Your Scene Layouts
By simply clicking and dragging, you can easily switch layouts (picture-in-picture, side-by-side) and apply effects to your scenes such as scaling, flipping, cropping, and rotating.
USB Fusion APP - Flexible Annotations
Finger touch and stylus tools let you easily add notes to pictures, real-time video, and a virtual whiteboard or blackboard. Annotations can be exported as PDF or images files.
USB Fusion APP - Engage Your Audience with Better Audio
Check your volume and adjust your input and output audio with the USB Fusion app’s real-time audio mixer and meter.
Magewell USB Fusion Specification |
|
Scene Input | HDMI - Port: 2x HDMI 1.4 Type-A port (HDMI 1 / HDMI 2) - Resolution/frame rate: up to 1920x1080p, 60fps - Color depth: 8-bit, 10-bit, 12-bit - Color sampling: RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 USB - Port: 1x USB 3.0 Type-A port (WEB CAMERA 3) - Resolution/frame rate: up to 2040x1080p, 60fps - Codec: YUYV, H.264, MJPG, UYUV, NV12, etc. Imported files - Video file: MOV, MP4, MKV - Image file: JPEG, PNG, BMP - PDF file - Resolution: up to 4K, 8-bit - Codec: H.264, HEVC (H.265) Web page - Transfer protocol: HTTP, HTTPS |
Audio Input | Line in port: 1x 3.5mm jack, 2-channel, 48 KHz, 16-bit Headset port: 1x 3.5mm jack (CTIA standard), 2-channel, 48 KHz, 16-bit Up to 8-channel 24-bit HDMI-embedded audio at 192KHz Audio from WEB CAMERA 3 port: 2-channel (The audio is disabled by default, and can be enabled on Web UI.) Audio embedded in video files Audio file: MP3, M4A, WAV Audio of web pages |

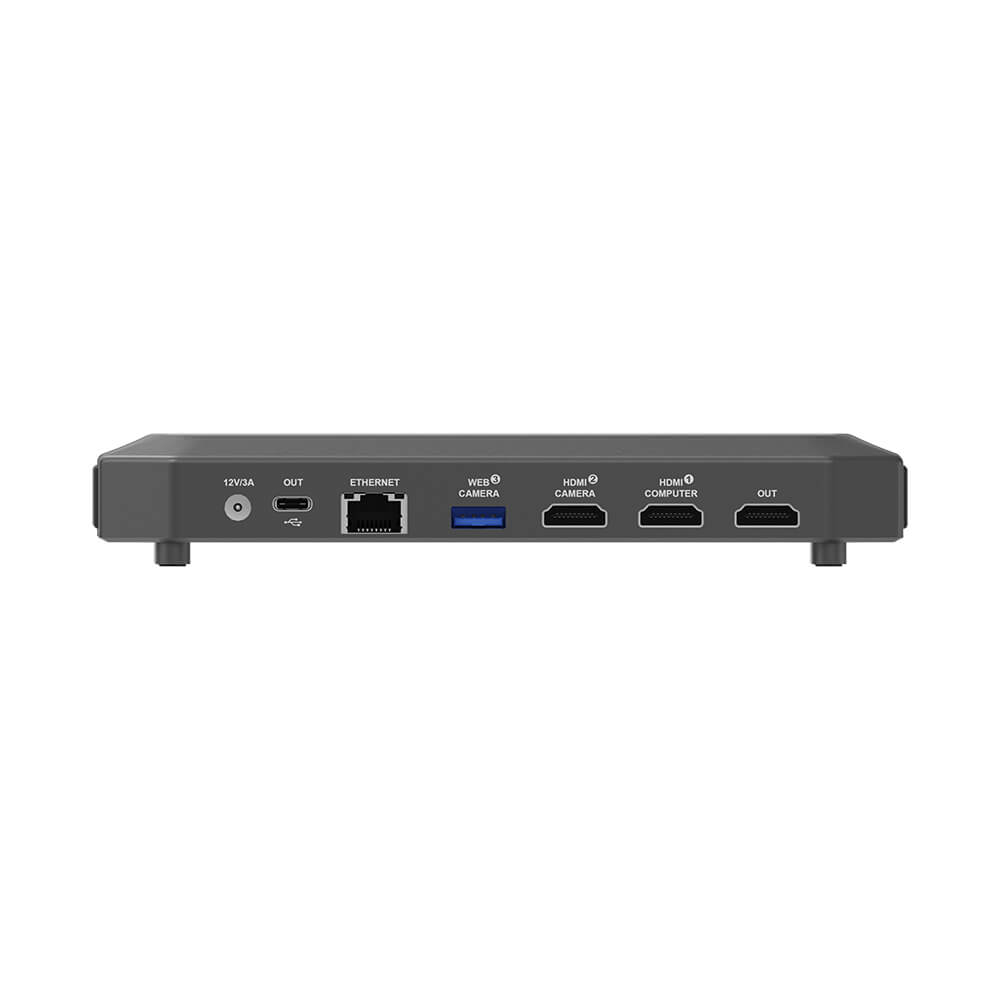

Video Output | USB OUT - Port: 1x USB 3.0 Type-C port - Resolution: 1920x1080, 1280x720, 640x480 - Frame rate: 60fps, 30fps, 15fps - Color sampling: YUYV, NV12, ARGB HDMI OUT - Port: 1x HDMI 1.4 Type-A port - Output image: HDMI 1, HDMI 2, or PROGRAM image - Output resolution: configurable, up to 2048x2048 (Actual resolution options can be limited by the negotiation result between the device and monitor.) |
Audio Output | 1x 3.5mm jack: headset port - Format: 2-channel, 48 KHz, 16-bit - Standard: CTIA Audio output via WEB CAMERA 3 port: 2-channel (The audio is disabled by default, and can be enabled on Web UI.) Audio output via USB OUT port: 2-channel, 48 KHz, 16-bit Audio output via HDMI OUT port: 2-channel, 48 KHz, 16-bit |
Video Processing & Production | HDMI source - Video/audio signal data: auto extracted - Color space/quantization range: calibration supported - De-interlacing: Bob, motion adaptive, motion compensated - EDID: self-definition supported USB source - Format: selects according to the source - Resolution/frame rate: selects according to the source PDF source - Supports turning pages, visiting hyperlinks, zooming in and out, etc. Web page source - Supports browsing web pages, visiting hyperlinks, zooming in and out, etc. - Supports inputting information through the remote keyboard Auto conversion of frame rate/color space Source switching: auto, manual Scene compositing: picture in picture, side by side Scene editing: crop, mirror, scale, rotate, and more Annotation: pens, shapes, text, and more, generated as notes for exporting Presentation: supports creating, importing, exporting, managing presentations, etc. Watermark: supports adding and applying text or picture (JPG, JPEG and PNG) as a watermark into the presentation |
Audio Processing & Production | Auto resampling Auto audio de-embedding and embedding Controls volume of audio output and each audio input Supports microphone gain |
Recording and Screenshot | Supports manual and schedule recording to local storage, with default format of 1080p60, H.264, MP4 (Recording parameters and schedule can be configured on Web UI ) Screenshot format: JPEG, 1920x1080 Storage space: 128 GB Cloud backup: supports automatically or manually uploading recorded video and screenshots to Google Drive |
Provided Software | USB Fusion App - Creates, edits and controls presentations - Supports HD, SD, Auto and customized preview quality - Takes and manages recordings and screenshots - OS version: iOS 12 and later, Android 7.0 and later Web UI - Configures and manages the device - Creates, controls and manages presentations and media files - Configures recording parameters and sets schedule recording - Source: selects the source to record, and selects whether to only record the image - Encoder: sets resolution (up to 1080p60), bitrate mode (CBR or VBR), audio (up to 48Khz, aac, 256kbps), etc. - Storage: supports local storing as MP4 or MOV files, and splitting files by time or size - Schedule: sets recording schedule to implement recording automatically during the specified time period - Manages recordings and screenshots, and supports auto or manual backup to Google Drive - Sets the login mode of the App to the device, including free login, password to login and pairing to login - Customizes preview quality for the App - Sets sleep - Supports registering Magewell Cloud for centralized management |
Network | Ethernet: 1x RJ45 port, 10/100/1000 Mbps Base-T Wi-Fi network: IEEE 802.11 a/b/g/n/ac/ax, Station mode and AP mode supported USB network: 1x USB OUT port |
Compatible Software | Skype, Zoom, Microsoft Teams Other UVC/UAC compliant, DirectShow/V4L2/ AVFoundation compatible software |
Compatible OS | Windows: Windows 7 and later, Server 2008 and later (x86 & x64) Linux: Linux system with kernel 2.6.35 or later (x86, x64 & ARM) Mac: OS X 10.9 and later, macOS 10.12 and later |

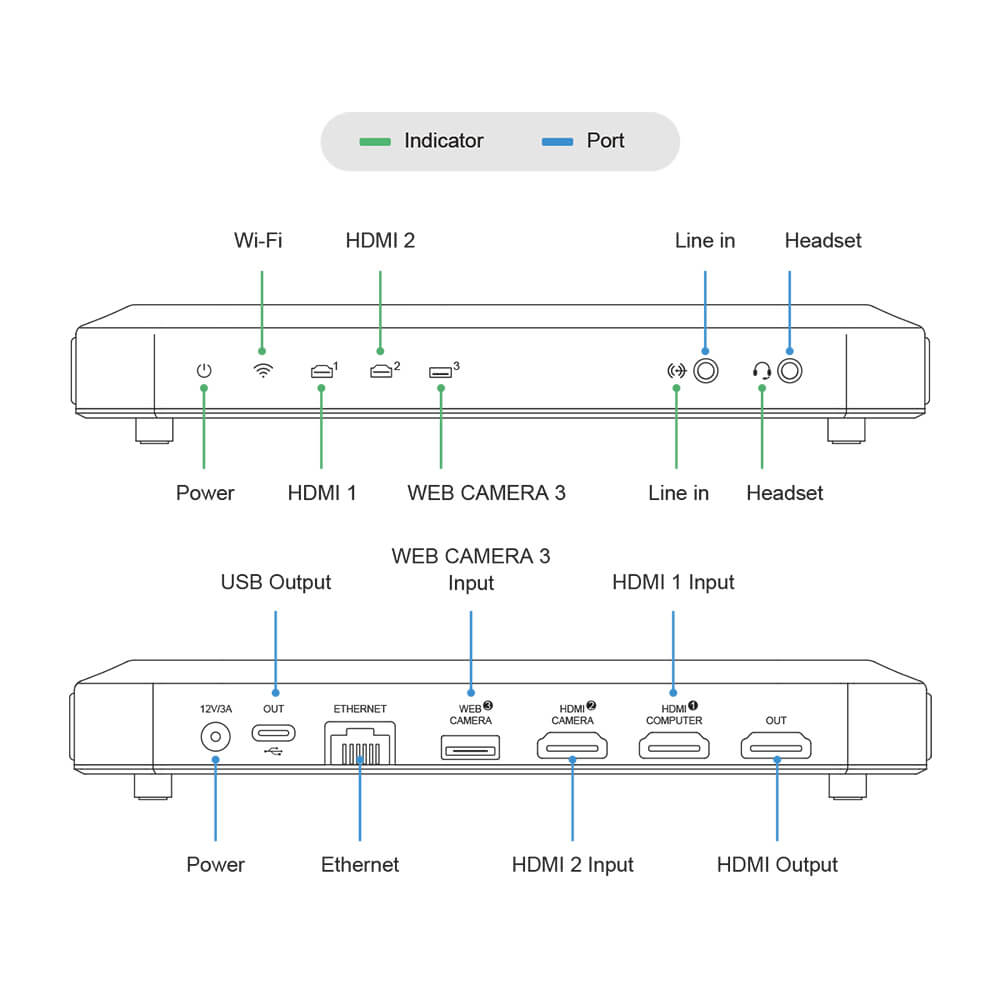

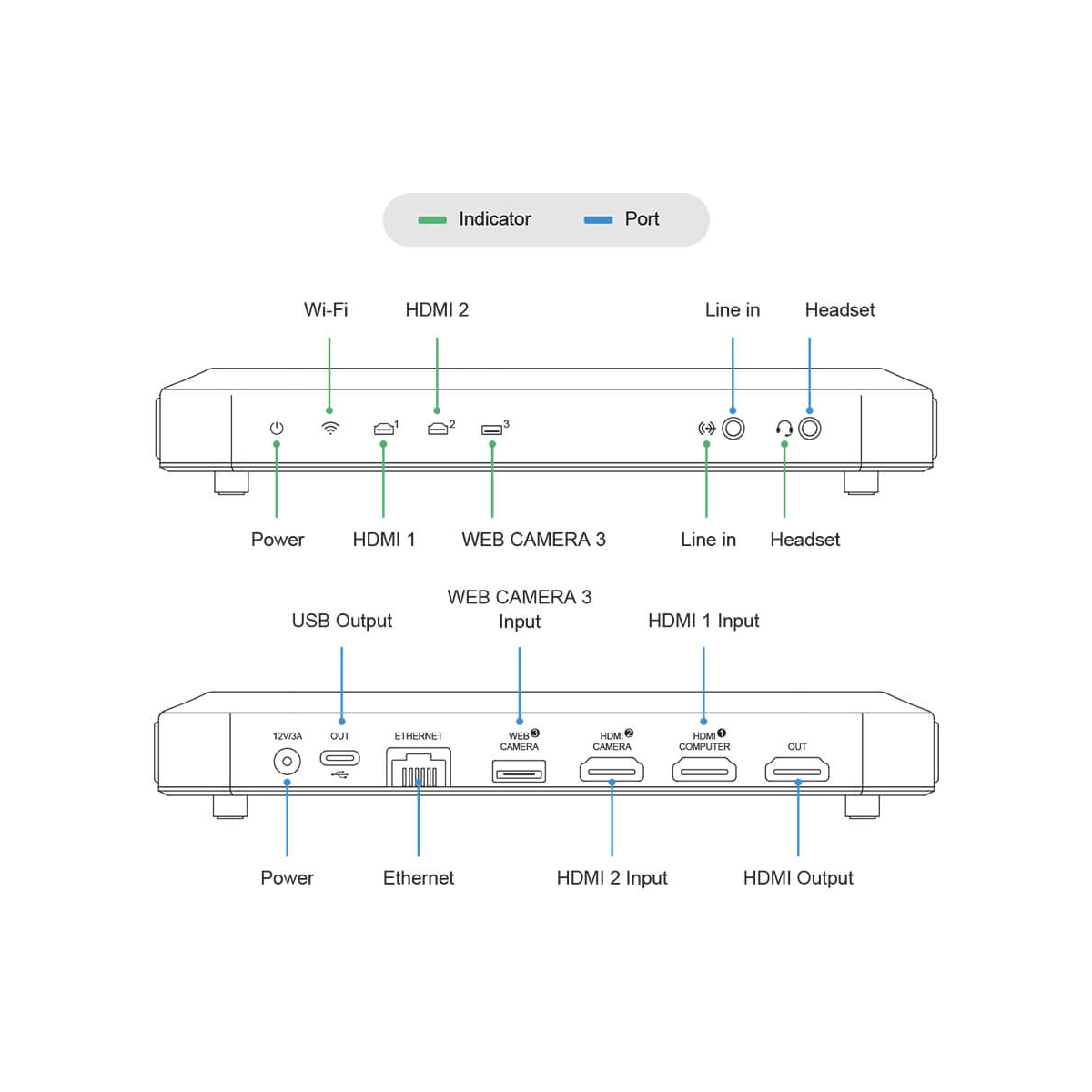

Buttons | Switches and composites sources Starts or stops pairing for “Pairing to login” mode Wakes up the device when it is sleeping |
LED Indicators | Power - On: power on - Off: power off Wi-Fi / HDMI 1 / HDMI 2 / WEB CAMERA 3 - On: connected - Off: not connected Line-in / Headset - On: connected - Pulsing: not connected |
Power | Power port: 2.1mm x 5.5mm jack Power input: 12V/3A |
Power Consumption | Static working status: 10W Full-load working status: 17.5W Static sleeping status: 9.8–10w Full-load sleeping status: 14.5–14.8W |
Dimensions | 186mm x 101.2mm x 30mm |
Accessories | 1x Power adapter - Output: 12.0V/3.33A 1x USB 3.0 cable |
Working Environment | Operating temperature: 0 to 40 deg C Storage temperature: -20 to 70 deg C Relative Humidity: 5% to 90% non-condensing |
- Magewell USB Fusion
- 1x Power adapter - Output: 12.0V/3.33A
- 1x USB 3.0 cable
- 2-years Limited Manufacturer's Warranty
