Input Features
Max input & loop through signal at 12G 4096x2160 60fps 10Bit YUV4:2:2
Video format supports RGB/YUV 4:4:4 8/10/12-bit, YUV 4:2:2 12-bit, YUV 4:2:0 8/10/12-bit
Up to 8 channels, 24-bit SDI embedded audio, with a sample rate of 192kHz
Audio input through via 3.5mm line in supports 2-channel IEC60958 standard audio stream
Process and Capture Features
Video processing pipelines with ~700Mpixels/s processing bandwidth
Supported color depth for video capture is up to 10-bit
Capture videos up to 4096x2160, frame rates up to 240fps. Outputs include (actual capture frame rate can be limited by the USB bandwidth and internal working frequency.*):
- 4096x2160p/3840x2160p 23.98/24/25/29.97/30/50/60
- 2560x1440p60
- 1920x1080p/1280x720p 23.98/24/25/29.97/30/50/59.94/60
- 720x576p25
- 720x480p30
Output P010/Y210/NV12/I420/YUY2/UYVY/RGB24/RGB32 videos
Output audio of SDI signal via 3.5 mm line out
Supports 2-channel IEC60958 standard audio stream
Included Software
USB Capture Utility enables users to easily check and set the capture-related parameters, upgrade firmware of the capture device and export info needed for troubleshooting
SDK & APIs
The MWCapture SDK provides functions including signal status extraction, capture configuration and real-time audio & video capture, etc
Windows DirectShow/Wave API/DirectSound/WASAPI
Linux V4L2/ALSA
macOS AVCaptureSession/AudioUnit

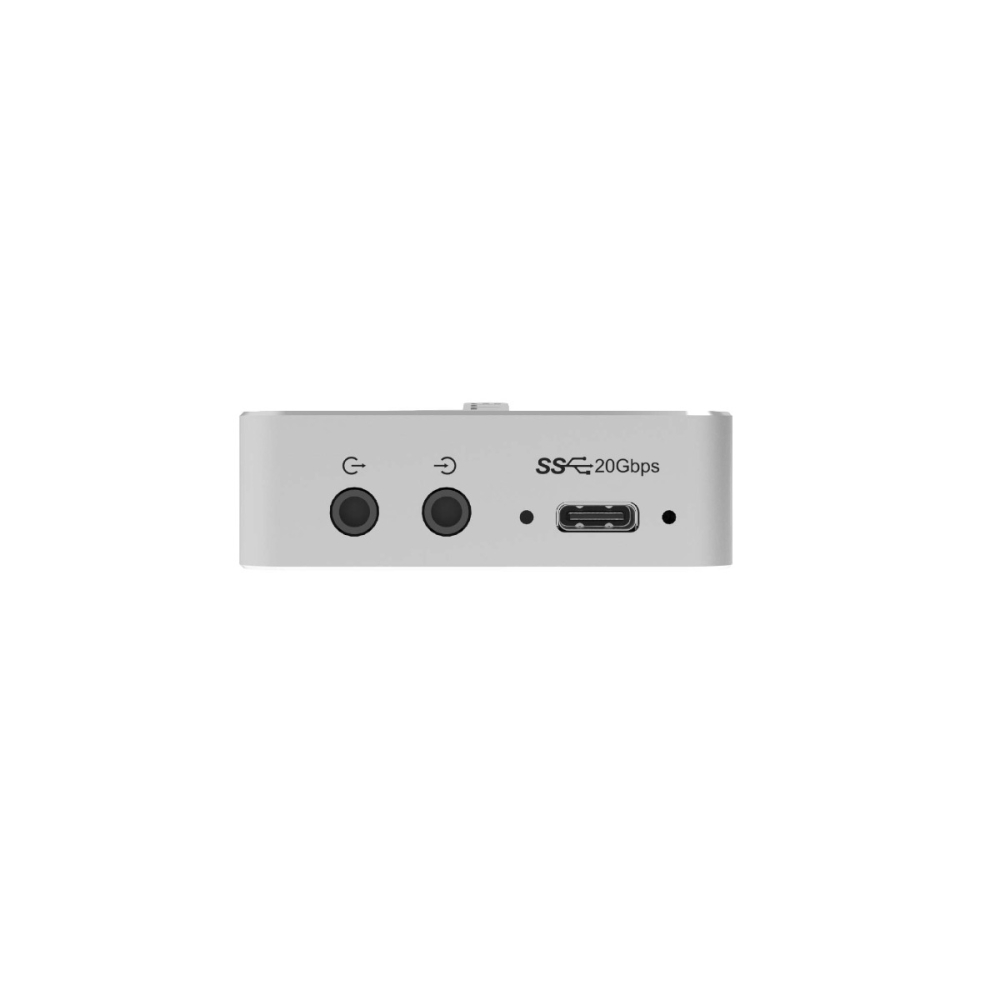

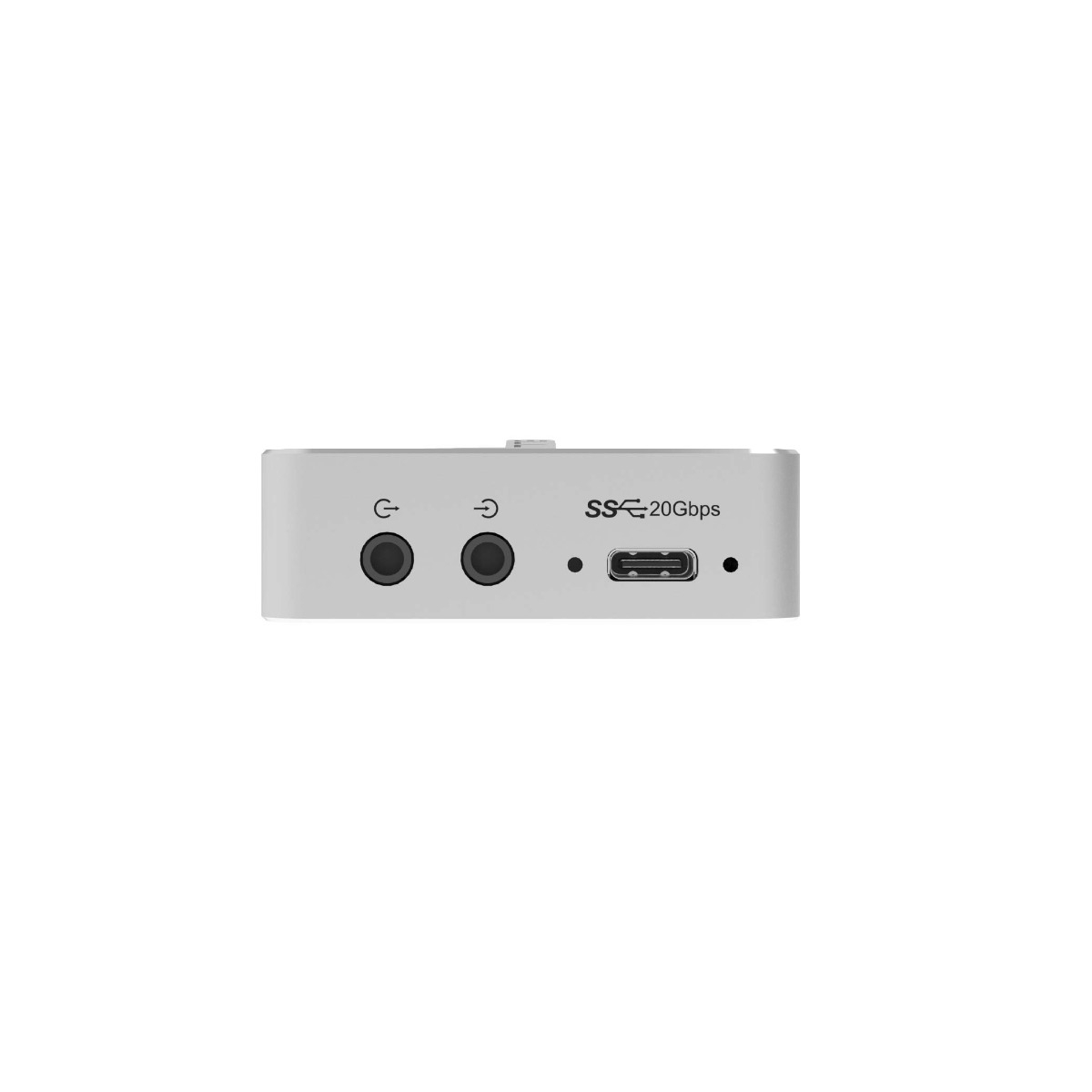

Output Interface
USB 3.2 (20 Gbps) Type-C
Compatible Software
Zoom Rooms
Microsoft Teams
Skype for Business
Google Hangouts
GoToMeeting
Gstreamer
VLC
OBS Studio
XSplit
QuickTime Player
Any other DirectShow/V4L2/AVCaptureSession based encoding or streaming software
Recommended OS
Windows 10/11/Server 2016/Server 2019/Server 2022 (x86 & x64) and above
Linux x86, x64 & ARM architecture, with 2.6.35 and above
Mac OS X 10.9 and above
macOS 10.12 and above
Chrome OS
LED Indicator
Status LEDs indicate the working state of the device:
- Pulsing slowly: input signal unlocked
- On: input signal locked
- Double blinks: memory abnormal or FPGA configuration failed
- Off: firmware or power supply abnormal
Form Factor
4.35 inches (L) x 2.24 inches (W) x 0.71 inches (H) (110.6mm x 56.8mm x18mm)
Power Consumption
5V max current: ~1.439A
max power consumption: ~7.194W
Working Environment
Operating temperature: 0 to 60 deg C
Storage temperature: -20 to 70 deg C
Relative Humidity: 5% to 90% non-condensing
* Supported resolutions and frame rates see for Windows/Linux OS and for macOS.
