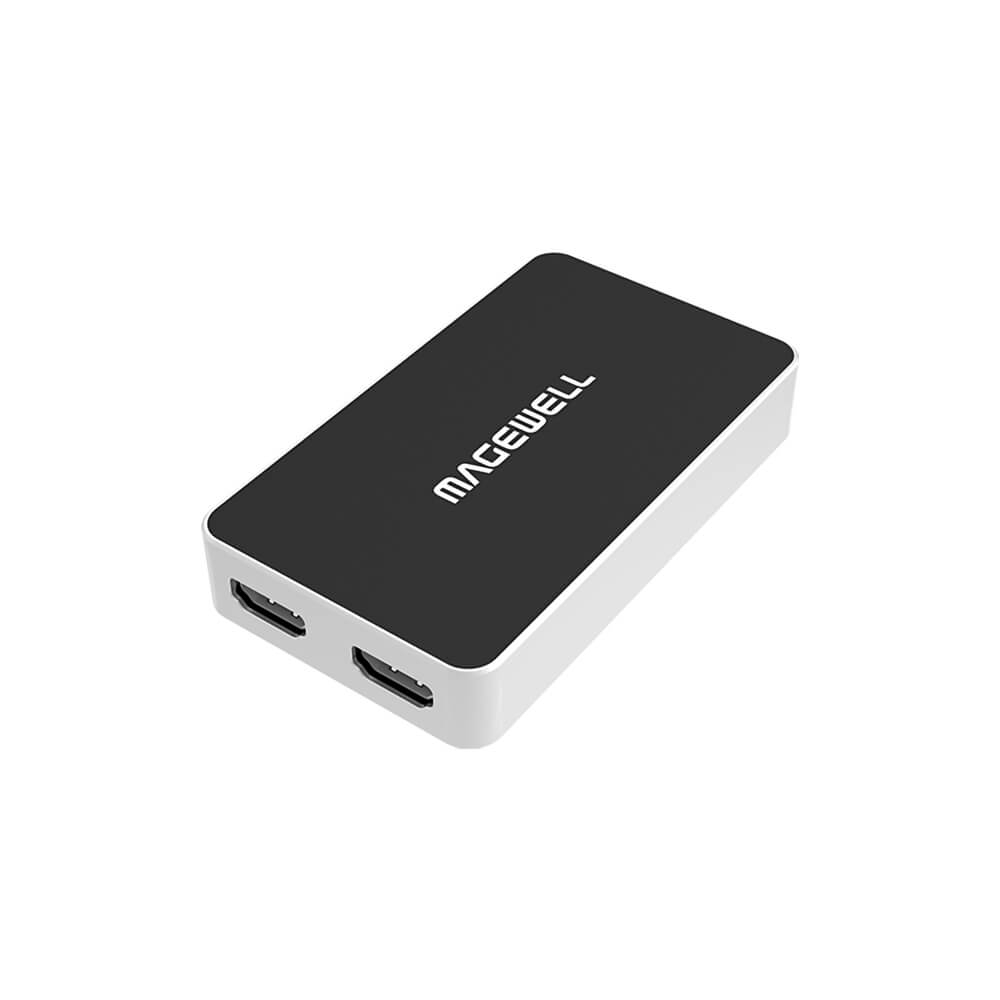

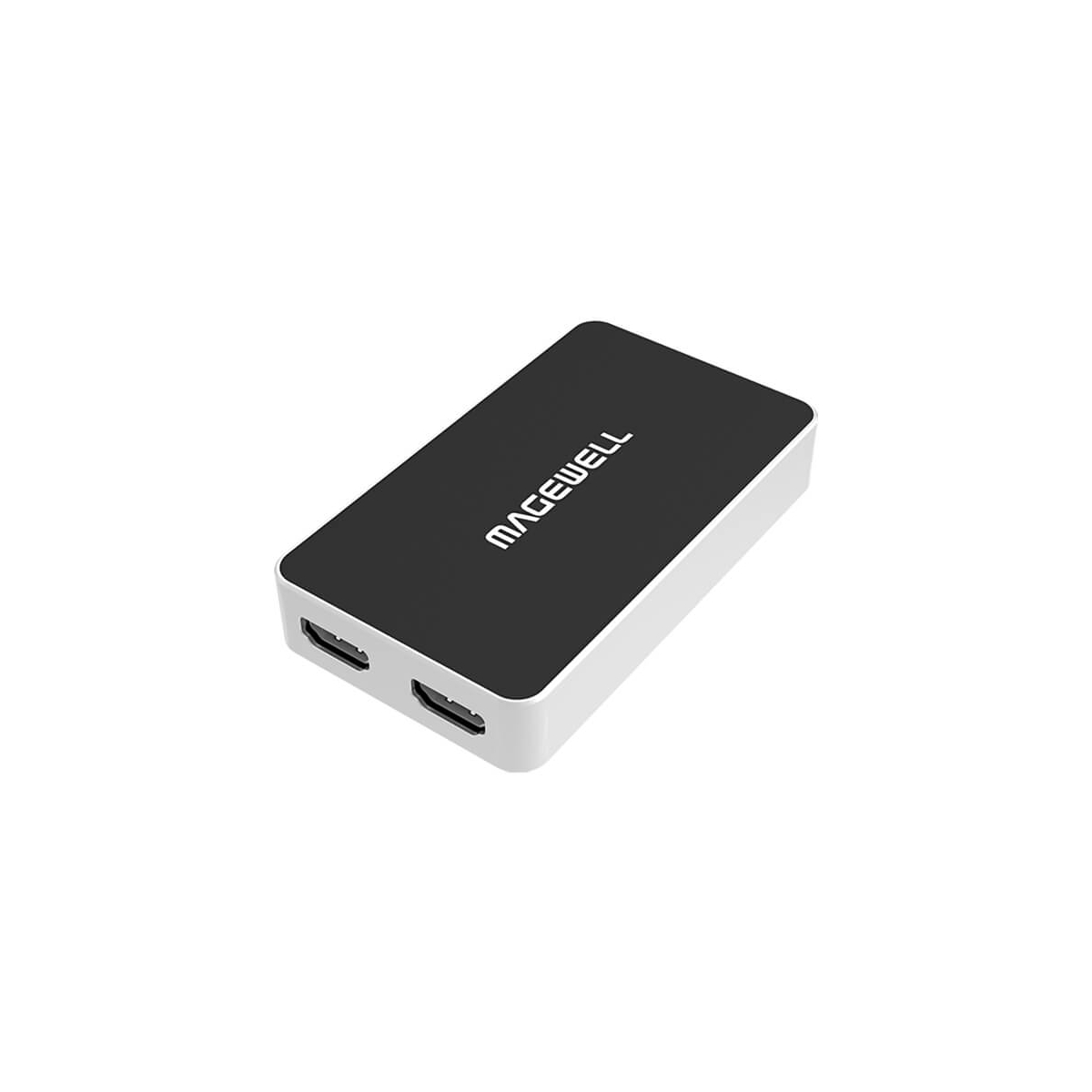

【Magewell】USB Capture HDMI Plus One-Channel Capture Device

  • One-channel HDMI 2K capture device
  • Supports up to 4Kp60 (4096×2160) resolution
  • Capture HDMI + embedded audio
  • Loop-through HDMI signal

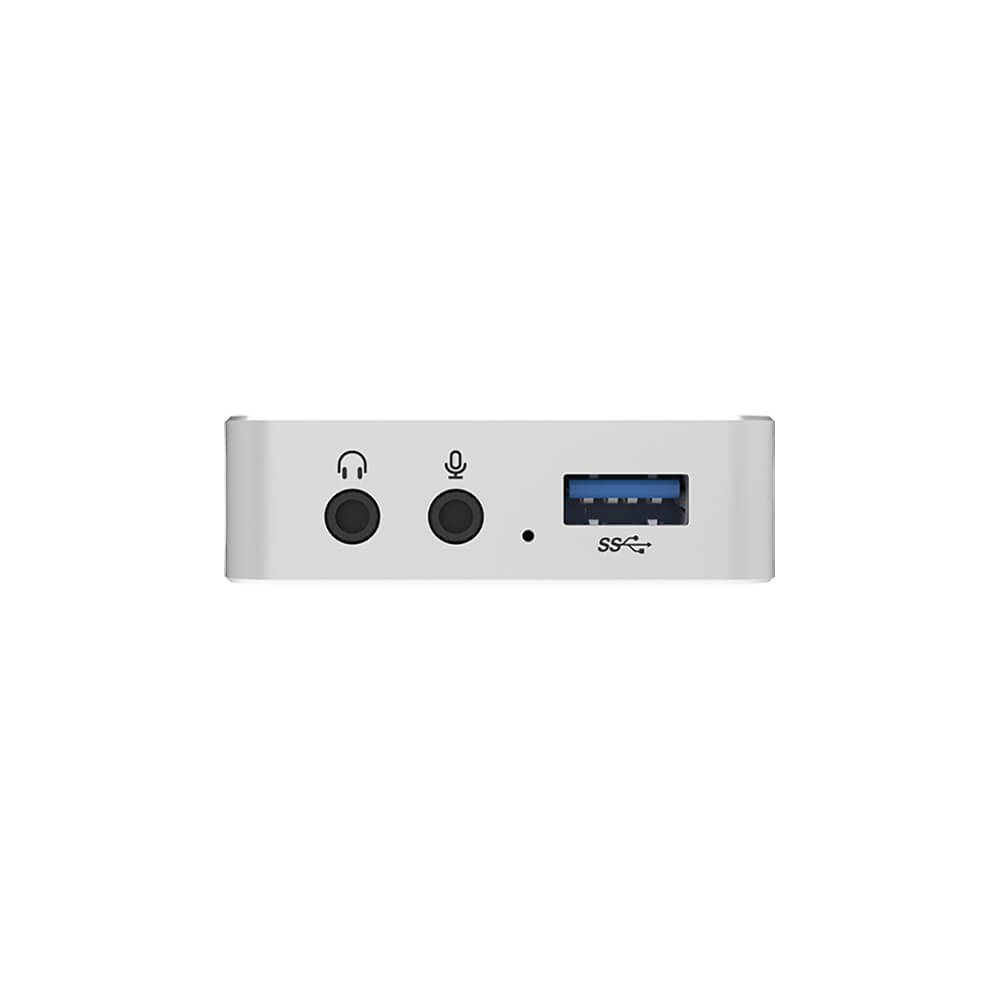

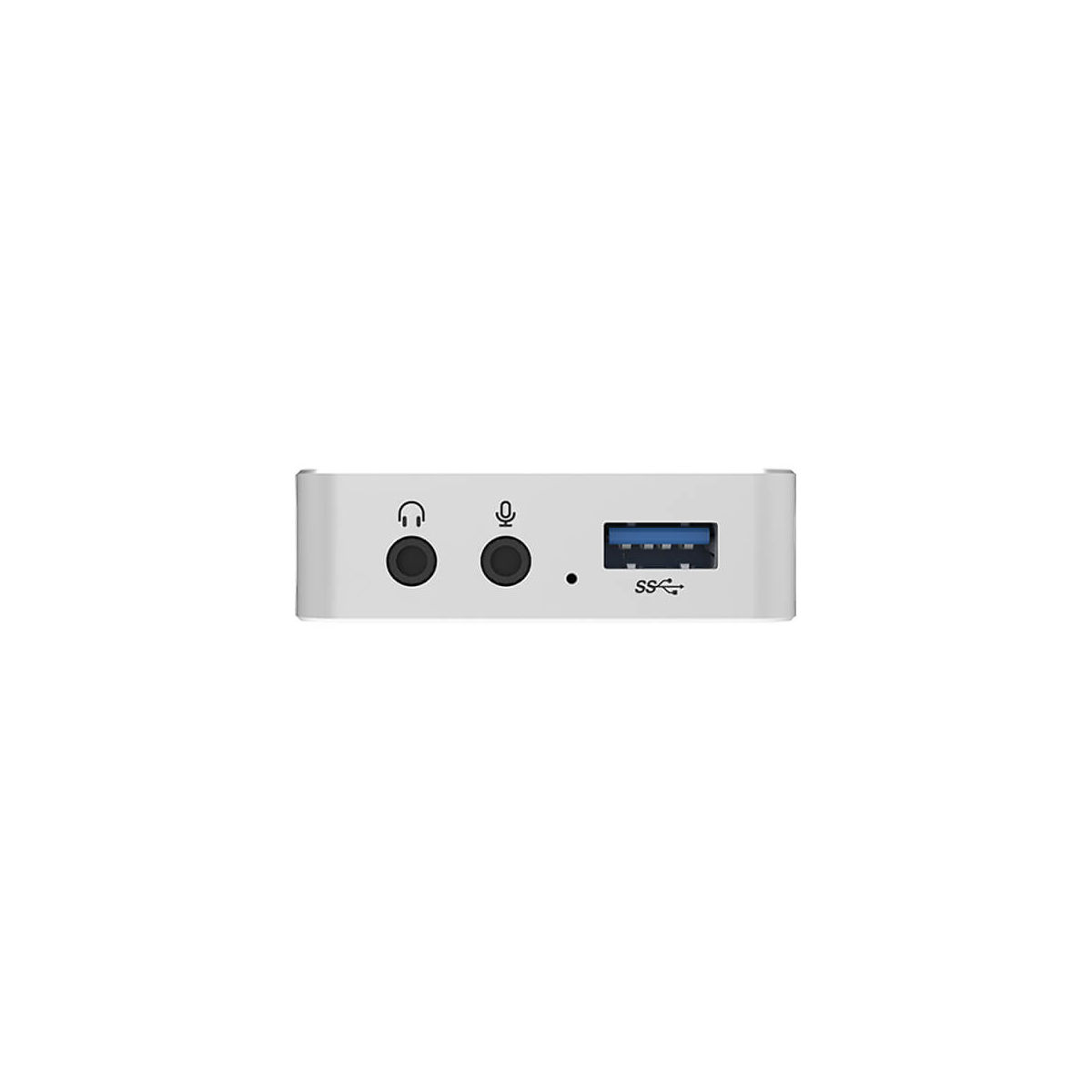

  • Audio input via mic
  • Extract HDMI embedded audio output via headphones
  • Hardware Scaling and De-Interlacing
  • Performs Frame-Rate Conversion
  • Compatible with Windows, Mac and Linux
  • Support Capture from the PS4 Pro and XBOX One S
  • Automatically down scale to 2K for recording or streaming

Local Delivery

CHINAM is currently shipping within Hong Kong and specific countries only. We use local courier service as our delivery company. We do not support shipping items in a single order to multiple shipping addresses. To ship items to an additional address, please place a new order to us. Unless otherwise specified, delivery charge at the rate of HK$300 will be imposed on each delivery. We currently offer free delivery for each order over HK$1,000.

For remote areas or outlying islands delivery service, please contact our sales team via email - sales@chinam.com.hk

International Delivery

We will do our best to ship internationally to countries where we do not have sales representation. Please register with us, we’ll keep you updated and notify you when this is about to happen and become available in your region. Please note, at this time the customer is responsible for the duties and taxes imposed by their country.

For international shipping please contact our sales team via email - sales@chinam.com.hk

Deliver Time

  • Once your order has been handed over to the carrier for delivery, you will receive a shipment notification email with an estimated delivery date. Please note that it is not possible to expedite your delivery and receive your package earlier than the scheduled delivery date. Therefore, we are unable to accept requests for expedited delivery. Our carriers are unable to provide an exact time of day for your delivery. If you ordered multiple items, you may receive separate shipments.
  • All estimates are based on business days. We only make deliveries in the specified areas of Hong Kong from Monday to Sunday except on the first two days of the Lunar New Year and when typhoon warning signal No. 8 or above or black rainstorm warning is in force.
  • All rescheduling of delivery, additional purchases, new sales memos and amendments must be made 3 days before the scheduled delivery date. Otherwise, a double delivery charge will be incurred.
  • We may deliver the merchandise in one or more installments, and some of the merchandises may be delivered directly from suppliers. Any times and dates given for dispatch of merchandise, or the length of time that merchandise will take to be delivered, are only estimates. If we are unable to meet any stated dispatch or delivery dates or times we will inform you as to the progress of your order. You agree and accept that under no circumstances will we accept cancellation of order or refund.

Signature On Delivery

  • Most of our shipments contain valuable items. If you will not be in attendance to accept delivery of your purchase, consider shipping to someone you trust will be able to sign for your package. For your convenience, you may prefer to have your order delivered to your office address. If you choose this option, please include the name of your business in the address. Please note, if you choose this option, goods may be left with reception or the Mail Room.
  • As our carriers require a signature on delivery, the carrier will leave a calling card if you are not at home. Please contact the carrier to reschedule delivery.
  • For postal deliveries, no signature is required and order status tracking is not available.
  • Delivery failure due to no one answering the door upon the arrival of goods at the appointed time, or to circumstantial limitations such as the entrance being too small, will require a rescheduled delivery and therefore incur double delivery charges.
  • We will deliver the merchandise ordered by you to the address you give us for delivery at the time you make your order through our staff or a third party provider. You agree to present your photo identification upon request when you acknowledge receipt of the merchandise. The merchandise shall be, and shall be deemed to be, delivered and accepted by you when the merchandise are delivered to the address you give us for delivery. You agree and accept that we are entitled, at our option, to charge you additional costs or cancel your order in the event of your failure to accept delivery for whatever reasons.

General

  • You will become the owner of the merchandise you have ordered when they have been delivered to you. Once merchandise has been delivered to you they will be held at your own risk and we will not be liable for the loss or damage.
  • You may not export any products purchased at CHINAM online store. We sells and ships products to end-user customers only. Notwithstanding order confirmation, CHINAM may cancel any order where it has reasonable grounds to believe the product is not being purchased for end use.
  • If there is any inconsistency or ambiguity between the English version and the Chinese version, the English version shall prevail.
  • We reserve the final right to terminate or alter the above terms and conditions. In the event of any dispute, our decision shall be final and conclusive.
In stock (contact us for lead time)
SKU
32040 / 320400000
Write Your Own Review
You're reviewing:【Magewell】USB Capture HDMI Plus One-Channel Capture Device
Your Rating

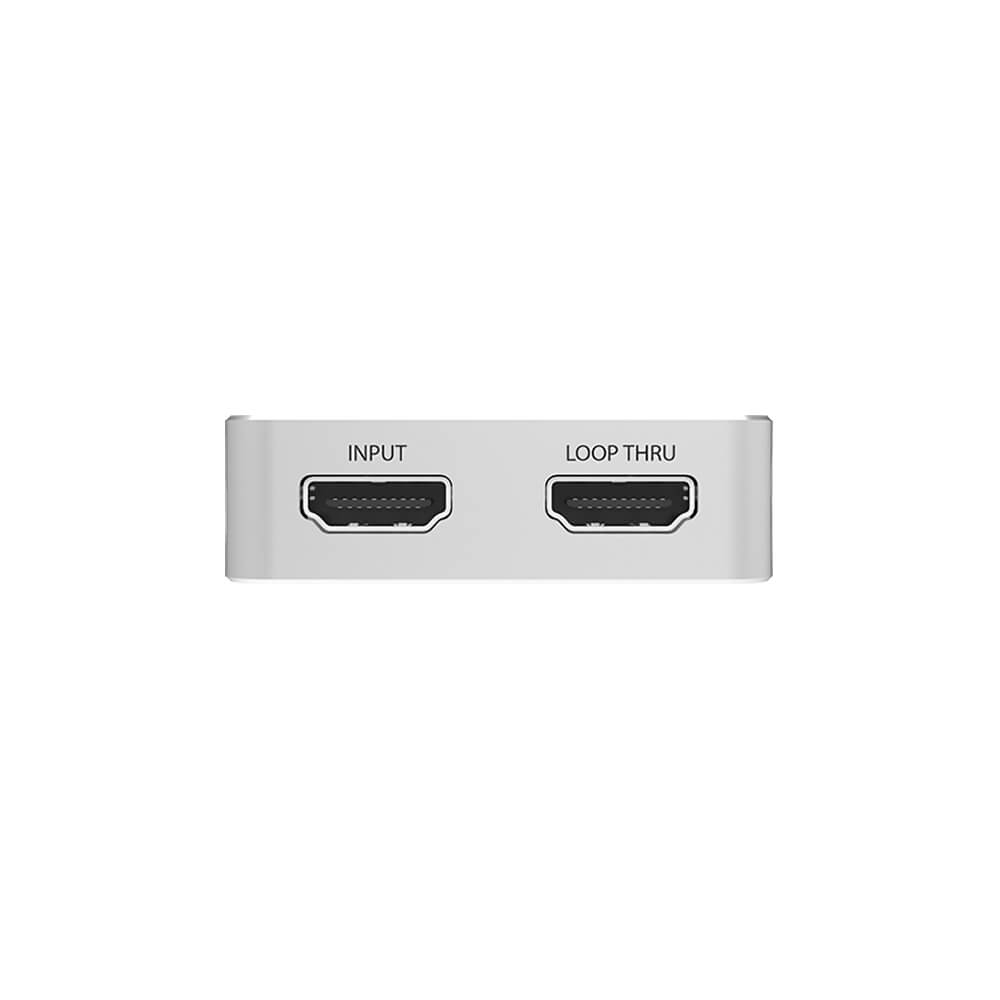

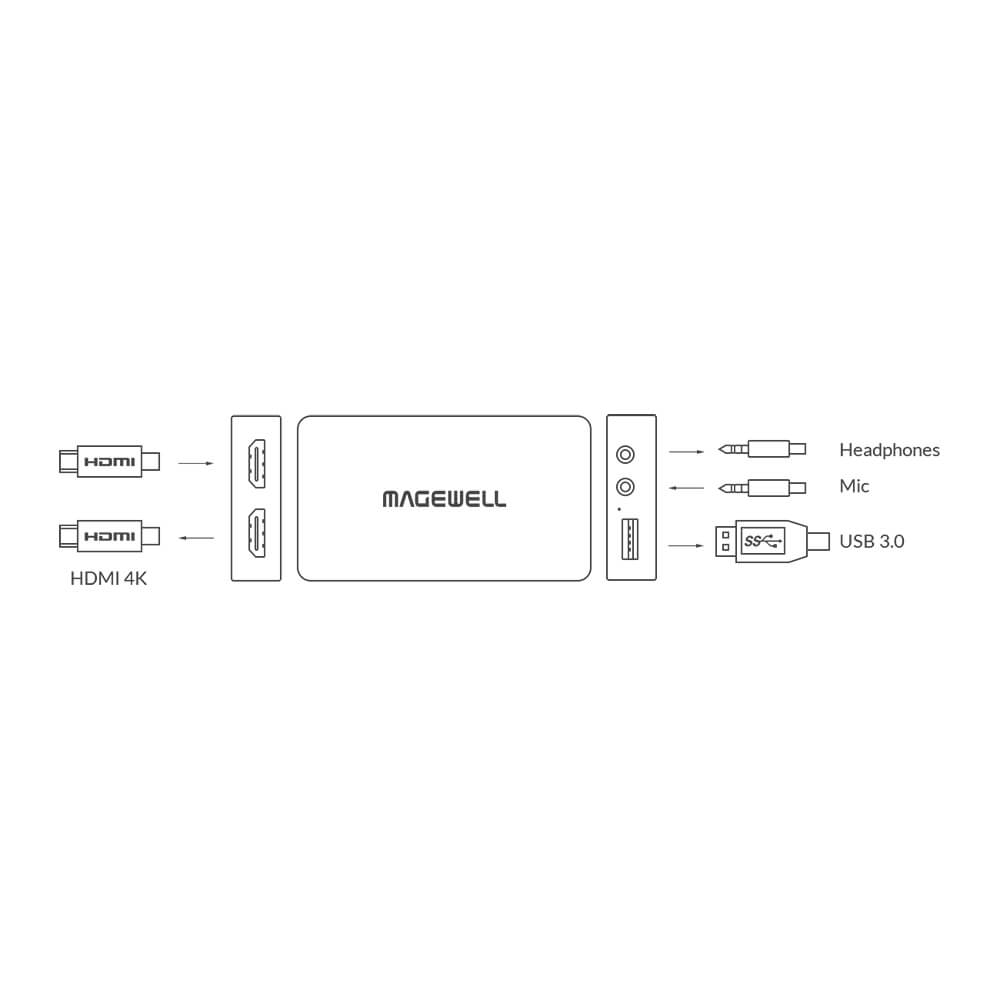

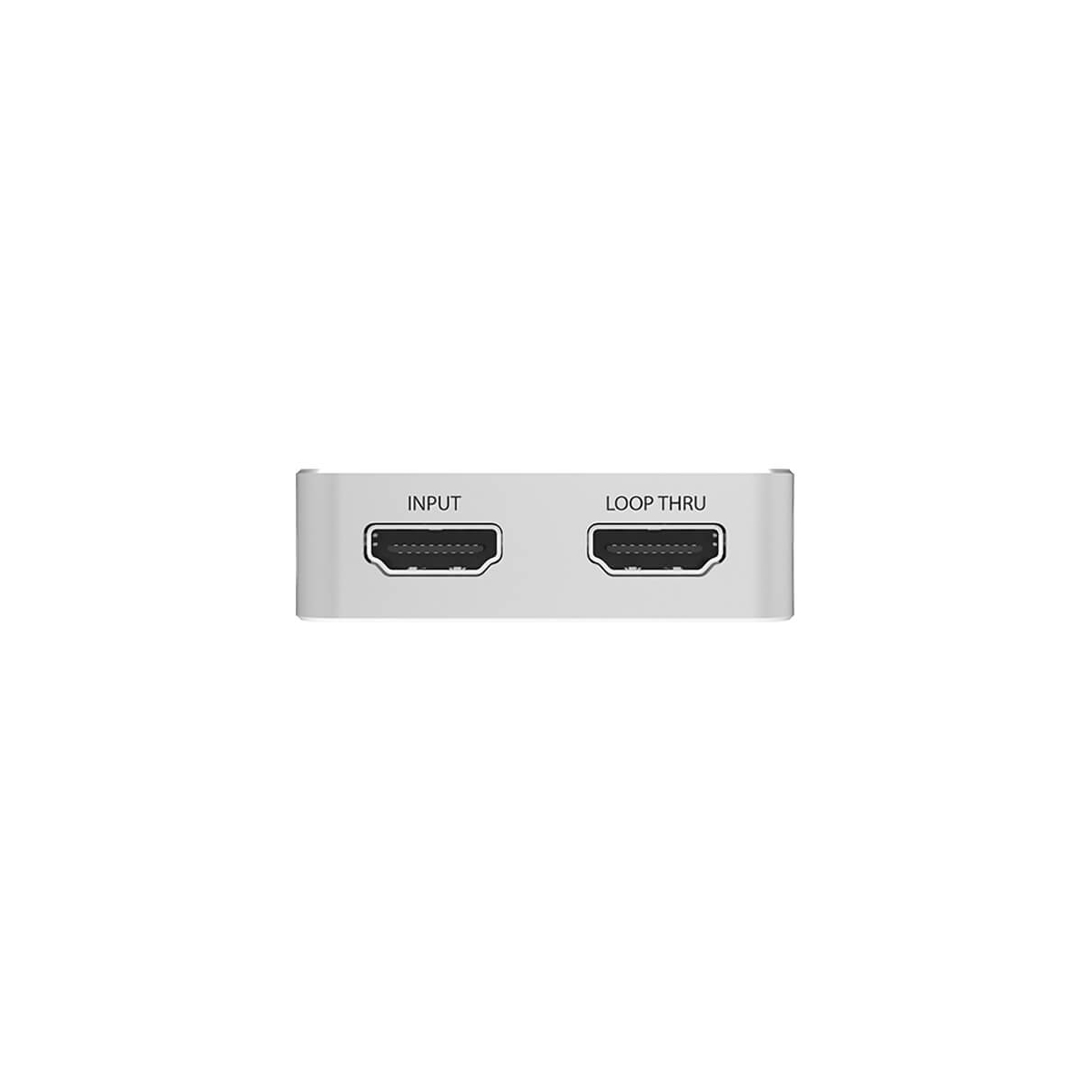

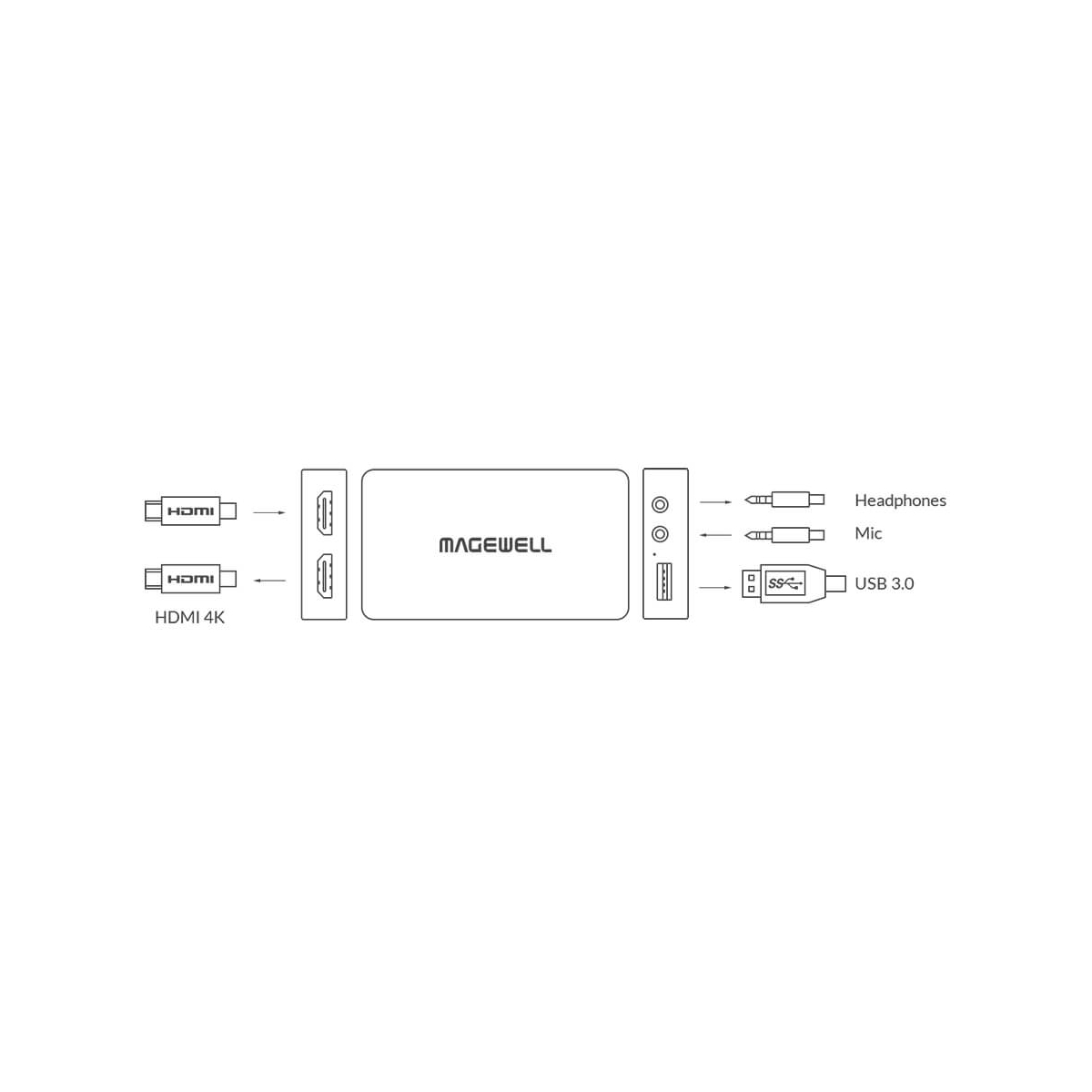

Signal Loop-Through; Audio Input & Output

Connecting the monitor via Loop-through will bring you better video experience than duplicating desktop using the graphics card.

USB Capture Utility

A software included with the device to enable advanced functions and more control over the device, such as resolution and frame rate setting, color space conversion, vertical flip and mirror, extraction of HDMI information, EDID, cropping and more.

Plug-and-Play, Driver Free

Support UVC; manual installation of driver is not needed.

Automatic Input Signal Detection

Users don’t need to select the input signal format to have it correctly recognized.

Magewell Video Engine

FPGA-based video processing, effectively reducing CPU usage. Video processing features including De-interlacing, Flip, Color Adjustment, Color space Conversion, Crop and Up/Down Conversion.

USB 3.0 for Data Transmission & Powerful Supply

The devices use USB 3.0 interface and no external power is needed. They also support USB 2.0 port, but the real-time frame rate will be reduced due to limited bandwidth. Users can also use a USB 3.0-to-Type C cable to connect it via USB Type C interface on the computer.

Compatibility of Multiple Operating Systems

Support Windows, Linux, macOS and Chrome OS. Windows 7/8/8.1/10/2008/2008 R2/2012 (x86 & x64). Linux (Ubuntu 12.04–16.10, CentOS 7). OS X 10.9–10.11. macOS 10.12 Chrome OS.

Designed for Long Hours of Stable Work

Metal housing to help heat dissipation of the chip. Use USB 3.0 Type A connector, which doesn’t easily get loose after long time of use. A USB Capture passes 7x24 working test in temperature between 0-45 ℃.
Metal Housing - Cool the chip, Standard Connector - Insure firm grip

Software Compatibility

Support operating system native video capture APIs, including DirectShow, DirectKS, V4L2, ALSA and QuickTime. Support DirectSound based audio acquisition interface, extended interface based on IKsPropertySet. Compatible with almost all software based on DirectShow architecture.

Magewell USB Capture HDMI Plus Specification

Input Features 297MHz HDMI receiver, max input & loop through video:
- 4096x2160 30fps 4:4:4/4:2:2
- 4096x2160 60fps 4:2:0
Custom EDID
Input RGB/YUV 4:4:4 8/10/12-bit, YUY 4:2:2 12-bit, YUV 4:2:0 8/10/12-bit
Up to 8-channel 24-bit HDMI-embedded audio at 192kHz
2-channel IEC60958 audio streams via 3.5mm microphone interface
HDMI interfaces: HDMI 1.4, DVI-D
Process and Capture Features Video processing pipelines with ~160M pixels/s processing bandwidth
Capture videos up to 2048x2160, frame rates up to 120fps. Outputs include (actual capture frame rate can be limited by the USB bandwidth and internal working frequency.):
1920x1080p 23.98/24/25/29.97/30/50/ 59.94/60
- 1280x720p 23.98/24/25/29.97/30/50/ 59.94/60/100/119.88/120
- 720x576p25
- 720x480p30
Output YUYV/UYVY/RGB24/RGB32 videos
Support video cropping, up/down scaling, de-interlacing, aspect ratio conversion, color format conversion, frame rate conversion, flip and mirror
Output audio of HDMI signal or hosting machine (the computer) via 3.5 mm headphone jack
Up to 2-channel IEC60958 audio streams
Included Software USB Capture Utility enables users to easily check and set the capture-related parameters, upgrade firmware of the capture device and export info needed for troubleshooting
SDK & APIs The MWCapture SDK provides functions including signal status extraction, capture configuration and real-time audio & video capture, etc.
Windows DirectShow/Wave API/DirectSound/WASAPI
Linux V4L2/ALSA
macOS AVCaptureSession / AudioUnit
Output Interface USB 3.0
- compatible with USB 2.0
- compatible with USB 3.1 Gen 1
Compatible Software Zoom Rooms
Microsoft Teams
Skype for Business
Google Hangouts
GoToMeeting
Gstreamer
VLC
OBS Studio
XSplit
QuickTime Player
Any other DirectShow / V4L2 / AVCaptureSession based encoding or streaming software
Recommended OS Windows 7/8/8.1/10/11/Server 2008/Server 2008 R2/Server 2012/Server 2016 (x86 & x64) and above
Linux x86, x64 & ARM architecture, with 2.6.35 and above
Mac OS X 10.9/macOS 10.12 and above
Chrome OS
LED Indicator Status LEDs indicate the working state of each channel:
- Pulsing slowly: input signal unlocked
- On: input signal locked
- Double blinks: memory failed or FPGA configuration failed
- Off: firmware or power supply abnormal
Form Factor

98.1mm (L) x 56.8mm (W) x 17mm (H)

Accessories 1 × USB 3.0 cable
Power Consumption 5V max current: ~900 mA
Max power consumption: ~4.5 W
Working Environment Operating temperature: 0 to 45 deg C
Storage temperature: -20 to 70 deg C
Relative Humidity: 5% to 90% non-condensing
  • Magewell USB Capture HDMI Plus
  • USB 3.0 Cable
  • 3-years Limited Manufacturer's Warranty
