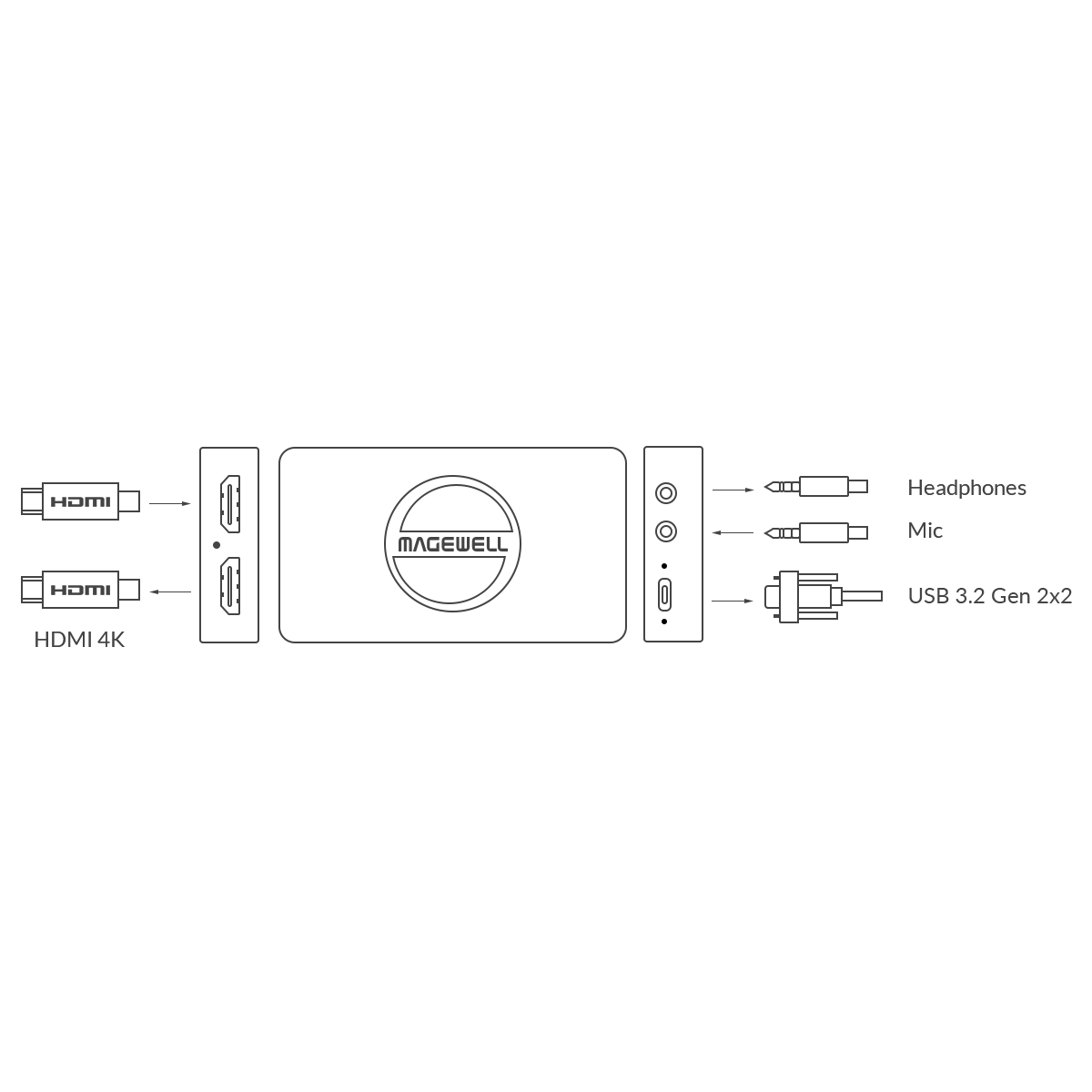

Interface

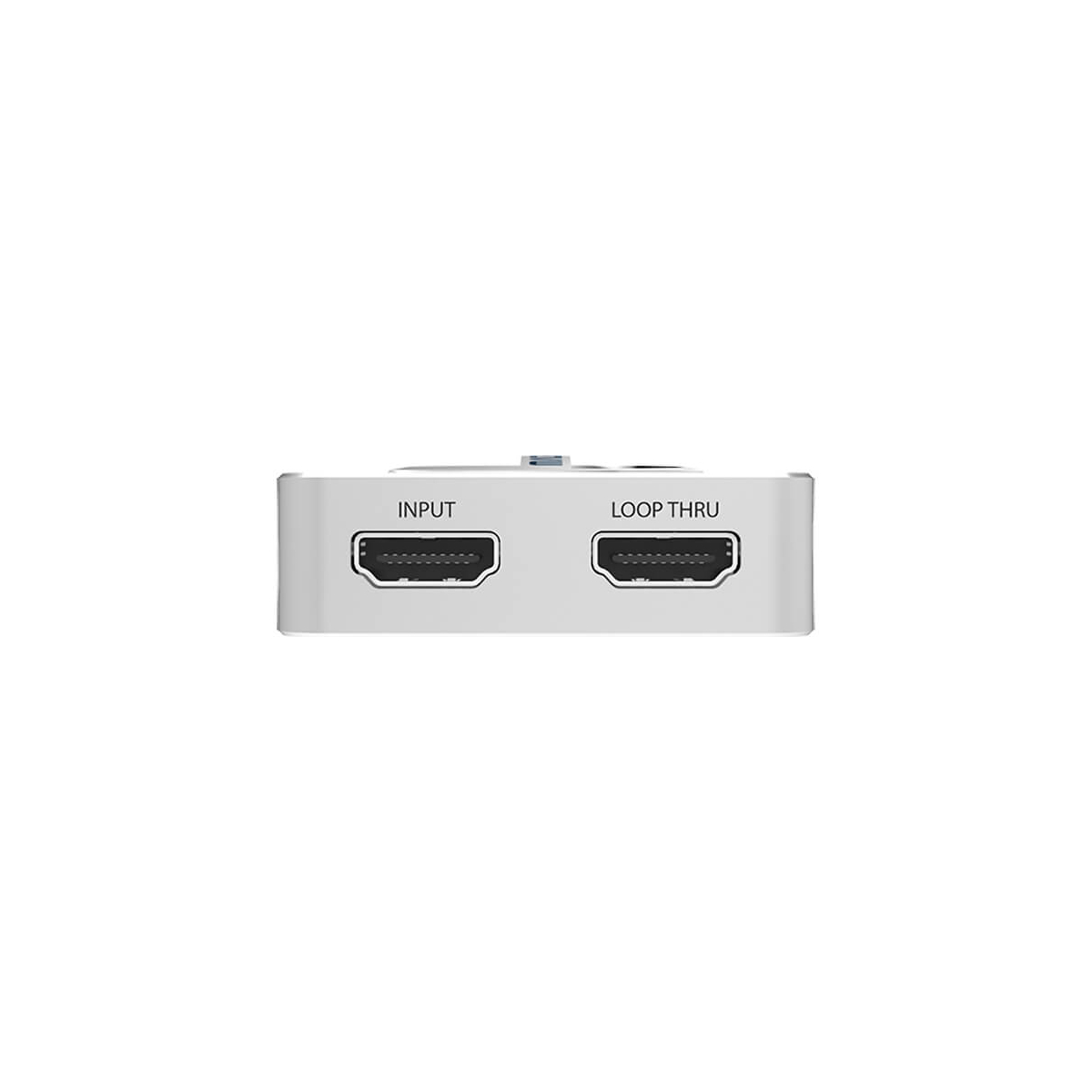

Input Interface & Loop-through Interface
- One HDMI input + embedded audio
- One HDMI loop-through
- Support input & loop-through resolution up to 4096x2160 60fps 4:4:4

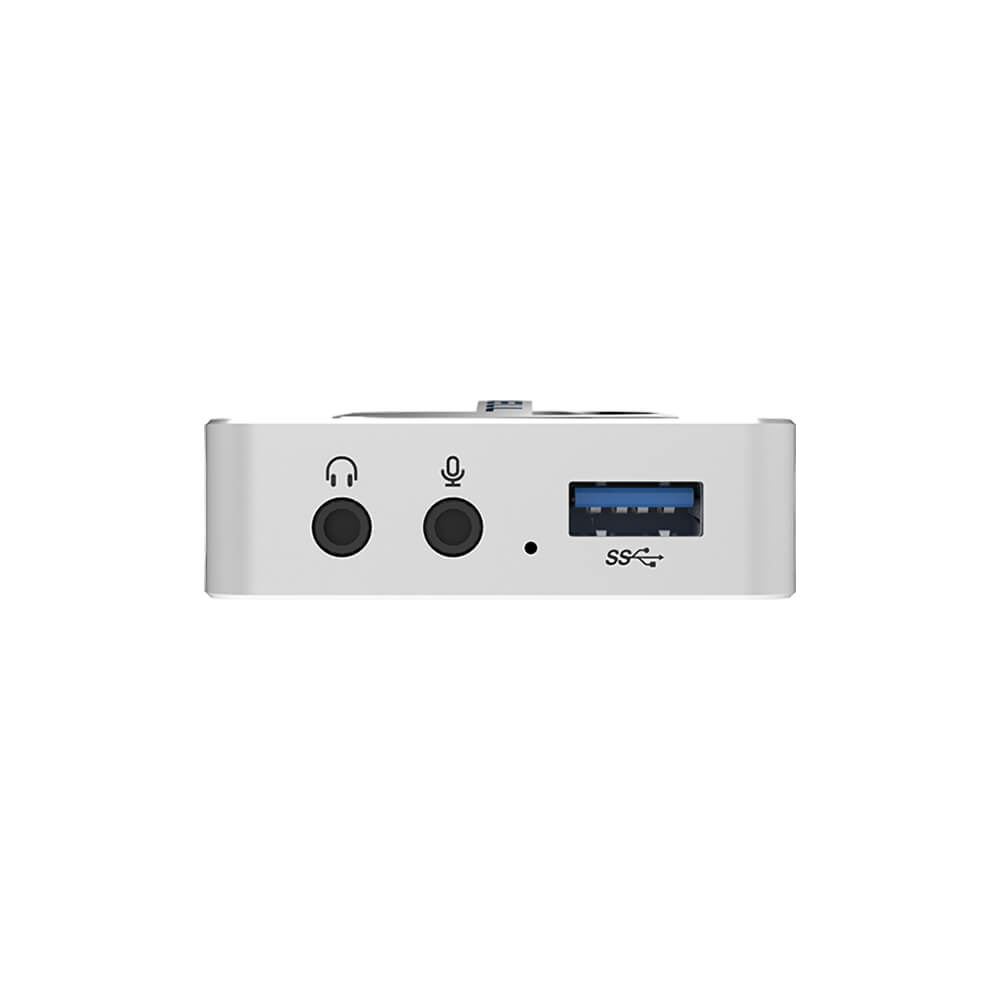

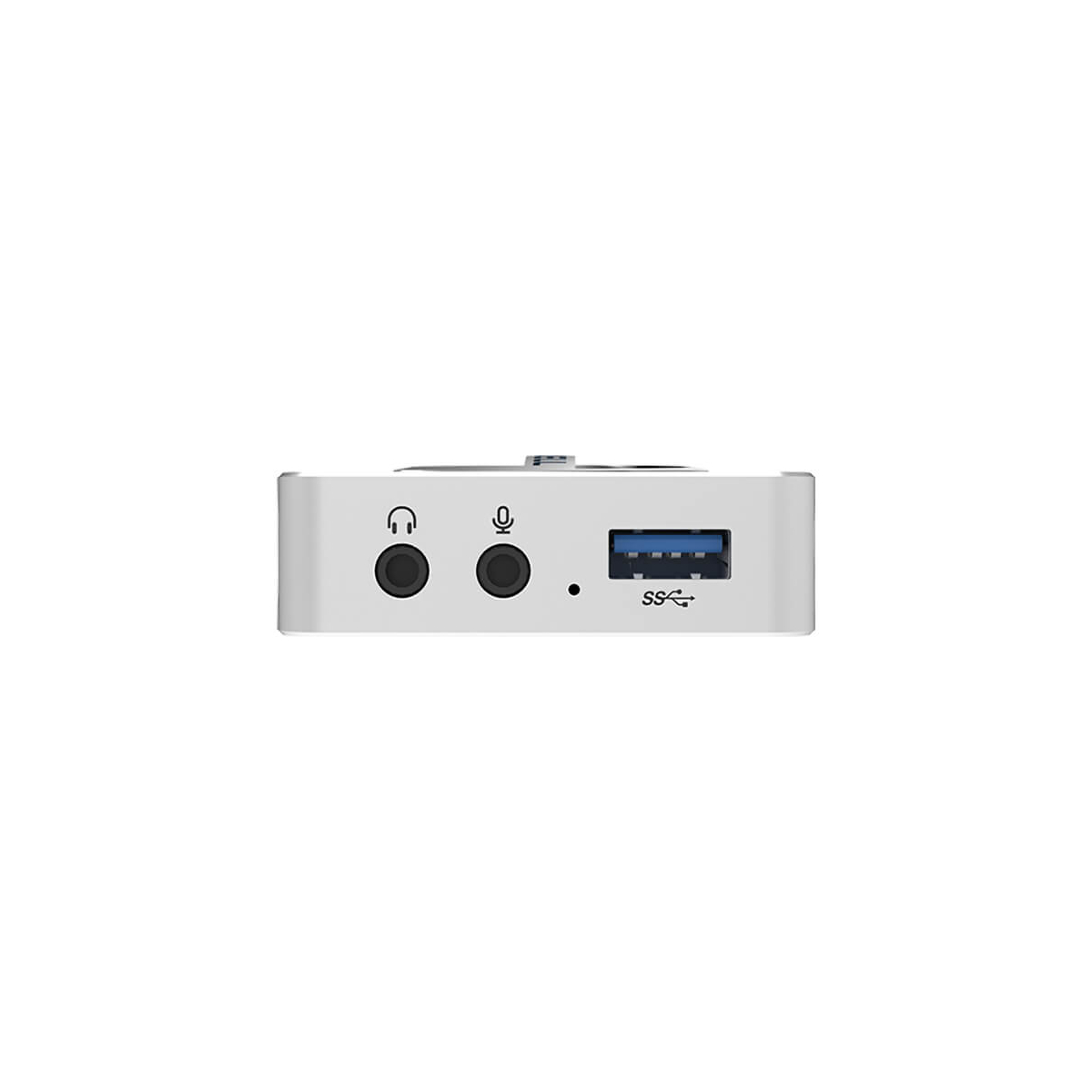

Audio Input/Output Interface
- 3.5mm audio jack for microphone/ headphones
Host Interface
- USB 3.2 Gen 2x2 up to 20G throughput
Capture format
- Support capture resolutions up to 4096x2160
- Support capture frame rates up to 240fps
- Capture 2-channel embedded audio or analog audio via 3.5mm microphone interface
Actual capture format will vary based on the host system USB interface and operating system. Check the USB Capture HDMI 4K Pro supported resolutions and frame rates for Windows/Linux OS and for macOS
OS
- Windows, Linux, Mac, Chrome
Included Software
- USB Capture Utility, Capture Express, etc.
Others
- Auto detection of input signal format
- Integrate the functions of a USB audio card. Playback audio via 3.5mm headphones interface
- Windows, Linux and Mac SDK
- Continuously work for 24hx7
- LED status indicator
- 3-year warranty
- Form factor: 3.86 in (L) x 2.24 in (W) x 0.71 in (H) (98.1 mm x 56.8 mm x 18 mm)
