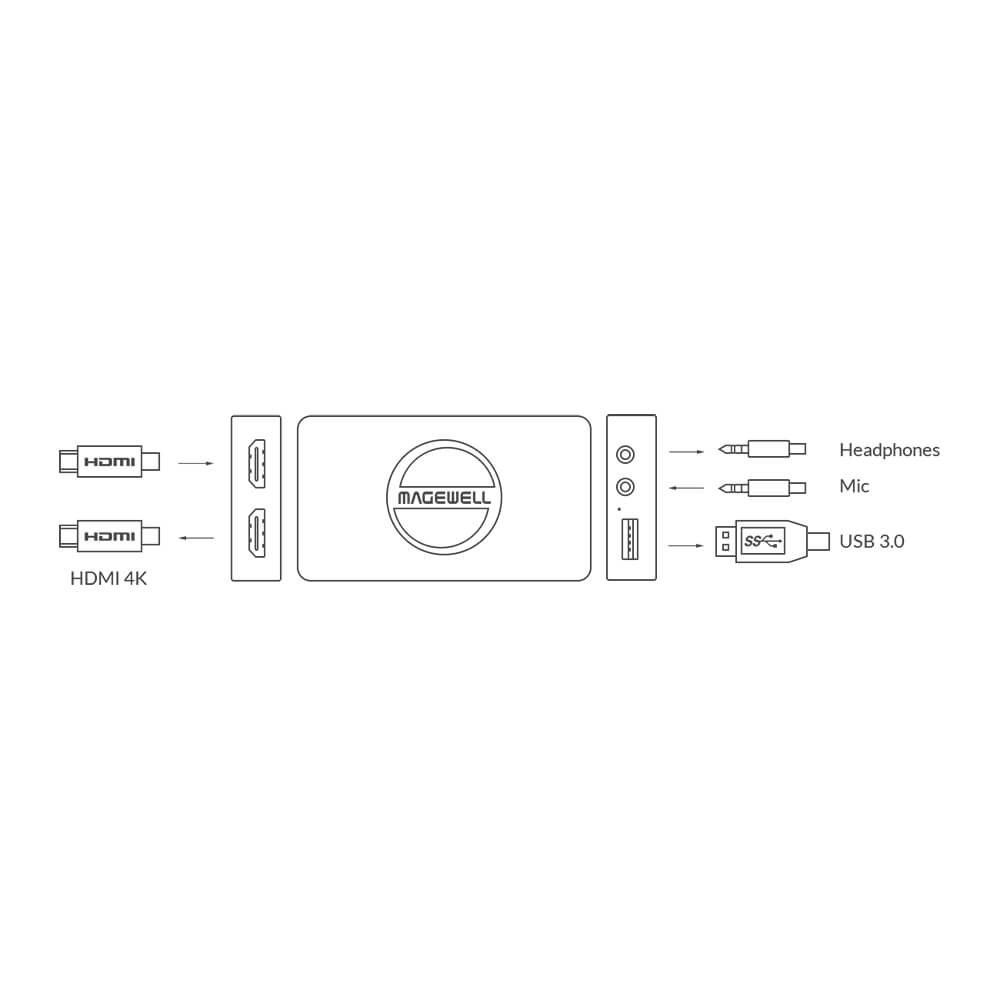

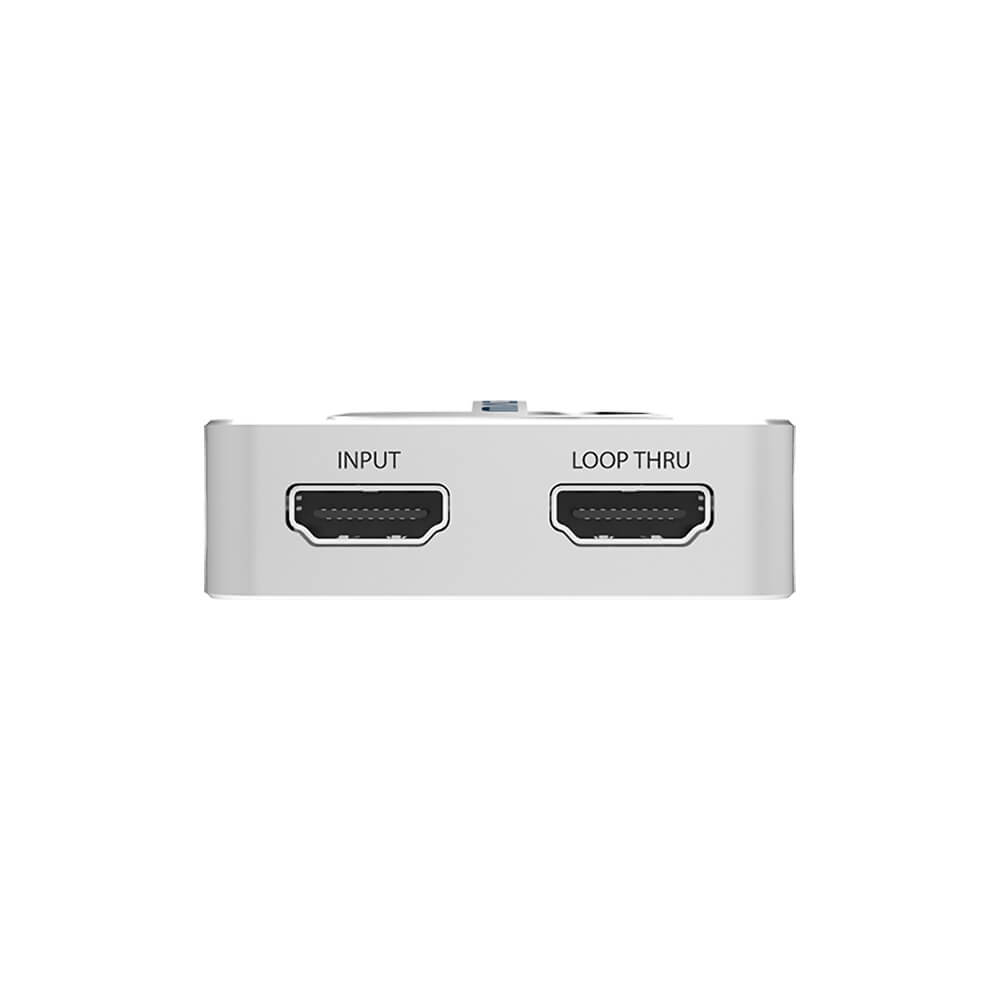

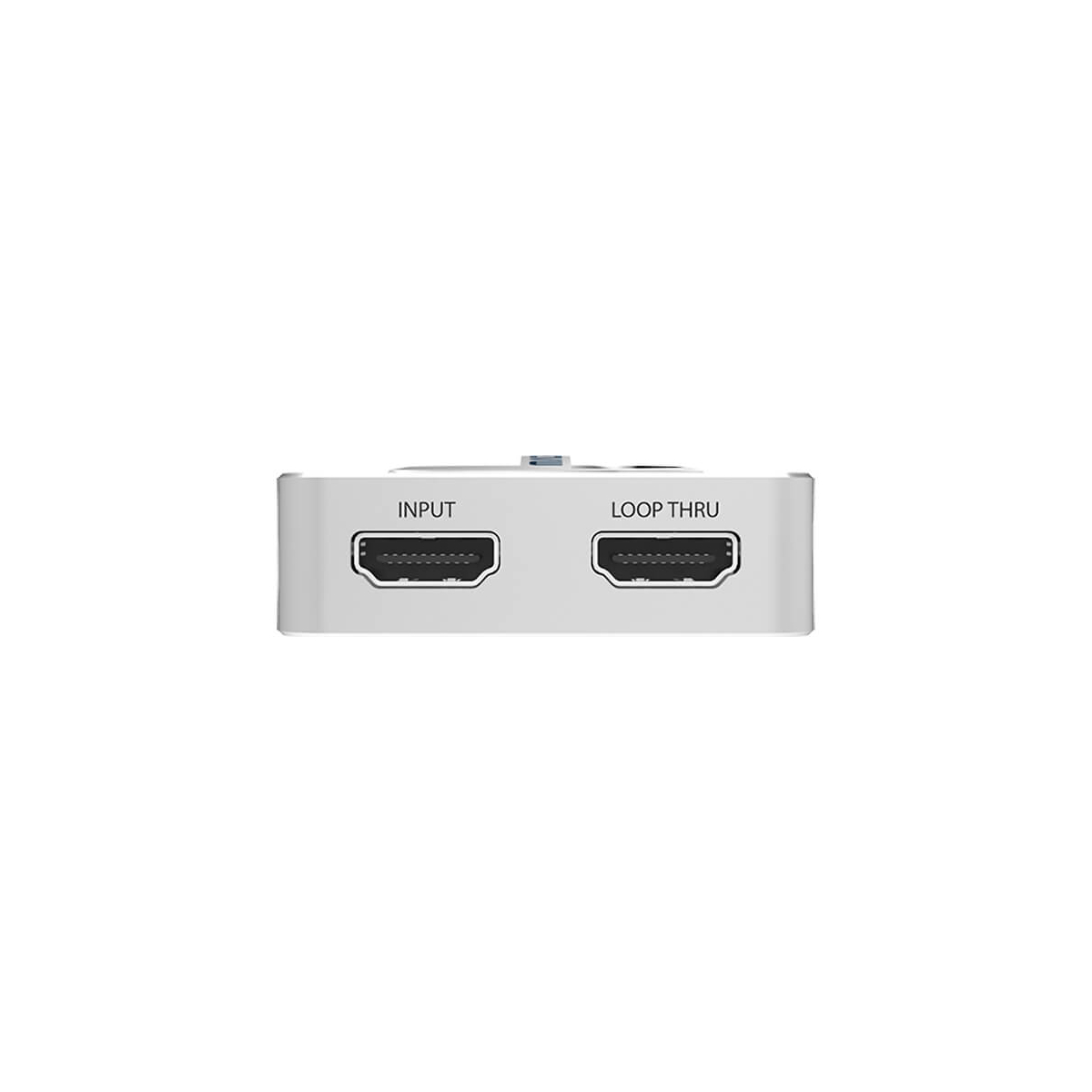

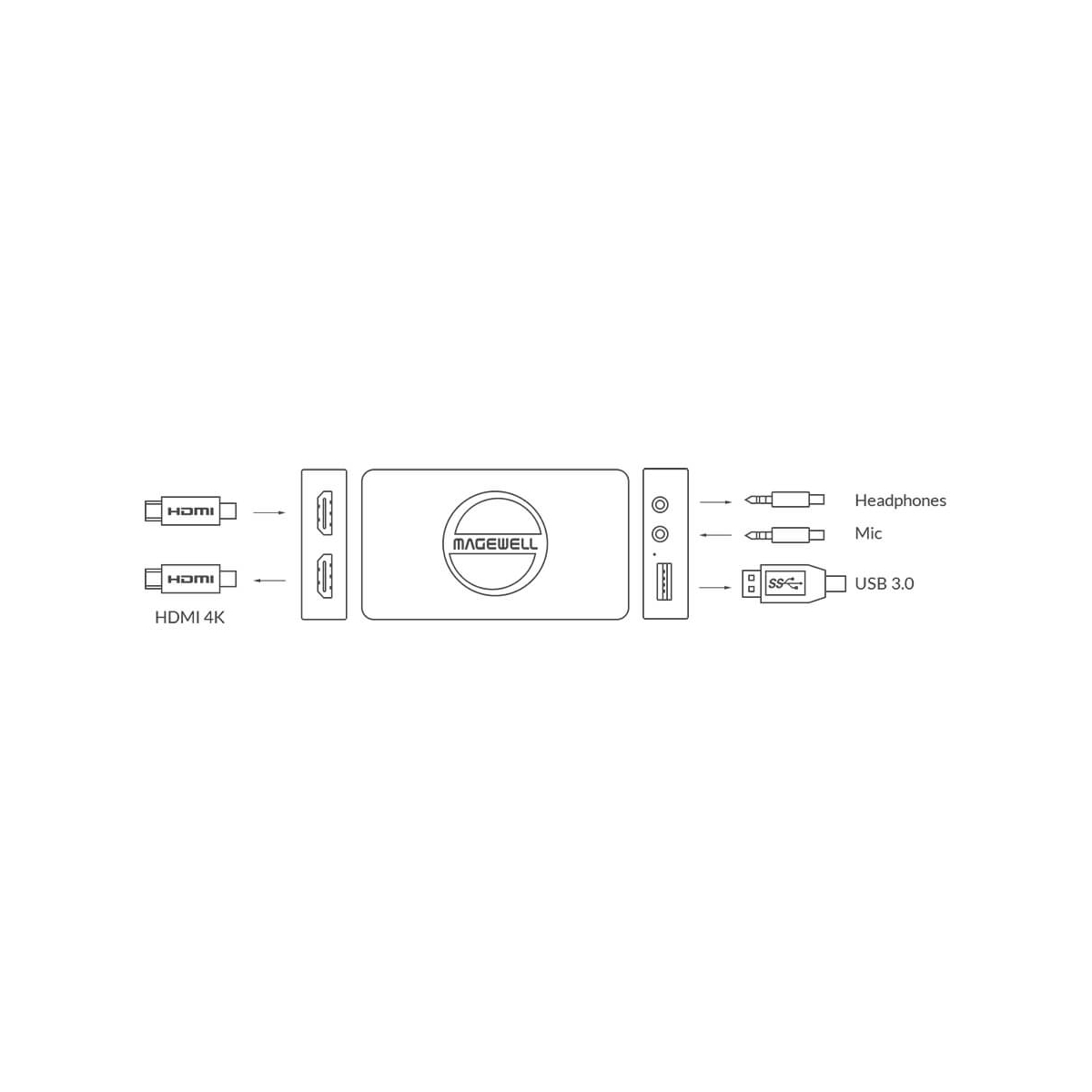

Signal Loop-Through; Audio Input & Output
Connecting the monitor via Loop-through will bring you better video experience than duplicating desktop using the graphics card.
1440P144 Game Input
USB Capture HDMI 4K Plus supports 2560x1440p 144 input. Gamers can play at 144 fps and record or live stream the gameplay at the same time. The device also supports input of 1080p240.
Support 4K Capture
USB Capture HDMI 4K Plus can take input at 4Kp60 4:4:4, supporting HDMI 2.0 standard and capture at 4Kp30.
USB Capture Utility
A software included with the device to enable advanced functions and more control over the device, such as resolution and frame rate setting, color space conversion, vertical flip and mirror, extraction of HDMI information, EDID, cropping and more.
Plug-and-Play, Driver Free
Support UVC; manual installation of driver is not needed.
Automatic Input Signal Detection
Users don’t need to select the input signal format to have it correctly recognized.
Magewell Video Engine
FPGA-based video processing, effectively reducing CPU usage. Video processing features including De-interlacing, Flip, Color Adjustment, Color space Conversion, Crop and Up/Down Conversion.
USB 3.0 for Data Transmission & Powerful Supply
The devices use USB 3.0 interface and no external power is needed. They also support USB 2.0 port, but the real-time frame rate will be reduced due to limited bandwidth. Users can also use a USB 3.0-to-Type C cable to connect it via USB Type C interface on the computer.
Compatibility of Multiple Operating Systems
Support Windows, Linux, macOS and Chrome OS. Windows 7/8/8.1/10/2008/2008 R2/2012 (x86 & x64). Linux (Ubuntu 12.04–16.10, CentOS 7). OS X 10.9–10.11. macOS 10.12 Chrome OS.
Designed for Long Hours of Stable Work

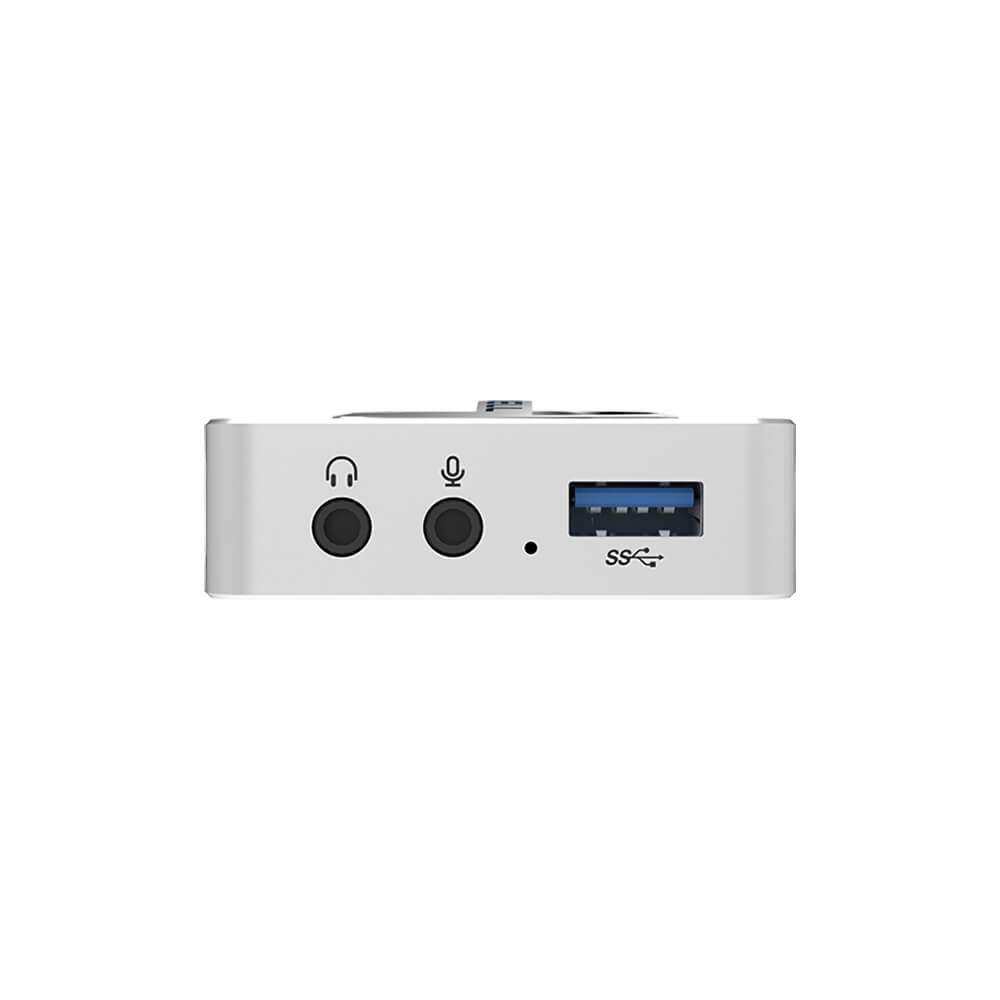

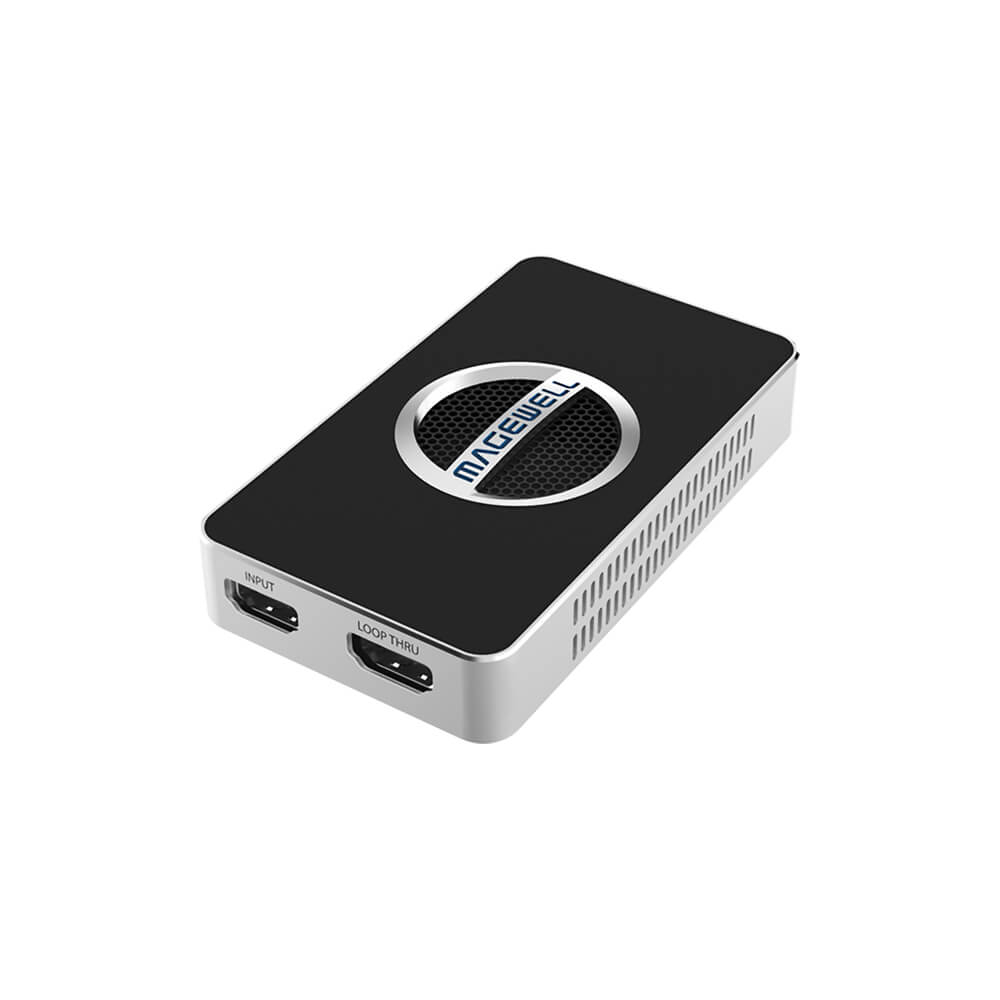

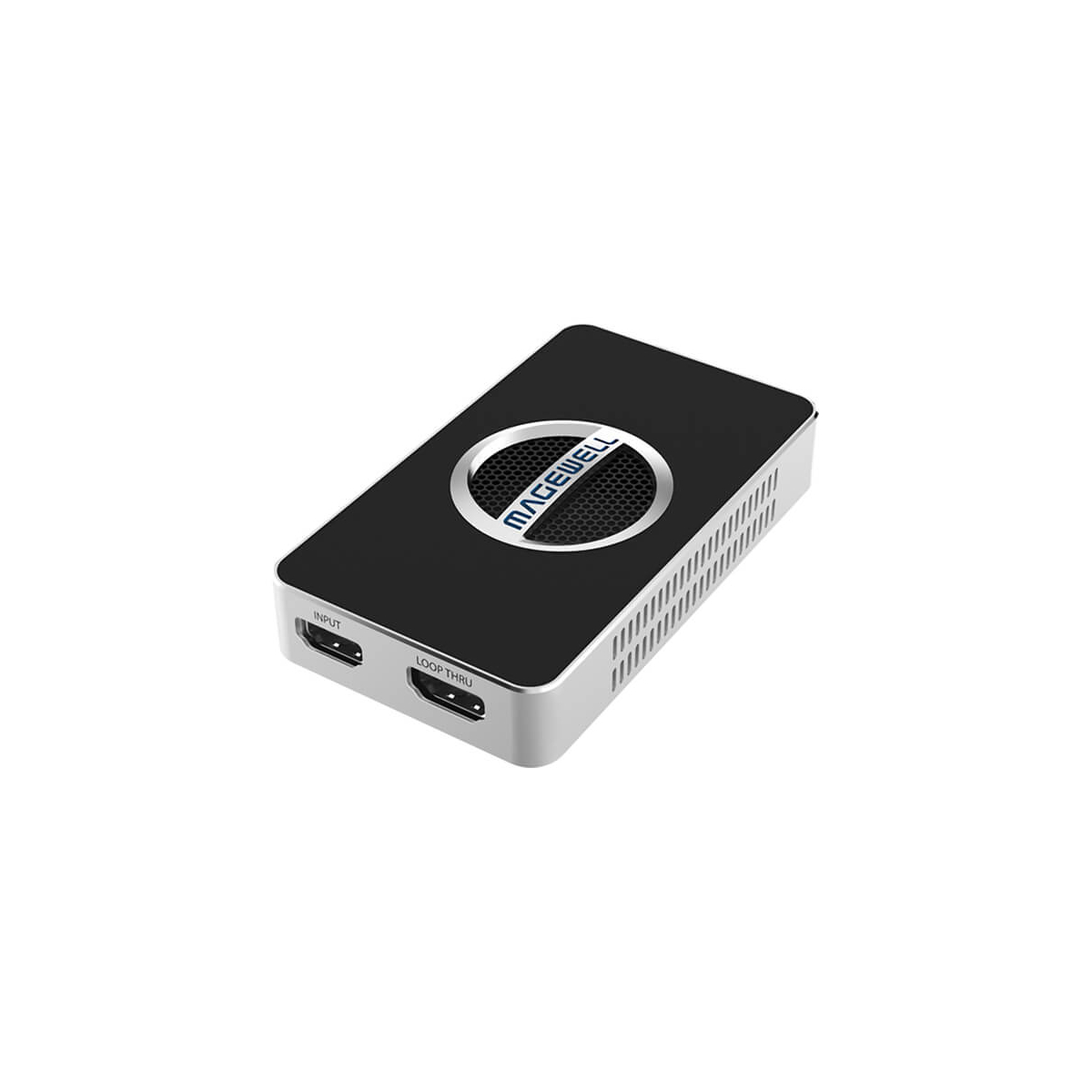

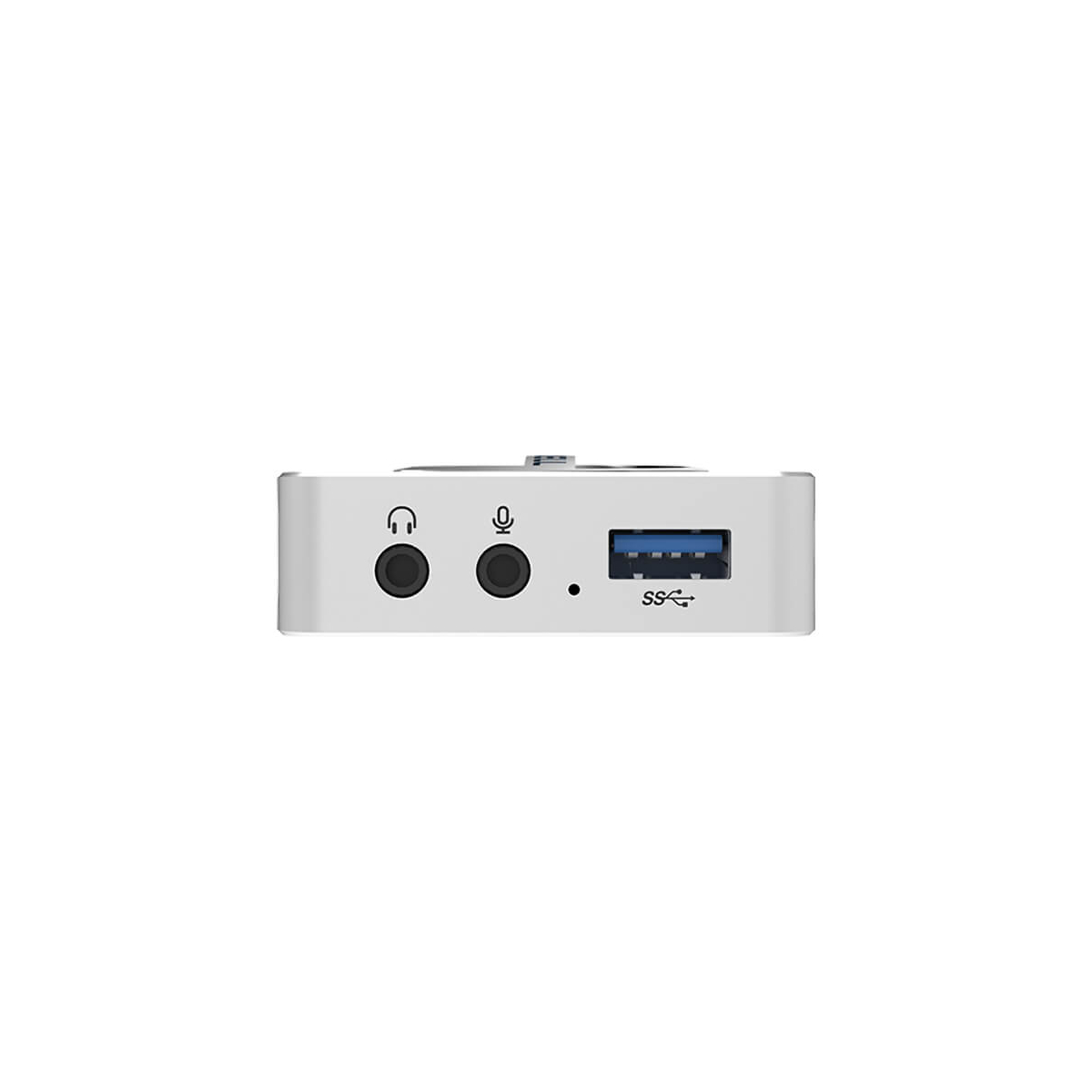

Metal housing to help heat dissipation of the chip. Use USB 3.0 Type A connector, which doesn’t easily get loose after long time of use. A USB Capture passes 7x24 working test in temperature between 0-45 ℃.
Metal Housing - Cool the chip, Standard Connector - Insure firm grip
Software Compatibility
Support operating system native video capture APIs, including DirectShow, DirectKS, V4L2, ALSA and QuickTime. Support DirectSound based audio acquisition interface, extended interface based on IKsPropertySet. Compatible with almost all software based on DirectShow architecture.
Magewell USB Capture HDMI 4K Plus Specification |
|
Input Features | 600MHz HDMI receiver, max input & loop through video: 4096x2160 60fps 4:4:4 Custom EDID Support for RGB/YUV 4:4:4 8 /10/12-bit, YUV 4:2:0 8/10/12-bit, YUV 4:2:2 12-bit Up to 8-channel 24-bit HDMI-embedded audio at 192kHz 2-channel IEC60958 audio streams via 3.5mm microphone interface HDMI interfaces: HDMI 1.4/2.0, DVI-D |
Process and Capture Features | Video processing pipelines with ~640Mpixels/s processing bandwidth Capture videos up to 4096x2160, frame rates up to 120fps. Outputs include (actual capture frame rate can be limited by the USB bandwidth and internal working frequency.): - 4096x2160p/3840x2160p 23.98/24/25/29.97/30 - 2560x1440p60 - 2560x1080p/1920x1080p/ 1280x720p 23.98/24/25/29.97/30/50/ 59.94/60 - 720x576p25 - 720x480p30 Output NV12/I420/YUYV/UYVY/ RGB24/RGB32 videos Support video cropping, up/down scaling, de-interlacing, aspect ratio conversion, color format conversion, frame rate conversion, flip and mirror Output audio of HDMI signal or hosting machine (the computer) via 3.5 mm headphone jack Up to 2-channel IEC60958 audio streams |
Included Software | USB Capture Utility enables users to easily check and set the capture-related parameters, upgrade firmware of the capture device and export info needed for troubleshooting |
SDK & APIs | The MWCapture SDK provides functions including signal status extraction, capture configuration and real-time audio & video capture, etc. Windows DirectShow/Wave API/DirectSound/WASAPI Linux V4L2/ALSA macOS AVCaptureSession / AudioUnit |
Output Interface | USB 3.0 - compatible with USB 2.0 - compatible with USB 3.1 Gen 1 |
Compatible Software | Zoom Rooms Microsoft Teams Skype for Business Google Hangouts GoToMeeting Gstreamer VLC OBS Studio XSplit QuickTime Player Any other DirectShow / V4L2 / AVCaptureSession based encoding or streaming software |
Recommended OS | Windows 7/8/8.1/10/11/Server 2008/Server 2008 R2/Server 2012/Server 2016 (x86 & x64) and above Linux x86, x64 & ARM architecture, with 2.6.35 and above Mac OS X 10.9/macOS 10.12 and above Chrome OS |
LED Indicator | Status LEDs indicate the working state of each channel: - Pulsing slowly: input signal unlocked - On: input signal locked - Double blinks: memory failed or FPGA configuration failed - Off: firmware or power supply abnormal |
Form Factor |
98.1mm (L) x 56.8mm (W) x 17mm (H) |
Accessories | 1 × USB 3.0 cable |
Power Consumption | 5V max current: ~1.4 A Max power consumption: ~7 W |
Working Environment | Operating temperature: 0 to 45 deg C Storage temperature: -20 to 70 deg C Relative Humidity: 5% to 90% non-condensing |
- Magewell USB Capture HDMI 4K Plus
- USB 3.0 Cable
- 3-years Limited Manufacturer's Warranty
