Audio Input & Output

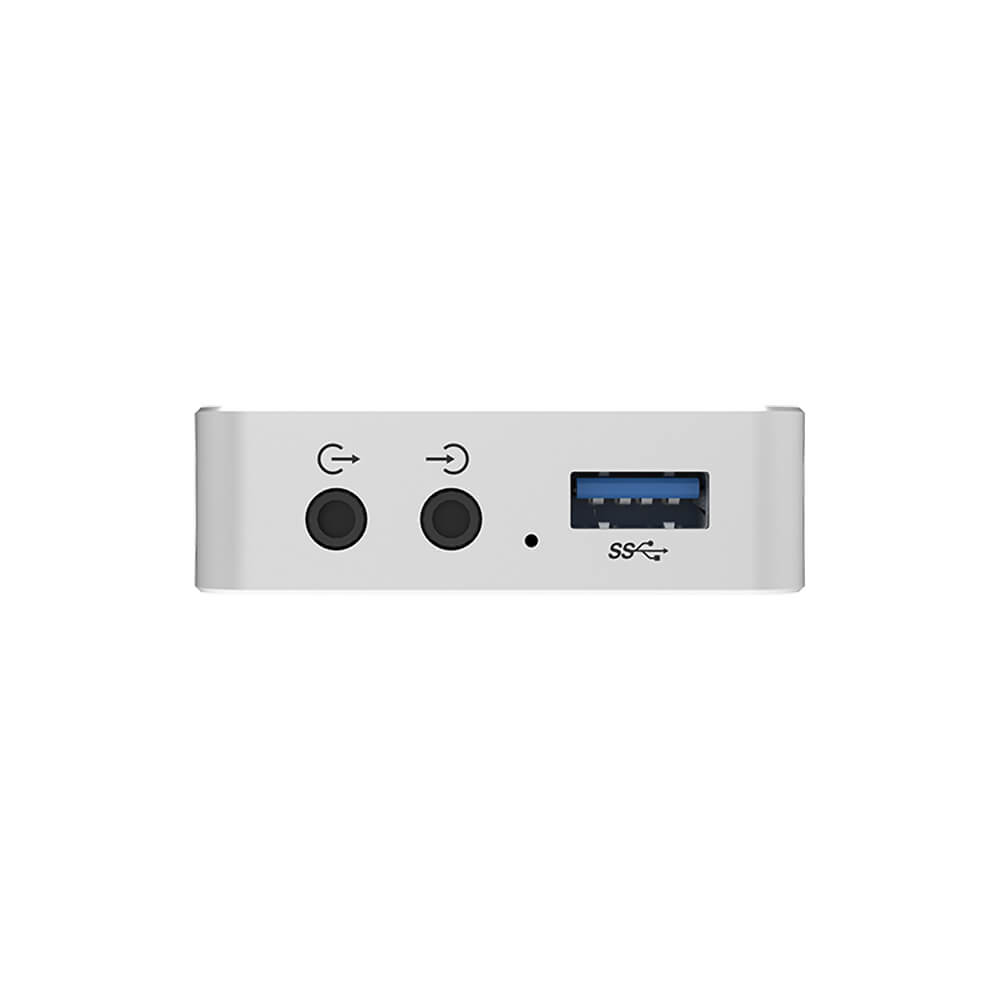

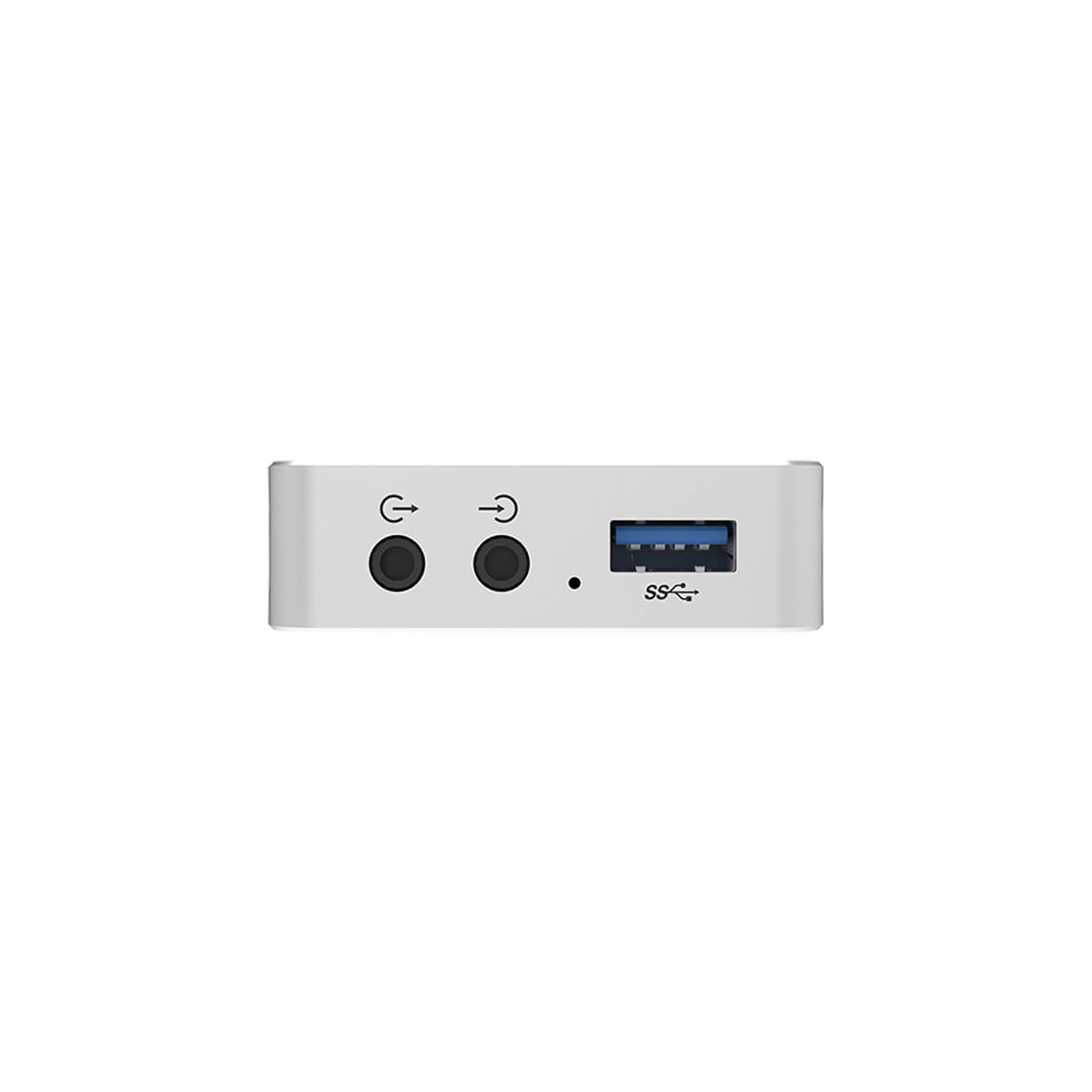

3.5mm audio jack for Line In/ Line Out Host Interface, extract HDMI embedded audio output via Line out.
USB Capture Utility
A software included with the device to enable advanced functions and more control over the device, such as resolution and frame rate setting, color space conversion, vertical flip and mirror, extraction of HDMI information, EDID, cropping and more.
Plug-and-Play, Driver Free
Support UVC; manual installation of driver is not needed.
Automatic Input Signal Detection
Users don’t need to select the input signal format to have it correctly recognized.
Magewell Video Engine
FPGA-based video processing, effectively reducing CPU usage. Video processing features including De-interlacing, Flip, Color Adjustment, Color space Conversion, Crop and Up/Down Conversion.
USB 3.0 for Data Transmission & Powerful Supply
The devices use USB 3.0 interface and no external power is needed. They also support USB 2.0 port, but the real-time frame rate will be reduced due to limited bandwidth. Users can also use a USB 3.0-to-Type C cable to connect it via USB Type C interface on the computer.
Compatibility of Multiple Operating Systems
Support Windows, Linux, macOS and Chrome OS. Windows 7/8/8.1/10/2008/2008 R2/2012 (x86 & x64). Linux (Ubuntu 12.04–16.10, CentOS 7). OS X 10.9–10.11. macOS 10.12 Chrome OS.
Designed for Long Hours of Stable Work
Metal housing to help heat dissipation of the chip. Use USB 3.0 Type A connector, which doesn’t easily get loose after long time of use. A USB Capture passes 7x24 working test in temperature between 0-45 ℃.
Metal Housing - Cool the chip, Standard Connector - Insure firm grip
Software Compatibility
Support operating system native video capture APIs, including DirectShow, DirectKS, V4L2, ALSA and QuickTime. Support DirectSound based audio acquisition interface, extended interface based on IKsPropertySet. Compatible with almost all software based on DirectShow architecture.

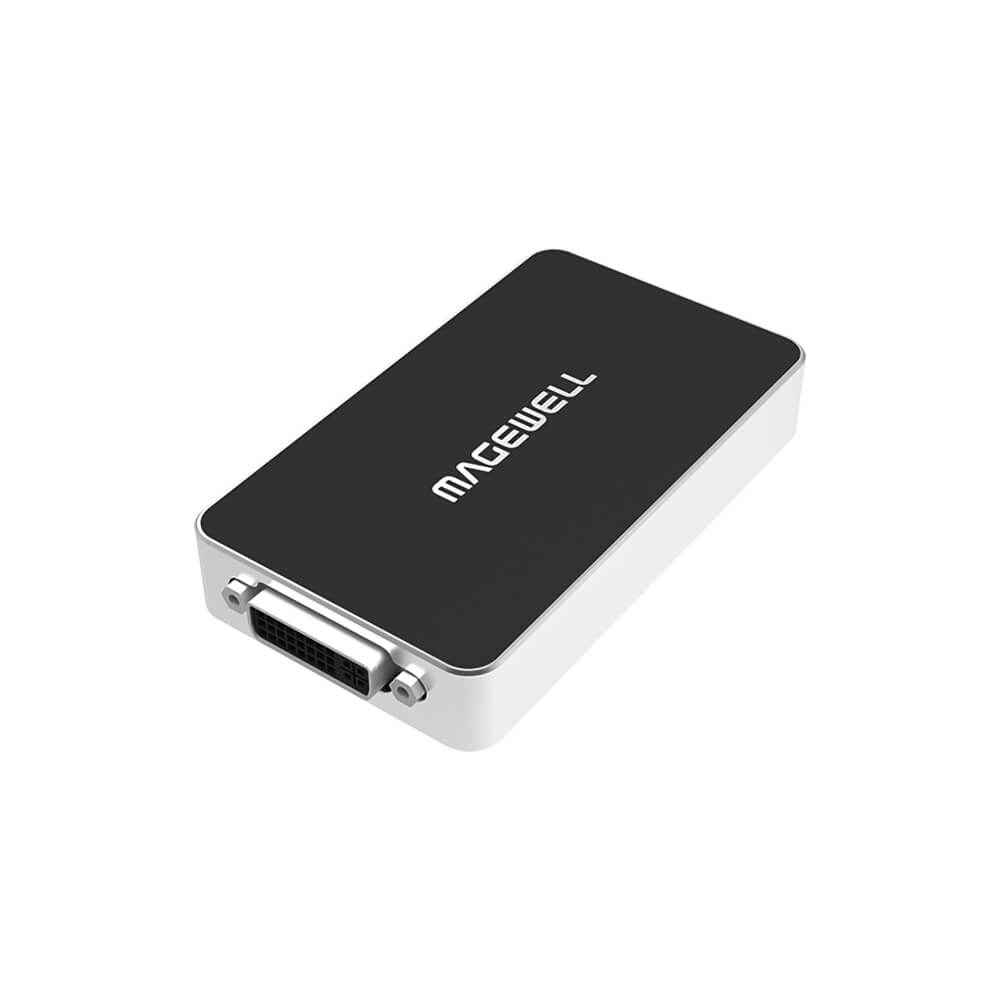

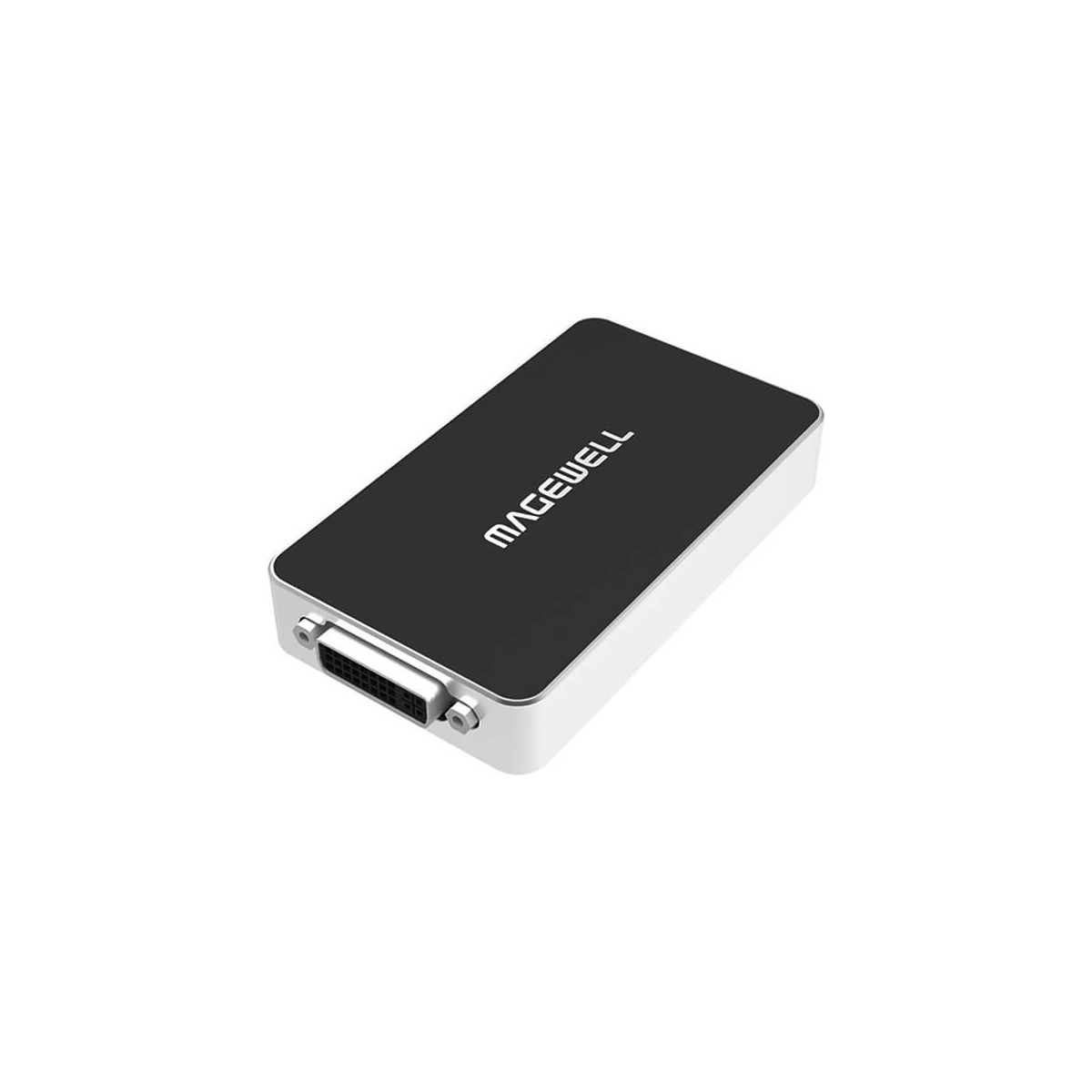

Magewell USB Capture DVI Plus Specification |
|

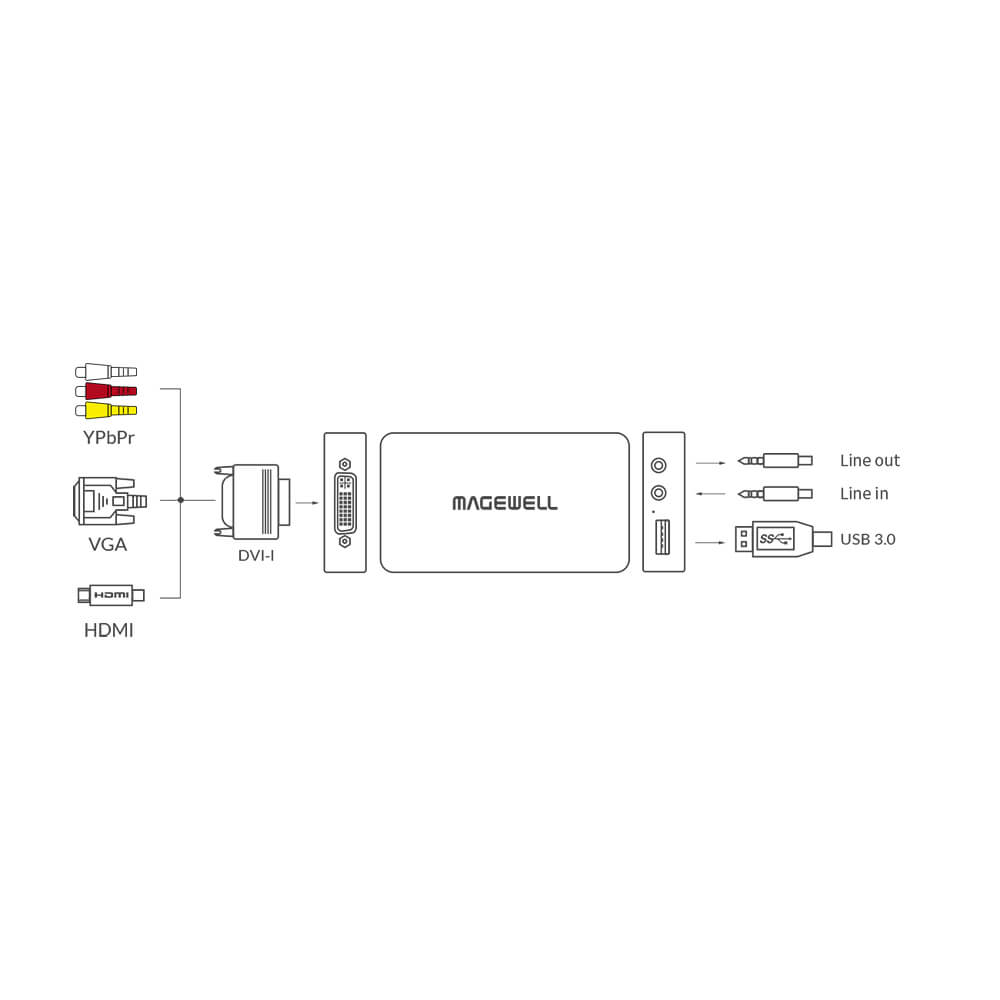

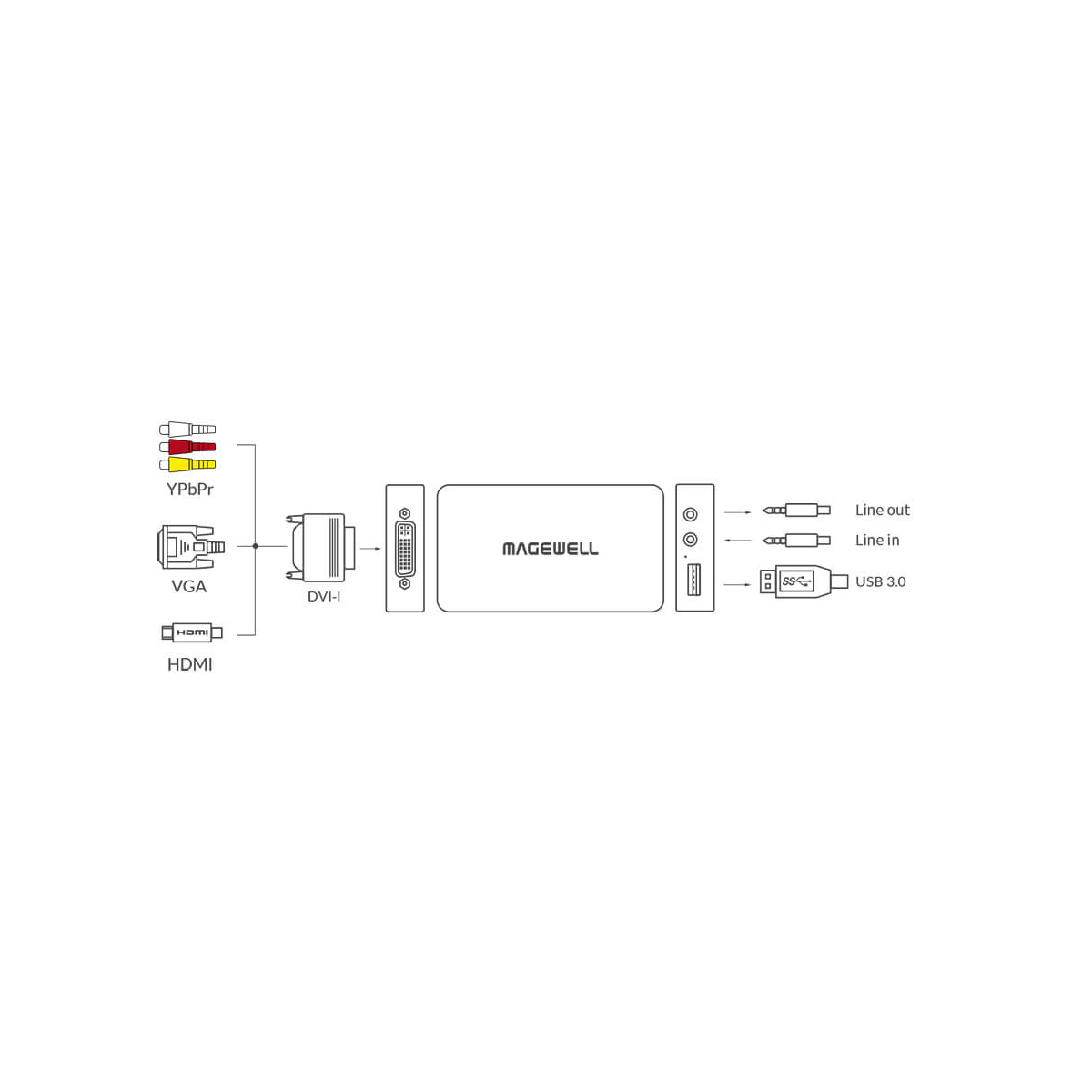

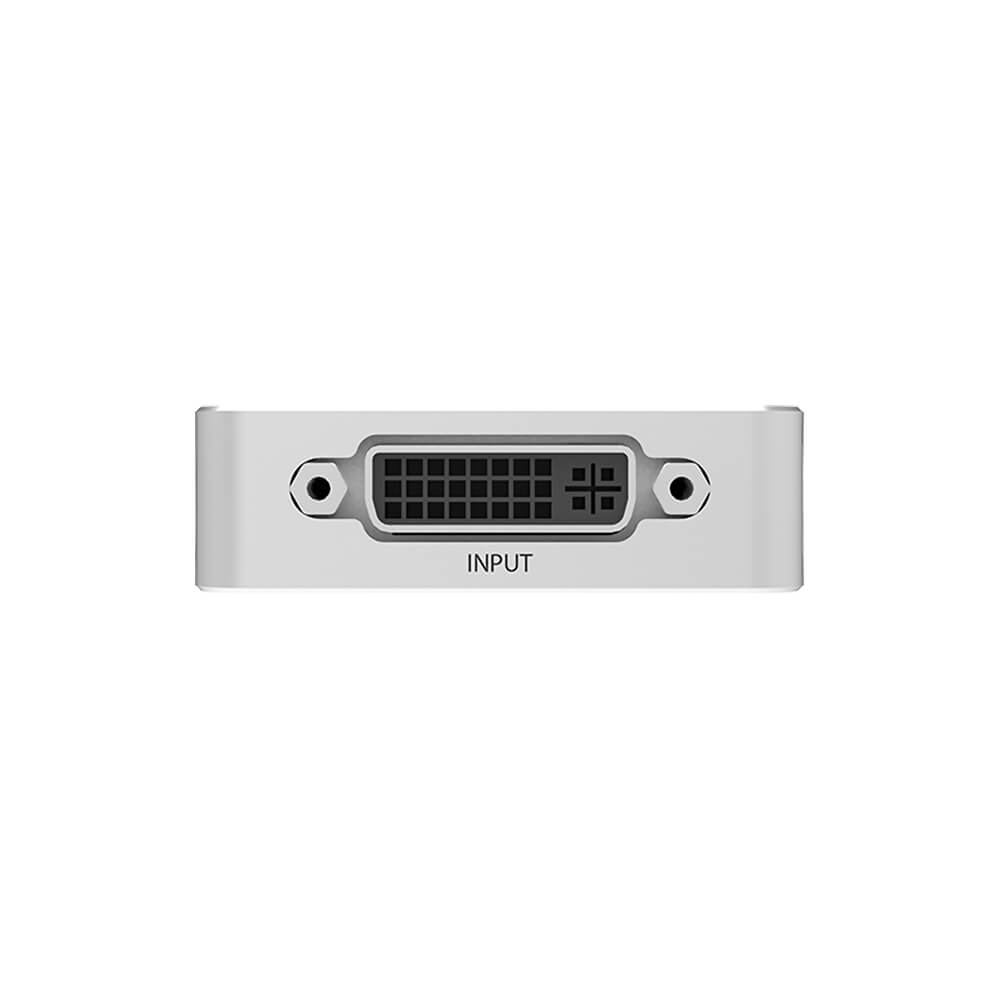

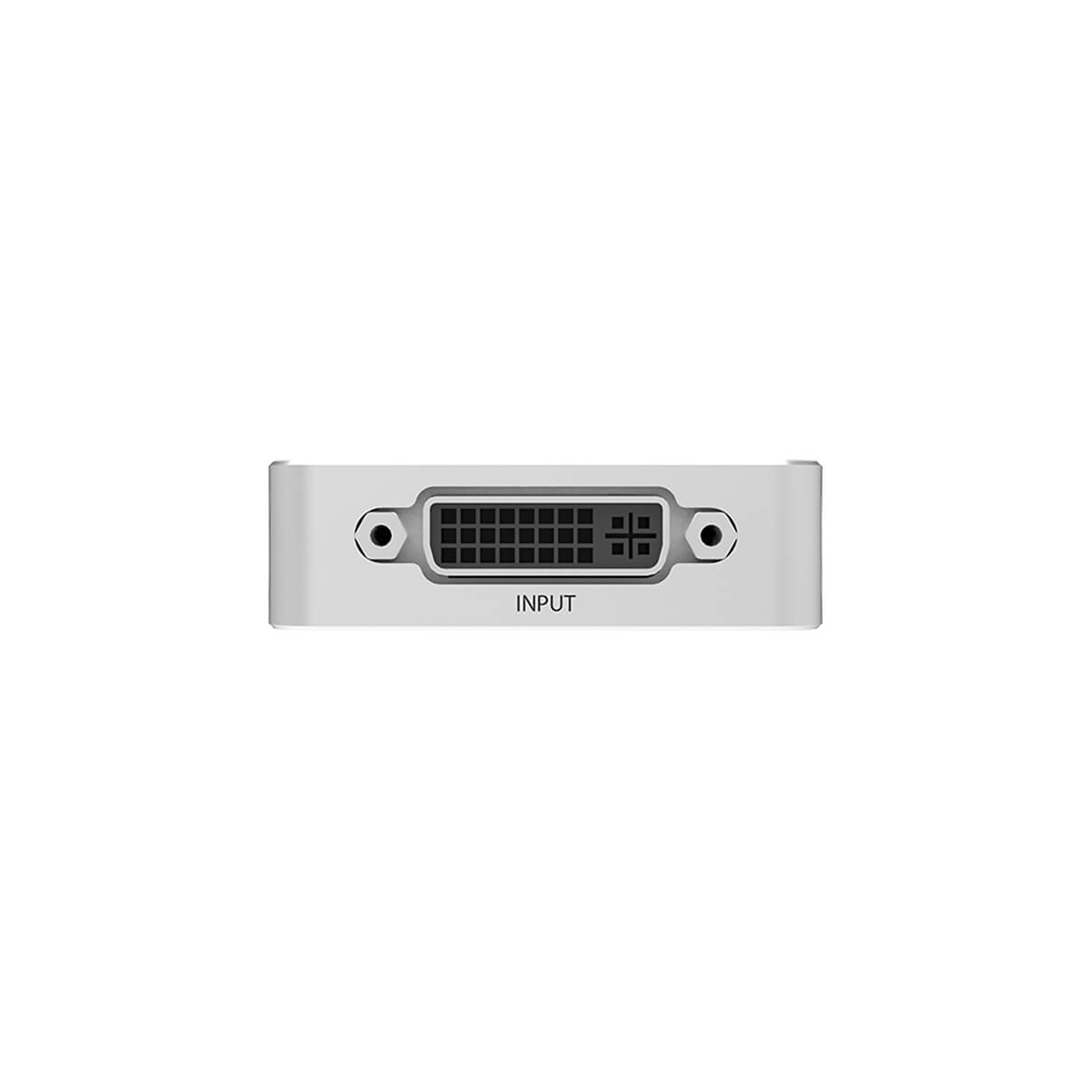

Input Features | 225MHz HDMI receiver, max input & loop through signal: 1920x1080p90 4:4:4 Custom EDID Input RGB/YUV 4:4:4 8/10/12-bit, YUY 4:2:2 12-bit HDMI signals - DVI-I: DVI 1.0HDMI 1.4a (via breakout cable) - VGA (via DVI-to-VGA connector) - Component (via breakout cable) 3.5mm audio jack for microphone |
VGA & Component Specific Features | 12-bit ADC Support RGB & YCbCr (YUV) color formats Support separated sync, composite sync, sync-on-green (SOG), sync-on-luminance (SOY) Support DMT, CEA, CVT, GTF and customized CVT/GTF video timings Input signals up to 165MHz pixel rate are digitized with 1:1 sampling |
HDMI Specific Features | Video processing pipelines with ~160M pixels/s processing bandwidth Capture resolutions up to 2048x2160, frame rate up to 120fps. Outputs include (actual capture frame rate can be limited by the USB bandwidth and internal working frequency.) - 1920x1080p/1280x720p60 - 720x576p25 - 720x480p30 Output YUYV/UYVY/RGB24/RGB32 videos Video cropping, de-interlacing, up/down scaling, aspect ratio conversion, frame rate conversion, color format conversion, flipping and mirror Output audio via 3.5mm line out Up to 2-channel IEC60958 audio streams |
Included Software | USB Capture Utility enables users to easily check and set the capture-related parameters, upgrade firmware of the capture device and export info needed for troubleshooting |
SDK & APIs | The MWCapture SDK provides functions including signal status extraction, capture configuration and real-time audio & video capture, etc. Windows DirectShow/Wave API/DirectSound/WASAPI Linux V4L2/ALSA macOS AVCaptureSession / AudioUnit |
Output Interface | USB 3.0 - compatible with USB 2.0 - compatible with USB 3.1 Gen 1 |
Compatible Software | Zoom Rooms Microsoft Teams Skype for Business Google Hangouts GoToMeeting Gstreamer VLC OBS Studio XSplit QuickTime Player Any other DirectShow / V4L2 / AVCaptureSession based encoding or streaming software |
Recommended OS | Windows 7/8/8.1/10/11/Server 2008/Server 2008 R2/Server 2012/Server 2016 (x86 & x64) and above Linux x86, x64 & ARM architecture, with 2.6.35 and above Mac OS X 10.9/macOS 10.12 and above Chrome OS |
LED Indicator | Status LEDs indicate the working state of each channel: - Pulsing slowly: input signal unlocked - On: input signal locked - Double blinks: memory failed or FPGA configuration failed - Off: firmware or power supply abnormal |
Form Factor |
101.5mm (L) x 56.8mm (W) x 17mm (H) |
Accessories | 1 × USB 3.0 cable 1 × DVI to VGA connector 1 × DVI-I to HDMI + Component breakout |
Power Consumption | 5V max current: ~600 mA Max power consumption: ~3 W |
Working Environment | Operating temperature: 0 to 45 deg C Storage temperature: -20 to 70 deg C Relative Humidity: 5% to 90% non-condensing |
- Magewell USB Capture DVI Plus
- USB 3.0 Cable
- DVI to VGA connector
- DVI-I to HDMI + Component breakout
- 3-years Limited Manufacturer's Warranty
