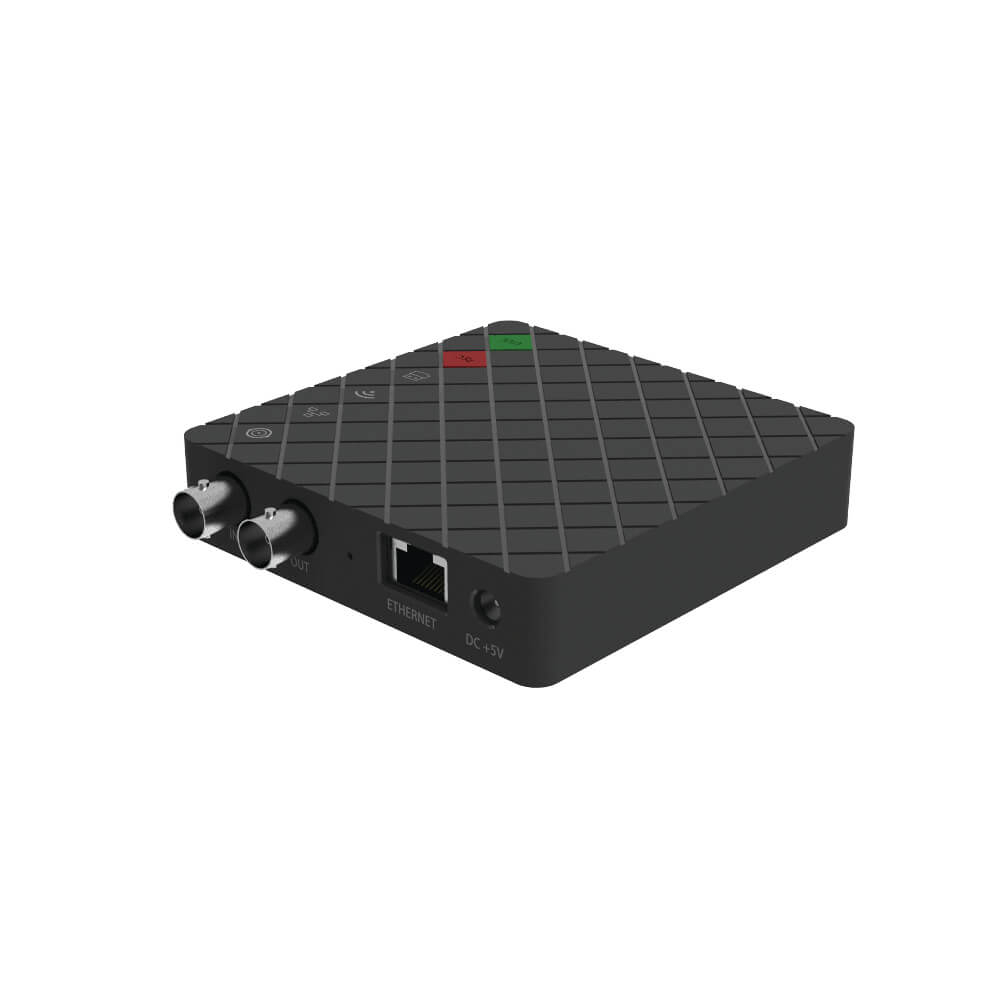

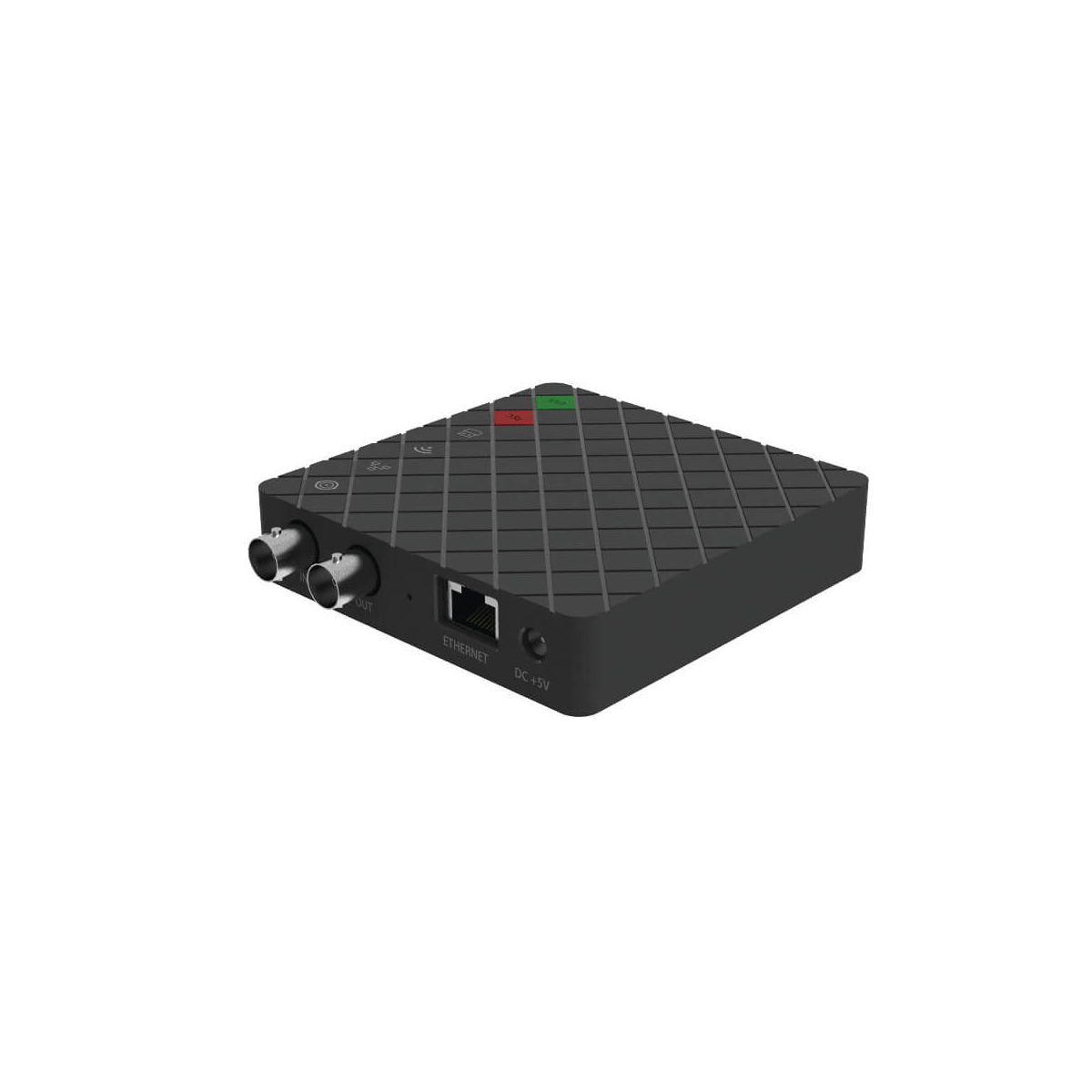

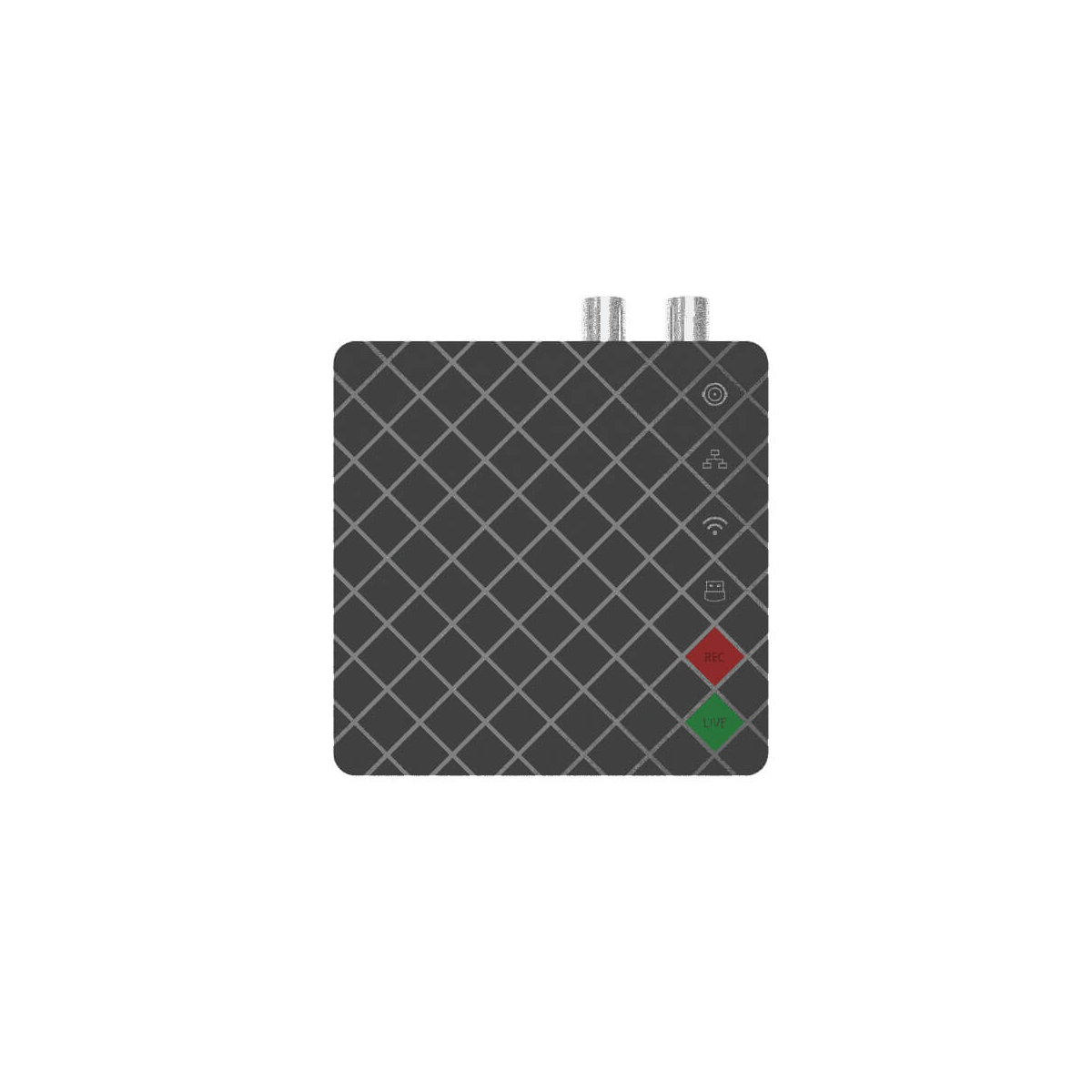

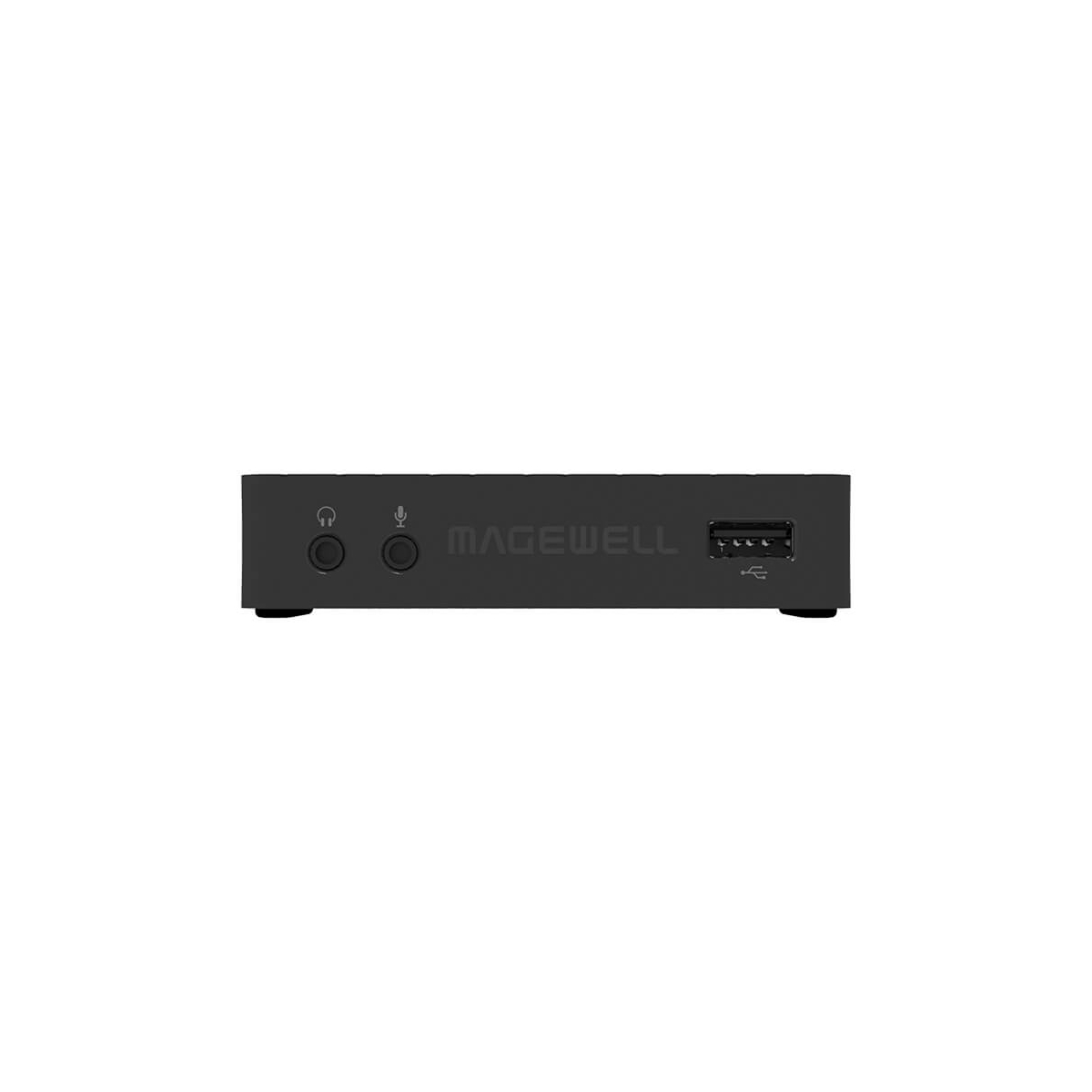

【Magewell】Ultra Stream SDI HD Streaming Encoder

Special Price HK$3,420.00 Regular Price HK$3,800.00
  • Single-Channel HD Streaming Encoder
  • Supports SDI Video Input up to 2048x1080 60fps
  • SD/HD/3G-SDI Loop Output
  • Stream up to 1080p Resolution in MP4
  • Single Click streaming to Facebook, Youtube
  • Deliver to Platforms and RTMP Addresses
  • Ethernet and Wi-Fi Connectivity
  • iOS/Android App Control
  • Microphone Input and Headphone Output
  • Record to USB or Mobile Device

Local Delivery

CHINAM is currently shipping within Hong Kong and specific countries only. We use local courier service as our delivery company. We do not support shipping items in a single order to multiple shipping addresses. To ship items to an additional address, please place a new order to us. Unless otherwise specified, delivery charge at the rate of HK$300 will be imposed on each delivery. We currently offer free delivery for each order over HK$1,000.

For remote areas or outlying islands delivery service, please contact our sales team via email - sales@chinam.com.hk

International Delivery

We will do our best to ship internationally to countries where we do not have sales representation. Please register with us, we’ll keep you updated and notify you when this is about to happen and become available in your region. Please note, at this time the customer is responsible for the duties and taxes imposed by their country.

For international shipping please contact our sales team via email - sales@chinam.com.hk

Deliver Time

  • Once your order has been handed over to the carrier for delivery, you will receive a shipment notification email with an estimated delivery date. Please note that it is not possible to expedite your delivery and receive your package earlier than the scheduled delivery date. Therefore, we are unable to accept requests for expedited delivery. Our carriers are unable to provide an exact time of day for your delivery. If you ordered multiple items, you may receive separate shipments.
  • All estimates are based on business days. We only make deliveries in the specified areas of Hong Kong from Monday to Sunday except on the first two days of the Lunar New Year and when typhoon warning signal No. 8 or above or black rainstorm warning is in force.
  • All rescheduling of delivery, additional purchases, new sales memos and amendments must be made 3 days before the scheduled delivery date. Otherwise, a double delivery charge will be incurred.
  • We may deliver the merchandise in one or more installments, and some of the merchandises may be delivered directly from suppliers. Any times and dates given for dispatch of merchandise, or the length of time that merchandise will take to be delivered, are only estimates. If we are unable to meet any stated dispatch or delivery dates or times we will inform you as to the progress of your order. You agree and accept that under no circumstances will we accept cancellation of order or refund.

Signature On Delivery

  • Most of our shipments contain valuable items. If you will not be in attendance to accept delivery of your purchase, consider shipping to someone you trust will be able to sign for your package. For your convenience, you may prefer to have your order delivered to your office address. If you choose this option, please include the name of your business in the address. Please note, if you choose this option, goods may be left with reception or the Mail Room.
  • As our carriers require a signature on delivery, the carrier will leave a calling card if you are not at home. Please contact the carrier to reschedule delivery.
  • For postal deliveries, no signature is required and order status tracking is not available.
  • Delivery failure due to no one answering the door upon the arrival of goods at the appointed time, or to circumstantial limitations such as the entrance being too small, will require a rescheduled delivery and therefore incur double delivery charges.
  • We will deliver the merchandise ordered by you to the address you give us for delivery at the time you make your order through our staff or a third party provider. You agree to present your photo identification upon request when you acknowledge receipt of the merchandise. The merchandise shall be, and shall be deemed to be, delivered and accepted by you when the merchandise are delivered to the address you give us for delivery. You agree and accept that we are entitled, at our option, to charge you additional costs or cancel your order in the event of your failure to accept delivery for whatever reasons.

General

  • You will become the owner of the merchandise you have ordered when they have been delivered to you. Once merchandise has been delivered to you they will be held at your own risk and we will not be liable for the loss or damage.
  • You may not export any products purchased at CHINAM online store. We sells and ships products to end-user customers only. Notwithstanding order confirmation, CHINAM may cancel any order where it has reasonable grounds to believe the product is not being purchased for end use.
  • If there is any inconsistency or ambiguity between the English version and the Chinese version, the English version shall prevail.
  • We reserve the final right to terminate or alter the above terms and conditions. In the event of any dispute, our decision shall be final and conclusive.
In stock (contact us for lead time)
SKU
530200000
Write Your Own Review
You're reviewing:【Magewell】Ultra Stream SDI HD Streaming Encoder
Your Rating

Ultra Stream™ Live Streaming and Recording Encoders

Ultra Stream encoder makes live streaming remarkably simple even for nonprofessional users, enabling them to record or stream high-quality video with one click using on-device buttons or an intuitive smartphone app. Designed for users who want to stream but may have minimal technical knowledge, the encoder is ideal for everyone from church volunteers and educators to corporate communicators and live event organizers.

Users can stream to popular services including YouTube, Facebook Live orTwitch or to a custom-specified server. Streams can be output to a third-party service and custom server simultaneously, while real-time video preview in the app allows easy monitoring.

Easy to Use

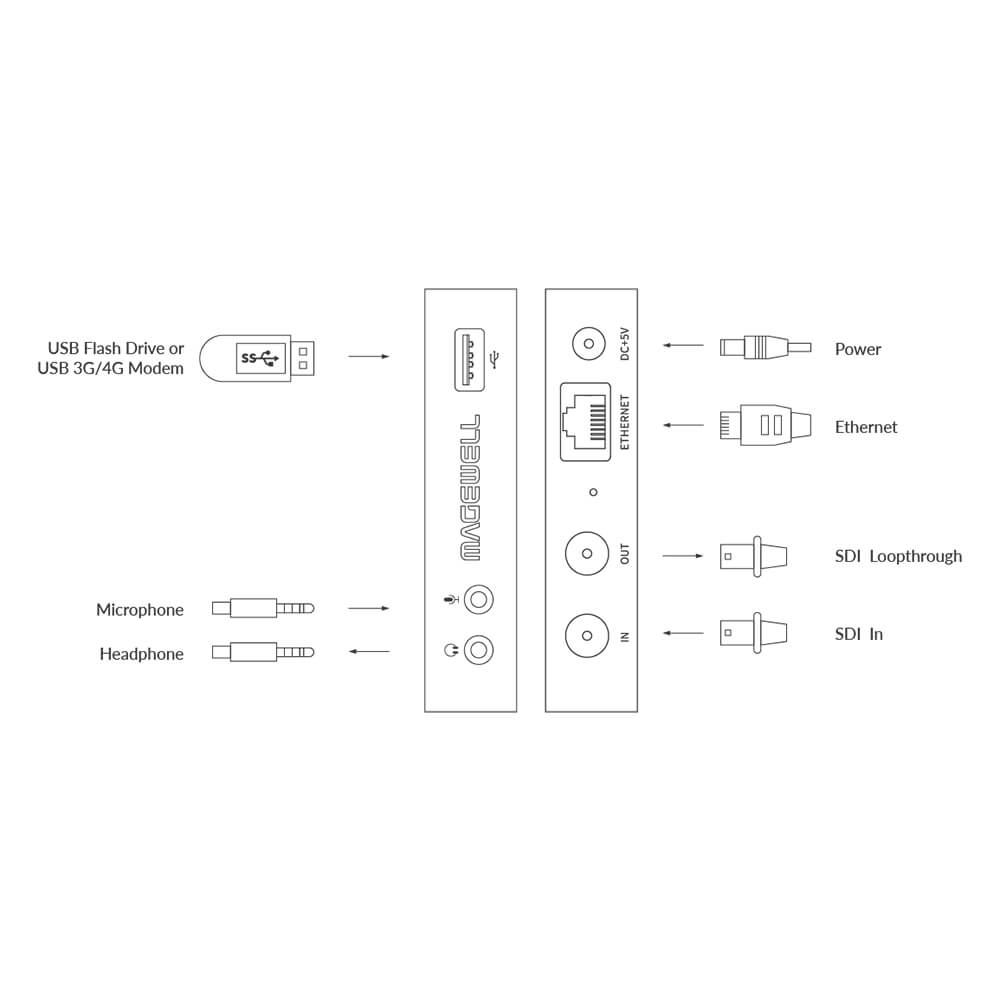

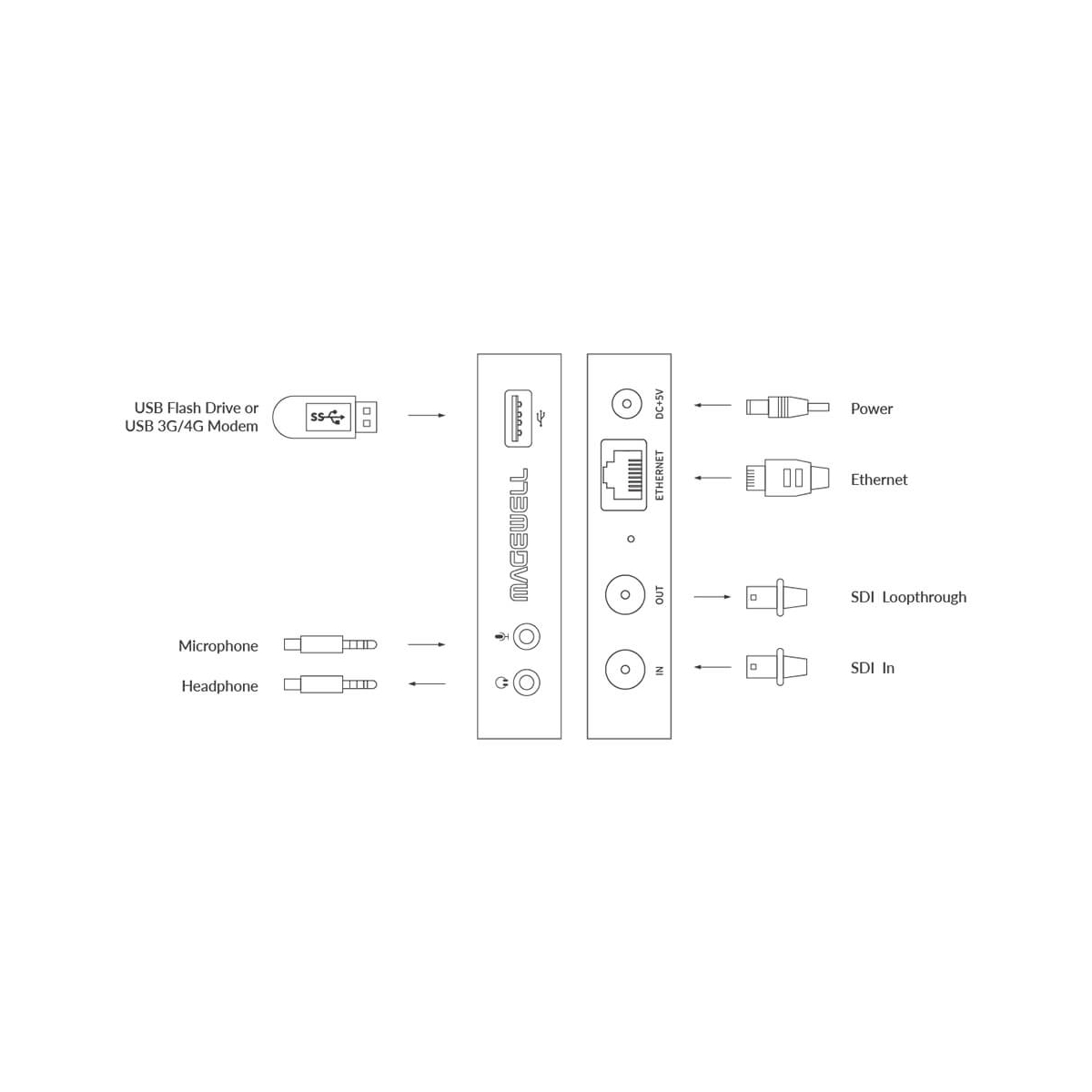

  • Stand-alone device; no computer required
  • Internet connectivity via wired Ethernet, Wi-Fi and optional 3G/4G modem support
  • Control via on-device buttons, intuitive smartphone App or browser-based interface
  • Available with SDI input and loop-through

Live Streaming Made Easier

  • Support H.264 or HEVC video encoding and AAC-LC audio encoding
  • Stream easily to YouTube, Twitch and Facebook Live
  • Stream to custom-specified RTMP or RTMPS server, support sending RTSP streams
  • Encode and stream at resolutions up to 1080p60 at 8Mbps
  • Stream to two platforms simultaneously at bitrates up to 4Mbps

Flexible Video Recording

  • Support H.264 or HEVC video encoding with AAC audio
  • Record and save clips to internal storage, a USB flash drive, the associated smartphone or a specified FTP server
  • Preview, record and stream video simultaneously
  • Record with two different encoding presets concurrently for different needs

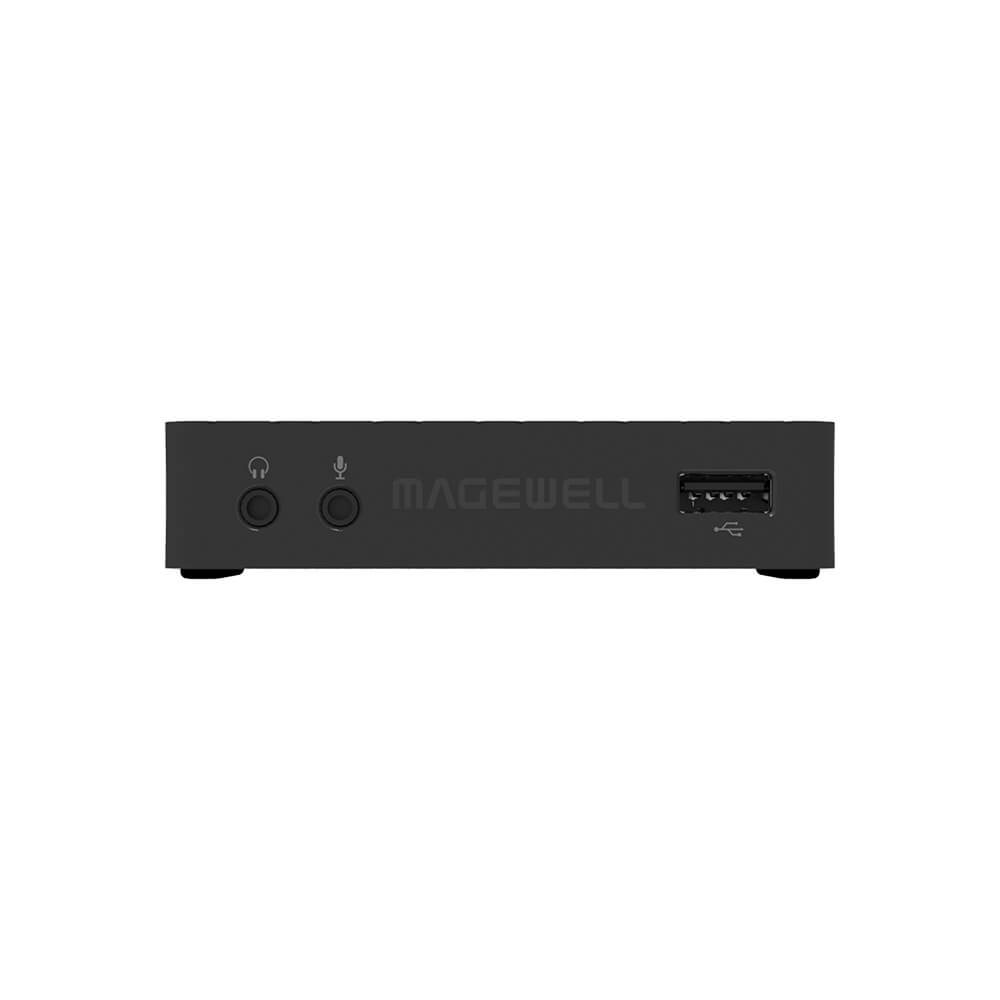

Add Your Narration and Monitor Your Video Source

  • Add narration through the analog microphone input
  • Monitor the input signal through the analog headphone output.

Magewell Ultra Stream SDI Specification

Input Features Max input & loop-through signal: 2048x1080 60fps
Supported SDI inputs include:
- 2048x1080p/2048x1080i/ 1920x1080p/1920x1080i 23.98/24/25/29.97/30/ 47.95/48/50/59.94/60
- 1280x720p 25/29.97/30/50/59.94/60
- 720x576 25p/50i (PAL SD)
- 720x480 29.97p/59.94i (NTSC SD)
8/10/12-bit color
Support 16-Channel SDI embedded audio
Input audio from 3.5mm microphone

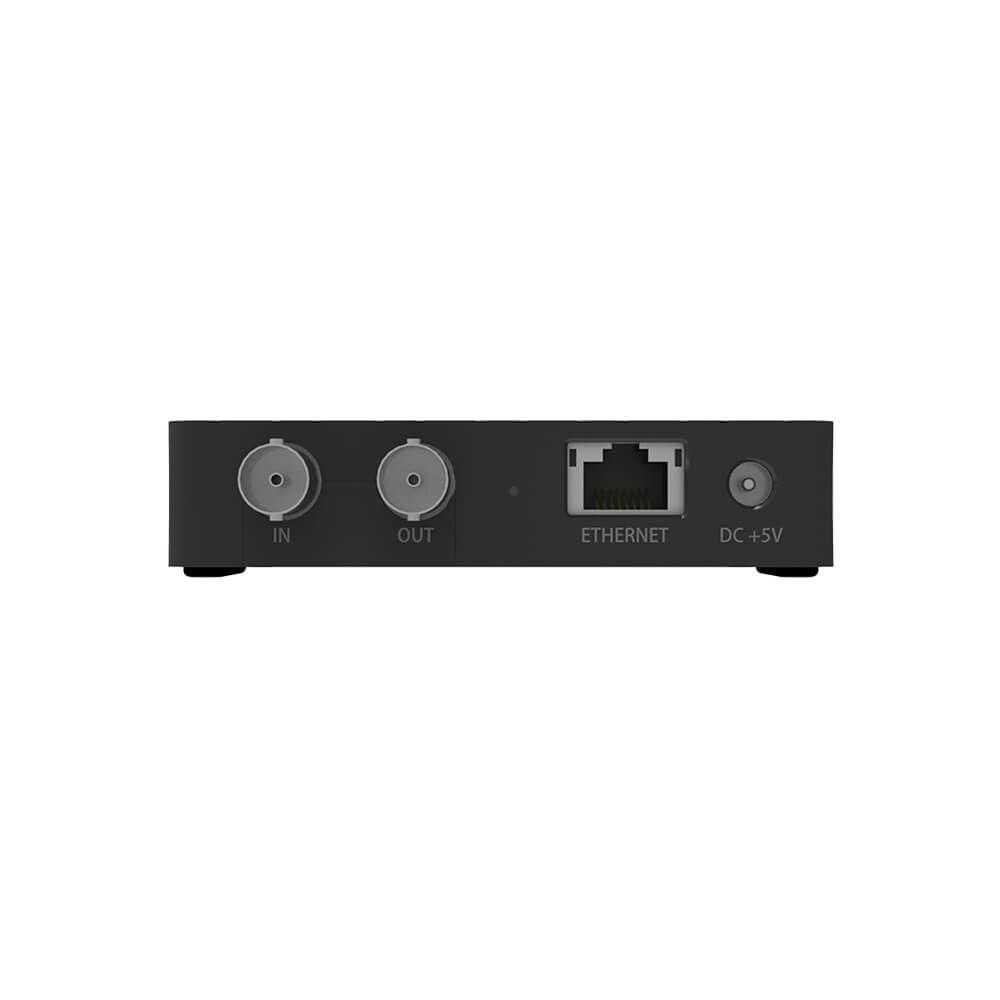

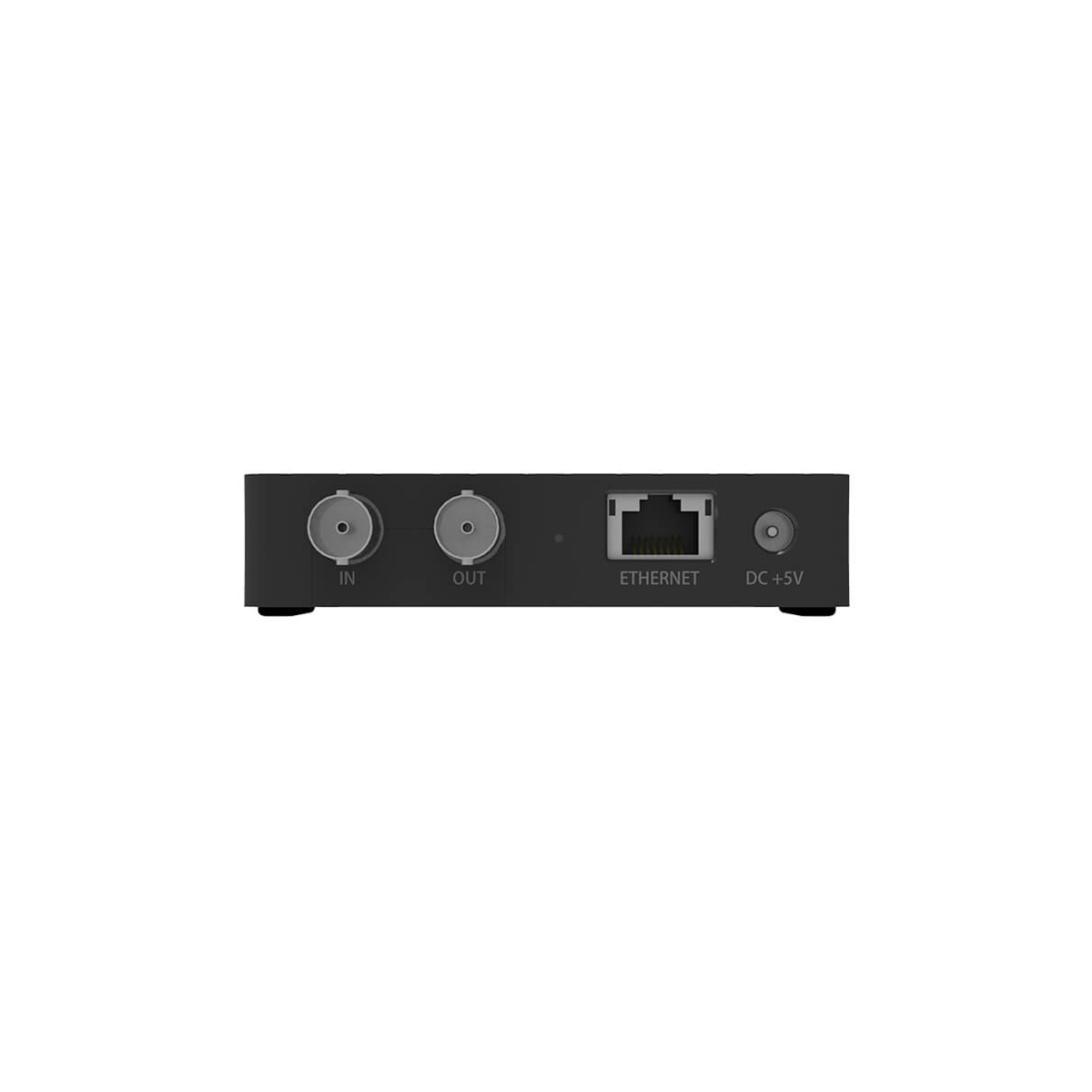

SD/HD/3G BNC input & loopthrough
SD (ST 259)/HD (ST 292)/3Ga (ST 425)/3Gb (ST 425)/3Gb-DL (ST 425)/3Gb-DS (ST 425) standards
Encoding Features Dual stream encoding: main stream and sub stream
Max bitrate:
- Main Stream - 8Mbps
- Sub Stream - 2Mbps
Supported resolutions:
- HD: 1920x1080, 1600x1200, 1600x900, 1440x1080, 1440x900, 1280x1024, 1280x960, 1280x800, 1280x720, 1024x768
- SD: 960x540, 800x600, 768x576, 720x576, 720x540, 640x480, 640x360, 480x360, 480x270
Supported frame rates: 60/59.94/50/30/ 29.97/25/24/15/10/5fps
H.264/H.265(HEVC) video encoders
Encoding 2-channel AAC at 48kHz, 16-bit
Supported audio bitrates: 256/192/128/96/64/48/ 32/16 kbps
Extracting audio from SDI signal and output through 3.5mm headphone
Encoding videos after de-interlacing
Streaming Features Natively support streaming to Facebook, Twitch and YouTube
Supported streaming protocols including RTSP/RTMP/RTMPS
Up to 2 streaming sessions simultaneously
Recording Features Recording to a USB flash drive, internal SD storage and paired mobile device simultaneously
To a USB Flash Drive
- support auto-recording, normal recording
- recording as MP4 or MOV files
- Recording duration can be 5/10/30/40/50/60/90/120 min
- Downloading recorded videos via WebUI
To internal SD storage (32GB)
- support auto-recording, loop-styled or normal recording
- recording as MP4 or MOV files
- Recording duration can be 5/10/30/40/50/60/90/120 min
- uploading recorded videos to a specified FTP server (FTP over TLS is supported), your Dropbox and Google Drive via WebUI
- Downloading recorded videos via WebUI
To paired mobile device
- recording as MP4 files
- taking still image snapshots during recording
- timer recording at 15s, 30s, 1min, 2min, 5min
Configuration Management Register with 2 Magewell Cloud platforms
Remote control via Application, WebUI and Magewell Cloud
Provide comprehensive information regarding the system information of device and working status in real-time
Configure parameters of volume and color, input and output signals, stream profiles, no signal image, the Ethernet and Wi-Fi connection, as well as date and time
Update firmware
WebUI supports IE/Edge/ Firefox/Chrome/Safari/ Opera web browsers
Provide HTTP APIs
Network Wired Ethernet network: 10/100/1000Mbps
Wi-Fi 802.11 a/b/g/n/ac
3G/4G USB mobile broadband Modem (not included)
Bluetooth 4.0 BLE

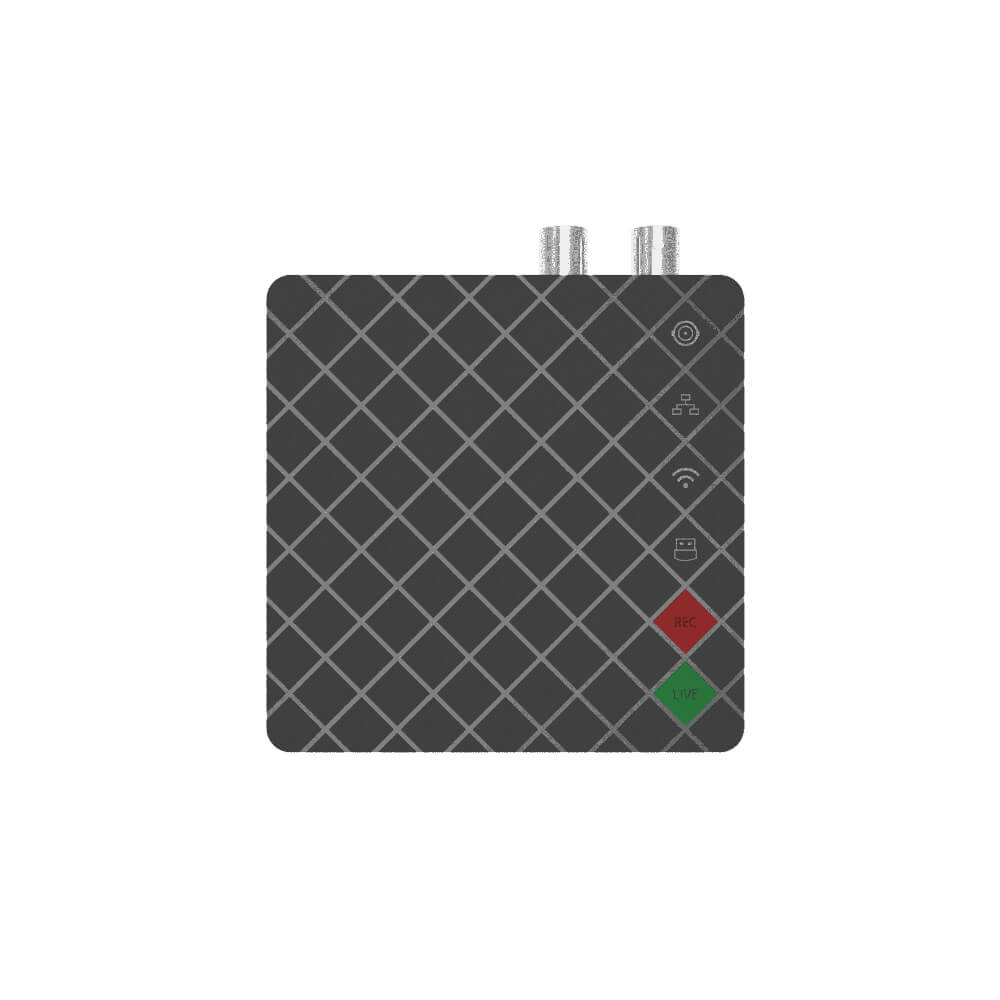

LED Indicators Indicate the state of the input signal, Ethernet Network, Wi-Fi, USB flash drive
Indicate the working state of the device: startup, recording, streaming, updating
Power Supply and Consumption DC 5V/2A
Max power consumption: ~7.2 W
Form Factor 94.20mm x 94.20mm x 22.30mm
Accessories AC adapter
Working Environment Operating temperature: 0 to 40 deg C
Storage temperature: -20 to 70 deg C
Relative Humidity: 5% to 90% non-condensing
  • Magewell Ultra Stream SDI
  • AC adapter
  • 2-years Limited Manufacturer's Warranty

View

Ultra Stream User Manual (for Web GUI)

View

Ultra Stream User Manual (for App)

View

Short FAQs about Ultra Stream

Download

Ultra Stream SDI Firmware| V1.5.224
