Ultra Stream™ Live Streaming and Recording Encoders
Ultra Stream encoder makes live streaming remarkably simple even for nonprofessional users, enabling them to record or stream high-quality video with one click using on-device buttons or an intuitive smartphone app. Designed for users who want to stream but may have minimal technical knowledge, the encoder is ideal for everyone from church volunteers and educators to corporate communicators and live event organizers.
Users can stream to popular services including YouTube, Facebook Live orTwitch or to a custom-specified server. Streams can be output to a third-party service and custom server simultaneously, while real-time video preview in the app allows easy monitoring.
Easy to Use
- Stand-alone device; no computer required
- Internet connectivity via wired Ethernet, Wi-Fi and optional 3G/4G modem support

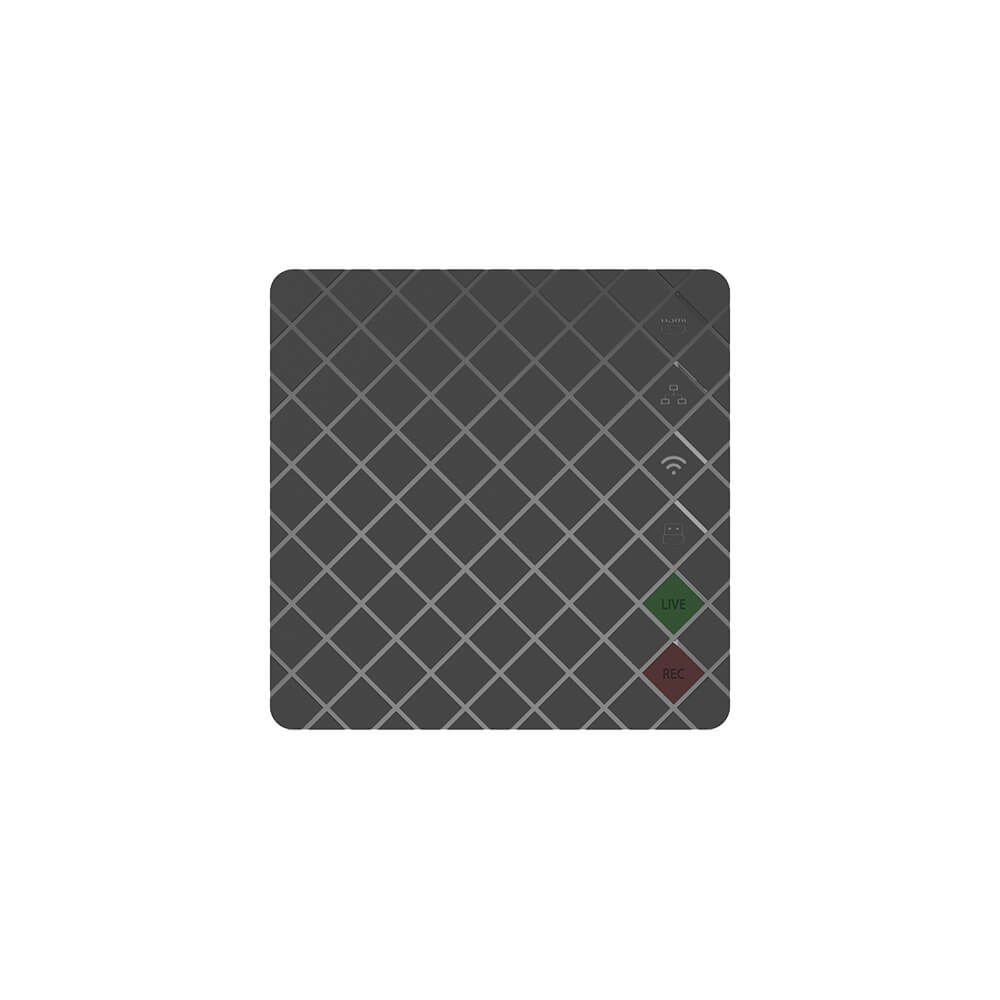

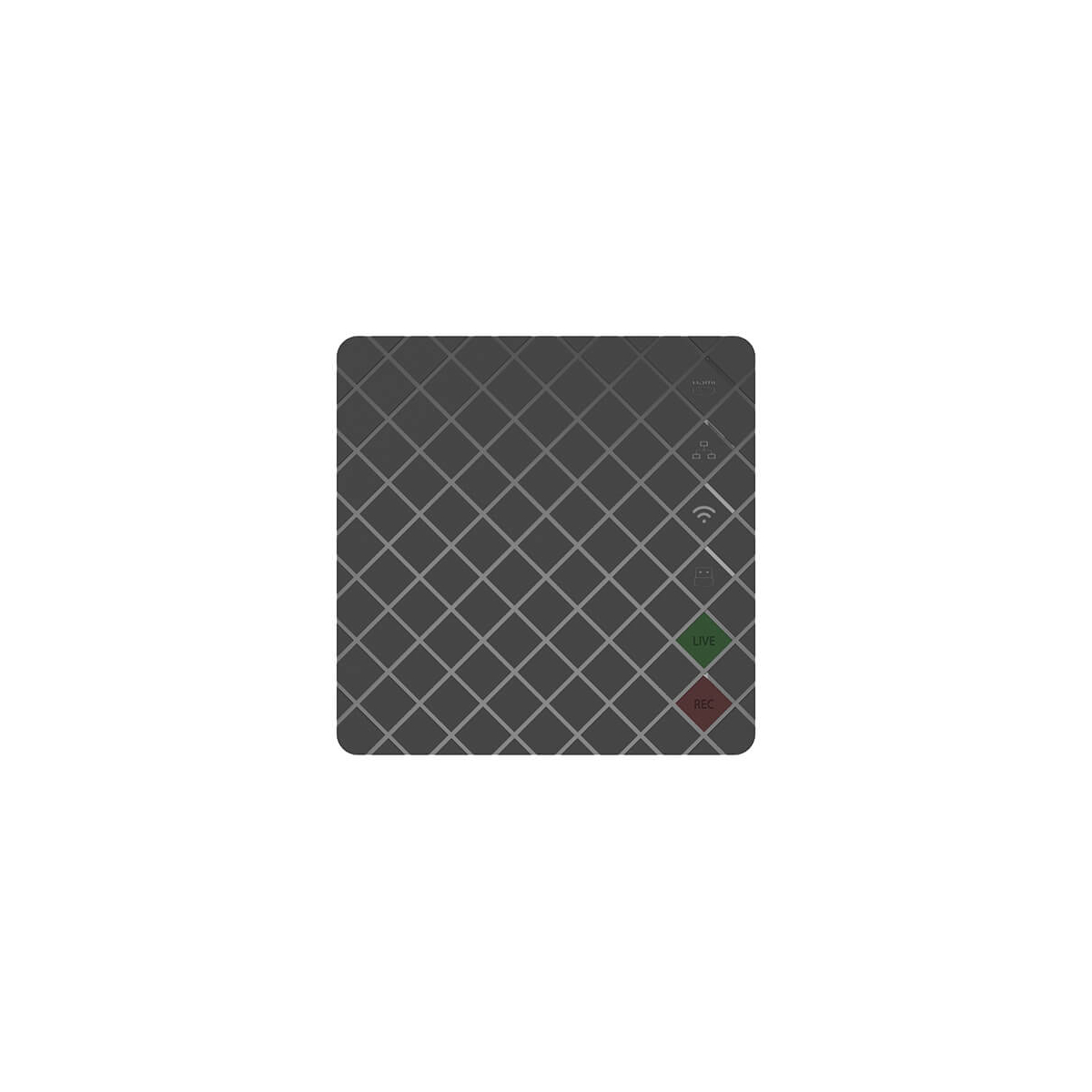

- Control via on-device buttons, intuitive smartphone App or browser-based interface

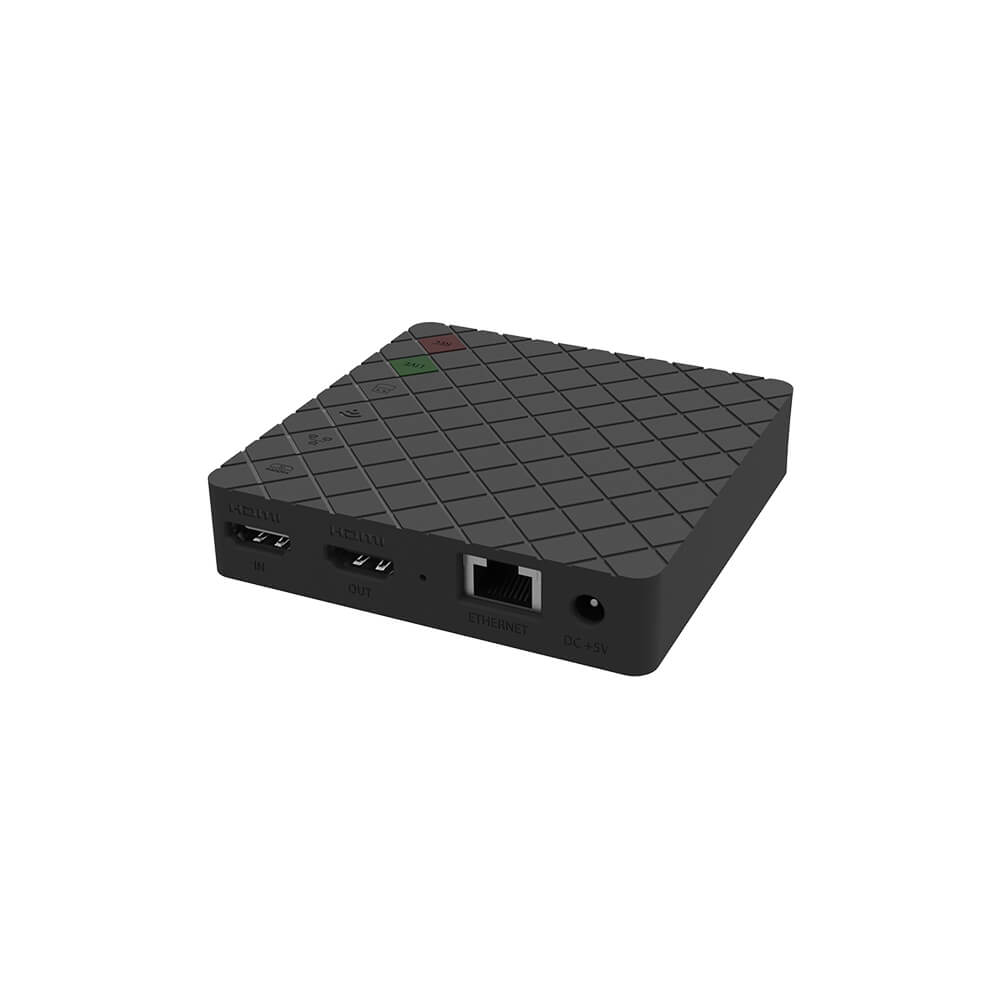

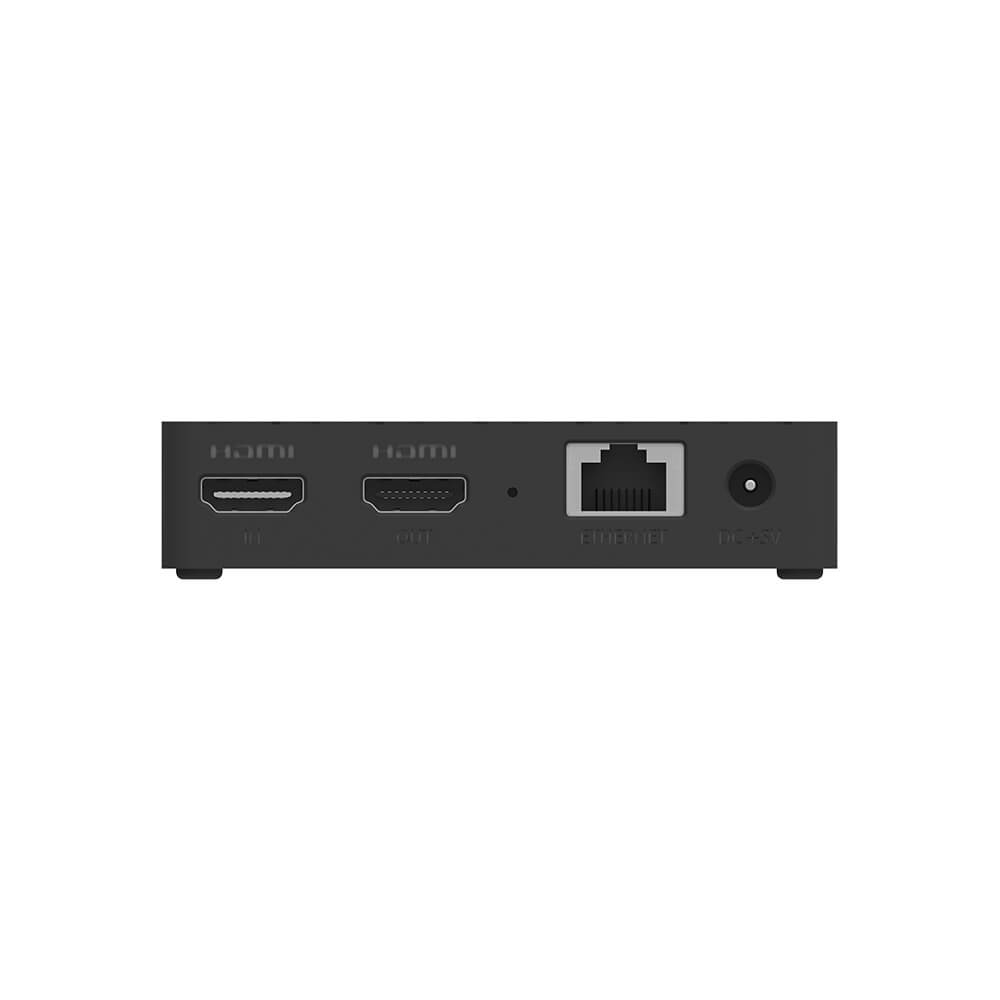

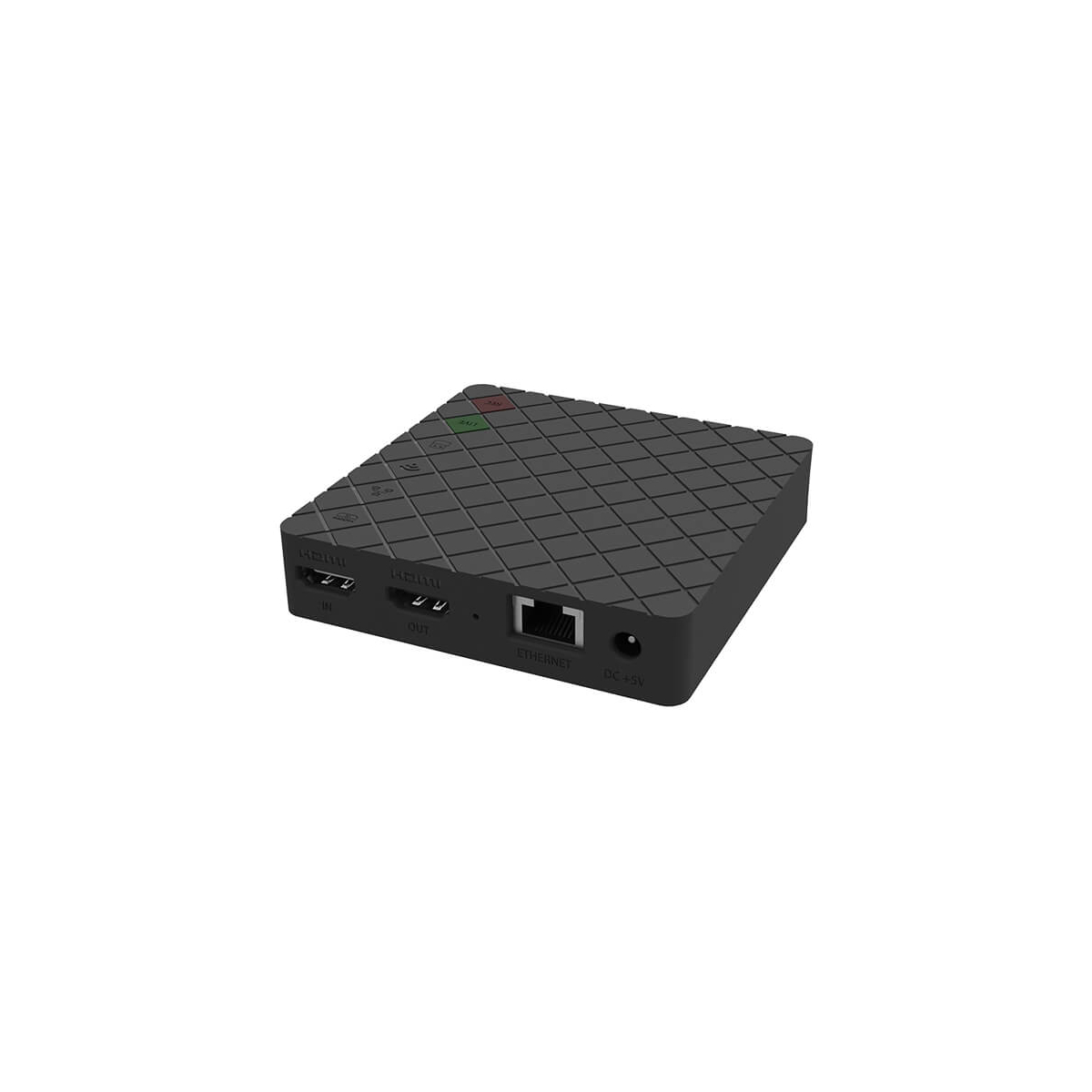

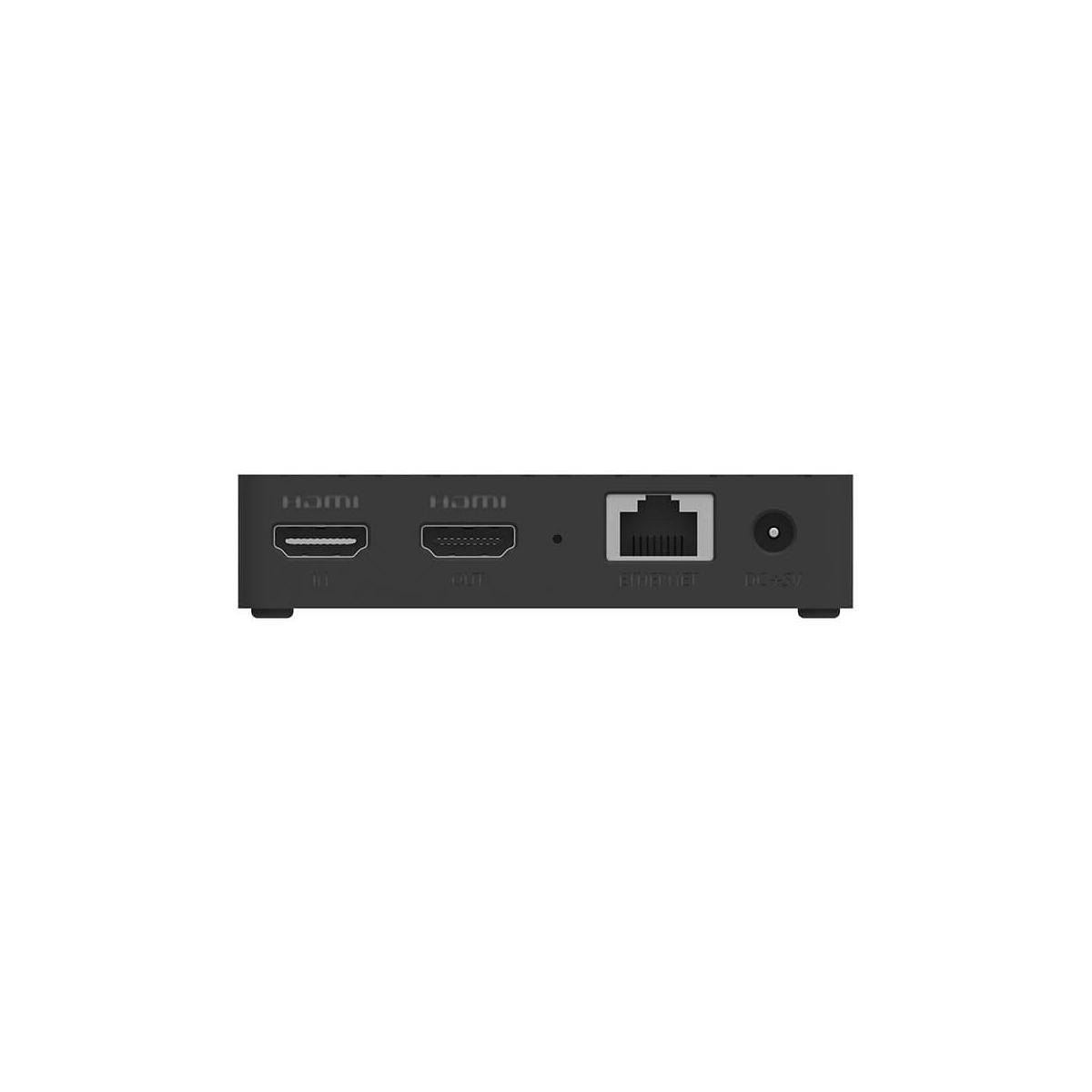

- Available with HDMI input and loop-through
Live Streaming Made Easier
- Support H.264 or HEVC video encoding and AAC-LC audio encoding
- Stream easily to YouTube, Twitch and Facebook Live
- Stream to custom-specified RTMP or RTMPS server, support sending RTSP streams
- Encode and stream at resolutions up to 1080p60 at 8Mbps
- Stream to two platforms simultaneously at bitrates up to 4Mbps
Flexible Video Recording
- Support H.264 or HEVC video encoding with AAC audio
- Record and save clips to internal storage, a USB flash drive, the associated smartphone or a specified FTP server
- Preview, record and stream video simultaneously
- Record with two different encoding presets concurrently for different needs
Add Your Narration and Monitor Your Video Source

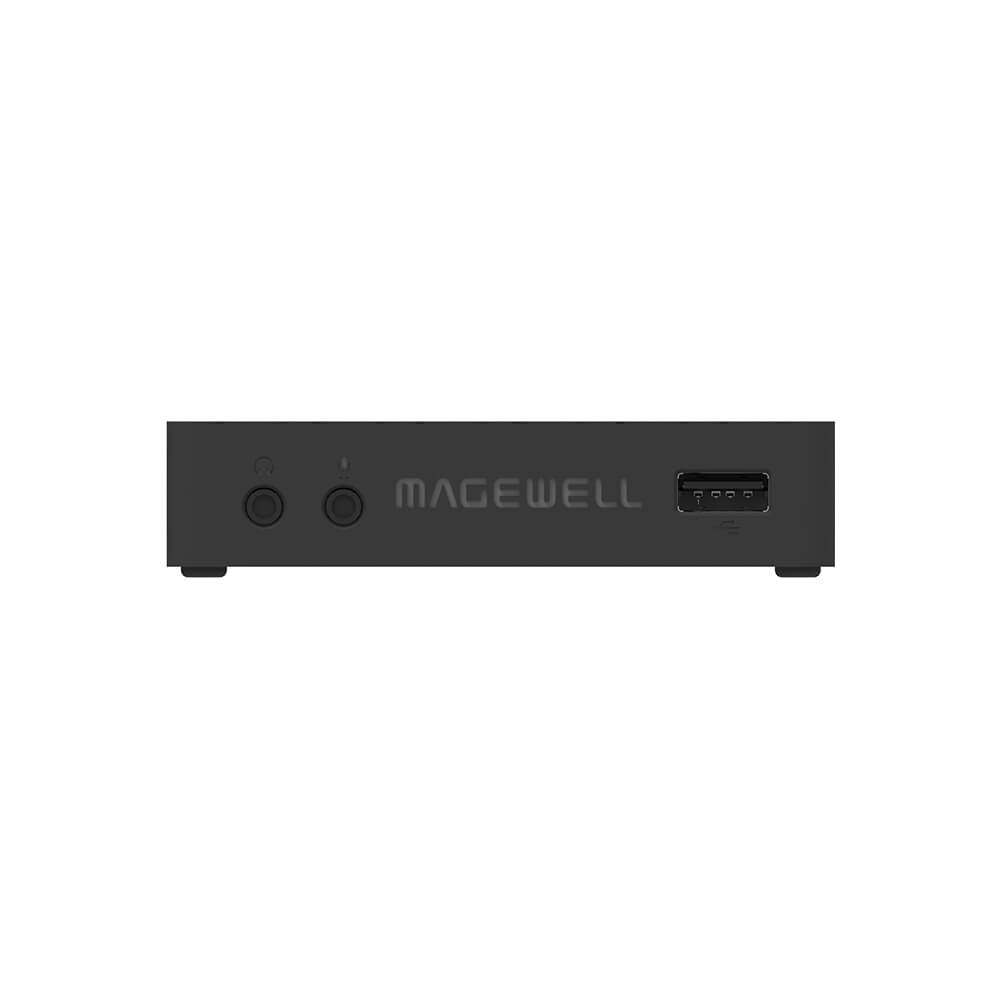

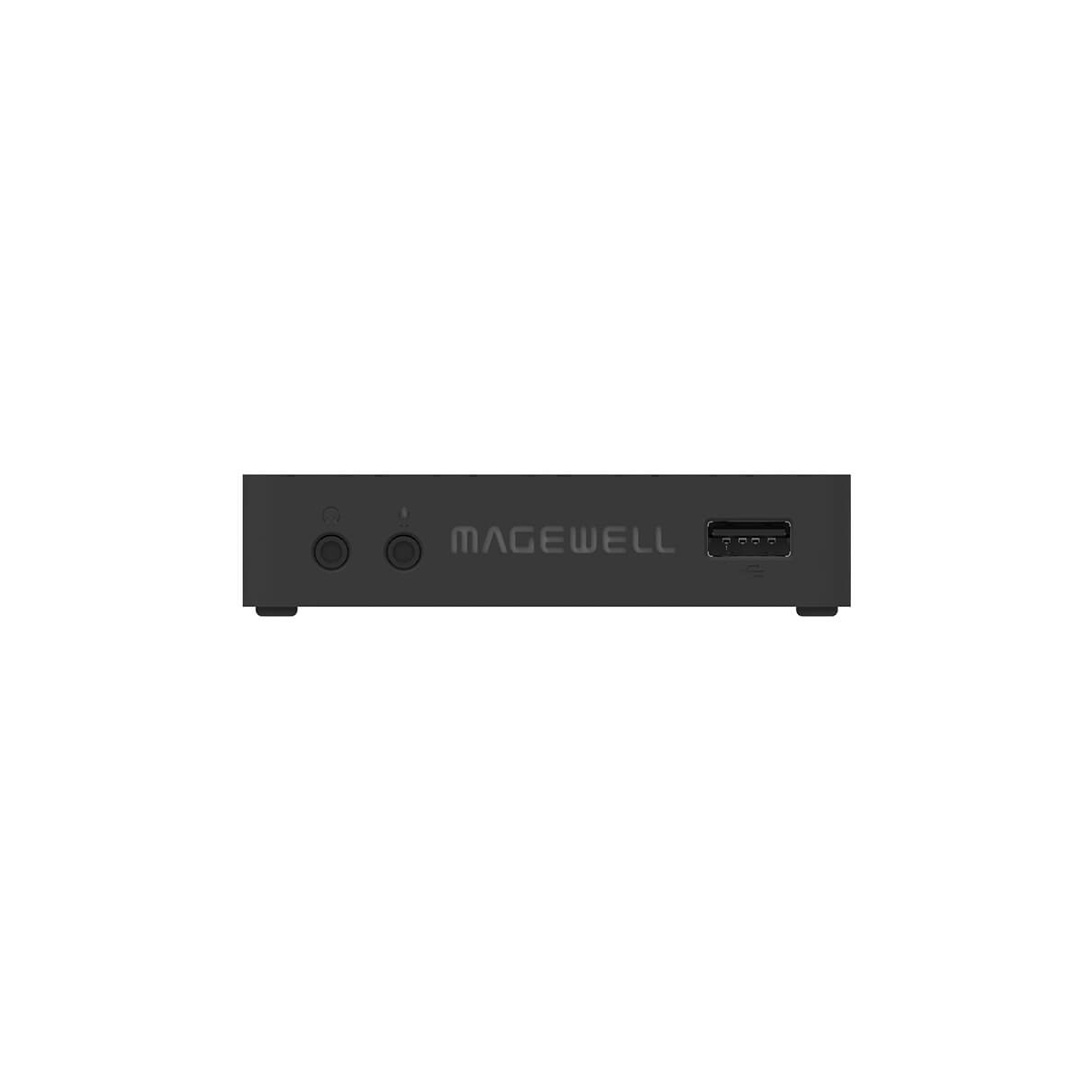

- Add narration through the analog microphone input
- Monitor the input signal through the analog headphone output.
Magewell Ultra Stream HDMI Specification |
|

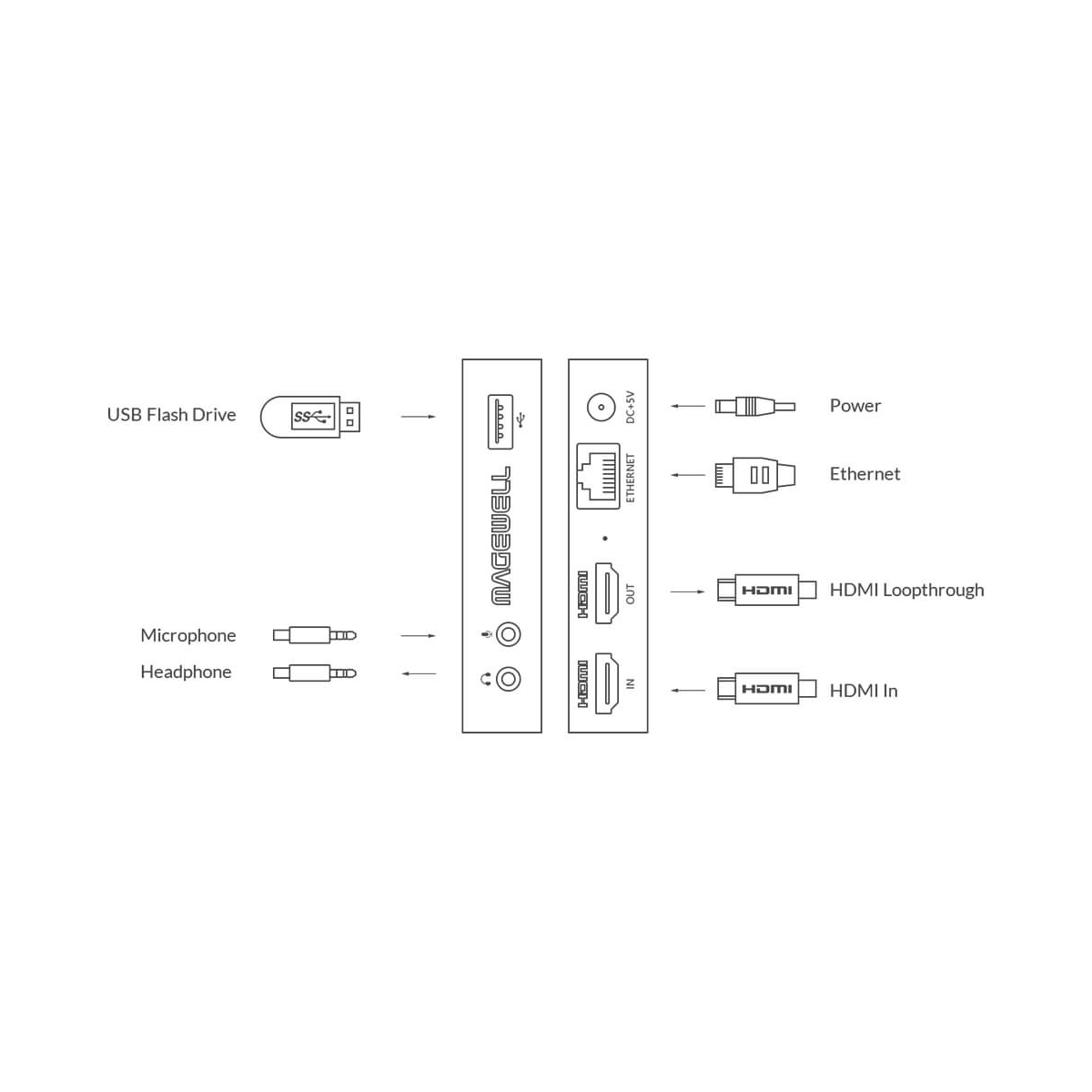

Input Features | Max HDMI input & loop-through signals: - 4096x2160 4:2:0 60fps - 4096x2160 4:4:4/4:2:2 30fps Custom EDID Supported HDMI inputs include: - 4096x2160p/3840x2160p 23.98/24/25/29.97/30/ 59.94/60 - 2560x1080p 23.98/24/25/29.97/30/50/ 59.94/60 - 1920x1080p 23.98/24/25/29.97/30/50/ 59.94/60/100/119.88/120 - 1920x1080i 25/29.97/30/50/59.94/60 - 1280x720p 23.98/24/25/29.97/30/50/ 59.94/60/144 - 720x576p 50/100/144 - 720x576i 25/50 - 720x480p 59.94/60/144 - 720x480i 29.97/30 8/10/12-bit color Input & loopthrough 8-Channel, 24-bit HDMI embedded audio, 192kHz sample rate Input audio from 3.5mm microphone HDMI Input and loop-through interfaces: HDMI 1.4a, DVI-D |
Encoding Features | Dual stream encoding: main stream and sub stream Max bitrate: - Main Stream - 8Mbps - Sub Stream - 2Mbps Supported resolutions: - HD: 1920x1080, 1600x1200, 1600x900, 1440x1080, 1440x900, 1280x1024, 1280x960, 1280x800, 1280x720, 1024x768 - SD: 960x540, 800x600, 768x576, 720x576, 720x540, 640x480, 640x360, 480x360, 480x270 Supported frame rates: 60/59.94/50/30/ 29.97/25/24/15/10/5fps H.264/H.265(HEVC) video encoders Encoding 2-channel AAC at 48kHz, 16-bit Supported audio bitrates: 256/192/128/96/64/48/ 32/16 kbps Extracting audio from HDMI signal and output through 3.5mm headphone Encoding videos after de-interlacing |
Streaming Features | Natively support streaming to Facebook, Twitch and YouTube Supported streaming protocols including RTSP/RTMP/RTMPS Up to 2 streaming sessions simultaneously |
Recording Features | Recording to a USB flash drive, internal SD storage and paired mobile device simultaneously To a USB Flash Drive - support auto-recording, normal recording - recording as MP4 or MOV files - Recording duration can be 5/10/30/40/50/60/90/120 min - Downloading recorded videos via WebUI To internal SD storage (32GB) - support auto-recording, loop-styled or normal recording - recording as MP4 or MOV files - Recording duration can be 5/10/30/40/50/60/90/120 min - uploading recorded videos to a specified FTP server (FTP over TLS is supported), your Dropbox and Google Drive via WebUI - Downloading recorded videos via WebUI To paired mobile device - recording as MP4 files - taking still image snapshots during recording - timer recording at 15s, 30s, 1min, 2min, 5min |
Configuration Management | Register with 2 Magewell Cloud platforms Remote control via Application, WebUI and Magewell Cloud Provide comprehensive information regarding the system information of device and working status in real-time Configure parameters of volume and color, input and output signals, stream profiles, no signal image, the Ethernet and Wi-Fi connection, as well as date and time Update firmware WebUI supports IE/Edge/ Firefox/Chrome/Safari/ Opera web browsers Provide HTTP APIs |
Network | Wired Ethernet network: 10/100/1000Mbps Wi-Fi 802.11 a/b/g/n/ac 3G/4G USB mobile broadband Modem (not included) Bluetooth 4.0 BLE |
LED Indicators | Indicate the state of the input signal, Ethernet Network, Wi-Fi, USB flash drive Indicate the working state of the device: startup, recording, streaming, updating |
Power Supply and Consumption | DC 5V/2A Max power consumption: ~9.6 W |
Form Factor | 94.20mm x 94.20mm x 22.30mm |
Accessories | AC adapter HDMI cable |
Working Environment | Operating temperature: 0 to 40 deg C Storage temperature: -20 to 70 deg C Relative Humidity: 5% to 90% non-condensing |
- Magewell Ultra Stream HDMI
- AC adapter
- HDMI cable
- 2-years Limited Manufacturer's Warranty
