Input Features
- Support for up to 4096x2160 30fps input and loopthrough signals
- Input & loopthrough 16-Channel SDI embedded audio
- Input audio from 3.5 mm LINE IN
Streaming Features
- Natively support Facebook, Twitch, YouTube and WOWZA
- Supported streaming protocols: RTSP/RTMP/RTMPS/SRT Caller/SRT Listener/NDI® HX2/NDI® HX3/HLS/TS over UDP/TS over RTP/TVU ISSP
- Allow simultaneous 6 sessions over multiple streaming protocols
- Support for streaming schedule
Encoding Features
- Dual stream encoding profiles: main stream and sub stream up to 4096x2160p30
- Max bitrate: 62Mbps (NDI® HX3), 32Mbps (Others)
- Support for H.264/HEVC video encoding
- Provide video aspect ratio conversion, image rotation and cropping for the main and sub streams
- Encoding 8-channel AAC and audio channels mapping
- Side-by-Side 3D video encoding
Recording Features
- Record to internal storage (128GB), external USB storage or network attached storage (NFS/CIFS)
- Automatically upload recorded files to remote file storage platform
- Video recordings in MP4, MOV or TS format
- Normal recording and loop recording supported
- Support for recording schedule
Others
- PoE available
- Tally lights for NDI® HX3
- Remote control via Web GUI and Control Hub
- Provide HTTP APIs

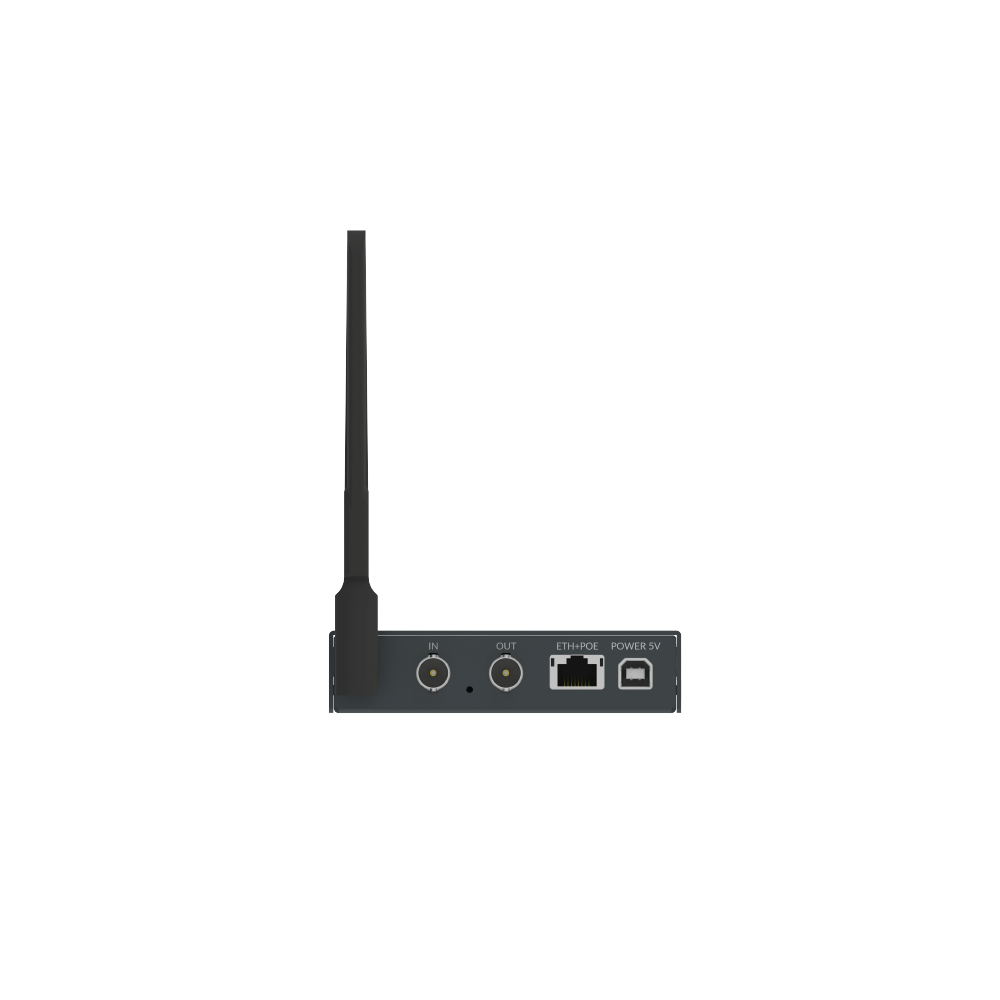

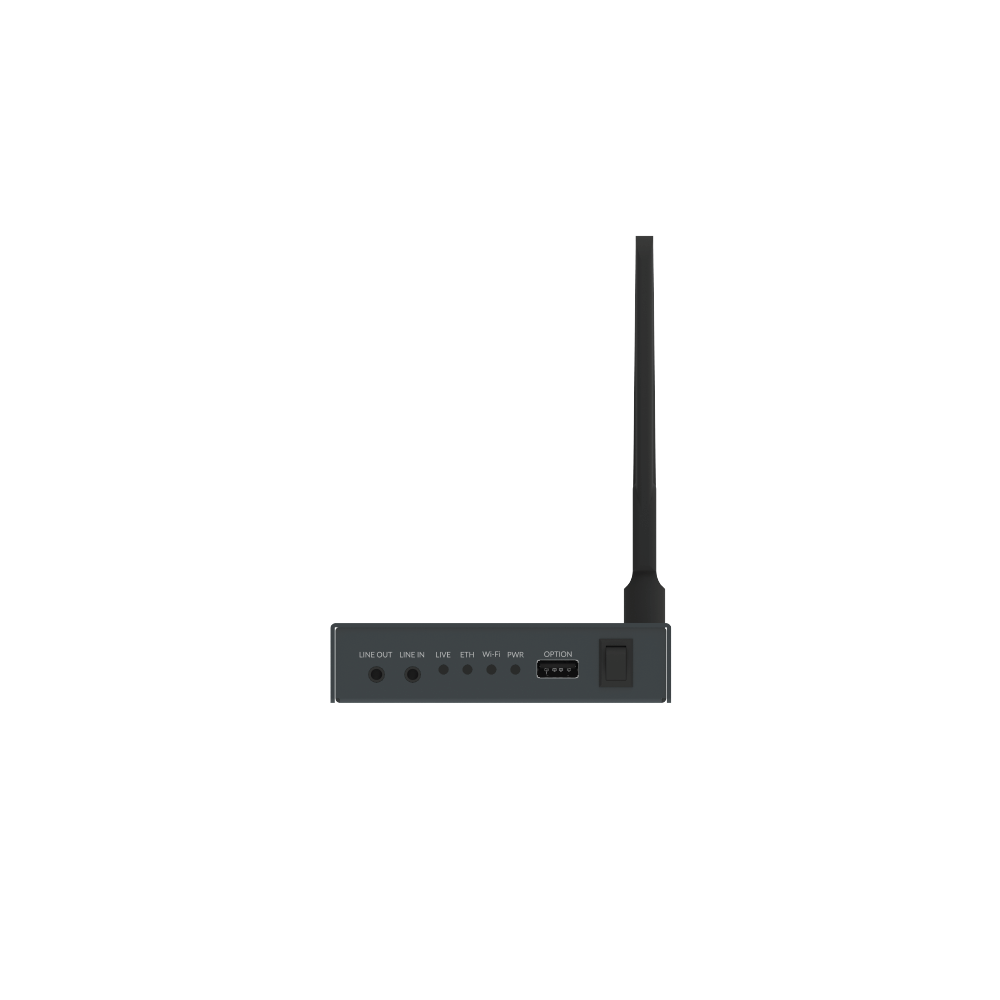

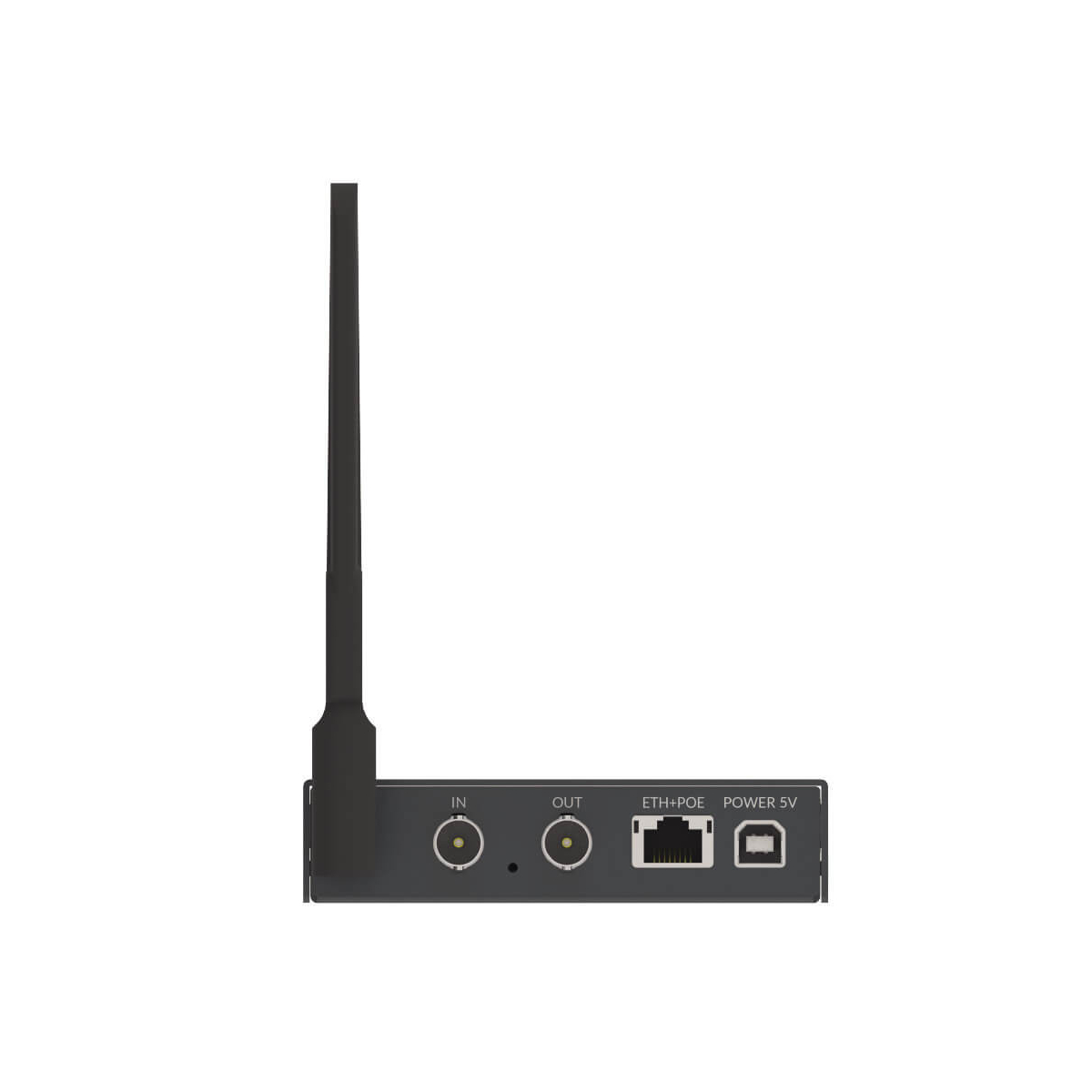

Inputs / Outputs |
|
Video Inputs | 1 x BNC (3G-SDI) Female |
Audio Inputs | 1 x 1/8" / 3.5 mm TRS Stereo Analog Female |
Video Outputs | 1 x BNC (3G-SDI) Female (Loop Output) |
Audio Outputs | 1 x 1/8" / 3.5 mm TRS Stereo Analog Female (Loop Output) |
Other I/O | 2 x USB-A Unspecified Input/Output (Shared Modem) |
Expansion Slots | No |
Format Support |
|
Input Video Format | SDI (10/12-Bit 4:4:4/4:2:2 YCC) DCI 4K at 23.98/24/25/29.97/30 fps DCI 2K at 23.98/24/25/29.97/30/47.95/50/59.94/60 fps 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1080i at 23.98/24/25/29.97/30/50/59.94/60 fps 720p at 25/29.97/30/50/59.94/60 fps 576p at 25 fps 576i / 625 lines at 50 fps 480p at 29.97 fps 480i / 525 lines at 59.94 fps |
Input Audio Format | Analog |
Output Video Format | RJ45 / USB-A / Wireless DCI 4K at 15/23.98/24/25/29.97/30 fps DCI 2K at 15/23.98/24/25/29.97/30/50/59.94/60 fps 1080p at 15/23.98/24/25/29.97/30/50/59.94/60 fps 720p at 15/23.98/24/25/29.97/30/50/59.94/60 fps UXGA (1600 x 1200) at 15/23.98/24/25/29.97/30/50/59.94/60 fps 1440 x 900 at 15/23.98/24/25/29.97/30/50/59.94/60 fps SXGA (1280 x 1024) at 15/23.98/24/25/29.97/30/50/59.94/60 fps 1280 x 960 at 15/23.98/24/25/29.97/30/50/59.94/60 fps WXGA (1280 x 800) at 15/23.98/24/25/29.97/30/50/59.94/60 fps 1280 x 720 (Non-Standard WXGA) at 15/23.98/24/25/29.97/30/50/59.94/60 fps XGA (1024 x 768) at 15/23.98/24/25/29.97/30/50 fps 960 x 540 at 15/23.98/24/25/29.97/30/50/59.94/60 fps SVGA (800 x 600) at 15/23.98/24/25/29.97/30/50/59.94/60 fps 768 x 576 at 15/23.98/24/25/29.97/30/50/59.94/60 fps 720 x 576 at 15/23.98/24/25/29.97/30/50/59.94/60 fps 720 x 540 at 15/23.98/24/25/29.97/30/50/59.94/60 fps 720 x 480 at 15/23.98/24/25/29.97/30/50/59.94/60 fps VGA (640 x 480) at 15/23.98/24/25/29.97/30/50/59.94/60 fps 640 x 360 15/23.98/24/25/29.97/30/50/59.94/60 fps |
Output Audio Format | Analog |
Embedded Audio | SDI Input: 16-Channel SDI Output: 16-Channel LAN (RJ45)/NDI/USB/Wireless Output: 2-Channel |
Standards |
|
Video Standard Compliance | SMPTE 259M/292M/425M |
IP Streaming |
|
Video IP Encoding | H.264, H.265, HLS, NDI|HX2, NDI|HX3, RTMP, RTMPS, RTP, RTSP, SRT, TCP, TS, UDP: 480 x 270 to 2048 x 1080 at 5, 10, 15, 23.98p, 24p, 25p, 29.97p, 30p, 50i, 50p, 59.94i, 59.94p, 60p (1.5 to 62 Mb/s) |
Audio IP Encoding | AAC: 16.00 to 256.00 Kb/s |
Hardware |
|
Wireless | Wi-Fi 5 (802.11ac) *Built-In |
Power |
|
Power I/O | 1 x USB-B (5 VDC at 3 A) Input |
Power Consumption | Device: 7.16 W |
Environmental |
|
Operating Temperature | 32 to 140°F / 0 to 60°C |
Storage Temperature | -4 to 140°F / -20 to 60°C |
Operating Humidity | 5 to 90% () |
- Magewell Ultra Encode SDI Plus Universal 4K Encoder
- 5 VDCPower Adapter
- SDI Cable
- USB-A to USB-B Cable
- Wi-Fi Antenna
- T-Bracket
- Limited 2-Year Manufacturer Warranty (On Encoder)
- Limited 1-Year Manufacturer Warranty (On Power Adapter)
