Flexible & Affordable Encoding Solution
Ultra Encode HDMI/SDI universal live media encoders offer systems integrators, streaming professionals, and OEM partners a flexible and affordable encoding solution for applications including live streaming, AV over IP, remote contribution, IP production workflows and much more. They support high-quality H.264, H.265 (HEVC) and NDI®|HX encoding and multiple streaming protocols with wired or wireless network connectivity.
Live Streaming
Ultra Encode HDMI/SDI supports live streaming in protocols including RTMP, RTMPS, HLS and more at bitrates up to 16Mbps, with configurable presets for easy streaming to Facebook, Twitch and YouTube. Some protocols can be streamed to multiple destinations simultaneously.
Production, Contribution & Monitoring
In addition to mainstream streaming protocols, Ultra Encode HDMI/SDI supports NewTek’s NDI®|HX technology for IP production workflows and the Secure Reliable Transport (SRT) protocol (developed and open-sourced by Haivision) for robust delivery of H.264/H.265 streams over unpredictable networks such as the Internet. The encoder can be camera-mounted for easy remote contribution, while bandwidth-efficient NDI®|HX streams can be sent over wireless networks to multiple receivers, simplifying on-site production and monitoring workflows.
AV over IP
Ultra Encode HDMI/SDI can be combined with our Pro Convert decoders to form flexible AV over IP infrastructures leveraging NDI®|HX and SRT technology. The devices can be configured and controlled through an intuitive Web GUI or HTTP-based APIs, providing systems integrators with exceptional deployment and integration flexibility.
Magewell Ultra Encode SDI Specification |
|
Input Features | Max input & loop-through signal: 2048x1080 60fps Supported inputs include: - 2048x1080p/2048x1080i/ 1920x1080p/1920x1080i 23.98/24/25/29.97/30/ 47.95/48/50/59.94/60 - 1280x720p 25/29.97/30/50/59.94/60 - 720x576 25p/50i (PAL SD) - 720x480 29.97p/59.94i (NTSC SD) 8/10/12-bit color Input & loopthrough 16-Channel SDI embedded audio Input Audio from 3.5 mm LINE IN SD/HD/3G BNC input & loopthrough SD (ST 259)/HD (ST 292)/3Ga (ST 425)/3Gb (ST 425)/3Gb-DL(ST 425)/3Gb-DS(ST 425) standards |
Encoding Features | Dual stream encoding: main stream and sub stream Max bitrates: - Main Stream - 16Mbps - Sub Stream - 2Mbps Supported resolutions: - HD: 1920x1080, 1600x1200, 1440x1080, 1440x900, 1280x1024, 1280x960, 1280x800, 1280x720, 1024x768 - SD: 960x540, 800x600, 768x576, 720x576, 720x540, 640x480, 640x360, 480x360, 480x270 Supported frame rates: 60/59.94/50/30/ 29.97/25/24/15/10/5fps H.264/H.265 (HEVC) supports system timecode or RP–188 timecode for SEI Message setting H.264/H.265 (HEVC) supports native CEA–608/608 over 708 captions Encoding 2-channel AAC audio at 48kHz, 16-bit Supported audio bitrates: 256/192/128/96/64/48/ 32/16 kbps Extracting audio from SDI signal and output through LINE OUT Encoding videos after de-interlacing H.265 (HEVC) SEI message supports carrying interlacing signal mark |
Streaming Features | Natively support Facebook, Twitch and YouTube Supported streaming protocols: RTSP/RTMP/RTMPS/SRT Caller/SRT Listener/NDI|HX2/HLS/TS over UDP/TS over RTP Allow simultaneous sessions over the same streaming protocol. Streaming protocols are as follows. - Up to 6 sessions of TS over RTP and TS over UDP simultaneously - Up to 6 sessions of SRT Caller and SRT Listener simultaneously, containing one SRT Listener session at most (max 8 clients simultaneously) - Up to 6 sessions of RTMP and RTMPS simultaneously Stream only 1 session of HLS, RTSP, or NDI|HX2 Total bitrates for different network connection types: - 24Mbps for all streams is recommended for a wired network connection - 16Mbps for all streams is recommended for a wireless network connection Specify streaming main stream or sub stream for each session |
Configuration Management | Register with Magewell Cloud Remote control via WebUI and Magewell Cloud Provide comprehensive information regarding the system information of device and working status in real-time Video thumbnail preview Configure parameters of volume and color, input and output signals, stream profiles, no signal image, the Ethernet and Wi-Fi connection, as well as date and time Update firmware Export configuration profiles of the device Support IE/Edge/Firefox/ Chrome/Safari/Opera web browsers Provide HTTP APIs |
Network Interfaces | Wired Ethernet network: 10/100/1000Mbps Wi-Fi 802.11 a/b/g/n/ac 3G/4G USB mobile broadband Modem (not included) |

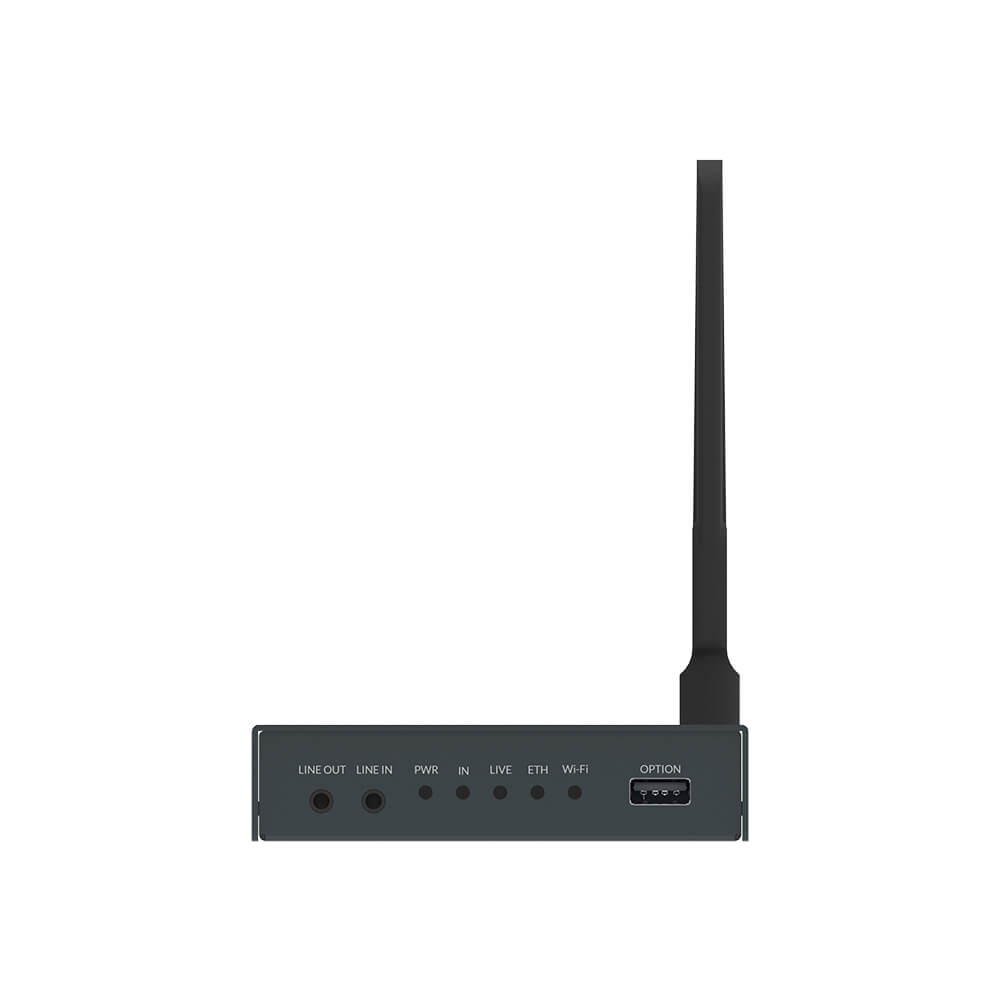

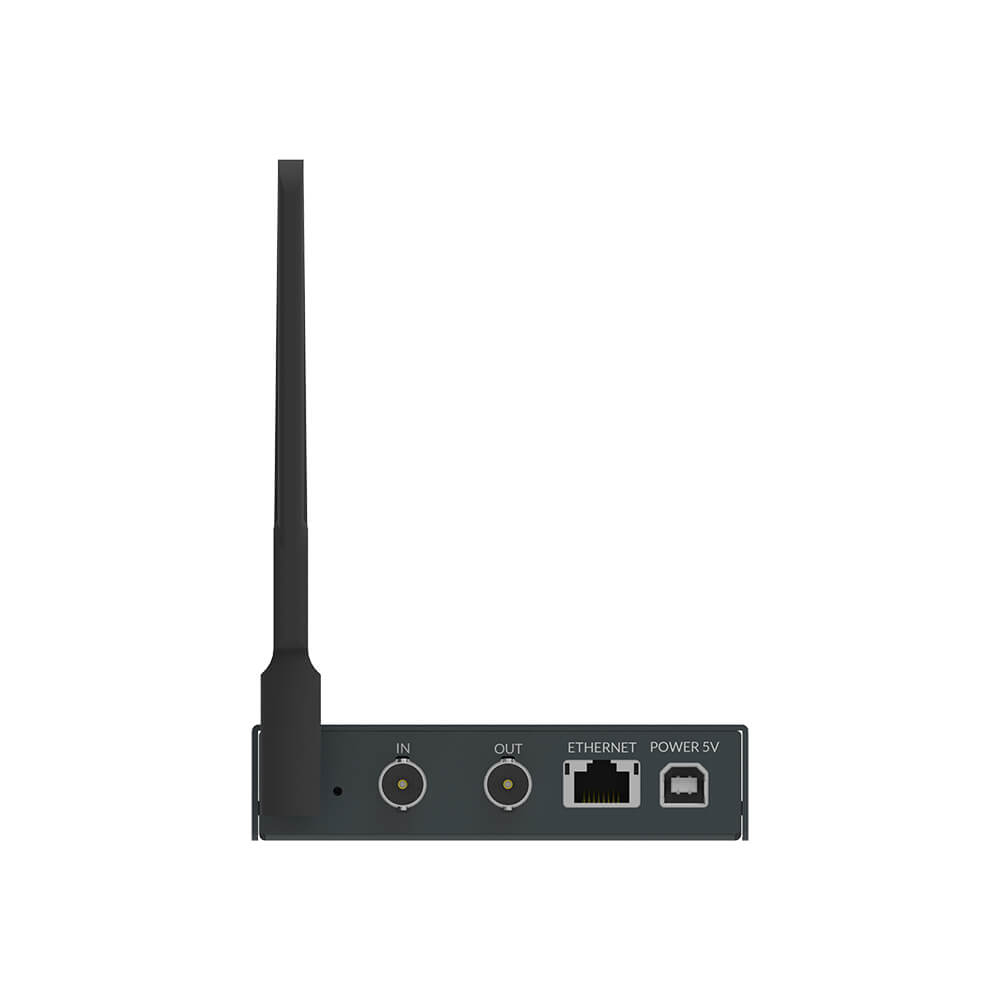

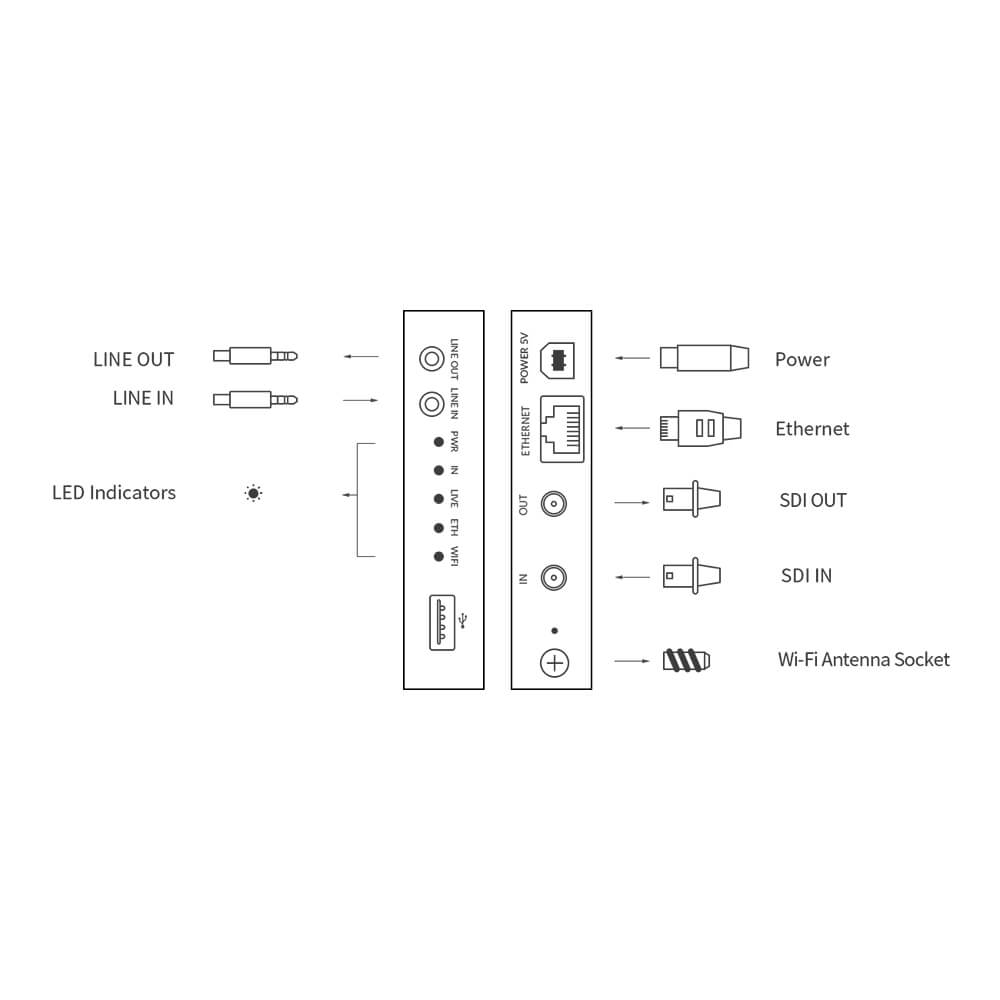

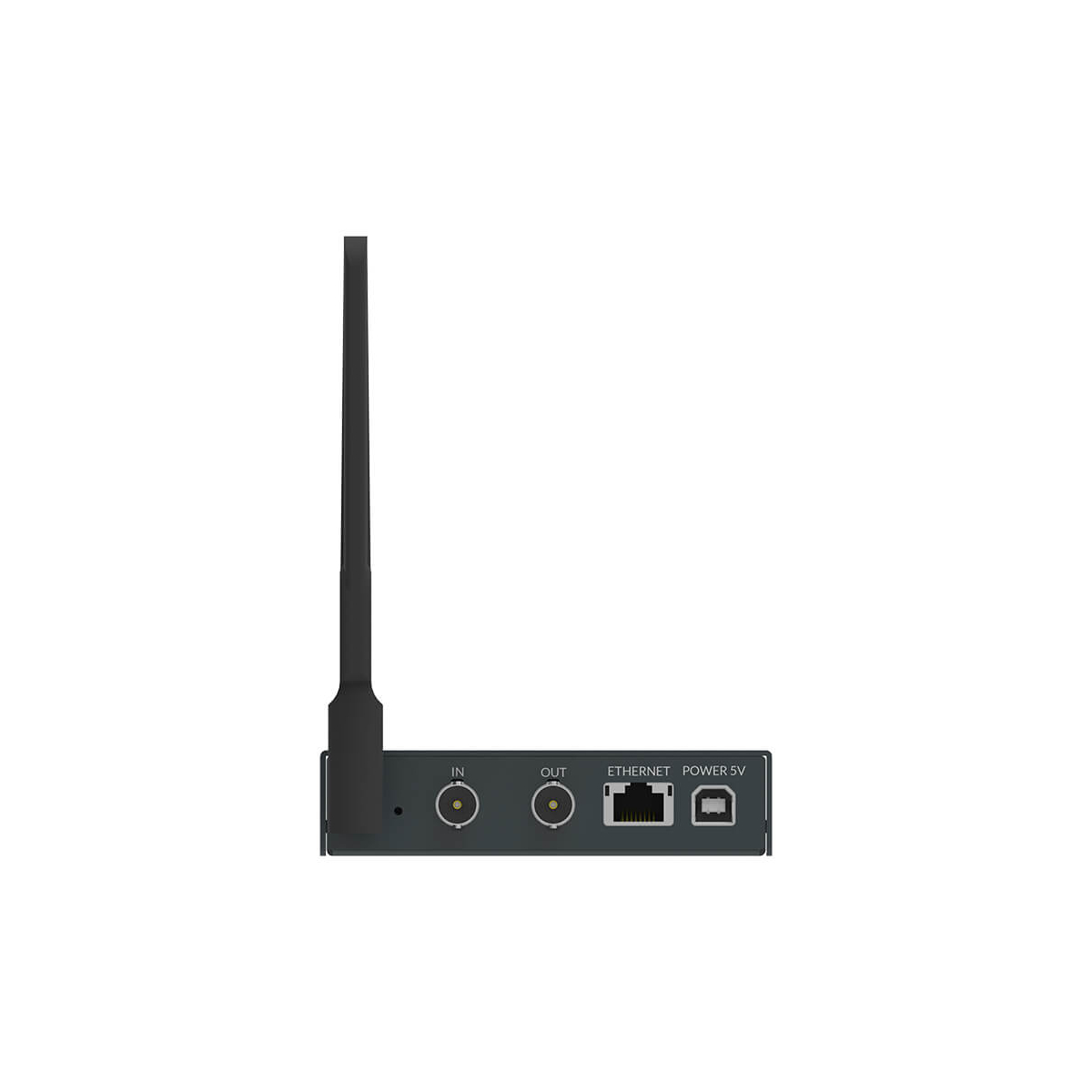

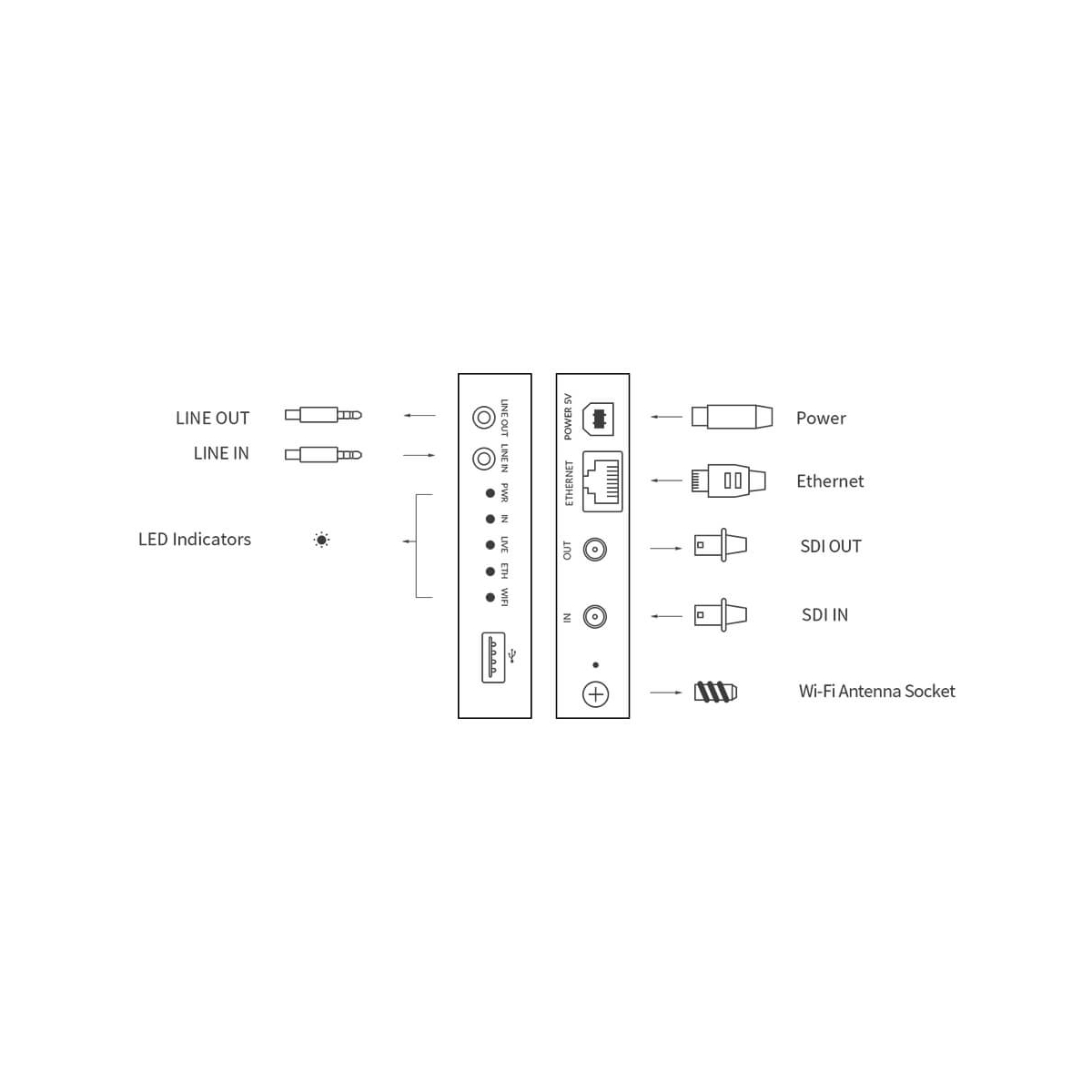

Input/Output Interfaces | SD/HD/3G BNC input and loop-through interfaces 3.5mm LINE IN 3.5mm LINE OUT |

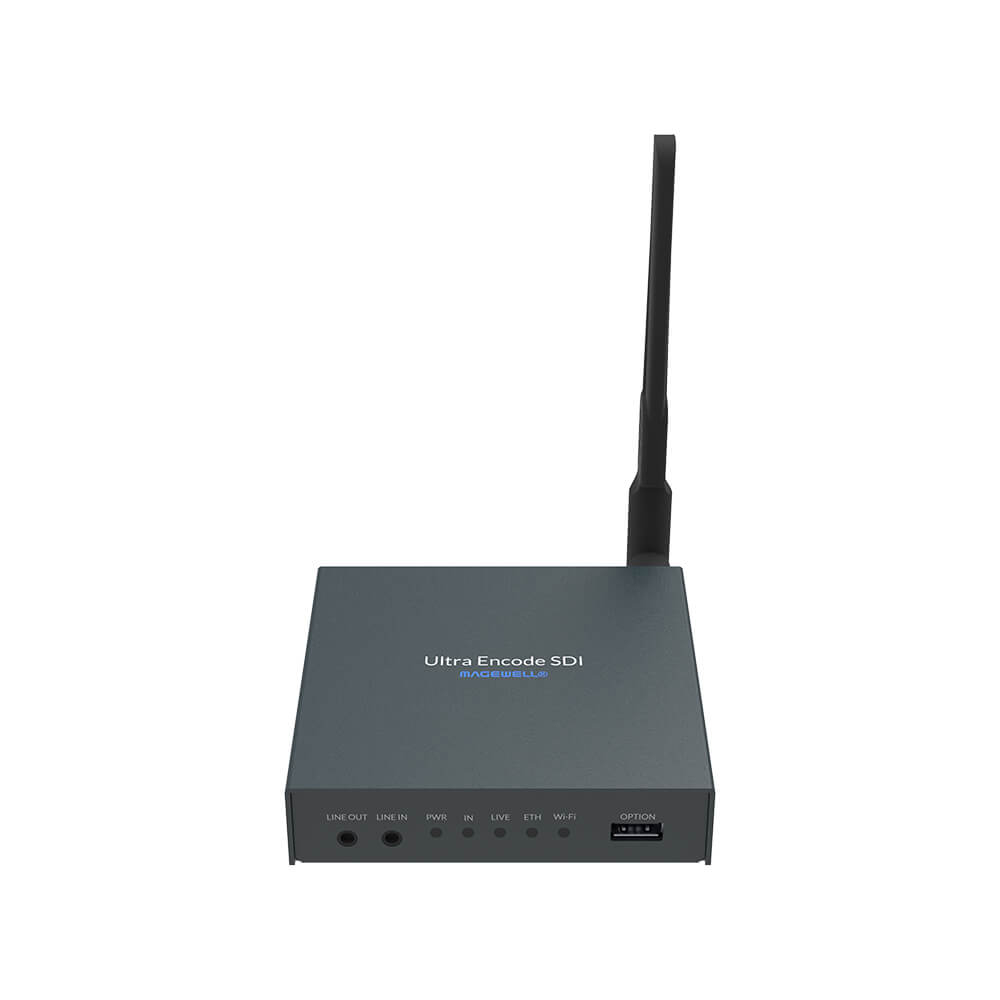

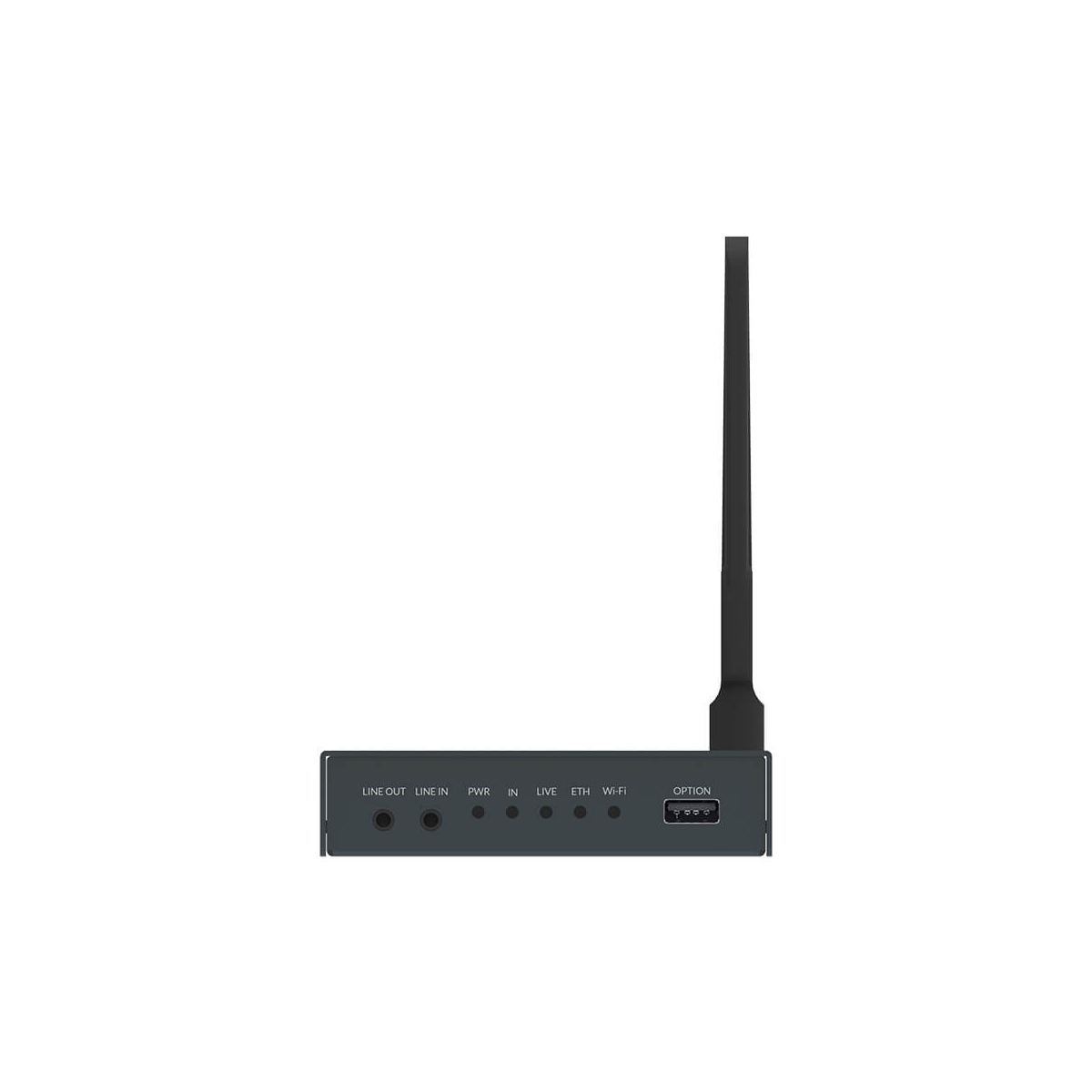

LED Indicators | LEDs indicating the status of power, input signal, streaming, Ethernet and Wi-Fi connection |
Power Supply and Consumption | DC 5V/2A Max power consumption: ~7.6 W |
Form Factor | 106.6mm x 106.2mm x 25mm |
Accessories | AC adapter Wi-Fi antenna USB 2.0 Type B cable T-bracket |
Screw Mounting Hole | 2 x M3 threaded hole A standard 1/4"-20 socket provided by T-bracket |
Working Environment | Operating temperature: 0 to 40 deg C Storage temperature: -20 to 70 deg C Relative Humidity: 5% to 90% non-condensing |
- Magewell Ultra Encode SDI
- AC adapter
- Wi-Fi antenna
- USB 2.0 Type B cable
- T-bracket
- 2-years Limited Manufacturer's Warranty
