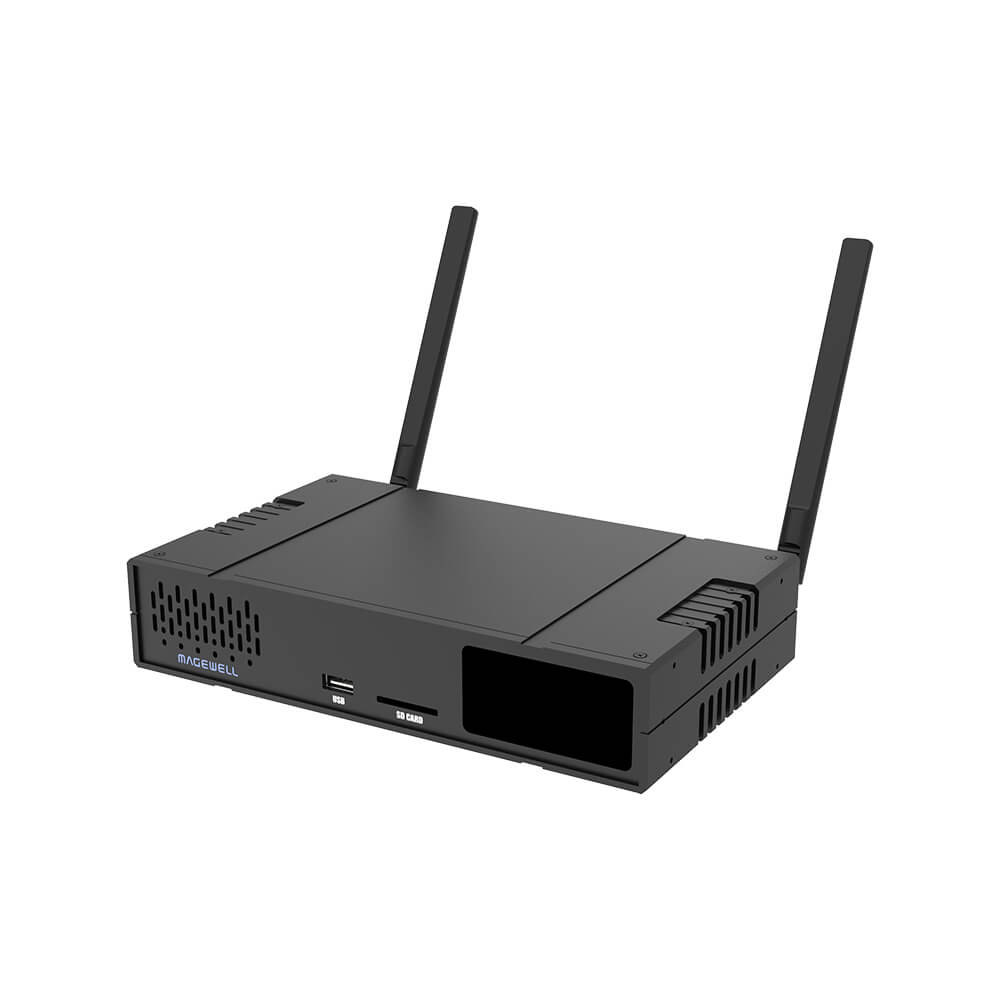

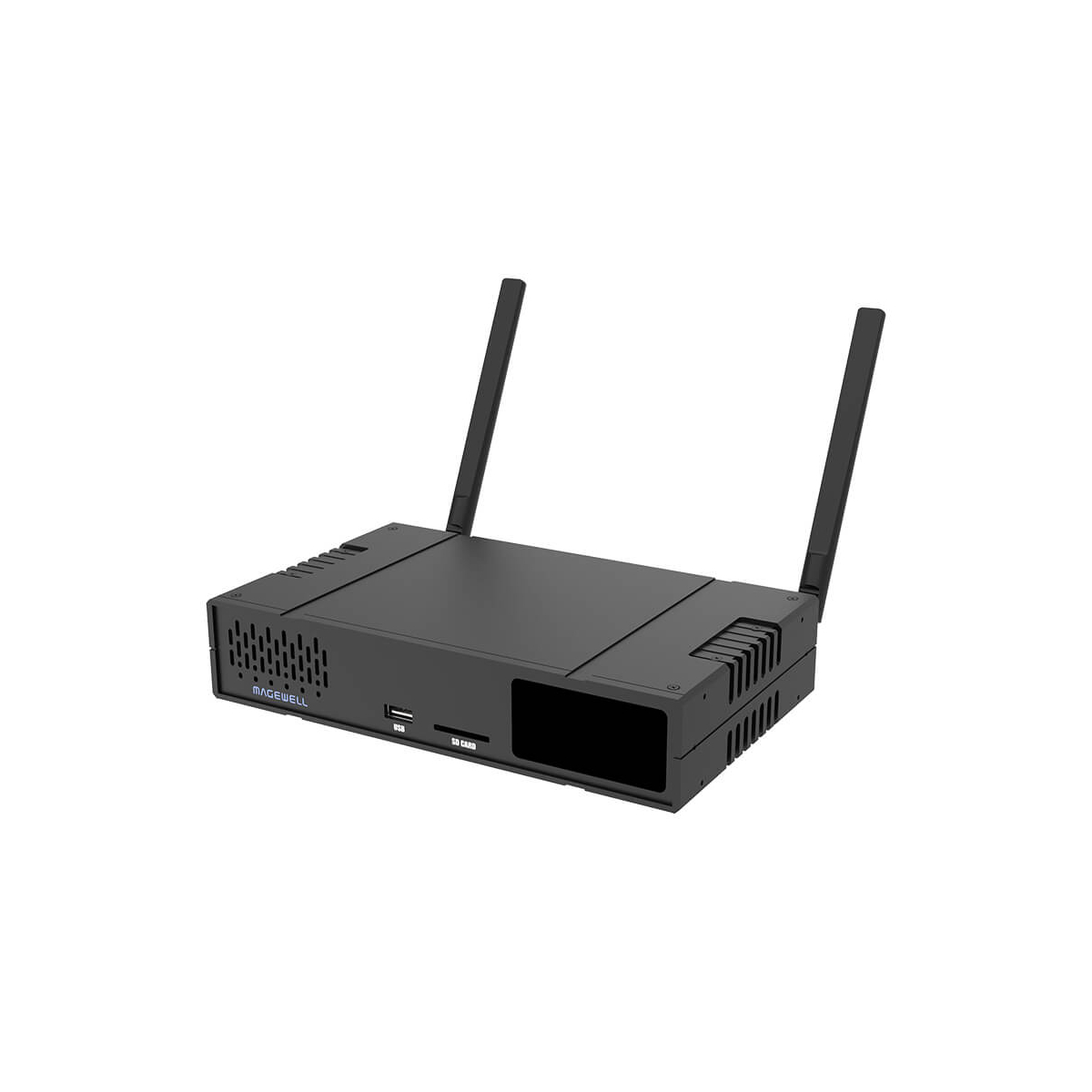

Ultra Encode AIO
Ultra Encode AIO live media encoders take the capabilities of our original Ultra Encode models to a whole new level for advanced use cases. It builds on the functionality of the Ultra Encode family with expanded features including HDMI and SDI input connectivity in a single unit; 4K encoding and streaming from the HDMI input; simultaneous multi-protocol streaming; higher streaming bitrates; file recording; and much more. This device is ideal for high-quality live streaming of content including sports, education, and live events as well as IP-based production and AV-over-IP.
Multi-Input Video Processing
The single-channel Ultra Encode AIO can encode one live input source – either HDMI or SDI – or mix video from the HDMI and SDI inputs (picture-in-picture or side-by-side) into a combined output. Up to eight user-configurable overlays – including text, images, and a clock – can be applied to the output profile.
Flexible Formats and Protocols
Ultra Encode AIO supports multiple video encoding formats – including H.264, H.265 (HEVC), NDI®|HX 2, and NDI®|HX 3 – and a wide array of delivery protocols including RTMP, RTMPS, SRT, RTSP, RTP, HLS, and TVU’s ISSP technology. Up to eight channels of audio can be encoded in AAC format.
Powerful Encoding & Streaming Capabilities
Video can be encoded at resolutions up to 4096x2160 at 30 frames per second from HDMI sources, or up to 1080p HD at 60 fps from the device’s 3G-SDI input. Ultra Encode AIO can stream to up to six different target destinations simultaneously at bitrates up to 32Mbps per stream.
Versatile Recording and Streaming
Ultra Encode AIO supports streaming and recording simultaneously. Inputs can be recorded as files to an SD card or an external, USB-connected storage device or networked storage (NFS, CIFS or SMB).
New NDI®|HX 3 Support
For IP production workflows and AV-over-IP signal distribution architectures, Ultra Encode AIO supports NDI®|HX 3, the latest version of the high-efficiency, low-bandwidth option in the popular NDI® IP media transport technology platform. Ultra Encode AIO also supports the earlier NDI®|HX 2 for broad compatibility.
Magewell Ultra Encode AIO Specification |
|
Input Features | HDMI supported input & loop-through signals include: - 4096x2160 30fps 4:4:4/4:2:2 - 4096x2160 60fps 4:2:0 - 2048x1080p/2048x1080i/ 1920x1080p/1920x1080i 23.98/24/25/29.97/30/ 47.95/48/50/59.94/60 - 1280x720p 25/29.97/30/50/ 59.94/60 - 720x576 25p/50i (PAL SD) - 720x480 29.97p/59.94i (NTSC SD) SDI supported input & loop-through signals include: - 2048x1080 60fps 4:2:2 - 2048x1080p/2048x1080i/ 1920x1080p/1920x1080i 23.98/24/25/29.97/30/ 47.95/48/50/59.94/60 - 1280x720p 25/29.97/30/50/ 59.94/60 - 720x576 25p/50i (PAL SD) - 720x480 29.97p/59.94i (NTSC SD) Custom EDID 8/10/12-bit color Input & loopthrough 16-Channel SDI embedded audio Input & loopthrough 8-Channel, 24-bit HDMI embedded audio, 192kHz sample rate Input Audio from 3.5 mm LINE IN SD/HD/3G BNC input & loopthrough SD (ST 259)/HD (ST 292)/3Ga (ST 425)/3Gb (ST 425)/3Gb-DL(ST 425)/3Gb-DS(ST 425) standards HDMI Input and loop-through interfaces: HDMI 1.4a, DVI-D |
Encoding Features | Dual stream encoding: main stream and sub stream Max bitrate: 32Mbps HDMI supported resolutions include: - 4096x2160p/3840x2160p/ 2560x1440p30 - 1920x1080p/1280x720p 23.98/24/25/29.97/30/50/ 59.94/60 - 720x576p25 - 720x480p30 SDI supported resolutions include: - 1920x1080p/1280x720p 23.98/24/25/29.97/30/50/ 59.94/60 - 720x576p25 - 720x480p30 H.264/H.265 (HEVC) supports system timecode or RP–188 standard timecode for SEI Message setting H.264/H.265 (HEVC) supports native CEA–608/608 over 708 captions Converting video aspect ratio of dual streams Encoding 8-channel AAC Supported audio bitrates: 256/192/128/96/64/48/ 32/16 kbps Extracting audio from input signal and output through LINE OUT Encoding videos after de-interlacing H.265 (HEVC) SEI message supports carrying interlacing signal mark |
Streaming Features | Natively support Facebook, Twitch and YouTube Supported streaming protocols: RTSP/RTMP/RTMPS/SRT Caller/SRT Listener/NDI®|HX2/NDI®|HX 3/HLS/TS over UDP/TS over RTP/TVU ISSP Allow simultaneous 6 sessions over multiple streaming protocols, containing 1 session of HLS, RTSP, NDI®|HX2, or NDI®|HX 3 (if included) Specify main stream or sub stream for each streaming session Support for streaming scheduler for each destination |
Recording Features | Support for normal recording and loop recording Record to external SD card and external USB storage Record the main or sub stream Download recorded files via webUI Support for recording schedule Video recordings in MP4 or MOV format Share recorded files with NFS/CIFS/SMB |
Configuration Management | Real-time LCD monitor for system status and input signal Register with Magewell Cloud Remote control via WebUI and Magewell Cloud Access WebUI via PC and smartphone Provide comprehensive information regarding the system information of device and working status in real-time via WebUI Video thumbnail preview via WebUI Add up to 8 overlays, including text, picture, and clock Check RTSP, SRT Caller, and SRT Listener status Configure parameters of volume and color, input and output signals, encoding profiles, no signal image, the Ethernet and Wi-Fi connection, as well as date and time via WebUI Function as a WiFi Access Point and a WiFi station simultaneously Update firmware Support for Microsoft Edge/ Firefox/Chrome/Safari/ Opera web browsers Provide HTTP APIs |
Network Interfaces | Wired Ethernet network: 10/100/1000Mbps IEEE 802.3af PoE Wi-Fi 802.11 a/b/g/n/ac 4G/5G USB mobile broadband Modem (not included) USB Net |
USB Interface | USB2.0 Type B - 5V/2.1A power supply - USB RNDIS/ECM |

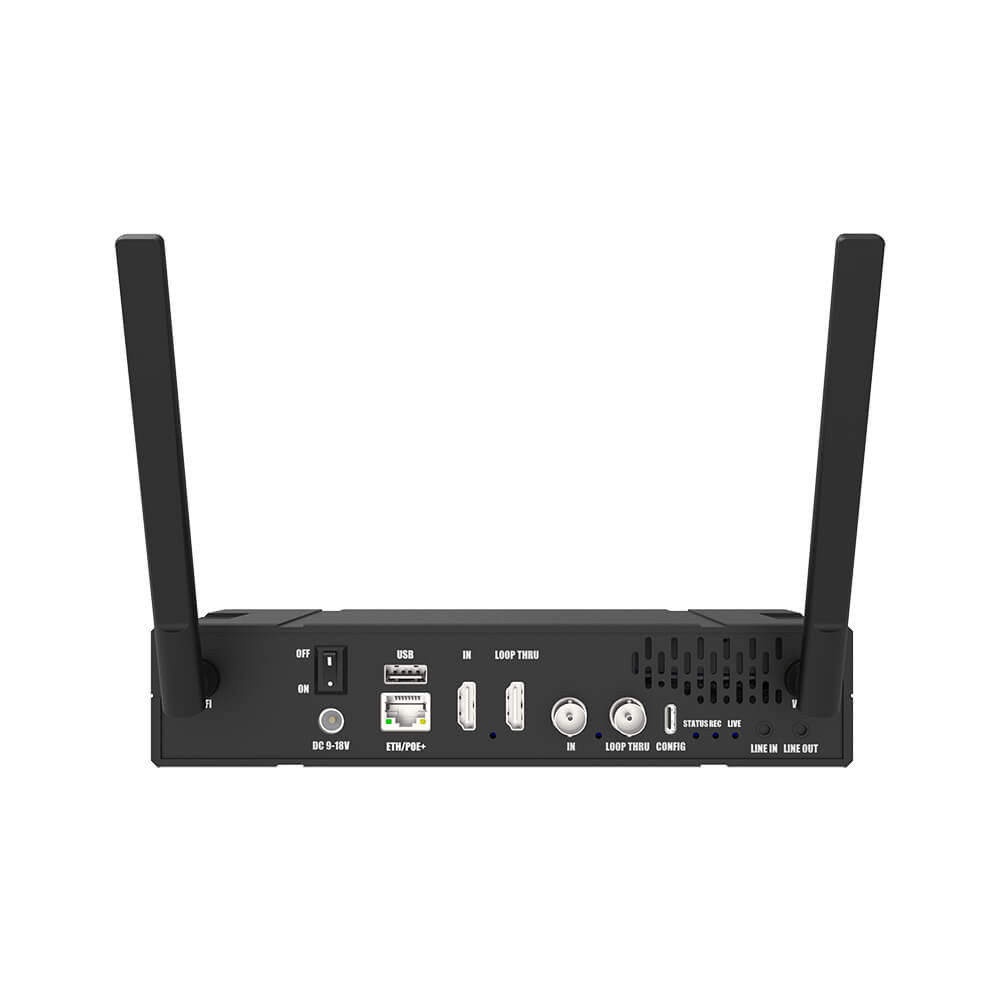

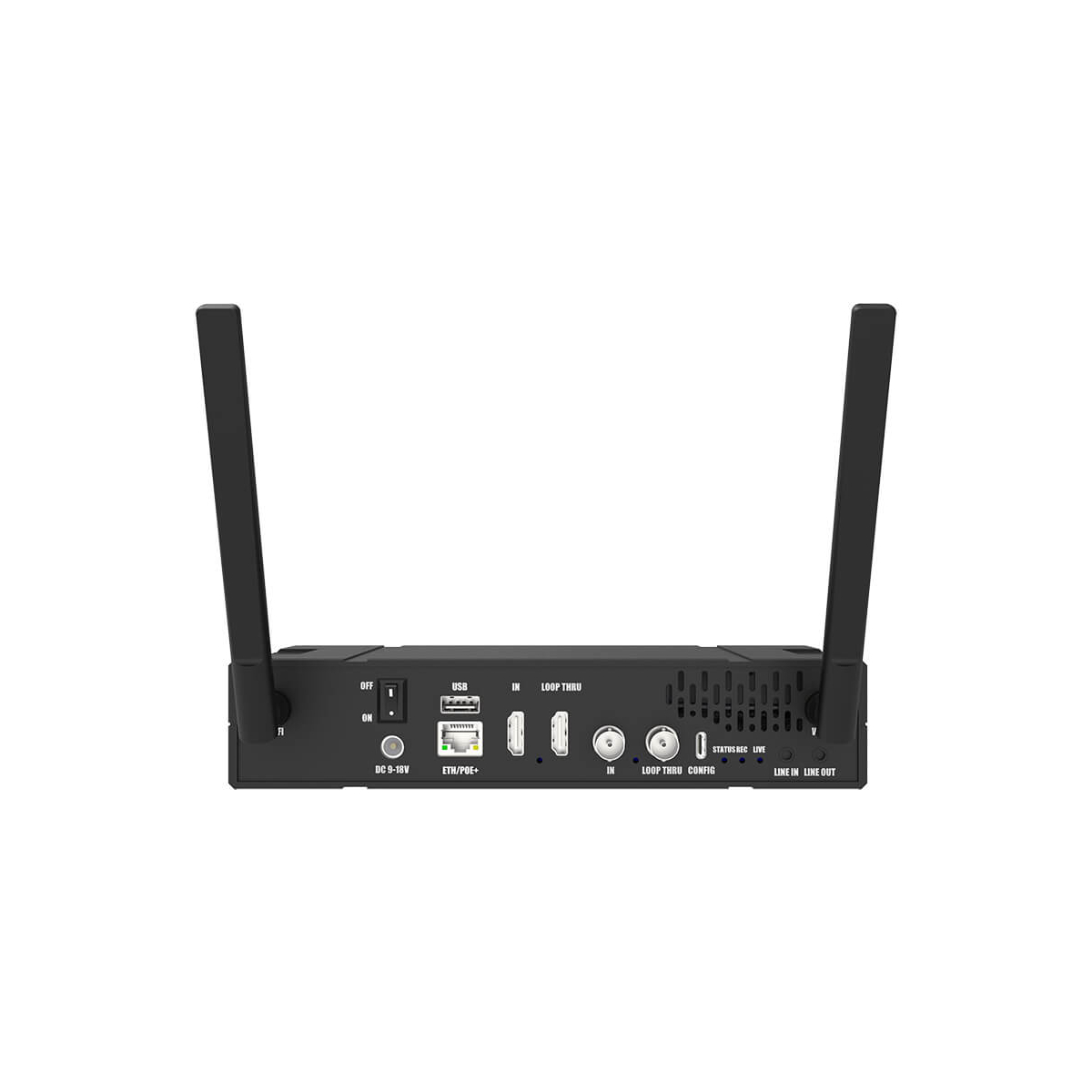

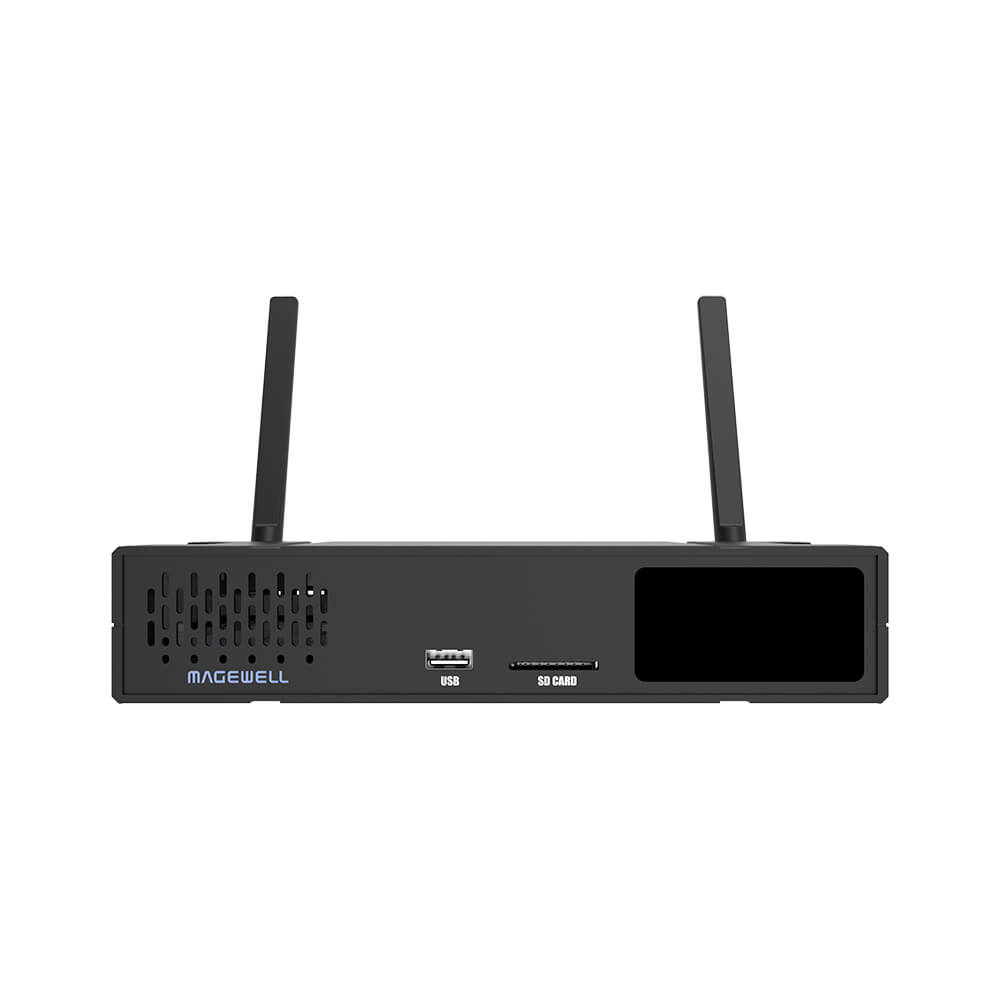

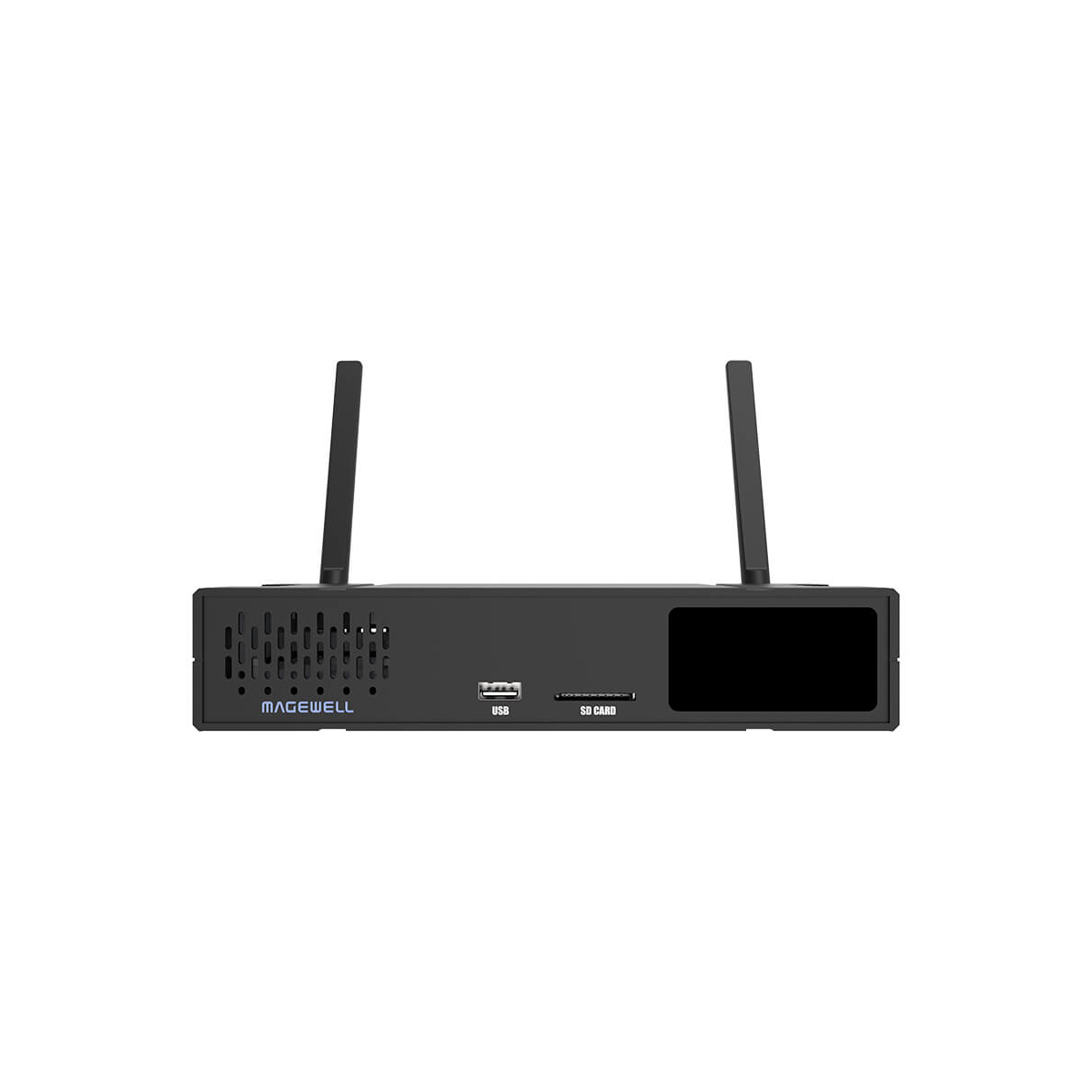

Input/Output Interfaces | SD/HD/3G BNC input and loop-through interfaces HDMI input and loop-through interfaces 3.5mm LINE IN 3.5mm LINE OUT USB Type-C (config) SD card slot 2 x USB Type-A |
LCD Display & LED Indicators | 1.9 inch LCD display with 320x170 resolution enabling real-time system status monitoring LEDs indicators show the status of power, input signal, recording and streaming |
Power Supply and Consumption | DC 9 ~ 18 V Max power consumption: TBD |

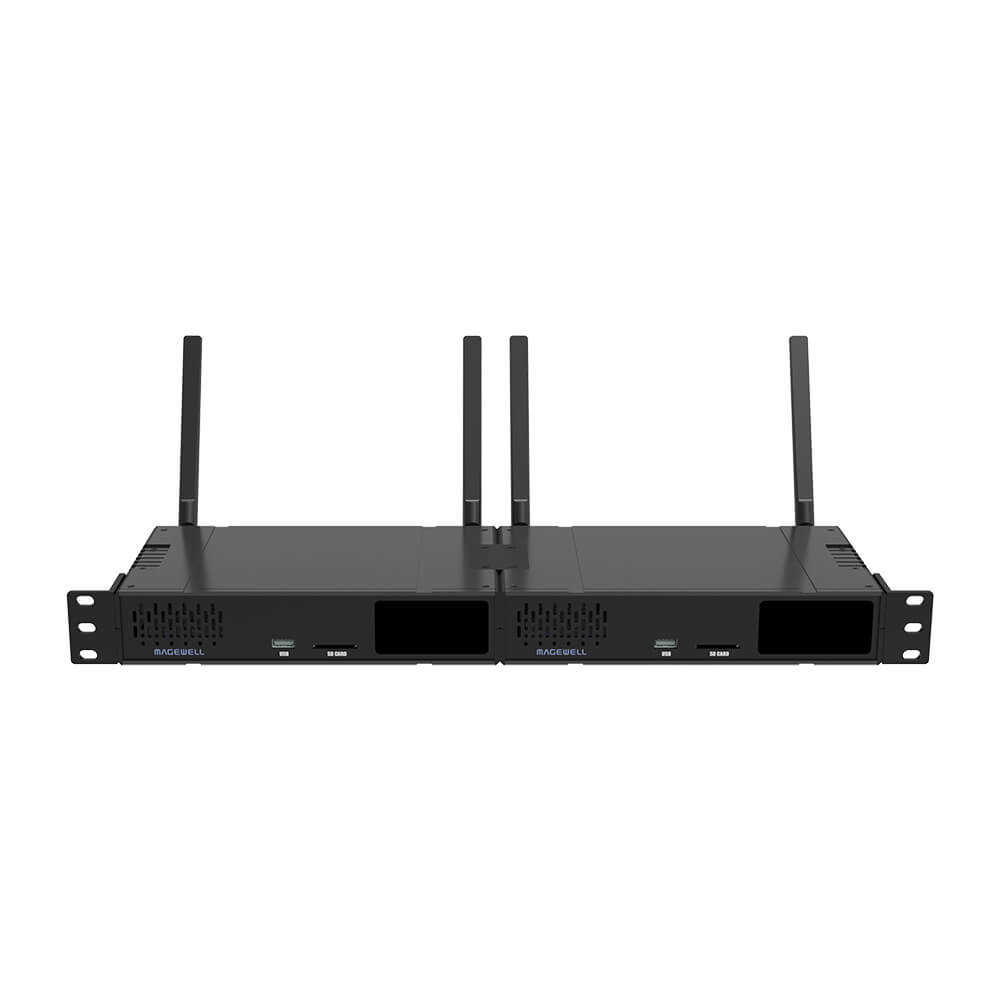

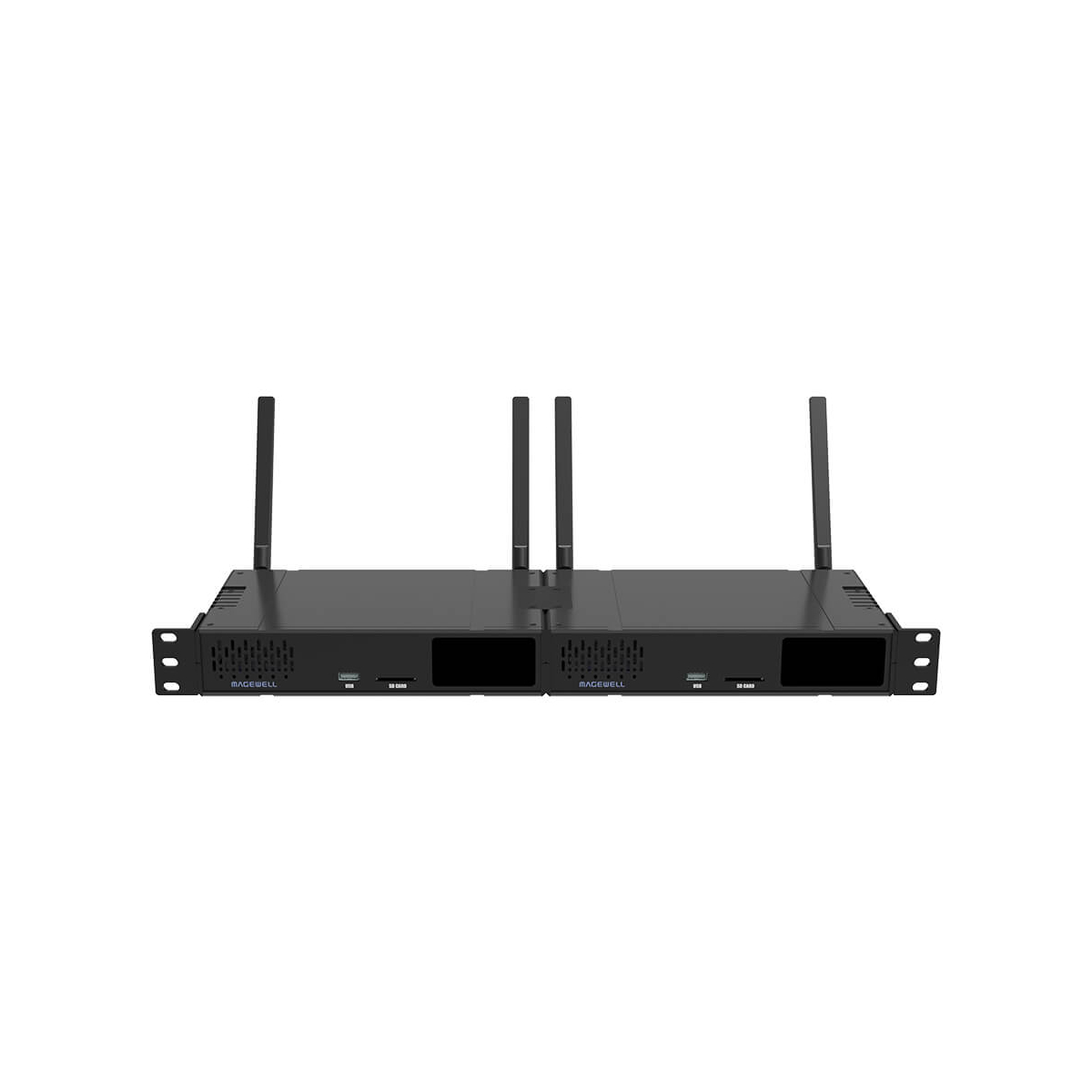

Form Factor | 214.9mm x 128.2mm x 44.55mm Support to mount onto a standard 1U rack with provided rack-mount kit |
Accessories | 1 x Screw locking DC power adapter 2 x Wi-Fi antenna 1 x HDMI cable 7 x M2.5 screws 1 x Retainer plate 1 x 1U short rack ear 2 x 1U long rack ears |
Working Environment | Operating temperature: 0 to 40 deg C Storage temperature: -20 to 70 deg C Relative Humidity: 5% to 90% non-condensing |
- Magewell Ultra Encode AIO
- 1 x Screw locking DC power adapter
- 2 x Wi-Fi antenna
- 1 x HDMI cable
- 7 x M2.5 screws
- 1 x Retainer plate
- 1 x 1U short rack ear
- 2 x 1U long rack ears
- 2-years Limited Manufacturer's Warranty
