Decoding Features
Support multiple output modes for decoding of different protocol signals
- Single View
- - Number of decoded channels: 1
- Supported protocols: NDI High Bandwidth, NDI HX, NDI HX2, NDI HX3, MPEG-TS over RTP/UDP/SRT/RIST, RTMP, RTSP, HLS, HTTP, and ZIXI
- Formats: H.264, H.265, SpeedHQ, MPEG2
- Resolution: Up to 4096x2160p60
- Picture-in-Picture
- - Number of decoded channels: 2
- Supported protocols: NDI High Bandwidth*, NDI HX, NDI HX2, NDI HX3, MPEG-TS over RTP/UDP/SRT/RIST, RTMP, RTSP, HLS, HTTP, and ZIXI
- Formats: H.264, H.265, SpeedHQ, MPEG2*
- Resolution: Up to 1920x1080p60
- *Note: Only one NDI High Bandwidth or one MPEG2 format video signal can be decoded
- Quad View
- - Number of decoded channels: 4
- Supported protocols: NDI HX, NDI HX2, NDI HX3, MPEG-TS over RTP/UDP/SRT/RIST, RTMP, RTSP, HLS, HTTP, and ZIXI
- Formats: H.264, H.265
- Resolution: Up to 1920x1080p60
Support decoding AAC, MP3, AC3, Opus, and G.711 audio formats
Support NDI 6.3
HDMI Output Features
Maximum output: 4096x2160 60fps 4:4:4 8-bit, or 4096x2160 60fps 4:2:2 12-bit (transport depth 12-bit, video depth 10-bit)
- Supported output formats:
- - 4096×2160p 23.98/24/25/29.97/30/50/59.94/60 256:135
- - 3840×2160p 23.98/24/25/29.97/30/50/59.94/60 16:9
- - 1920×1080p 24/25/29.97/30/59.94/60 16:9
- - 1920×1080i 50/59.94/60 16:9
- - 1280×720p 23.98/24/25/29.97/30/50/59.94/60 16:9
- - 720×576i 50 16:9/4:3
- - 720×480i 59.94 16:9/4:3
- Color space: BT.601/BT.709/BT.2020
- Support HDR PQ/HLG
- Audio output: 48/96KHz 8-channel
- HDMI interface: HDMI 2.0
SDI Output Features
Maximum output: 4096x2160 60fps 4:2:2 10-bit
- Supported output formats:
- - 4096×2160p 23.98/24/25/29.97/30/50/59.94/60 256:135
- 3840×2160p 23.98/24/25/29.97/30/50/59.94/60 16:9
- 1920×1080p 24/25/29.97/30/59.94/60 16:9
- 1920×1080i 50/59.94/60 16:9
- 1280×720p 23.98/24/25/29.97/30/50/59.94/60 16:9
- 720×576i 50 16:9/4:3
- 720×480i 59.94 16:9/4:3
- Output YUV BT.601/709/2020 signals
- Audio output: 48KHz 8-channel
- SD/HD/3G/6G/12G-SDI output interface
- Support SD (ST 259)/HD (ST 292)/3Ga (ST 425)/3Gb (ST 425)/3Gb-DL (ST 425)/3Gb-DS (ST 425)/6G (ST 2081)/12G (ST 2082) standards
- Support Closed Caption compliant with CEA–608 or CEA–708 embedded CEA–608 standards
- Output HDR (PQ / HLG) through ANC metadata
- Output 12G-SDI signals up to 55m, 6G-SDI signals up to 75m, and 3G-SDI signals up to 130m
Configuration Management
Maximum output: 4096x2160 60fps 4:2:2 10-bit
- Support registration with Control Hub and ZIXI ZEN Master for remote centralized management
- Provide WebUI tools
- Provide comprehensive information regarding the device and decoded signals in real-time
- Support preview of output images and PTZ control
- Configure audio and video signal decoding and output parameters, including OSD, deinterlacing, video format, audio gain, sample rate, Ping test, security settings, configuration - files import and export, and network connections
- Support firmware upgrade
- Support USB NET
- Support Edge/Firefox/Chrome/Safari/Opera web browsers
- Support HTTP APIs

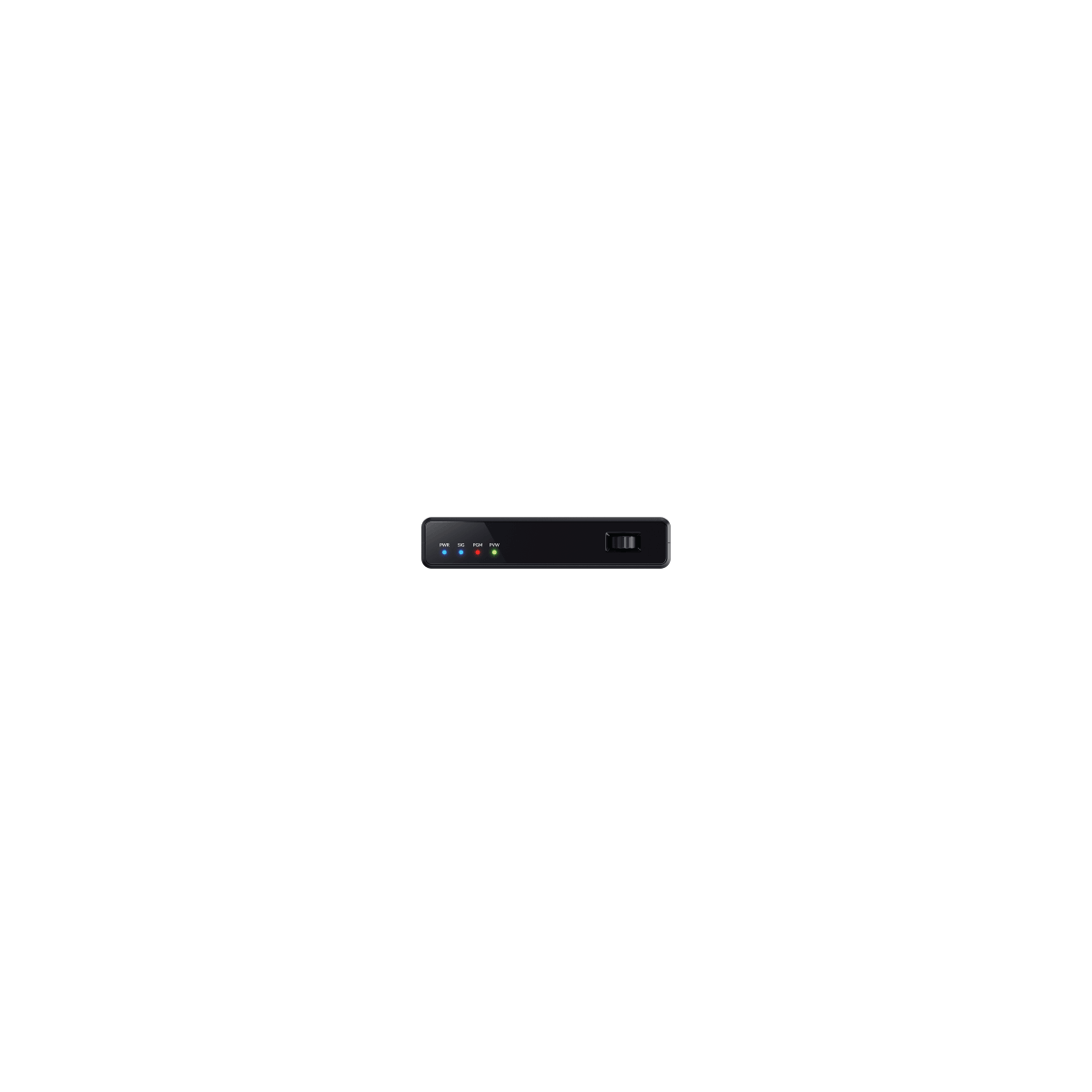

On-board Setting Button
Rotary encoder button:
- - Rotate: Switch options
- Press: Bring up settings menu, enter current option, or confirm current parameter

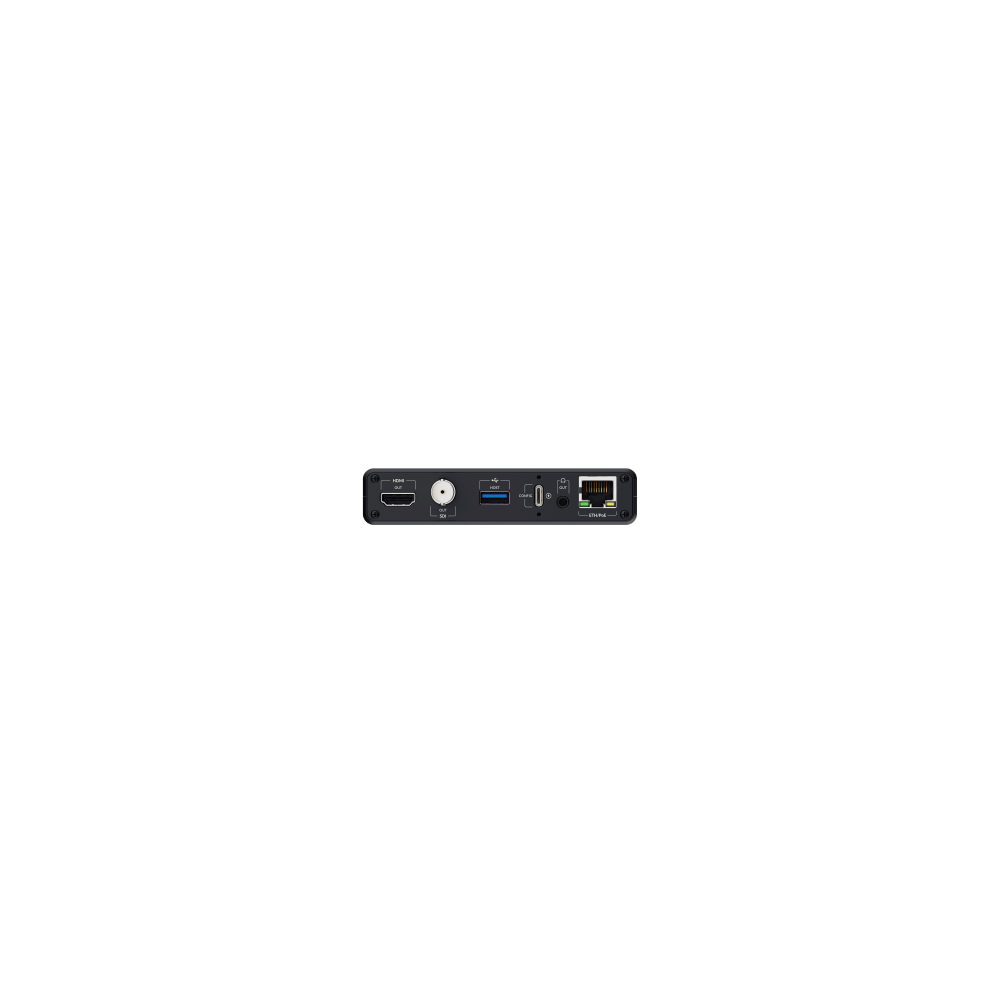

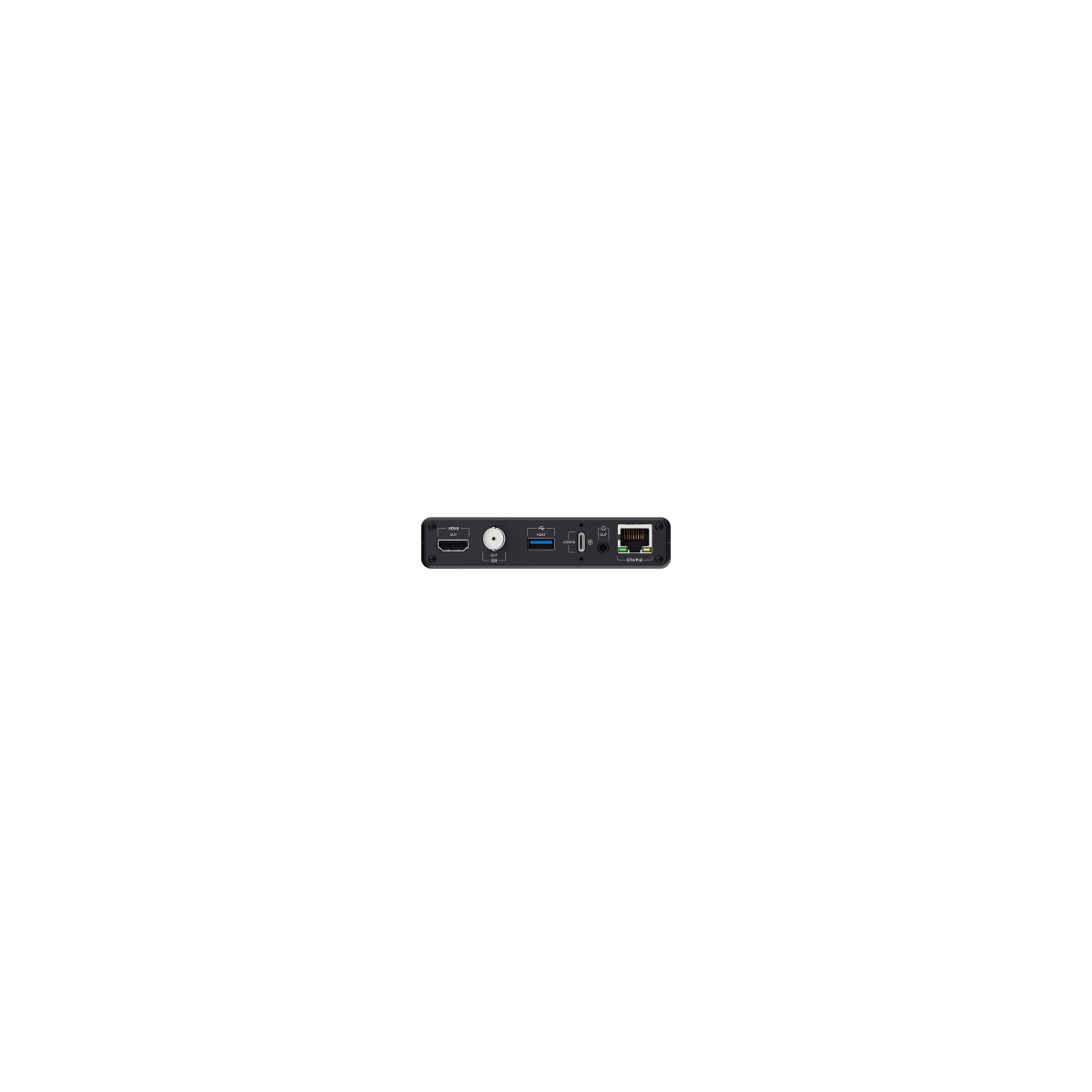

Network Interface
- 10/100/1000Mbps Ethernet port
- Support IEEE 802.3at PoE+
USB Interface
USB3.0 Type C
- - 12V 20W power supply
- USB NET
USB3.0 Type A
- - Support connecting external keyboard and mouse for settings modification
Dimensions : 120 mm (L) x 79.3 mm (W) x 24.5 mm (H)
Mounting Holes : Diameter: Φ6.5mm mounting holes
Power Consumption : Maximum current for 12V power supply: ~1.26 A
Maximum power consumption: ~15.1 W
Operating Environment : Operating temperature: 0 to 40 degrees Celsius
Storage temperature: –20 to 70 degrees Celsius
Relative humidity: 5% to 90% (non-condensing)
