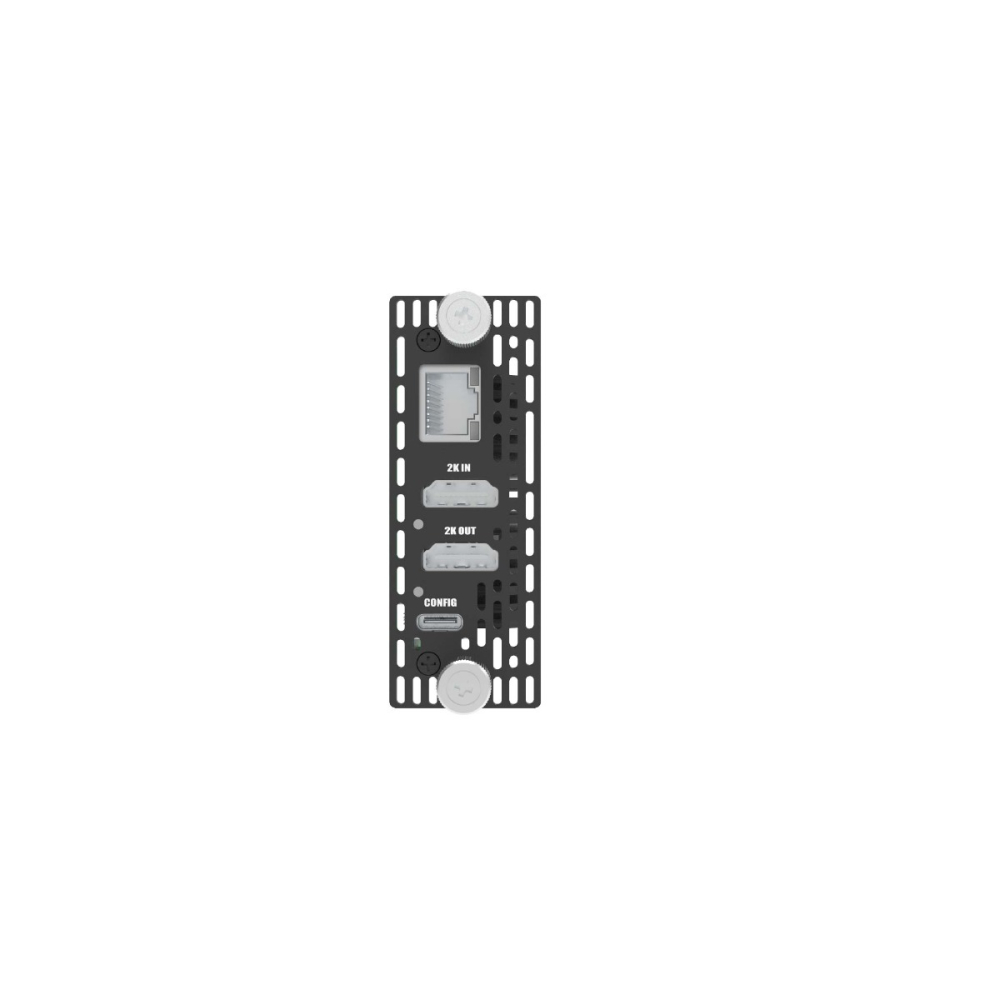

Interfaces
1* RJ45 1000Mbps Ethernet port
1* USB Type-C port for configuration
1* HDMI 1.4 input port
1* HDMI 1.4 output port

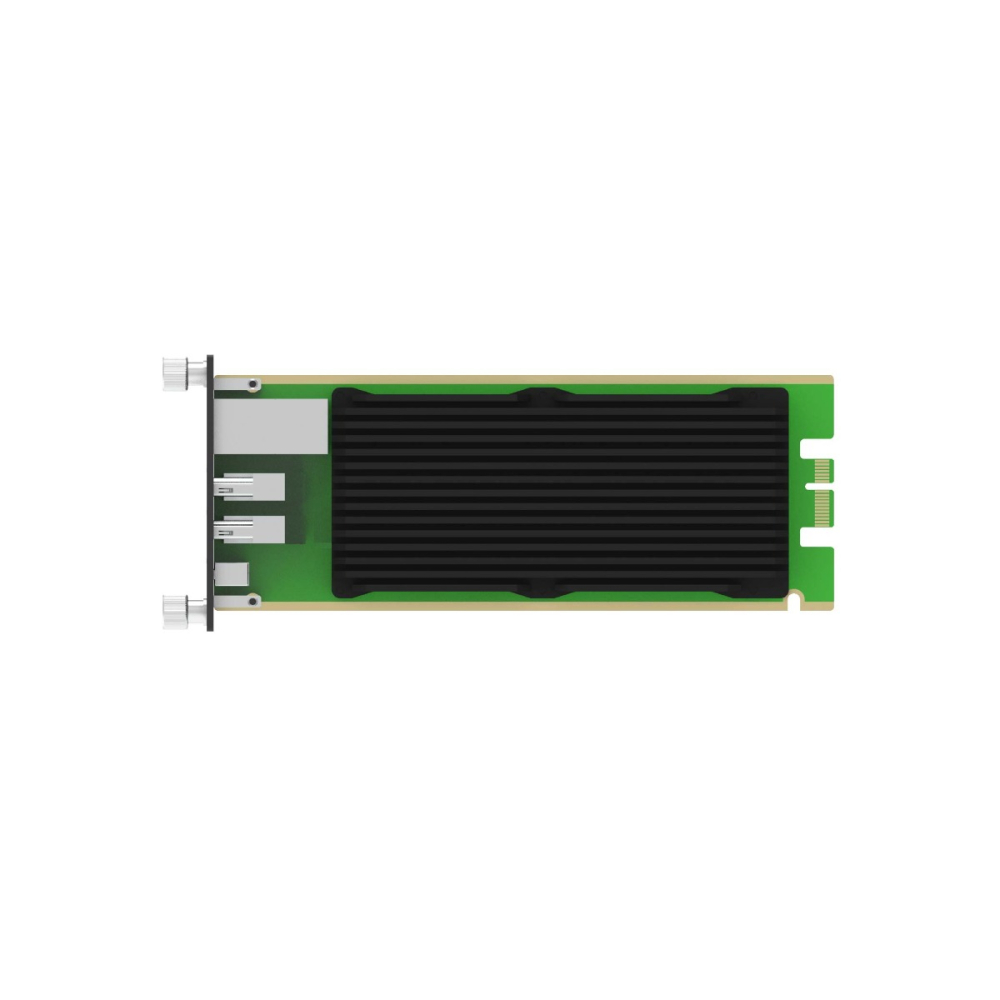

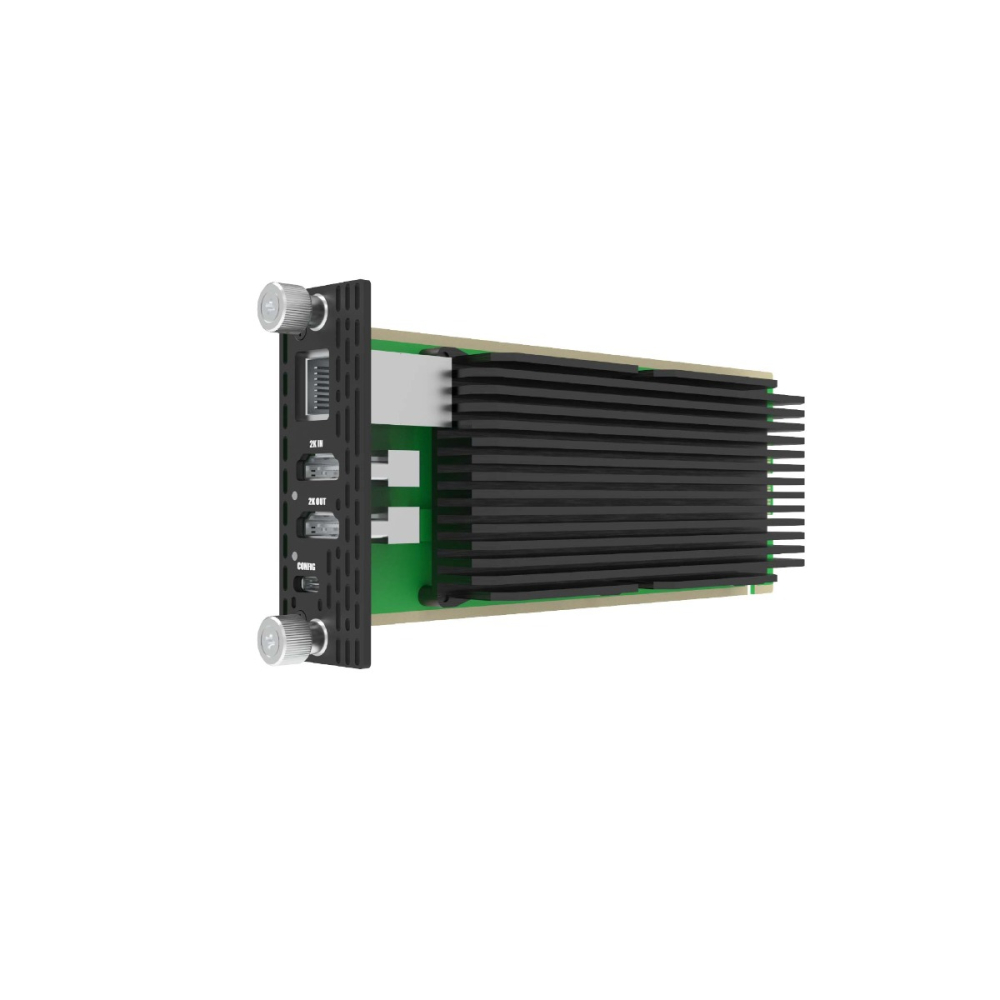

1* Modator interface for connecting to Modator 2U (hot-swappable)
Input & Loop Through Features
Max. input & loop through signal:
4096x2160 30fps 4:4:4/4:2:2
4096x2160 60fps 4:2:0
Input videos at any format by customizing the EDID of input port
Supports RGB and YUV BT.601/709 signals
Supports 8-channel HDMI-embedded audio
NDI® Encoding Features
Encode and output real-time streams of NDI High Bandwidth® at up to 2048x2160 120fps 4:2:2 8-bit
Output the same resolution as input or any custom resolution. Typical outputs include:
-2048x1080p/1920x1080p 23.98/24/25/29.97/30/50/59.94/60
-1280x720p 23.98/24/25/29.97/30/50/59.94/60/100/119.88/120
-1920x1080i 25/29.97/30/50/59.94/60
-720x480p/720x480i 59.94/60/119.88/120
-720x576p/720x576i 50/100
Output frame rate same as the original, 1/2, 1/3 or 1/4 of input frame rate
Encode 8-channel NDI-embedded audio
Supports NDI® 5.x
Web UI
Register with Magewell Control Hub for remote centralized management
Supports configuring and managing via Web UI
Provides comprehensive information regarding the device and decoded signals in real-time
Allow to configure how a signal is decoded and output, including OSD settings, deinterlacing, resolutions, audio gain, sample rate, and channel mapping, as well as the network connection
Supports updating firmware
Supports USB RNDIS/ECM
Supports IE/Edge/Firefox/Chrome/Safari/Opera web browsers
Provides HTTP APIs
LED Indicators
Input signal:
On: locked
Off: unlocked
Loop through signal:
On: device connected and signal detected
Off: undetected
Physical Specifications
Form factor: 184.4mm (L) x 30.0mm (W) x 81.5mm (H)
Weight: ≈295g
Power Consumption
Max power consumption: 6.2W
Working Environment
Operating temperature: 0 to 50 deg C
Storage temperature: –20 to 70 deg C
Relative humidity: 5% to 90% non-condensing
