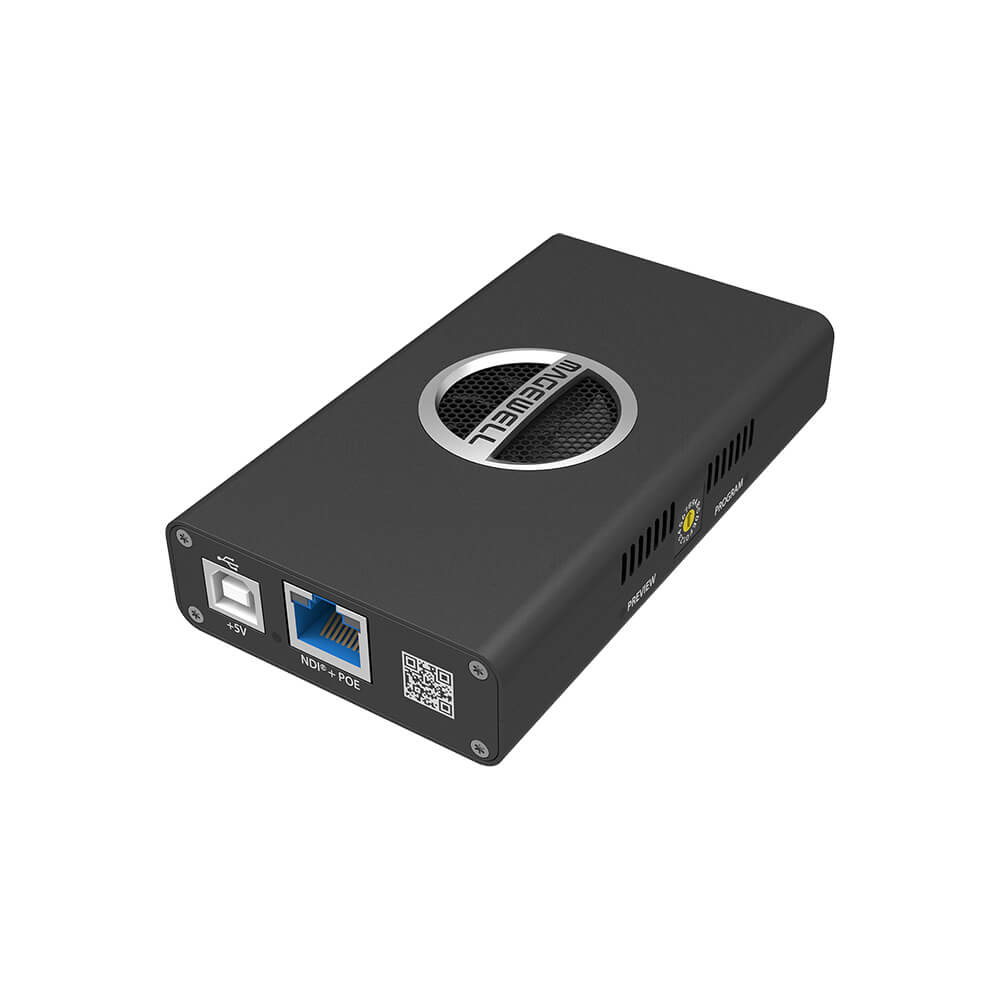

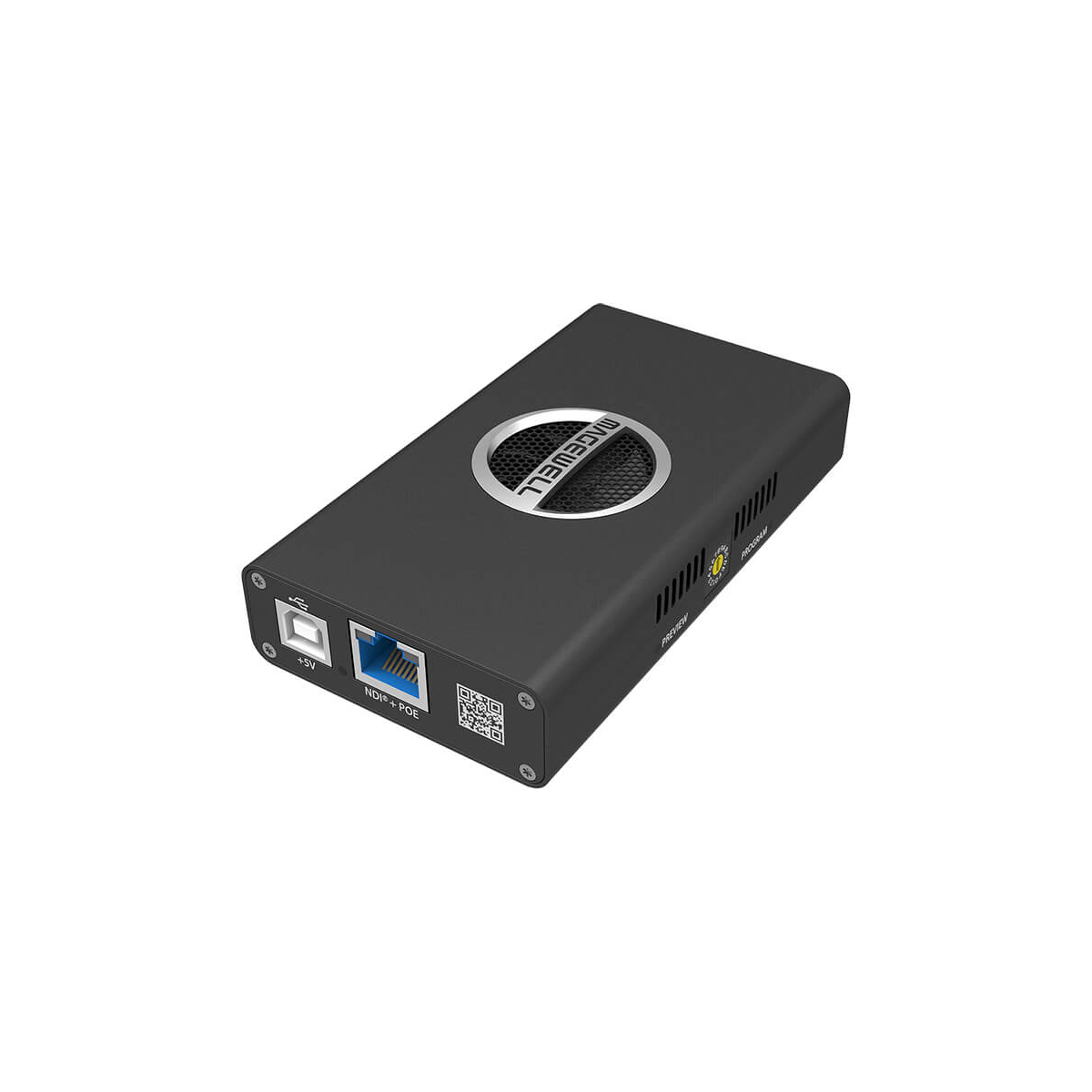

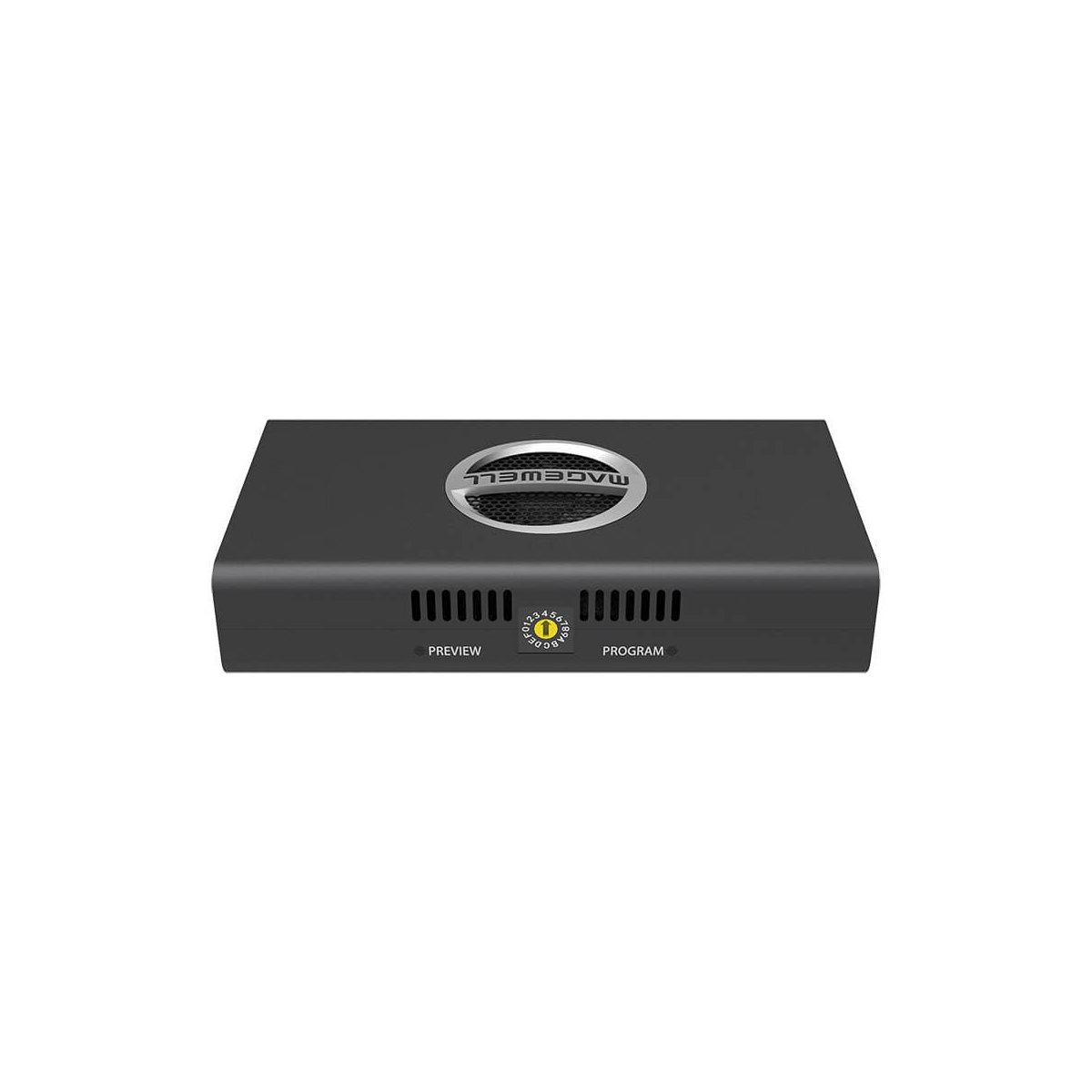

【Magewell】Pro Convert HDMI 4K Plus One-channel NDI Encoder

  • Convert one channel of HDMI signal with embedded audio to NDI stream
  • Support HDMI input up to 4096x2160 4:4:4, 1080p 144fps
  • NDI encoding up to 4Kp60 4:2:2

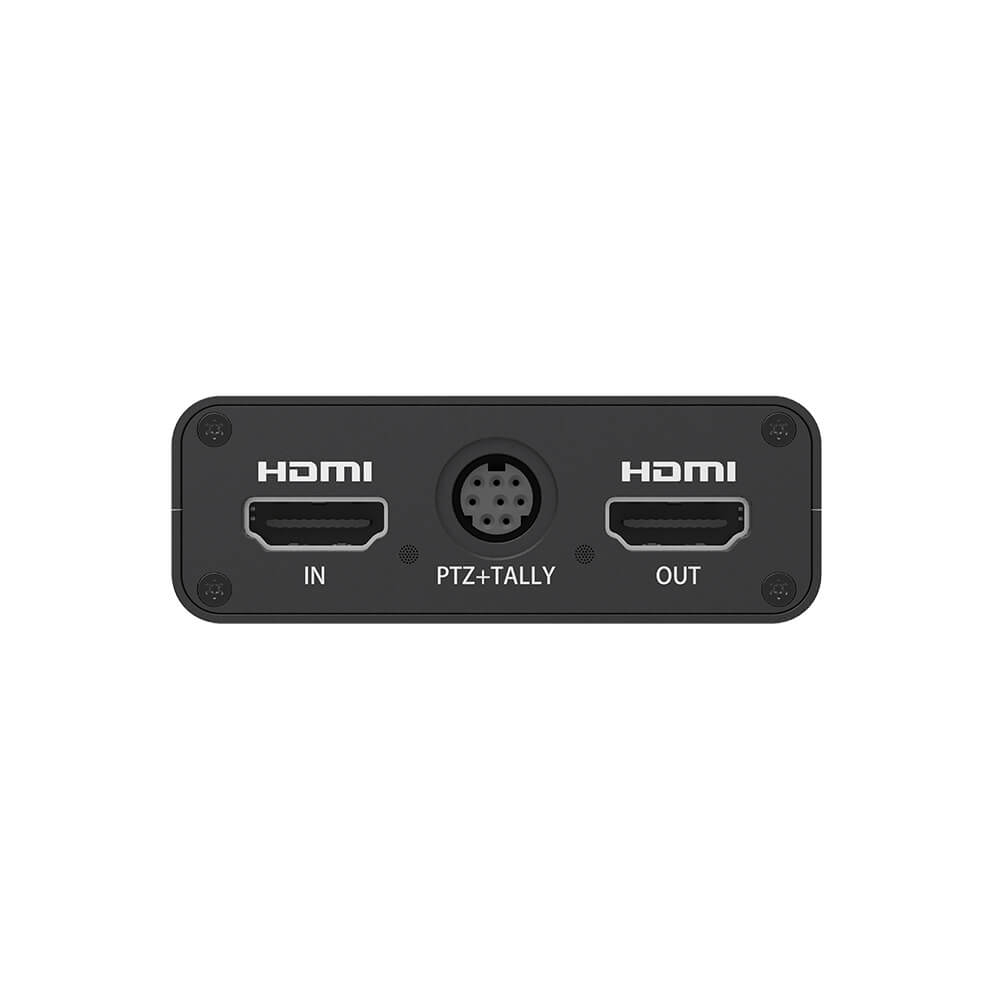

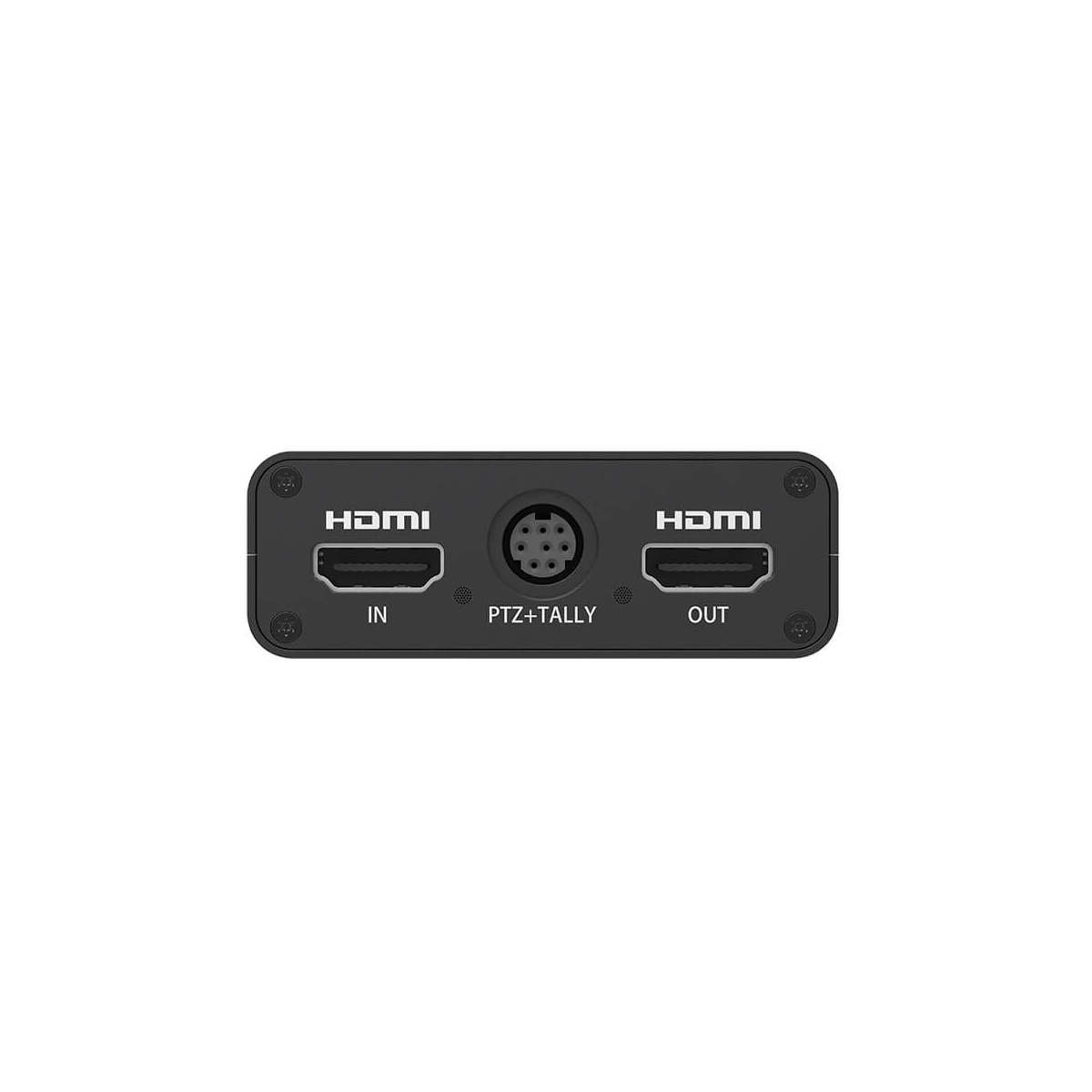

  • Loop-through HDMI output
  • DC+5V or IEEE802.3af POE
  • Tally Lights
  • SD card slot
  • Mini--DIN-8 PTZ interface

Local Delivery

CHINAM is currently shipping within Hong Kong and specific countries only. We use local courier service as our delivery company. We do not support shipping items in a single order to multiple shipping addresses. To ship items to an additional address, please place a new order to us. Unless otherwise specified, delivery charge at the rate of HK$300 will be imposed on each delivery. We currently offer free delivery for each order over HK$1,000.

For remote areas or outlying islands delivery service, please contact our sales team via email - sales@chinam.com.hk

International Delivery

We will do our best to ship internationally to countries where we do not have sales representation. Please register with us, we’ll keep you updated and notify you when this is about to happen and become available in your region. Please note, at this time the customer is responsible for the duties and taxes imposed by their country.

For international shipping please contact our sales team via email - sales@chinam.com.hk

Deliver Time

  • Once your order has been handed over to the carrier for delivery, you will receive a shipment notification email with an estimated delivery date. Please note that it is not possible to expedite your delivery and receive your package earlier than the scheduled delivery date. Therefore, we are unable to accept requests for expedited delivery. Our carriers are unable to provide an exact time of day for your delivery. If you ordered multiple items, you may receive separate shipments.
  • All estimates are based on business days. We only make deliveries in the specified areas of Hong Kong from Monday to Sunday except on the first two days of the Lunar New Year and when typhoon warning signal No. 8 or above or black rainstorm warning is in force.
  • All rescheduling of delivery, additional purchases, new sales memos and amendments must be made 3 days before the scheduled delivery date. Otherwise, a double delivery charge will be incurred.
  • We may deliver the merchandise in one or more installments, and some of the merchandises may be delivered directly from suppliers. Any times and dates given for dispatch of merchandise, or the length of time that merchandise will take to be delivered, are only estimates. If we are unable to meet any stated dispatch or delivery dates or times we will inform you as to the progress of your order. You agree and accept that under no circumstances will we accept cancellation of order or refund.

Signature On Delivery

  • Most of our shipments contain valuable items. If you will not be in attendance to accept delivery of your purchase, consider shipping to someone you trust will be able to sign for your package. For your convenience, you may prefer to have your order delivered to your office address. If you choose this option, please include the name of your business in the address. Please note, if you choose this option, goods may be left with reception or the Mail Room.
  • As our carriers require a signature on delivery, the carrier will leave a calling card if you are not at home. Please contact the carrier to reschedule delivery.
  • For postal deliveries, no signature is required and order status tracking is not available.
  • Delivery failure due to no one answering the door upon the arrival of goods at the appointed time, or to circumstantial limitations such as the entrance being too small, will require a rescheduled delivery and therefore incur double delivery charges.
  • We will deliver the merchandise ordered by you to the address you give us for delivery at the time you make your order through our staff or a third party provider. You agree to present your photo identification upon request when you acknowledge receipt of the merchandise. The merchandise shall be, and shall be deemed to be, delivered and accepted by you when the merchandise are delivered to the address you give us for delivery. You agree and accept that we are entitled, at our option, to charge you additional costs or cancel your order in the event of your failure to accept delivery for whatever reasons.

General

  • You will become the owner of the merchandise you have ordered when they have been delivered to you. Once merchandise has been delivered to you they will be held at your own risk and we will not be liable for the loss or damage.
  • You may not export any products purchased at CHINAM online store. We sells and ships products to end-user customers only. Notwithstanding order confirmation, CHINAM may cancel any order where it has reasonable grounds to believe the product is not being purchased for end use.
  • If there is any inconsistency or ambiguity between the English version and the Chinese version, the English version shall prevail.
  • We reserve the final right to terminate or alter the above terms and conditions. In the event of any dispute, our decision shall be final and conclusive.
In stock (contact us for lead time)
SKU
64013 UK / 640100000
Write Your Own Review
You're reviewing:【Magewell】Pro Convert HDMI 4K Plus One-channel NDI Encoder
Your Rating

Distributed, IP-Based Live Production and AV-over-IP over Standard Networks

Leveraging NewTek’s NDI® technology, a 1Gb network can transmit HD or even 4K production-grade video with very low latency. The NDI-capable Pro Convert HDMI 4K Plus and Pro Convert 12G SDI 4K Plus models support input signals up to 4K at 60fps 4:4:4, with 4Kp60 4:2:2 NDI encoding.

Join the IP Revolution without Replacing Your Current Gear

While some new products support NDI directly, many customers want to use their current equipment investments with NDI-compatible software and systems. Pro Convert encoders make it easy to connect existing sources such as cameras and production solutions into NDI-enabled video-over-IP workflows.

Easy Access and Plug-and-Play Installation

Initial configuration of IP-based devices can often be a challenge, but Pro Convert encoders make it easy. They automatically detect your DHCP-based network and the input signal video format, minimizing or eliminating the need for manual configuration. And in addition to a browser-based GUI interface, flexible control options enable you to manage the devices even before connecting them to your network.

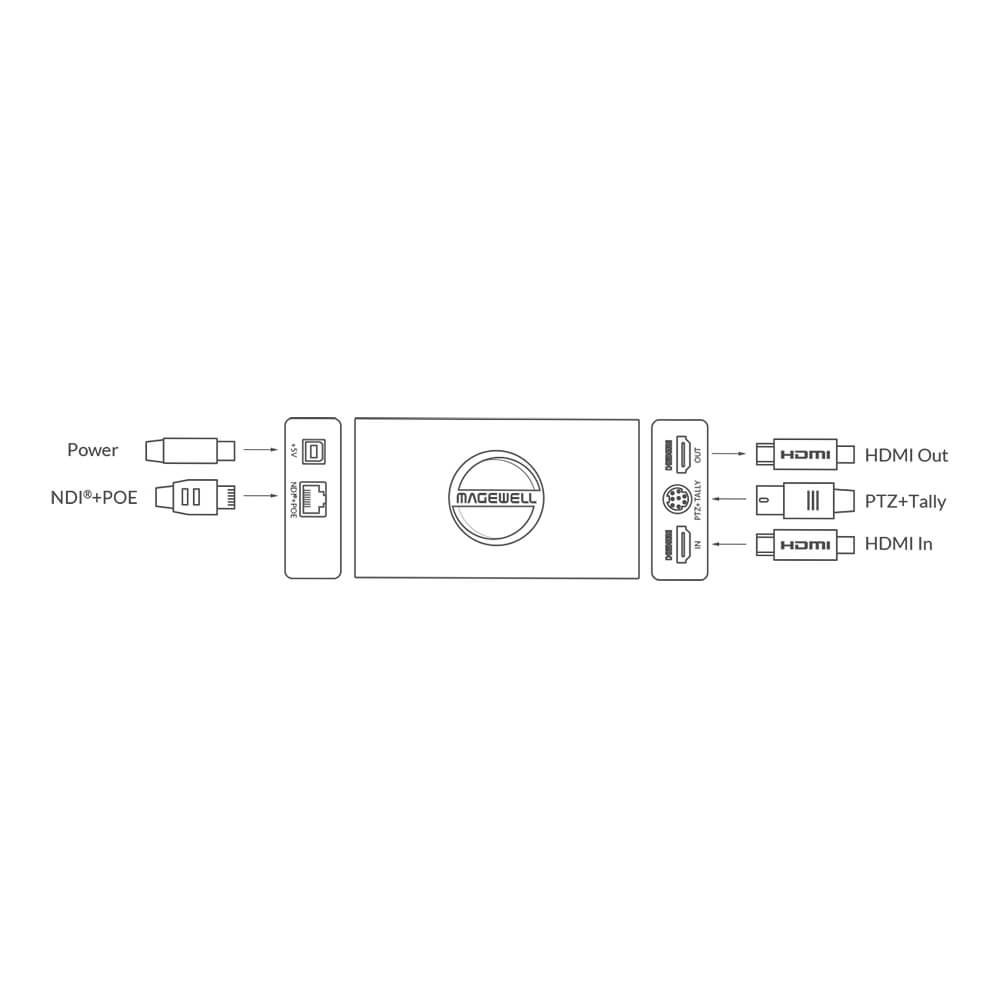

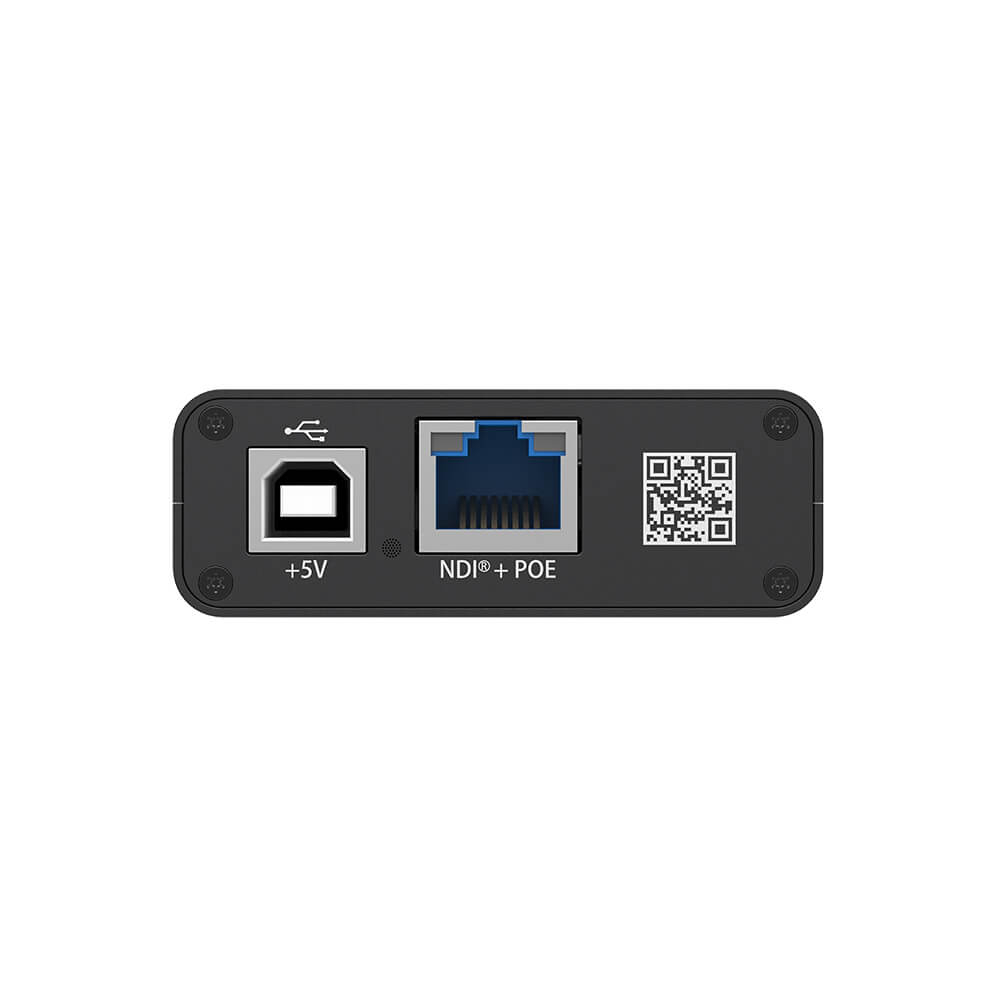

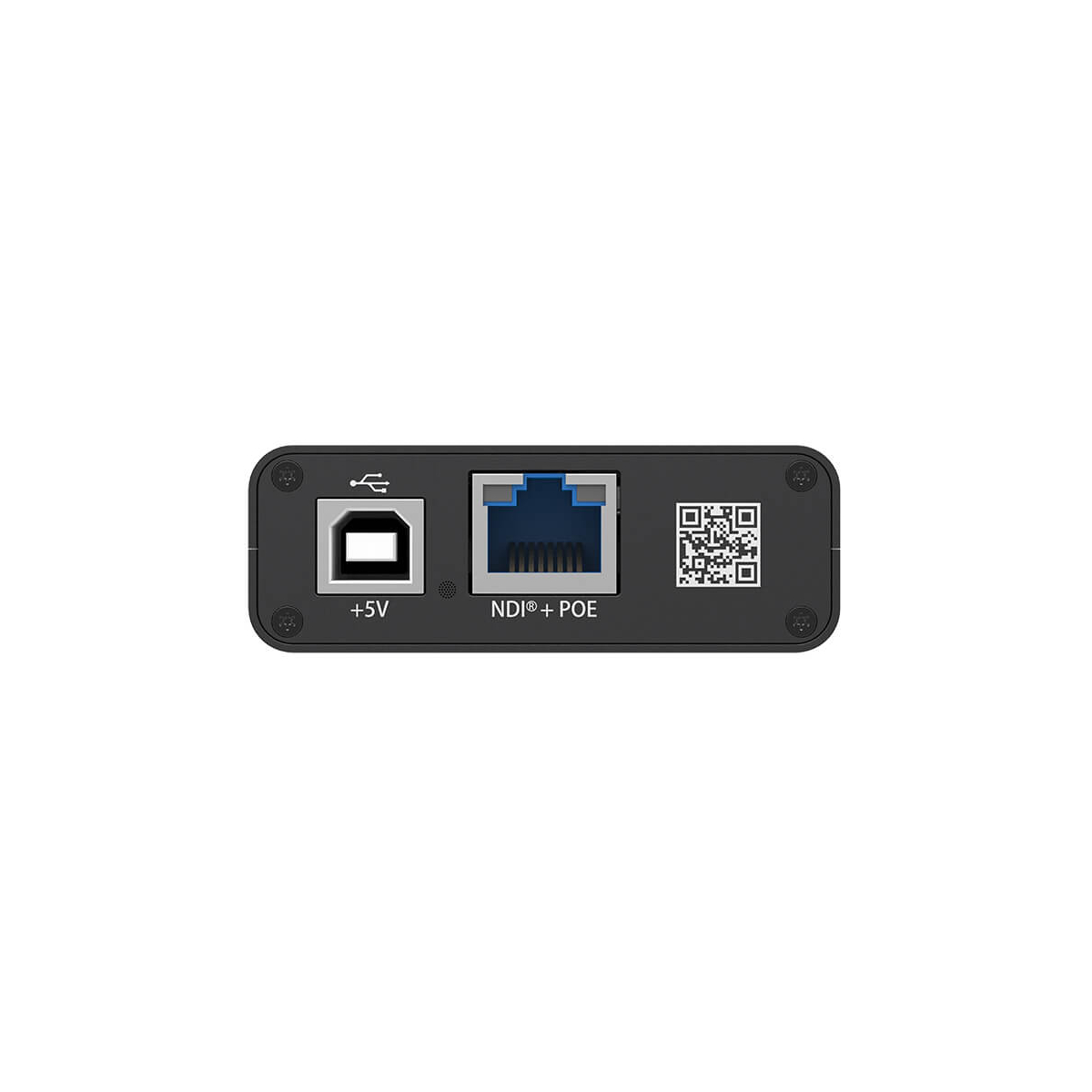

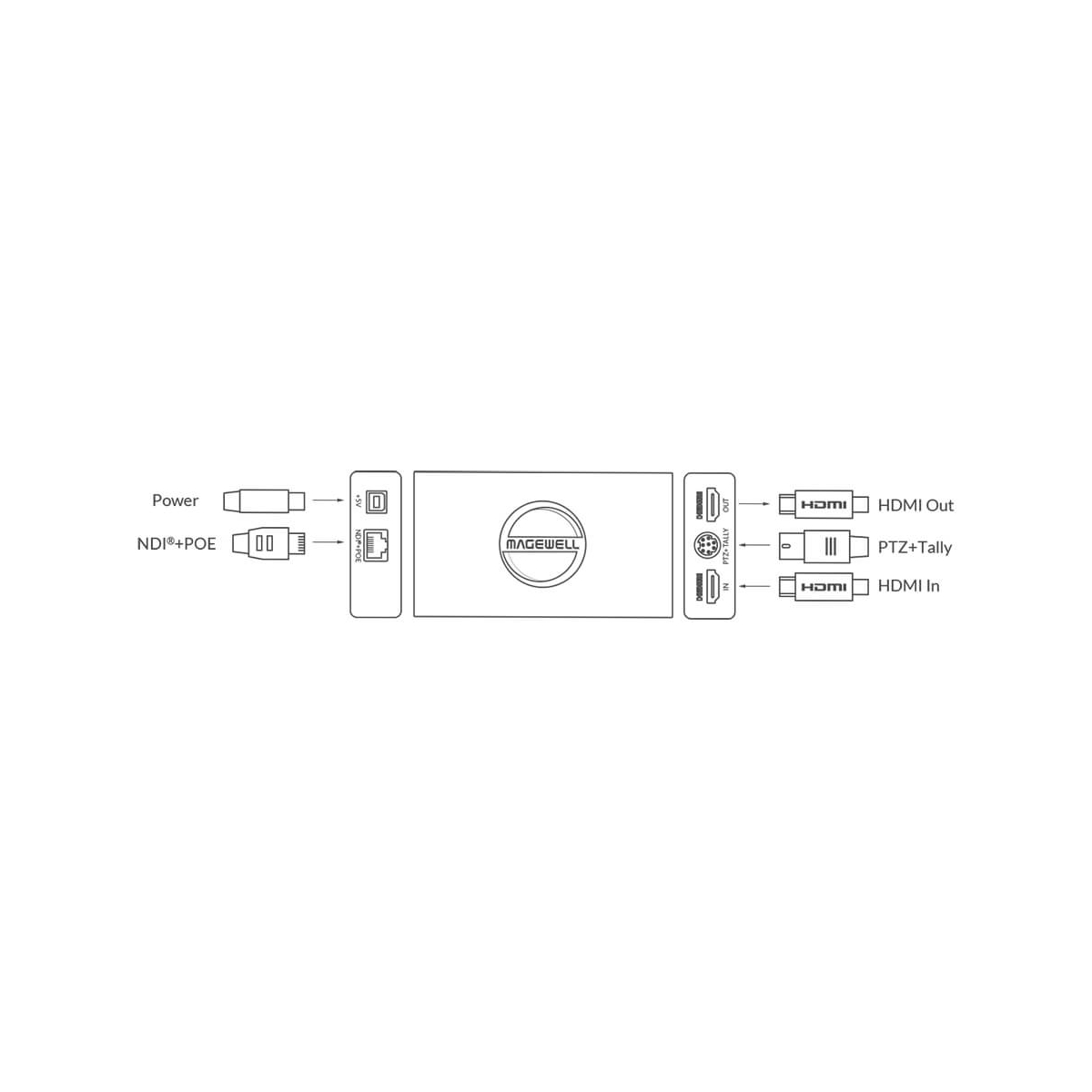

Power via Power over Ethernet (PoE) or USB power supply

There are two ways to power your converter:

  • Via USB: Plug in a USB cable for power supply.
  • Via PoE: Plug in a Ethernet cable, which is connected to a PoE switch, for power and Ethernet connection.

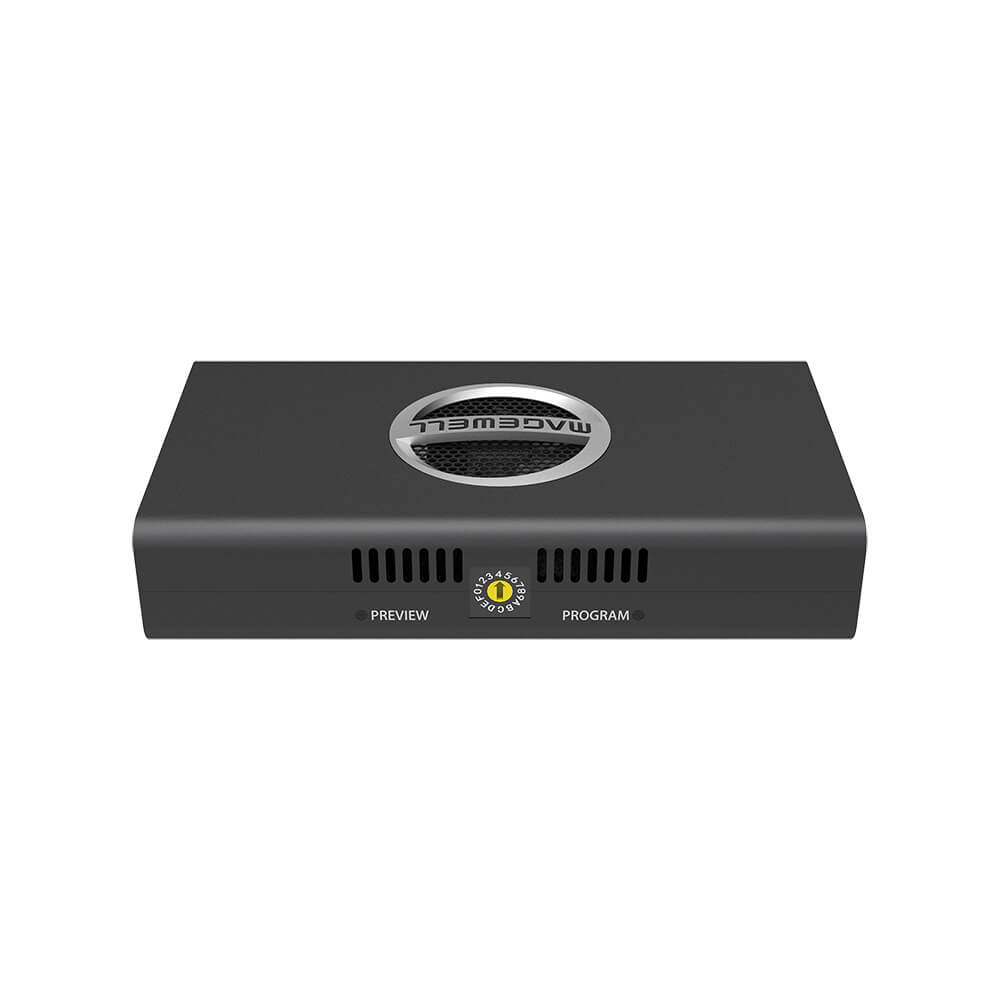

Program and Preview Tally Lights

Pro Convert encoders include value-added features including program and preview tally lights, support the use of User customized tally lights through the definition of the pinouts of the PTZ interface.

FPGA-based video processing

FPGA-based video processing, effectively reducing CPU usage. Video processing features including De-interlacing, Flip, Color Adjustment, Color space Conversion, Crop and Up/Down Conversion.

PTZ control interface enables remote NDI control of connected camera

Magewell Pro Convert NDI encoders can receive PTZ commands from the NDI decoder and convert them into protocols that can be recognized by ordinary cameras to implement specific operations and simplify on-site production workflows based on NDI technology.

Support five PTZ control protocols, namely Visca, Visca UDP, Visca UDP2rs232, PELCO-D and PELCO-P, to satisfy users to control PTZ cameras in different usage scenarios.

Advanced NDI® Technology for Low-Latency Live Production

Pro Convert NDI encoders and decoders efficiently convert HDMI or SDI signals up to 4Kp60 and from NewTek’s NDI technology for transport over standard local area networks and across multiple subnets. The Pro Convert family builds on NewTek’s NDI Embedded SDK to ensure compatibility with the growing ecosystem of NDI-enabled solutions, and transmits production-grade video and eight-channel audio with extremely low latency.

Automated failover redundancy

Magewell Pro Convert encoders offer automated failover for fault-tolerant NDI transmission. If a decoder cannot receive an NDI stream from the primary encoder, a backup Pro Convert device takes over transmission; the initial source will be restored after the primary encoder recovers.

Beyond providing fault tolerance during an unexpected failure, failover functionality is also valuable for maintaining continuous 24/7 display while reconfiguring the primary encoder.

Magewell Pro Convert HDMI 4K Plus Specification

Input & Loop through Features Max input & loop through signal: 4096x2160 60fps 4:4:4 8-bit
Input video at any format by custom EDID of input port
Video formats: RGB, YUV BT.601/709/2020
8-channel HDMI-embedded audio
HDMI interfaces: HDMI 1.4/2.0, DVI-D
NDI® Encoding Features Encoding Full NDI real-time stream at up to:
- 4096x2160 60fps 4:2:2 8-bit
- 1920x1080 240fps 4:2:2 8-bit
Output the same resolution as input or any custom resolution. Typical outputs include:
- 4096x2160p/3840x2160p/ 2048x1080p 23.98/24/25 /29.97/30/50/59.94/60
- 1920x1080p/1280x720p 23.98/24/25/29.97/30/50/ 59.94/60/100/119.88/120
- 1920x1080i 25/29.97/30/50/ 59.94/60
- 720x480p/720x480i 59.94/60/119.88/120
- 720x576p/720x576i 50/100
Output frame rate same as the original, 1/2, 1/3 or 1/4 of input frame rate
Encoding 8-channel NDI-embedded audio
Support NDI 5.x
Configuration Management Register with Magewell Cloud
Remote control via WebUI and Magewell Cloud
Provide comprehensive information regarding the device and input signals in real-time
Allow to configure how an input is processed and encoded, including deinterlacing, EDID, up/down scaling, frame rate, aspect ratio, as well as the network connection
Update firmware
Support USB RNDIS/ECM
Support IE/Edge/Firefox/ Chrome/Safari/Opera web browsers
Provide HTTP APIs
On-board Control Buttons 16 Position Rotary DIP Switch: set board-index from 0 to F
PTZ Control  Control PTZ cameras using protocols of VISCA, Visca UDP, Visca UDP2rs232, PELCO-P and PELCO-D via NDI
Mini-DIN–8 jack (shared with Tally light)
Network Interfaces 10/100/1000Mbps Ethernet
IEEE 802.3af PoE
USB Interface USB2.0 Type B
- 5V/2.1A power supply
- USB RNDIS/ECM
Supported Products NDI Studio Monitor
OBS
vMix
Any other NDI-enabled product
LED Indicators Status LEDs indicate:
- Power supply: on/off
- Tally: preview/program
- Input signal: locked/ unlocked
- Loop through signal: device connected and signal detected/undetected
Form Factor 117.5mm (L) x 66.7mm (W) x 23.4mm (H)
Accessories USB 2.0 A to B cable
5V/2.1A power adaptor
Mini-DIN 8 breakout cable
Tally light
L-bracket
Screw Mounting Hole ¼–20 threaded hole
Power Consumption 5V max current: ~2A
Max power consumption: ~10W
Working Environment Operating temperature: 0 to 45 deg C
Storage temperature: -20 to 70 deg C
Relative Humidity: 5% to 90% non-condensing
  • Magewell Pro Convert HDMI 4K Plus
  • USB 2.0 A to B cable
  • 5V/2.1A power adaptor
  • Mini-DIN 8 breakout cable
  • Tally light
  • L-bracket
  • 2-years Limited Manufacturer's Warranty

View

User Manual for Pro Convert Encoders

View

Short FAQs about Pro Convert

View

Description of Mini-DIN8 Breakout

Download

Pro Convert HDMI 4K Plus Firmware | V1.1.222

【Magewell】Pro Convert HDMI 4K Plus One-channel NDI Encoder

HK$8,300.00
