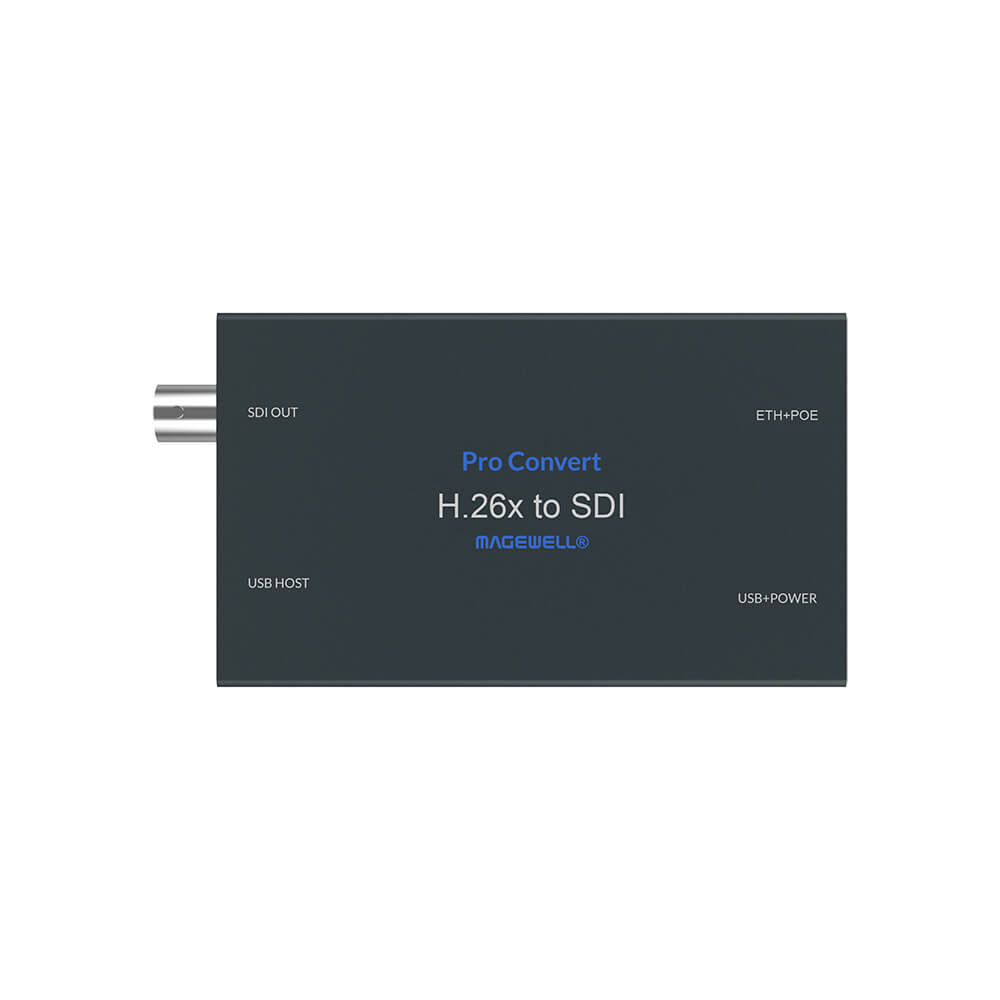

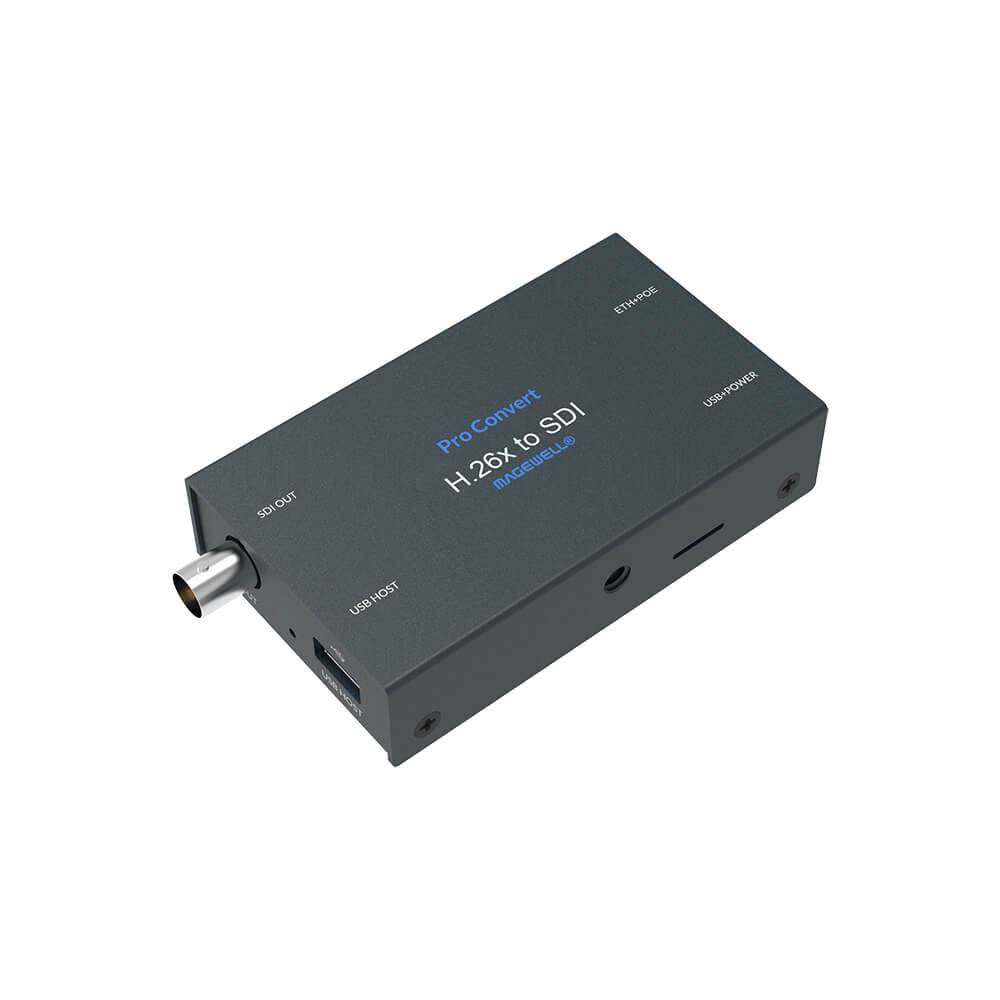

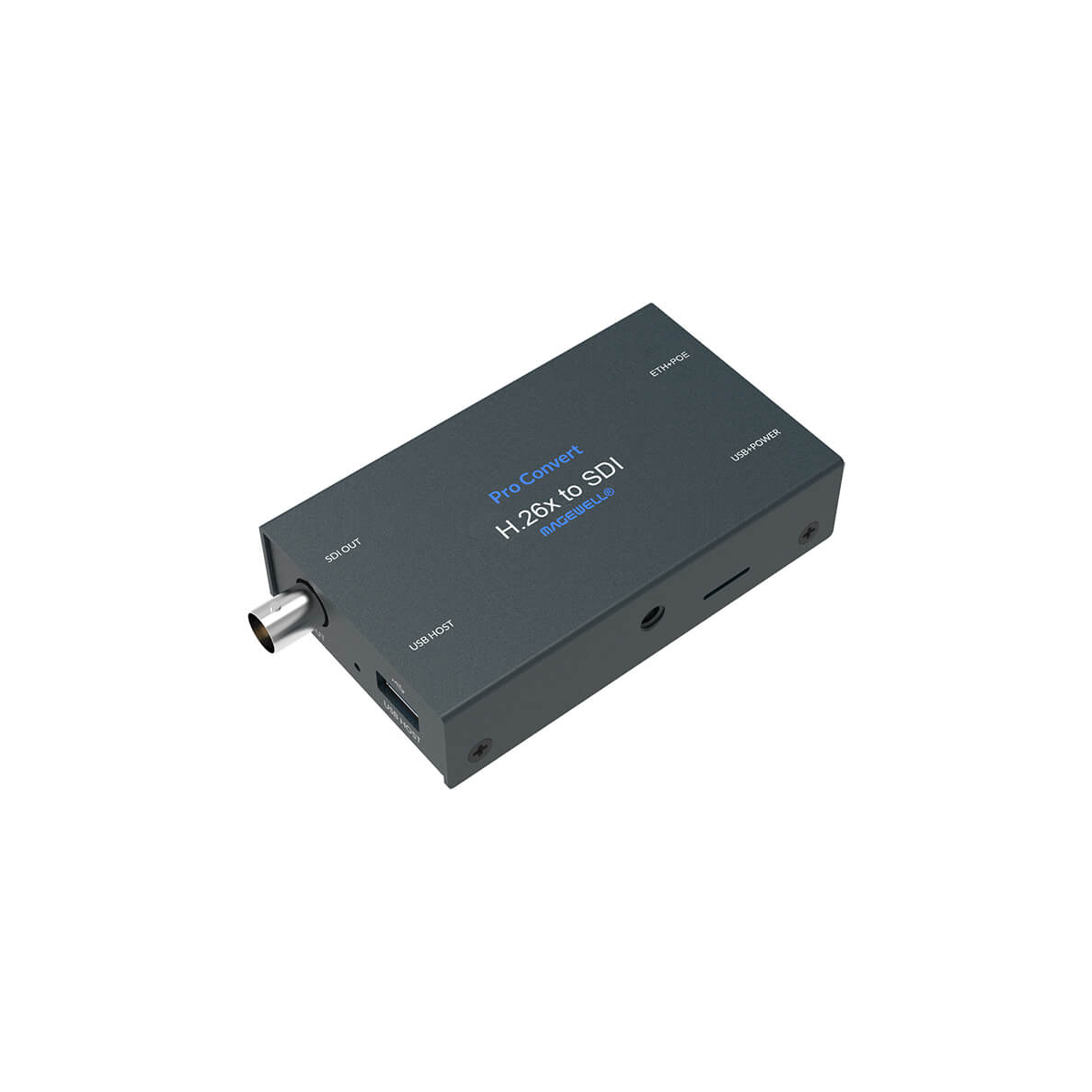

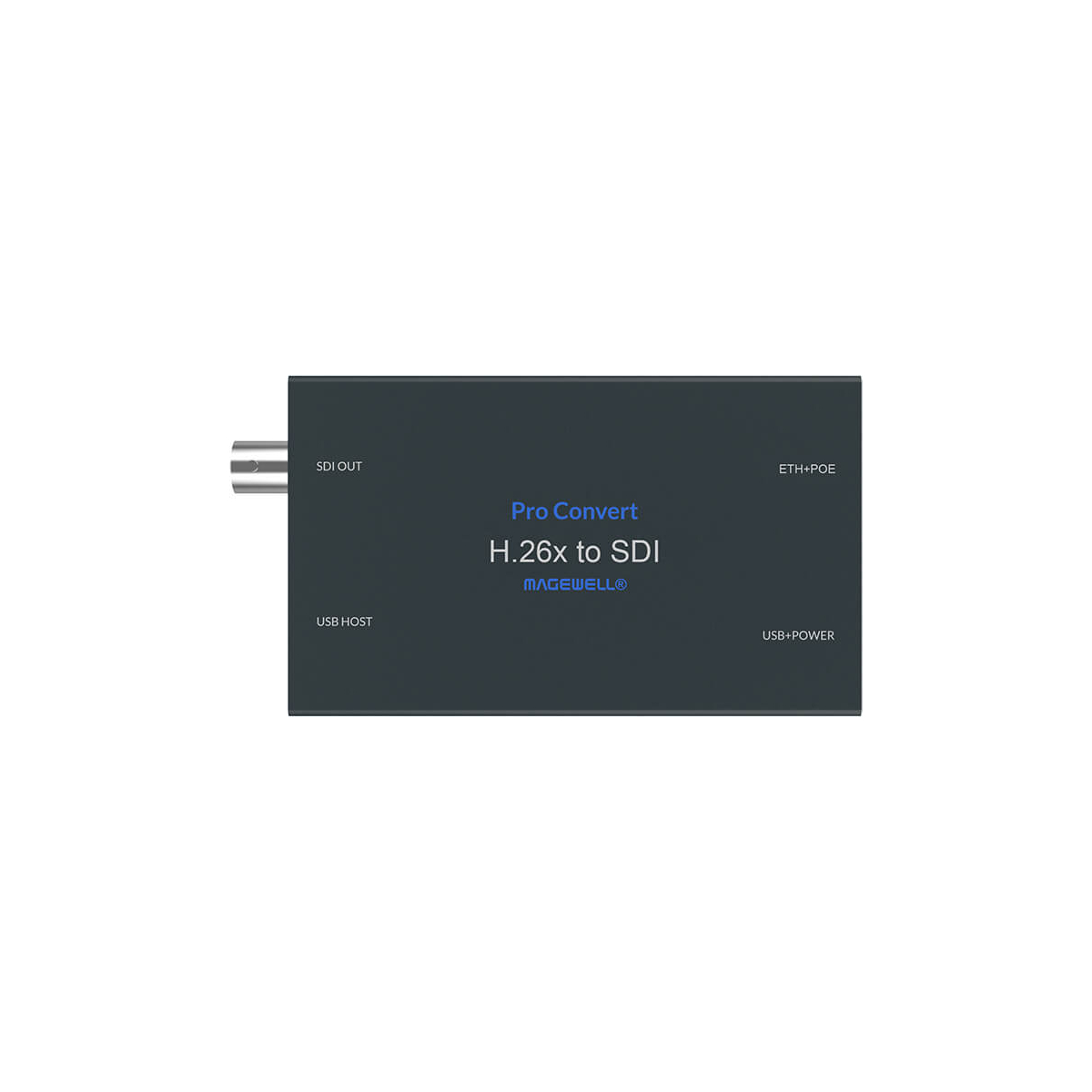

【Magewell】Pro Convert H.26x to SDI One-channel IP Decoder

  • Convert multi-protocol IP-based streams into HD SDI signal
  • Up-converts the decoded HD signals
  • Support SDI output up to 1920x1080 60fps
  • Support for 96KHz 16bits 8-channel audio streams
  • Support for decoding videos in H.264 and H.265 format
  • Support for decoding AAC/MP3 audios
  • Decode RTSP, HTTP, HLS, RTMP Pull/Push and MPEG-TS over UDP/SRT/RTP
  • Decode TVU ISSP streams
  • DC+5V or IEEE802.3af POE
  • SD card slot

Notify me when this product is available:

Local Delivery

CHINAM is currently shipping within Hong Kong and specific countries only. We use local courier service as our delivery company. We do not support shipping items in a single order to multiple shipping addresses. To ship items to an additional address, please place a new order to us. Unless otherwise specified, delivery charge at the rate of HK$300 will be imposed on each delivery. We currently offer free delivery for each order over HK$1,000.

For remote areas or outlying islands delivery service, please contact our sales team via email - sales@chinam.com.hk

International Delivery

We will do our best to ship internationally to countries where we do not have sales representation. Please register with us, we’ll keep you updated and notify you when this is about to happen and become available in your region. Please note, at this time the customer is responsible for the duties and taxes imposed by their country.

For international shipping please contact our sales team via email - sales@chinam.com.hk

Deliver Time

  • Once your order has been handed over to the carrier for delivery, you will receive a shipment notification email with an estimated delivery date. Please note that it is not possible to expedite your delivery and receive your package earlier than the scheduled delivery date. Therefore, we are unable to accept requests for expedited delivery. Our carriers are unable to provide an exact time of day for your delivery. If you ordered multiple items, you may receive separate shipments.
  • All estimates are based on business days. We only make deliveries in the specified areas of Hong Kong from Monday to Sunday except on the first two days of the Lunar New Year and when typhoon warning signal No. 8 or above or black rainstorm warning is in force.
  • All rescheduling of delivery, additional purchases, new sales memos and amendments must be made 3 days before the scheduled delivery date. Otherwise, a double delivery charge will be incurred.
  • We may deliver the merchandise in one or more installments, and some of the merchandises may be delivered directly from suppliers. Any times and dates given for dispatch of merchandise, or the length of time that merchandise will take to be delivered, are only estimates. If we are unable to meet any stated dispatch or delivery dates or times we will inform you as to the progress of your order. You agree and accept that under no circumstances will we accept cancellation of order or refund.

Signature On Delivery

  • Most of our shipments contain valuable items. If you will not be in attendance to accept delivery of your purchase, consider shipping to someone you trust will be able to sign for your package. For your convenience, you may prefer to have your order delivered to your office address. If you choose this option, please include the name of your business in the address. Please note, if you choose this option, goods may be left with reception or the Mail Room.
  • As our carriers require a signature on delivery, the carrier will leave a calling card if you are not at home. Please contact the carrier to reschedule delivery.
  • For postal deliveries, no signature is required and order status tracking is not available.
  • Delivery failure due to no one answering the door upon the arrival of goods at the appointed time, or to circumstantial limitations such as the entrance being too small, will require a rescheduled delivery and therefore incur double delivery charges.
  • We will deliver the merchandise ordered by you to the address you give us for delivery at the time you make your order through our staff or a third party provider. You agree to present your photo identification upon request when you acknowledge receipt of the merchandise. The merchandise shall be, and shall be deemed to be, delivered and accepted by you when the merchandise are delivered to the address you give us for delivery. You agree and accept that we are entitled, at our option, to charge you additional costs or cancel your order in the event of your failure to accept delivery for whatever reasons.

General

  • You will become the owner of the merchandise you have ordered when they have been delivered to you. Once merchandise has been delivered to you they will be held at your own risk and we will not be liable for the loss or damage.
  • You may not export any products purchased at CHINAM online store. We sells and ships products to end-user customers only. Notwithstanding order confirmation, CHINAM may cancel any order where it has reasonable grounds to believe the product is not being purchased for end use.
  • If there is any inconsistency or ambiguity between the English version and the Chinese version, the English version shall prevail.
  • We reserve the final right to terminate or alter the above terms and conditions. In the event of any dispute, our decision shall be final and conclusive.
Out of stock
SKU
641700000
Write Your Own Review
You're reviewing:【Magewell】Pro Convert H.26x to SDI One-channel IP Decoder
Your Rating

Flexibly and Reliably Decode AV-over-IP and Internet Video Streams

Pro Convert decoders support both dedicated video-over-IP and universal streaming protocols including NDI®, SRT (Secure Reliable Transport), RTMP, RTSP, RTP, UDP, HTTP and HLS, enabling high-quality conversion of full NDI, NDI|HX, H.264 (AVC) or H.265 (HEVC) streams into high-quality HDMI or SDI outputs.

Bridging Streams, Signals and Screens

Compatible with a wide variety of hardware and software encoders, Pro Convert decoders transform input streams up to 4096x2160 at 60fps for output to baseband monitors, projectors, hardware switchers and more. They are perfect for multi-site video distribution, video walls, image magnification (IMAG), digital signage, remote production and video surveillance.

Simple Access to Advanced Features

Users can easily manage Pro Convert decoders through a browser-based Web GUI, while additional control options including on-device menu buttons and USB keyboard/mouse are available even before connecting the devices to a network.

Integrated Output Optimization and Rich Audio

Pro Convert decoders offer built-in, high-quality video processing including up- and down-conversion to optimize the decoded output for the capabilities of the target display device. For audio, the decoders are compatible with multiple standards to meet the needs of users in different regions and support up to eight channels of embedded audio.

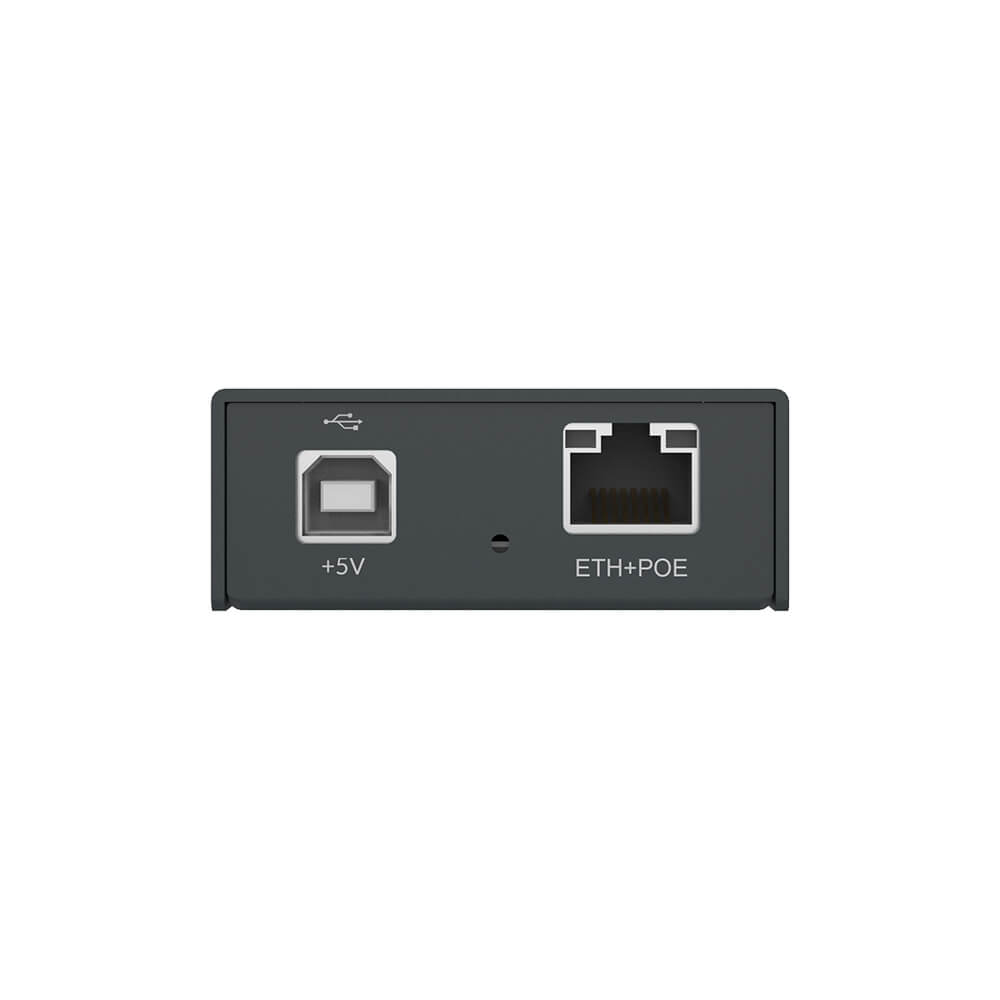

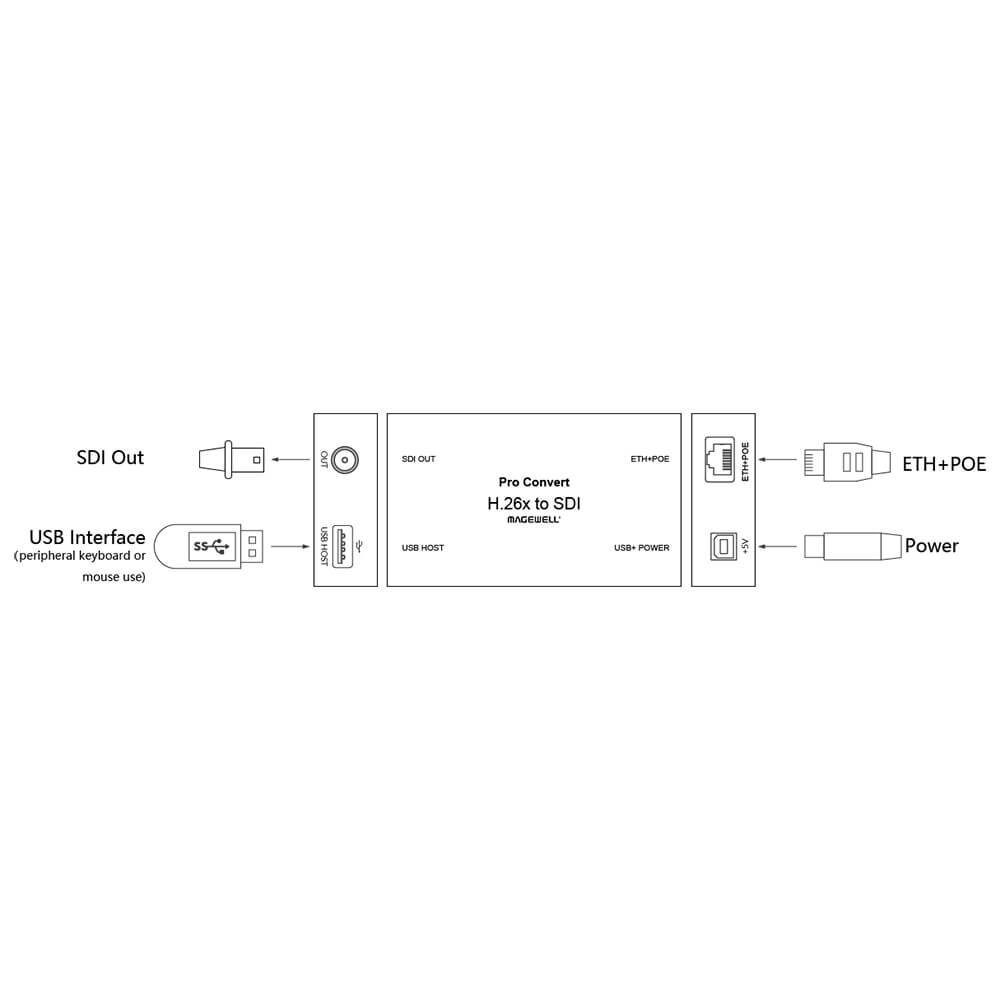

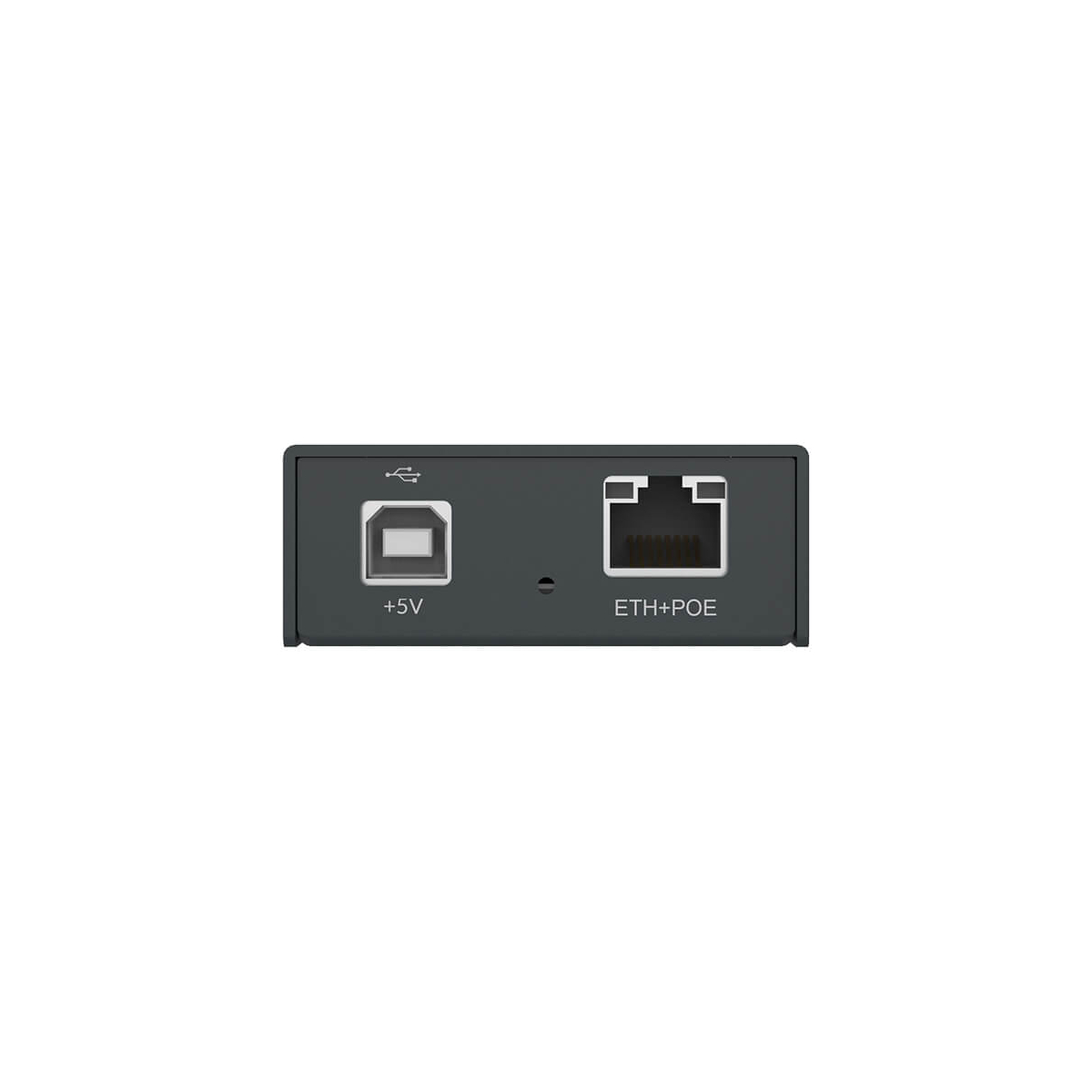

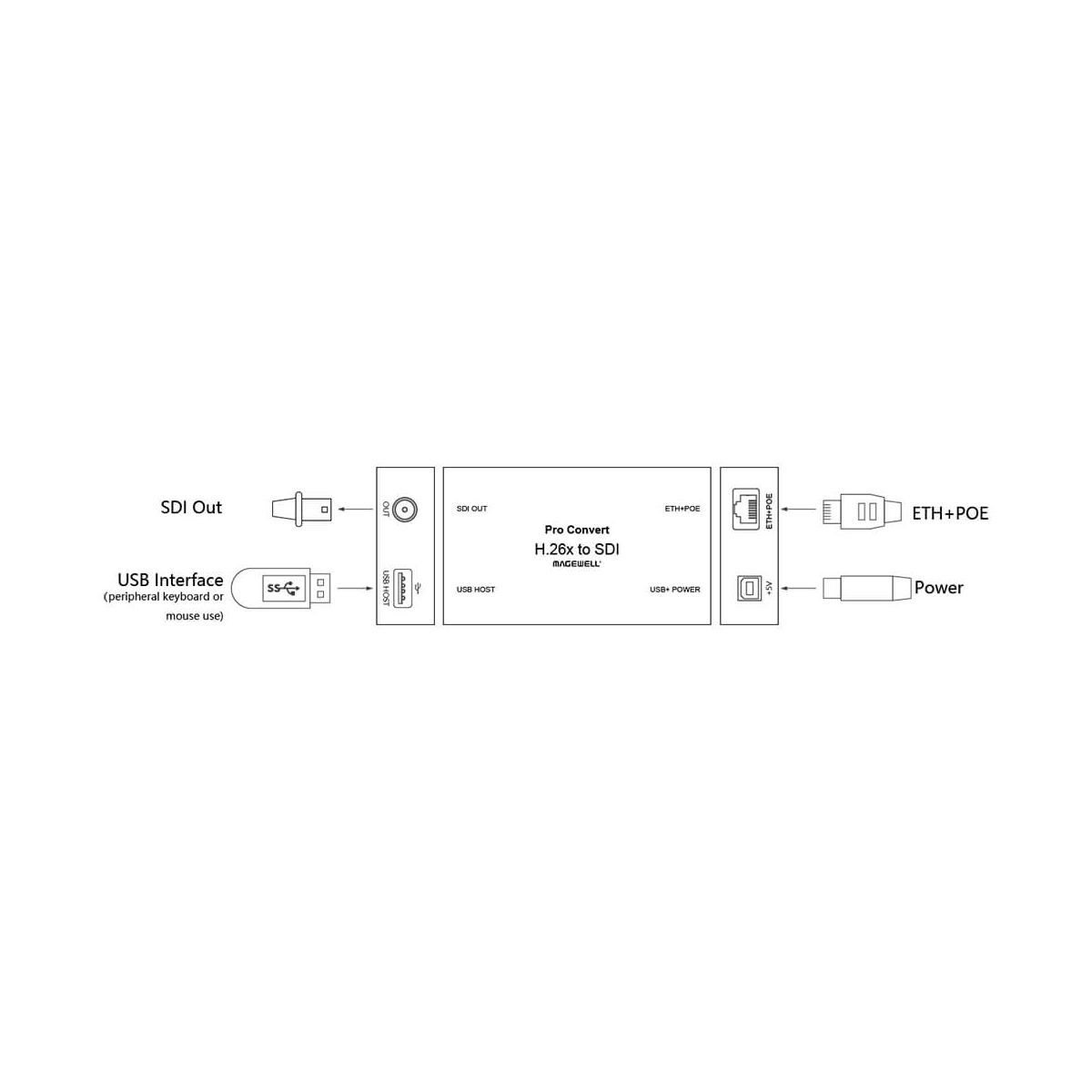

Power via Power over Ethernet (PoE) or USB power supply

There are two ways to power your converter:

  • Via USB: Plug in a USB cable for power supply.
  • Via PoE: Plug in a Ethernet cable, which is connected to a PoE switch, for power and Ethernet connection.

FPGA-based video processing

FPGA-based video processing, effectively reducing CPU usage. Video processing features including De-interlacing, Flip, Crop and Up/Down Conversion.

Advanced NDI® Technology for Low-Latency Live Production

Pro Convert NDI encoders and decoders efficiently convert HDMI or SDI signals up to 4Kp60 and from NewTek’s NDI technology for transport over standard local area networks and across multiple subnets. The Pro Convert family builds on NewTek’s NDI Embedded SDK to ensure compatibility with the growing ecosystem of NDI-enabled solutions, and transmits production-grade video and eight-channel audio with extremely low latency.

Automated failover redundancy

Magewell Pro Convert encoders offer automated failover for fault-tolerant NDI transmission. If a decoder cannot receive an NDI stream from the primary encoder, a backup Pro Convert device takes over transmission; the initial source will be restored after the primary encoder recovers.

Beyond providing fault tolerance during an unexpected failure, failover functionality is also valuable for maintaining continuous 24/7 display while reconfiguring the primary encoder.

Magewell Pro Convert H.26x to SDI Specification

Output Features Max output: 1920x1080p60. Supported output formats are:
- 1920x1080p 23.98/24/25/ 29.97/30/50/59.94/60
- 1920x1080i 50/59.94/60
- 1280x720p 23.98/24/25/ 29.97/30/50/59.94/60
- 720x576p50
- 720x576i50
- 720x480p59.94/60
- 720x480i59.94/60
Support YUV BT.601, YUV BT.709 signal
Support 48KHz 8-channel audio output

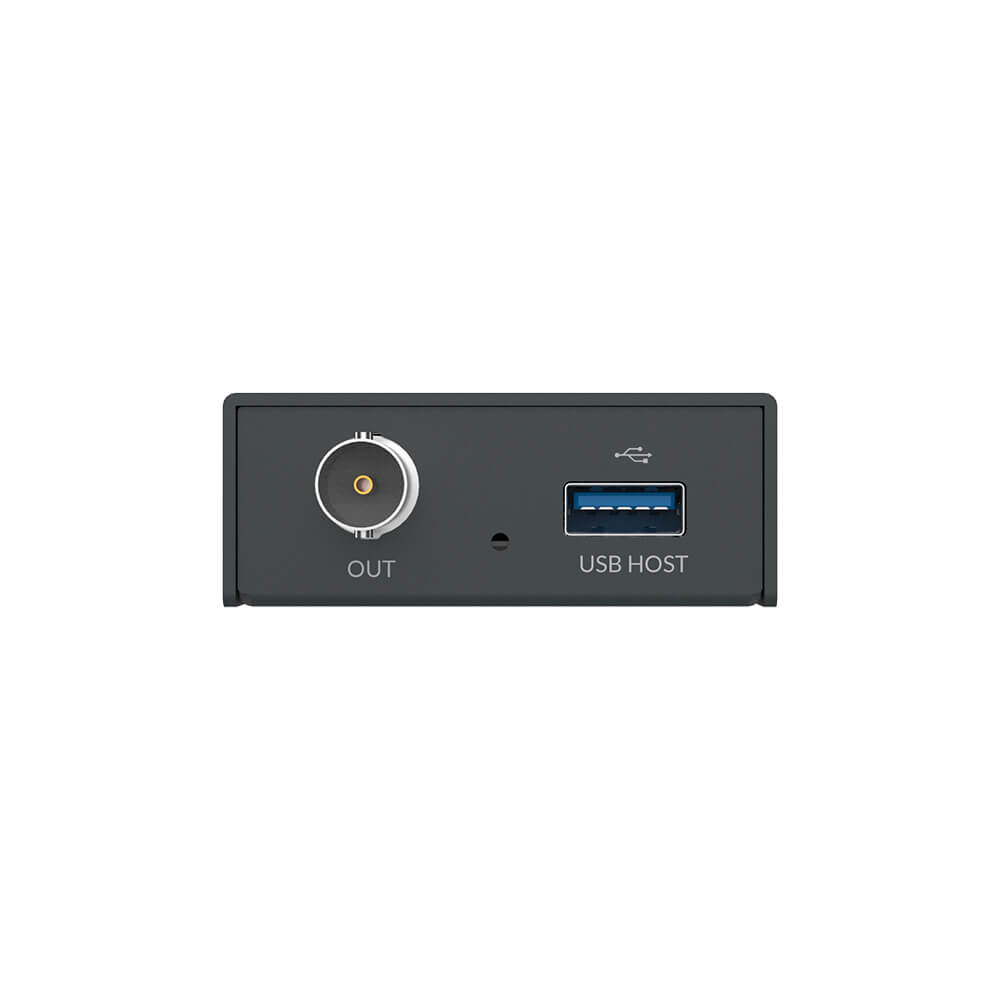

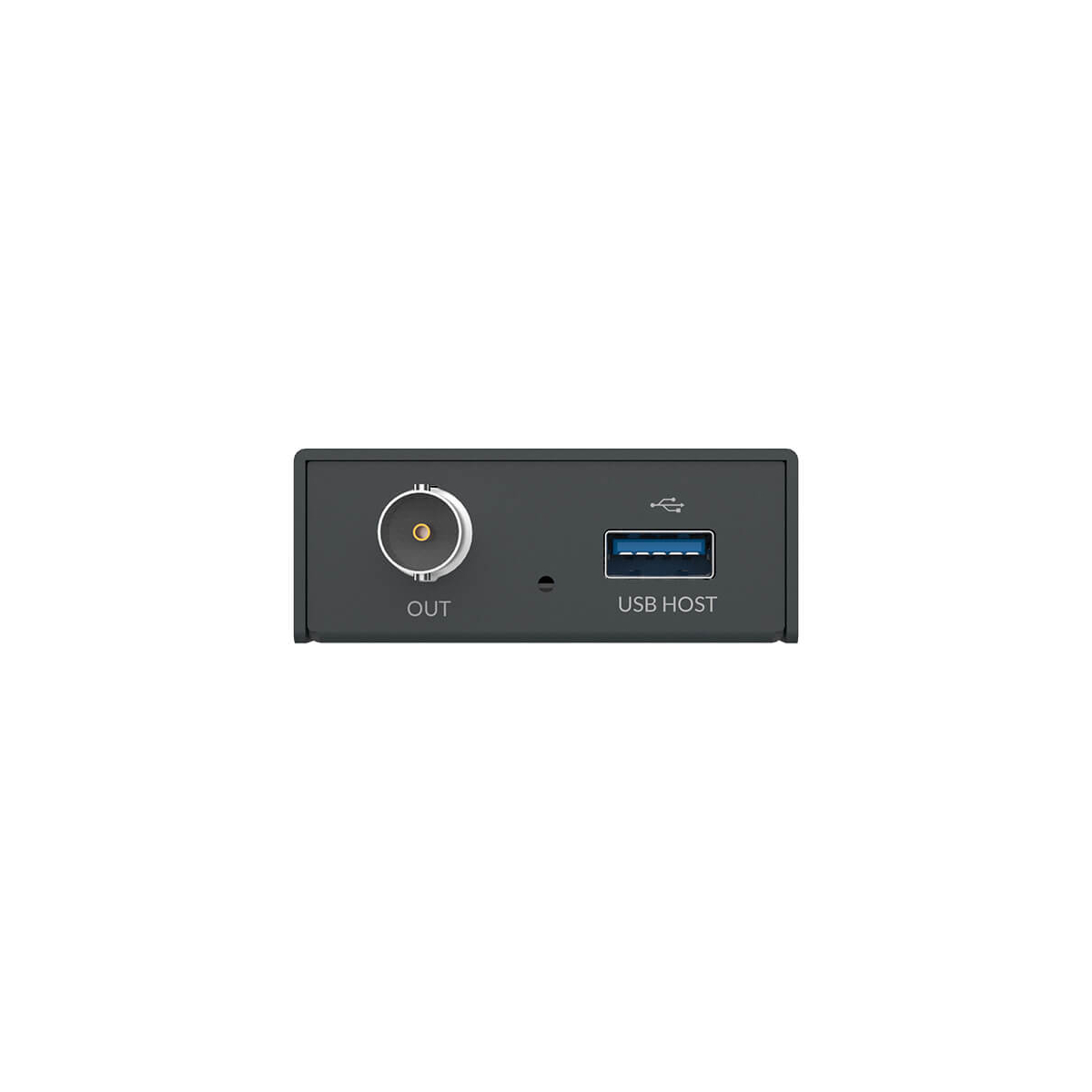

SD/HD/3G-SDI BNC output
Support SD (ST 259)/HD (ST 292)/3Ga (ST 425)/3Gb (ST 425)/3Gb-DL (ST 425)/3Gb-DS (ST 425) SDI standards
Output 3G-SDI signal and transmitted distance greater than 100m (328ft)
Decoding Features Decoding up to 2Kp60 streams of RTSP, HTTP, HLS, RTMP Pull/Push and MPEG-TS over UDP/SRT/RTP protocols
H.264/H.265 video decoders
AAC/MP3 audio decoders
Web UI Management Provide comprehensive information regarding the device and decoded signals in real-time
Allow to configure how a signal is processed and decoded, including:
- OSD setting, deinterlacing, resolution, frame rate, AR conversion
- audio gain, sample rate and audio channel mapping
- network connection
Update firmware
Support USB RNDIS/ECM
Support IE/Edge/Firefox/ Chrome/Safari/Opera web browsers
Provide HTTP APIs
On-board Control Buttons MENU: press to display the menu, or cycle through the options
SELECT: press to display the menu, enter current option, or confirm the selection
16 Position Rotary DIP Switch: set board-index from 0 to F
Network Interfaces 10/100/1000Mbps Ethernet
IEEE 802.3af PoE
USB Interface USB2.0 Type B
- 5V/2.1A power supply
- USB RNDIS/ECM
USB3.0 Type A
- Connecting peripherals (keyboard and/or mouse) to customize the video and audio settings
LED Indicators Power LED status indicator
- On: power connected
- Off: power unconnected
Decode LED status indicator
- On: decoding
- Blinks: decoding error
- Off: source unselected
Form Factor 100.9mm (L) x 60.2mm (W) x 23.3mm (H)
Accessories USB 2.0 A to B cable
5V/2.1A power adaptor
L-bracket
Screw Mounting Hole ¼–20 threaded hole
Power Consumption 5V max current: ~1.05A
Max power consumption: ~5.5W
Working Environment Operating temperature: 0 to 40 deg C
Storage temperature: -20 to 70 deg C
Relative Humidity: 5% to 90% non-condensing
  • Magewell Pro Convert H.26x to SDI
  • USB 2.0 A to B cable
  • 5V/2.1A power adaptor
  • L-bracket
  • 2-years Limited Manufacturer's Warranty
