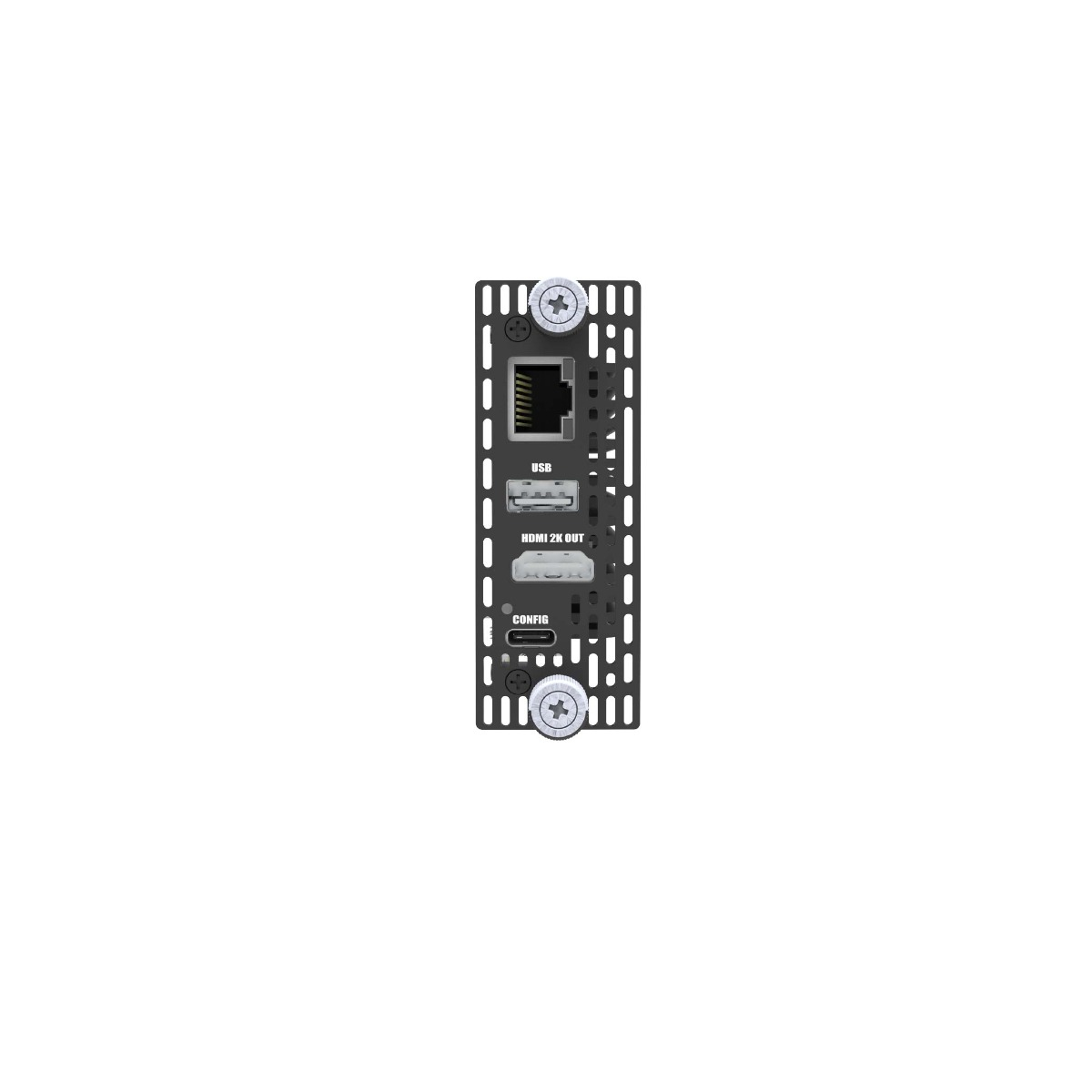

Interfaces
1* RJ45 1000Mbps Ethernet port
1* USB Type-C port for configuration
1* USB Type-A 3.0 port for connecting peripherals
1* HDMI 2.0 output port
1* Modator interface for connecting to Modator 2U (hot-swappable)
Decoding Features
Decode up to 2Kp60 streams of NDI High Bandwidth , NDI® |HX, NDI® |HX2, NDI® |HX3, RTSP, HTTP, HLS, RTMP Pull/Push, MPEG-TS over UDP/SRT/RTP, TVU protocols
Decode H.264/H.265 video
Decode AAC/MP3 audio
Supports NDI® 5.x
Output Features
Max. output: 4096x2160 60fps 4:4:4 8-bit
Deliver video at the preferred video format according to the EDID of the connected monitor. Supported output formats include:
-4096x2160p/3840x2160p 23.98/24/25/29.97/30/50/59.94/60
-2560x1440p 60/100
-2560x1080p 23.98/24/25/29.97/30/50/59.94/60
-1920x1080p 23.98/24/25/29.97/30/50/59.94/60/100/119.88/120
-1920x1080i 50/59.94/60
-1280x720p 23.98/24/25/29.97/30/50/59.94/60
-720x576p50
-720x576i50
-720x480p59.94/60
-720x480i59.94/60
Supports RGB, YUV444, and YUV422 signals
Supports 48KHz 8-channel audio output
Web UI
Register with Magewell Control Hub for remote centralized management
Supports configuring and managing via Web UI
Provides comprehensive information regarding the device and decoded signals in real-time
Allow to configure how a signal is decoded and output, including OSD settings, deinterlacing, resolutions, audio gain, sample rate, and channel mapping, as well as the network connection
Supports updating firmware
Supports USB RNDIS/ECM
Supports IE/Edge/Firefox/Chrome/Safari/Opera web browsers
Provides HTTP APIs
LED Indicators
Decode status indicator
-On: decoding
-Blinks: decoding error
-Off: source unselected
Physical Specifications
Form factor: 184.4mm (L) x 30.0mm (W) x 81.5mm (H)
Weight: ≈290g
Power Consumption
Max power consumption: 4.3W
Working Environment
Operating temperature: 0 to 50 deg C
Storage temperature: –20 to 70 deg C
Relative humidity: 5% to 90% non-condensing
