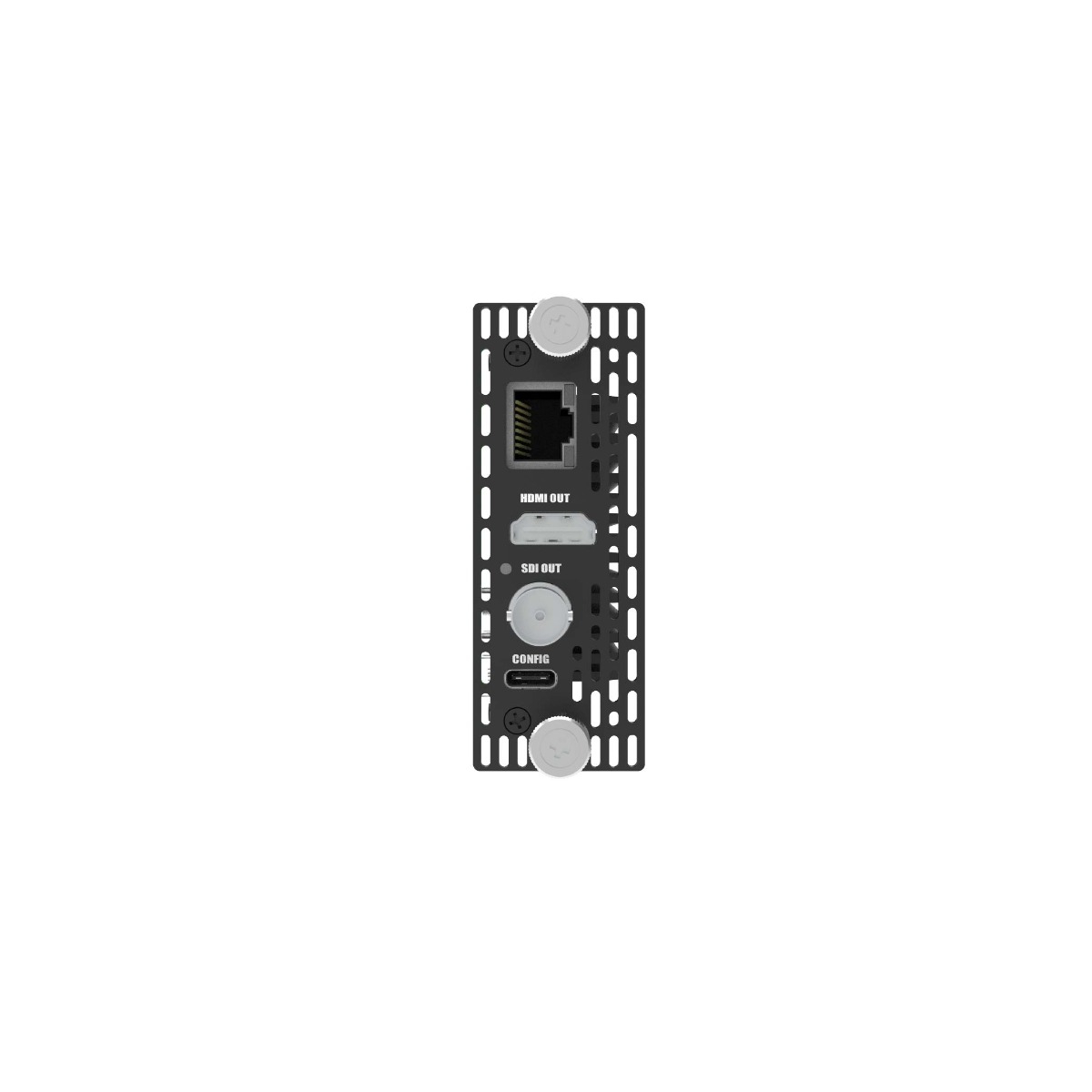

Interfaces
1* RJ45 1000Mbps Ethernet port
1* USB Type-C port for configuration
1* SDI output port
1* HDMI 1.4 output port

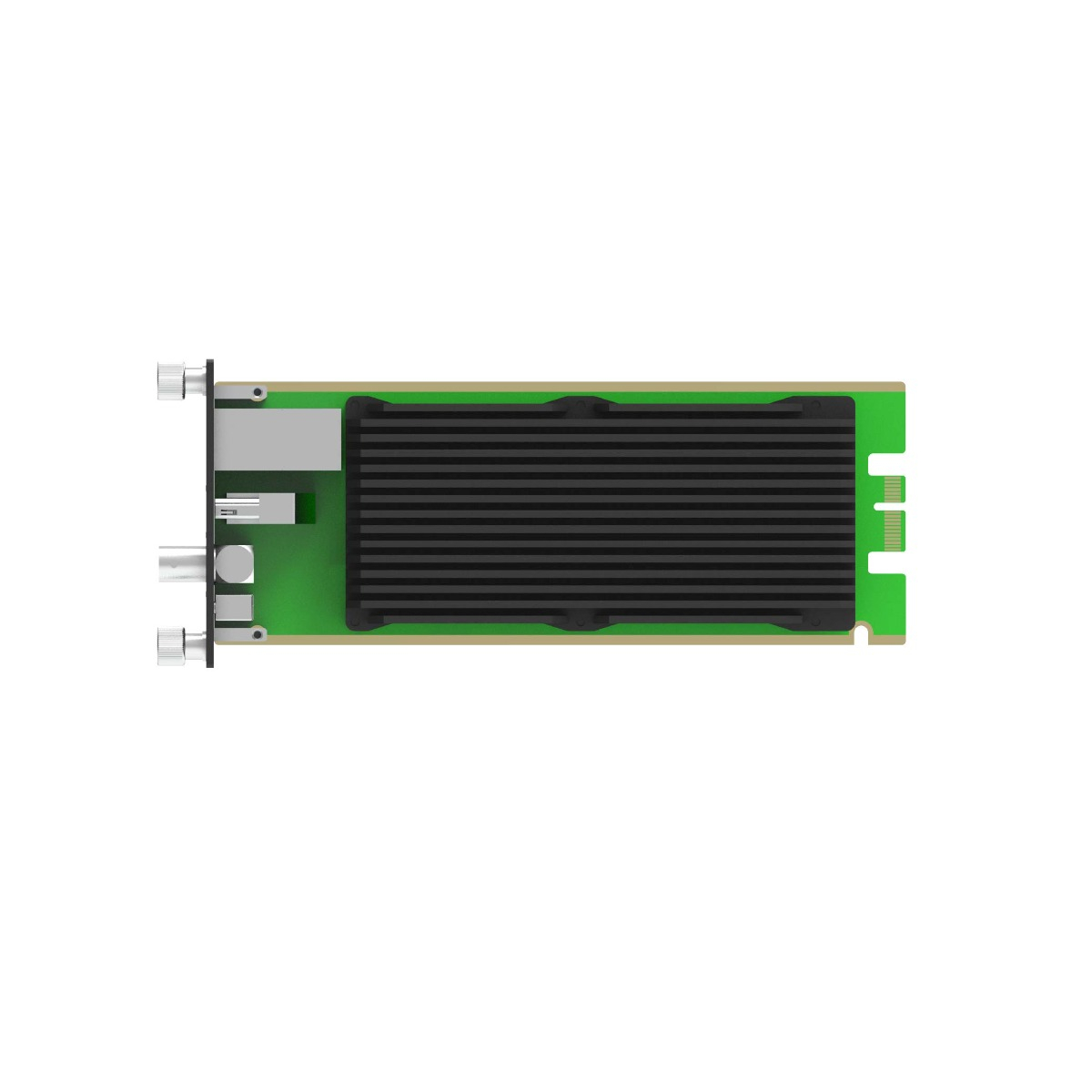

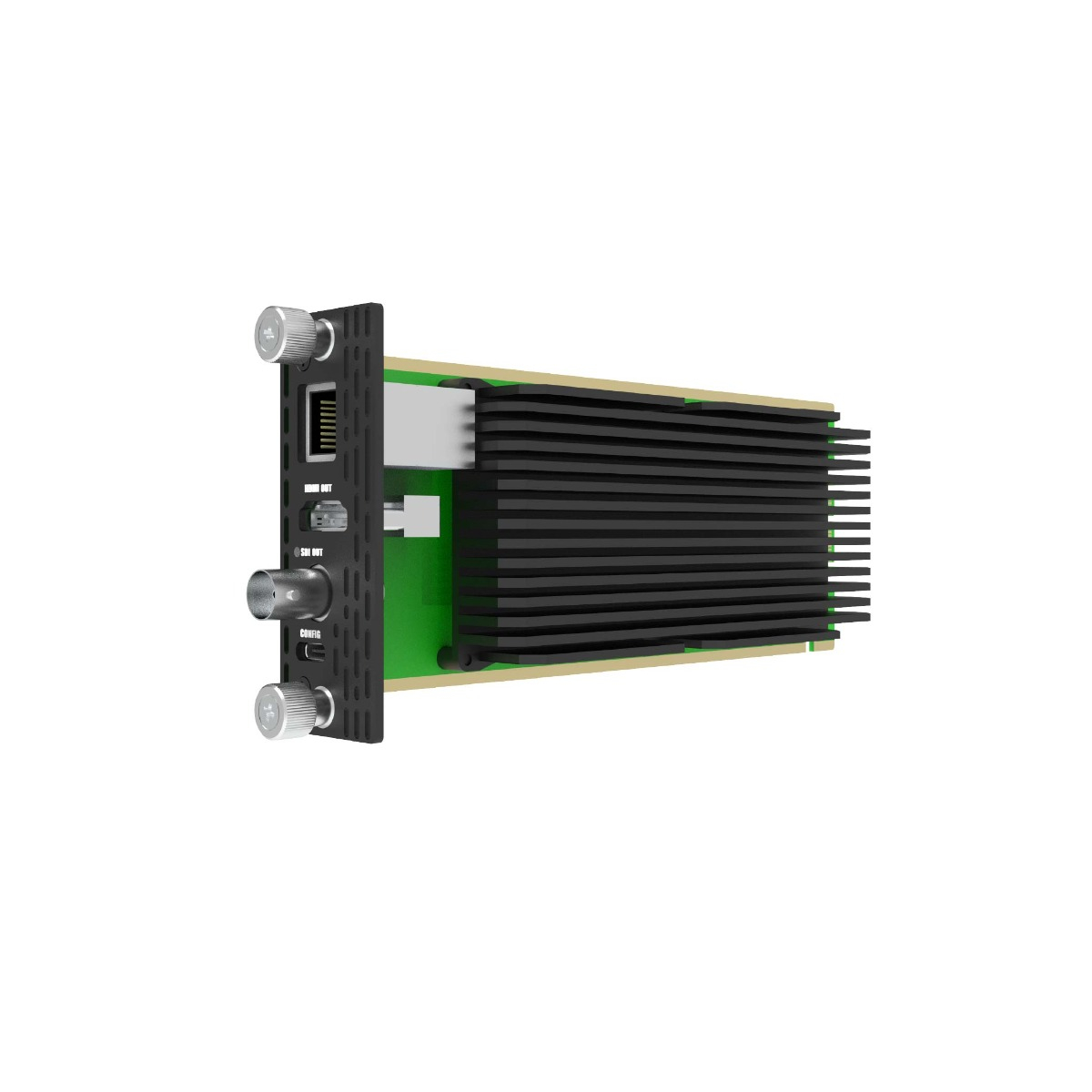

1* Modator interface for connecting to Modator 2U (hot-swappable)
Decoding Features
Decode up to 2Kp60 streams of NDI High Bandwidth®, NDI HX, NDI HX2, NDI HX3, RTSP, HTTP, HLS, RTMP Pull/Push, MPEG-TS over UDP/SRT/RTP, TVU protocols
Simultaneously decode and output HDMI and SDI signals
Decode H.264/H.265 video
Decode AAC/MP3 audio
Supports NDI® 5.x
HDMI Output Features
Max. output: 1920x1080p60
Supports YUV BT.601/709 signals
Supports 48KHz 8-channel audio output
SDI Output Features
Max. output: 1920x1080p60. Supported output formats are:1920x1080p 23.98/24/25/29.97/30/50/59.94/60
1920x1080i 50/59.94/60
1280x720p 24/25/29.97/30/50/59.94/60
720x576p50
720x576i50
720x480i59.94
Supports YUV BT.601/709 signals
Supports 48KHz 8-channel audio output
Supports SD (ST 259)/HD (ST 292)/3Ga (ST 425)/3Gb (ST 425)/3Gb-DL (ST 425)/3Gb-DS (ST 425) standards
Output 3G-SDI signal with a transmitted distance greater than 150m
Web UI
Register with Magewell Control Hub for remote centralized management
Supports configuring and managing via Web UI
Provides comprehensive information regarding the device and decoded signals in real-time
Allow to configure how a signal is decoded and output, including OSD settings, deinterlacing, resolutions, audio gain, sample rate, and channel mapping, as well as the network connection
Supports updating firmware
Supports USB RNDIS/ECM
Supports IE/Edge/Firefox/Chrome/Safari/Opera web browsers
Provides HTTP APIs
LED Indicators
Decode status indicatorOn: decoding
Blinks: decoding error
Off: source unselected
Physical Specifications
Form factor: 184.4mm (L) x 30.0mm (W) x 81.5mm (H)
Weight: ≈300g
Power Consumption
Max power consumption: 5.2W
Working Environment
Operating temperature: 0 to 50 deg C
Storage temperature: –20 to 70 deg C
Relative humidity: 5% to 90% non-condensing
