Seamlessly Bridge Traditional and IP Media Infrastructures
The Pro Convert AES67 multi-format IP audio encoder, decoder, and capture device brings the power and flexibility of the Pro Convert family to the audio-over-IP domain. Supporting standards and protocols including AES67, NDI®, and SRT, the device can flexibly convert between different IP media technologies while also offering a seamless bridge between analog audio, software, and IP networks.
Icecast/NDI®/SRT
Receive 1 x 4-channel 24-bit AAC or MP3 Icecast stream; 1 x 4-channel 24-bit AAC SRT audio stream; or 1 x 4-channel 24-bit uncompressed NDI® audio stream, encode 1 x 4-channel 24-bit audio for Icecast/SRT/NDI® streaming simultaneously.
10/100/1000Mbps Ethernet with PoE (IEEE 802.3af)AES67
Receive 4 x 8-channel 24-bit AES67 unicast or multicast streams (compatible with SMPTE ST 2110-30 specification)
Send up to 8 x 8-channel 24-bit AES67 (SMPTE ST 2110-30 compliant) streams via multicast (IGMPv2) or unicast
USB Audio Class via USB
1 x 4-channel 24-bit/48k UAC in
1 x 4-channel 24-bit/48k UAC out

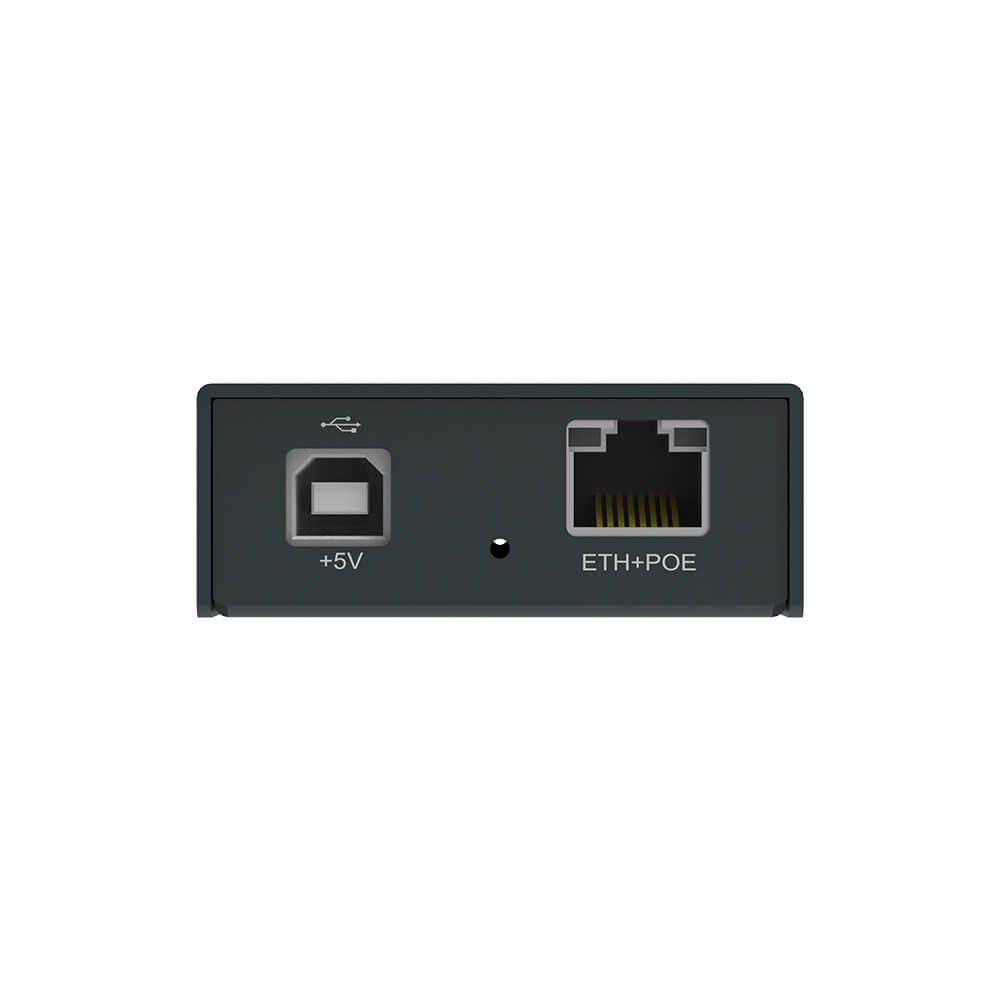

Power via Power over Ethernet (PoE) or USB power supply
There are two ways to power your converter:
- Via USB: Plug in a USB cable for power supply.
- Via PoE: Plug in a Ethernet cable, which is connected to a PoE switch, for power and Ethernet connection.
Magewell Pro Convert AES67 Specification |
|
Receiving/Input Features | Support for sample rates of 96/48/44.1 KHz, and 16/24bit sample depth 1 x 2-channel 3.5mm TRS unbalanced in (5k Ohm) 1 x 2-channel 4.4mm TRRRS balanced in (20k Ohm) 1 x 4-channel 24-bit/48k USB Audio Class in Receiving 4 x 8-channel 24-bit AES67 (compatible with SMPTE ST 2110–30) streams both multicasted and unicasted Receiving 1 x 4-channel 16-bit Network audio stream with Icecast, SRT, or NDI protocol, via Ethernet Frequency Response 20Hz ~ 20kHz (-/+0.5dB) Dynamic range > 100dB Signal to noise ratio > 100dB Total harmonic distortion < 0.01% @ +4dBu Support for PTP master/slave Max signal level: unbalanced at 12dBu, balanced at 24dBu Device buffer at 0.125 ~ 64 ms (controlled via WebUI, 1 to 16 packets with packet time at 0.125/0.25/0.333/1/4 ms) |
Sending/Output Features | Support for sample rates of 96/48/44.1 KHz, and 16/24bit sample depth 1 x 2-channel 3.5mm TRS unbalanced out (10 Ohm) 1 x 2-channel 4.4mm TRRRS balanced out (150 Ohm) 1 x 4-channel 24-bit/48k UAC out Multicast (IGMPv2) and unicast up to 8 x 8-channel 24-bit AES67 (SMPTE ST 2110–30 compliant) streams Encoding and transmitting 1 x 4-channel 16-bit audio stream with Icecast, SRT, and NDI protocol Support for PTP master/slave Total harmonic distortion < 0.01% @ +4dBu Frequency Response 20Hz ~ 20kHz (-/+0.5dB) Dynamic range > 100dB Signal to noise ratio > 100dB Max signal level: unbalanced at 12dBu, balanced at 18dBu |
Configuration Management | Registration with Magewell Cloud Remote control via WebUI and Magewell Cloud Provision of comprehensive information regarding the device and signals in real-time Configuration of how an input is processed and encoded, including sampling, packets, PTPv2(IEEE 1588–2008), channel adjustment, audio mixing, buffer, as well as the network connection Support for updating firmware Support for USB RNDIS/ECM Support for IE/Edge/Firefox/ Chrome/Safari/Opera web browsers Provision of HTTP APIs |

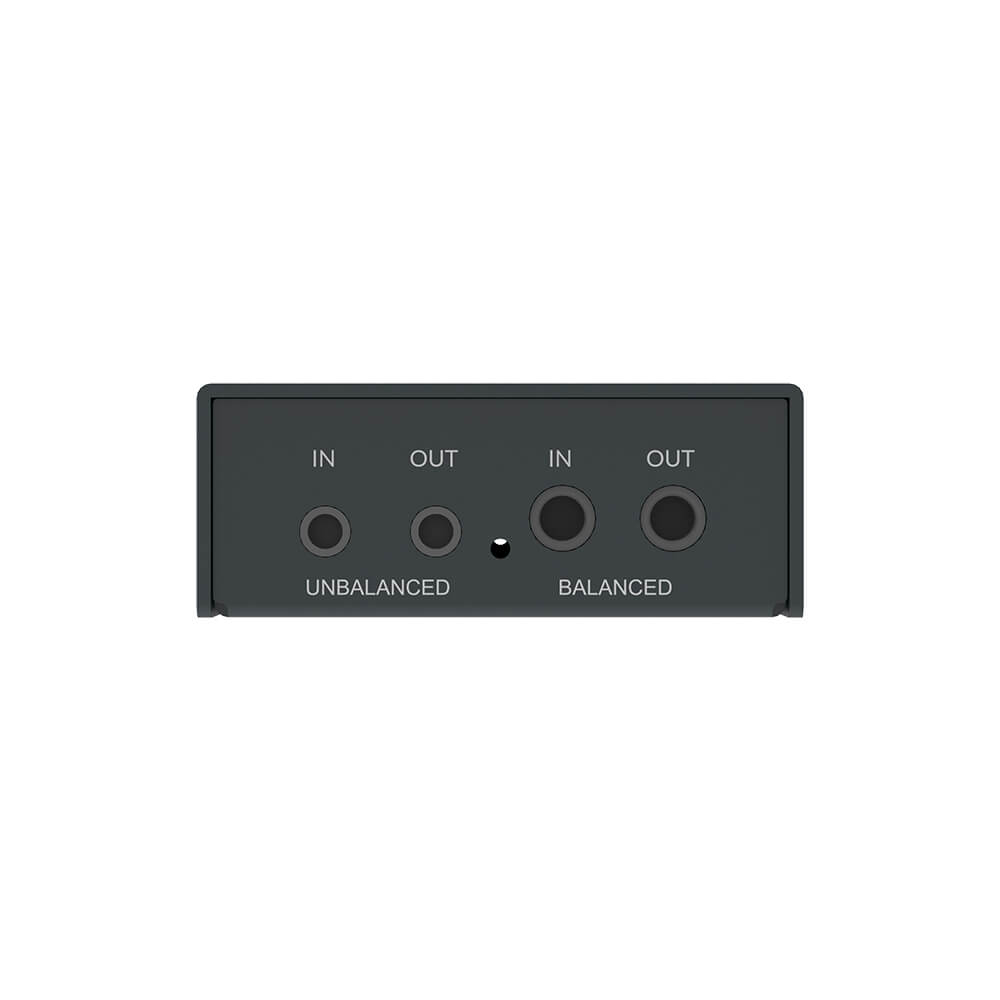

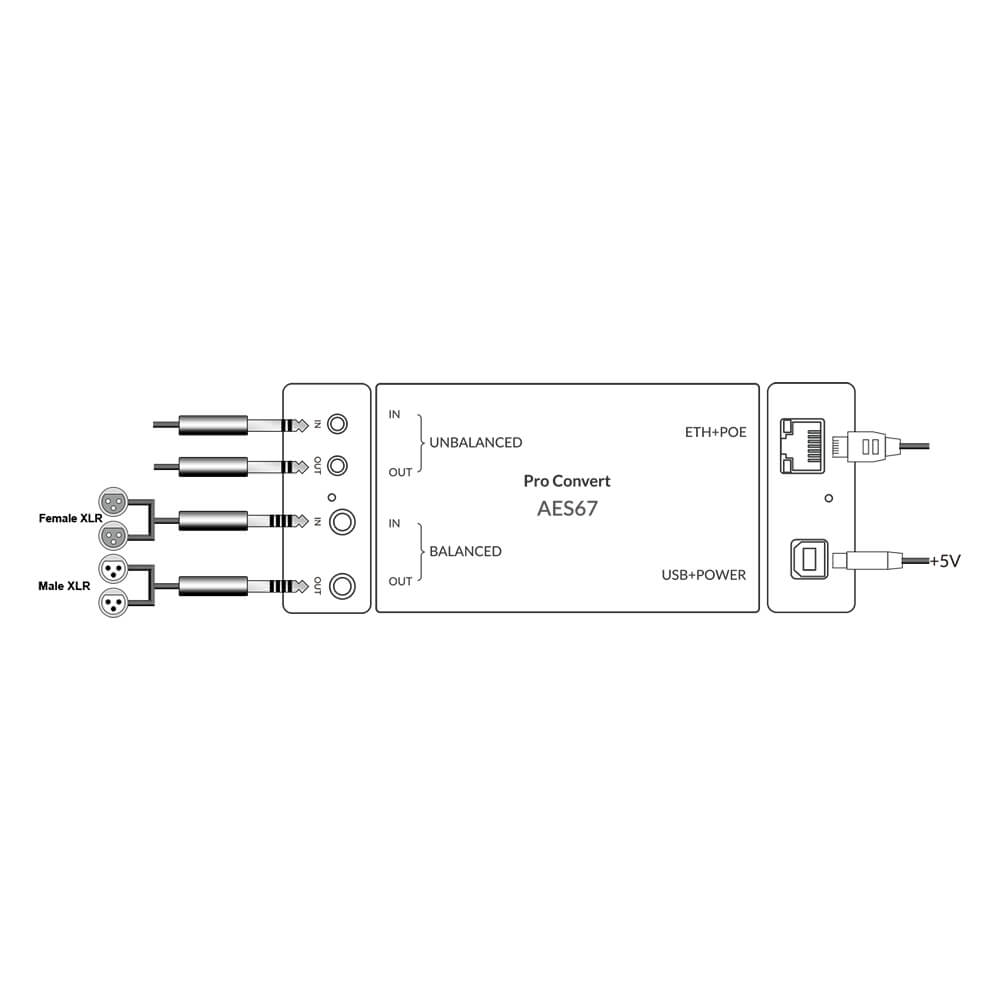

Interface | 10/100/1000Mbps with PoE (IEEE 802.3af) USB2.0 Type B5V/2.1A power supply USB NET 3.5mm TRS unbalanced IN/OUT 4.4mm TRRRS balanced IN/OUT |
LED Indicators | Power LED indications:on: - power on - off: power off PTP LED indications: - on: synced - off: not synced - blinking: syncing |
Form Factor | 100.9smm (L) x 60.2mm (W) x 23.3mm (H) |
Accessories | 4.4mm to Dual XLR Male Cable 4.4mm to Dual XLR Female Cable USB 2.0 cable (Type A to Type B) Universal power adapter L bracket |

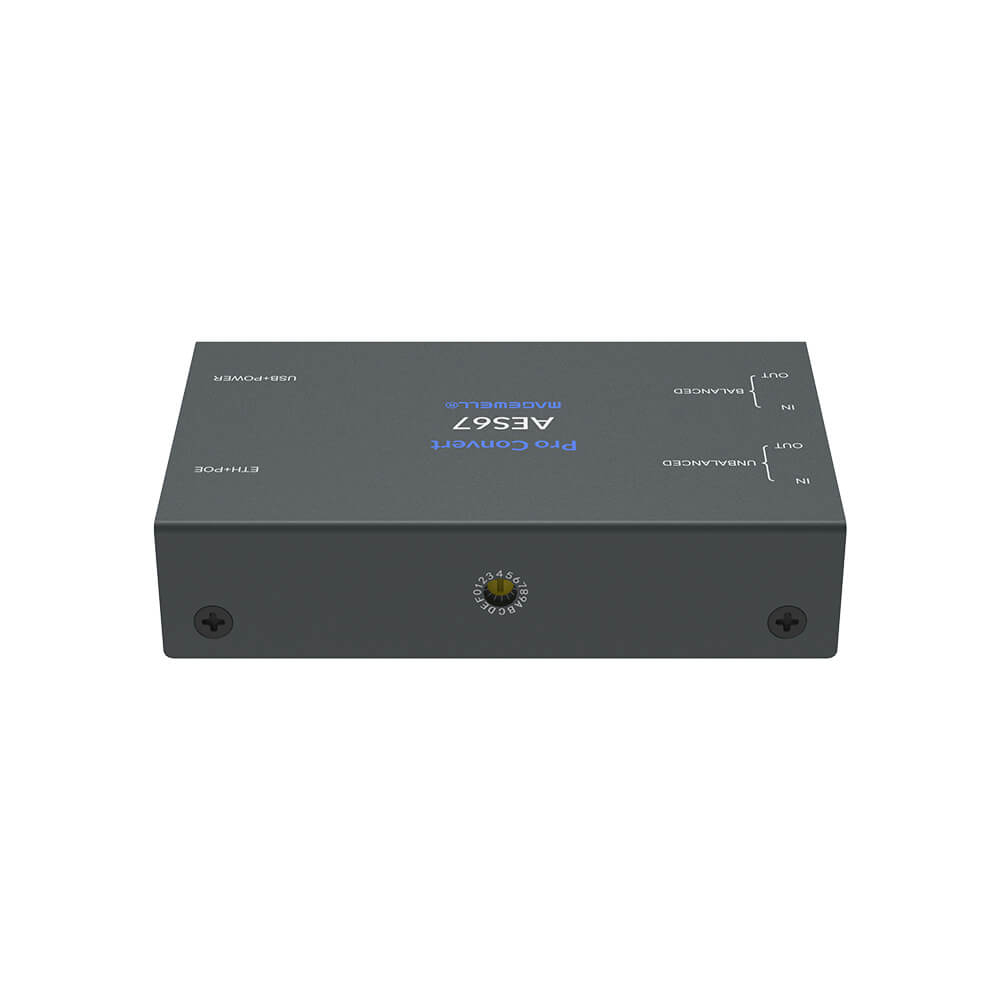

On-board Control Buttons | 16 Position Rotary DIP Switch: sets board-index from 0 to F |
Screw Mounting Hole | ¼–20 threaded hole |
Power Consumption | 5V max current: ~1A Max power consumption: ~5W |
Working Environment | Operating temperature: 0 to 40 deg C Storage temperature: -20 to 70 deg C Relative Humidity: 5% to 90% non-condensing |
- Magewell Pro Convert AES67
- 4.4mm to Dual XLR Male Cable
- 4.4mm to Dual XLR Female Cable
- USB 2.0 cable (Type A to Type B)
- Universal power adapter
- L bracket
- 2-years Limited Manufacturer's Warranty
