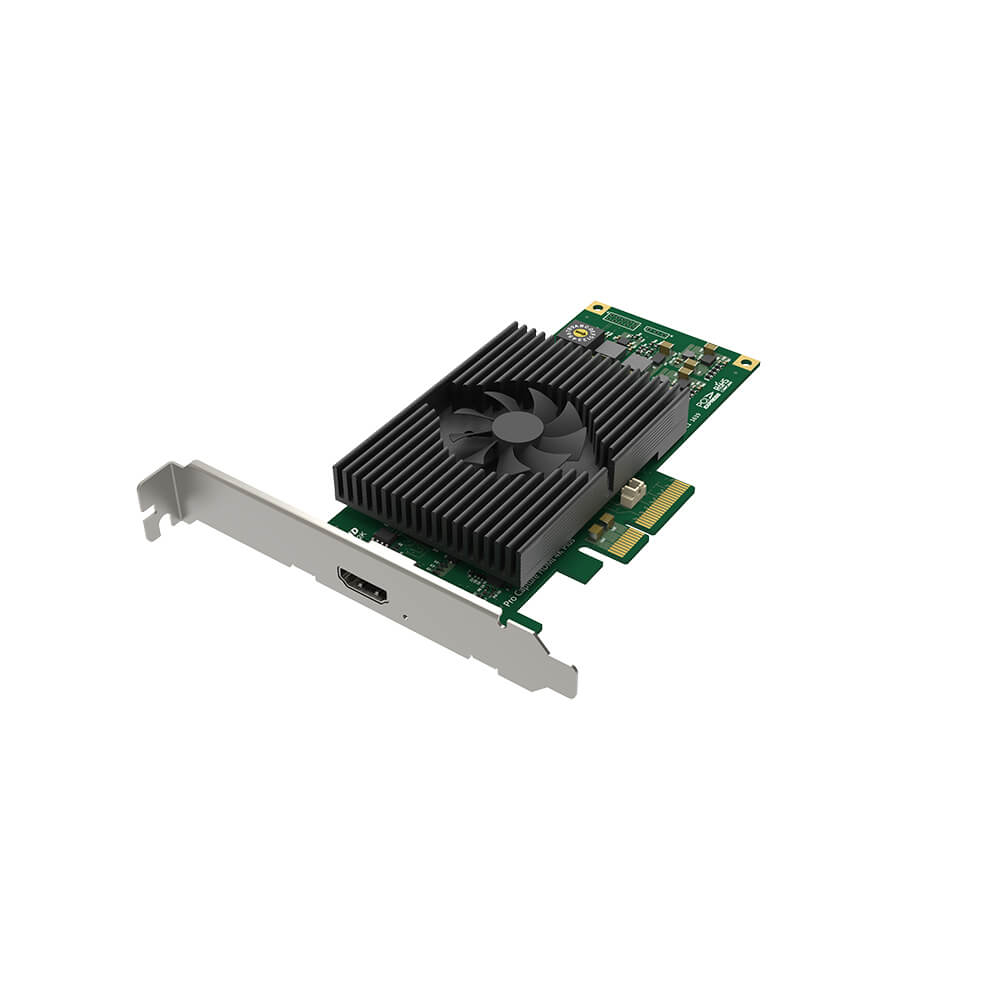

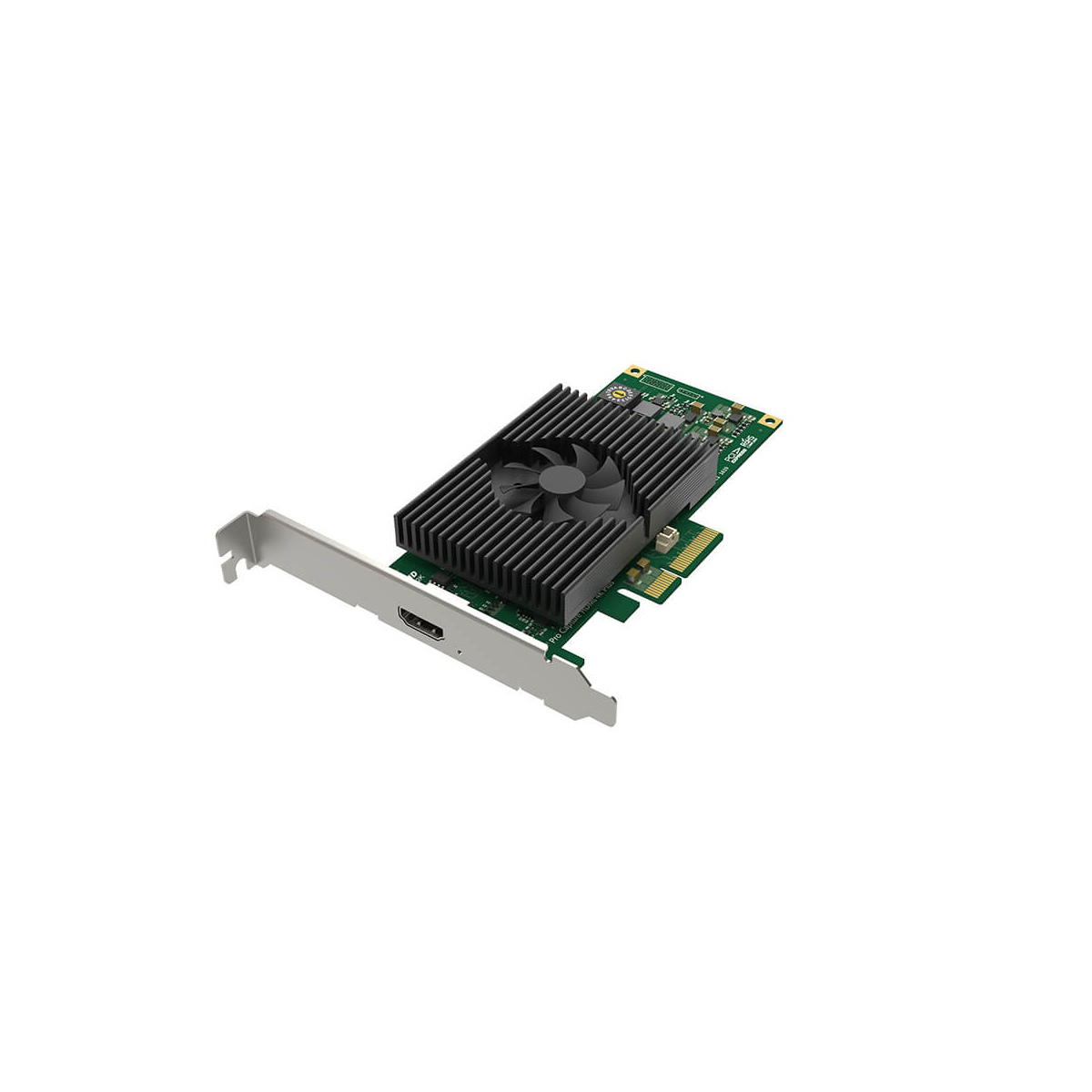

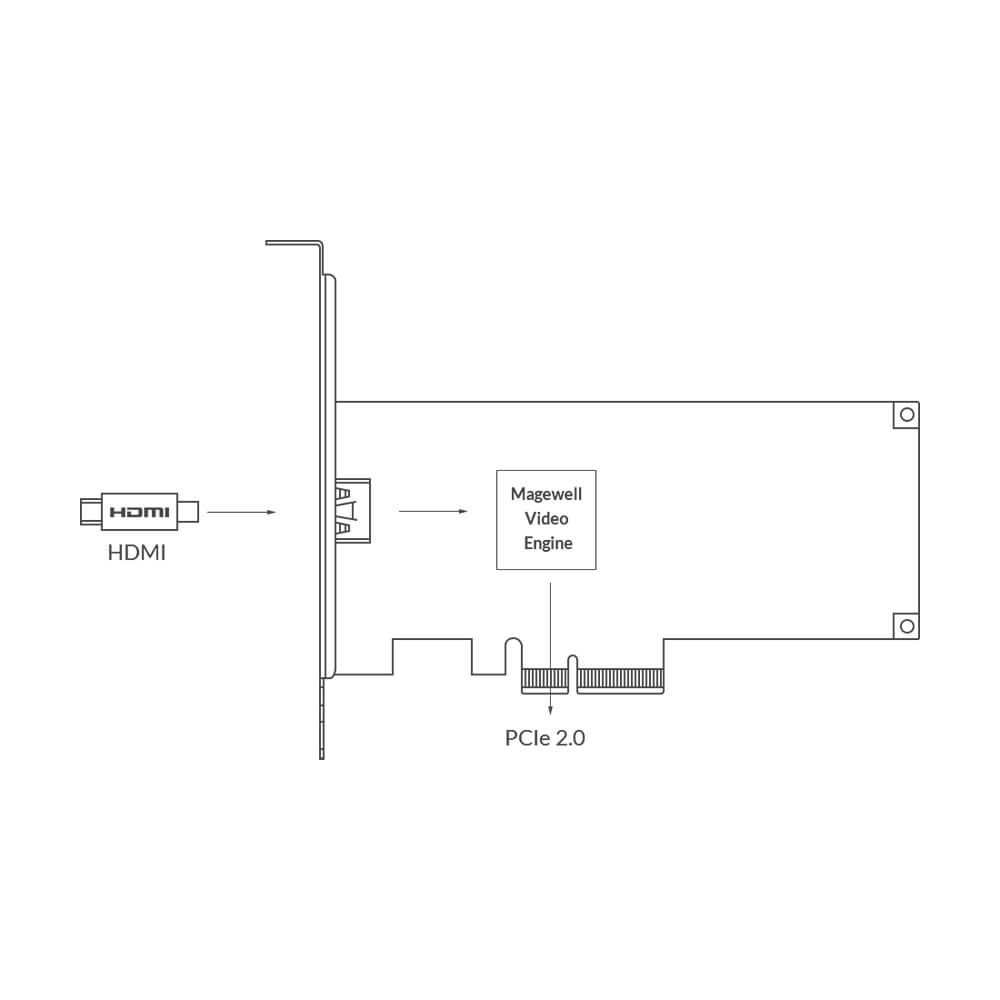

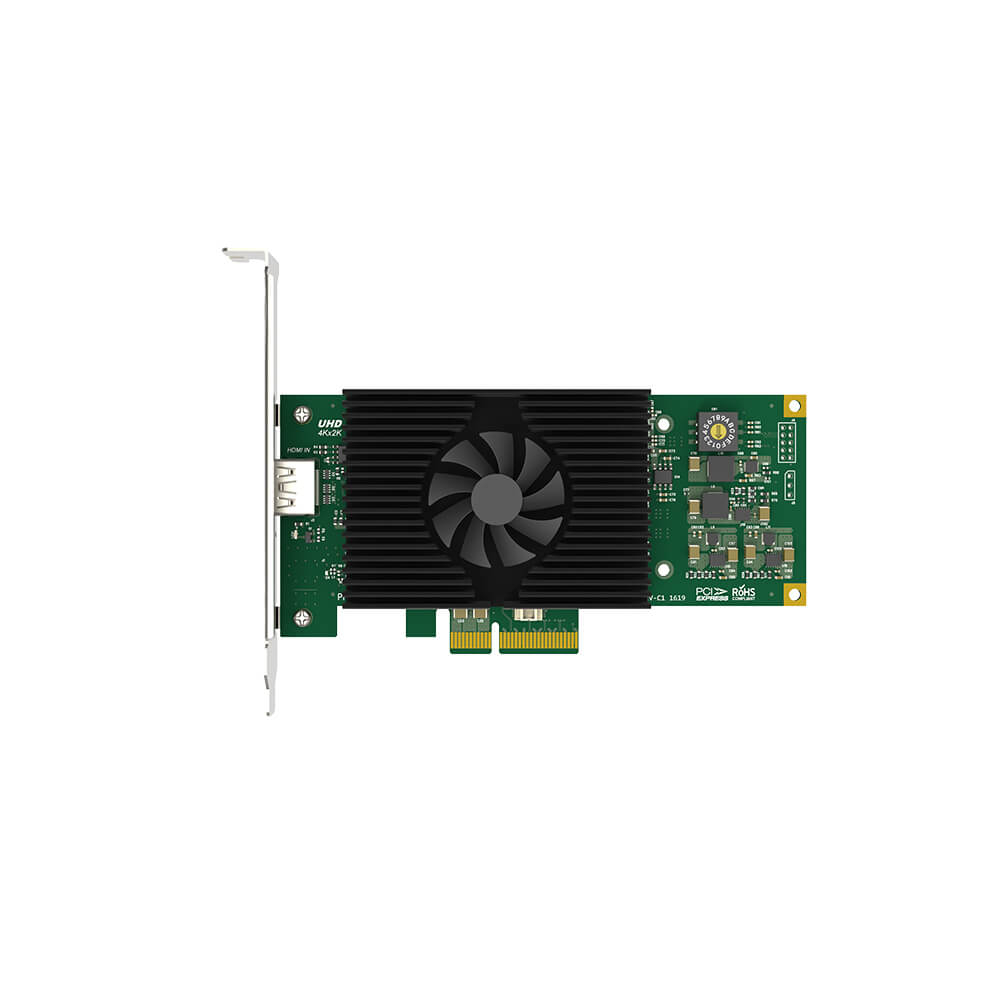

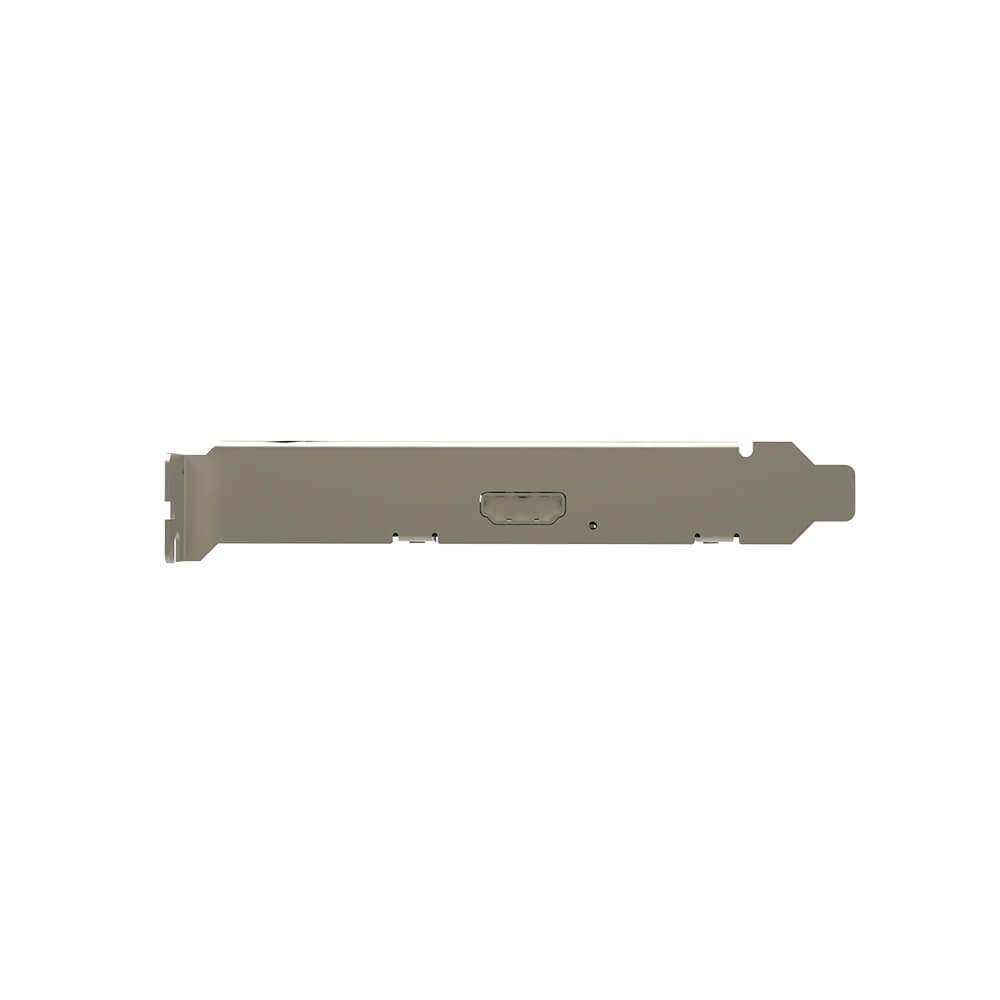

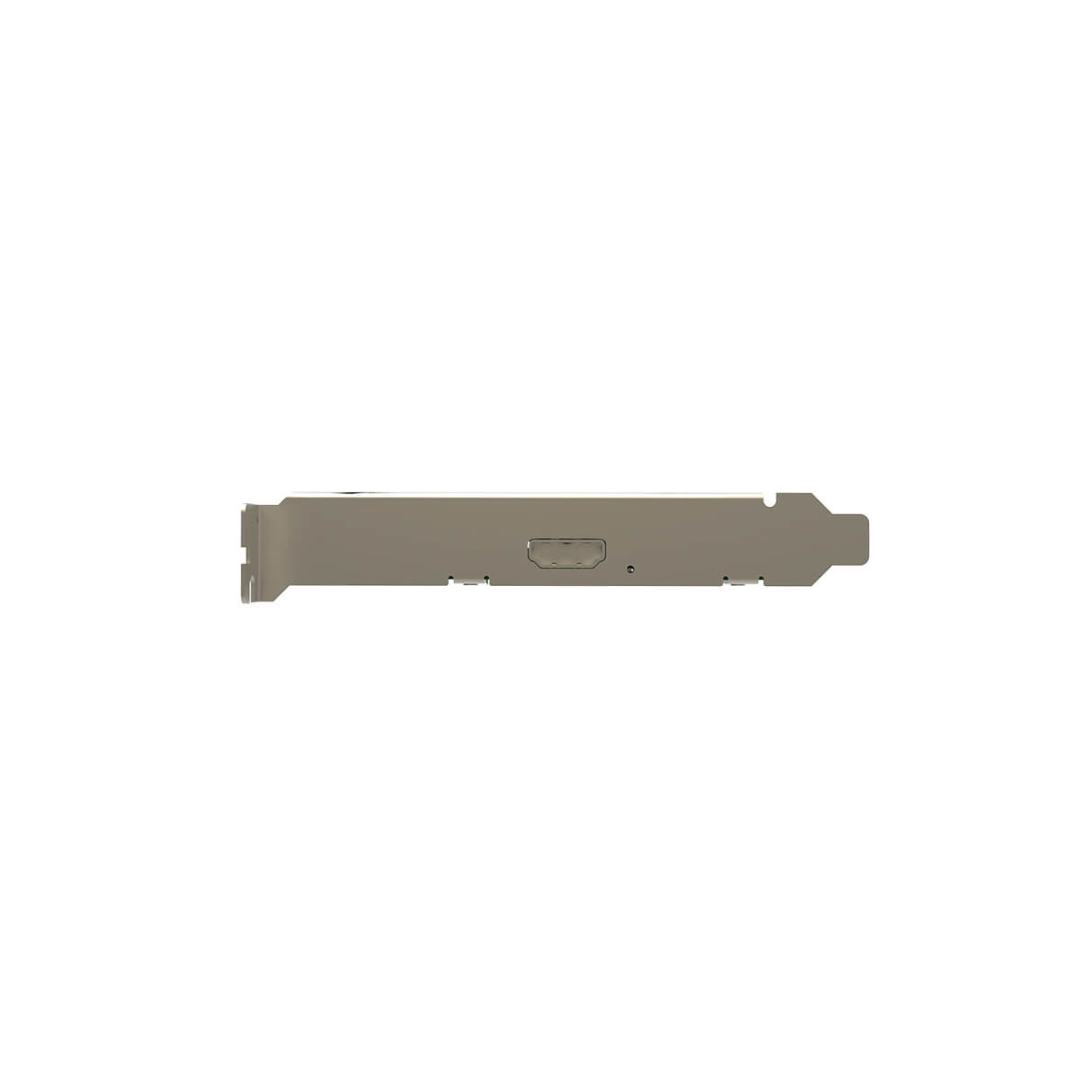

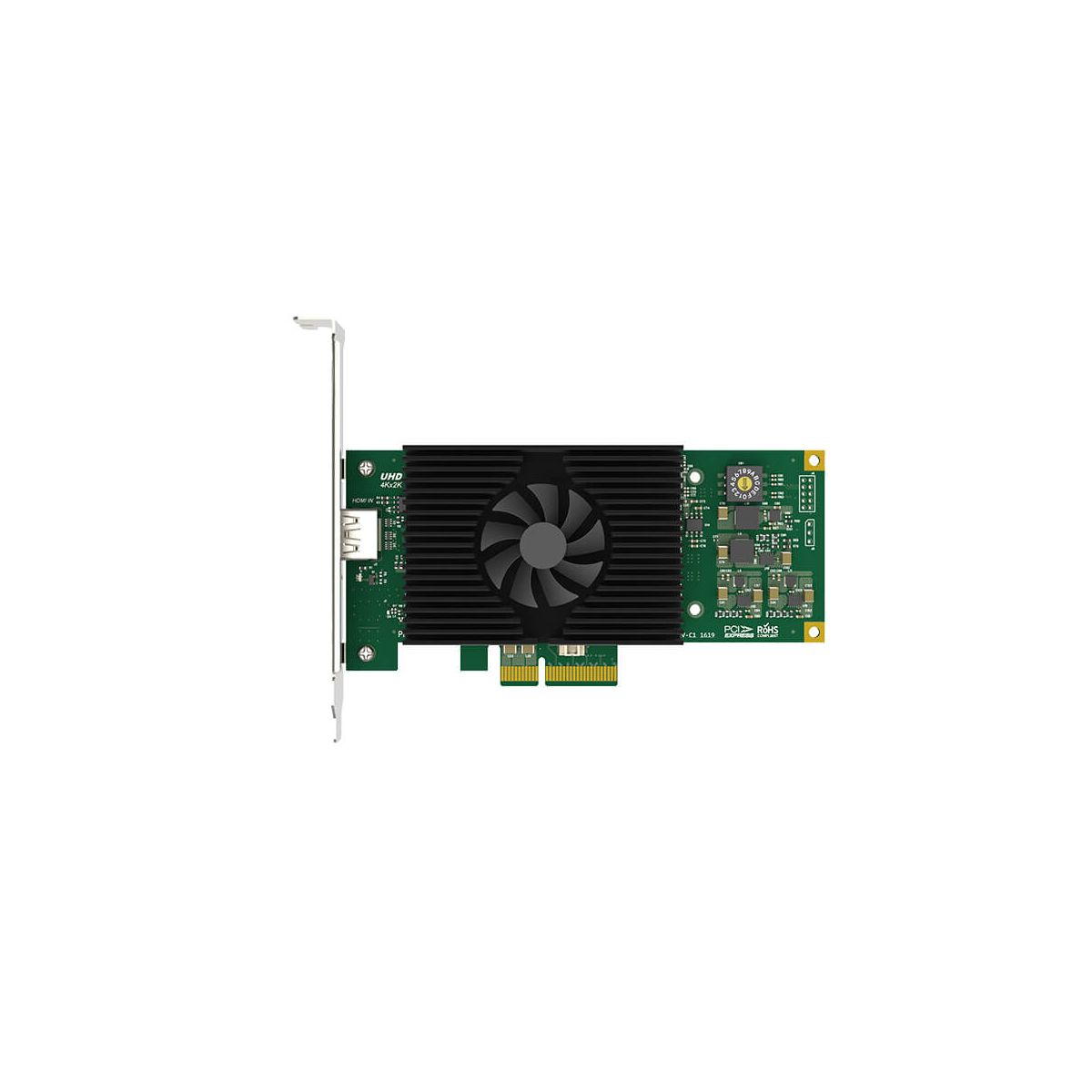

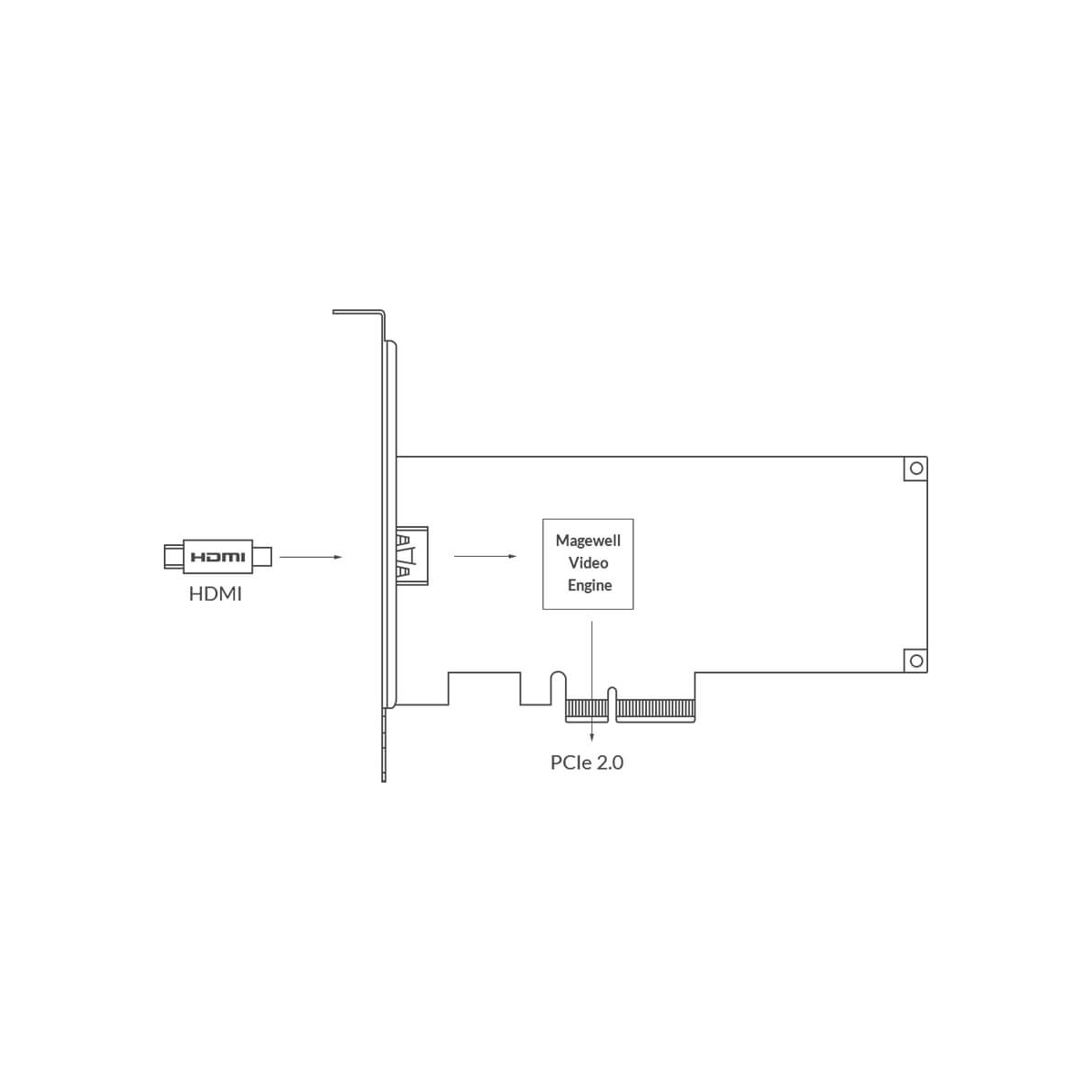

【Magewell】Pro Capture HDMI 4K Plus One-Channel Capture Card

  • One-Channel HDMI 4K Capture Card
  • Supports up to 4096×2160 resolution
  • Capture HDMI + embedded audio
  • Hardware Scaling and De-Interlacing
  • Performs Frame-Rate Conversion
  • Compatible with Windows, Mac and Linux
  • PCIe Gen2 Low profile Interface (PCIe 2.0)
  • Support HDR by uploading a new EDID file
