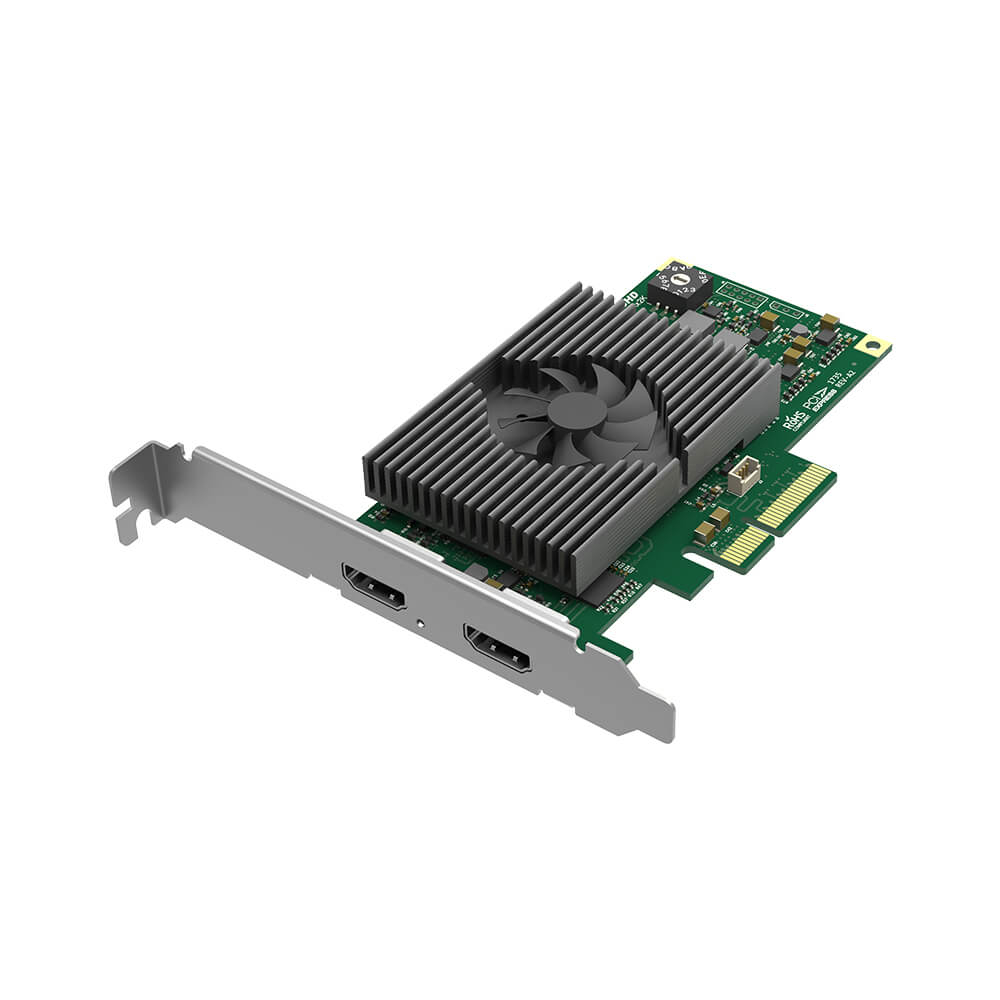

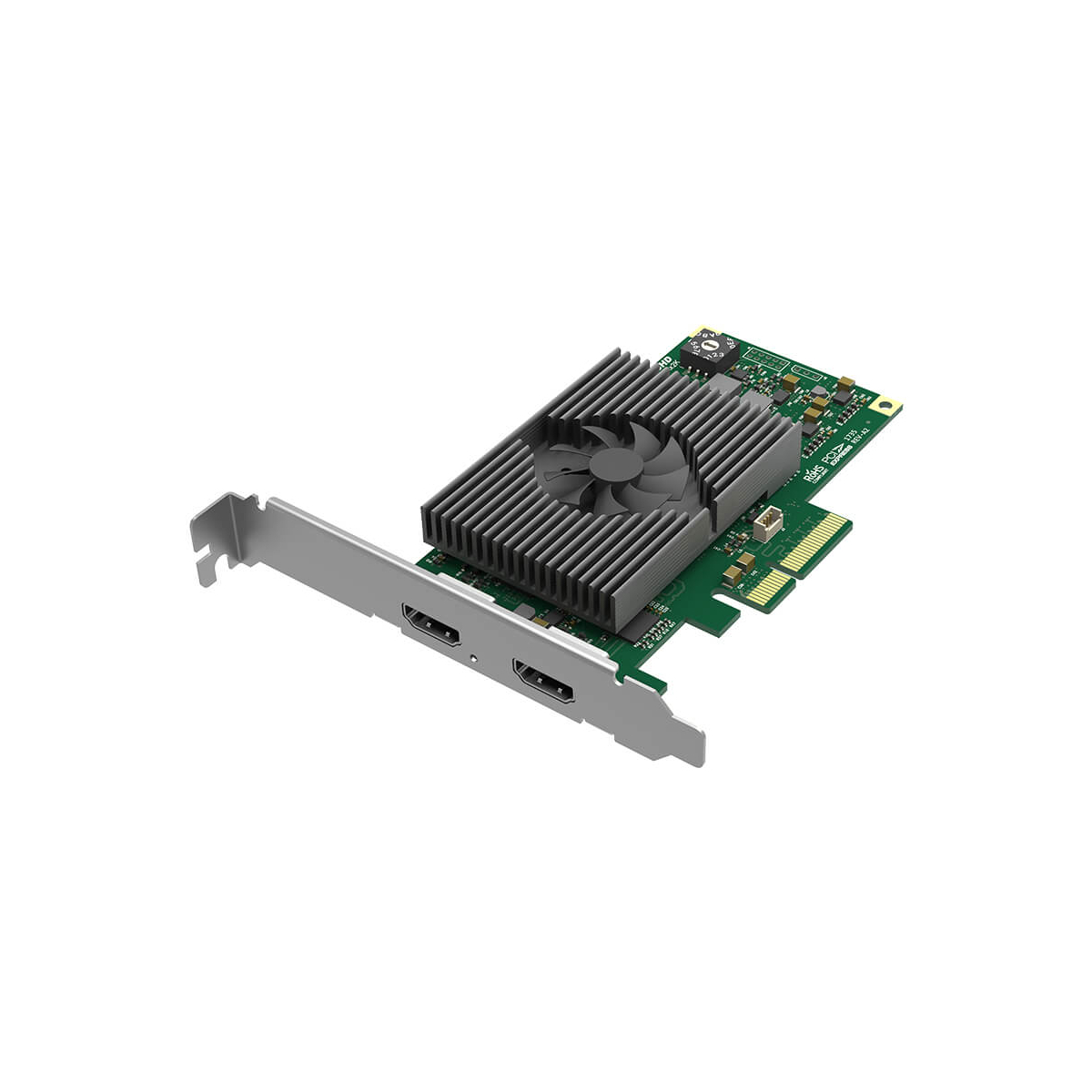

【Magewell】Pro Capture HDMI 4K Plus LT One-Channel Capture Card

  • One-Channel HDMI 4K Capture Card
  • Supports up to 4096×2160 resolution
  • Capture HDMI + embedded audio
  • Loop-through HDMI + embedded audio
  • Hardware Scaling and De-Interlacing
  • Performs Frame-Rate Conversion
  • Compatible with Windows, Mac and Linux
  • PCIe Gen2 Low profile Interface (PCIe 2.0)
  • Support HDR by uploading a new EDID file

Local Delivery

CHINAM is currently shipping within Hong Kong and specific countries only. We use local courier service as our delivery company. We do not support shipping items in a single order to multiple shipping addresses. To ship items to an additional address, please place a new order to us. Unless otherwise specified, delivery charge at the rate of HK$300 will be imposed on each delivery. We currently offer free delivery for each order over HK$1,000.

For remote areas or outlying islands delivery service, please contact our sales team via email - sales@chinam.com.hk

International Delivery

We will do our best to ship internationally to countries where we do not have sales representation. Please register with us, we’ll keep you updated and notify you when this is about to happen and become available in your region. Please note, at this time the customer is responsible for the duties and taxes imposed by their country.

For international shipping please contact our sales team via email - sales@chinam.com.hk

Deliver Time

  • Once your order has been handed over to the carrier for delivery, you will receive a shipment notification email with an estimated delivery date. Please note that it is not possible to expedite your delivery and receive your package earlier than the scheduled delivery date. Therefore, we are unable to accept requests for expedited delivery. Our carriers are unable to provide an exact time of day for your delivery. If you ordered multiple items, you may receive separate shipments.
  • All estimates are based on business days. We only make deliveries in the specified areas of Hong Kong from Monday to Sunday except on the first two days of the Lunar New Year and when typhoon warning signal No. 8 or above or black rainstorm warning is in force.
  • All rescheduling of delivery, additional purchases, new sales memos and amendments must be made 3 days before the scheduled delivery date. Otherwise, a double delivery charge will be incurred.
  • We may deliver the merchandise in one or more installments, and some of the merchandises may be delivered directly from suppliers. Any times and dates given for dispatch of merchandise, or the length of time that merchandise will take to be delivered, are only estimates. If we are unable to meet any stated dispatch or delivery dates or times we will inform you as to the progress of your order. You agree and accept that under no circumstances will we accept cancellation of order or refund.

Signature On Delivery

  • Most of our shipments contain valuable items. If you will not be in attendance to accept delivery of your purchase, consider shipping to someone you trust will be able to sign for your package. For your convenience, you may prefer to have your order delivered to your office address. If you choose this option, please include the name of your business in the address. Please note, if you choose this option, goods may be left with reception or the Mail Room.
  • As our carriers require a signature on delivery, the carrier will leave a calling card if you are not at home. Please contact the carrier to reschedule delivery.
  • For postal deliveries, no signature is required and order status tracking is not available.
  • Delivery failure due to no one answering the door upon the arrival of goods at the appointed time, or to circumstantial limitations such as the entrance being too small, will require a rescheduled delivery and therefore incur double delivery charges.
  • We will deliver the merchandise ordered by you to the address you give us for delivery at the time you make your order through our staff or a third party provider. You agree to present your photo identification upon request when you acknowledge receipt of the merchandise. The merchandise shall be, and shall be deemed to be, delivered and accepted by you when the merchandise are delivered to the address you give us for delivery. You agree and accept that we are entitled, at our option, to charge you additional costs or cancel your order in the event of your failure to accept delivery for whatever reasons.

General

  • You will become the owner of the merchandise you have ordered when they have been delivered to you. Once merchandise has been delivered to you they will be held at your own risk and we will not be liable for the loss or damage.
  • You may not export any products purchased at CHINAM online store. We sells and ships products to end-user customers only. Notwithstanding order confirmation, CHINAM may cancel any order where it has reasonable grounds to believe the product is not being purchased for end use.
  • If there is any inconsistency or ambiguity between the English version and the Chinese version, the English version shall prevail.
  • We reserve the final right to terminate or alter the above terms and conditions. In the event of any dispute, our decision shall be final and conclusive.
In stock (contact us for lead time)
SKU
11152 / 115200000
Write Your Own Review
You're reviewing:【Magewell】Pro Capture HDMI 4K Plus LT One-Channel Capture Card
Your Rating

High-Performance Video and Audio Capture

Available in single and multi-channel models with a wide selection of input interfaces, our high-bandwidth Pro Capture PCI Express cards capture up to four channels of HD or two channels of 4K video plus corresponding audio. Models are available with support for HDMI, SDI, DVI or analog signals and can automatically detect the input signal format, delivering reliable, high-quality video and audio capture for video professionals, systems integrators and OEM developers.

Superb Software and OS Compatibility

Pro Capture devices support Windows, Linux and macOS operating systems – including x86, x64 & ARM architectures – and offer extensive compatibility with popular streaming, live production, web conferencing, lecture capture, collaboration and medical imaging software.

Powerful and Easy-to-Integrate SDK

The Magewell MWCapture SDK provides both generic interfaces and custom APIs across OS platforms, helping developers leverage the full capabilities of Magewell capture hardware and achieve lower-latency, multi-stream capture and AV synchronization across multi-channel or even multiple capture cards.

Lower CPU Usage

All Pro Capture models feature Magewell’s FPGA-based, zero-CPU-usage video processing, providing high-quality up/down conversion and image adjustments without consuming valuable host system processing power.

Magewell Pro Capture HDMI 4K Plus LT Specification

Supported OS Windows
- Windows 7/8/8.1/10/11/ Server 2008/Server 2008 R2/ Server 2012/Server 2016 (x86 & x64) and above
Linux (support x86, x64 & ARM architecture)
- Ubuntu 12.04/14.04/ 16.04/17.04/17.10/18.04 (x86 & x64)
- CentOS 6.5/7 (x86 & x64)
- Fedora 25/26/27 (x86 & x64)
- Red hat 6.5 and above (x86 & x64)
- Other Linux OS with kernel version 2.6.35 and above
Mac
- OS X 10.9/10.10/10.11 and above
- macOS 10.12 and above
Recommended OS (tested) Windows
- Windows 7 Ultimate/ 8.1 Enterprise/10 Enterprise/Server 2008 R2 DataCenter/Server 2012 R2 DataCenter/Server 2016 R2 DataCenter (x86 & x64)
Linux
- Ubuntu 12.04/14.04/16.04 (x86 & x64)
- Ubuntu 17.04/17.10/18.04 (x64)
- CentOS 6.5/7.2 (x86 & x64)
- Fedora 25/26 (x64)
- Red hat 6.5 (x86 & x64)
Mac
- OS X 10.9.5/10.10/10.11.2/10.11.3/ 10.11.4
- macOS 10.12/10.13.2/10.13.3/10.14.3/ 10.15
Supported APIs

Windows
- DirectShow
- DirectKS
- Wave API/DirectSound/ WASAPI
Linux
- V4L2
- ALSA
macOS
- AVCaptureSession
- AudioUnit

Supported Software VLC
VirtualDub
OBS
XSplit
vMix
VidBlaster
Wirecast
Microsoft Media Encoder
Adobe Flash Media Encoder
Any other DirectShow/ V4L2/AVCaptureSession encoding/streaming software
Input Interfaces

HDMI type A
- DVI 1.0
- HDMI 2.0
Host Interface PCIe Gen2 x4

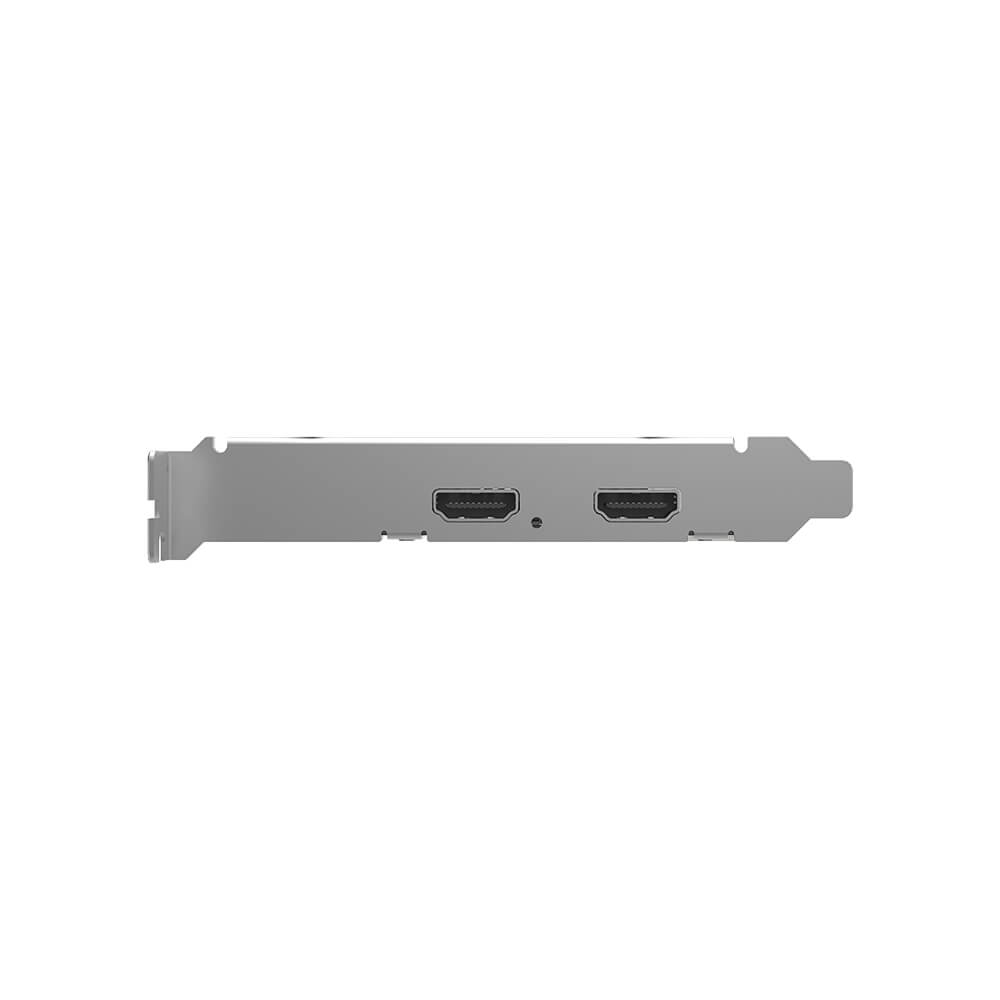

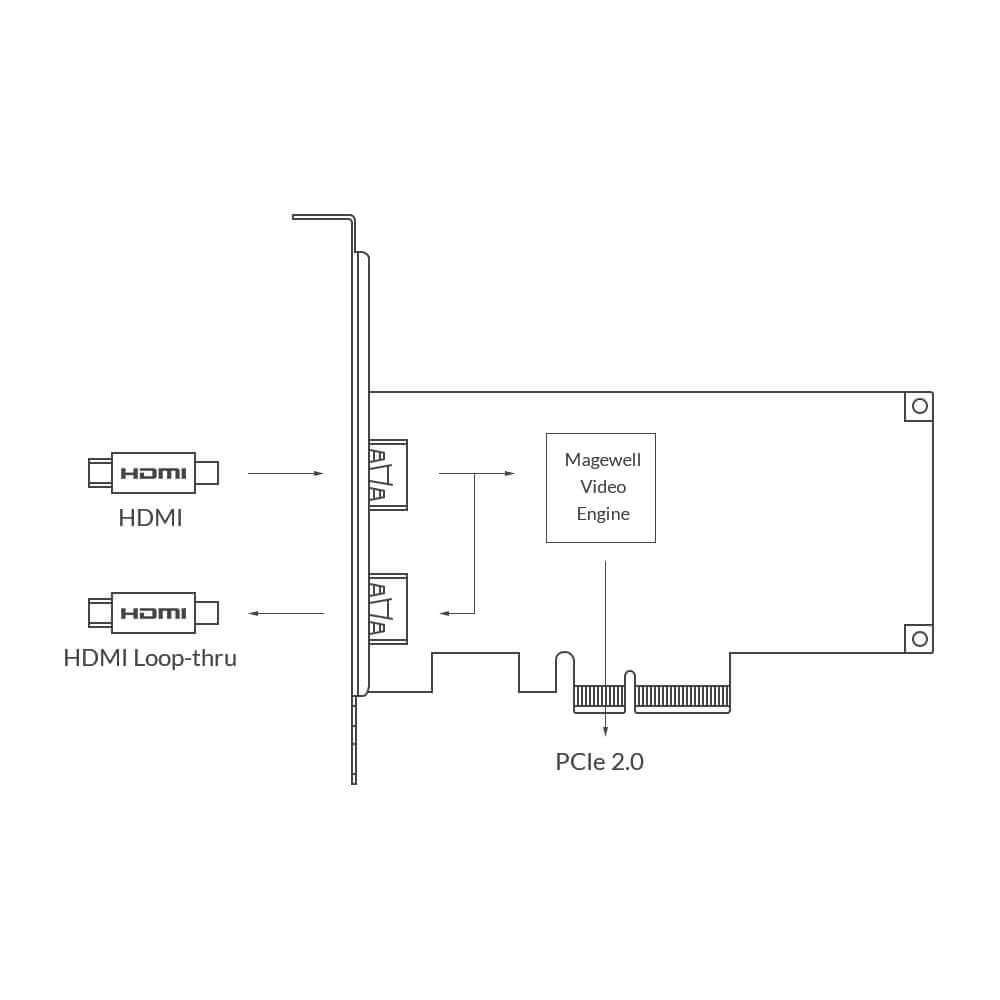

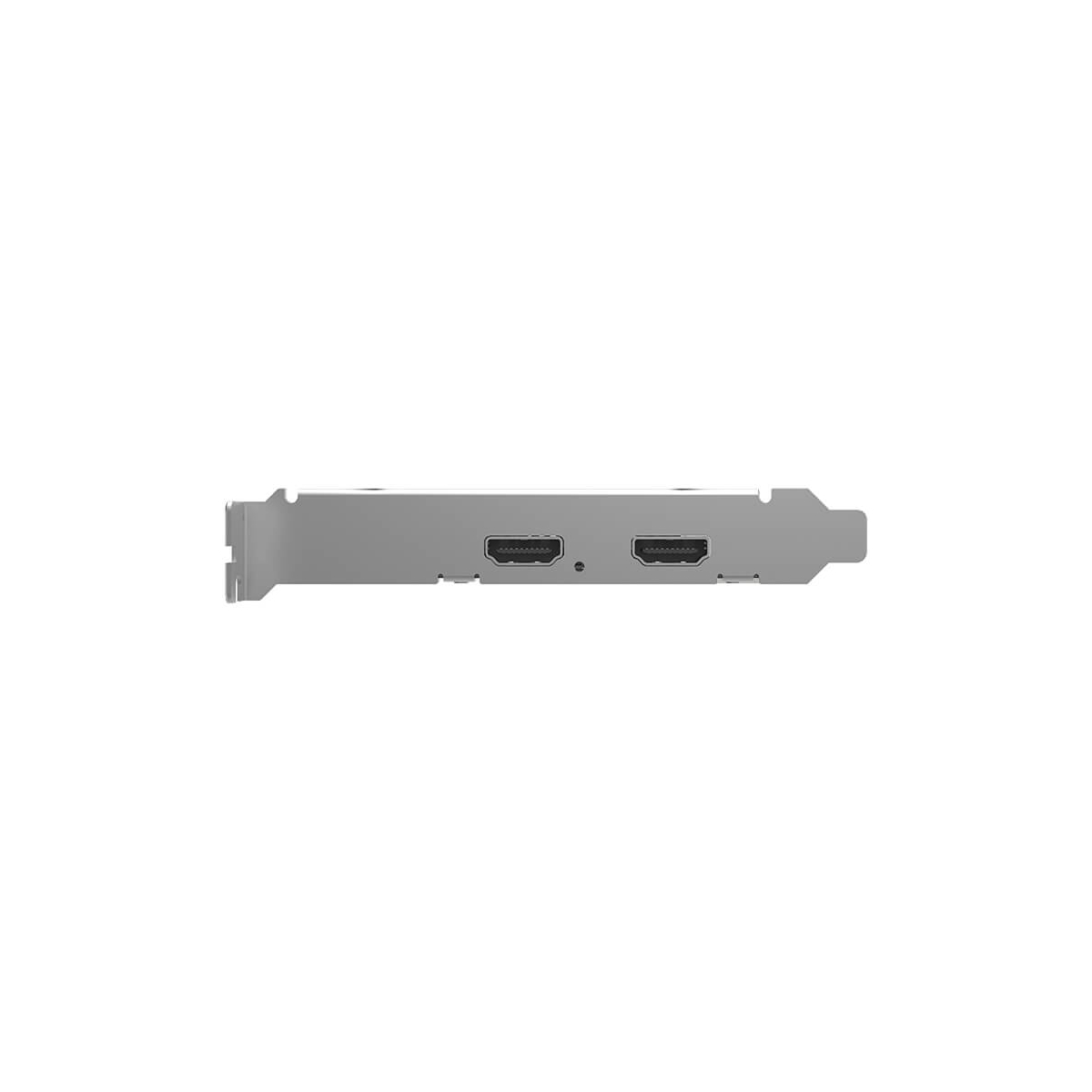

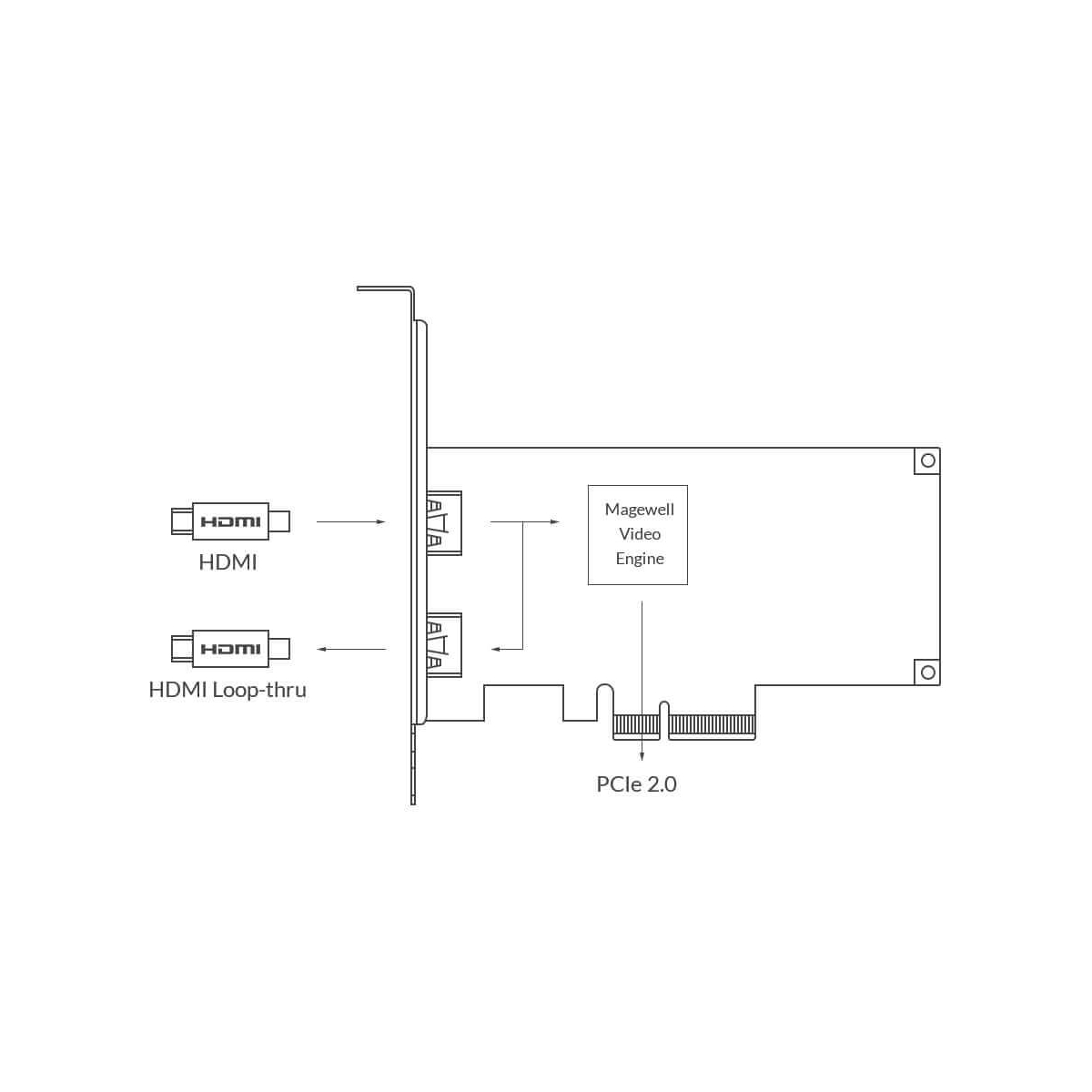

Loop-through Interface HDMI
- DVI-D 1.0
- HDMI 2.0
Input Features Support for input video resolutions up to 4096x2160 pixels
HDMI Specific Features

594MHz HDMI receiver
Adaptive HDMI equalizer
Support for customized EDID
Support for extraction of AVI/Audio/SPD/MS/VS/ ACP/ISRC1/ISRC2/Gamut InfoFrames
Full colorimetry support
Support for 8/10/12-bit color depths
Support for RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 color sampling
Support for up to 8-channel IEC60958/IEC61937 audio streams via SDK
Support for extraction of audio formation information & channel status data
Support for extraction of video timing information
Support for extraction of 3D format information
Support for extraction of Sony/Canon DSLR time code
Support for Side-by-Side Half, Top-and-Bottom, Frame Packing 3D mode.
Support for HDR10

Video Capture Formats

Support for capture image resolutions up to 4096x2160 pixels
Support for capture frame rates up to 144fps (Actual capture frame rate can be limited by PCIe bandwidth & image resolution)
Support for 4:2:0 8-bit capture formats: NV12, I420, YV12
Support for 4:2:2 8-bit capture formats: YUY2, YUYV, UYVY
Support for 4:4:4 8-bit capture formats: V308, IYU2, V408, BGR24, BGR32
Support for 4:4:4 10-bit capture formats: V410, Y410
More capture formats are supported via Magewell Capture SDK

Video Processing Features Two video processing pipelines with ~720Mpixels/s processing bandwidth for each one
Full 10-bit video processing
Video cropping
Video scaling
Video de-interlacing
- Weave
- Blend top & bottom field
- Top field only
- Bottom field only
Video aspect ratio conversion
- Auto or manual selection of input aspect ratio
- Auto or manual selection of capture aspect ratio
- Three aspect ratio conversion modes: Ignore (Anamorphic), Cropping or Padding (Letterbox or Pillarbox)
Video color format conversion
- Auto or manual selection of input color format & quantization range
- Auto or manual selection of capture color format, quantization range & saturation range
- Support for RGB, YCbCr 601, YCbCr 709, YCbCr 2020 color formats
- Support for Limited or Full quantization range
- Support for Limited, Full & ‘Extended gamut’ saturation range
Video frame rate conversion
Video OSD composition
- Support for PNG OSD image (up to 4096x2160)
- Support for dynamic loading of RGBA OSD image via SDK
Multiple Cards per System Support for multiple cards plugged to one system

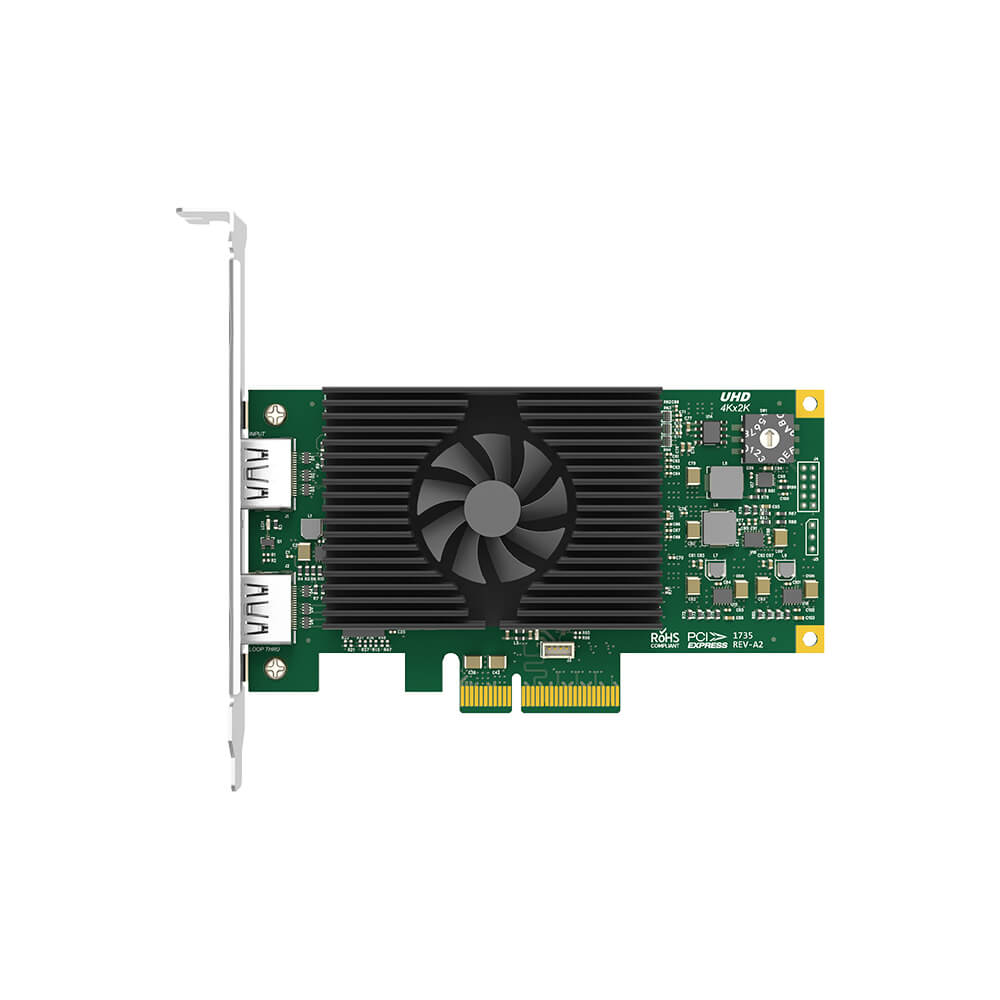

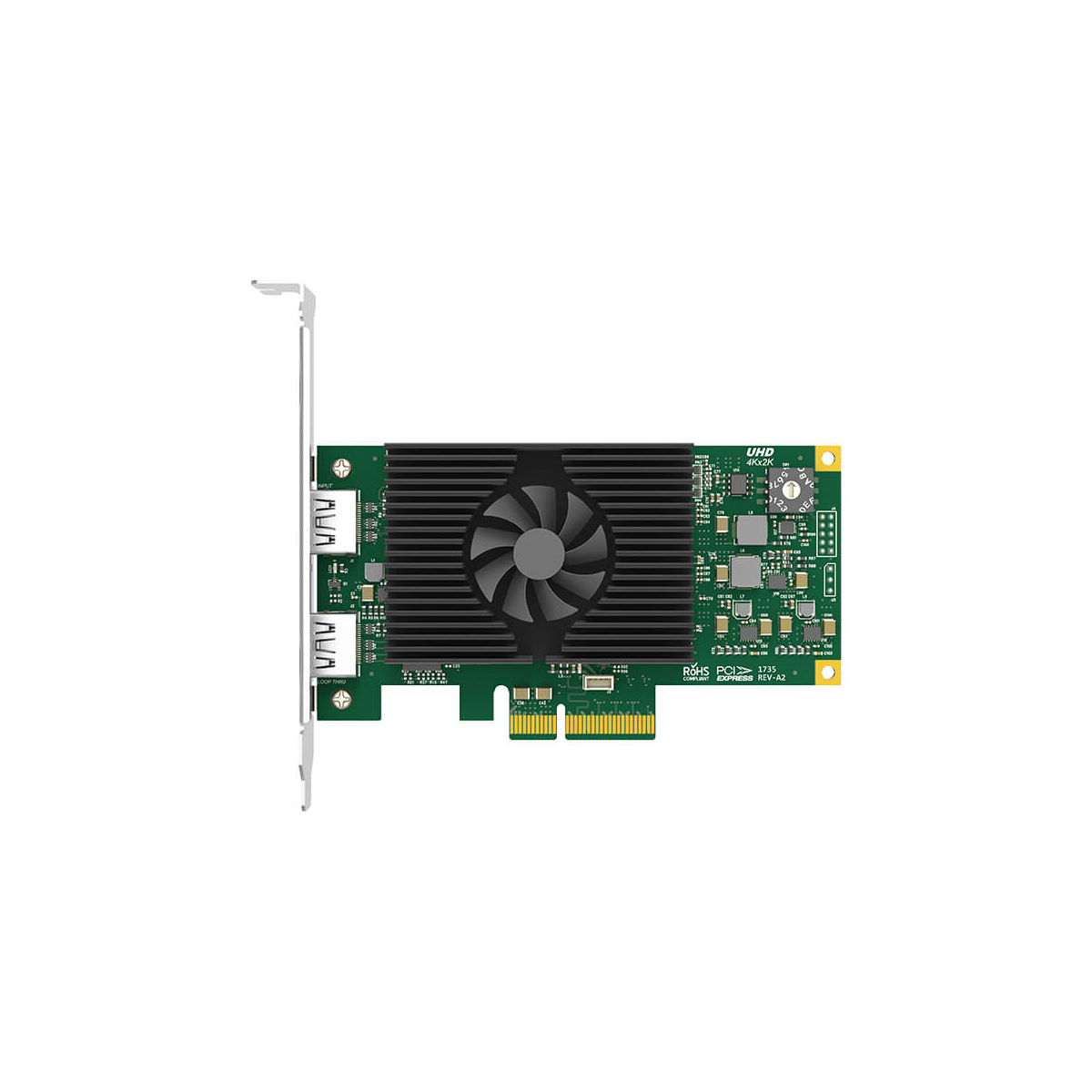

On-board rotary switch to set card number, with 16 positions from 0 to F
System hardware device tree will display “01: Pro Capture HDMI 4K+ LT” when rotary switch is set to 1, and so on
The video and audio device names displayed in your software will include the card number (set by the rotary switch)
Multiple Capture Streams Unlimited capture streams for any one input channel
Independent cropping, aspect ratio, color format, resolution, frame rate, de-interlacing and color adjustment settings for each individual stream
Ultra Low Latency Support Latency of 64 video lines
Partial notification mode in SDK
Timestamp & A/V Synchronization Hardware based 100ns high resolution clock
Audio frames (192 audio samples) & video frames are stamped with hardware clock
Hardware clock can be synchronized across cards (via SDK)
Video Capture SG-DMA ~1600MB/s per channel DMA bandwidth in PCIe 2.x system
~800MB/s per channel DMA bandwidth in PCIe 1.x system
Support for auto detection of Intel tiled GPU surface
Support for DirectGMA for AMD video adapter chipsets
Support for GPUDirect for Nvidia video adapter chipsets
SDK Magewell Capture SDK for easy integration, maximum flexibility and performance
Windows Driver Tweaks All options can be controlled by three levels of registry key: global level, product level and device level
Video, Audio, Crossbar filter names can be customized via registry keys
Firmware Upgrade Multiple cards in one system can be upgraded simultaneously
Cards can be upgraded without a system power shutdown (In most cases, even a reboot is not needed)
Safe upgrade. If power off or system break down occur when the firmware is being upgraded, it will automatically restore to the initial version. This function is only available for firmware version 1.21 and above.
LED Indicator

Status LEDs indicate the working state of each channel:
- Pulsing slowly: idle
- On: input signal locked
- Off: input signal unlocked
- Double blinks: memory failed or FPGA configuration failed

Form Factor Low profile PCIe x4 Add-on Card
140mm x 68.88mm (without PCI bracket)
Accessories DB9 to YC + Composite + Analog Audio + Component breakout
Low Profile bracket
Power Consumption Max current at 12V: ~ 0.48 A
Max current at 3.3V: ~ 0.82 A
Max power consumption: ~ 8.08 W
Working Environment Operating temperature: 0 to 40 deg C
Storage temperature: -20 to 70 deg C
Relative Humidity: 5% to 90% non-condensing
  • Magewell Pro Capture HDMI 4K Plus LT
  • 2-years Limited Manufacturer's Warranty

View

User Manual for Pro Capture Family

Download

Pro Capture Win 10/11 Driver | V1.3.0.4076

Download

Pro Capture Win 7 Driver | V1.3.0.4076

Download

Pro Capture Linux x86 Driver | V1.3.0.4236

Download

Pro Capture Linux Driver for Jetson TK1 | V1.3.0.4177

Download

Pro Capture Linux Driver for Jetson TX1 | V1.3.0.4186

Download

Pro Capture Linux Driver for Jetson TX2 | V1.3.0.4186

Download

Pro Capture Linux Driver for Mac X86 | V1.3.4141

Download

Pro Capture Linux Driver for Mac ARM | V1.3.4247

Download

Pro Capture of High Performance Windows Firmware | V1.34

【Magewell】Pro Capture HDMI 4K Plus LT One-Channel Capture Card

HK$7,400.00
