Extend 4K/2K/HD HDMI Signal

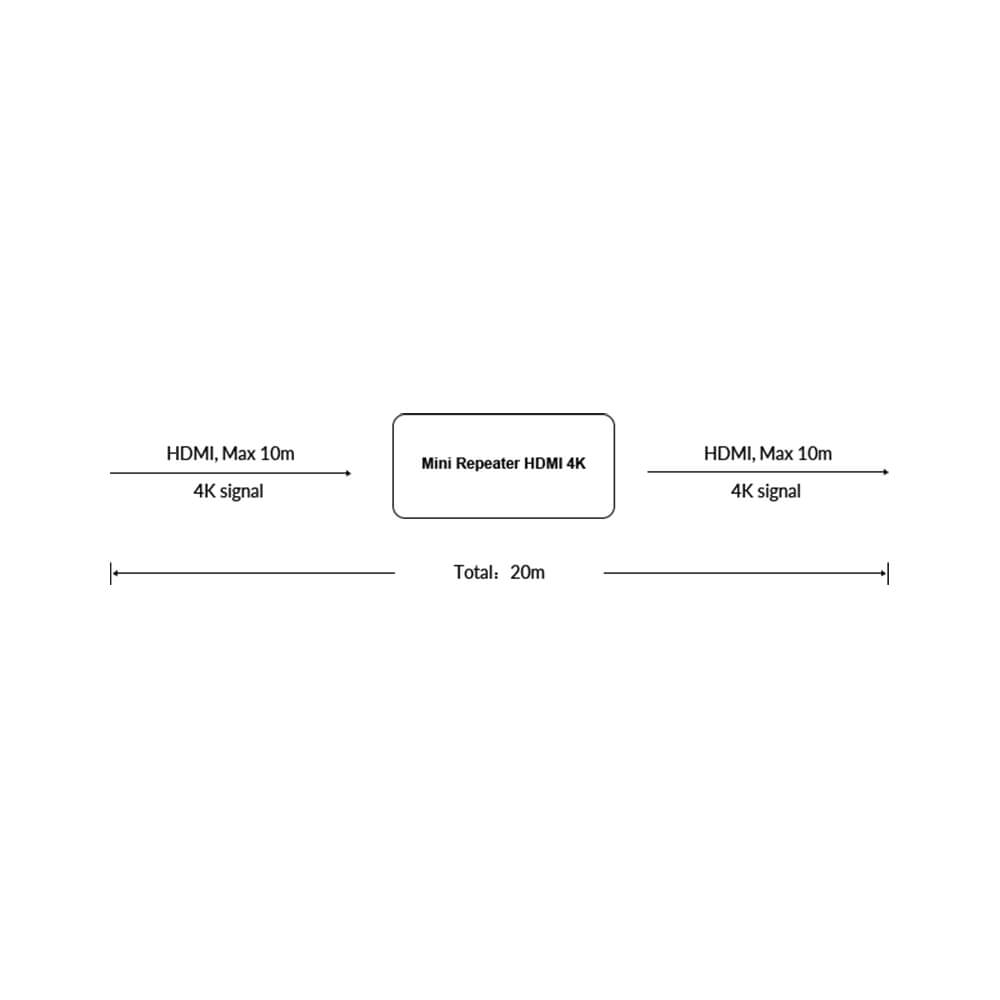

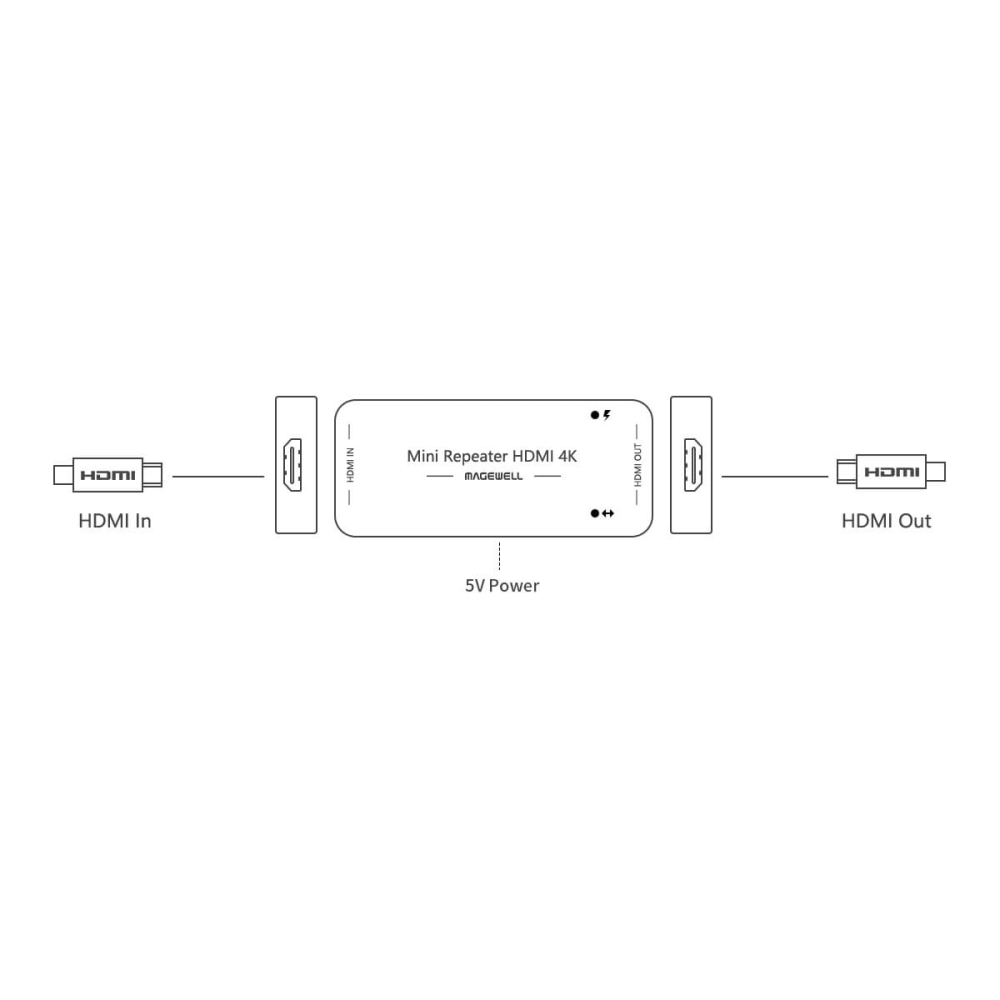

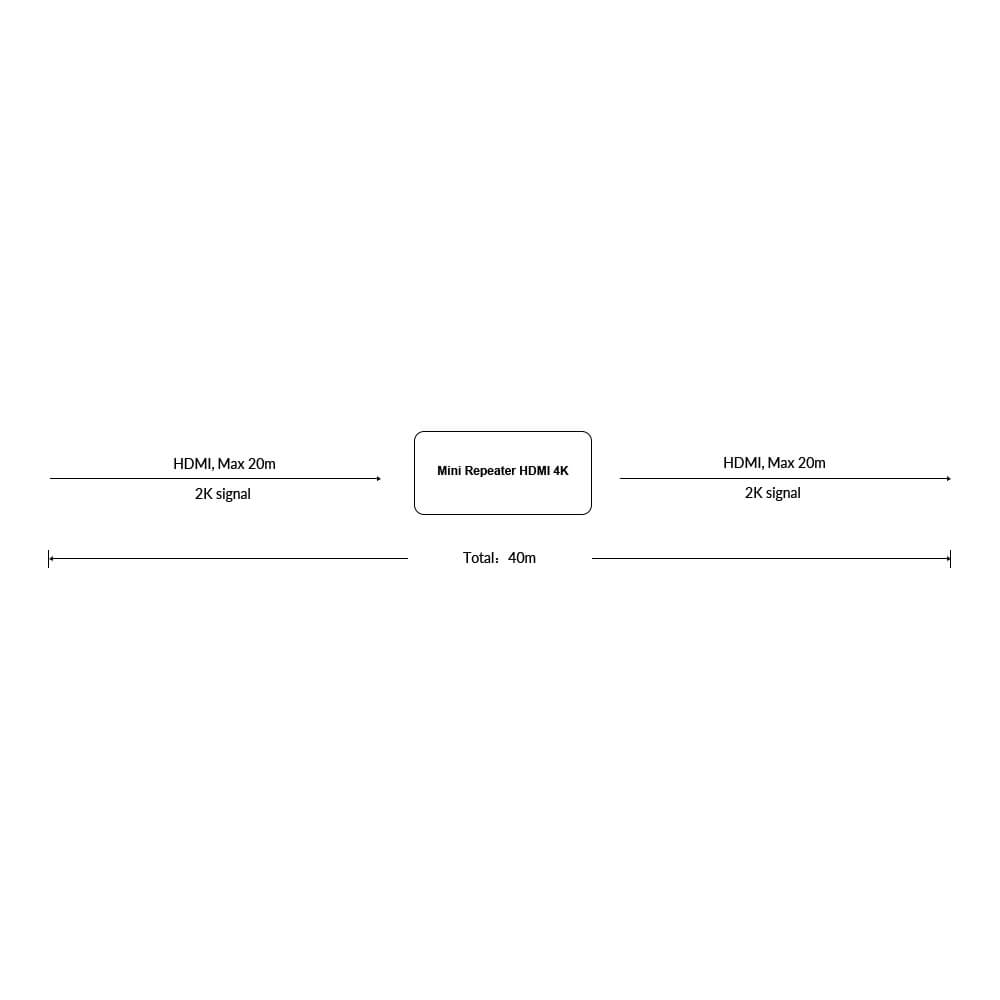

The repeater receives and equalizes an HDMI signal and outputs it to another HDMI cable. It ensures clear delivery of 4K/2K/HD signal over a longer total length of cable. When a capture card directly captures the signal and it shows black-and-white dots (random digital noise or dropout), or the Properties panel reports “no signal” or “unsupported signal”, you can try using the repeater. It can fix the corrupted signal at the receiving end, or generate a better signal at the sending end, so that the user can capture the image correctly. However, if the signal is seriously corrupted, the repeater might not solve the problem. The optimum place for the repeater is typically midway between the source and the capture device. If a long cable is not delivering a stable signal, try replacing the long cable with two shorter cables, with the repeater connected in-between them.
Ultra-compact Size Repeater

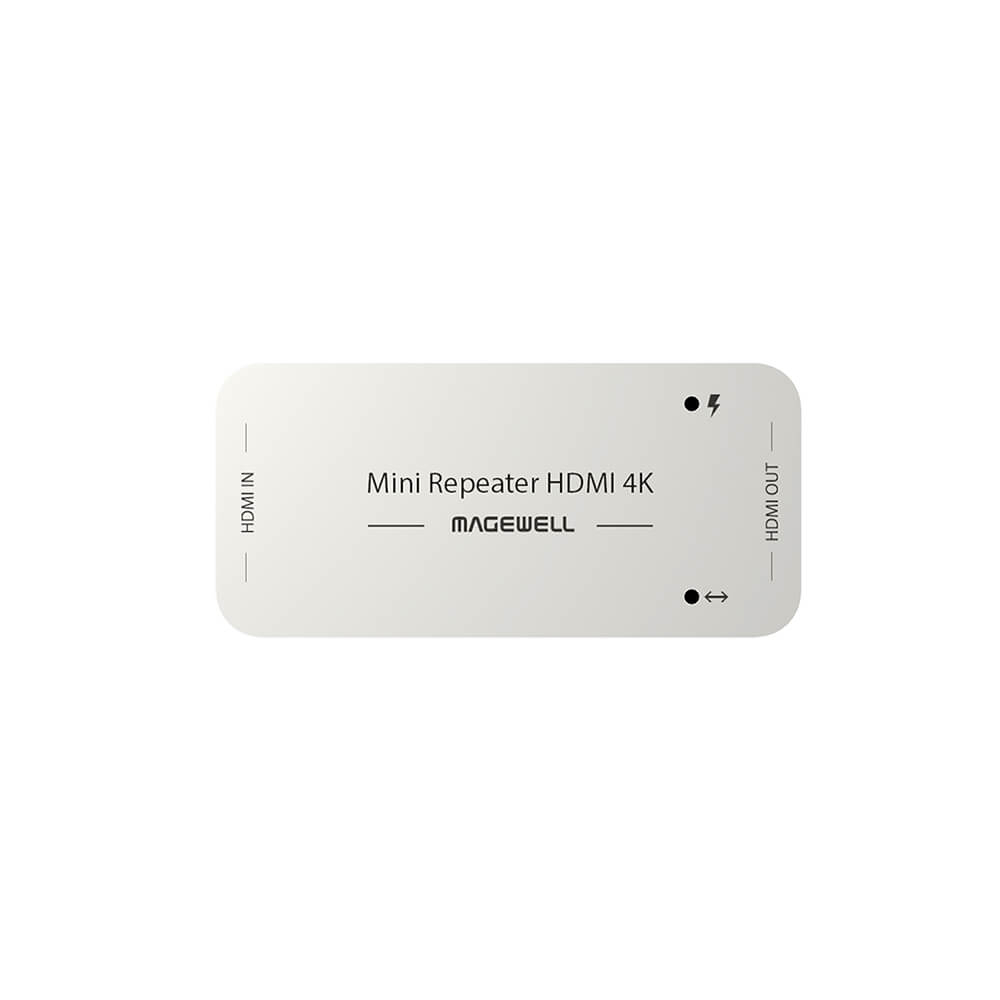

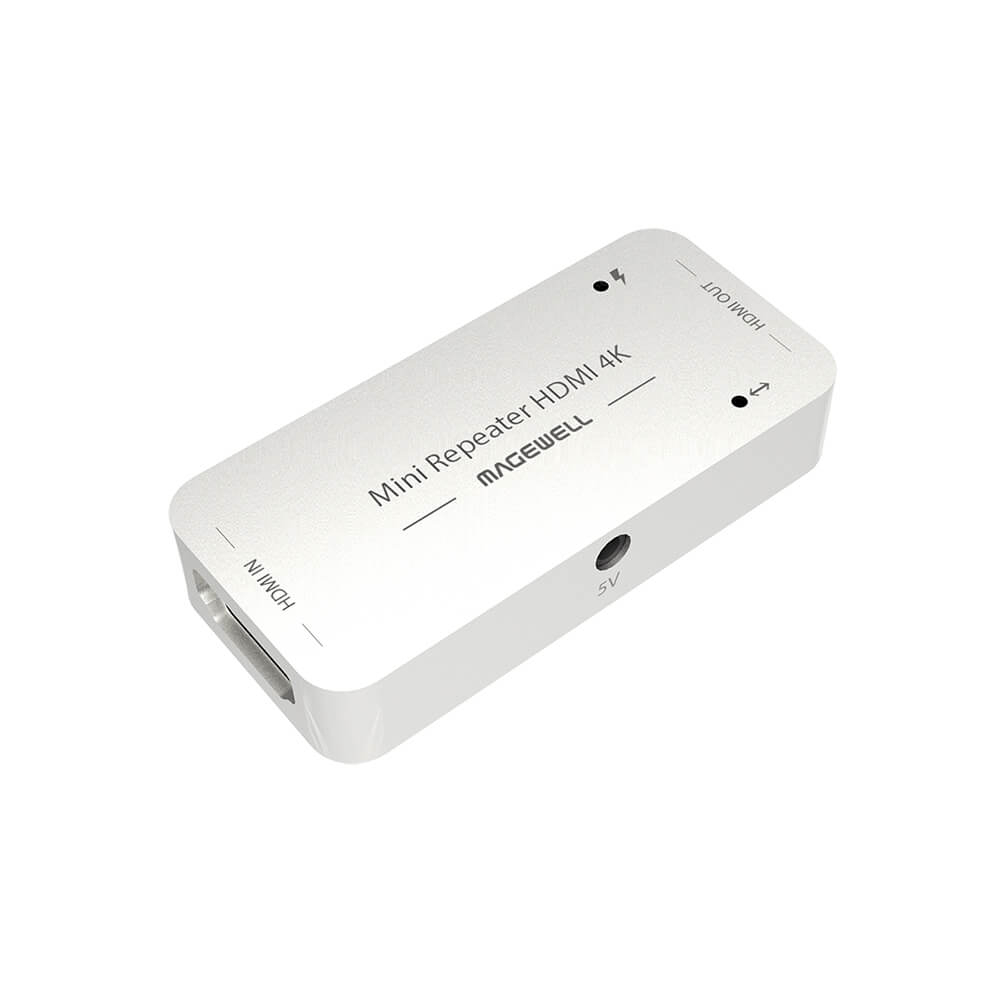

With dimensions of only 58.22 mm x 27.26mm x 10.80 mm, the Magewell HDMI Repeater HDMI 4K can be positioned easily and discreetly almost everywhere.
Provide Display Data Channel (DDC) Buffer
Display Data Channel (DDC) tused to pass extended digital interface data (EDID) from the sink device (such as a digital TV) to the source device (such as a digital A/V receiver). EDID includes vital information on the digital data formats that the sink device can accept. The DDC buffer provides capacitance buffering and level shifting between HDMI source and sink devices.
Magewell Mini Repeater HDMI 4K Specification |
|
Input Features |
HDMI Type A |
Input signal | HDMI/DVI-D |
Output interface | HDMI Type A |
Process and Features | Support 3D, 4K x 2K, HDCP 1.x/2.x Support up to 597MHz pixel rate Support up to 6.0 Gbps HDMI data rate Receive and equalize signals Eliminate signal dithering Provide DDC buffer |
LED Indicator | Onboard LED shows the status of input/output |
Form Factor |
58.22mm (L) x 27.26mm (W) x 10.8mm (H) |
Accessories | 1 × USB to 5V power cable |

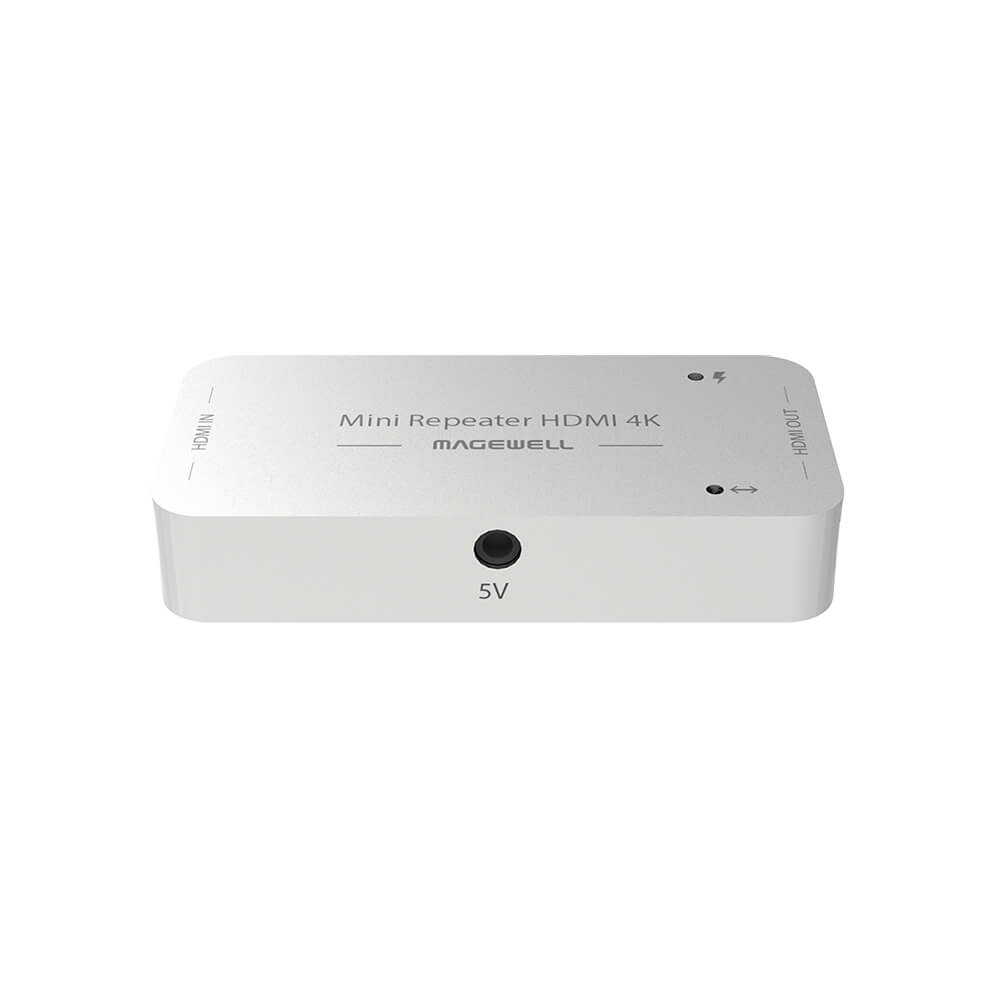

Power Sources | Powered by HDMI signal or external power supply (5V) |
Power Consumption | 5V max current: ~0.5 A |
Working Environment | Storage temperature: -20 to 80 deg C Relative Humidity: 5% to 90% non-condensing |
- Magewell Mini Repeater HDMI 4K
- USB to 5V Power Cable
- 1-year Limited Manufacturer's Warranty
