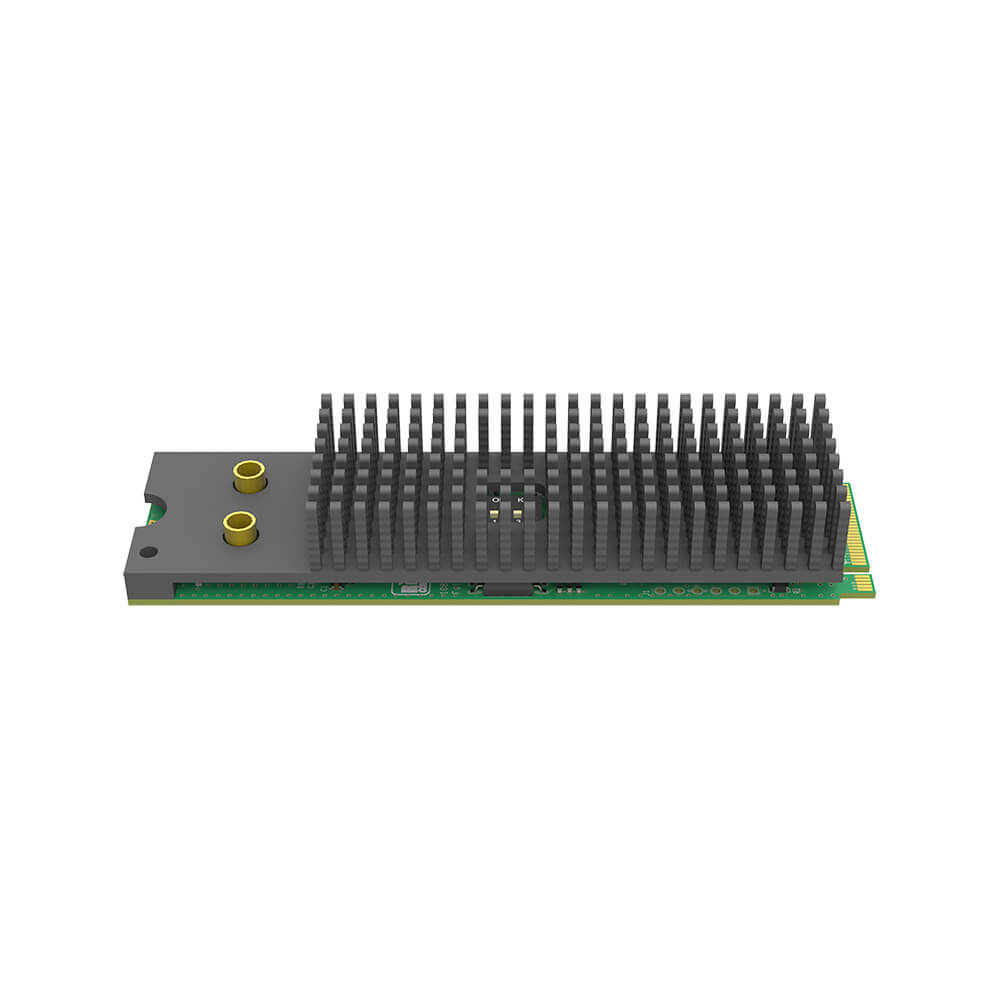

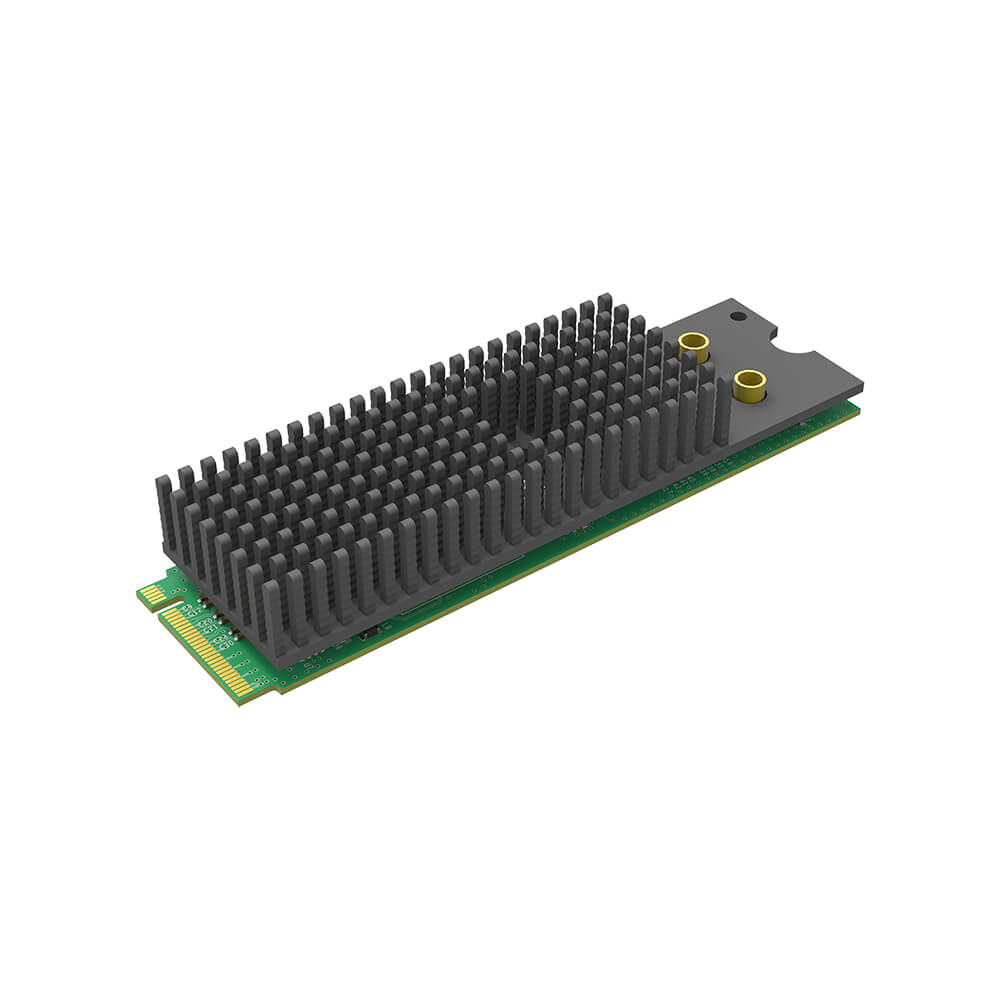

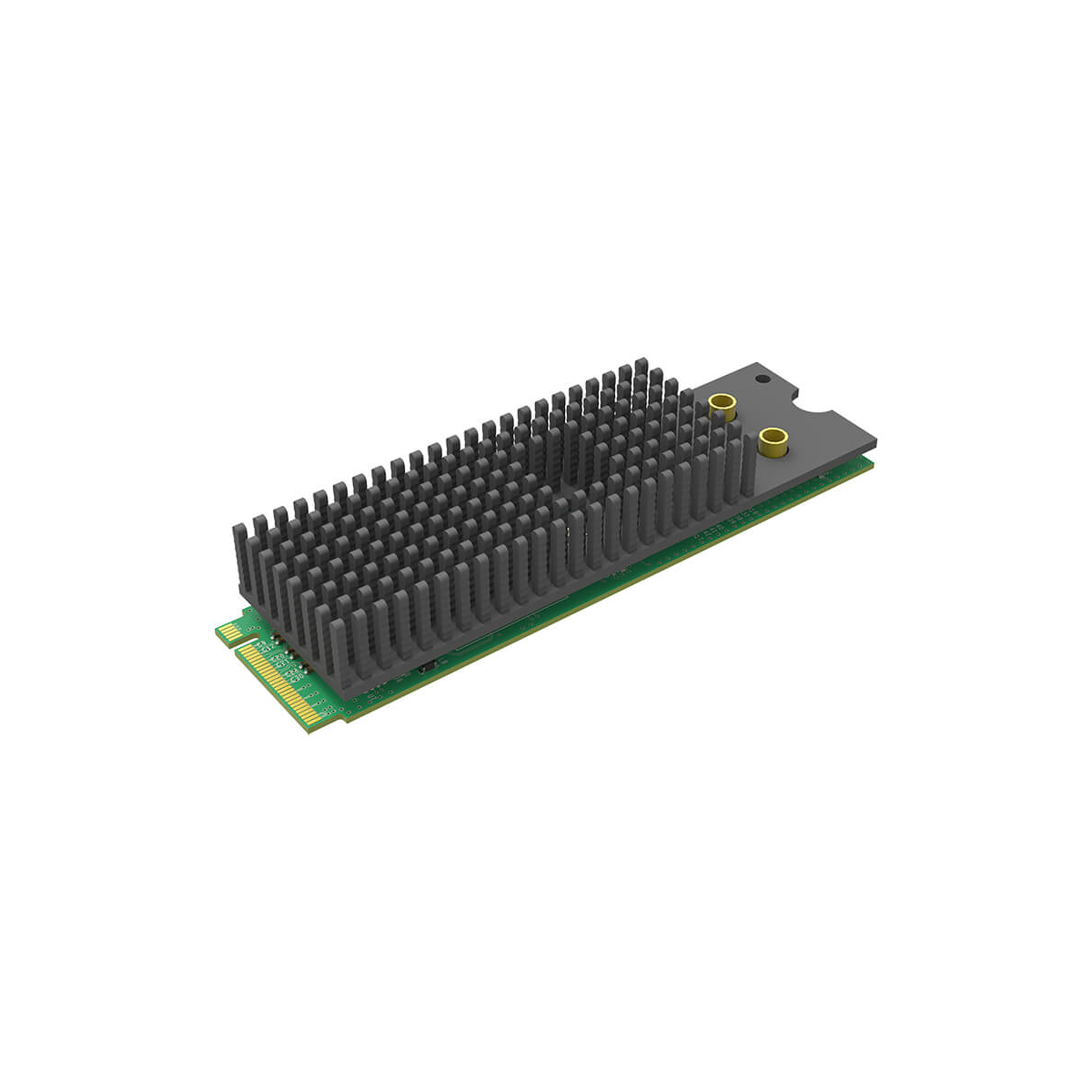

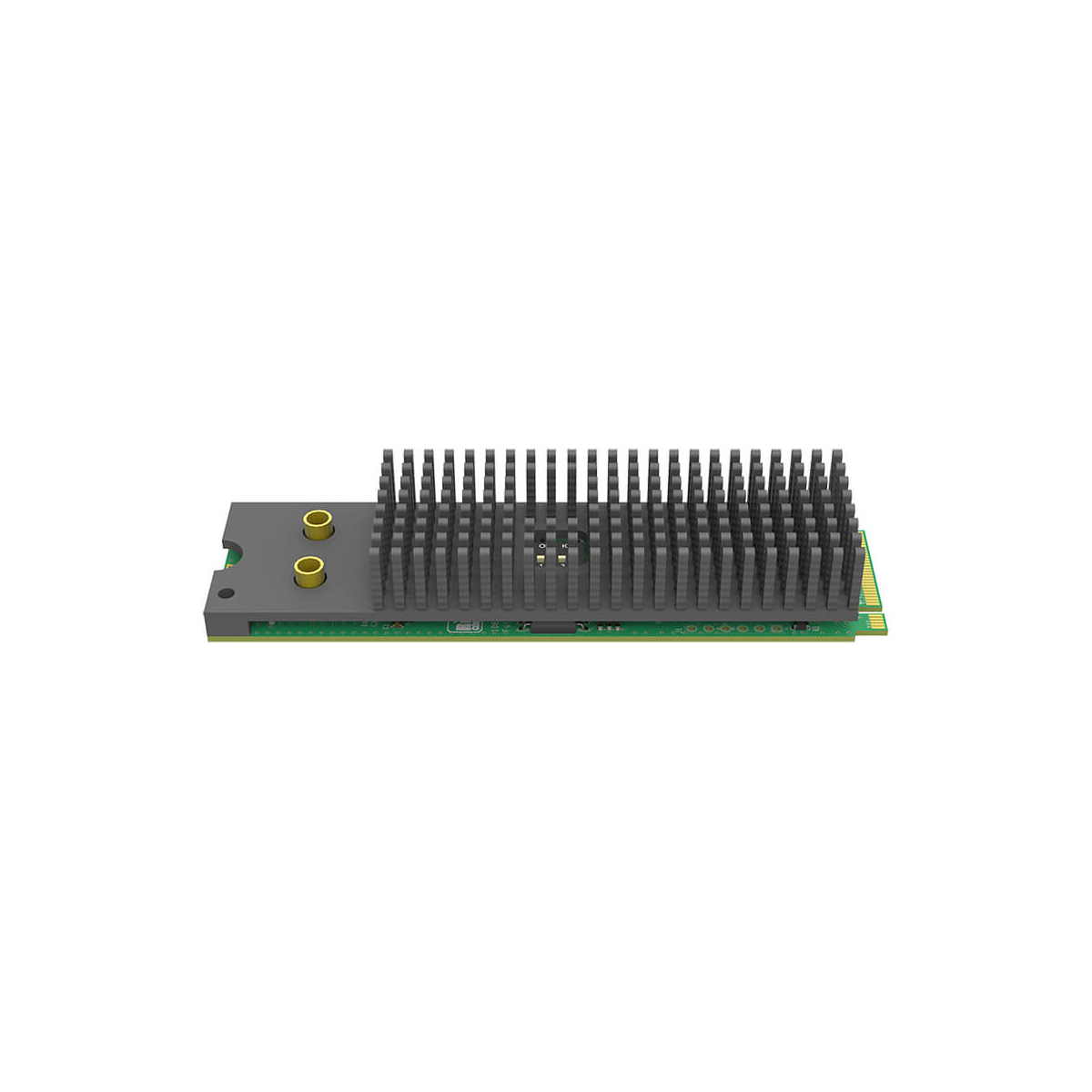

【Magewell】Eco Capture Dual SDI M.2 Card

  • Two-Channel SDI 2K Capture Card
  • Supports up to 2048x1080 resolution
  • Capture SDI x 2 + embedded audio
  • Hardware Scaling and De-Interlacing
  • Performs Frame-Rate Conversion
  • Compatible with Windows and Linux
  • M.2 2280 standard size Interface (PCIe 2.0)

Local Delivery

CHINAM is currently shipping within Hong Kong and specific countries only. We use local courier service as our delivery company. We do not support shipping items in a single order to multiple shipping addresses. To ship items to an additional address, please place a new order to us. Unless otherwise specified, delivery charge at the rate of HK$300 will be imposed on each delivery. We currently offer free delivery for each order over HK$1,000.

For remote areas or outlying islands delivery service, please contact our sales team via email - sales@chinam.com.hk

International Delivery

We will do our best to ship internationally to countries where we do not have sales representation. Please register with us, we’ll keep you updated and notify you when this is about to happen and become available in your region. Please note, at this time the customer is responsible for the duties and taxes imposed by their country.

For international shipping please contact our sales team via email - sales@chinam.com.hk

Deliver Time

  • Once your order has been handed over to the carrier for delivery, you will receive a shipment notification email with an estimated delivery date. Please note that it is not possible to expedite your delivery and receive your package earlier than the scheduled delivery date. Therefore, we are unable to accept requests for expedited delivery. Our carriers are unable to provide an exact time of day for your delivery. If you ordered multiple items, you may receive separate shipments.
  • All estimates are based on business days. We only make deliveries in the specified areas of Hong Kong from Monday to Sunday except on the first two days of the Lunar New Year and when typhoon warning signal No. 8 or above or black rainstorm warning is in force.
  • All rescheduling of delivery, additional purchases, new sales memos and amendments must be made 3 days before the scheduled delivery date. Otherwise, a double delivery charge will be incurred.
  • We may deliver the merchandise in one or more installments, and some of the merchandises may be delivered directly from suppliers. Any times and dates given for dispatch of merchandise, or the length of time that merchandise will take to be delivered, are only estimates. If we are unable to meet any stated dispatch or delivery dates or times we will inform you as to the progress of your order. You agree and accept that under no circumstances will we accept cancellation of order or refund.

Signature On Delivery

  • Most of our shipments contain valuable items. If you will not be in attendance to accept delivery of your purchase, consider shipping to someone you trust will be able to sign for your package. For your convenience, you may prefer to have your order delivered to your office address. If you choose this option, please include the name of your business in the address. Please note, if you choose this option, goods may be left with reception or the Mail Room.
  • As our carriers require a signature on delivery, the carrier will leave a calling card if you are not at home. Please contact the carrier to reschedule delivery.
  • For postal deliveries, no signature is required and order status tracking is not available.
  • Delivery failure due to no one answering the door upon the arrival of goods at the appointed time, or to circumstantial limitations such as the entrance being too small, will require a rescheduled delivery and therefore incur double delivery charges.
  • We will deliver the merchandise ordered by you to the address you give us for delivery at the time you make your order through our staff or a third party provider. You agree to present your photo identification upon request when you acknowledge receipt of the merchandise. The merchandise shall be, and shall be deemed to be, delivered and accepted by you when the merchandise are delivered to the address you give us for delivery. You agree and accept that we are entitled, at our option, to charge you additional costs or cancel your order in the event of your failure to accept delivery for whatever reasons.

General

  • You will become the owner of the merchandise you have ordered when they have been delivered to you. Once merchandise has been delivered to you they will be held at your own risk and we will not be liable for the loss or damage.
  • You may not export any products purchased at CHINAM online store. We sells and ships products to end-user customers only. Notwithstanding order confirmation, CHINAM may cancel any order where it has reasonable grounds to believe the product is not being purchased for end use.
  • If there is any inconsistency or ambiguity between the English version and the Chinese version, the English version shall prevail.
  • We reserve the final right to terminate or alter the above terms and conditions. In the event of any dispute, our decision shall be final and conclusive.
In stock (contact us for lead time)
SKU
11530 / 115300000
Write Your Own Review
You're reviewing:【Magewell】Eco Capture Dual SDI M.2 Card
Your Rating

Small Size, Low Power Consumption and Low Latency

Eco Capture M.2 cards offer systems integrators and OEM developers high-performance video capture solutions with low power consumption in a very compact form factor. The cards measure only 22x80mm (0.87x3.15in), making them perfect for use in small or portable systems where full-sized PCIe slots are not available.

Superb OS and API Compatibility

M.2 Eco Capture models are available with drivers for Windows and Linux operating systems, and support x86, x64 & ARM architectures. The devices support OS-native capture APIs, while our SDK provides custom Magewell APIs that enable developers to achieve lower-latency capture and synchronize channels across multi-channel or even multiple capture cards.

Flexible Input Interfaces

Eco Capture cards can capture up to four HD signals or one 4Kp60 signal, supporting HDMI, 3G-SDI, quad-link 3G-SDI and single-link 12G-SDI input. All models support up to eight channels of embedded audio per input.

Lower CPU Usage

FPGA-based video processing provides high-quality up/down/cross-scaling, picture controls and color space conversion without tasking the host system CPU.

Software Compatibility

Support operating system native video capture APIs, including DirectShow, DirectKS, V4L2 and ALSA. Support DirectSound based audio acquisition interface, extended interface based on IKsPropertySet. Compatible with almost all software based on DirectShow architecture.

Magewell Eco Capture Dual SDI M.2 Specification

Supported OS Windows
- Windows 7/8/8.1/10/11/ Server 2008/Server 2008 R2/ Server 2012/Server 2016 (x86 & x64) and above
Linux (support x86, x64 & ARM architecture)
- Ubuntu 12.04/14.04/ 16.04/17.04/17.10/18.04 (x86 & x64)
- CentOS 6.5/7 (x86 & x64)
- Fedora 25/26/27 (x86 & x64)
- Red hat 6.5 and above (x86 & x64)
- Other Linux OS with kernel version 2.6.35 and above
Recommended OS (tested) Windows
- Windows 7 Ultimate/ 8.1 Enterprise/10 Enterprise/Server 2008 R2 DataCenter/Server 2012 R2 DataCenter/Server 2016 R2 DataCenter (x86 & x64)
Linux
- Ubuntu 12.04/14.04/16.04 (x86 & x64)
- Ubuntu 17.04/17.10/18.04 (x64)
- CentOS 6.5/7.2 (x86 & x64)
- Fedora 25/26 (x64)
- Red hat 6.5 (x86 & x64)
Supported APIs Windows
- DirectShow
- DirectKS
- Wave API/DirectSound/ WASAPI
Linux
- V4L2
- ALSA
Supported Software VLC
VirtualDub
OBS
XSplit
vMix
VidBlaster
Wirecast
Microsoft Media Encoder
Adobe Flash Media Encoder
Any other DirectShow/ V4L2 encoding/ streaming software

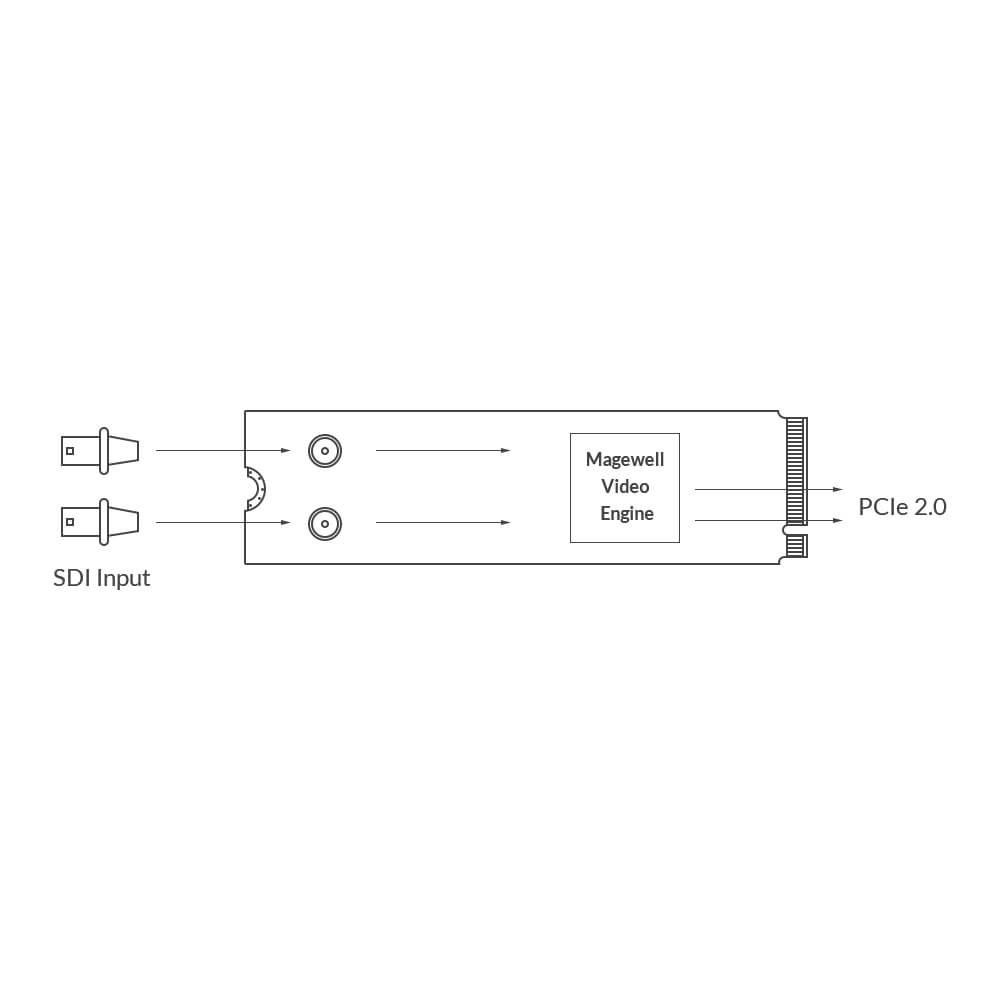

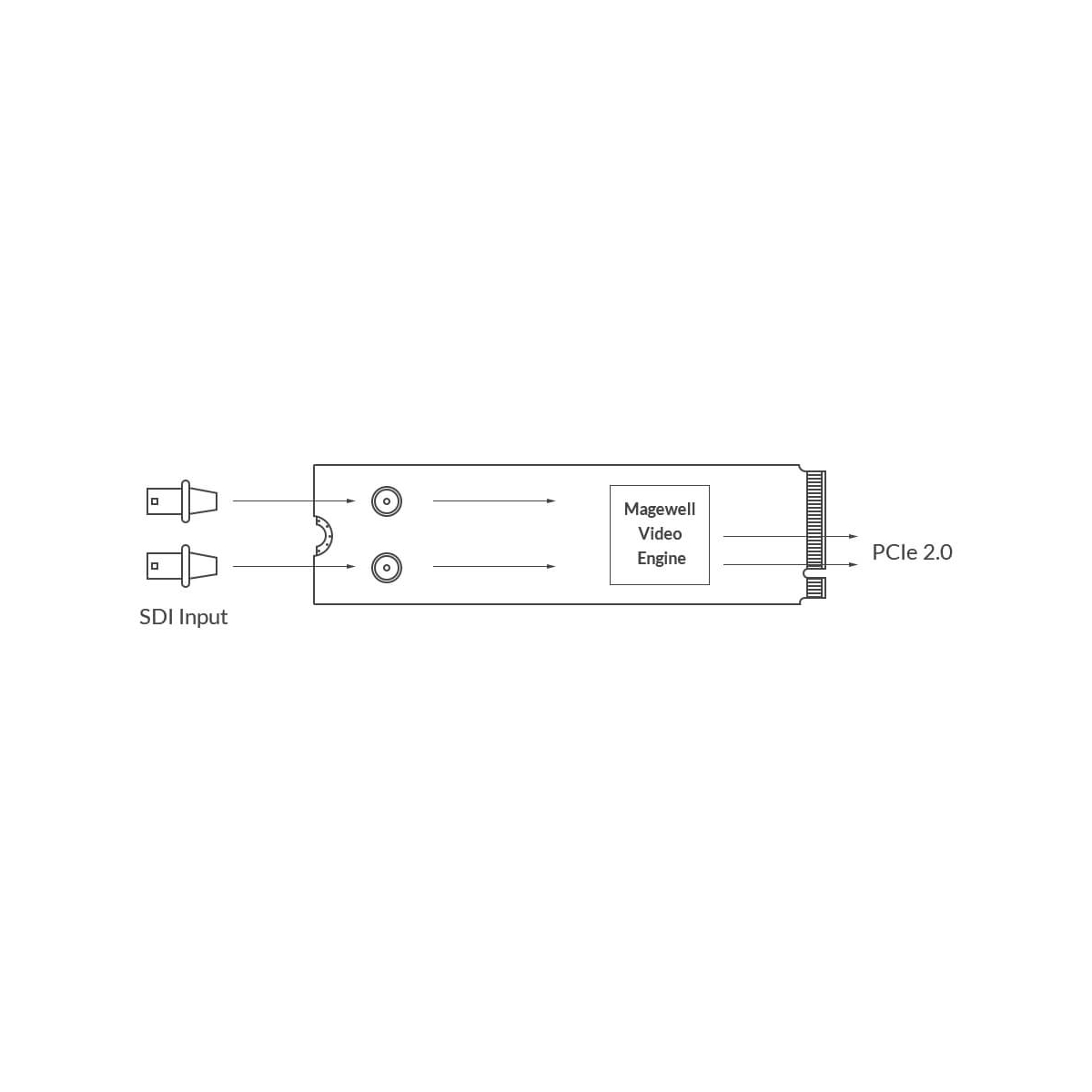

Input Interfaces 2x MMCX
- SD/HD/3G/2K SDI
Host Interface M.2 2280 Type M (PCIe Gen2 x4)
Input Features Support for input video resolutions up to 2048x1080 pixels
SDI Specific Features Integrated cable equalizer extending the cable length as follows:
- up to 330m for SD-SDI signals
- up to 190m for HD-SDI signals
- up to 150m for 3G-SDI signals
Support for SD/HD/3Ga/3Gb/3Gb-DL/3Gb-DS standards
Support for 2K (2048x1080) mode
Support for RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 color sampling
Support for 10/12-bit color depth
Support for extraction of SMPTE 352 payload identifier
Support for up to 8 (mono) audio channels at 48KHz
Support for extraction of audio formation information & channel status data
Limited support of 3Gb-DS: only the first stream can be captured
Limited support for capture of the first link of dual link interfaces:
- YCbCr 4:2:2 10-bit 1080p 50/59.94/60: captured as 1080i 50/59.94/60
- YCbCr 4:4:4 10-bit: captured as 4:2:2
- RGB 4:4:4: R/B sub-sampled
Support for Closed Caption via SDK
Video Capture Formats

Support for capture image resolutions up to 2048x2160 pixels
Support for capture frame rates up to 144fps (Actual capture frame rate can be limited by PCIe bandwidth. For the resolution of 1280x1024 and higher, the actual frame rate may be limited by the onboard video processing hardware pixel clock. For example, the maximum frame rate of 1920x1080 resolution can be up to 80fps.)
Support for 4:2:0 8-bit capture formats: NV12, I420, YV12
Support for 4:2:2 8-bit capture formats: YUY2, YUYV, UYVY
Support for 4:4:4 8-bit capture formats: V308, IYU2, V408, BGR24, BGR32
More capture formats are supported via SDK

Video Processing Features Video processing pipelines with ~180Mpixels/s processing bandwidth
10-bit 4:4:4 video processing
Video scaling
Video de-interlacing
- Weave
- Blend top & bottom field
Video color format conversion
- Auto or manual selection of input color format & quantization range
- Auto or manual selection of capture color format, quantization range & saturation range
- Support for RGB, YCbCr 601, YCbCr 709, YCbCr 2020 color formats
- Support for Limited or Full quantization range
- Support for Limited, Full & ‘Extended gamut’ saturation range
Video frame rate conversion
Multiple Cards per System Support for multiple cards plugged to one system

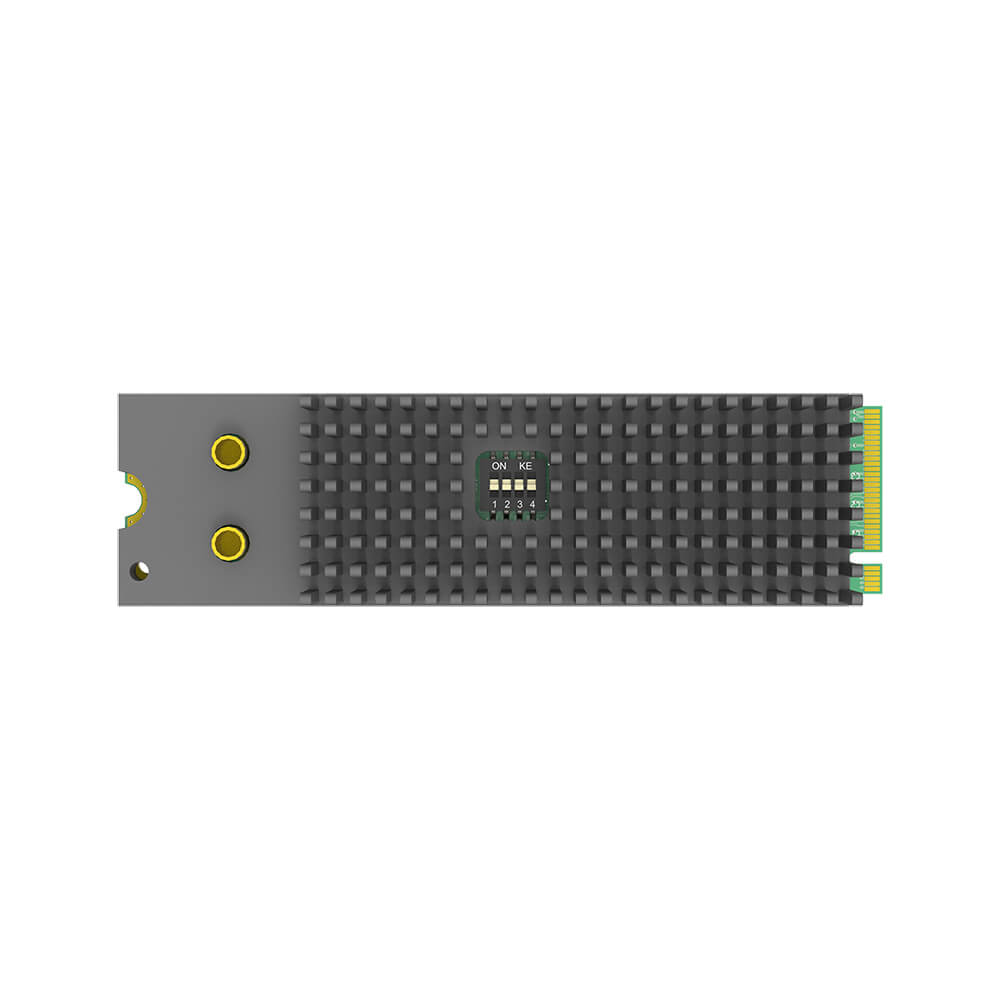

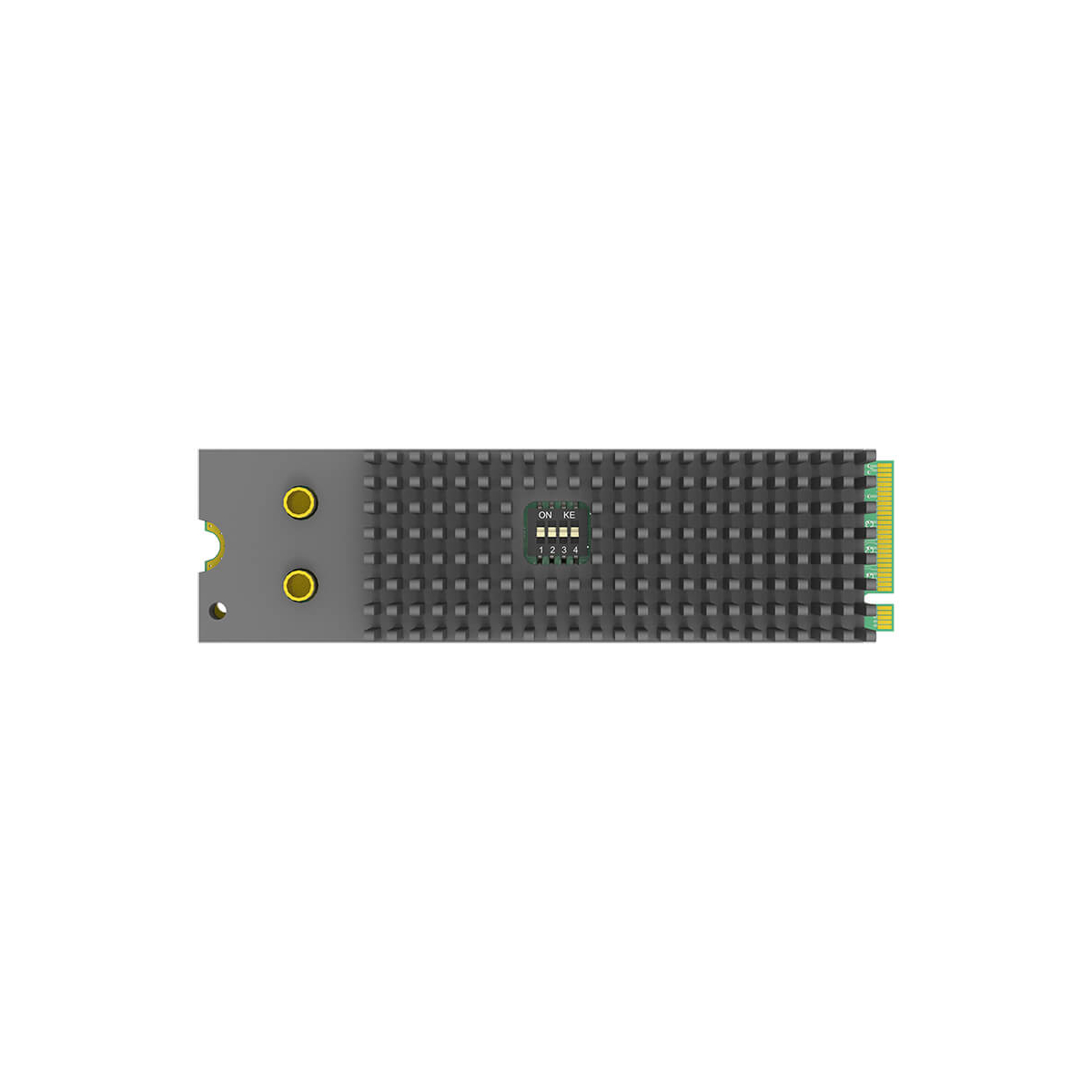

On-board dip switch to set card number with 16 positions
System hardware device tree will display “01: Eco Capture Dual SDI M.2” when dip switch is set to 0001, and so on
The video and audio device names displayed in your software will include the card number (set by the dip switch)
Multiple Replicated Capture Streams Unlimited capture streams for any one input channel, but the capture streams should be in the same capture format.
Timestamp & A/V Synchronization Hardware based 100ns high resolution clock
Audio frames (192 audio samples) & video frames are stamped with hardware clock
Hardware clock can be synchronized across cards (via SDK)
Video Capture SG-DMA ~400MB/s per channel DMA bandwidth in PCIe 2.x system
~200MB/s per channel DMA bandwidth in PCIe 1.x system
Support for auto detection of Intel tiled GPU surface
Support for DirectGMA for AMD video adapter chipsets
Support for GPUDirect for Nvidia video adapter chipsets
SDK Magewell Capture SDK for DirectShow (Windows) or V4L2 (Linux) for easy integration
Magewell Capture SDK for DirectKS (Windows) or ioctl (Linux) for maximum flexibility & performance
Windows Driver Tweaks All options can be controlled by three levels of registry key: global level, product level and device level
Video, Audio, Crossbar filter names can be customized via registry keys
Firmware Upgrade Multiple cards in one system can be upgraded simultaneously
Cards can be upgraded without a system power shutdown (In most cases, even a reboot is not needed)
Safe upgrade. If power off or system break down occur when the firmware is being upgraded, it will automatically restore to the initial version. This function is only available for firmware version 1.21 and above.
LED Indicator

Status LEDs indicate the working state of each channel:
- Pulsing slowly: idle
- On: input signal locked
- Off: input signal unlocked
- Double blinks: memory failed or FPGA configuration failed

Form Factor M.2 2280 standard size
Accessories 2 X MMCX to BNC cables
Power Consumption Max current at 3.3V: ~ 1.00 A
Max power consumption: ~ 3.38 W
Working Environment Operating temperature: 0 to 40 deg C
Storage temperature: -20 to 70 deg C
Relative Humidity: 5% to 90% non-condensing
  • Magewell Eco Capture SDI M.2
  • 2 X MMCX to BNC cables
  • 2-years Limited Manufacturer's Warranty

View

User Manual for Eco Capture Family

Download

Eco Capture Win 10/11 Driver | V1.3.0.4210

Download

Eco Capture Win 7 Driver | V1.3.0.4210

Download

Eco Capture Linux x86 Driver | V1.4.89

Download

Eco Capture Linux Driver for Jetson TX1/2 | V1.4.47

Download

Eco Capture Linux Firmware | V1.8
