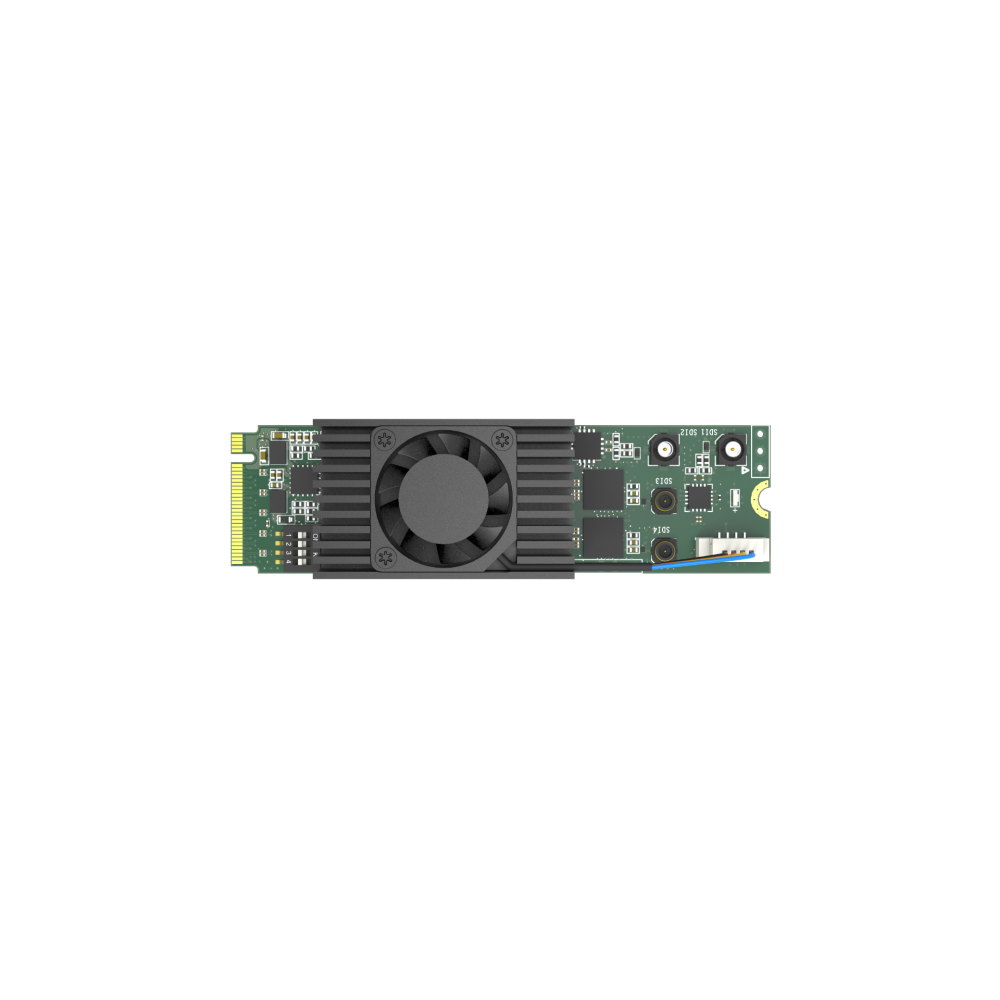

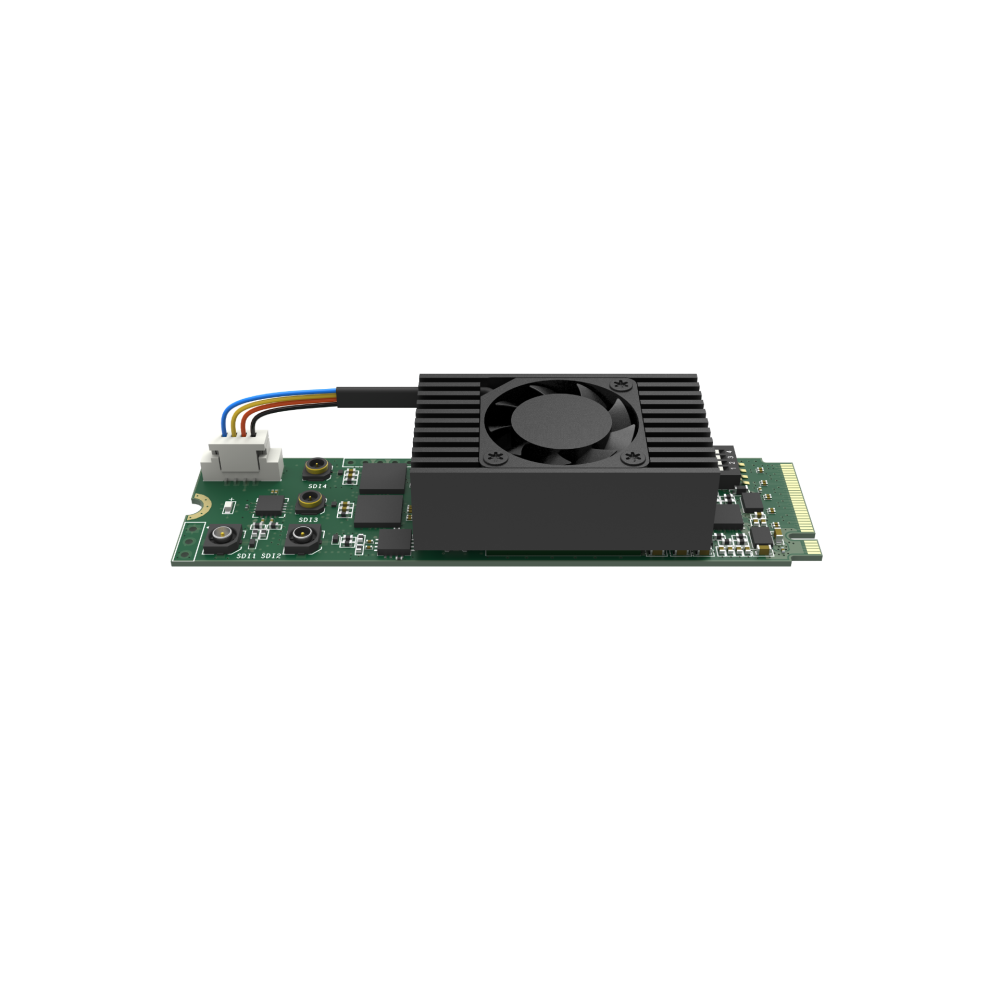

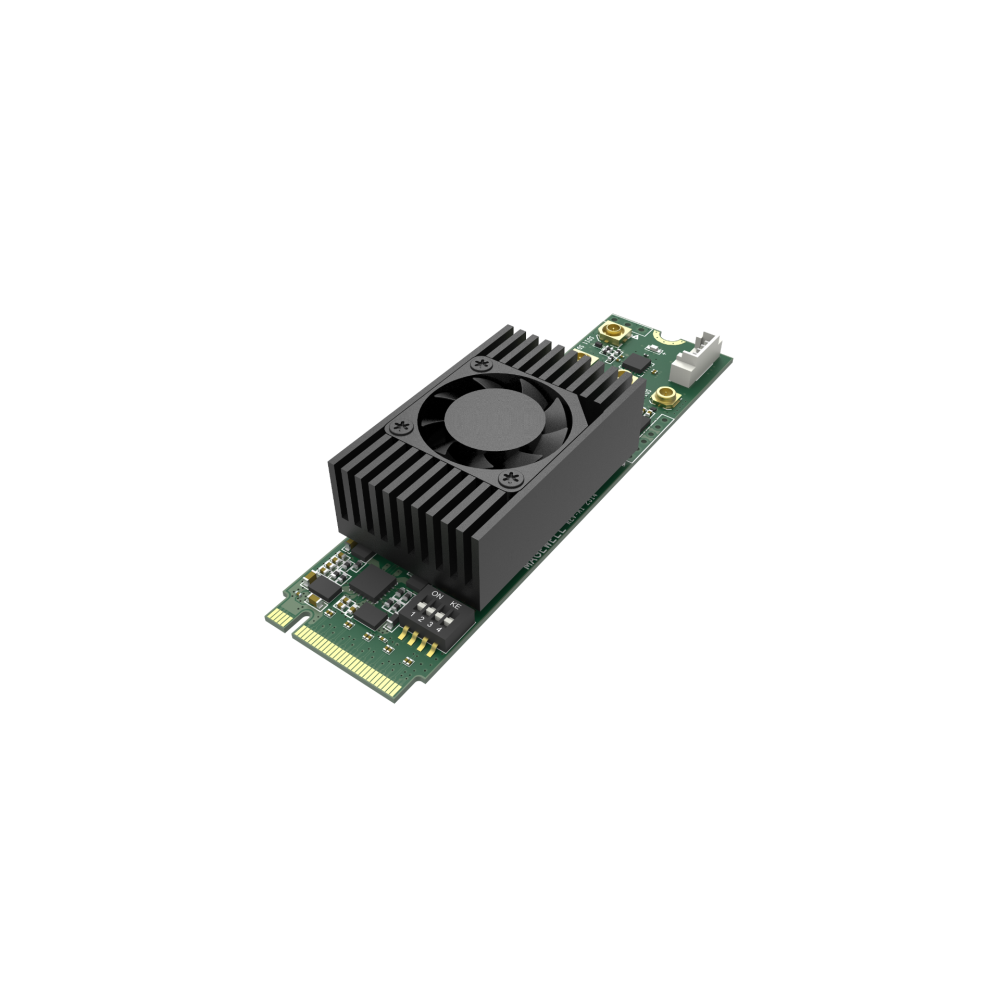

Interface
Input Interface
- SD/HD/3G/6G/12G SDI
- Supports input resolution up to 4096x2160 60fps
Host Interface
-
M.2 2280 Type M (PCIe Gen3 x4)
Video Engine
- Auto detection of input signal format
- Color formats conversion
- Low latency mode
- SG-DMA transmission mode
- Multiple replicated capture streams
- Closed caption (SDK required)
Encoding Features
- Dual stream encoding profiles: main stream and sub stream up to 4096x2160p30
- Max bitrate: 62Mbps (NDI® HX3), 32Mbps (Others)
- Support for H.264/HEVC video encoding
- Provide video aspect ratio conversion, image rotation and cropping for the main and sub streams
- Encoding 8-channel AAC and audio channels mapping
- Side-by-Side 3D video encoding
Software
- Window & Linux driver and SDK
- Upgradable firmware
- Compatible with Capture Express, Magewell Bridge for NDI®, Plugin for Premiere®
Others
Others
- 2-year warranty
- Continuously work for 24hx7
- LED status indicator
- Multiple devices on one host
- On-board dip switch to set card number
Input Features
- Max input at 4096x2160 60fps 4:2:2 10-bit
- Input single SD/HD/3G/6G/12G SDI, dual 6G-SDI to 12G-SDI , or quad 3G-SDI to 12G-SDI
- SD (ST 259)/HD (ST 292)/3Ga (ST 425)/3Gb-DL (ST 425)/3Gb-DS (ST 425)/6G (ST 2081) /12G (ST 2082) standard
- Support for 4K (4096x2160) mode
- Up to 8-channel 48KHz embedded audio
- Input SDI signals transmitted up to 75m for 12G-SDI, 80m for 6G-SDI, 200m for 3G-SDI, 430m for SD signal
- Support for Closed Caption via SDK
Process and Capture Features
- Video processing pipelines with ~700Mpixels/s processing bandwidth
~2400MB/s per channel DMA bandwidth in PCIe 3.x system
~1600MB/s per channel DMA bandwidth in PCIe 2.x system
~800MB/s per channel DMA bandwidth in PCIe 1.x system - Capture videos up to 4096x2160, frame rates up to 240fps. Typical outputs include (actual capture frame rate can be limited by the PCIe bandwidth and internal working frequency.) :
- - 4096x2160p 5/10/15/25/29.97/30/50/60
- 3840x2160p 5/10/15/25/29.97/30/50/60
- 1920x1080p 5/10/15/25/29.97/30/50/60/120
- 1280x720p 5/10/15/25/29.97/30/50/60/120 etc. - Output NV12/I420/YUYV/UYVY/RGB24/RGB32 videos
- Support custom output formats using Magewell Capture SDK
- Support custom EDID, up/down scaling, de-interlacing, color space conversion and frame rate conversion
- Multiple capture streams, unlimited capture streams for any one input channel
- Support timestamp & A/V synchronization
- - Hardware based 100ns high resolution clock
- - Audio frames (192 audio samples) & video frames are stamped with hardware clock
- - Hardware clock can be synchronized across cards (via SDK)
- Support extraction of SMPTE timecode using SDK
- Support extracting ANC metadata for custom DID/SDID
- Support firmware upgrade
SDK & APIs
- The MWCapture SDK provides functions including signal status extraction, capture configuration and real-time audio & video capture, etc
- Windows DirectShow/DirectKS/Wave API/DirectSound/WASAPI
- Linux V4L2/ALSA
Supported OS
- Windows 10/11/Server 2016 (x86 & x64) and above
- Linux (x86, x64 & ARM architecture)
Input Interfaces
- 2 x SD/HD/3G-SDI
- 2 x SD/HD/3G/6G/12G-SDI
Host Interfaces
- M.2 2280 Type M (PCIe Gen3 x4)
Supported Softwares
- VLC
- VirtualDub
- OBS
- XSplit
- vMix
- VidBlaster
- Wirecast
- Microsoft Media Encoder
- Adobe Flash Media Encoder
- Any other DirectShow/V4L2/AVCaptureSession based encoding or streaming software
LED Indicator
- Status LEDs indicate the working state of each channel:Pulsing slowly: input signal unlocked
On: input signal locked
Double blinks: memory failed or FPGA configuration failed
Off: firmware or power supply abnormal
Form Factor
- M.2 2280 standard size (22 x 80 mm)
Accessories
- 2 x 3G BNC (Part number: ELE00018)
- 2 x 3G H.FL75–2LPG–084N2-A–140 (14cm) (Part number: ELE00019)
- 2 x 12G DFL75–2LPP–084N9D-A–140 (14cm) (Part number: ACC10020)
- 2 x 12G BNC (Part number: ACC10021)
Power Consumption
- Max current at 3.3V: ~ 1.96 A
- Max power consumption: ~ 6.5 W
Working Environment
- Operating temperature: 0 to 40deg C
- Storage temperature: –20 to 70 deg C
- Relative Humidity: 5% to 90% non-condensing
