Combining multi-input switching, graphics, streaming, recording and monitoring in one compact device, Director Mini enables a single operator to easily create visually compelling productions for live event coverage, remote production feeds and more.
Multiple Input Sources Simultaneously
Users can switch between two HDMI inputs and two USB AV inputs as well as three simultaneous live IP sources including SRT streams, RTMP streams and NDI® HX sources. File-based media assets including video, audio and images can also be combined freely with live sources.
Flexible Layouts and Powerful Production Tools

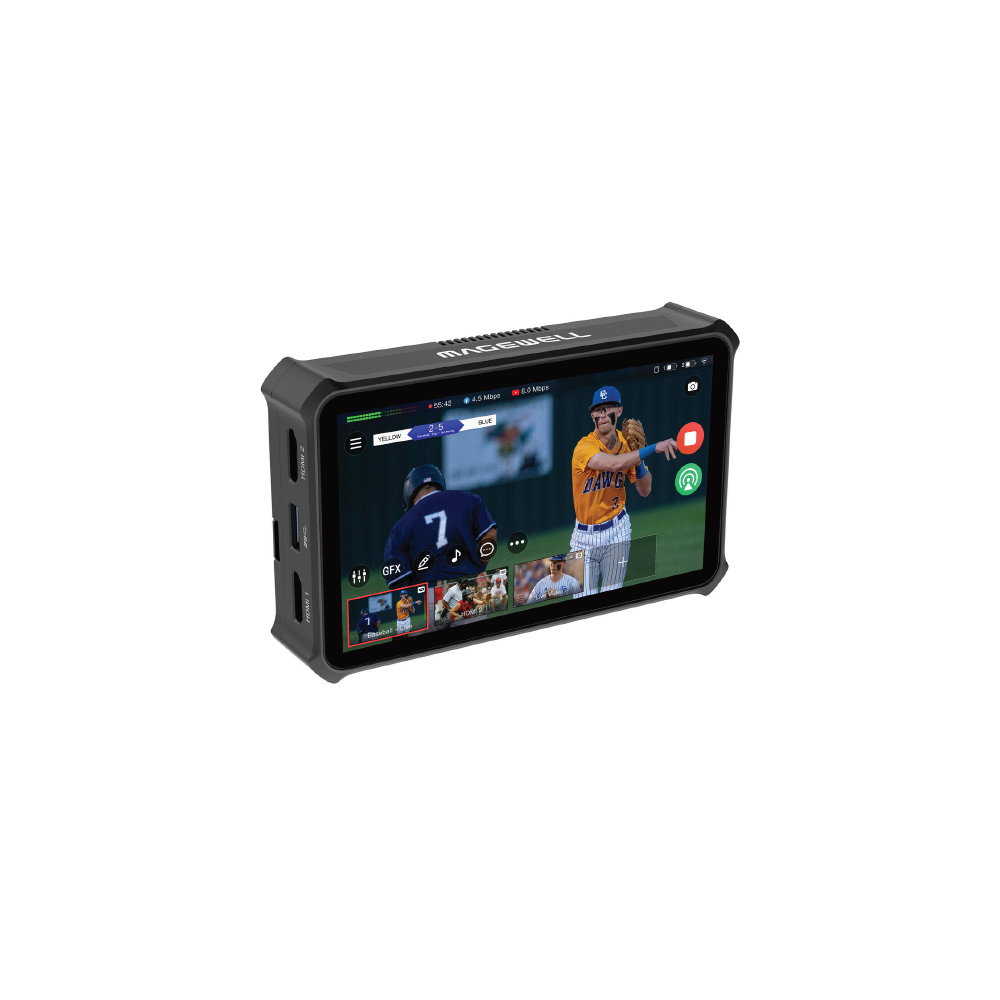

Director Mini’s intuitive user interface is accessed through its integrated AMOLED touchscreen. Users can define multiple scenes that combine live video and audio inputs with network streams, media sources and graphics, then switch or transition between these scenes on the fly. Production tools including chroma keying, graphics and telestration further enhance your content.
Director Utility App
The Director Utility app works as a remote assistant to provide remote configuration, audio controls, input switching, scoreboard control and more. The app can also turn the smartphone’s camera into a streaming source as a mobile input to the Director Mini hardware, further enhancing the multi-camera production possibilities of the system.
IP Encoding/Decoding |
|
IP Video | H.264 : 1920 x 1080 at 60p Encoding |
IP Audio | MP3: Encoding |
Transport Protocols | NDI/HX3, RTMP, SRT |
Simultaneous Streams | 2 Streams |
Compatible Services | Facebook Live, Twitch, YouTube Live |
Wireless |
|
Wireless | Wi-Fi 5 (802.11ac) / Bluetooth 5.0 *Built-In |
Wi-Fi | Wi-Fi 5 (802.11ac); Dual-Band (2.4 & 5 GHz) |
Bluetooth | 5.0 |
Cellular Support | No |
Interfaces |
|

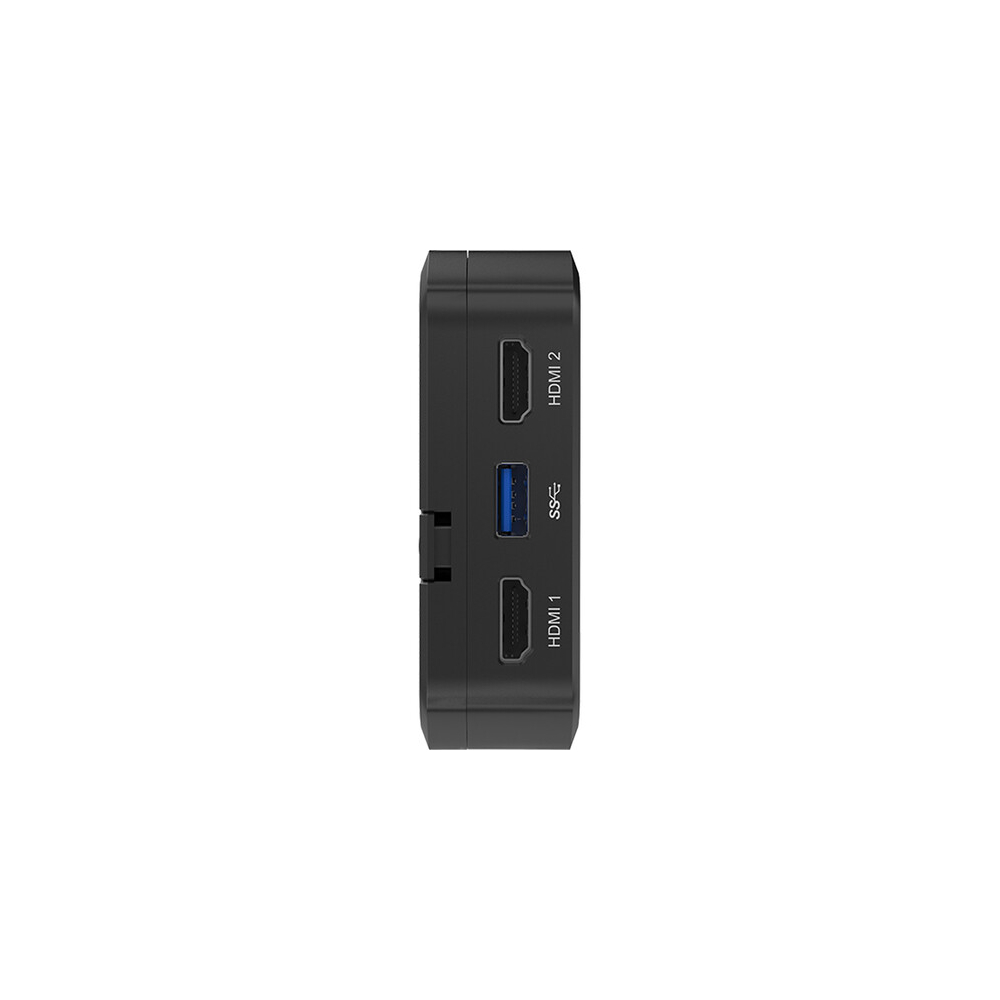

Video I/O | 2 x HDMI (HDMI 1.4) Input 2 x USB-A (USB Video) Input 1 x USB-C Output |

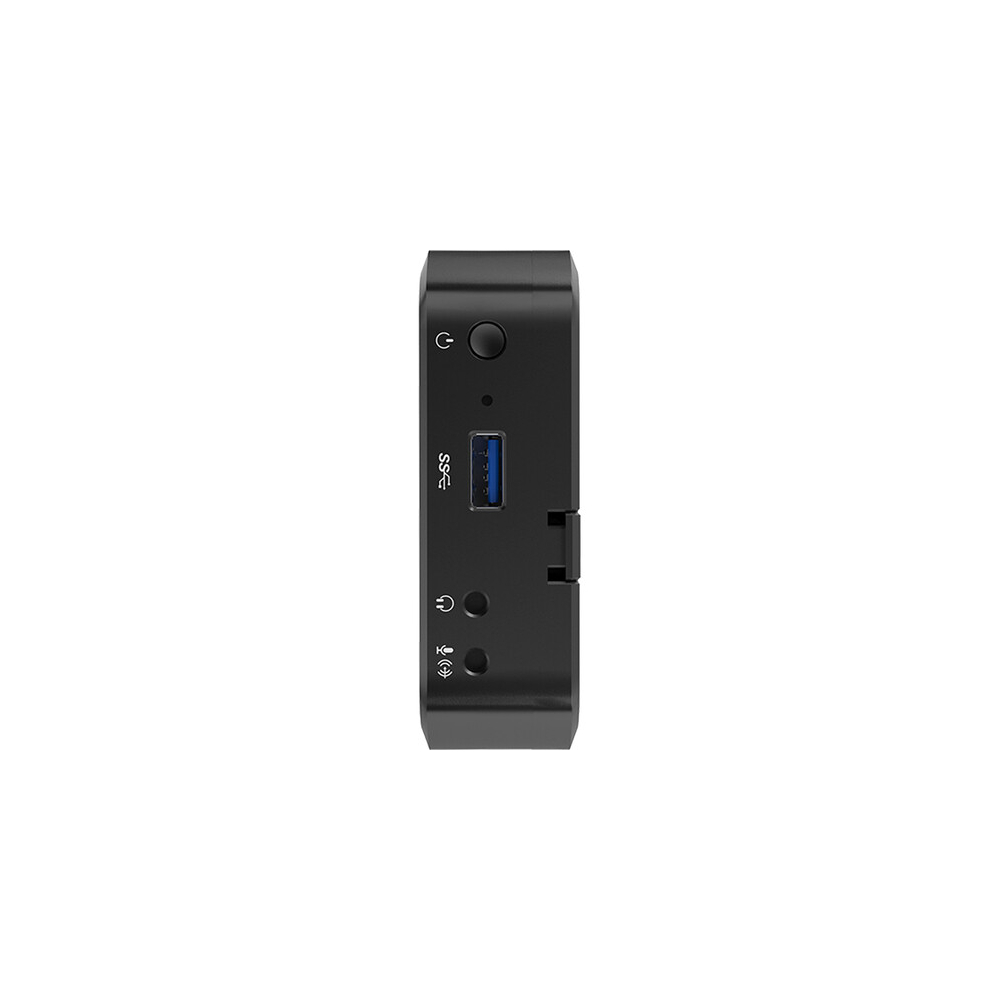

Audio I/O | 1 x 1/8" / 3.5 mm TRS Stereo Analog Input 1 x 1/8" / 3.5 mm TRRS Headphone/Microphone Stereo Analog Output |

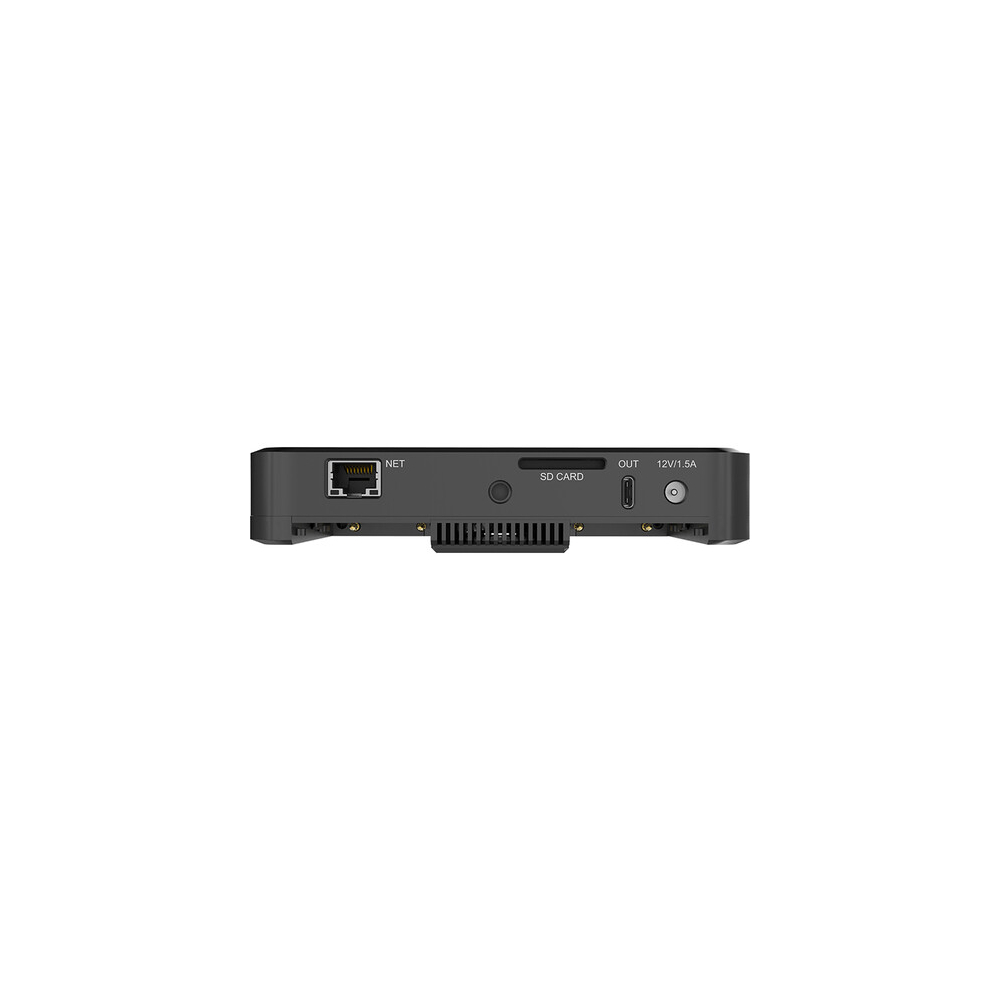

Other I/O | 1 x RJ45 (10/100/1000 Ethernet), (NDI) Input/Output |
Embedded Audio | HDMI/LAN (RJ45)/NDI/USB |
Internal Recording |
|
Recording Media | 1 x SD (Unspecified Type) |
Internal Storage | 64 GB |
Recording Modes | 1920 x 1080p up to 60 fps |
Power |
|
Power I/O | 1 x Barrel (12 VDC at 1.5 A) Input |
Environmental |
|
Operating Temperature | 14 to 122°F / -10 to 50°C |
Operating Humidity | 5 to 90% |
Storage Temperature | -4 to 158°F / -20 to 70°C |
Storage Humidity | 5 to 90% |
General |
|
Display | OLED |
Dimensions | 5.8 x 3.5 x 1.1" / 147.2 x 90 x 28.5 mm |
- Magewell Director Mini Compact Live Streaming Encoder, Switcher, Monitor & Recorder
- Limited 2-Year Manufacturer Warranty (for Hardware)
- Limited 1-Year Manufacturer Warranty (for Touchscreen)
