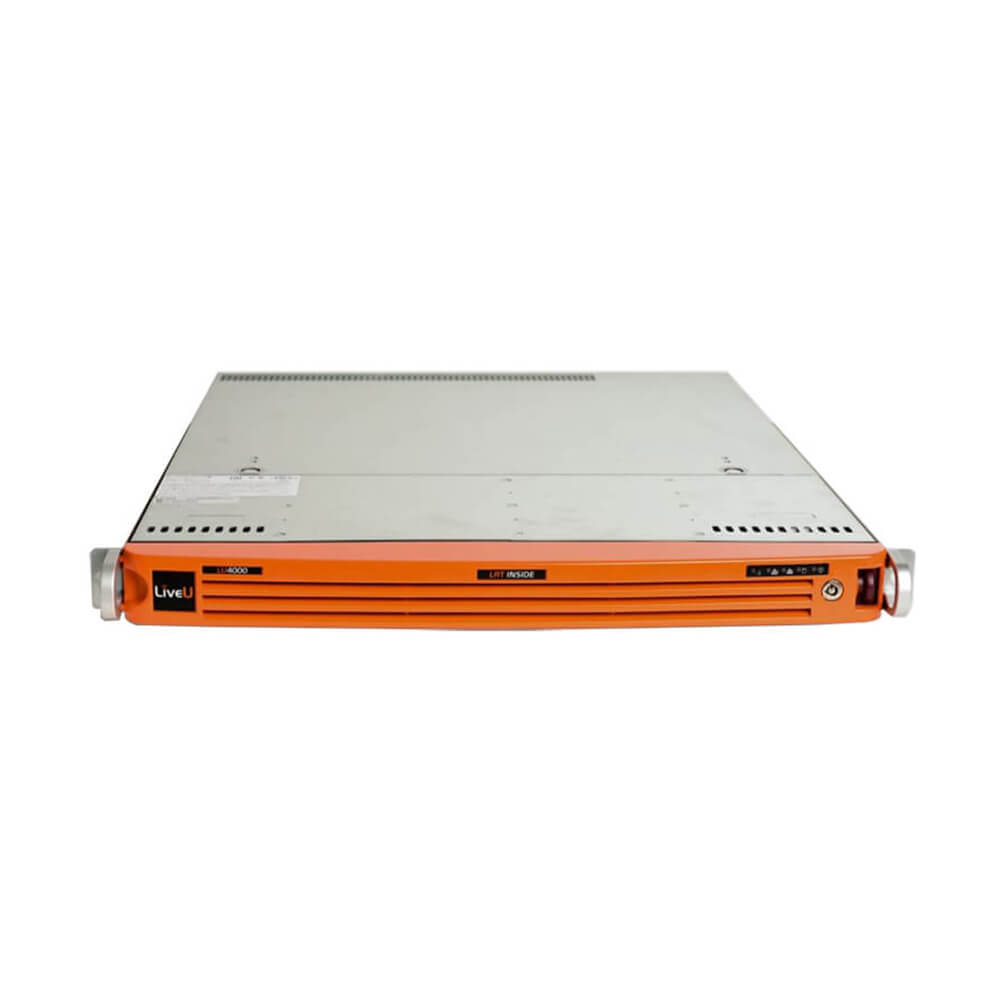

LiveU LU4000 BONDED VIDEO RECEIVER
The LU4000 becomes an integral part of your live video workflow, acting as your in-studio source of any remote LiveU live feed. The LU4000 includes the latest version of LiveU’s Multi-Media Hub (MMH), the software component that reconstructs multiple incoming LiveU streams.
The LU4000 becomes an integral part of your live video workflow, acting as your in-studio source of any remote LiveU live feed. The LU4000 includes the latest version of LiveU’s Multi-Media Hub (MMH), the software component that reconstructs multiple incoming LiveU streams.
MULTIPLE CONFIGURATIONS
The LU4000 comes in a range of configurations, from hardware-hosted MMH software, to cloud server solutions, and uses LiveU Reliable Transport (LRT), which includes patented Dynamic Adaptive Bitrate control and Forward Error Correction, allowing it to optimize live video delivery to different classes of receiver, dynamically adjusting bitrate and quality for the best viewer experience at any time.
SEAMLESS INTEGRATION
Each LU4000 can receive up to 14 simultaneous LiveU live feeds, allowing the remote operator to select the feed that is actually sent out over SDI for local consumption, or streamed over the network for CDN or any other online video streaming. The LU4000 integrates seamlessly with LiveU’s multilayered live video ecosystem, allowing operators to monitor and control live streams via LiveU Central, the unified management platform for LiveU’s field and studio units.
ALL TYPE OUTPUT
The LU4000 can receive multiple preview feeds, allowing the remote operator to select the feed/s played out for local consumption. Built for maximum workflow flexibility, the LU4000 offers multiple output options including SDI, NDI, RTMP, RTSP, MPEG-TS and SRT.
LiveU LU4000 Specification |
|
FORM FACTOR | 1U rackmount server |
SOFTWARE | Pre-installed with LiveU LRT decoder software |
VIDEO DECODER | H.264/HEVC |
IP OUTPUTS | SRT, RTMP for streaming to CDNs or social media, RTSP, MPEG-TS, LiveU Matrix and NDI |
RESOLUTIONS | 2160p50/60/25/30/24, 1080p50/60/25/30/24, 1080i50/60, 720p50/60/25/30/24, PAL, NTSC |
VIDEO INTERFACES | 1X12G-SDI Output or 4X3G/HD/SD SDI Output |
NETWORK INTERFACE | 2 X 1000/100/10 RJ-45 |
AUDIO CHANNELS | 2, 4, 8 |
POWER SOURCES | 110-240V 50/60Hz |
CONTROL | Full control using cloud management via LiveU Central |
PREVIEW | Transcodes and outputs preview via LiveU Central |
DIMENSIONS & WEIGHT | Varies by region. For more details please contact us |
- LiveU LU4000 Multi-purpose Decoder
