- Supports 3G level A and B on inputs and output, allowing conversion between 3G level A and B
- Low cost (3G/HD/SD)-SDI 1 to 4 Multi-Viewer or 4 to 1 input multiplexer
- Custom Layouts with various standard layouts
- 16 Character UMD overlay per window with individual enables, custom positioning and size
- 8 Channel Audio Metering overlay per window with individual enables, custom positioning and size
- Horizontal and / or Vertical image flipping per window
- Audio ID overlay
- Tallies can be applied to either Tally Boxes (Default) or Border
- Tally boxes allows for up to 4 Tallies per window
- Fast switching between inputs using Full-Screen scaling
- Selectable output format in both Full-Screen Multi-Viewer mode
- Low latency buffering for each input allowing non-synchronous inputs
- Linked (3G/HD/SD)-SDI and HDMI outputs
- 4 x (3G/HD/SD)-SDI inputs with auto detection (26 Formats supported in total)
- Each window is independent of the others, allowing any 3G/HD/SD format of any frame rate to be displayed simultaneously
- Variable aspect ratios per window
- In Pass-Through mode the selected input is passed through to both the (3G/HD/SD)-SDI and HDMI outputs

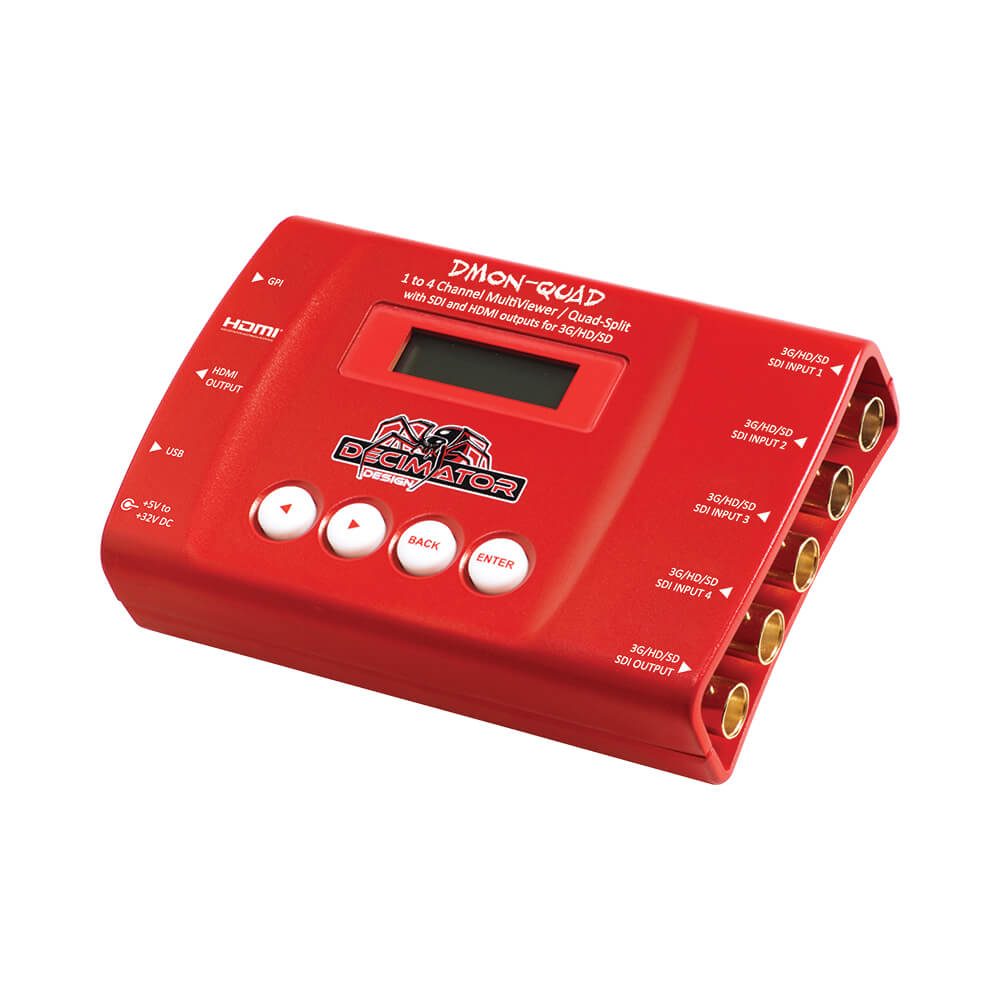

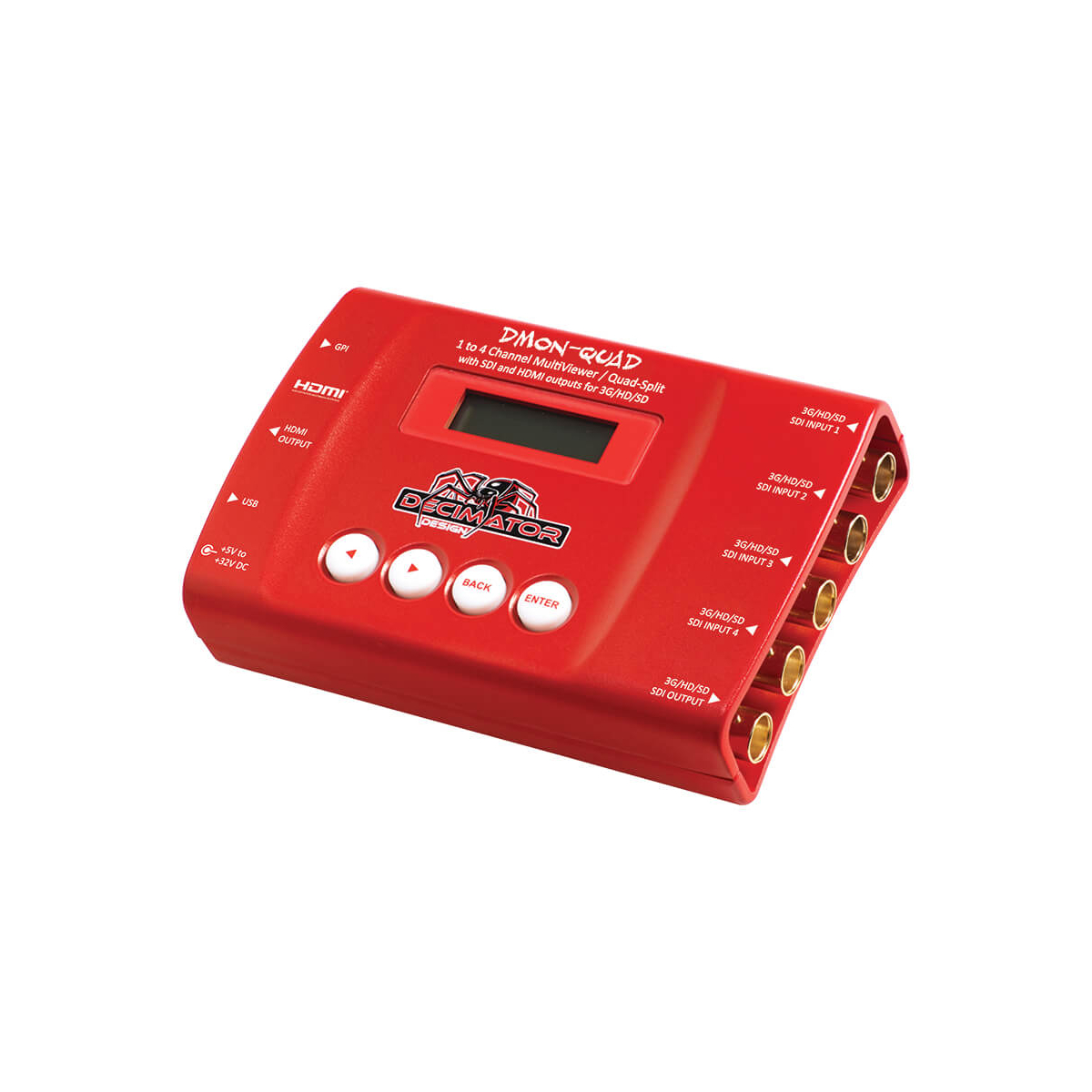

- The DMON-QUAD is a truly portable converter, that incorporates our easy to use LCD and button control system. This gives you easy access to most of the amazing features without using complicated LED / button control, dip switches or having to carry around a computer to change a simple setting.
Specification |
|
SDI INPUT & OUTPUT FORMATS |
3G-A or 3G-B:SMPTE 424M@2.97 and 2.967Gb/s
HD:SMPTE 292M/274M / 296M@1.485 and 1.435Gb/s
SD:SMPTE 259M@270Mb/s
|
HDMI OUTPUT FORMATS |
|
POWER |
|
DIMENSIONS |
79.5mm x 123mm x 29.5mm (3.1” x 4.8” x 1.2”) |
LCD / BUTTON MENU OPTIONS |
|
INPUTS |
|
OUTPUTS |
|
- DMON-QUAD MultiViewer / Quad-Split
- GPI on RJ-45 connector for Tallies and Remote Switching
- RS422/485 on RJ-45 connector for Dynamic UMD and Tallies
- USB port for control and firmware updates
- Robust Aluminium box
- Metal Thread Locking DC Power Socket - Power Supply, HDMI Cable and USB Cable
- 3-years Limited Manufacturer's Warranty
