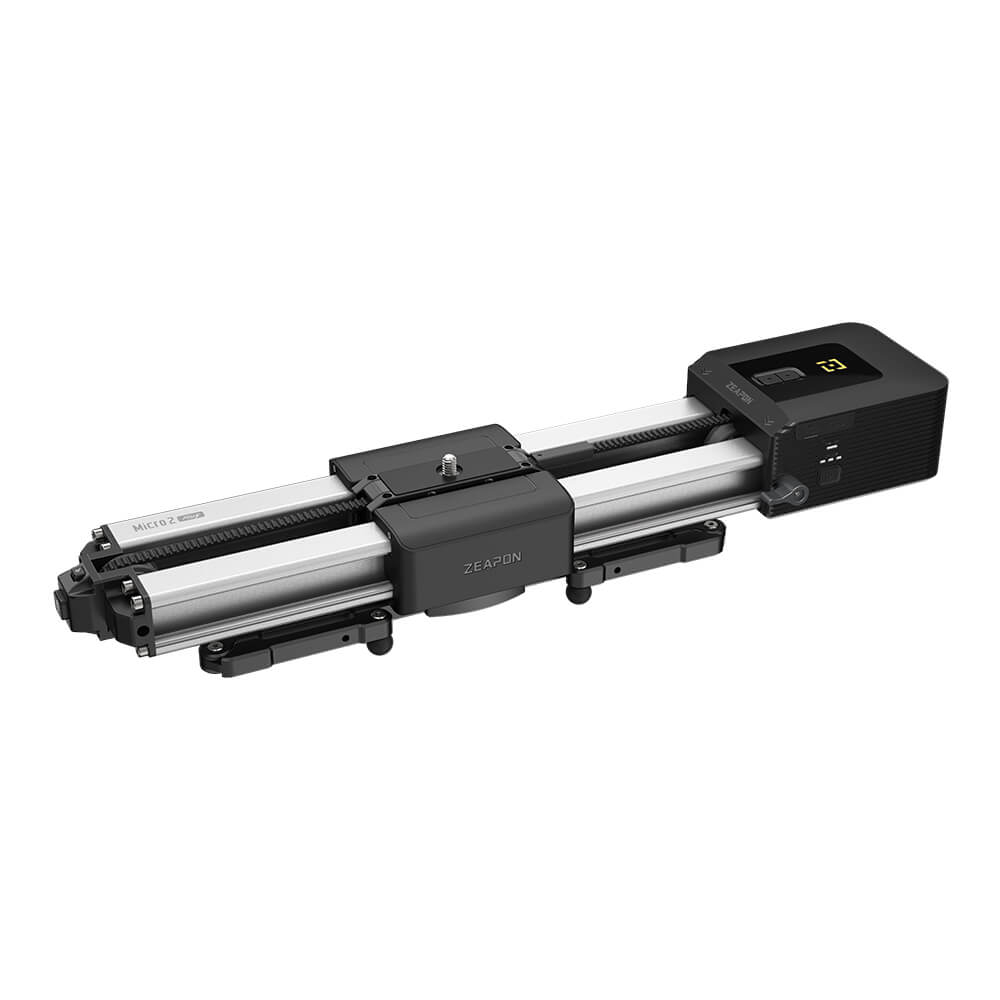

SUPER WEIGHT CAPACITY
High 4.5kg payload in ALL angles. Suitable for all DSLR's, CSC and small cinema cameras.
TRAVEL LENGTHS WHILST REMAINING COMPACT
The Micro 2 Plus series inherits the advantages of the original design, By having an extendable design, you can ensure that the slider won't show in frame as well as gaining extra travel distance!
30s MAGNETIC QUICK RELEASE
The motor design incorporates a magnetic belt which allows users to switch between manual and motorised settings in as little as 30 seconds.Additionally, the built in belt tension provides users the option to adjust the belt tightness, allowing a range of stability for different cameras.
SHOOTING HAS NEVER BEEN SIMPLER
The Micro 2 Plus motor comes with a simple button interface to allow directional movement. All it takes is a press and hold to start moving in either direction or double click for constant travel. 3 speed modes can be adjusted on the fly for extra precision.
UNLIMITED CREATIVITY
The Micro 2 Plus series integrates the low-profile mount to the body of the rail slider, allowing for a plug and play workflow over arduous assembly.
The high quality material paired with the supporting feet allow a robust yet lightweight setup. When not in use, the slider can be protected in the included portable travel bag.

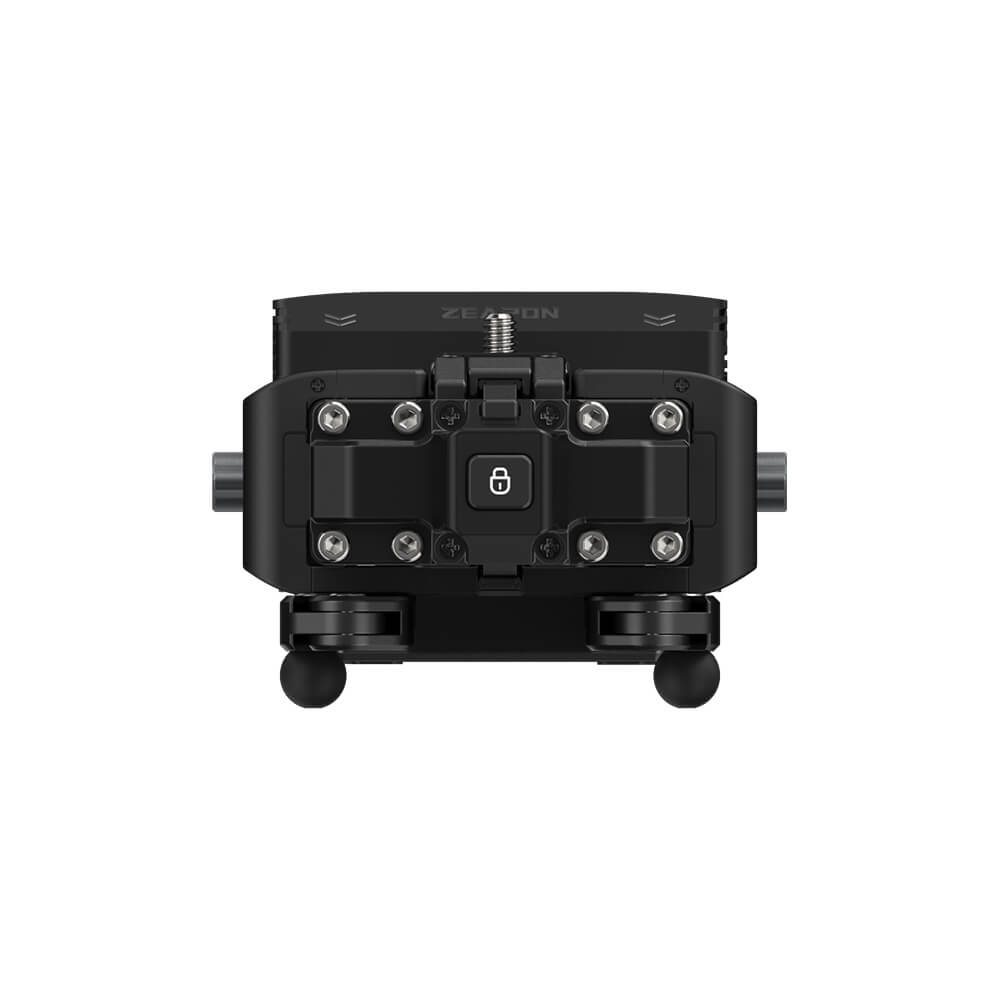

SECURE LOCKING
The Slider has a belt locking button at one end, which supports locking of the carriage in any place.This is useful for situations where you would like to briefly protect the slider from moving around such as between shot changes and during disassembly.

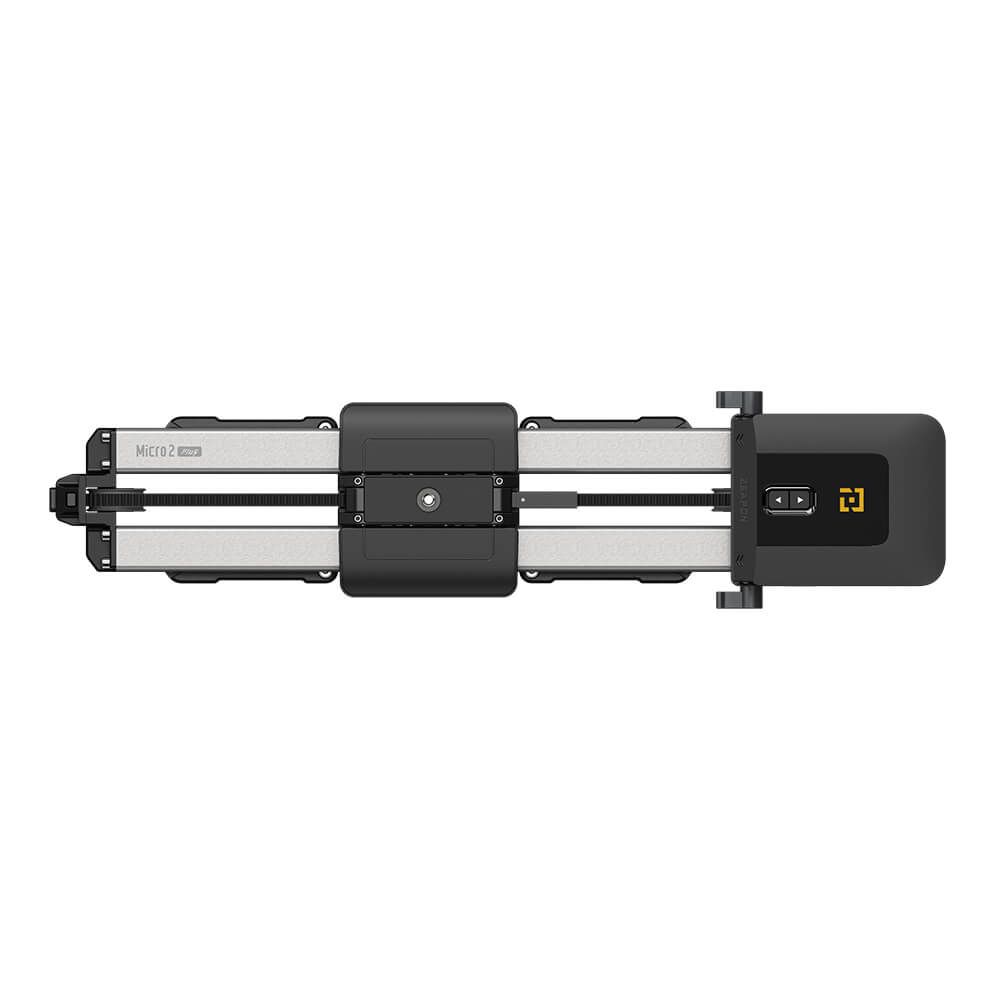

3 ADJUSTABLE SPEEDS WITH MULTI-BUTTON CONTROL
ZEAPON realised the needs of different users in mind and added multiple control buttons to control the slider. You can travel left and right and set three speeds of operation. At the same time the colour changes of the lights indicate the remaining power of the battery.
SMOOTH AND SILENT
The Motor introduces a buffer design technology in its circuitry which allows it to achieve a gradual start and stop of the rail slider in order to avoid vibrations that would come from an accelerated movement.
This reduces post-processing of the videos as it eliminates micro jitter. Plateau tangents are incorporated into the motor so you will get a smooth start and finish movement in the shot.
The slider is powered by a high torque step motor with a minimum noise of 39 decibels, freeing you from noise reduction techniques in post production and allowing you to focus on shooting in the moment
UNIVERSAL BATTERIES
The Micro 2 Plus motor supports standard lithium batteries such as NP-F550, NP-F750 and NP-F970.
SD-E1 Specification |
|
Slider Length | 430mm |
Travel Distance | 540mm |
Net WT | 2000g |
Safety Payload | 4.5kg(All Angles) 8kg(Desktop Mode) |
Main Materials | Aerial Aluminum Alloy & ABS Composite |
Working Decibel | 39 dB |
Idling Battery Life under Video Mode (reference) |
F550 - 4 hours / F750 - 7 hours / F970 - 14 hours * Timelapse Battery Life is subject to parameter settings under different scenarios |
APP Compatible Systems | Android / iOS |
Connection | Bluetooth |
Power Supply | Operation Capacity:7V~8.4V 1.5A Input Voltage:9V-12V |
Compatible Battery | F550 / F750 / F970 |
- SD-E1 Motorized Micro2 Plus Slider x1
- 1/4"-3/8" screw x 1
- 1/4" quick-mount plate thumb screw x 1
- portable cloth bag x 1
- spare belt x 1
- user manual x 1
