Self-Developed System
Vaxis' first and only self-developed CINE OS touch operating system.
Tetrahedral interpolation 3D-LUT
Precise colour adjustment in three-dimensional space, more efficient and accurate LUT
Picture-in-picture mode
Multi-channel access to the screen, change the picture-in-picture display position to anywhere
Comparison of screenshots and LUTS
Non-traditional image freeze, real screenshot and the real time image can be compared directly in the system.
Abundant wireless control
Have all the functions of traditional wireless video system and optimized the interaction method. Provides different antenna selection methods and integrates frequency sweep function.

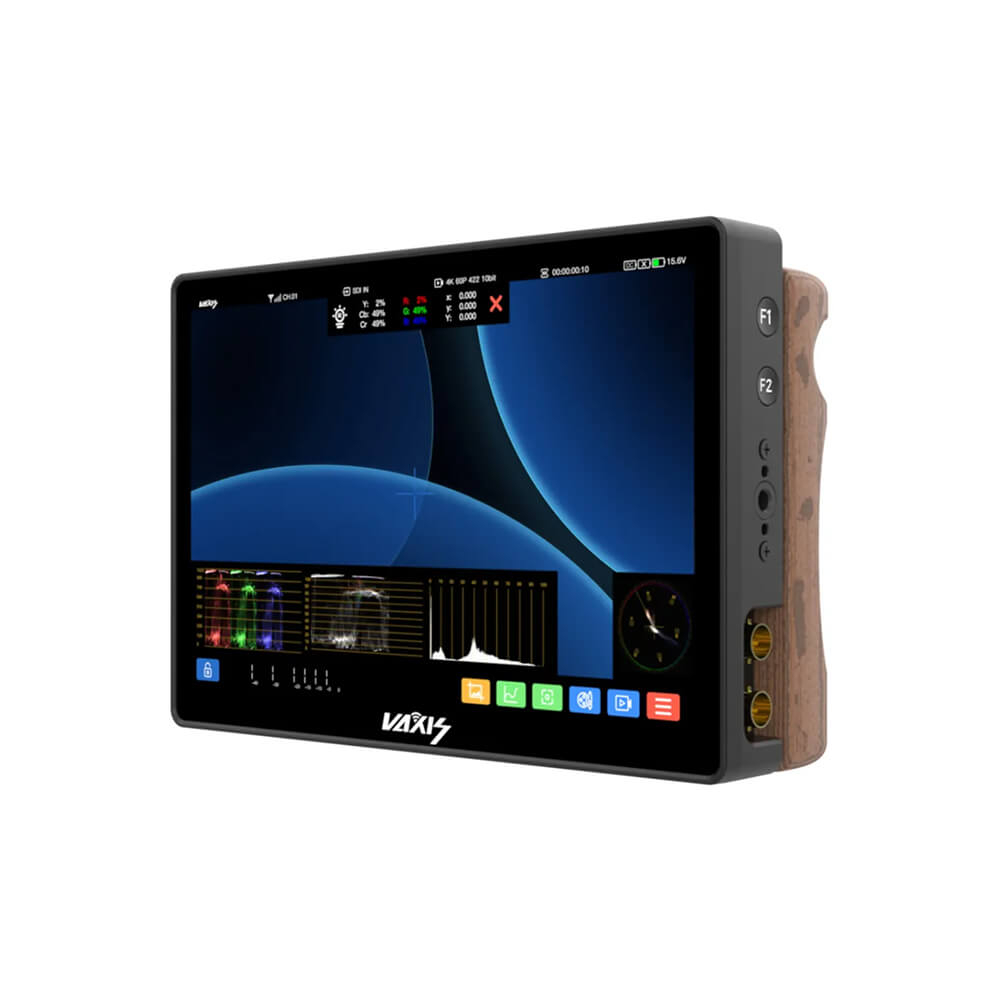

Detailed monitoring instrument
Waveform graphs, vector diagrams, histograms, cover and contain everything.
True Full Frame 4K READY
Vaxis CINE8 pioneered 6G SDI image input and output, true full-frame 4K display, 303PPI super retina visual clarity.
1+1 > 2
Simultaneous monitoring of multi-angle images of AB camera, supports synchronous import of multiple signal sources, true 1+1>2
Changeable Antenna
No antenna design with attractive appearance and stable performance at the same time, also external antennas can be connected for better distance and performance.
HDR Dynamic Compensation
Optimize and adjust ordinary HDR film source frame by frame to super-quality HDR display recreating life like details.
AFCA
Self developed AFCA intelligent focus assist algorithm and dynamic video enhancement algorithm create an unprecedented sharpness of the edge of the picture and control the most convenient way to focus.

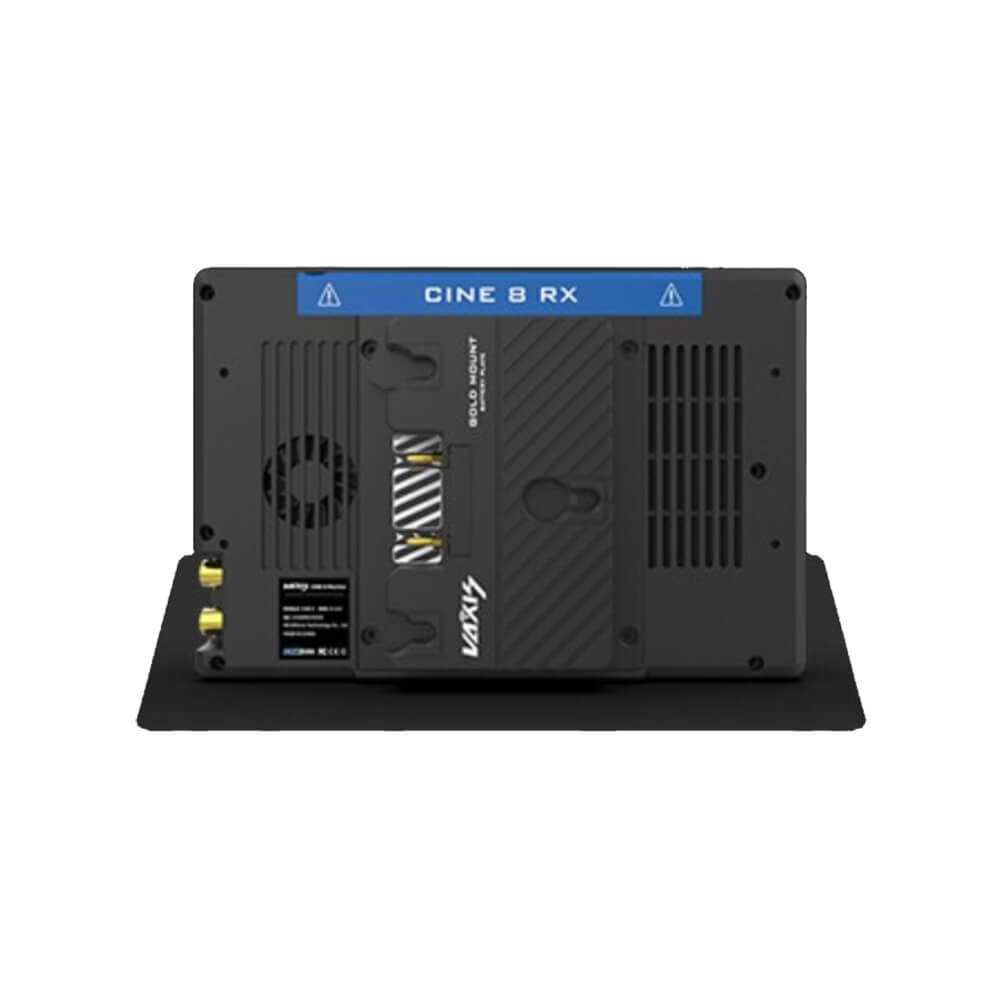

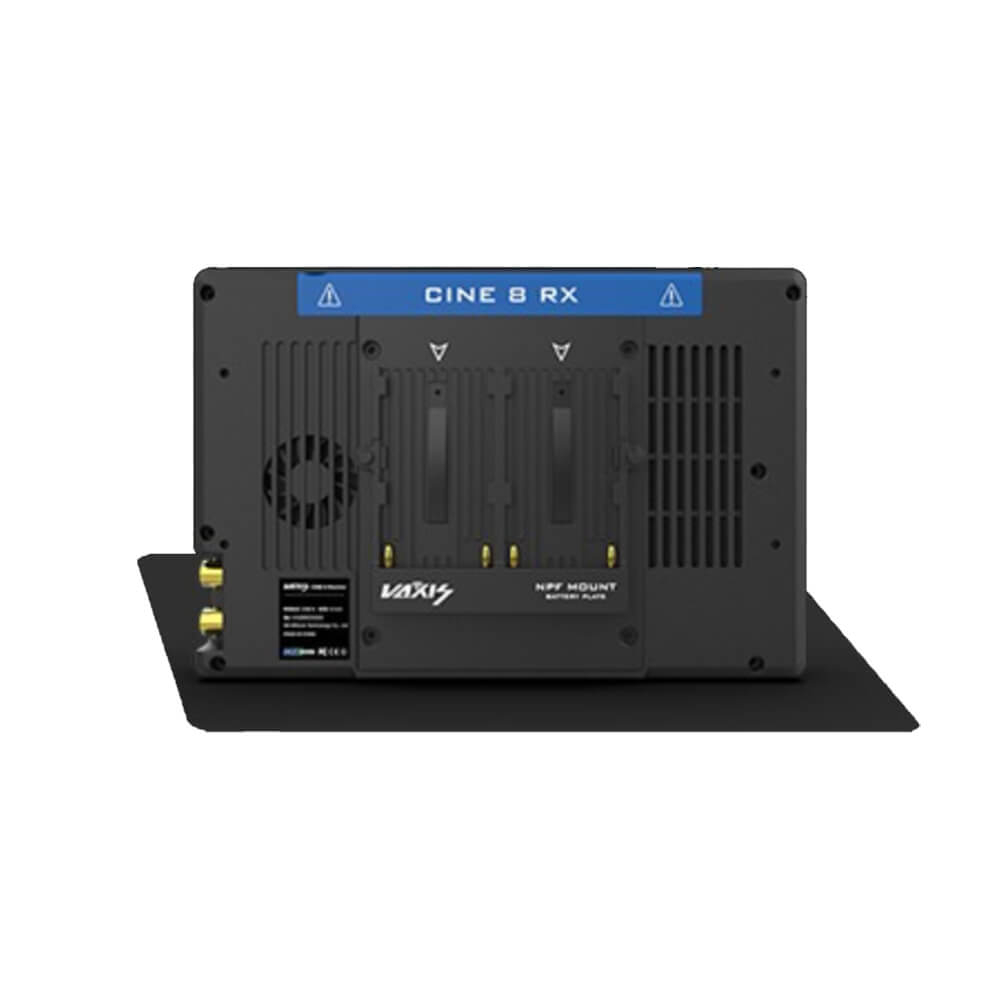

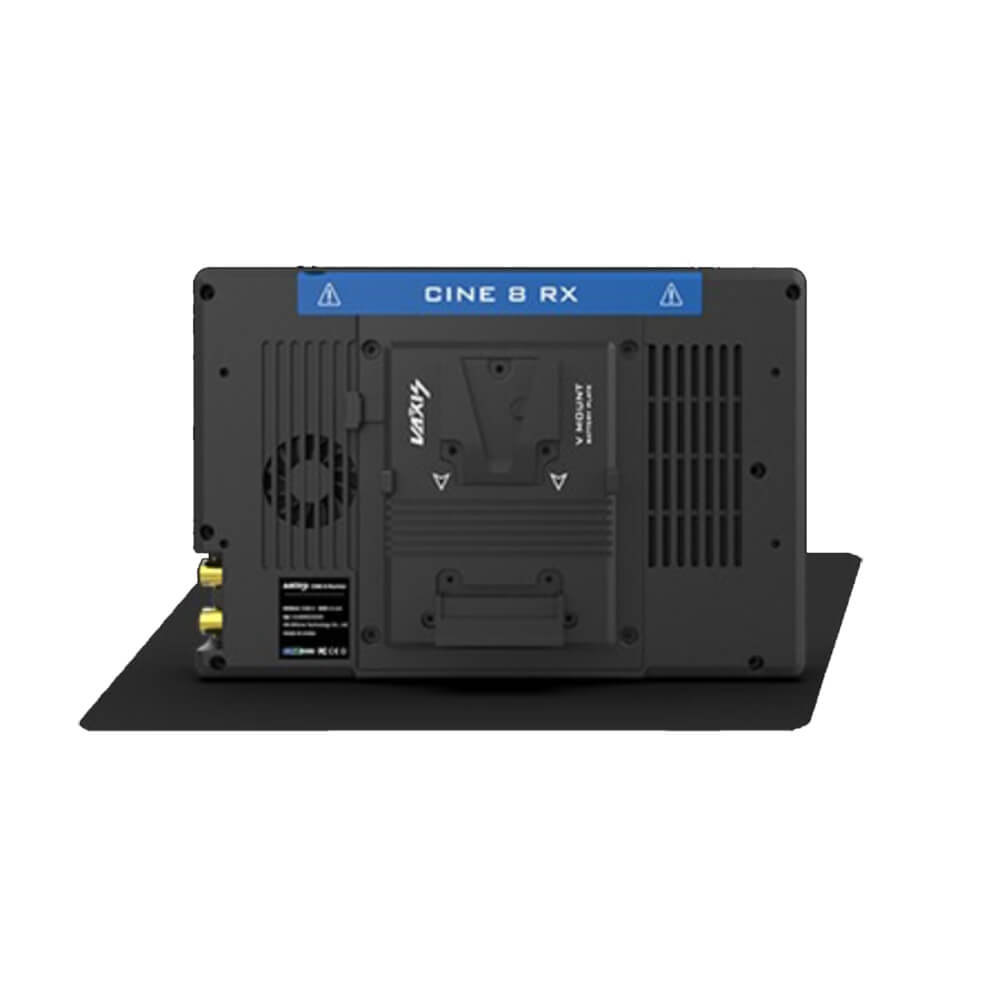

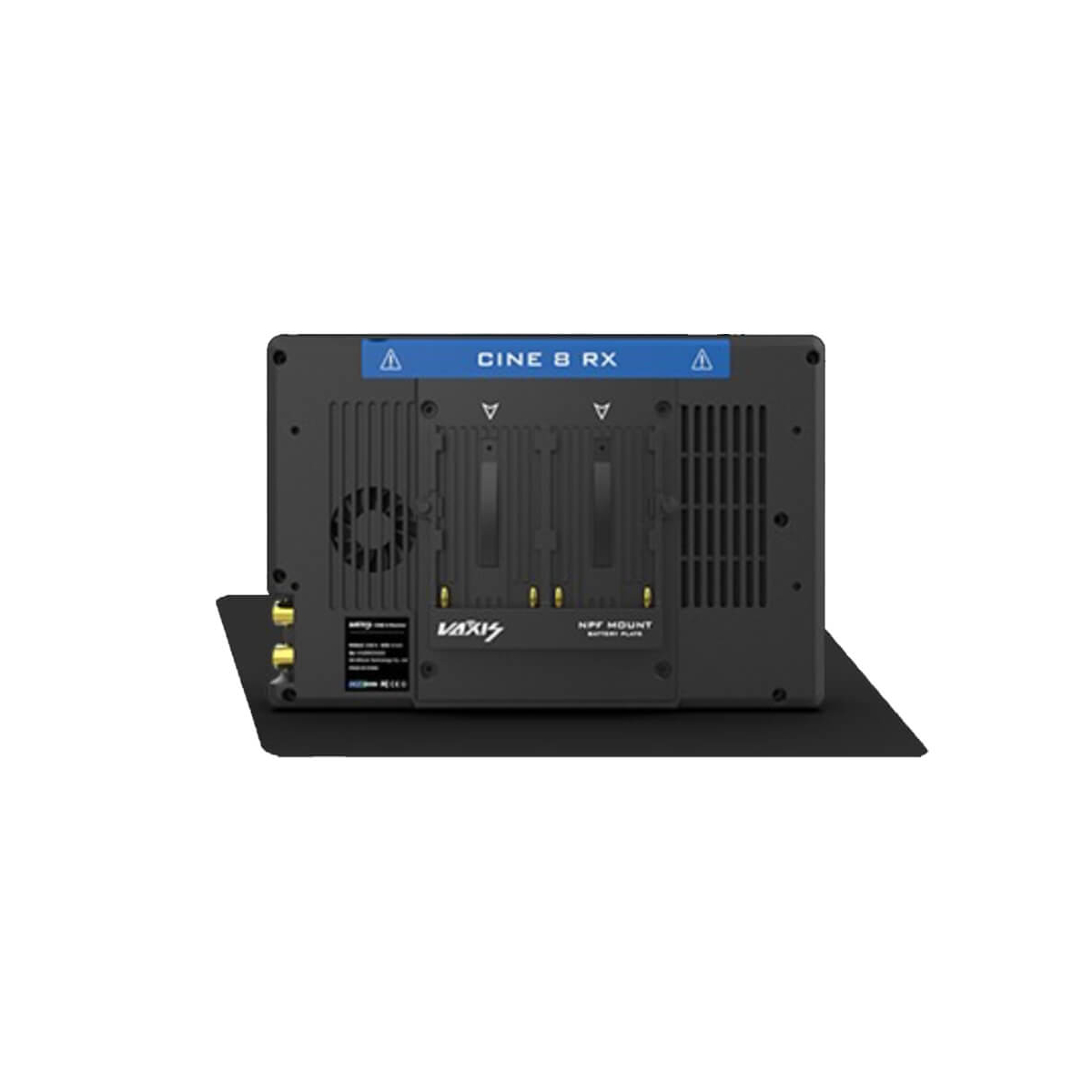

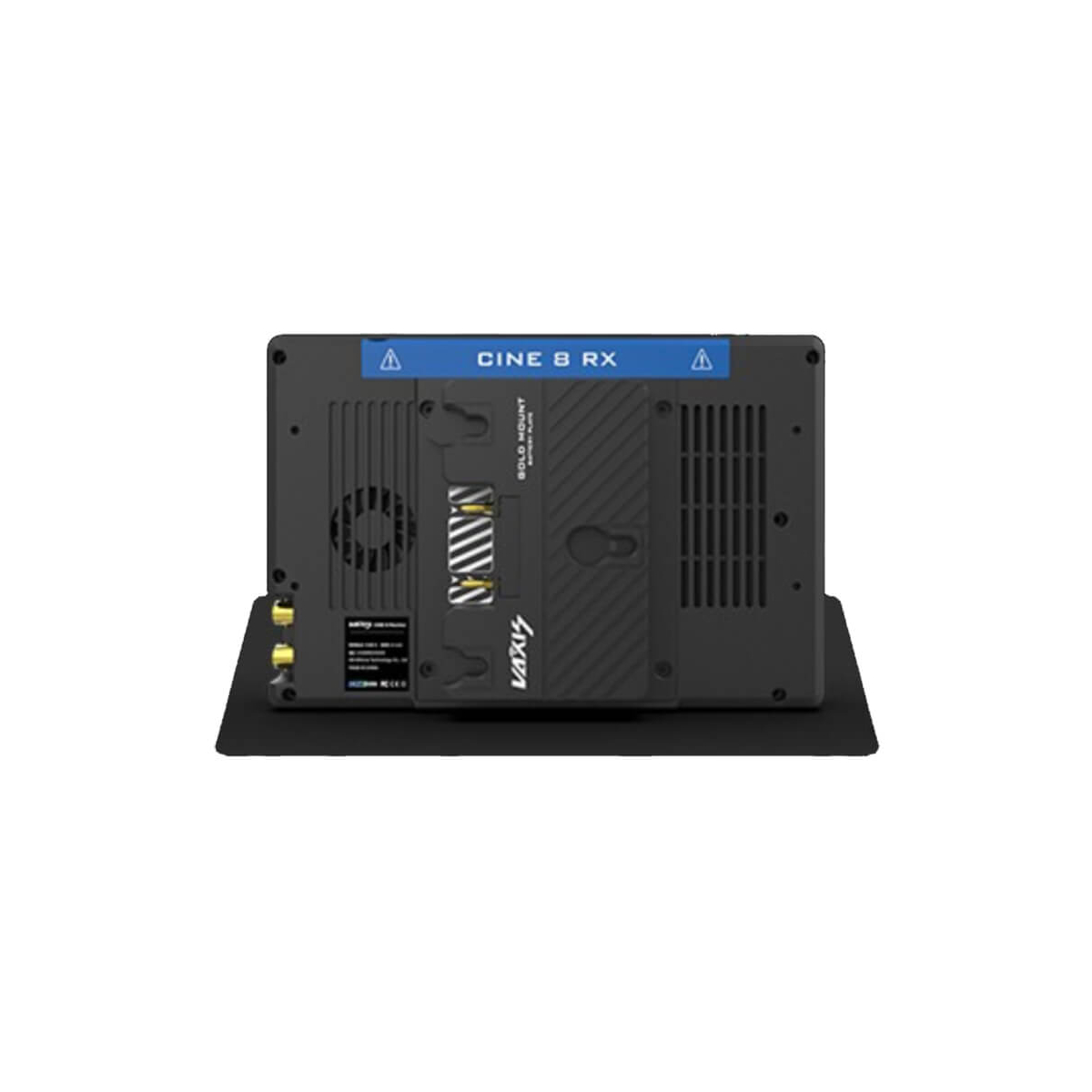

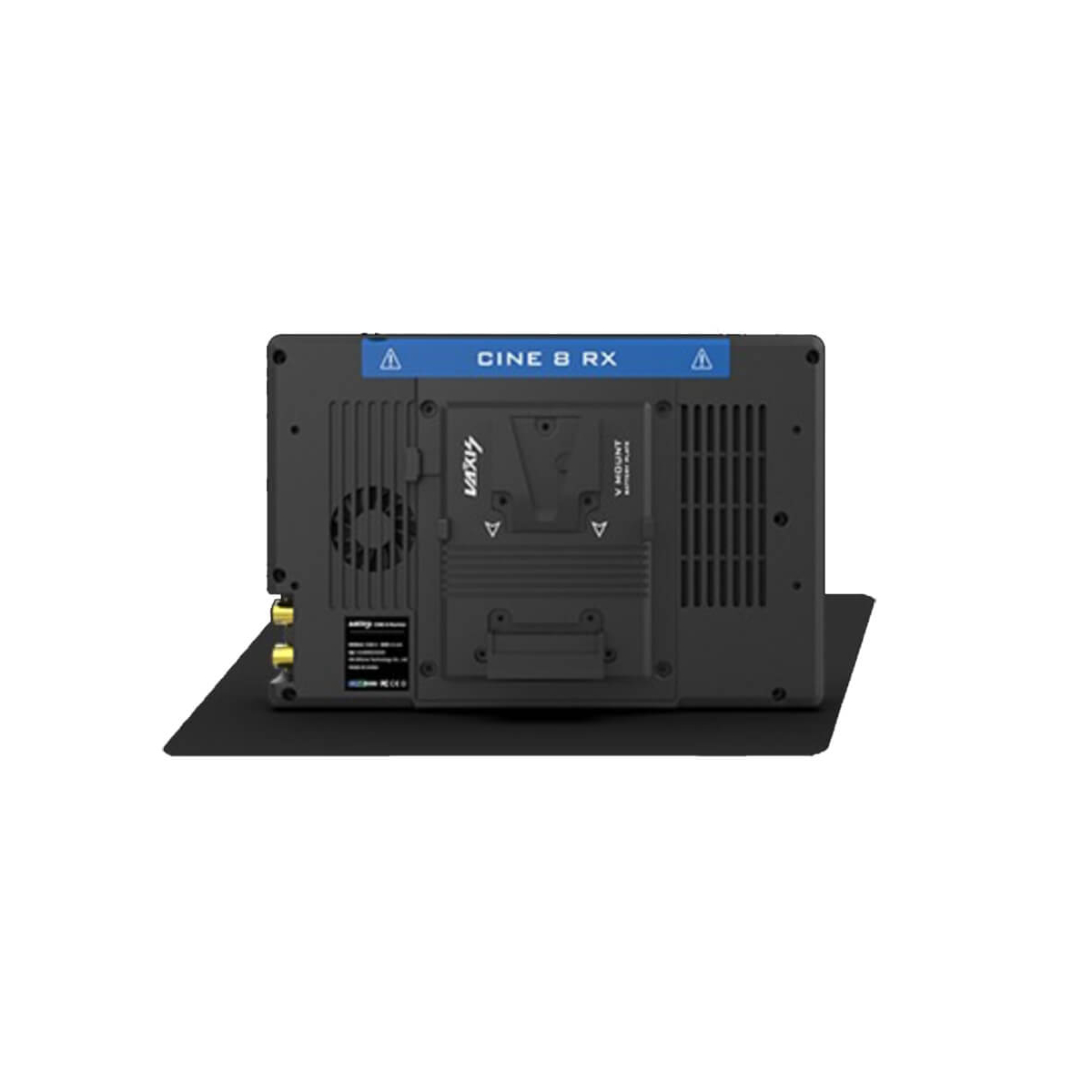

Compatible With Most Batteries
We remade the mount, which is compatible with most batteries on the market. Easy to replace.
Vaxis Storm Cine 8 Monitor Specification |
|
Interface | SDI input connector, SDI output connector, HDMI input connector, DC IN (2PIN Lemo connector), TYPE-C connector, 5 antenna connectors (SMA male) |
Input Voltage | 8-18V DC |
Power consumption | ≦21W |
Screen size | 8.9 inches, touch screen |
Screen resolution | 2160*1600 pixels |
Brightness | 1500cd/m2 |
Contrast Ration | 1000:1 |
Appearance size | 216 x 144 x 28.6mm (Without battery mount) |
Weight | 816g |
HDMI Input Video Format | 4096* 2160P25/24/23.98 3840* 2160P30/29.97/25/24/23.98 1920* 1080P60/59.94/50/30/29.97/25/24/23.98 1920* 1080I60/59.94/50 1280* 720P60/59.94/50 |
SDI Input Video Format |
422-10bit-YCbCr: 4096*2160P25/24/23.98(4K DCI) 422/12bit-YCbCr: 2048*1080P30/29.97/25/24/23.98 444-10/12bit-YCbCr/RGB: 2048*1080P30/29.97/25/24/23.98 |
WHDI Supported Video Formats | 1920*1080P60/59.94/50/30/29.97/25/24/23.98 1920*1080Psf30/29.97/25/24/23.98 1920*1080I60/59.94/50 1280*720P60/59.94/50 |
SDI Output Video Format (DUT Output Supported) |
SDI Input to SDI Output: 422-10bit-YCbCr |
HDMI input to SDI output | 1920*1080P60/59.94/50/30/29.97/25/24/23.98 1920*1080I60/59.94/50 1280*720P60/59.94/50 |
WHDI to SDI output | 1920*1080P60/59.94/50/30/29.97/25/24/23.98 1920*1080Psf30/29.97/25/24/23.98 1920*1080I60/59.94/50 1280*720P60/59.94/50 |
Audio | 3.5mm headphone output |
Upgrade method | USB flash drive (TYPE-C), USB flash drive file system FAT32 mode |
Wireless modulation | OFDM 16QAM |
Wireless operating frequency | 5.1G-5.9G |

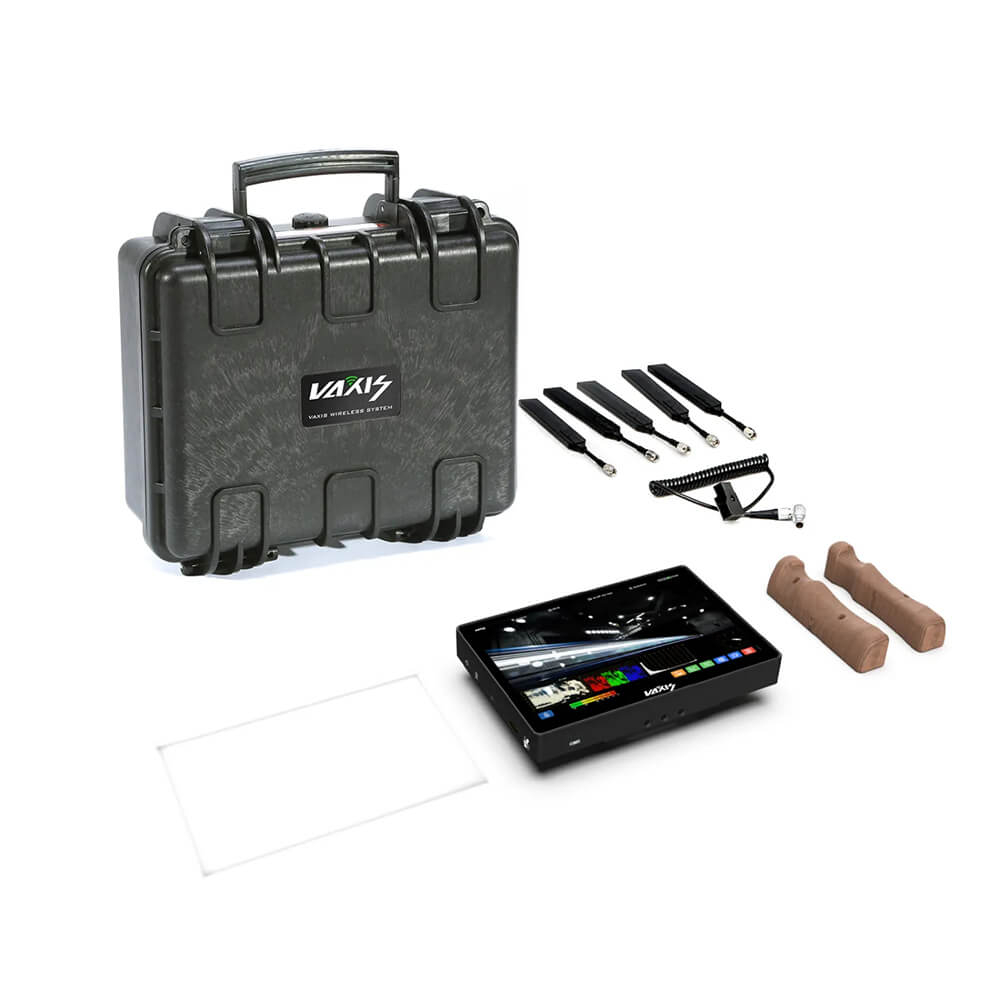

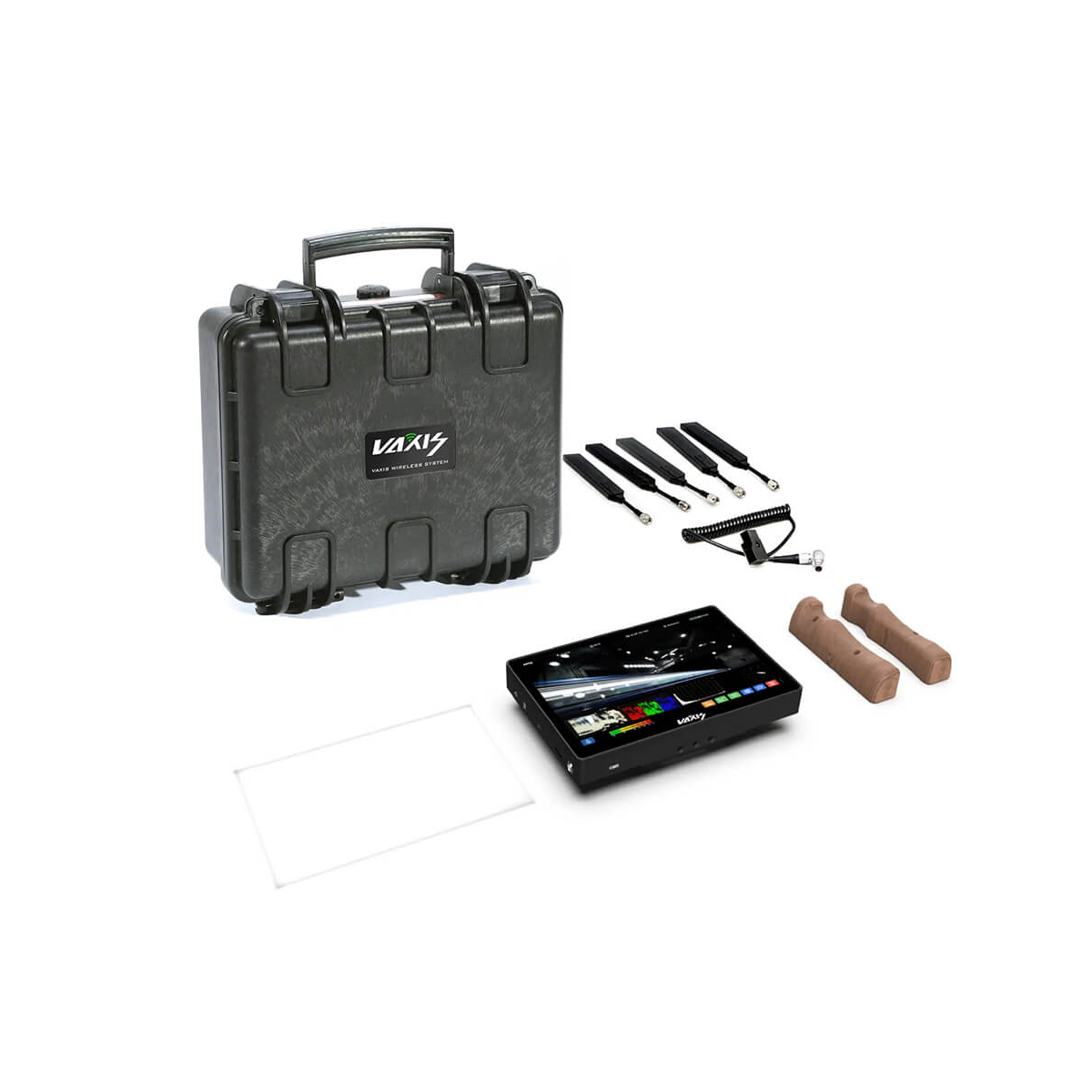

- 1x Cine 8 Monitor
- 1x Flight Case
- 5x Blade Antenna
- 1x Power Cable
- 2x Wooden Handles
- 1x Tempered Glass Screen Protector
