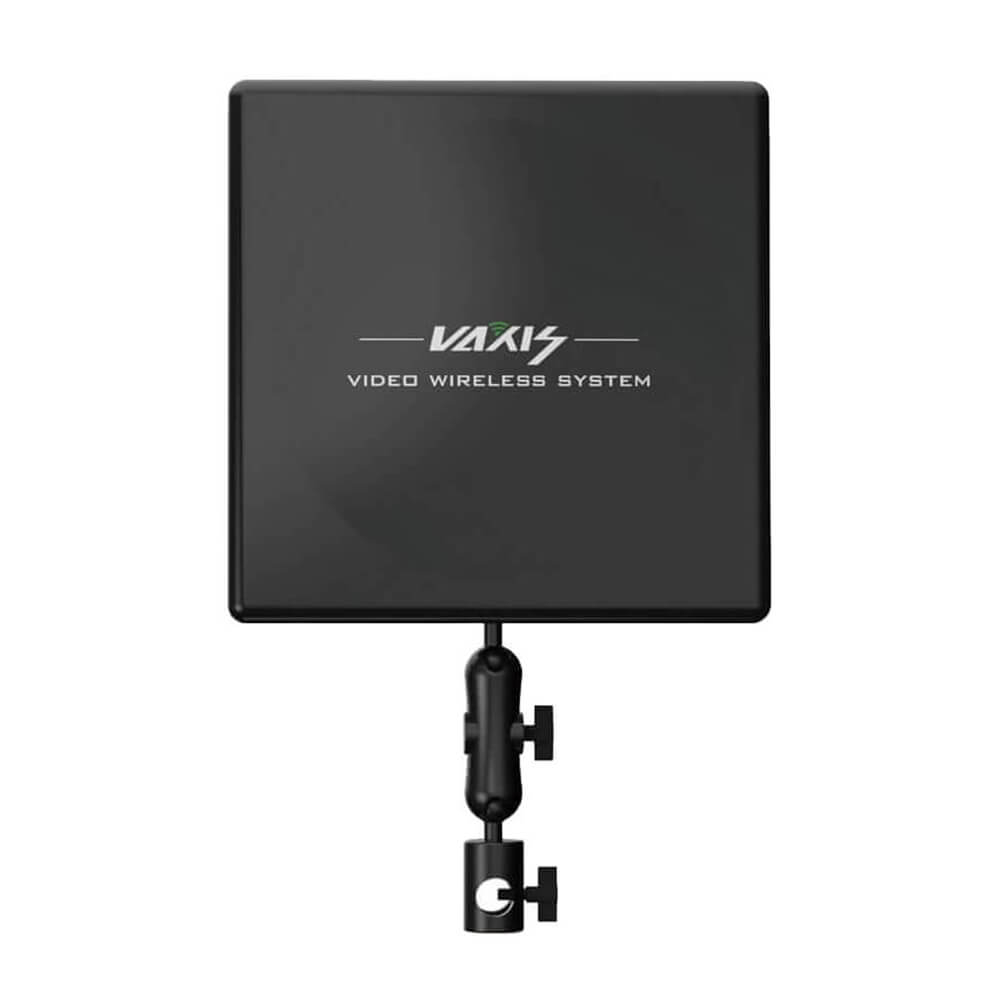

Light and Fast
Highly integrated design panel receiver adopting the industry-leading second-generation structural solution. The volume is reduced by an average of 50% and the average weight is reduced by 20% compared to the same class of products in the market. It is lighter, thinner, and smaller.
Ultra-Long Transmission Range - 1.5km
Equipped with 14dBi high-gain panel antenna, directional transmission distance up to 1.5km, the frame is still clear and stable even at extreme distances. Omnidirectional transmission distance can reach 450m. Support plug and play, no compression transmission, delay <1ms, can be widely used in film and television director monitoring, large-scale events, drone shooting / Flycam / Steadicam and so on.

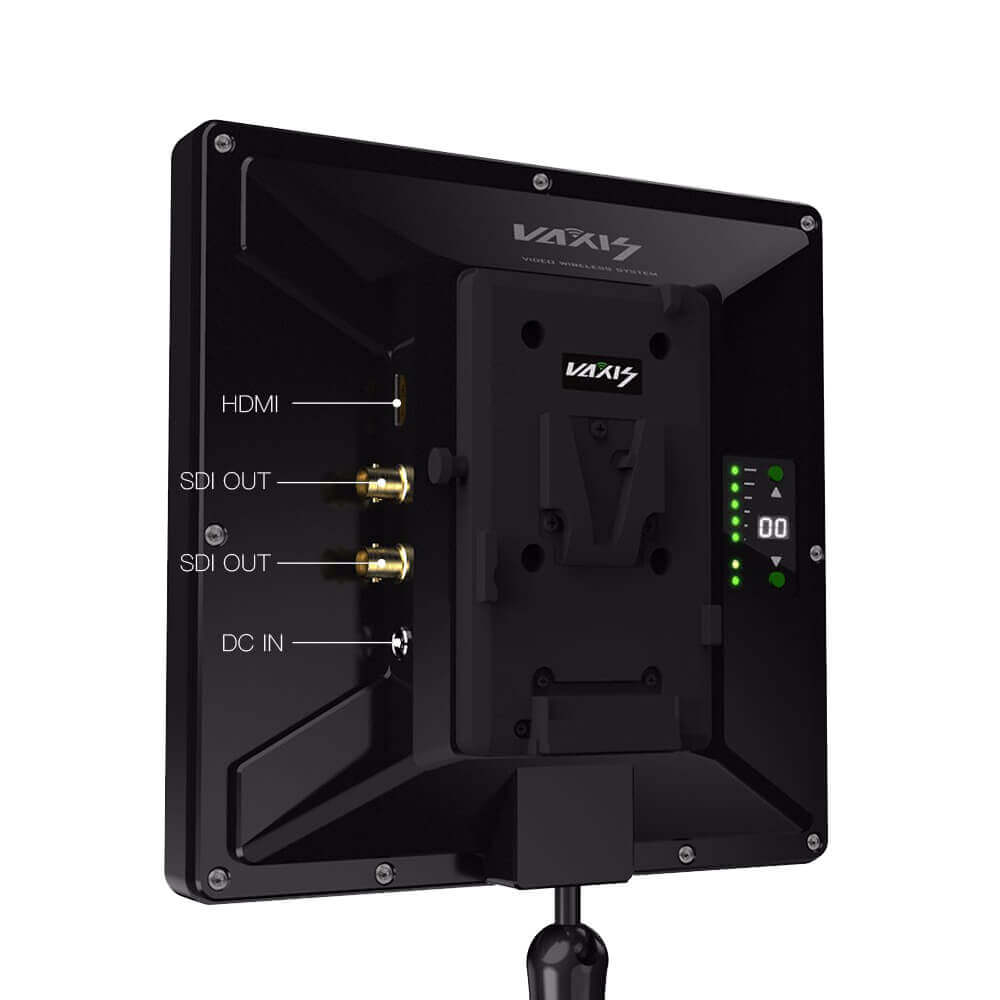

Multi-Interface
Supports dual SDI + HDMI simultaneous output, and can connect multiple monitors or relay devices to enable simultaneous monitoring by different areas such as directors, Focus Puller, and Studios.
Compatible with Storm Series Transmitters
If you use the Vaxis 5000 with other Storm receivers, you will only need one transmitter can easily meet the monitoring requests of different distances and different departments, and set up full on-site monitoring.
Key Features
- Up to 1.5km range
- Zero Delay
- No Compression
- Multi-Cast
- Built-in SDI and HDMI Converter
- Ultralight Panel Antenna
Vaxis Storm 5000 Specification |
|
Frequency Band | 5.0-5.9GHz |
Transmission Delay | 0 [<1ms] |
Antenna gain | 14dBi |
F/B Ratio | 25dB |
Isolation | 26dB |
Horizontal beamwidth | 40±5° |
Vertical beamwidth | 40±5° |
Standing-Wave Ratio | 2.0 |
Polarisation Mode | 5 Line; 3 line vertical polarisation, 2 line ±45° |
Maximum Power | 7.5W |
Characteristic Impedance | 50ohm |
Operating Temperature | -40°C - 55°C |
Lightning Protection | DC ground |
Antenna Size | 310 X 310 X 38mm |
Antenna Cover Material | ABS |
Wind-Resistant | 36.9m/s |
Antenna Weight | 2.48 kg |
