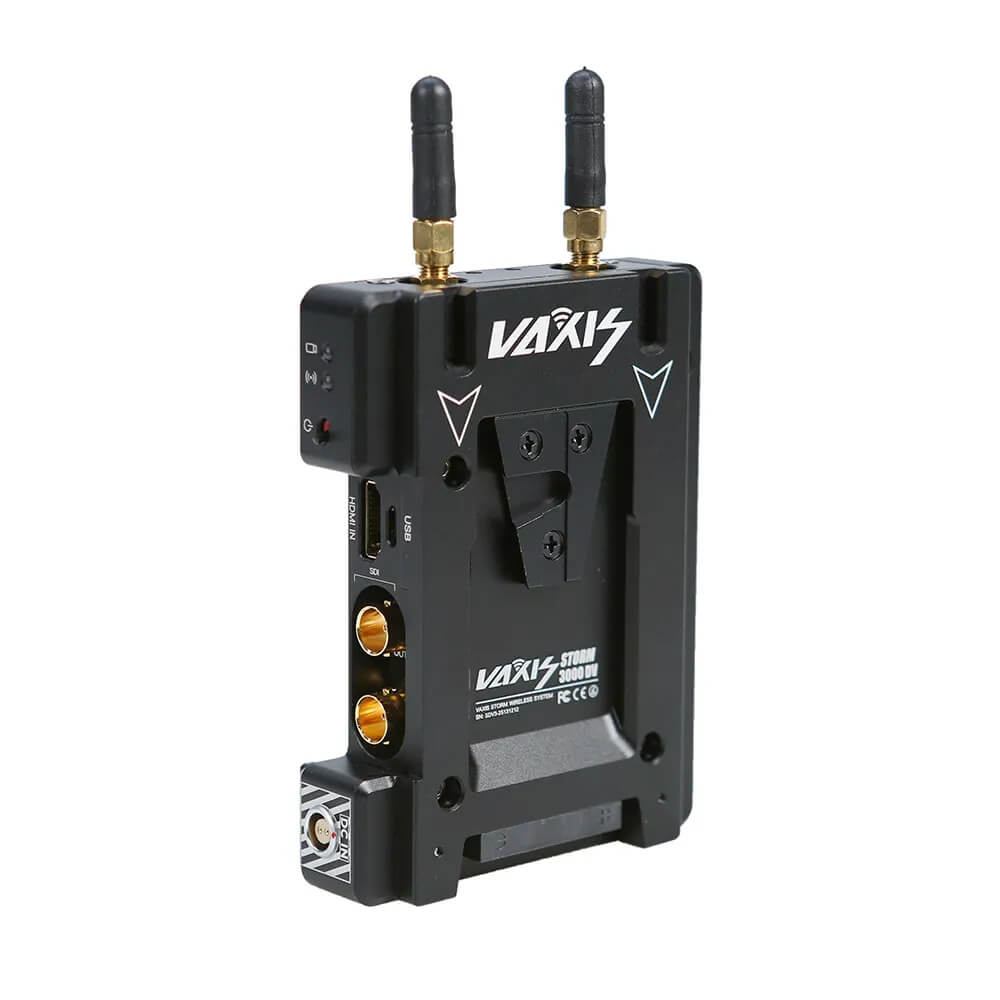

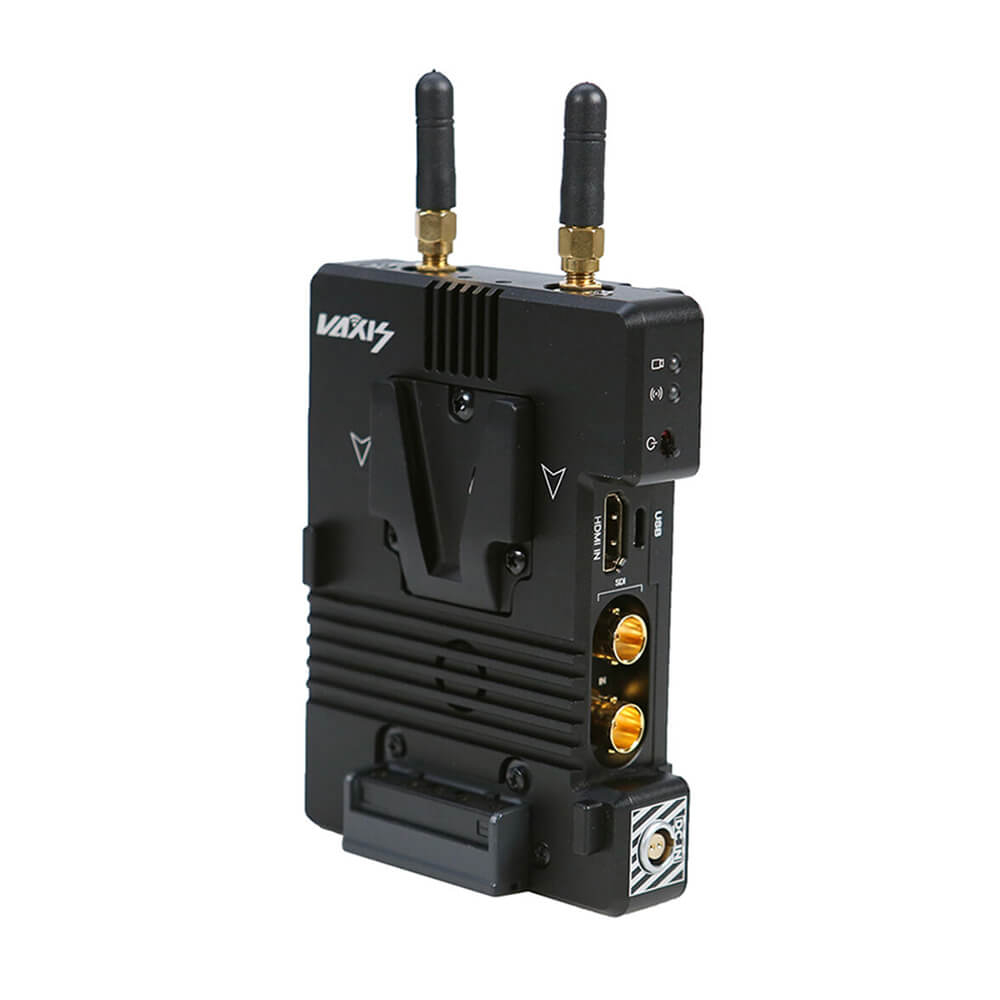

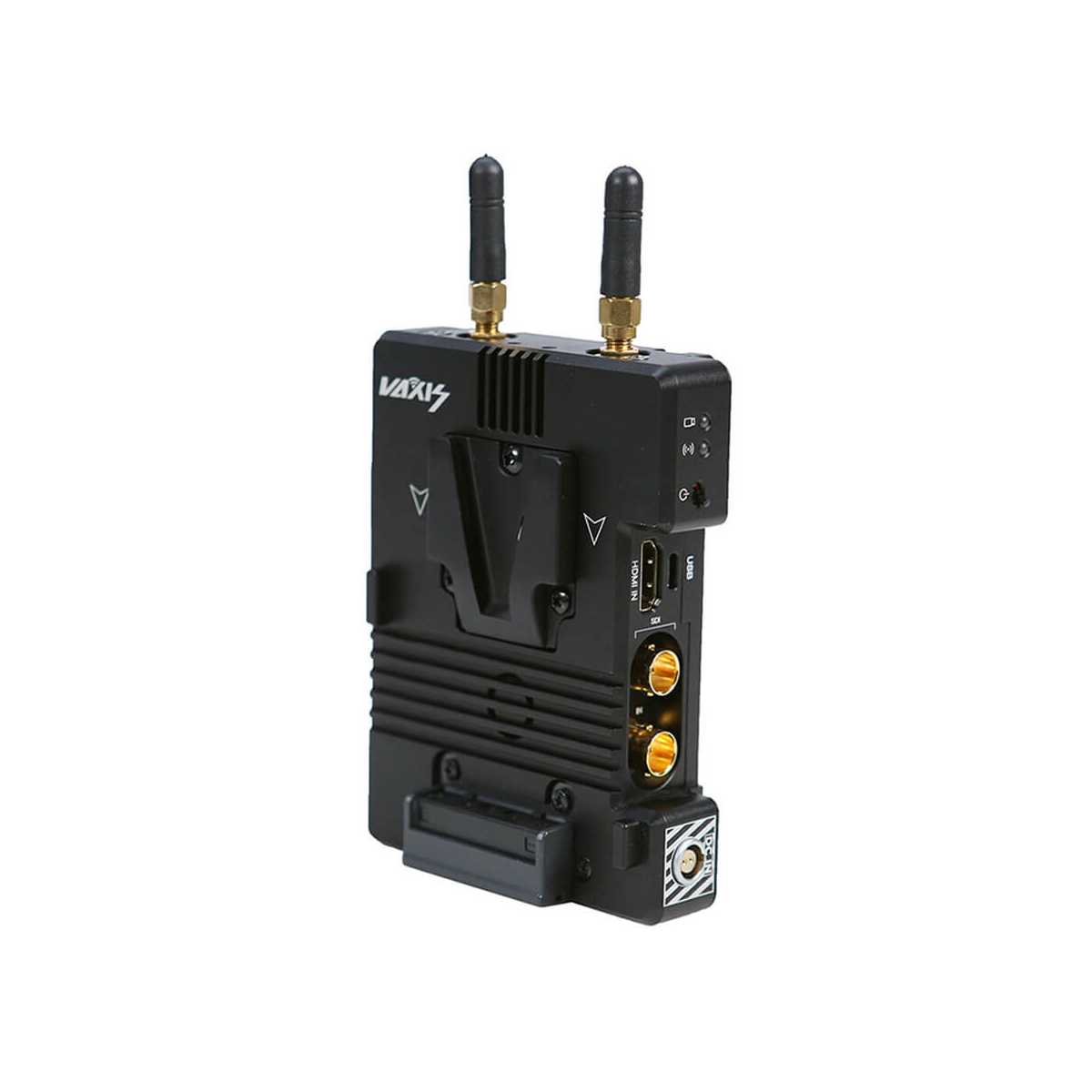

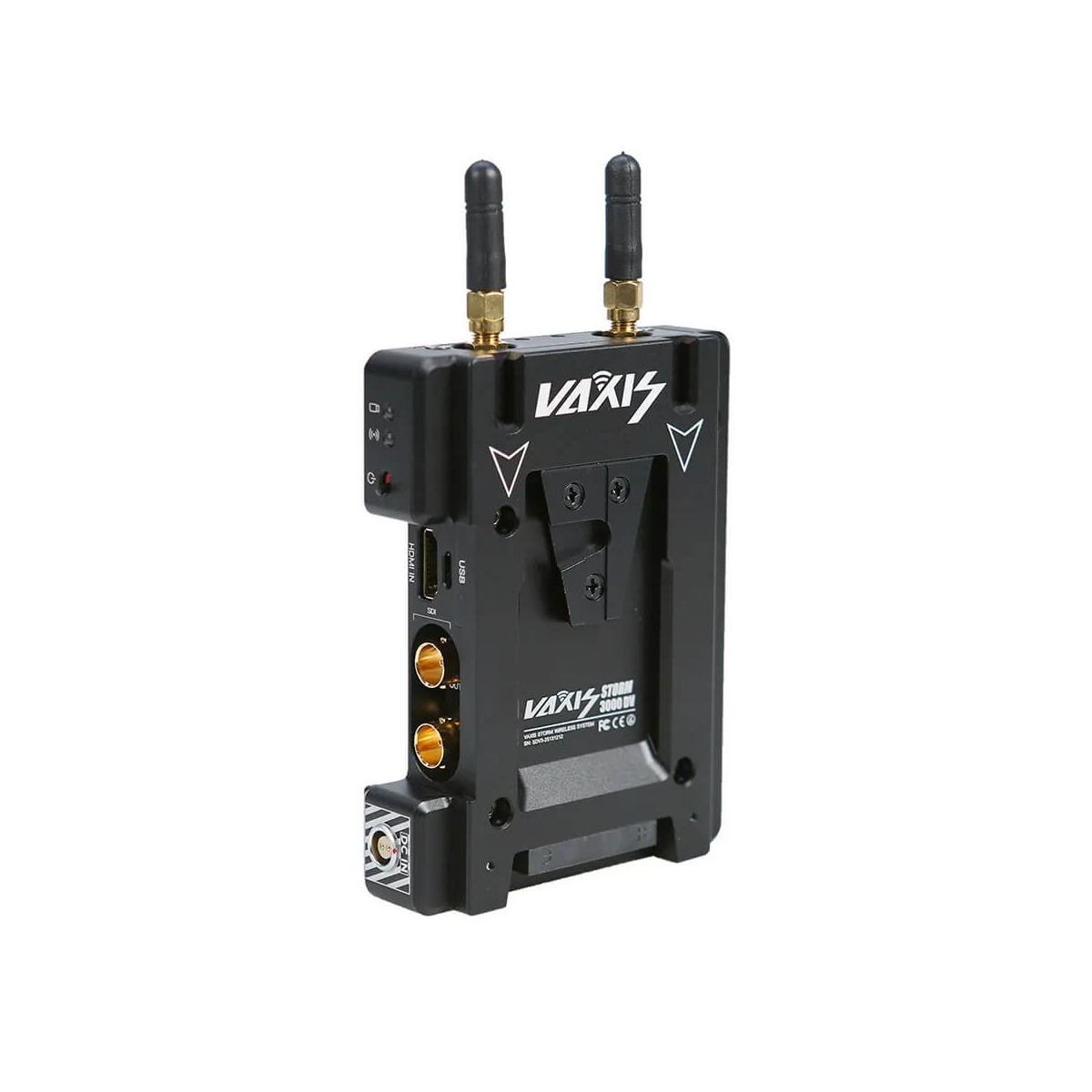

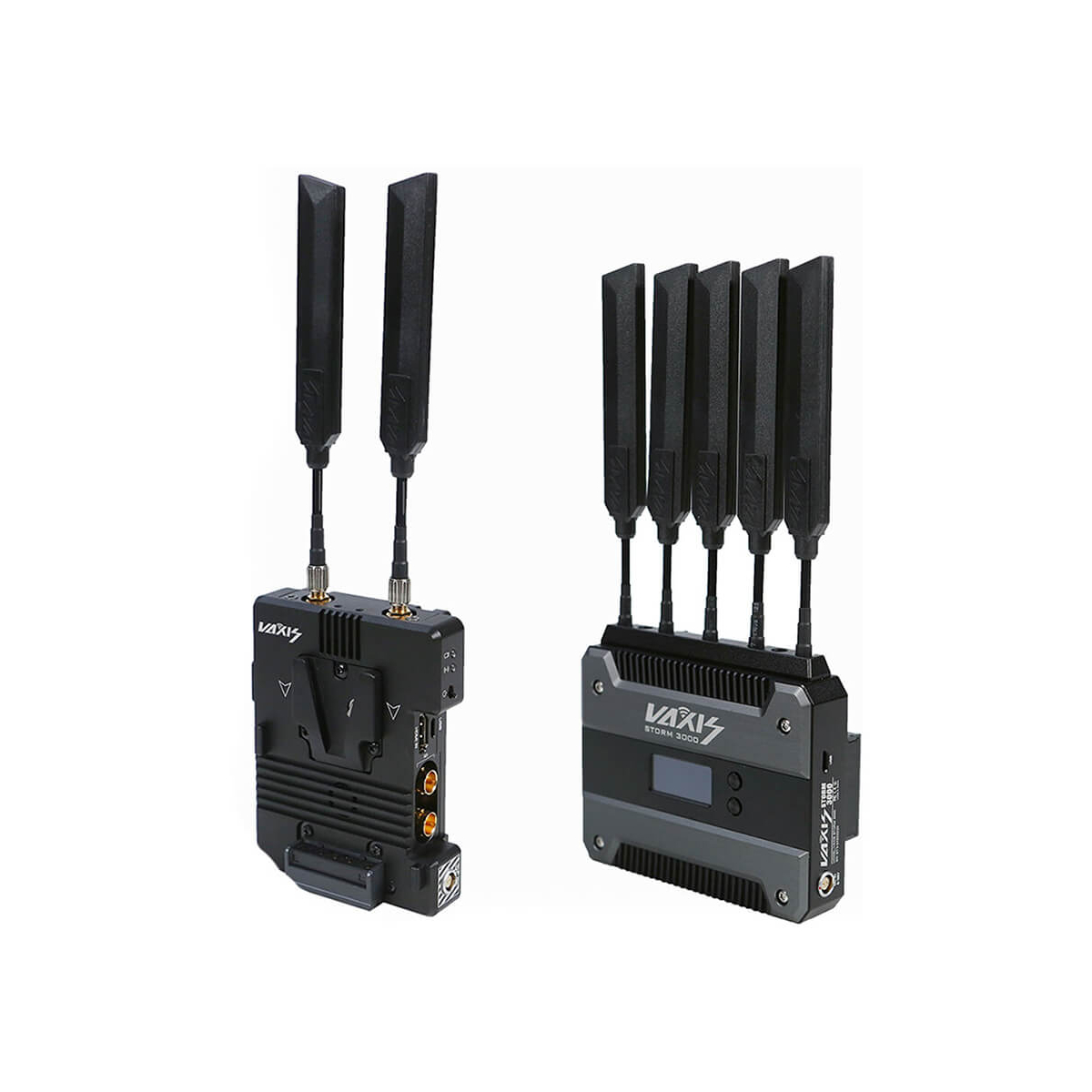

With the Storm 3000' DV Wireless Video Transmitter from Vaxis you can transmit visually lossless, uncompressed video signals to any Vaxis Storm receiver with zero latency. The unit features a dual V-mount plate which allows you to attach it to the V-mount plate on your camera and mount a V-mount battery on the other side, providing pass-through power to both the transmitter and the camera simultaneously. The transmitter features one HDMI input, one SDI input, and one SDI loop output, and it supports input up to 4K and up to 1080p60 video transmissions. The unit also supports cross conversion from HDMI input to SDI loop output.
The transmitter unit can be secured to a camera or other SDI/HDMI video source via a built-in 1/4"-20 threaded hole. The included short antennas provide connectivity for short distances of a few hundred feet, while the larger blade antennas transmit a powerful line-of-sight signal up to 3000'. It also supports the transmission of timecode, metadata, and timecode trigger information.
The Storm 3000 transmitter features 20 selectable 40 MHz channels and a 5.1 to 5.9 GHz wireless frequency range, and on the side is a bright LED display showing your connection status and channel information. The unit can be powered using its 2-pin LEMO port using a D-Tap or AC source with a separately available cable. A standard BNC cable is included so you can plug in right out of the box.
- Transmitter unit sends up to 1080p wireless video up to 3000'
- One SDI and one HDMI input; one SDI loop output
- Compatible with all Vaxis Storm receivers
- Dual V-mount pass-through battery plate allows you to power the transmitter and your V-mount camera or device at the same time
- HDMI/SDI cross conversion support
- Metadata, timecode, and timecode trigger support
- Bright LCD screen for settings, status, and scanning for open frequencies on 5.1 to 5.9 GHz range
- Mount on rig using 1/4"-20 thread
Vaxis Storm 3000' DV Wireless Video Transmitter Specification Display |
|
Antenna I/O | 2 x RP-SMA Female |
Wireless |
|
Wireless Range | 3000' / 914.4 m (Line-of-Sight) |
# of Channels | 20 (40 MHz) |
Channel Bandwidth | 40 MHz |
Frequency Range | US: 5.1 to 5.9 GHz |
Latency | < 1 ms |
Format Support |
|
Wireless Video Compression | Uncompressed |
Timecode Support | Yes |
Power |
|
Built-In Battery | None |
Environmental |
|
Operating Temperature | 32 to 104°F / 0 to 40°C |

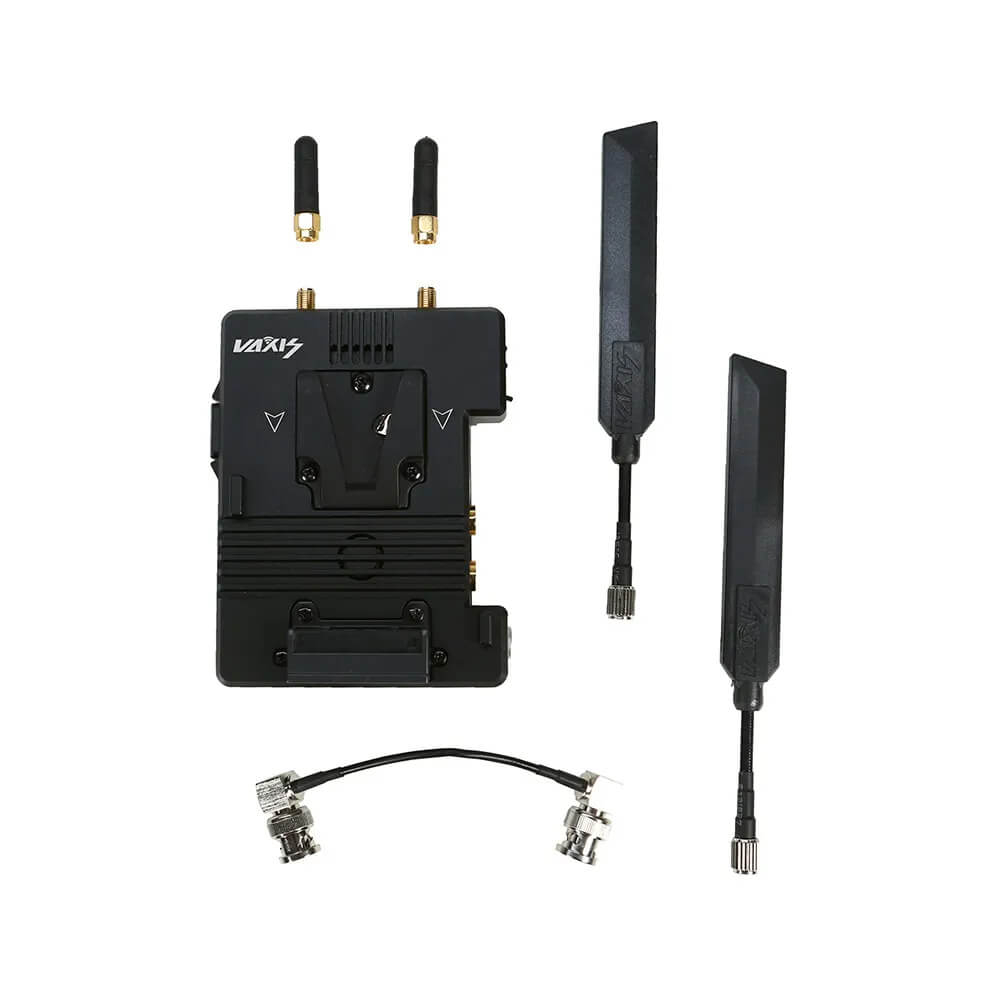

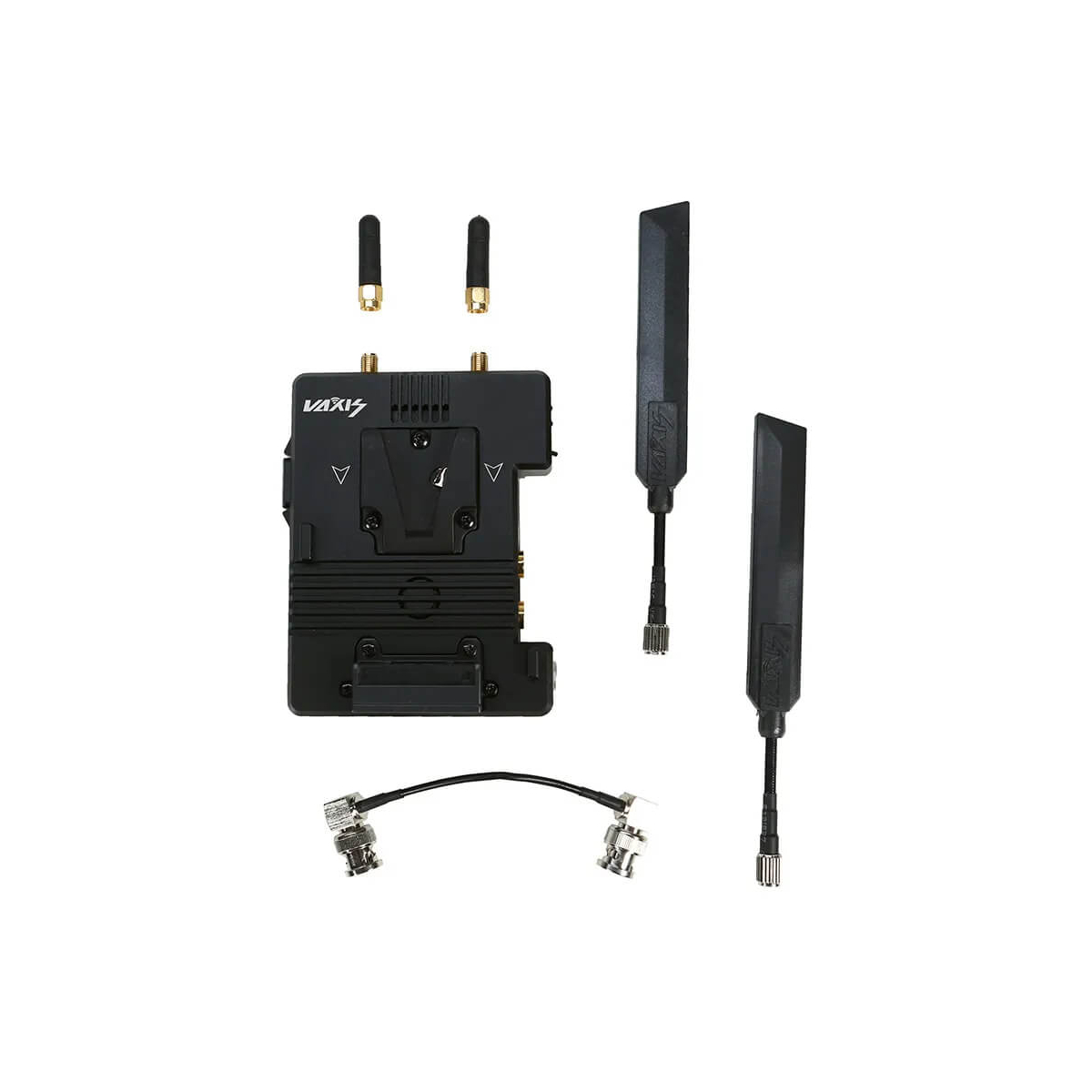

- Vaxis Storm 3000' DV Wireless Video Transmitter with Dual V-Mount Plate
- 2 x Blade Antenna (5 dBi)
- 2 x Short Antenna (2 dBi)
- SDI Cable
- Limited 2-Year Manufacturer Warranty

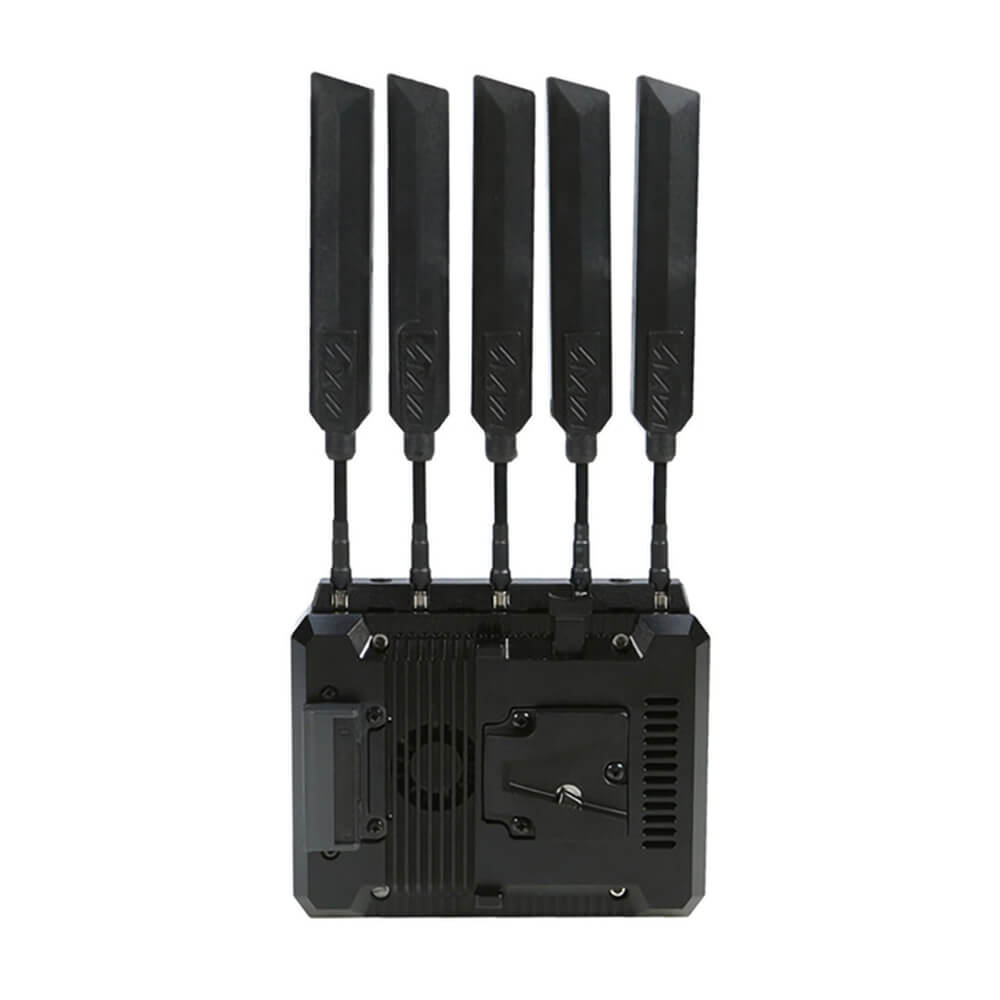

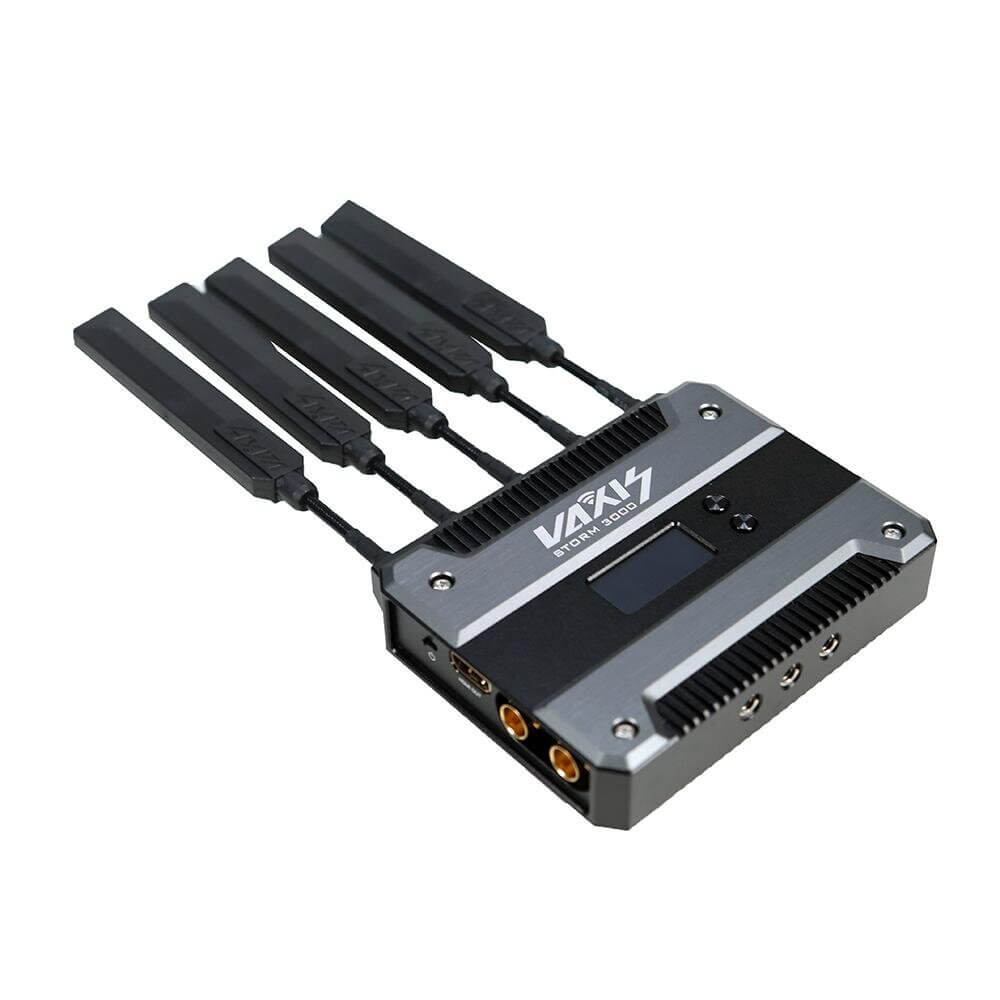

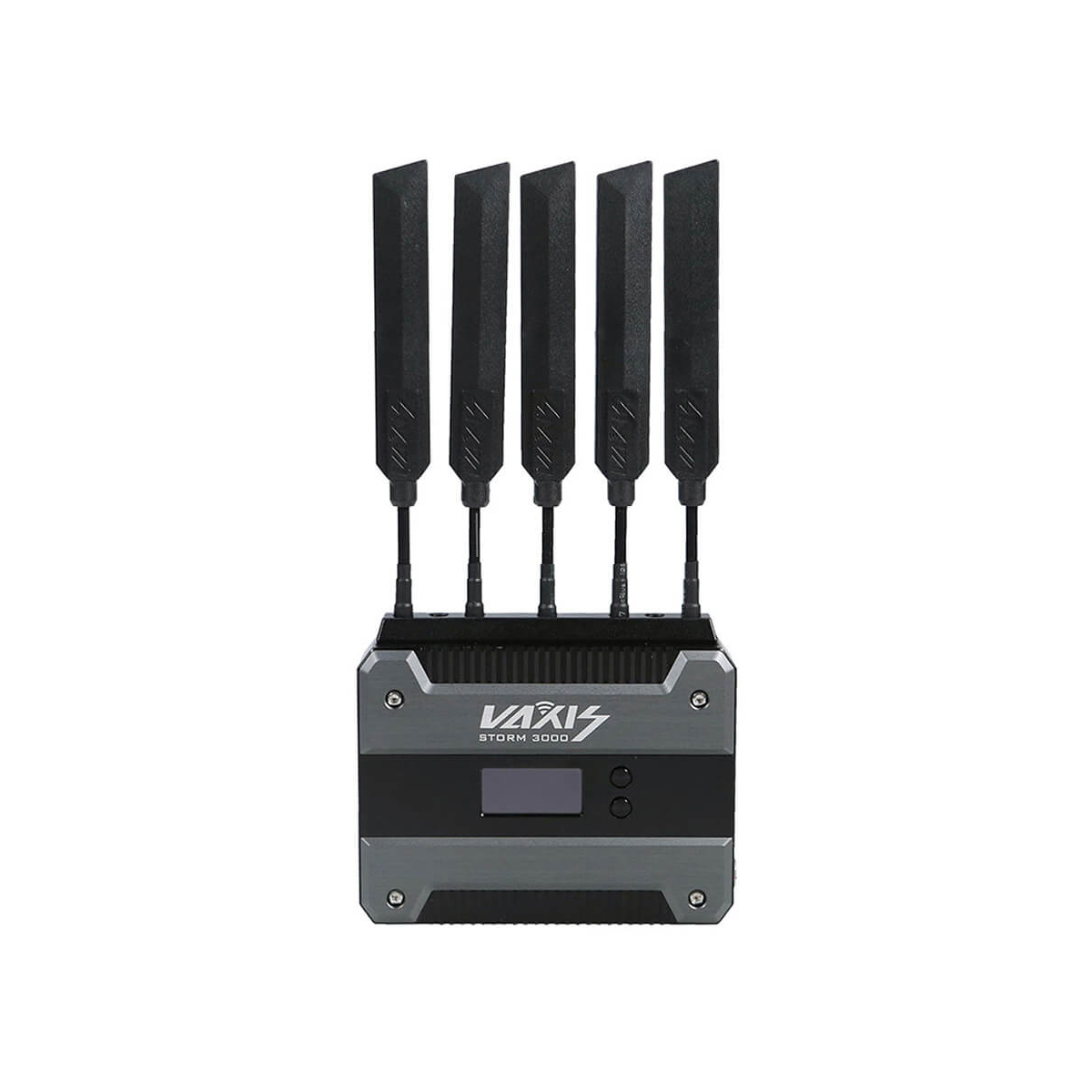

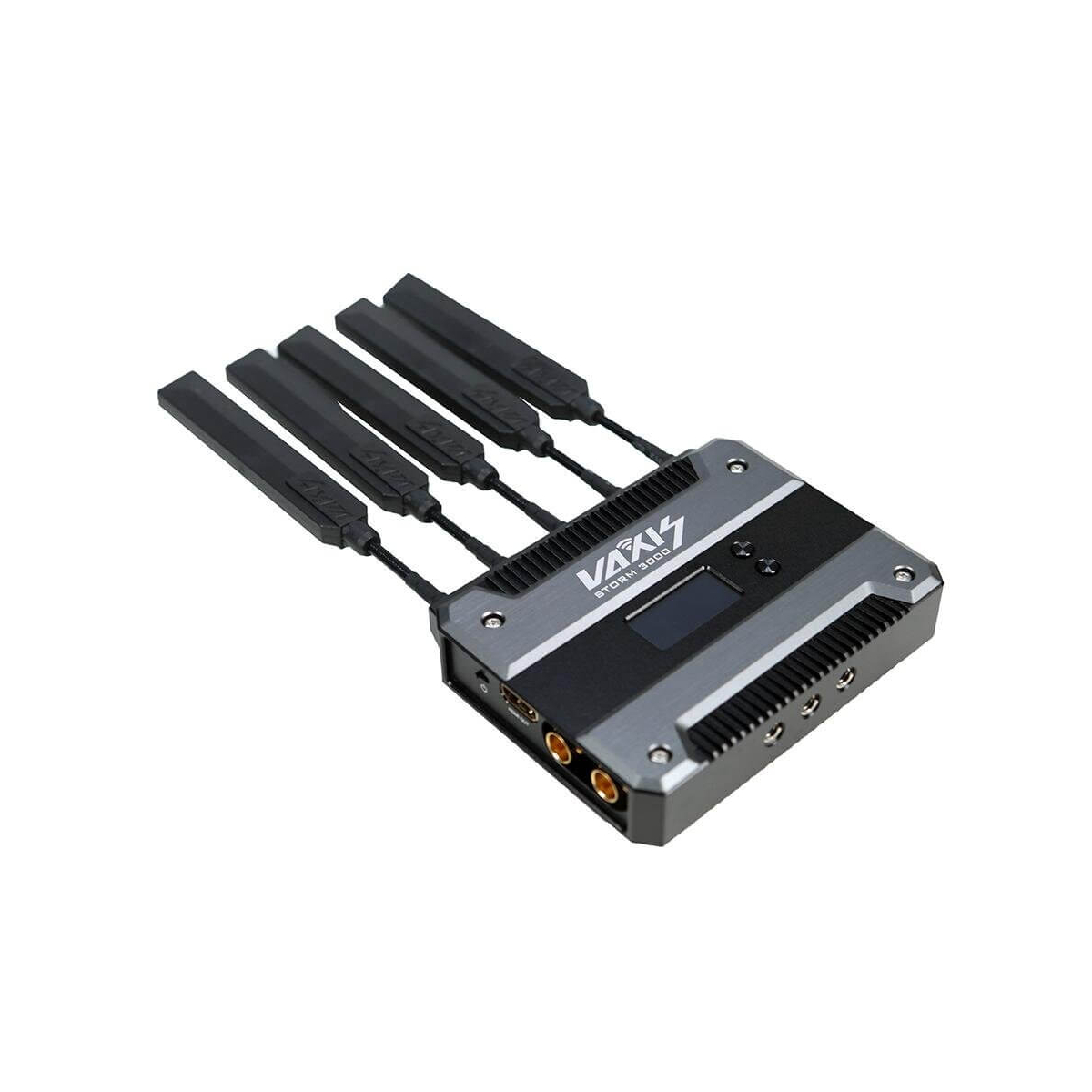

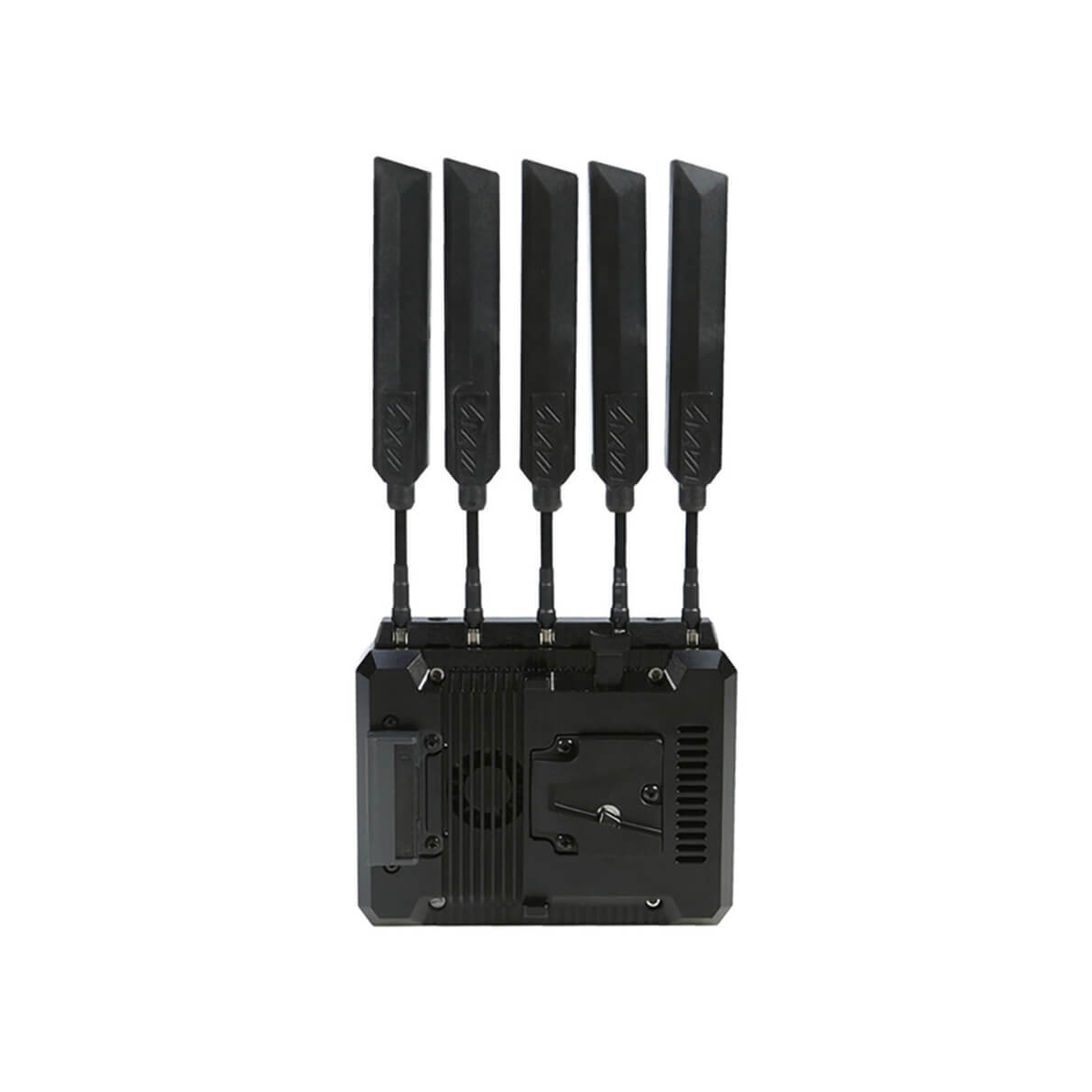

- Vaxis Storm 3000 Receiver (V-Mount)
- Power Cable
- 5 x Blade Antenna
- Limited 2-Year Manufacturer Warranty
- Noga Arm

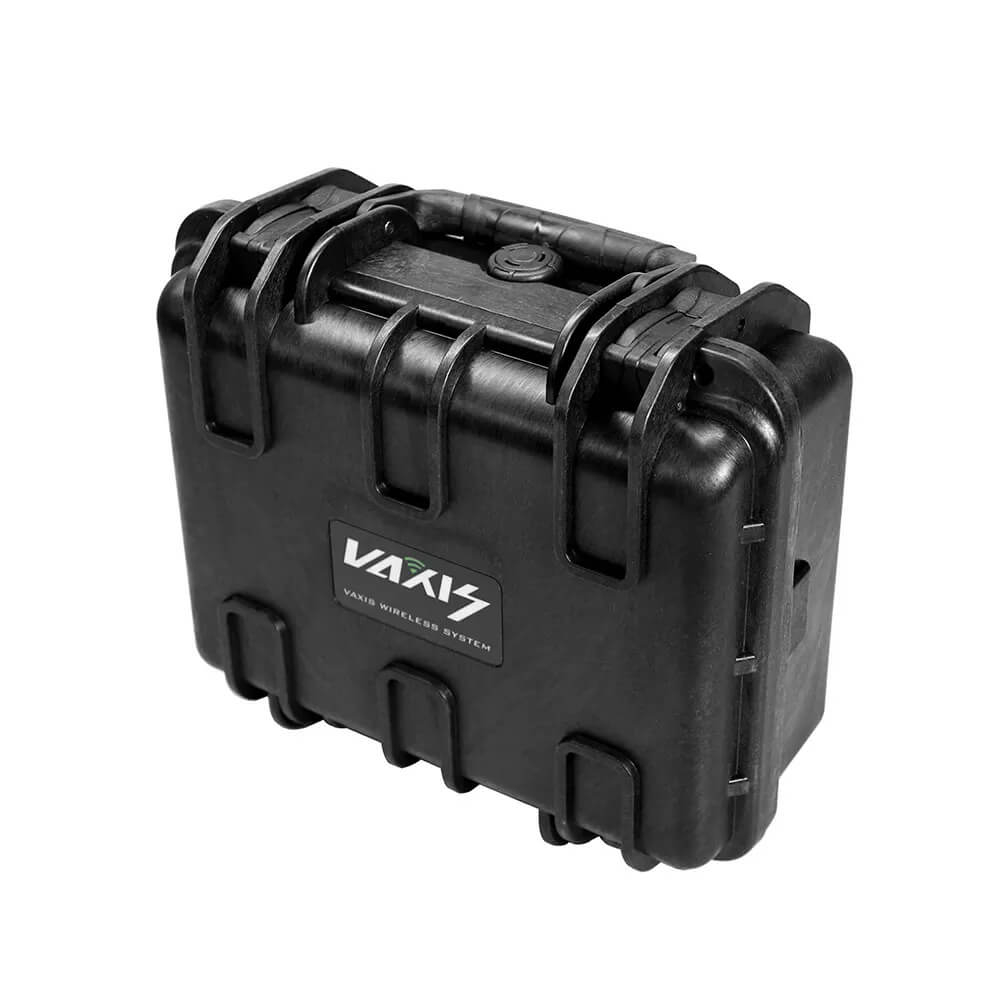

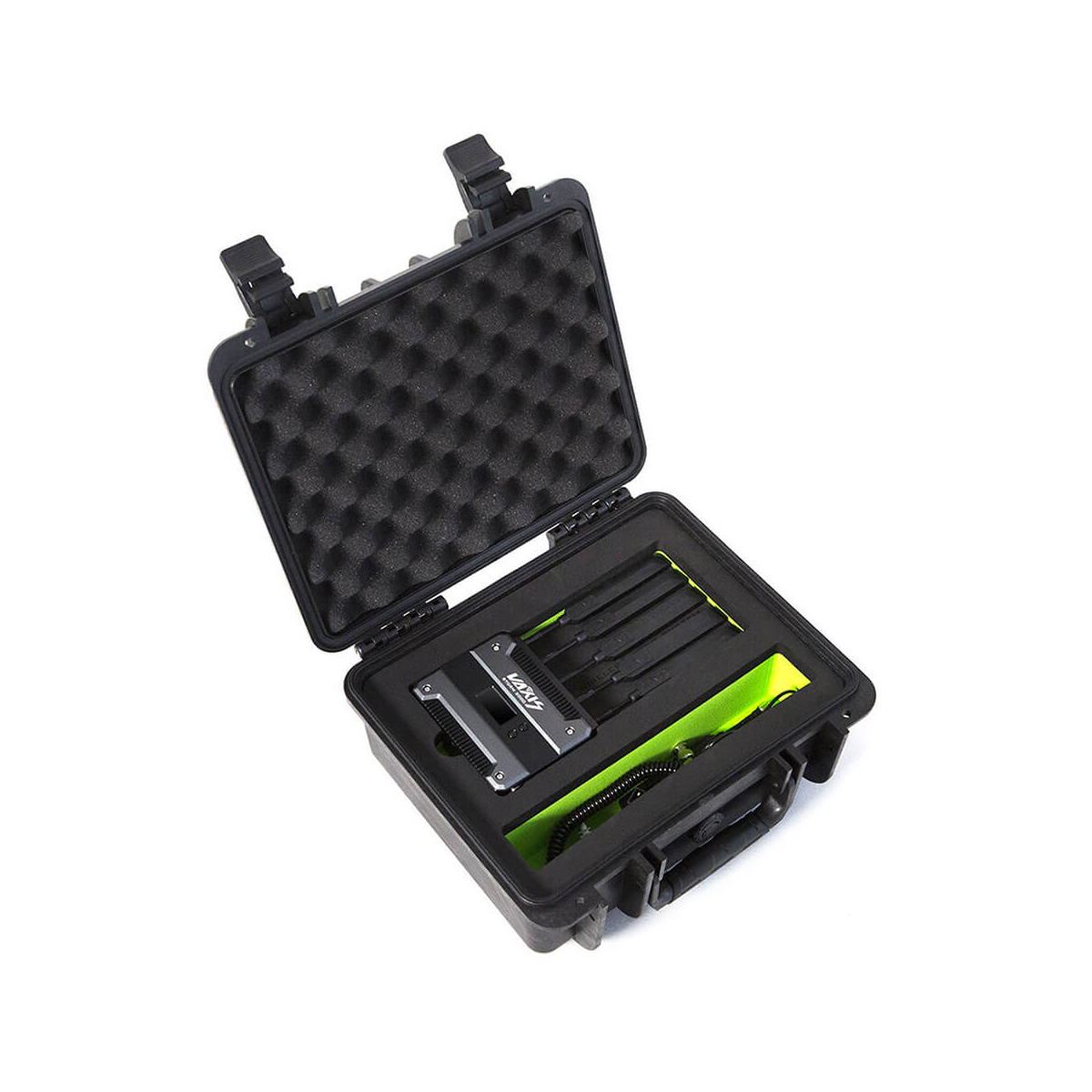

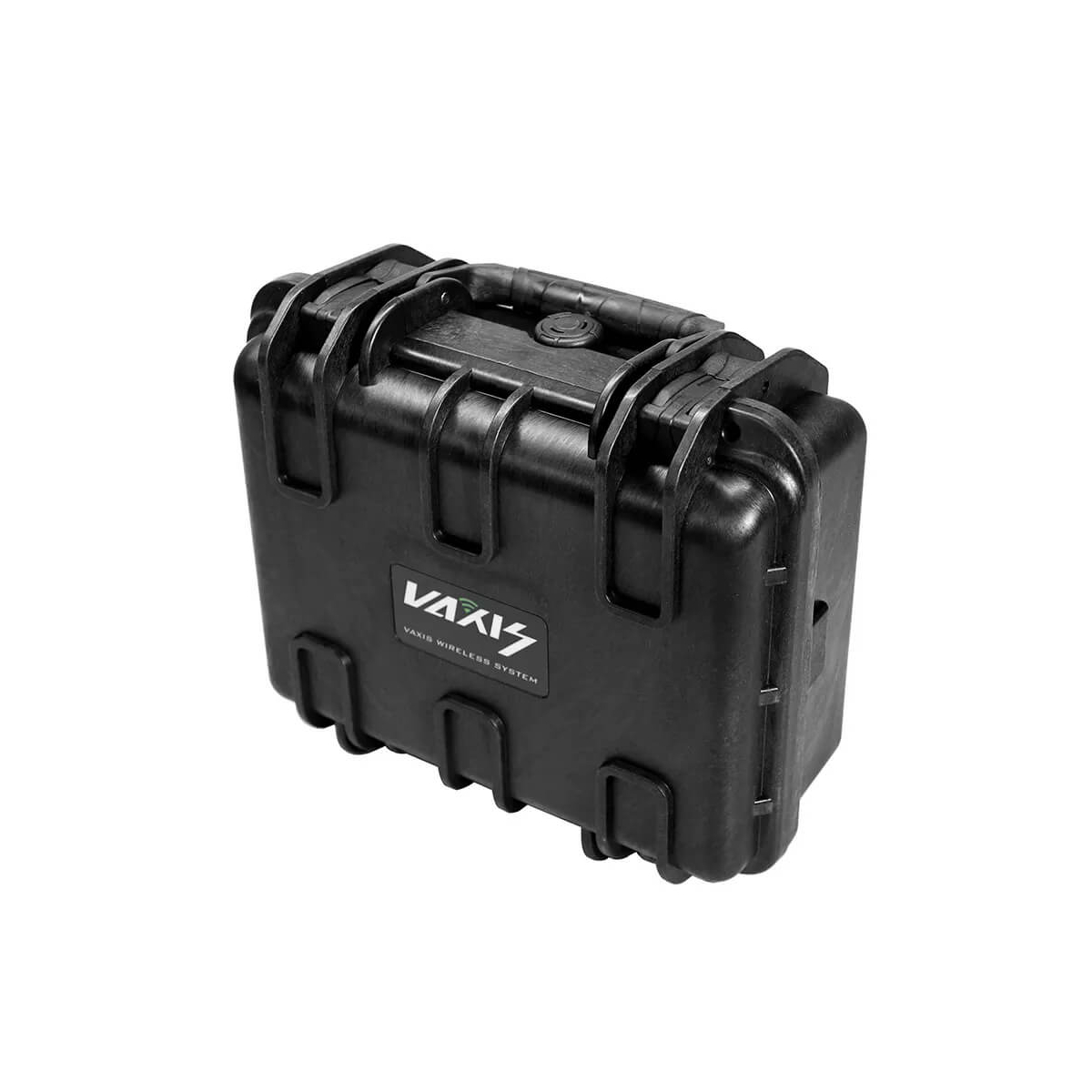

- Flight Case
