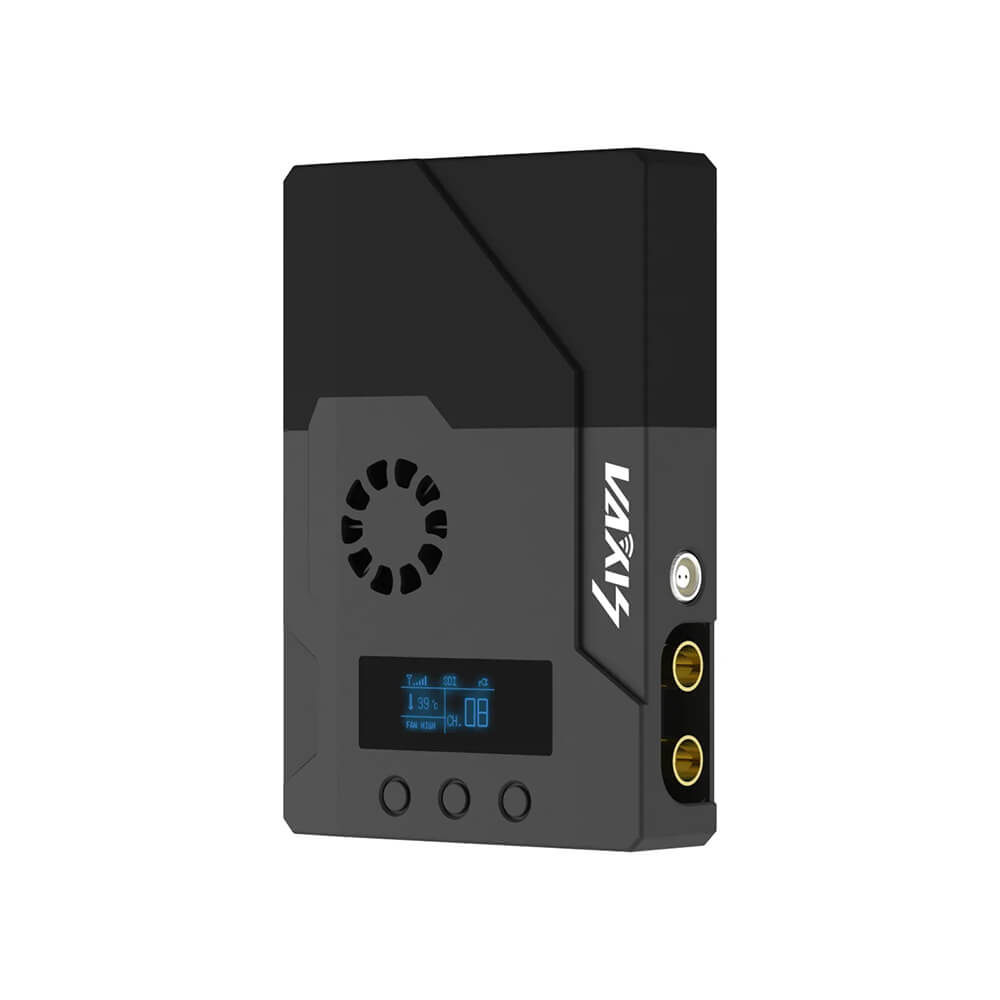

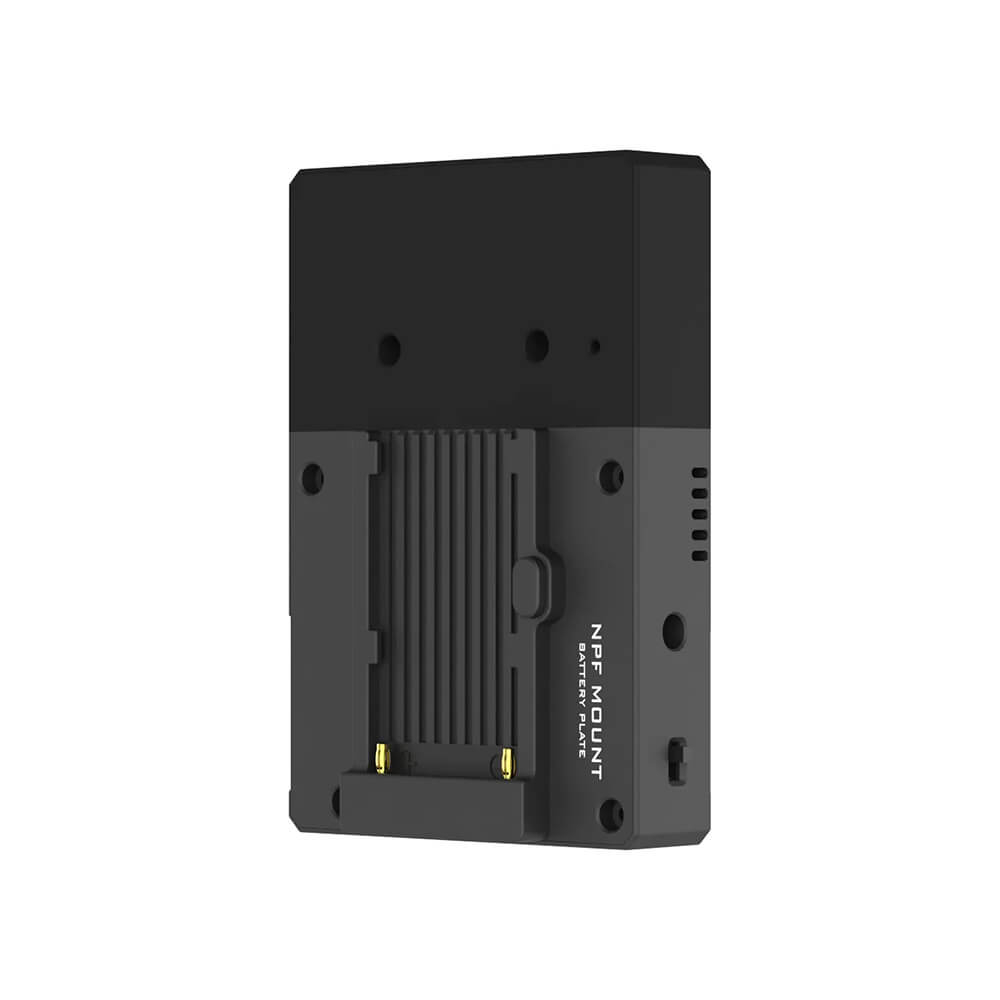

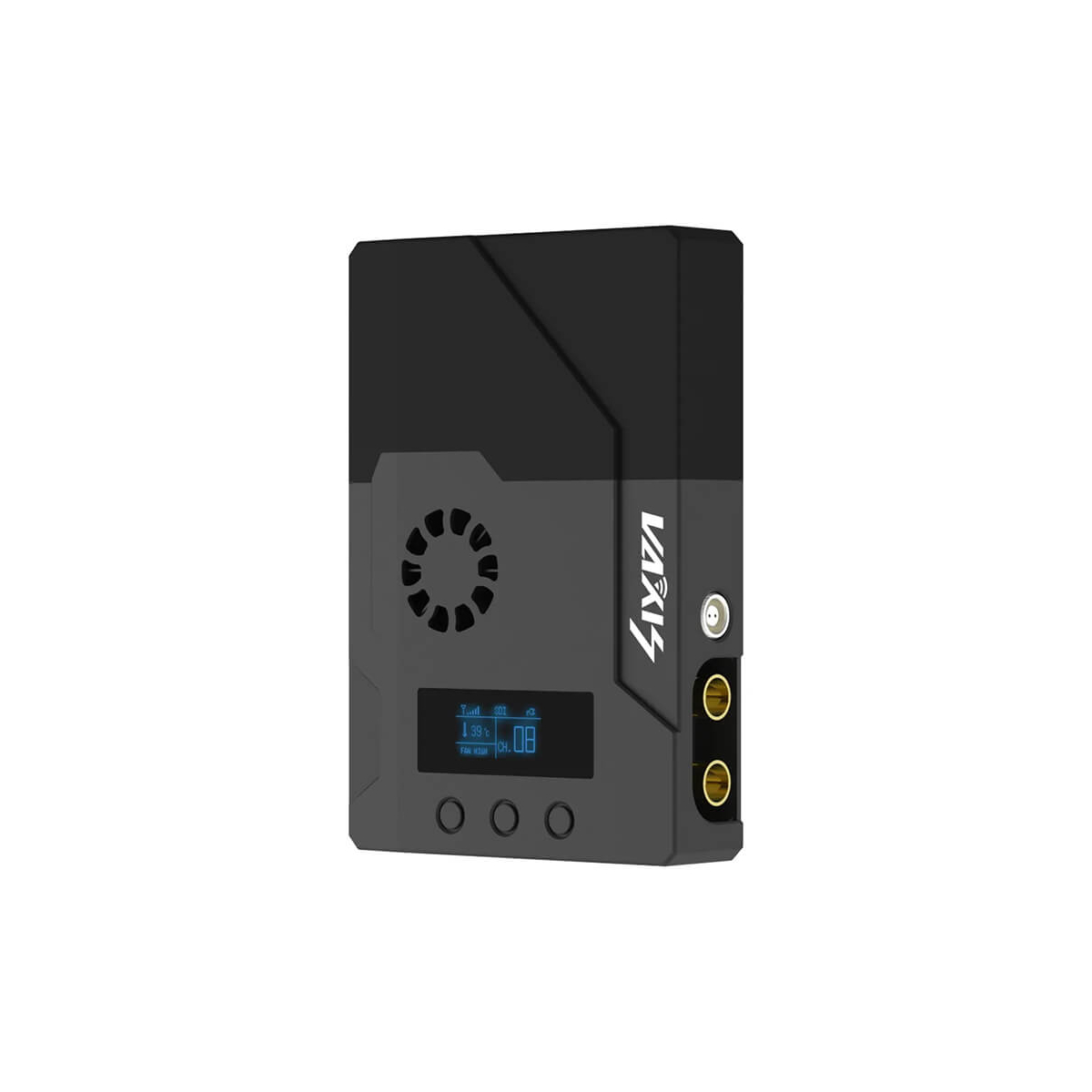

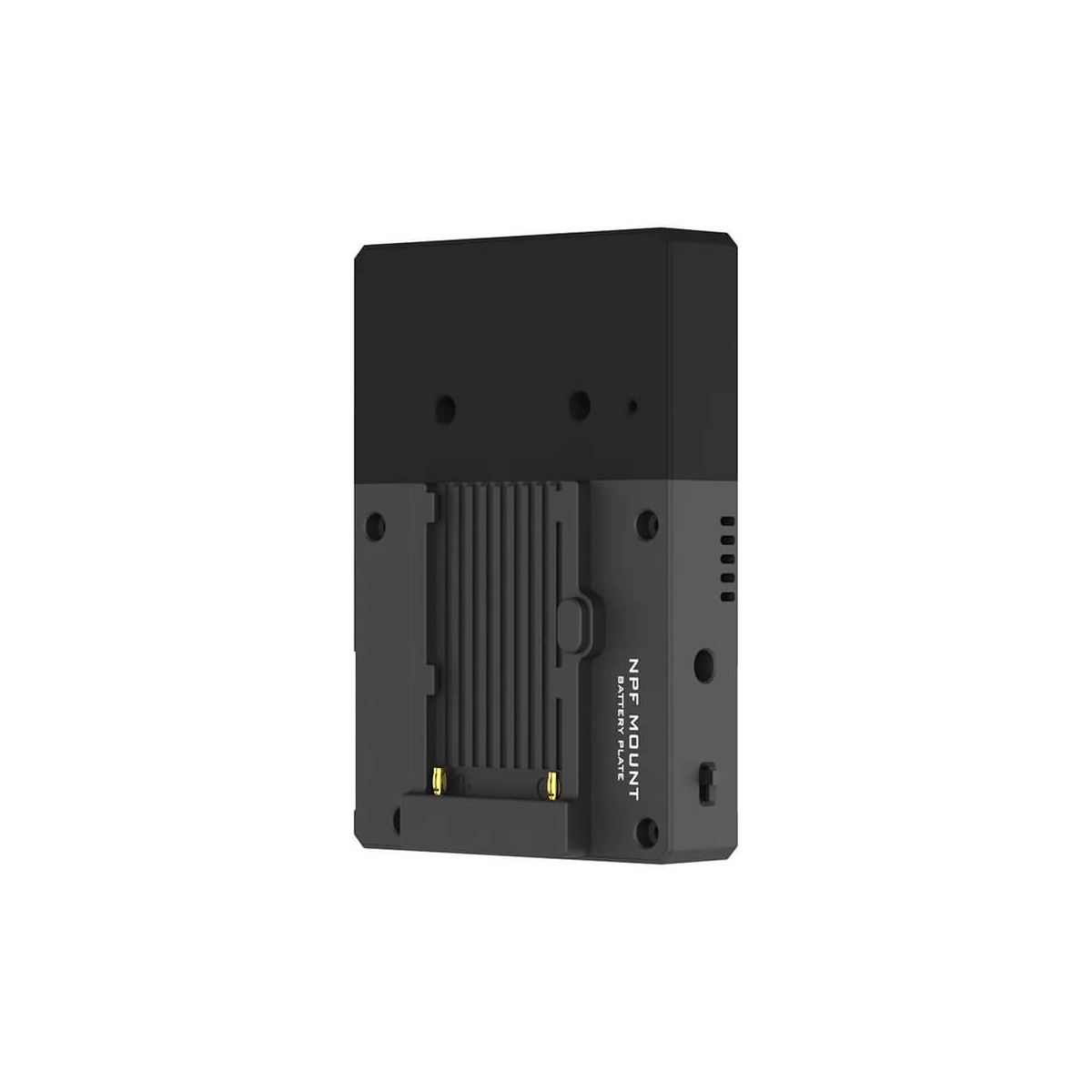

The Storm 1000XR Receiver from Vaxis is a zero-latency wireless video receiver that features a built-in antenna for bringing in wireless video from distances of up to 1148' and with resolutions up to 1080p60. The receiver has two SDI outputs, an integrated L-series type battery plate, and a Mini-USB and two-pin LEMO female connector for powering from external sources.
Blackmagic Design Video Assist Specification Inputs / Outputs |
|
Video I/O | 2 x BNC Output |
Audio I/O | None |
Power I/O | 1 x LEMO 2-Pin Input 1 x Micro-USB Input |
Wireless |
|
Wireless Range | 1148.3' / 350 m |
Channel Bandwidth | 40 MHz, 20 MHz |
Latency | < 1 ms |
Wi-Fi | None |
Bluetooth | None |
Mobile App Compatible | No *As of December, 2022: Check with manufacturer for the most up-to-date compatibility |
Format Support |
|
Video Format | SDI 1080p: 60/59.94/50/24/23.98 1080i: 60/59.94/50 1080PsF: 30/29.97/25/24/23.98 720p: 60/59.94/50 576p: 60 |
Timecode Support | No |
Power |
|
DC Input Power | 7 to 36 VDC |
Built-In Battery | Yes |
Battery Type | 1 x L-Series |
Environmental |
|
Environmental Protection | None |
Operating Temperature | 32 to 72°F / 0 to 40°C |
General |
|
Dimensions | 5.3 x 3.6 x 1" / 133.5 x 91.5 x 24.5 mm |
- Vaxis Storm 1000XR Receiver
- Power Adapter
- Limited 1-Year Manufacturer Warranty
