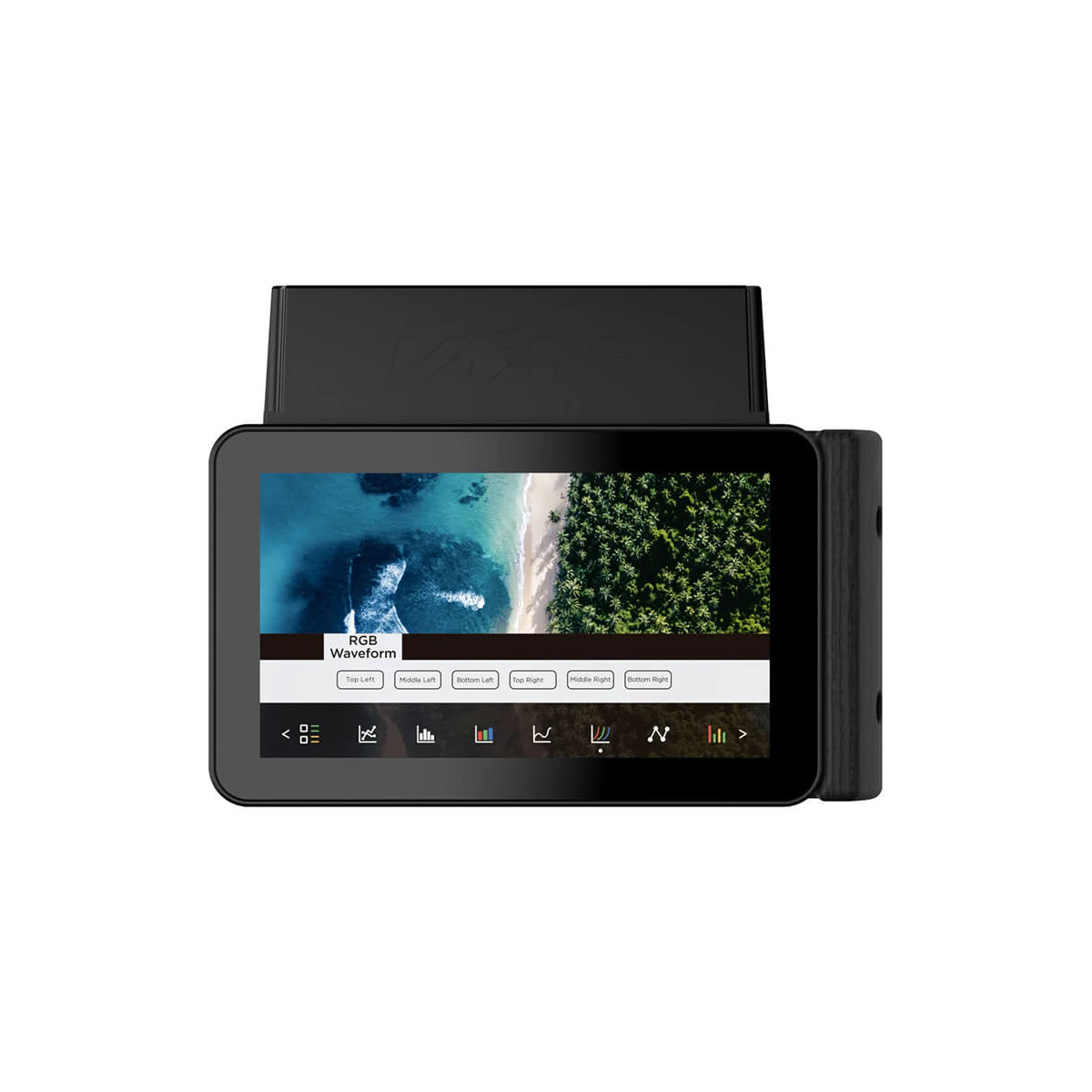

Receive and monitor high-quality wireless video transmissions using this compact Storm 058 Pro 5.5" Wireless Touchscreen Monitor from Vaxis. The Storm 058 Pro can receive up to 1080p60 video from up to 656' away with zero latency using its built-in antennas. It features a built-in side grip for comfort and durability for mobile director and AC monitoring.

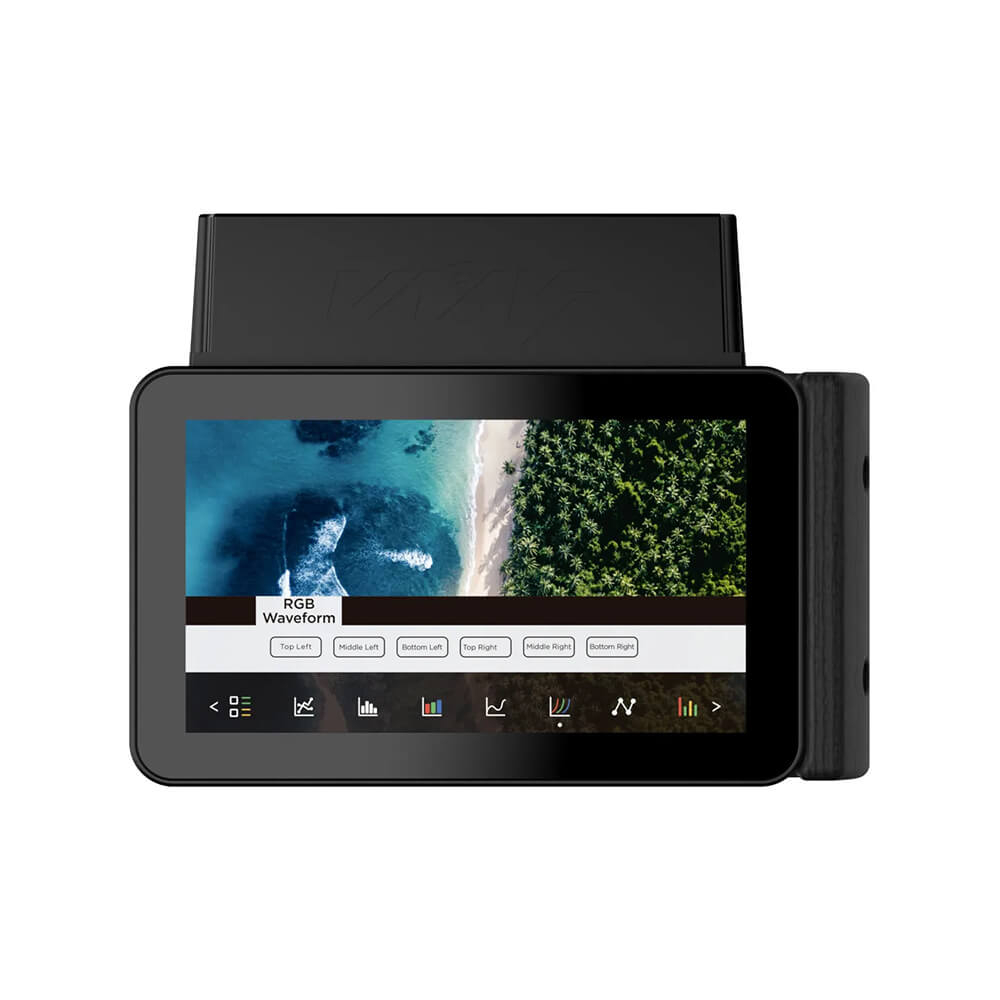

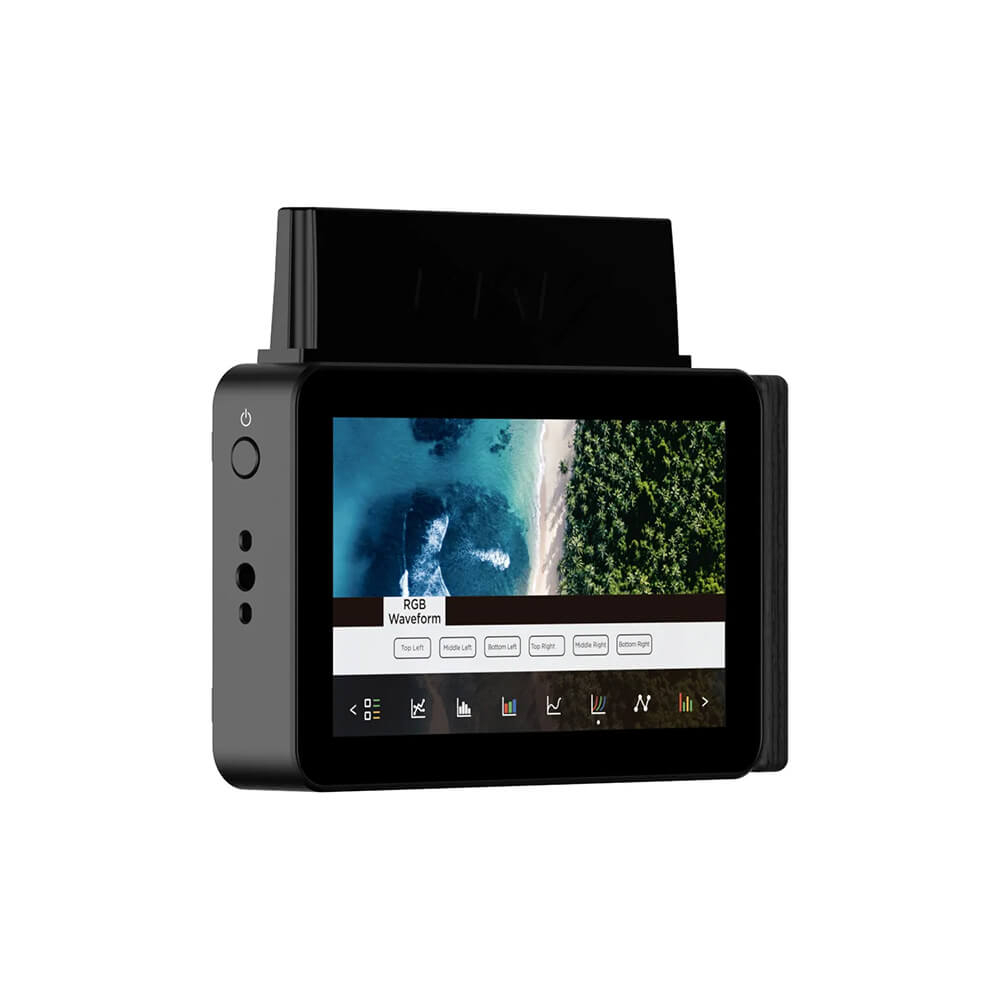

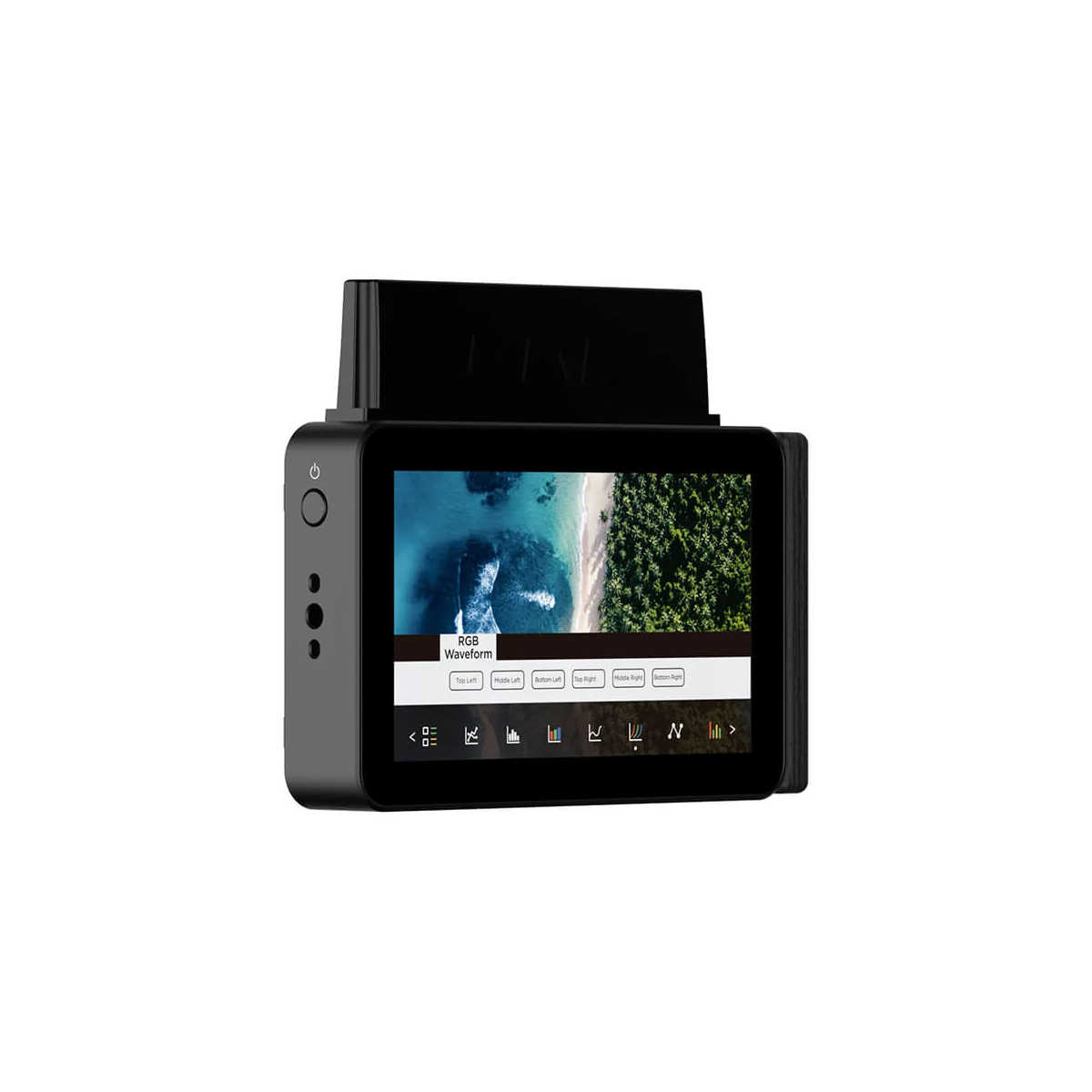

The receiver features a 5.5" built-in LCD touchscreen display with 1920 x 1080 resolution to monitor your transmission and manage your fine focus. The impressive 1500 cd/m° brightness allows you to see greater detail when using it in sunny outdoor conditions. The firmware provides a simple touch interface and features numerous imaging tools such as histograms, zebra, 3D LUTs, waveform, vectorscope, and many more.

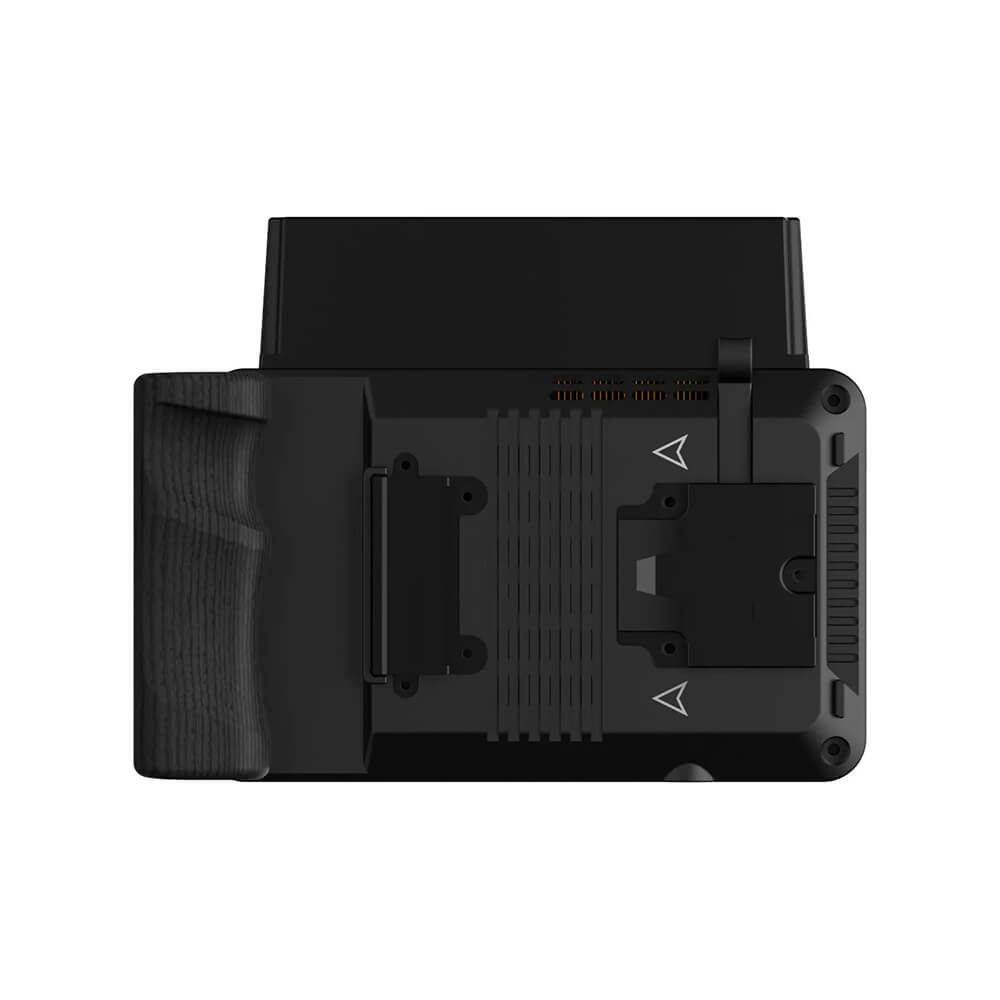

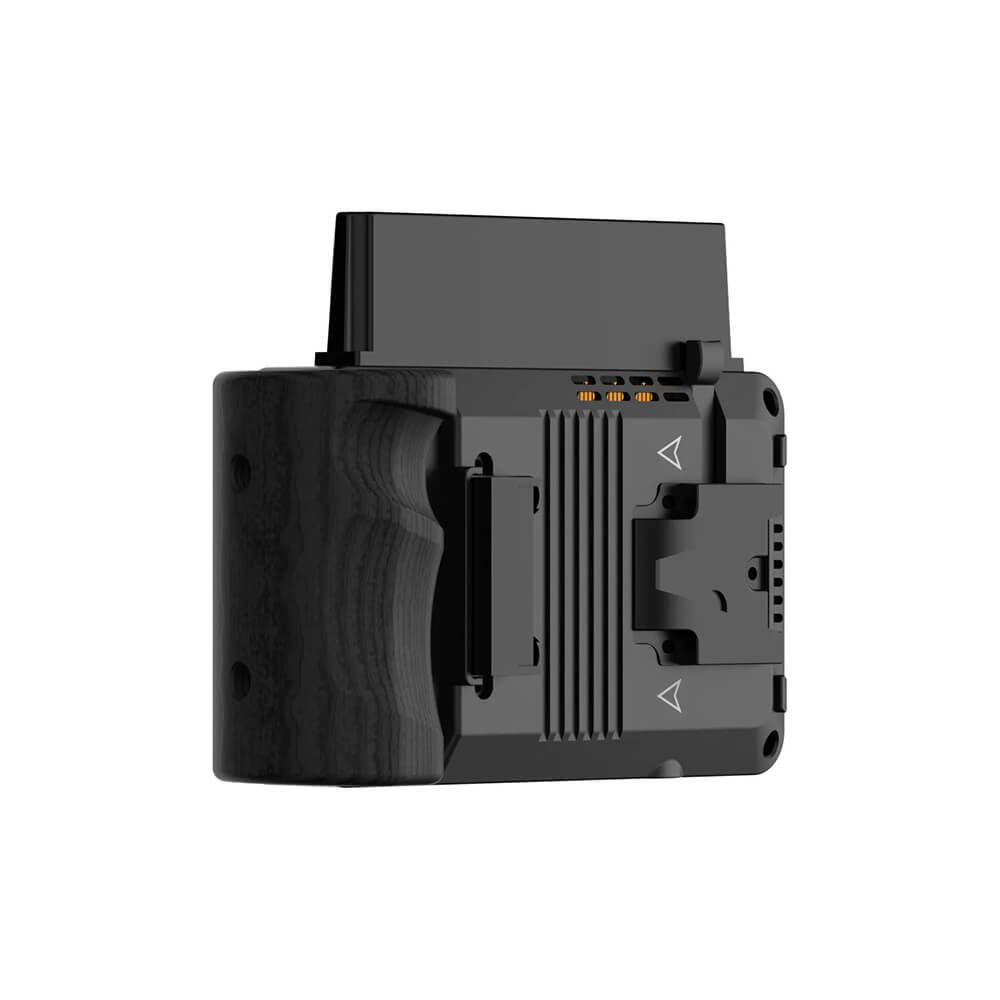

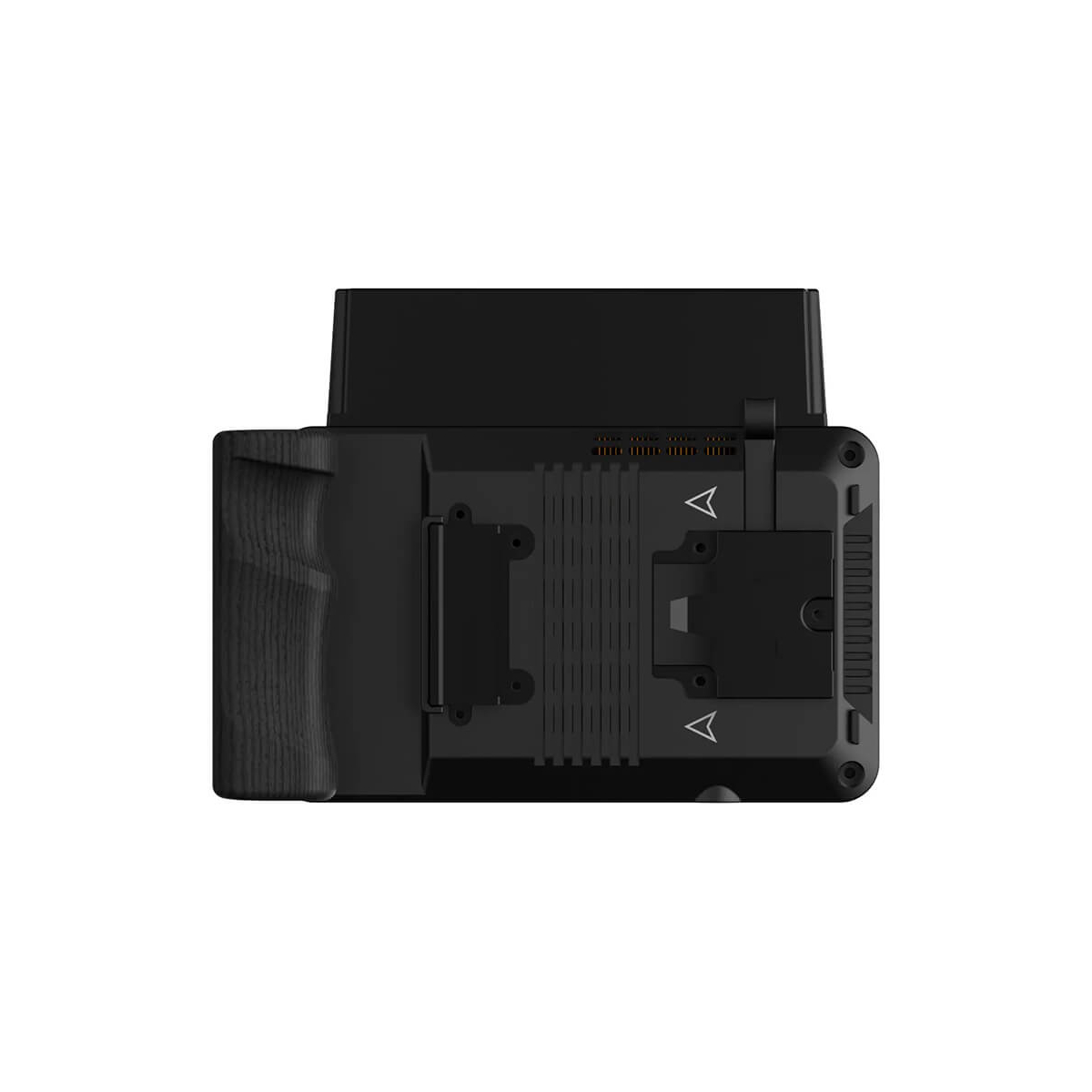

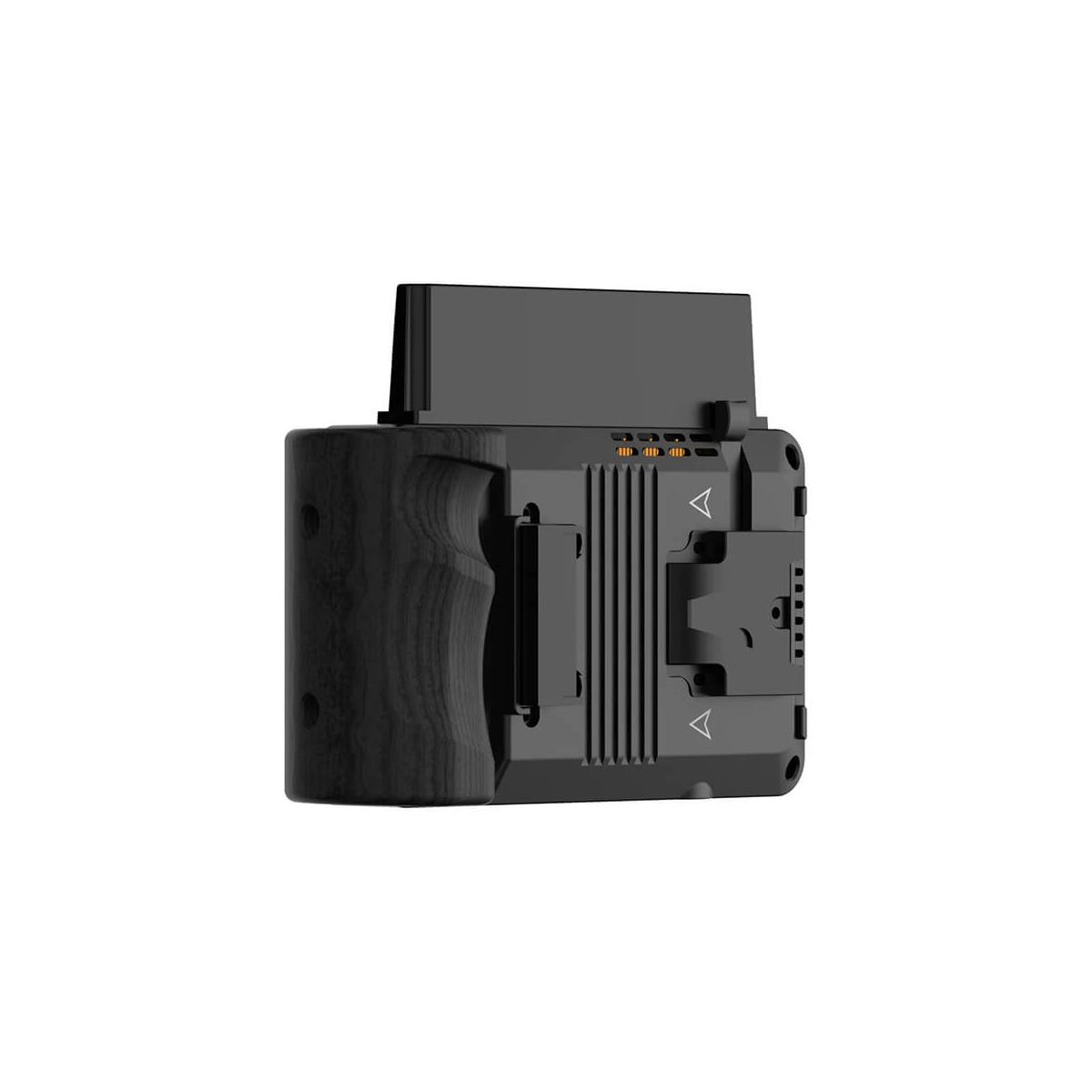

The monitor is powered using its 2-pin LEMO-type input or via its built-in V-mount battery plate. The Storm 058 Pro is compatible with all Vaxis Storm transmitters and can operate alongside multiple monitors and receivers from a single transmitter.
Features
Wireless RX receives remote video to monitor and checks your focus
Display
5.5" LCD touchscreen display with 1080p resolution and 1500 cd/m² brightness
Compatibility
Vaxis Storm transmitters
Wireless Range
Transmission distance up to 656'
Antennas
Built-in antennas
Power
Built-in V-mount battery plate and 2-pin LEMO-type power input
Vaxis Storm 058 Pro Specification Display |
|
Panel Type | IPS-Type LCD |
Display Size | 5.5" / 14.0 cm |
Resolution | 1920 x 1080 |
Aspect Ratio | 16:9 |
Touchscreen | No |
Image Controls | Anamorphic De-Squeeze, Color Temperature Selection, False Color, Focus Assist, Focus Peaking, Histogram, R/G/B/Chroma Only, RGB Parade, Scaling, Screen Markers, Vectorscope, Waveform, Zebra |
HDCP Support | Not Specified by Manufacturer |
Embedded Audio | Wireless |
Audio I/O | None |
Power I/O | 1 x LEMO 2-Pin Input |
Wireless |
|
Wireless Range | 656.2' / 200 m |
# of Channels | 20 |
Channel Bandwidth | 40 MHz |
Latency | 0 ms |
RF Sensitivity | -70 dBm |
Wi-Fi | None |
Bluetooth | None |
Format Support |
|
Video Format | Wireless 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p 576i 480p 480i |
Wireless Video Compression | Uncompressed |
Timecode Support | Yes |
Environmental |
|
Environmental Protection | None |
Operating Temperature | 22 to 82°F / -10 to 50°C |
Storage Temperature | -40 to 176°F / -40 to 80°C |
- Vaxis Storm 058 Pro 5.5" Wireless Touchscreen Monitor
- D-Tap to 2-Pin Power Cable
- Lanyard
- Hard-Shell Flight Case
- Limited 1-Year Manufacturer Warranty
