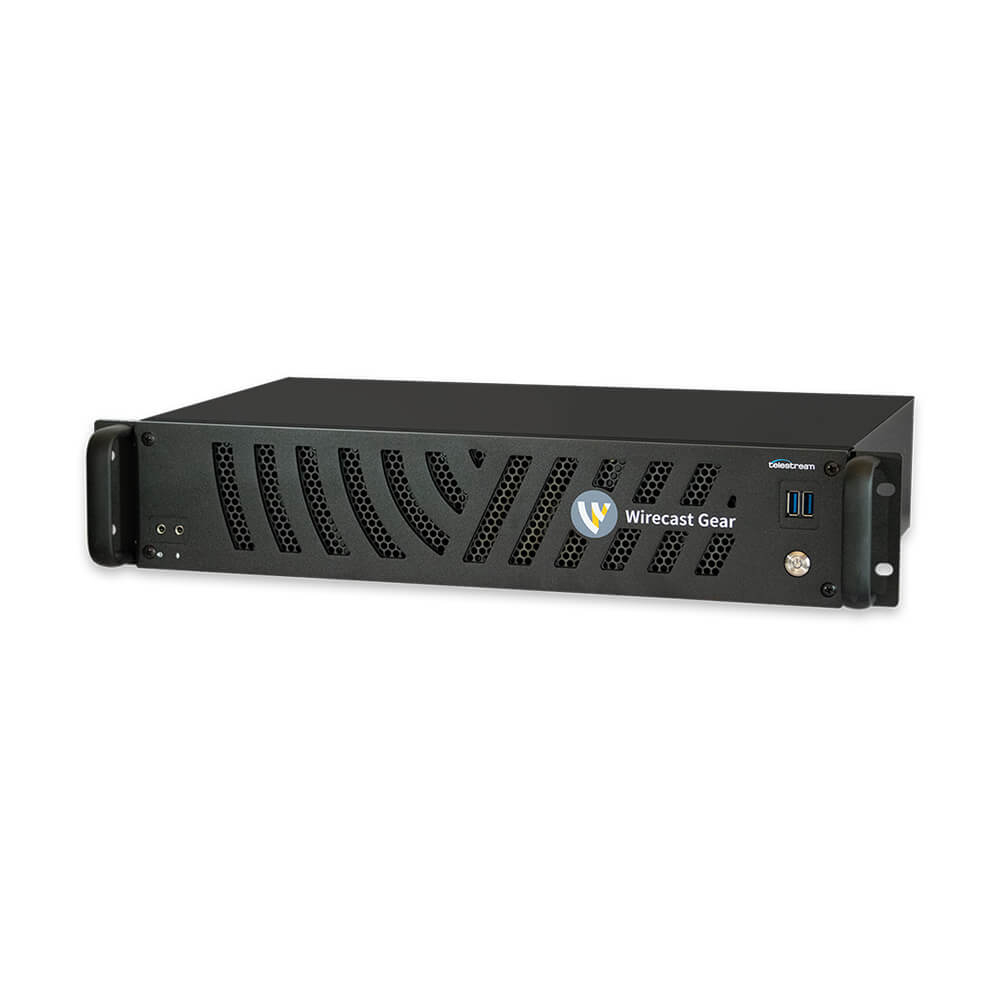

The Wirecast Gear 3 4K HDMI Streaming System from Telestream is a live streaming video switcher encased in a compact, rack-mountable chassis that is ideal for creating news programming, worship services, sports, and other live events. Equipped with four HDMI inputs and four Mini DisplayPort outputs, with support for resolutions up to DCI 4K60, the switcher takes full advantage of the power of its six-core/12-Thread AMD Ryzen Processor and NVIDIA Quadro Graphics Card.
The Wirecast Gear 3 has 16 GB of DDR4-3200 system memory, two Gigabit Ethernet ports, a 1 TB SSD for internal storage, and it comes with Wirecast Pro software and a stock media library. The system operates on Windows 10 loT Enterprise LTSC 2021, which ensures native support for widely used conferencing applications like Microsoft Teams and Zoom.
Telestream WCG3-4K-HDMI-610 Specification Processing |
|
Switching Type | Software |
Processing Resolution | DCI 4K at 60 |
Color Processing | 4:4:4RGB 4:2:2YUV |
Input |
|
Video Inputs | 4 x HDMI Female 1 x BNC (3G-SDI) Female |
Input Video Format | HDMI (4:4:4/4:2:2 RGB, YUV) DCI 4K up to 60 fps 1080p up to 60 fps |
Audio Inputs | 2 x 1/8" / 3.5 mm TRS Stereo Analog Female 1 x 1/8" / 3.5 mm TS Mono Analog Female |
Input Audio Format | Analog |
Embedded Audio Input | HDMI SDI |
Output |
|
Video Outputs | 4 x Mini DisplayPort (DisplayPort 1.4) 1 x BNC (3G-SDI) Female (Preview) |
Output Video Format | Mini DisplayPort DCI 4K up to 60 fps |
Audio Outputs | 2 x 1/8" / 3.5 mm TRS Stereo Analog Female 1 x TOSLINK S/PDIF Female |
Output Audio Format | Analog S/PDIF |
Connectivity |
|
Other I/O | 2 x RJ45 LAN, NDI Input/Output 1 x USB-C 3.1/3.2 Gen 2 5 x USB-A 3.1/3.2 Gen 2 4 x USB-A 3.0 / 3.1/3.2 Gen 1 |
Video Standard Compliance | SMPTE 424M |
Hardware |
|
OS Compatibility | Windows 10 or Later *As of December, 2022: Check with manufacturer for the most up-to-date compatibility |
Processor | AMD Ryzen 5 5600 X |
CPU | Up to 4.6 GHz 6-Core |
GPU | NVIDIA Quadro |
Wi-Fi | None |
Bluetooth | None |
Power |
|
Power I/O | 1 x IEC C14 Input |
Environmental |
|
Operating Temperature | 32 to 104°F / 0 to 40°C |
Storage Temperature | -4 to 185°F / -20 to 85°C |
Operating Humidity | 20 to 80% |
Storage Humidity | 10 to 90% |
General |
|
Rack Form Factor | 2 RU |
Dimensions (W x H x D) | 16.7 x 12 x 3.5" / 42.4 x 30.5 x 8.9 cm |
Weight | 15.5 lb / 7 kg |
- Telestream Wirecast Gear 3 4K HDMI Streaming System
- Wireless Keyboard
- Wireless Mouse
- 2 x Battery for Keyboard & Mouse
- USB Wireless Dongle
- 4 x Mini DisplayPort to DisplayPort Adapter
- IEC Power Cord (6')
- Limited 1-Year Manufacturer Warranty
