IP Addressing and Camera Numbering
The RM-IP500/1 automatically manages addressing each camera you connect, as well as assigning a camera number. This speeds up configuring and controlling the cameras on your network.
100 Cameras
The controller supports up to 100 cameras of the BRC or SRG series, enabling control of pan, tilt, zoom, and other functions, over an IP network.
Store and Recall Camera Presets
Depending on the specification and firmware version, the IP500/1 can store up to 100 presets of camera angles and settings.
Numeric Keypad
the built-in numeric keypad speeds up switching control between cameras.
Tally
Includes Normal Tally/On-Air Tally/Contact modes.
Camera Paint Functions
Use the controller to individually adjust camera settings, including black levels, white balance, flicker cancel, detail level, knee point, auto exposure level, iris, gain, and shutter speed, all without needing to access each camera's menu system.
Sony RM-IP500/1 Specification General |
|
Number of Supported Cameras | 100 Channels |
Supported Control Protocols | RS-422 VISCA |

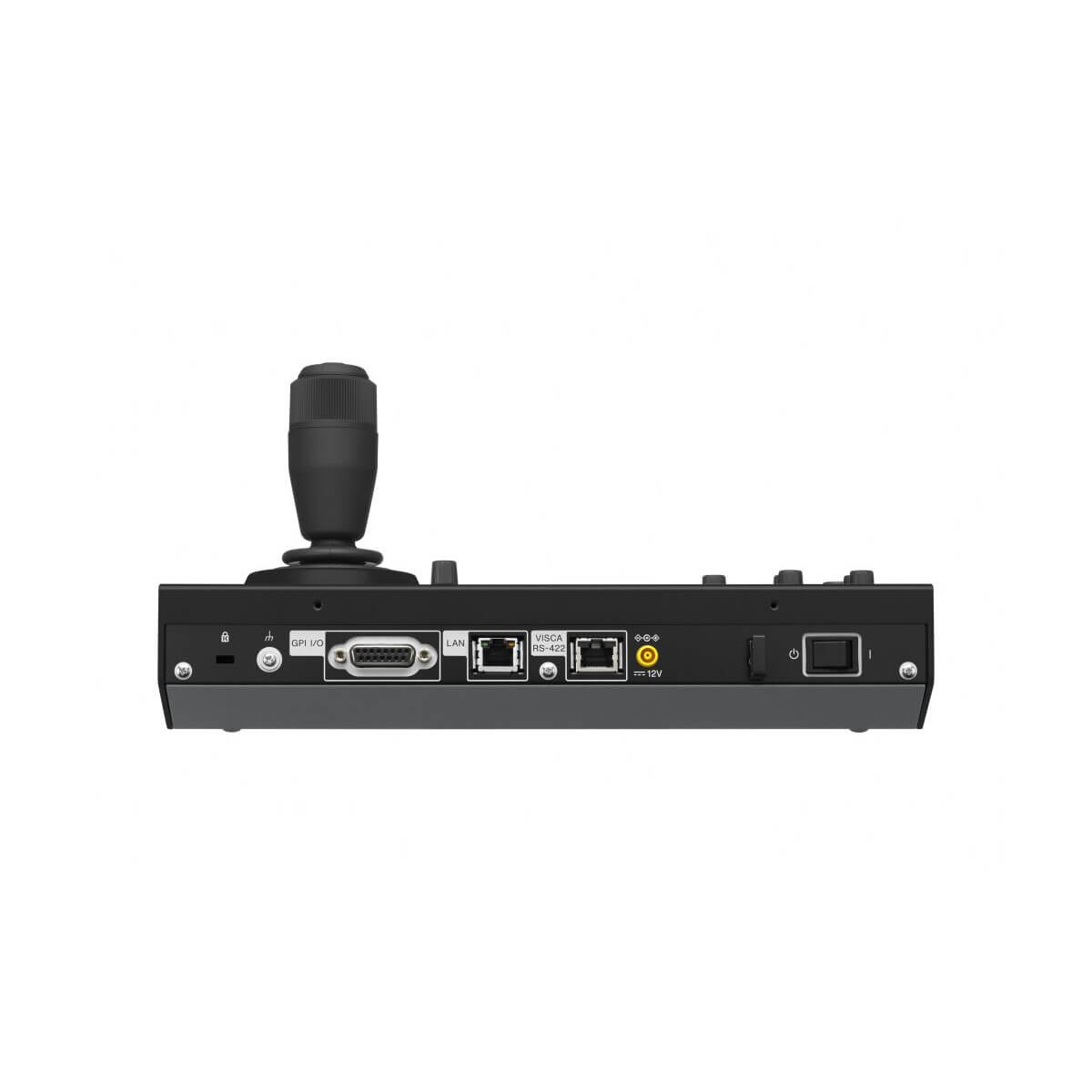

Control I/O | 1 x RJ45 (RS-422, VISCA) 1 x RJ45 (LAN) |
Other I/O | 1 x D-Sub 15-Pin (Tally) Input/Output |

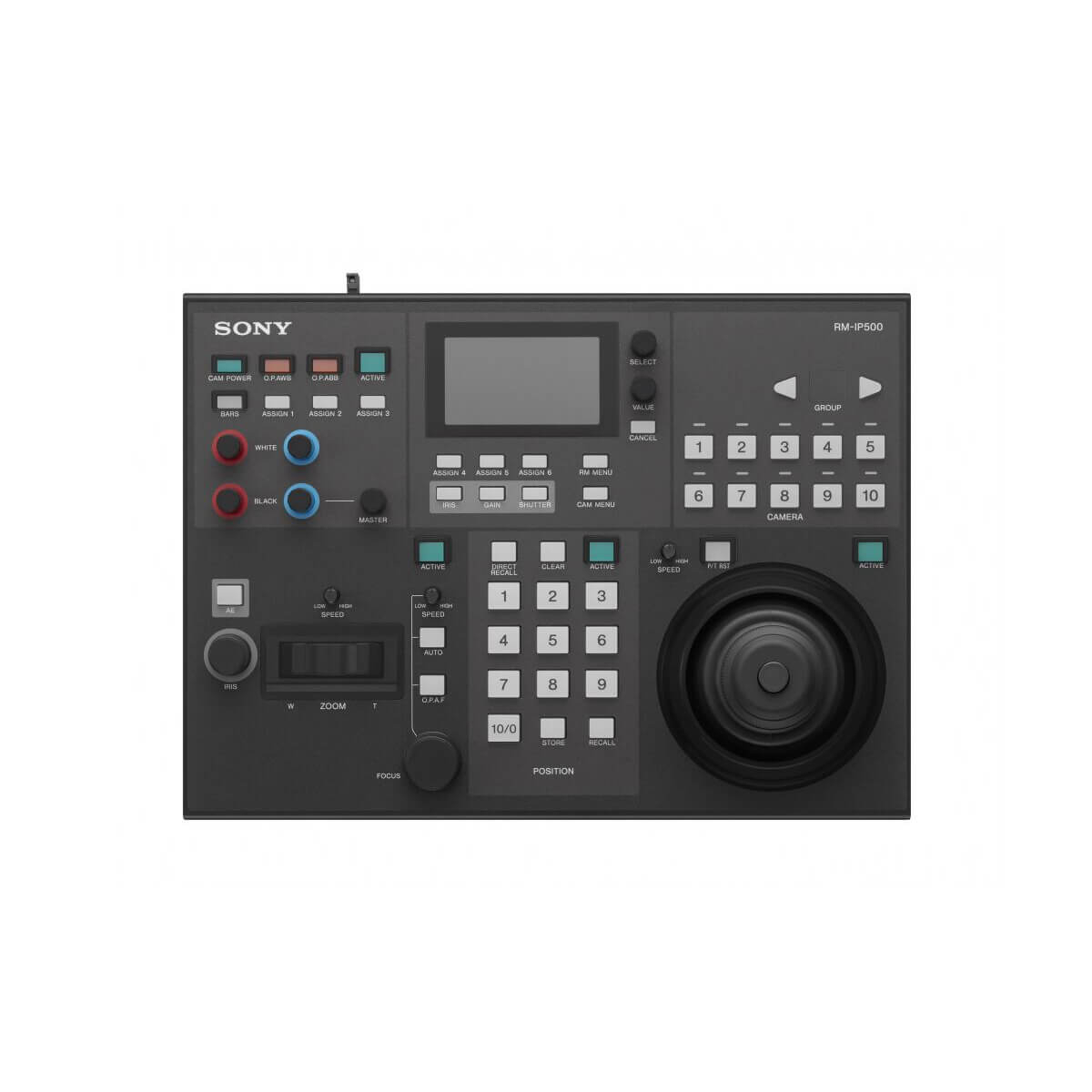

Controls | Button Joystick Knob Rocker |
Presets | 100 |
Power |
|
PoE Support | None |
Power Connectors | 1 x JEITA |
Power Consumption | 2.4 W |
DC Input Power | 10.8 to 13.2 VDC at 0.2 A |
Environmental |
|
Operating Temperature | 32 to 104°F / 0 to 40°C |
Storage Temperature | -4 to 140°F / -20 to 60°C |
Physical |
|
Security Lock Support | None |
Dimensions | 12.05 x 8.82 x 6.27" / 30.6 x 22.4 x 15.93 cm |
Weight | 5.3 lb / 2.4 kg |
- Sony RM-IP500/1 Professional Remote Controller for Select Sony PTZ Cameras
- Power Supply
- Limited 1-Year Manufacturer Warranty (Parts)
