【Sonnet Technologies】xMac Studio Rackmount Enclosure with Echo I Modulefor Mac Studio

Special Price HK$12,000.00 Regular Price HK$12,500.00
Be the first to review this product
  • For Mac Studio
  • 1 x Full-Height,Full-Length PCIe Slot
  • Up to 2800 MB/s of Bandwidth
  • 1 x Thunderbolt 3 Port
  • 4 x USB-A Ports
  • 2 x Noctua Fans
  • 3U Form Factor
  • Includes Extension Rails & SSD Magnets

Notify me when this product is available:

Add to Wish List Add to Compare
Get Coupon Code

Enjoy 3% Discount by Using Cash/Wire-Transfer Payment

CASH3% COPY CODE

Copy the code and paste it on checkout!

Delivery & Return

Local Delivery

CHINAM is currently shipping within Hong Kong and specific countries only. We use local courier service as our delivery company. We do not support shipping items in a single order to multiple shipping addresses. To ship items to an additional address, please place a new order to us. Unless otherwise specified, delivery charge at the rate of HK$300 will be imposed on each delivery. We currently offer free delivery for each order over HK$1,000.

For remote areas or outlying islands delivery service, please contact our sales team via email - sales@chinam.com.hk

International Delivery

We will do our best to ship internationally to countries where we do not have sales representation. Please register with us, we’ll keep you updated and notify you when this is about to happen and become available in your region. Please note, at this time the customer is responsible for the duties and taxes imposed by their country.

For international shipping please contact our sales team via email - sales@chinam.com.hk

Deliver Time

  • Once your order has been handed over to the carrier for delivery, you will receive a shipment notification email with an estimated delivery date. Please note that it is not possible to expedite your delivery and receive your package earlier than the scheduled delivery date. Therefore, we are unable to accept requests for expedited delivery. Our carriers are unable to provide an exact time of day for your delivery. If you ordered multiple items, you may receive separate shipments.
  • All estimates are based on business days. We only make deliveries in the specified areas of Hong Kong from Monday to Sunday except on the first two days of the Lunar New Year and when typhoon warning signal No. 8 or above or black rainstorm warning is in force.
  • All rescheduling of delivery, additional purchases, new sales memos and amendments must be made 3 days before the scheduled delivery date. Otherwise, a double delivery charge will be incurred.
  • We may deliver the merchandise in one or more installments, and some of the merchandises may be delivered directly from suppliers. Any times and dates given for dispatch of merchandise, or the length of time that merchandise will take to be delivered, are only estimates. If we are unable to meet any stated dispatch or delivery dates or times we will inform you as to the progress of your order. You agree and accept that under no circumstances will we accept cancellation of order or refund.

Signature On Delivery

  • Most of our shipments contain valuable items. If you will not be in attendance to accept delivery of your purchase, consider shipping to someone you trust will be able to sign for your package. For your convenience, you may prefer to have your order delivered to your office address. If you choose this option, please include the name of your business in the address. Please note, if you choose this option, goods may be left with reception or the Mail Room.
  • As our carriers require a signature on delivery, the carrier will leave a calling card if you are not at home. Please contact the carrier to reschedule delivery.
  • For postal deliveries, no signature is required and order status tracking is not available.
  • Delivery failure due to no one answering the door upon the arrival of goods at the appointed time, or to circumstantial limitations such as the entrance being too small, will require a rescheduled delivery and therefore incur double delivery charges.
  • We will deliver the merchandise ordered by you to the address you give us for delivery at the time you make your order through our staff or a third party provider. You agree to present your photo identification upon request when you acknowledge receipt of the merchandise. The merchandise shall be, and shall be deemed to be, delivered and accepted by you when the merchandise are delivered to the address you give us for delivery. You agree and accept that we are entitled, at our option, to charge you additional costs or cancel your order in the event of your failure to accept delivery for whatever reasons.

General

  • You will become the owner of the merchandise you have ordered when they have been delivered to you. Once merchandise has been delivered to you they will be held at your own risk and we will not be liable for the loss or damage.
  • You may not export any products purchased at CHINAM online store. We sells and ships products to end-user customers only. Notwithstanding order confirmation, CHINAM may cancel any order where it has reasonable grounds to believe the product is not being purchased for end use.
  • If there is any inconsistency or ambiguity between the English version and the Chinese version, the English version shall prevail.
  • We reserve the final right to terminate or alter the above terms and conditions. In the event of any dispute, our decision shall be final and conclusive.
Ask a Question

Ask a Question

Out of stock
SKU
XMAC-STD-I
Sonnet TechnologiesProductsComputer PeripheralsComputer ExpansionsBundled SaleFire Sale
Write Your Own Review
You're reviewing:【Sonnet Technologies】xMac Studio Rackmount Enclosure with Echo I Modulefor Mac Studio
Your Rating

Boost the performance of your Mac Studio with the xMac Studio Pro 3U Rackmount Enclosure with Echo I Module from Sonnet. Designed for audio and video applications, the xMac Studio allows for easy SSD expansion via a PCIe 3.0 x16 slot supporting non-GPU PCIe cards. Connect to your Mac Studio via one Thunderbolt 3 port and interface with wired accessories using four USB-A ports. Speed through transfers with up to 2800 MB/s of bandwidth. Two Noctua fans provide variable speeds for efficient cooling; an integrated 400W PSU ensures adequate juice for power-hungry PCIe cards. A 3U form factor and included extension rails facilitates easy installation to server racks; adhesive SSD magnets ensure hassle-free population. Please note, PCIe cards are available separately.


Your Workflow Expanded and Secured

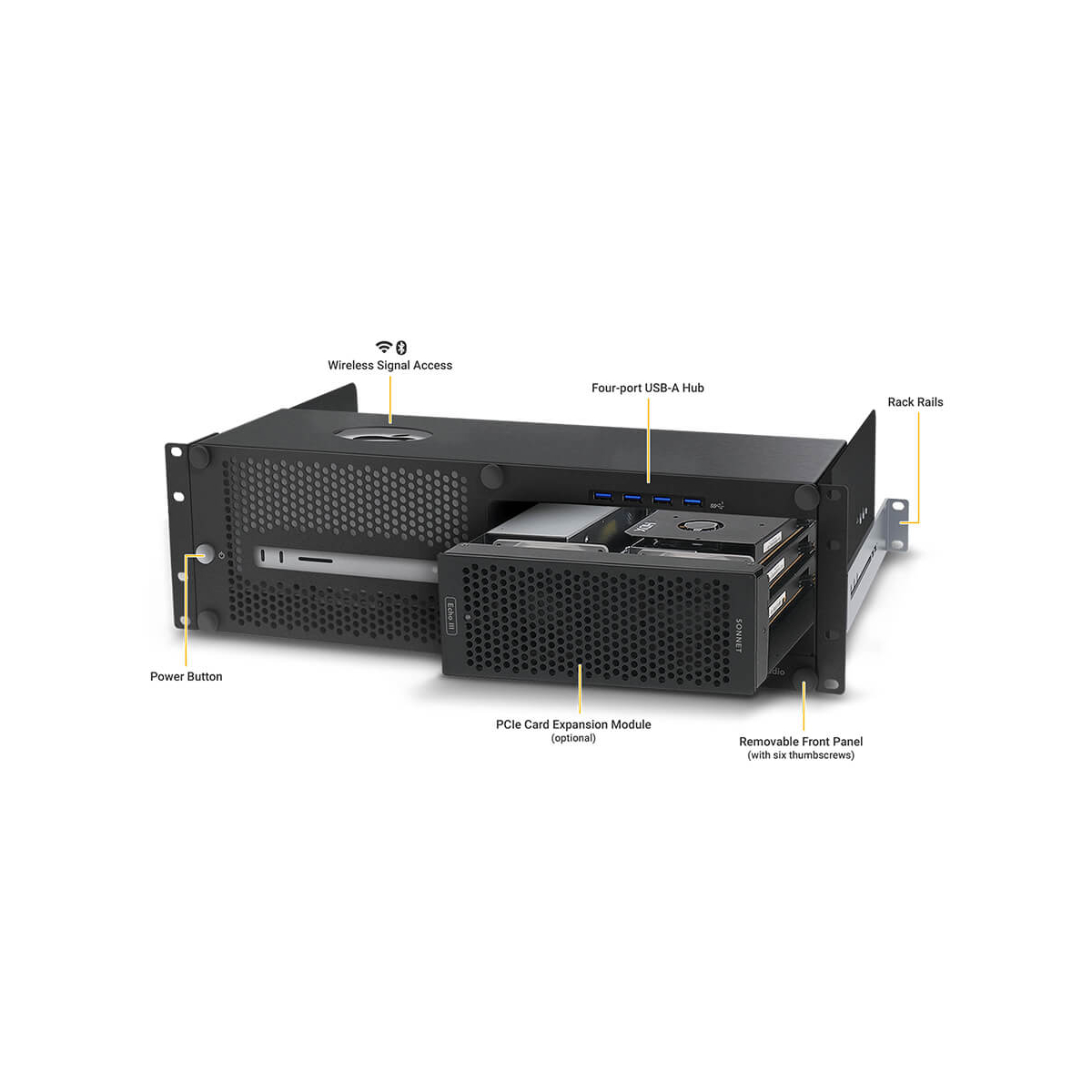

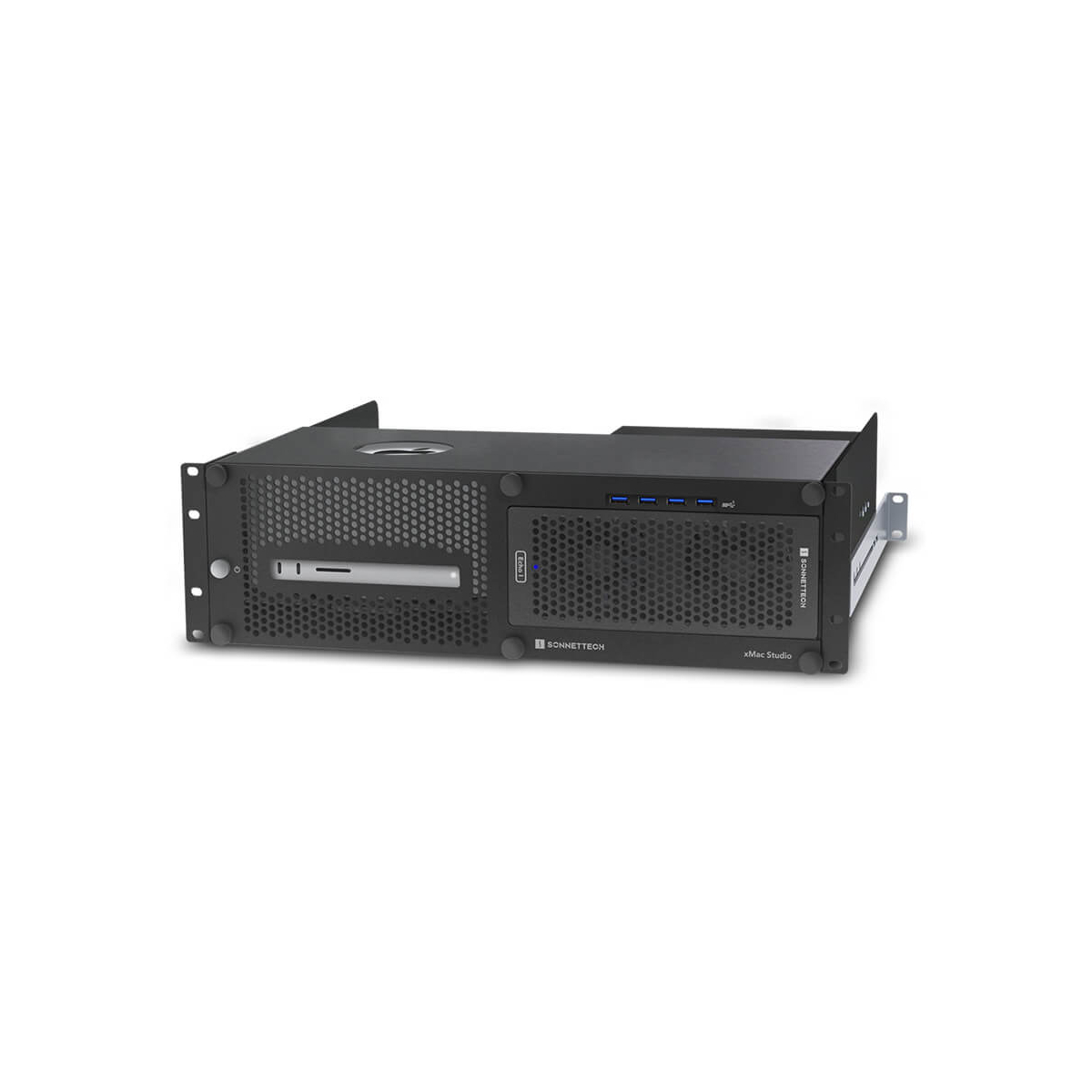

The Sonnet xMac Studio integrates a Mac Studio into a compact rackmount enclosure with an Echo I module for PCIe card expansion, enabling support for diverse audio and video application needs.

Please note, PCIe cards are available separately.


Versatile PCIe Card Expansion

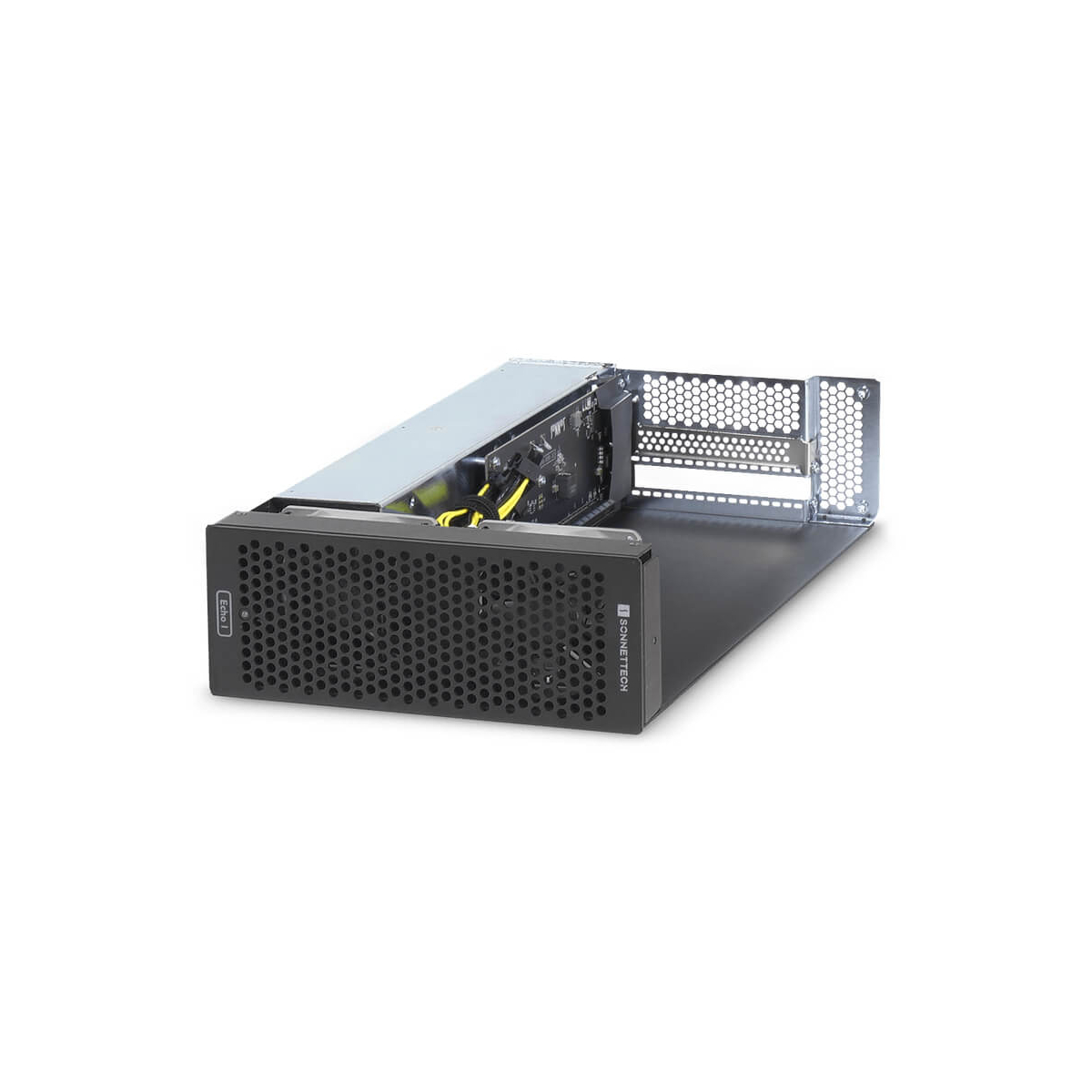

The Echo I expansion module supports one full-length, full-height, single- or double-width PCIe card. This module works with a wide range of Thunderbolt-compatible non-GPU PCIe cards.


400W of Power
A built-in 400W power supply supports power-hungry cards including Avid Pro Tools | HDX, AJA Kona 5, Blackmagic Decklink 4K Extreme 12G, and Blufish444's Epoch and KRONOS SDI cards. Plus, the system powers on and off automatically with the connected Mac Studio.

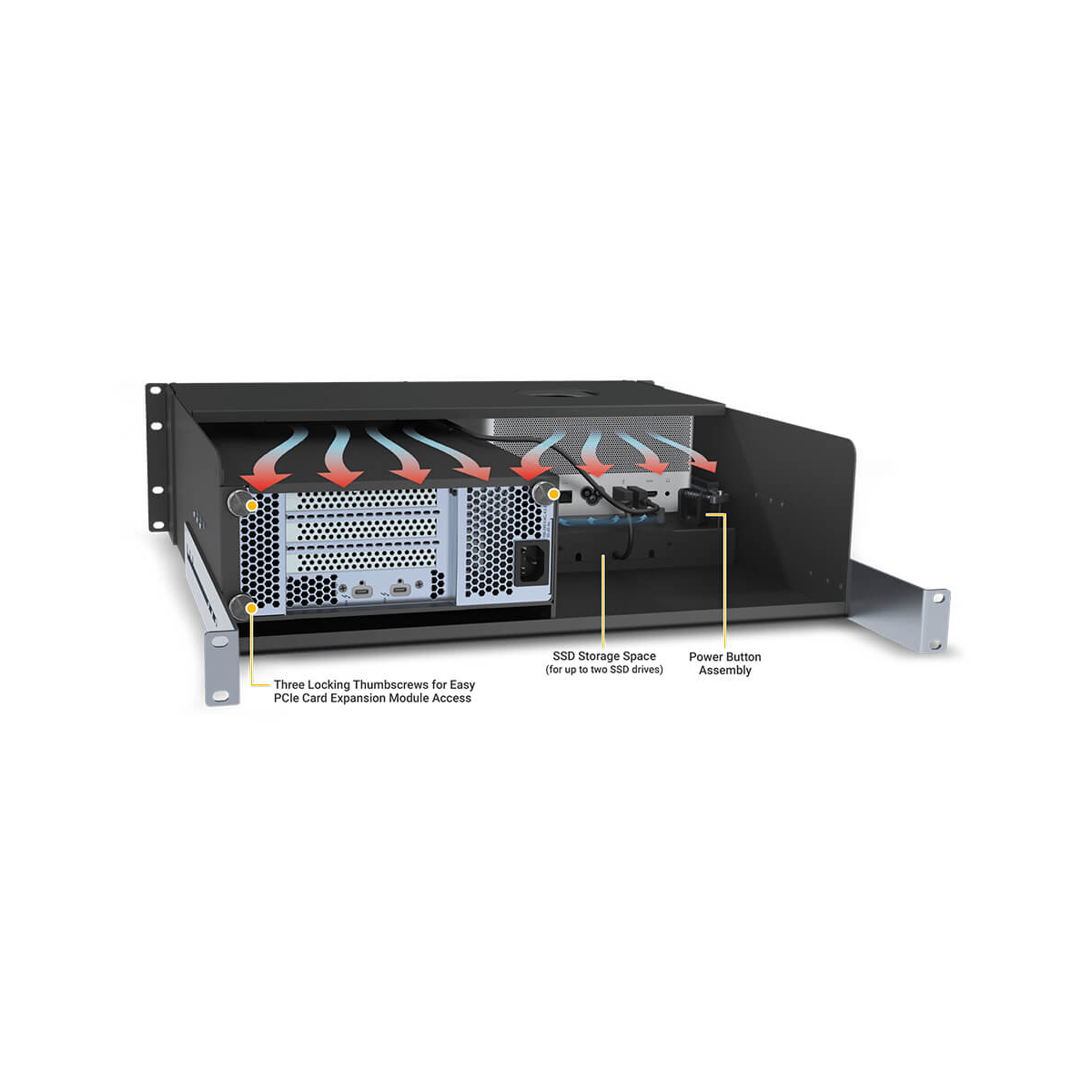

Quiet Fans
Dual temperature-controlled variable-speed Noctua fans rated at 17 dbA facilitate quiet operation.


Thunderbolt 3 Interface
A Thunderbolt 3 interface offers up to 2800 MB/s of bandwidth to installed PCIe cards.



Compatibility
Please note, Sonnet tests a range of SSDs for compatibility while also calculating compatibility from manufacturer data. Compatibility cannot be guaranteed.

  • ADATA (XPG) IM2P33E8 (500GB, 1TB, and 2TB)
  • ADATA (XPG) SX6000 Lite (500GB and 1TB)
  • ADATA (XPG) SX6000 Pro (500GB, 1TB, and 2TB)
  • ADATA (XPG) SX8100 (500GB, 1TB, 2TB, and 4TB)
  • ADATA (XPG) SX8200 PRO (500GB, 1TB, and 2TB)
  • ADATA (XPG) SX8800 (500GB and 1TB)
  • ADATA (XPG) XPG SX8100 (500GB, 1TB, 2TB, and 4TB)
  • Addlink S68 (500GB and 1TB)
  • Addlink S70 (500GB, 1TB, and 2TB)
  • Addlink S72 (1TB, 2TB, and 4TB)
  • Addlink S90 (1TB and 2TB)
  • Addlink S92 (1TB, 2TB, and 4TB)
  • Corsair Force Series MP300 (500GB and 1TB)
  • Corsair Force Series MP400 (4TB and 8TB)
  • Corsair Force Series MP510 (500GB, 1TB, 2TB, 4TB, and 8TB)
  • Corsair Force Series MP600 (500GB, 1TB, and 2TB)
  • Crucial P1 (500GB, 1TB, and 2TB)
  • Crucial P5 (500GB, 1TB, and 2TB)
  • Gigabyte AORUS RGB NVMe (500GB)
  • Gigabyte AORUS NVMe Gen 4 (500GB, 1TB, and 2TB)
  • HP EX 950 (500GB, 1TB, and 2TB)
  • Intel 600p (500GB and 1TB)
  • Intel 760p (500GB, 1TB, and 2TB)
  • Intel Optane Memory H10 (500GB and 1TB)
  • Kingston A1000 (500GB and 1TB)
  • Kingston A2000 (500GB and 1TB)
  • Kingston DC1000 Enterprise (500GB and 1TB)
  • Kingston KC1000 (500GB and 1TB)
  • Kingston KC2000 (500GB, 1TB, and 2TB)
  • Kingston NV1 (500GB, 1TB, and 2TB)
  • KIOXIA EXCERIA (500GB and 1TB)
  • KIOXIA EXCERIA PLUS (500GB, 1TB, and 2TB)
  • KIOXIA XG3 (500GB and 1TB; 80mm version only)
  • KIOXIA XG5 (500GB and 1TB)
  • KIOXIA XG5-P (1TB and 2TB)
  • KIOXIA XG6 (500GB and 1TB)
  • KIOXIA XG6-P (2TB)
  • KIOXIA Toshiba RC500 (500GB)
  • KIOXIA Toshiba RD400 (500GB and 1TB)
  • KIOXIA Toshiba RD500 (500GB and 1TB)
  • KLEVV CRAS C710 (500GB and 1TB)
  • KLEVV CRAS C720 (500GB, 1TB, and 2TB)
  • KLEVV CRAS C920 (2TB and 4TB)
  • Micron 2200 (500GB and 1TB)
  • Micron 2210 (500GB, 1TB, and 2TB)
  • Micron 2300 (500GB, 1TB, and 2TB)
  • Micron 7300 MAX Enterprise (500GB and 1TB; 80mm version only)
  • Mushkin Alpha (4TB and 8TB)
  • Mushkin Helix (500GB and 1TB)
  • Mushkin PILOT (500GB, 1TB, and 2TB)
  • Mushkin PILOT-E (500GB, 1TB, and 2TB)
  • OWC Auro P12 (500GB, 1TB, 2TB, 4TB, and 8TB)
  • Patriot Scorch (500GB)
  • Pioneer APS-SE10G (500GB, 1TB, and 2TB)
  • Pioneer APS-SE20G (500GB, 1TB, and 2TB)
  • PNY CS3030 SSD (500GB, 1TB, 2TB, and 4TB)
  • PNY CS3040 SSD (500GB, 1TB, 2TB, and 4TB)
  • PNY CS3140 SSD (1TB, 2TB, and 4TB)
  • Sabrent Rocket (500GB, 1TB, and 2TB)
  • Sabrent Rocket Q (500GB, 1TB, 2TB, 4TB, and 8TB)
  • Sabrent Rocket 4 (500GB, 1TB, and 2TB)
  • Sabrent Rocket Q4 (500GB and 1TB)
  • Samsung 960 EVO (1TB, 2TB, and 4TB)
  • Samsung 960 Pro (500GB, 1TB, and 2TB; older modules may require a firmware update, which must be installed via Windows)
  • Samsung 970 EVO (500GB, 1TB, and 2TB)
  • Samsung 970 EVO Plus (500GB, 1TB, and 2TB; older modules may require a firmware update, which must be installed via Windows)
  • Samsung 970 Pro (500GB and 1TB)
  • Samsung 980 (500GB and 1TB)
  • Samsung 980 Pro (500GB, 1TB, and 2TB)
  • Samsung OEM PM981 (500GB, 1TB, and 2TB)
  • Samsung OEM PM981a (500GB, 1TB, and 2TB)
  • Samsung OEM 991 (500GB, 1TB, and 2TB)
  • Samsung OEM 991a (500GB, 1TB, and 2TB)
  • Samsung OEM PM9A1 (2TB)
  • Seagate IronWolf 510 SSD (500GB, 1TB, and 2TB)
  • Seagate FireCuda 510 SSD (500GB, 1TB, and 2TB)
  • Seagate FireCuda 520 SSD (500GB, 1TB, and 2TB)
  • Silicon Power P32A80 (500GB)
  • Silicon Power P34A60 (500GB, 1TB, and 2TB)
  • Silicon Power P34A80 (500GB, 1TB, and 2TB)
  • Silicon Power UD70 (500GB, 1TB, 2TB, and 4TB)
  • Silicon Power US70 (1TB and 2TB)
  • Silicon Power XD80 (500GB, 1TB, and 2TB)
  • SK Hynix Gold P31 (500GB and 1TB)
  • Solidigm (Intel) 660p (500GB, 1TB, and 2TB)
  • Solidigm (Intel) 670p (500GB, 1TB, and 2TB)
  • SSSTC (Lite-On) MU X1 (500GB, 1TB, and 2TB)
  • SSSTC (Lite-On) MU X2 (500GB and 1TB)
  • Team Group Classic PCIe SSD (1TB and 2TB)
  • Transcend 110S (500GB and 1TB)
  • Transcend 112S (500GB and 1TB)
  • Transcend 220S (500GB, 1TB, and 2TB)
  • Transcend 240S (500GB and 1TB)
  • WD Blue SN500 (500GB)
  • WD Blue SN550 (500GB, 1TB, and 2TB)
  • WD Black SN750 (500GB, 1TB, and 2TB)
  • WD Black SN850 (500GB, 1TB, and 2TB)
  • WD PC SN520 (500GB; 80mm version only)
  • WD PC SN720 (500GB and 1TB)
  • WD PC SN730 (500GB and 1TB)
  • WD SanDisk Extreme Pro (500GB, 1TB, and 2TB)
  • XPG SX8100 (500GB, 1TB, 2TB and 4TB)

Sonnet XMac Studio Specification

General
Expansion Slots 1 x PCIe 3.0 x16 (x4 mode)
GPU None
Supported PCI Card Sizes Full-Height, Full-Length, Single-Width, Double-Width
System Connection Thunderbolt 3
Inputs/Outputs 4 x USB-A
2 x USB-C (Thunderbolt 3)

Drive Support
Compatible Drive Interface NVMe

Power
Power Source Type 1 x 400 W Internal PSU
PCIe Connectors 1 x 6+2-Pin
AC Input Power 115 to 230 VAC, 50 / 60 Hz

Cooling
Fans 2

Environmental
Operating Temperature 32 to 95°F / 0 to 35°C

Physical
Form Factor Rackmount (3 RU)
Certifications RoHS 3 (Directive 2015/863), IEC62368-1 and IEC62368-2 Safety
*as per Manufacturer
Dimensions 19 x 16.5 x 5.2" / 48.3 x 41.9 x 13.2 cm
Weight 20 lb / 9.1 kg
  • Sonnet xMac Studio Pro 3U Rackmount Enclosure with Echo I Module
  • Echo I Module
  • Power Cable
  • Thunderbolt 3 Cable
  • 6-Pin Auxiliary Power Cable
  • ThunderLok 3 Thunderbolt Connector Retainer Clip
  • Extension Rails for 16 to 24" Rack Depths
  • 2 x Adhesive-Backed Magnets
  • Limited 2-Year Manufacturer Warranty
