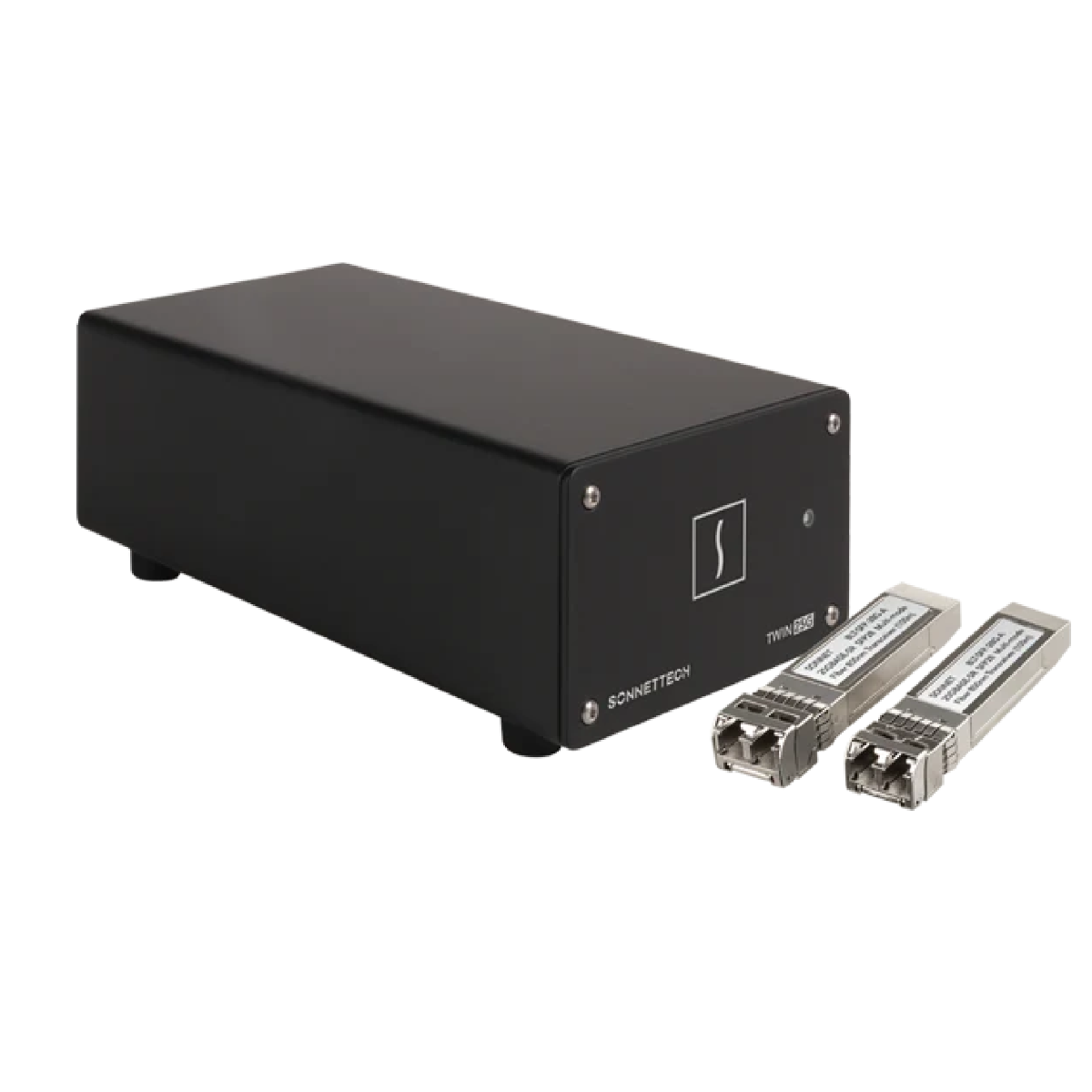

Boost the efficiency of your postproduction workflow by using the Twin25G Dual 25G SFP28 to Thunderbolt 3 Adapter from Sonnet to connect your Thunderbolt 3 or 4 compatible computer to high-speed fiber optic networks. Each of the two SFP28 work with the included transceivers to transfer up to 25 Gb/s with compatible devices, which equates to about 187.5GB per minute. With the 40 Gb/s Thunderbolt 3 host connection, you can add fiber connectivity to your computer without having to go through a lengthy installation process.
The second Thunderbolt 3 port provides 15W of power and allows you to connect peripherals such as storage drives and 8K monitors to your computer. The Twin25G is designed to work with Windows 10/11, macOS 13 or later, and Linux systems. It is also compatible with M series Macs.
Compact Design
The Twin25G is designed to fit onto most desktop spaces.
Nearly Noiseless
Variable-speed fans help to maintain optimal temperatures and performance while producing minimal noise.
Efficient Performance
The Twin25G features a smart controller that maintains a high throughput with minimal host CPU load by using its own internal processing system and onboard memory to accurately handle data transfers.
Backward Compatible
This network adapter works with 10G links, giving you the flexibility to upgrade your network as your needs change.
Sonnet Twin25G Specification Connectivity |
|
Networking I/O | 2 x 25Gb LC |
Other Inputs/Outputs | 2 x Thunderbolt 3 |
Transceiver Slots | 2 x Small Form-factor Pluggable (SFP) |
System Connection | Thunderbolt 3 |
General |
|
Chipset | Mellanox ConnectX |
OS Compatibility | macOS 13 or Later Windows 10 to 11 Windows Server 2019 to 2022 Linux 5 or Later *As of July, 2023: Check with manufacturer for the most up-to-date compatibility |
Auto-MDIX/MDI Support | No |
Jumbo Frames Support | 9000 Bytes |
Wake on LAN | No |
Transfer Rates | Thunderbolt 3: 25 Gb/s |
Electrical |
|
Power Source | AC Adapter |
AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
Adapter Power Output | 12 VDC @ 5 A |
Environmental |
|
Operating Temperature | 32 to 95°F / 0 to 35°C |
Physical |
|
Certifications | RoHS, IEC, NRTL *as per Manufacturer |
Lock Slot | No |
LED Indicators | Yes |
Dimensions | 4 x 2.75 x 8.25" / 101.6 x 69.85 x 209.55 mm |
Weight | 4.1 lb / 1.9 kg |
- Sonnet Twin25G Dual 25G SFP28 to Thunderbolt 3 Adapter
- Power Adapter
- Thunderbolt 3 Cable
- Thunderbolt Connector Retainer Clip
- Limited 2-Year Manufacturer Warranty
