Connect Two 4K Displays or One 5K Display from aSingle Thunderbolt Port

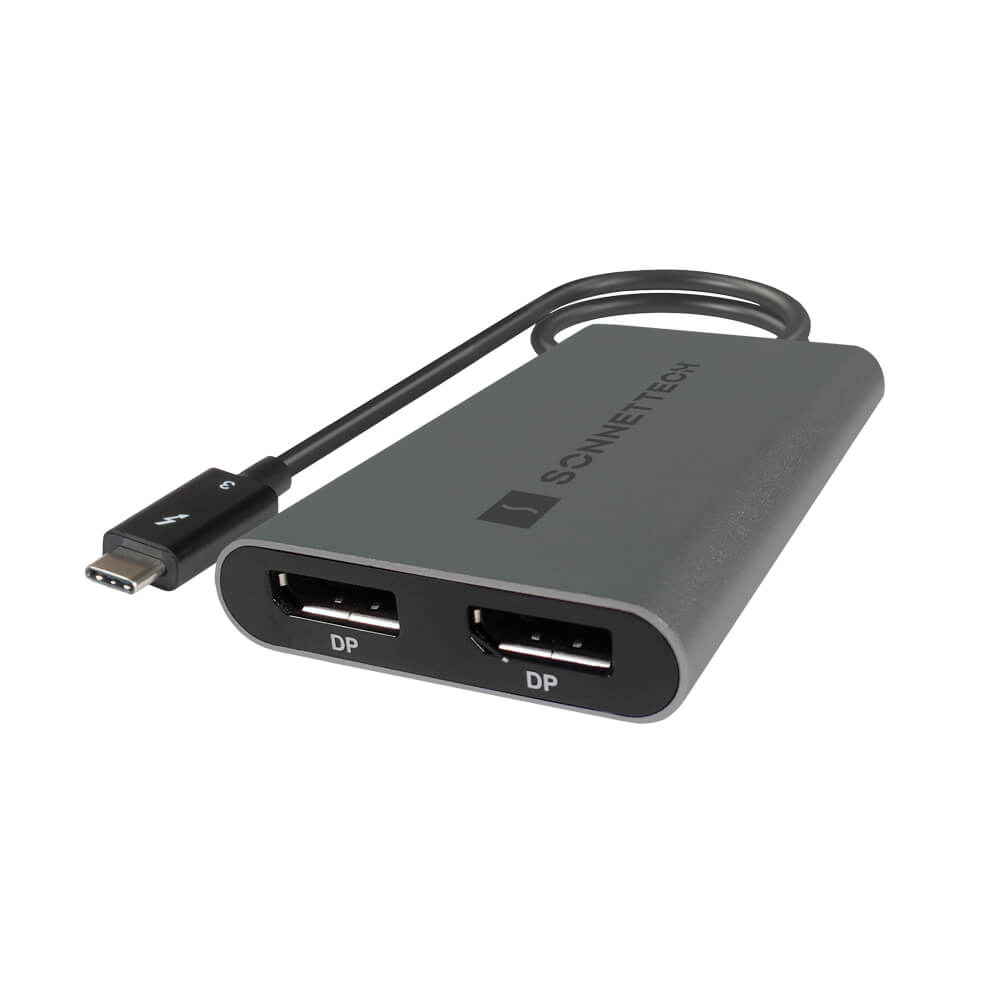

Sonnet’s Thunderbolt Dual DisplayPort Adapter is certified for use with Thunderbolt 3 Intel Macs, M1 Max, M1 Pro, and M1 Ultra (but not M1) Macs, and Windows® Thunderbolt 3 or Thunderbolt 4 computers; and enables you to connect one or two larger displays to a single Thunderbolt port on your computer. With the adapter connected, you can connect up to two 4K @ 60Hz DisplayPort (DP) monitors, or one 5K @ 60Hz DP monitor.
Work Efficiently
Whether you need to view your work across two displays, or you need to view it with the highest resolution possible, this Sonnet plug-and-play adapter enables you to work more efficiently. With two displays attached, you can fill one with full-screen workspace, and use the other for tools, other applications, and more.
Convenient – No External PowerAdapter Required
To use it, simply plug in the Sonnet Thunderbolt Dual DisplayPort Adapter into one of your computer’s Thunderbolt ports, and connect DisplayPort cables (sold separately) between the adapter and your monitors. Your computer powers the Sonnet adapter, so there’s no need to connect an additional power adapter.
Capable
Thunderbolt Certified for Mac® and Windows®, the Sonnet Thunderbolt Dual DisplayPort Adapter can be used with the latest and best computers available. If you need to connect a monitor without a DisplayPort (DP) input, the Sonnet dual DisplayPort adapter is compatible with active DP-to-HDMI, DP-to-DVI, and DP-to-VGA adapters. And, unlike USB adapters, the Sonnet adapter won’t drain system resources that might impact your computer’s performance.
Adapts to Your Needs
Although the Sonnet adapter supports one monitor with a 5120 x 2880 (5K) resolution, or two monitors at resolutions up to 4096 x 2160 (4K), you can also use it to connect monitors with lower resolution, like full HD 1080p (1920x1080) or 1920x1200 monitors. This makes it great for use for different home and office workspace applications. And, with built-in audio support, there’s no need for you to connect an additional cable to hear sound from the monitors.
Sonnet Technologies Thunderbolt Dual HDMI Adapter Specification |
|
Mac Compatibility |
Intel® 15" and 16" MacBook Pro and iMac Pro with four Thunderbolt 3 ports support four 4K monitors with two Sonnet adapters
All other Intel Macs with Thunderbolt 3 ports support two 4K monitors with one Sonnet adapter
M1 Pro, M1 Max, and M1 Ultra Macs support two 4K monitors with one Sonnet adapter
M1 and M2 Macs are not compatible. Use Sonnet's DisplayLink Dual DisplayPort Adapter for M1 Macs
macOS® 10.12.6+
macOS Ventura compatible
|
Windows Compatibility | Windows PC with Thunderbolt 4 or Thunderbolt 3 ports
Windows 10 or 11
|
Monitor Compatibility |
EDID Version 1.4
|
Hardware |
|
Form Factor |
Display adapter
|
Bus Interface | 40Gbps Thunderbolt |
External Connectors | Two DisplayPort ports |
Standard | DisplayPort 1.2 and HDCP 2.2 |
Supported Resolutions | 4K @ 60Hz 1440p @ 144Hz 1080p @ 240Hz |
Dimensions (WxDxH) | 2.3 x 3.9 x 0.6 in. (59 x 99 x 16 mm) |
Dimensions, Cable (Length) | 11.8 in. (300 mm) |
RoHS Compliant | Yes |
- Thunderbolt Dual DisplayPort Adapter
- 2-years Limited Manufacturer's Warranty
