Thunderbolt Gigabit Ethernet Adapter for Macs with Thunderbolt Ports
The Avid® Pro Tools | Carbon audio interface for music production has been described as a creative game changer; its innovative use of eight onboard HDX processors and a custom FPGA enable you to track and monitor with near-zero latency when using AAX DSP plug-ins. Because Carbon connects to your Mac® over Ethernet using a proprietary version of AVB (Audio Video Bridging, aka IEEE 802.1), you’ll have to use an AVB capable Thunderbolt™ Gigabit Ethernet adapter if your computer doesn’t have onboard Ethernet. The Avid Qualified Sonnet Thunderbolt AVB adapter is your single-adapter solution for connecting your Mac with Thunderbolt 4 or Thunderbolt 3 ports to the Carbon interface.
Avid-Compliant Ethernet Adapter – Connect to Other Devices On a Network
Beyond its support for the Pro Tools | Carbon interface, the Sonnet Thunderbolt AVB Adapter enables you to add your Mac as an endpoint in an AVB network and connect to other devices such as audio interfaces, mixers, plug-in processors, personal monitor stations, stage boxes, speakers, speaker processors, and others. Audio Video Bridging support makes the adapter perfect for use in pro audio and video applications where synchronization of data streams is critical.
What is the Benefit of an AVB Network?
An AVB network is extremely reliable since it is designed to reserve a portion of the available Ethernet network bandwidth for its own data. Packets of AVB data are sent regularly in allocated slots within the reserved bandwidth, ensuring AVB packets maintain time synchronization.
Thunderbolt Interface for Low Latency
Featuring a 40Gbps Thunderbolt™ interface, the Sonnet Thunderbolt AVB Adapter supports the low-latency, fully synchronized streaming of audio and video over Ethernet required for Avid Pro Tools | Carbon and AVB support.
Bus-powered Operation
Operating off its Thunderbolt connection, Sonnet’s Thunderbolt AVB Adapter is bus-powered, so there’s no need to plug in a power supply or power cable.
Pocketable. Powerful. Gigabit Ethernet to Go
The Sonnet Thunderbolt AVB Adapter measures just 1.5 inches wide by 3.9 inches deep by 0.8 inches tall, small enough to tuck out of sight or fit easily into a pocket in your backpack or equipment bag. Enabling truly portable use, the Sonnet adapter is powered by your computer’s Thunderbolt port, connected through the included Thunderbolt cable.
Simple SetupDrivers and Configuration App Built Into macOS
The basic drivers that support the Sonnet Thunderbolt Adapter are included in macOS®. Basic configuration takes place in Network control panel, while configuration for use in AVB applications is handled in the Audio MIDI Setup application and control software.
The Right Connection40Gbps Thunderbolt Cable and ThunderLok 3 Included
Sonnet includes a 40Gbps Thunderbolt cable that is fully compatible with Thunderbolt 4 and Thunderbolt 3 computers. Sonnet also provides a ThunderLok™ 3 Thunderbolt connector retainer clip that prevents accidental cable disconnections — just slide it over one end of the cable, and then plug in the connector and secure it to the adapter by turning a thumbscrew. Because of its unique design, ThunderLok remains on the cable, so it won’t get lost when not in use.
Sonnet Technologies Thunderbolt AVB Adapter Specification |
|
Mac Compatibility |
Mac® (M1/M2 series)
Mac (Intel®) with Thunderbolt 3 ports macOS® 10.12.6+ macOS Ventura compatible |
Pro Tools Carbon Compatibility | See Avid support page for supported Mac computers |
Hardware |
|
Form Factor |
Thunderbolt Ethernet adapter
|
External Connectors |

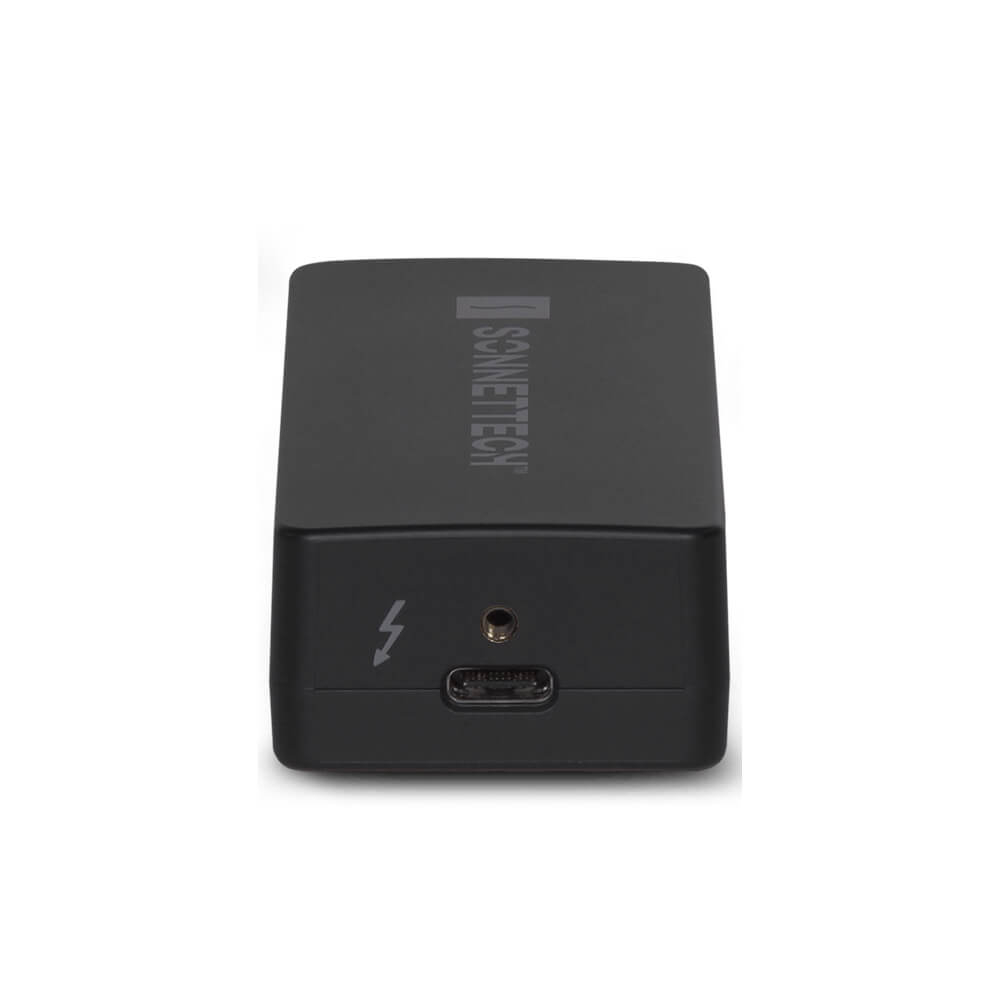

One Thunderbolt port

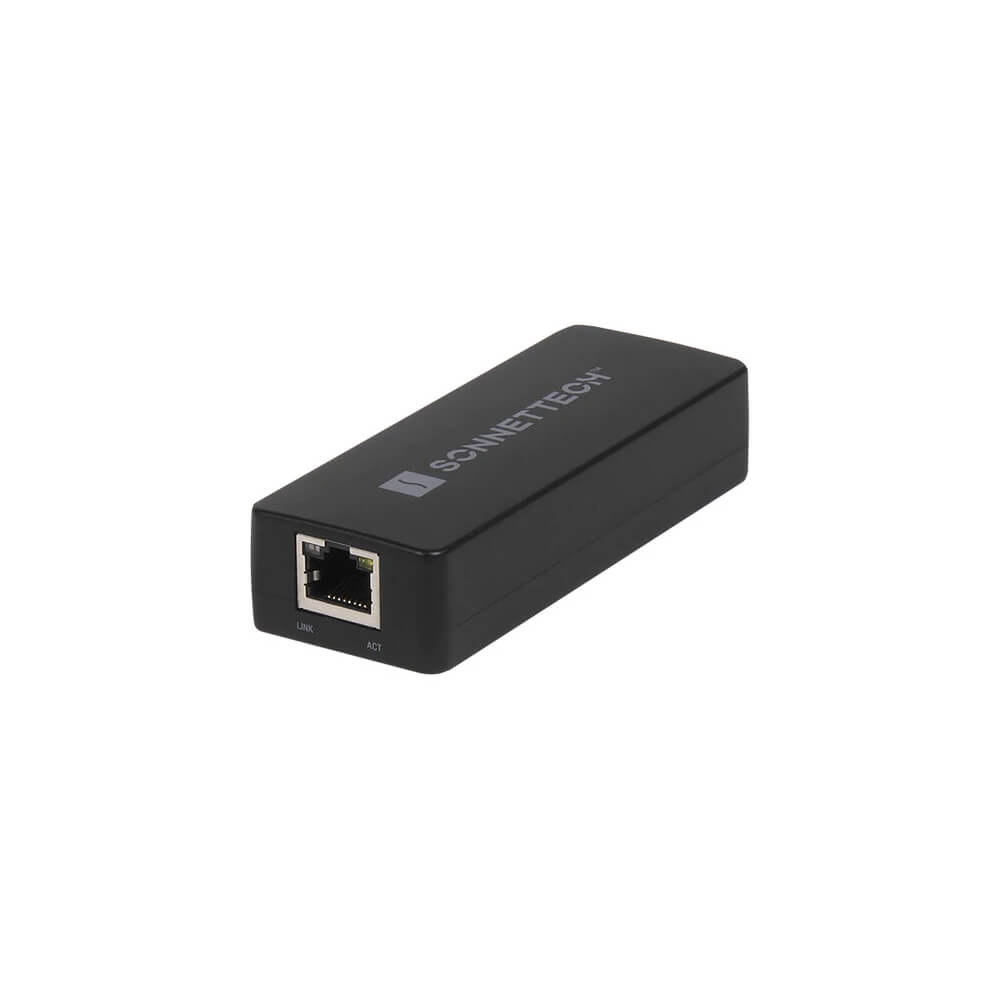

One RJ45 port |
GbE Controller |
Broadcom BCM57762
|
Bus Interface |
40Gbps Thunderbolt
|
Network Support |
1000BASE-T, 100BASE-TX
|
Packets |
Maximum packet size: 9000 bytes
|
Data Rates Supported |
1Gb/s, 100Mb/s
|
Advanced Features |
Audio Video Bridging (AVB) protocols over Ethernet compliant with IEEE 802.AS, 1588-2008, P802.1Qat, and P802.1Qav
Energy-Efficient Ethernet (IEEE 802.3az) Virtual LAN (VLAN) support - IEEE 802.1q VLAN Wake-on-LAN (WOL) support |
Stateless Oflloads |
TCP, UDP and IPv4 checksum offloading
TSO (TCP Segmentation Offload, AKA Large Send Offload) LRO (Large Receive Offload) RSS (Receiver Side Scaling) |
AVDECC Compliant |
Yes
|
Operating Temperature |
0ºC to 35ºC (32ºF to 95ºF)
|
Dimensions (WxDxH) |
5 x 3.9 x 0.8 in. (38.1 x 98.4 x 20.6 mm)
|
Weight |
Adapter: 0.20 lbs (0.09 kg)
Complete Package: 0.40 lbs (0.18 kg) |
Compliance |
RoHS 3 (Directive 2015/863)
IEC62368-1 and IEC62368-2 Safety |
- Sonnet Thunderbolt AVB Adapter
- 0.5-meter Thunderbolt cable
- ThunderLok 3 Thunderbolt connector retainer clip
- 2-years Limited Manufacturer's Warranty
