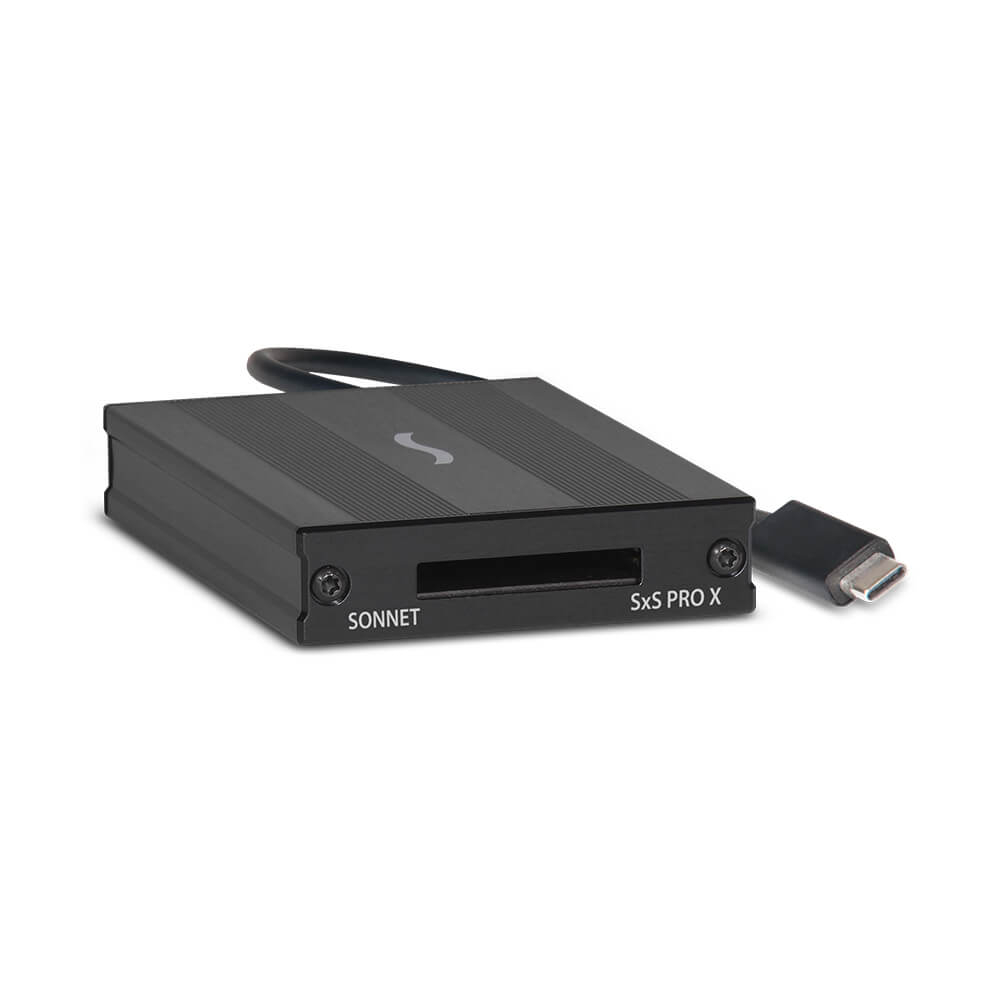

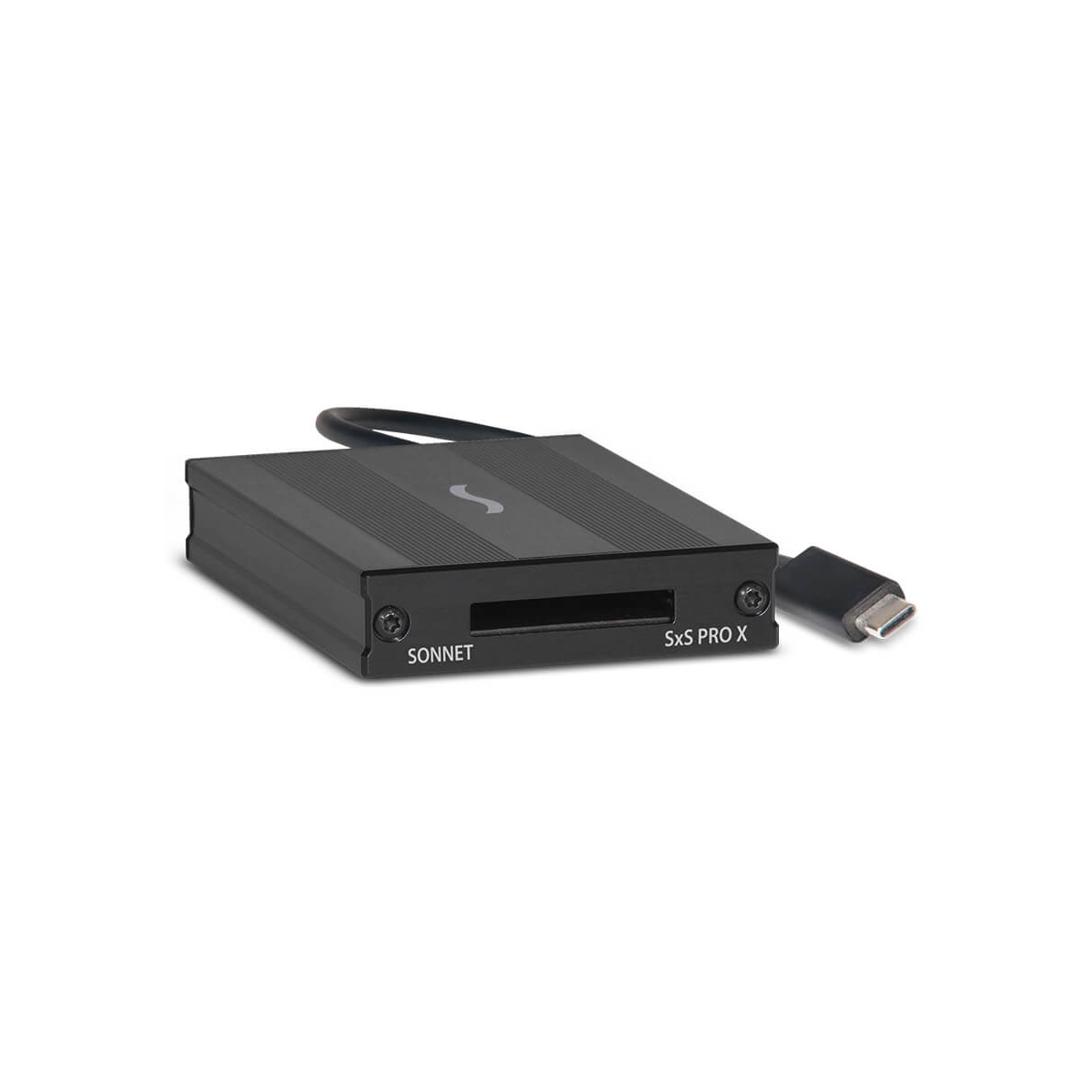

The SxS PRO X Thunderbolt 3 Single-Slot Card Reader from Sonnet is a compact, professional SxS card reader for computers with Thunderbolt 3 ports. It is compatible with SxS PRO X cards, which offer nearly a 3x increase in maximum read speeds over the previous generation. Aside from SxS PRO X, this card reader may be used natively with SxS PRO+ E, SxS PRO+ D, SxS PRO+, SxS PRO, SxS-1, and SxS cards. Additionally, XQD and SD cards may be used via separately-sold adapters.
Sonnet built this card reader to drive data transfers at speeds up to 1250 MB/s for SxS PRO X cards, or 440 MB/s for SxS PRO+ media. Pocket-sized, rugged with an aluminum enclosure, and bus powered, this device is compatible with Windows and Mac. It may be connected to your Windows system using a Thunderbolt 3, Thunderbolt 4, or USB4 port, while Mac connectivity is limited to Thunderbolt 3. Included is a 1.6' Thunderbolt 3 cable and a ThunderLok3 retainer clip, which helps to prevent accidental cable disconnections.
Please note that this card reader is currently not compatible with M1 Macs, but a Sony M1-compatible driver for SxS cards is expected. Also, Sony AXS media is not supported.
General Features
A Suitable Travel Companion
When you need to travel light and don't have a large stack of cards to ingest, extra power bricks and cables take up extra space and can weigh you down. Sonnet's SxS PRO X Thunderbolt 3 Single-Slot Card Reader is bus-powered, operating off its Thunderbolt connection, so there's no need to plug in a power supply or power cable.
Supports All Types of SxS Media
The SxS PRO X Card Reader supports all generations of SxS media, including SxS PRO X, SxS PRO+ E, SxS PRO+ D, SxS PRO+, SxS PRO, SxS-1, and SxS cards. Additionally, this reader supports XQD cards with the Sony ExpressCard Adapter for XQD Memory Card (QDA-EX1) or SD cards with Sonnet's SDHC Adapter for SxS Slot (SD-SXS-E34) or Sony's MEAD-SD02.
Fast Ingestion Performance
Ingest footage from any SxS card at maximum supported speeds of up to 1250 MB/s with SxS PRO X and up to 440 MB/s for SxS PRO+ media.
The Single-slot SxS Card Reader for Digital Imaging Technicians (DITs)

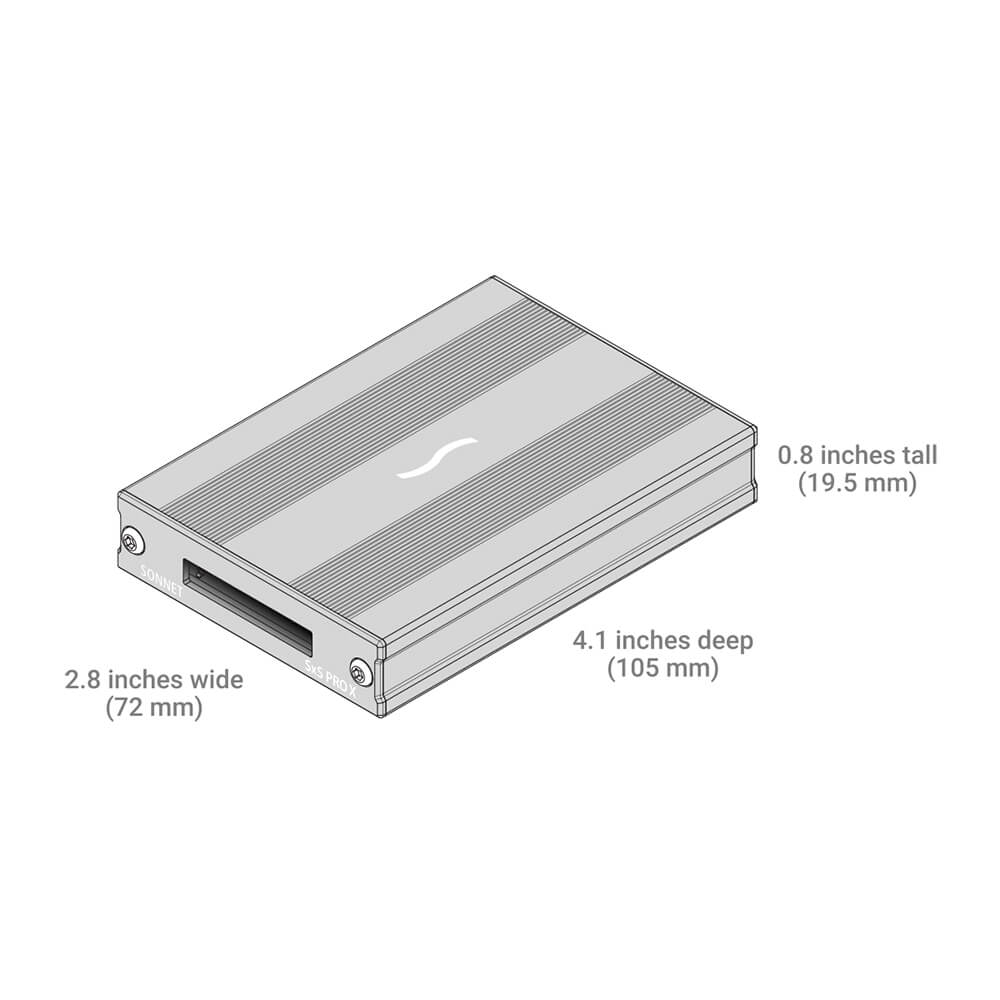

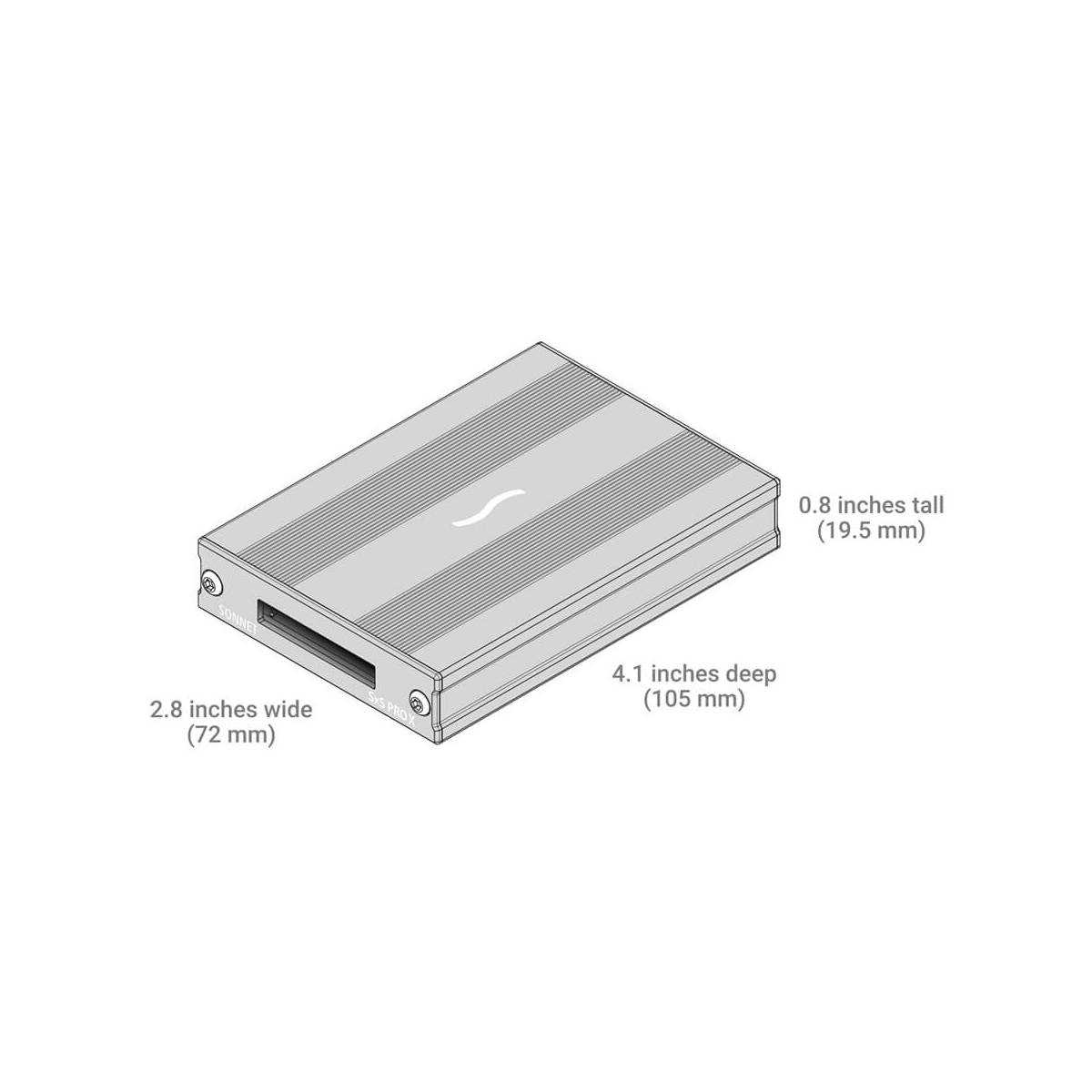

Equipment size and design features matter. Sonnet's SxS PRO X Thunderbolt 3 Single-Slot Card Reader measures just 2.8" x 4.1" x 0.8", which is about the size of a deck of playing cards, making it suitable for use in any workspace and workflow. Featuring a rugged aluminum enclosure, the Sonnet reader packs easily into a computer bag or backpack. Its single-port Thunderbolt interface and bus-powered operation make it good for use at the end of a daisy chain, such as multiple Sonnet SF3 Series dual-slot pro card readers.

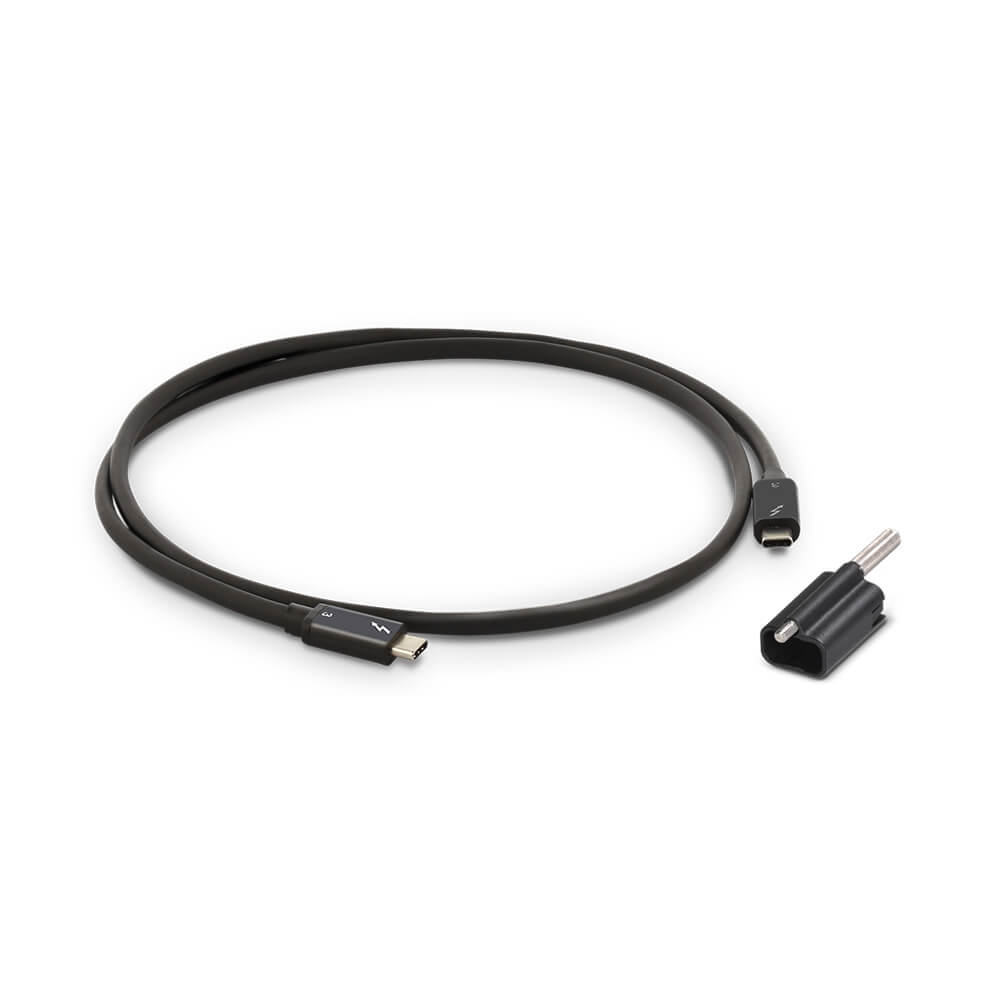

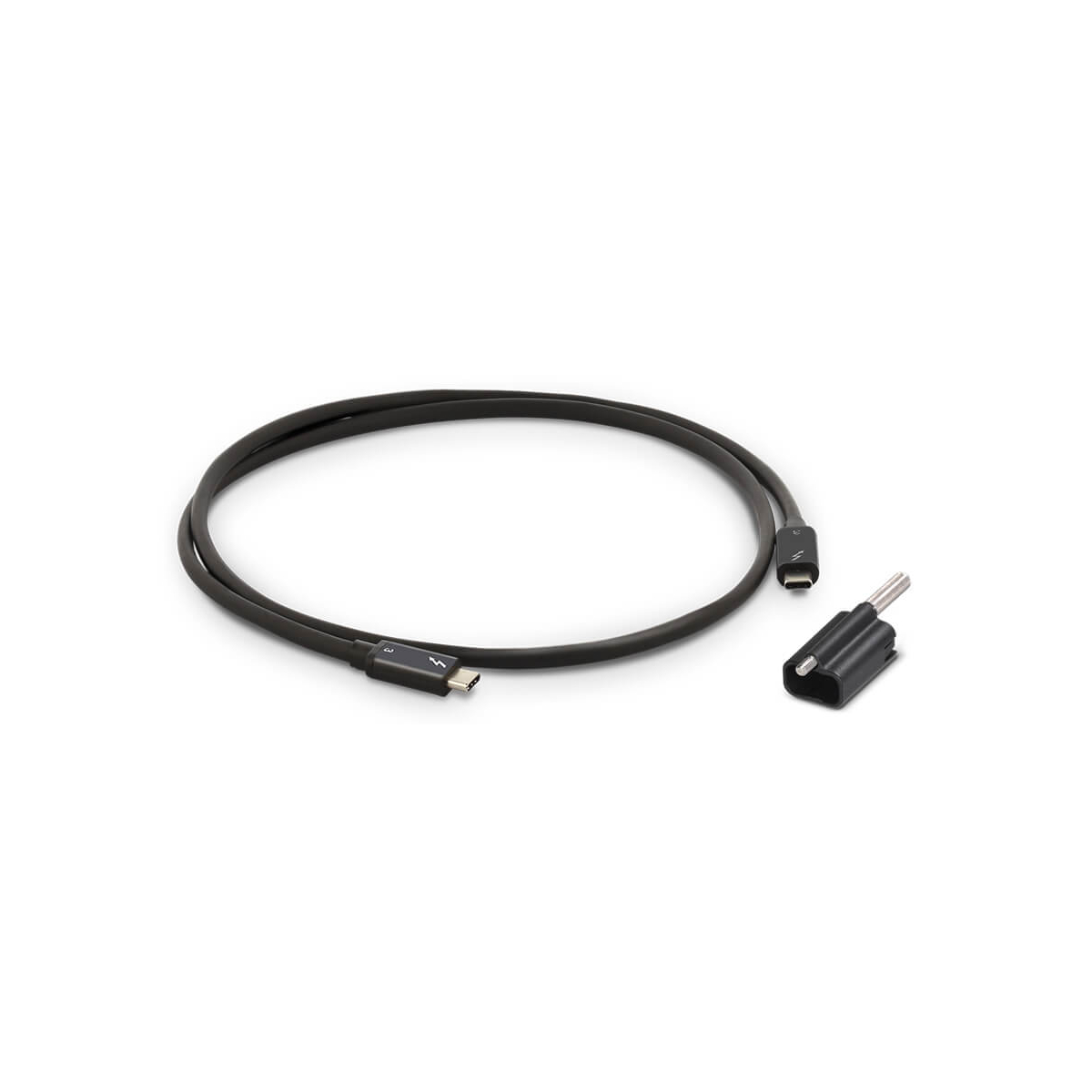

Includes Thunderbolt 3 Cable and ThunderLok3
Sonnet includes a 1.6' 40 Gb/s Thunderbolt 3 cable that supports Thunderbolt 3's full bandwidth. Sonnet also provides a ThunderLok 3 Thunderbolt connector retainer clip that helps prevent accidental cable disconnections - just slide it over one end of the cable, and then plug in the connector and secure it to the reader by turning a thumbscrew. Because of its unique design, ThunderLok remains on the cable so it won't get lost when not in use.
Bus Powered
Powered using the Thunderbolt bus.
Portable and Rugged
Pocket-sized with a rugged aluminum design.
Thunderbolt 3 Interface
40 Gb/s Thunderbolt 3 interface
OS Compatibility
Compatible with Windows 10 (64-Bit Version 1909 or greater) and macOS 10.12.6 and later, including macOS Big Sur (with SxS Driver 3.0+).
Sonnet TB3-1SXSPX Specification Performance |
|
Media Card Reader | 1 x SxS |
System Connection | USB Type-C Male [Thunderbolt 3 (40 Gb/s)] |
Power Source | Thunderbolt/USB Bus Power |
Environmental |
|
Operating Temperature | 32 to 67°F / 0 to 35°C |
General |
|
Enclosure Material | Aluminum |
LED Indicators | No |
Dimensions (W x H x D) | 2.8 x 0.8 x 4.1" / 71.1 x 20.3 x 104.1 mm |
Weight | 0.35 lb / 0.16 kg |
- Sonnet SxS PRO X Thunderbolt 3 Single-Slot Card Reader
- Thunderbolt 3 Cable (1.6' / 0.5m)
- ThunderLok 3 Retainer Clip
- Free Lifetime Technical Support
- Limited 2-Year Manufacturer Warranty
