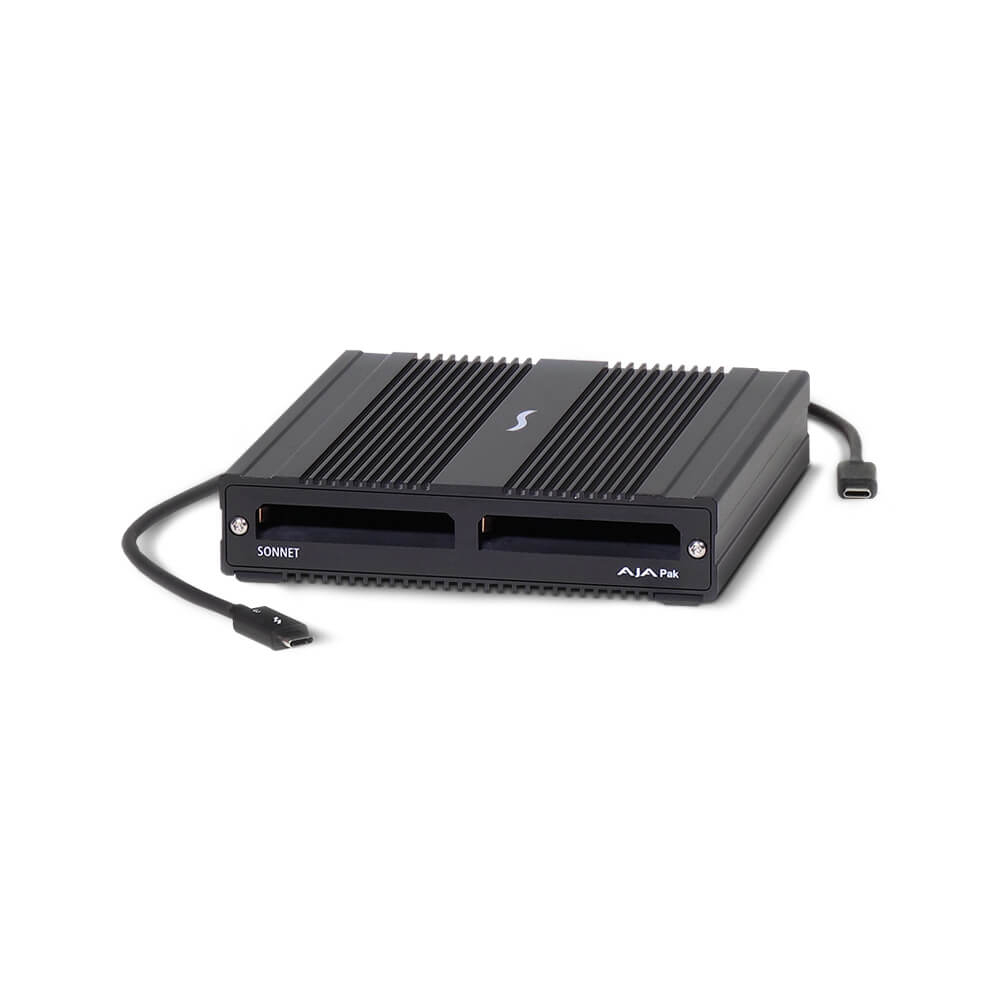

Cut your media ingestion time in half by enhancing your workflow with the SF3 Series 2-Bay AJA PAK Media Pro Card Reader from Sonnet. This media card reader features dual slots and a 40 Gb/s Thunderbolt 3 connection, allowing you to quickly offload footage from two AJA PAK SSD cards simultaneously with an aggregate transfer rate of up to 1030 MB/s. Transfer rates with single cards can reach speeds of up to 570 MB/s. The SF3's stackable design allows you to exponentially increase your media ingestion by using the second Thunderbolt 3 port to daisy chain up to two additional card readers, allowing you to transfer from six cards simultaneously at full speed without taking up too much desktop space.
You can also use the thread mounts allow to attach up to two SF3 card readers to a single separately purchased 1 RU rack tray. A convenient ThunderLok 3 retainer clip is included to ensure a secure port connection.
Mac Compatibility
- Mac (M1, M2, M1 Pro, M1 Max, and M1 Ultra)
- Mac (Intel) with Thunderbolt 3 ports
- Mac (Intel) with a Thunderbolt 2 or Thunderbolt 1 port with separately sold Apple Thunderbolt 3 (USB-C) to Thunderbolt 2 Adapter and a Thunderbolt 2 cable
- macOS 10.12.6+
- macOS Ventura compatible
Windows Compatibility
- Windows computer with Thunderbolt 4 or Thunderbolt 3 ports
- Windows 11 and 10
Supported Media
- All AJA PAK Media cards including the PAK 2000, PAK 1000, PAK 512, and PAK 256
Sonnet SF3 Series AJA Pak Media Specification |
|
Compatible Memory Cards | PAK |

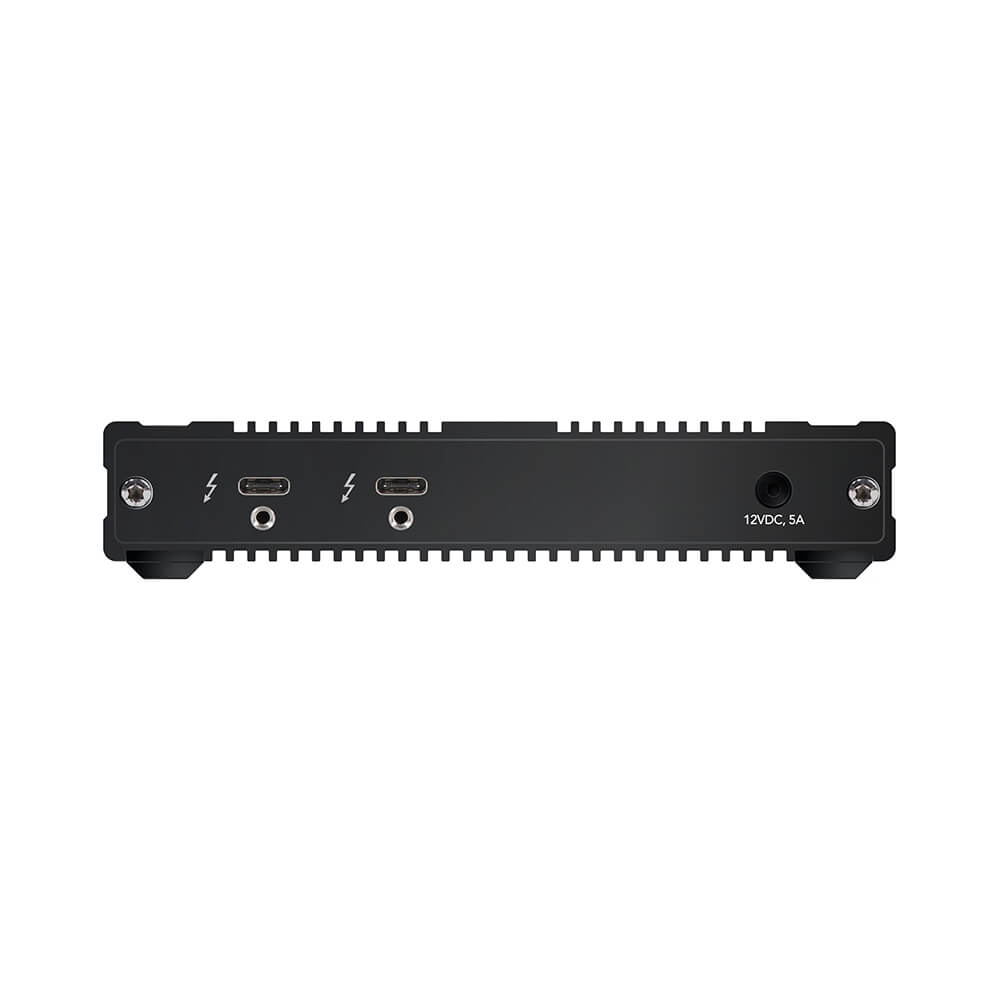

Connectivity | 2 x USB-C (Thunderbolt 3, 40 Gb/s) |
Data Transfer Rate | 1030 MB/s (Aggregate) 570 MB/s (Single) |
Operating Temperature | 32 to 95°F / 0 to 35°C |
Power Adapter | 60 W |

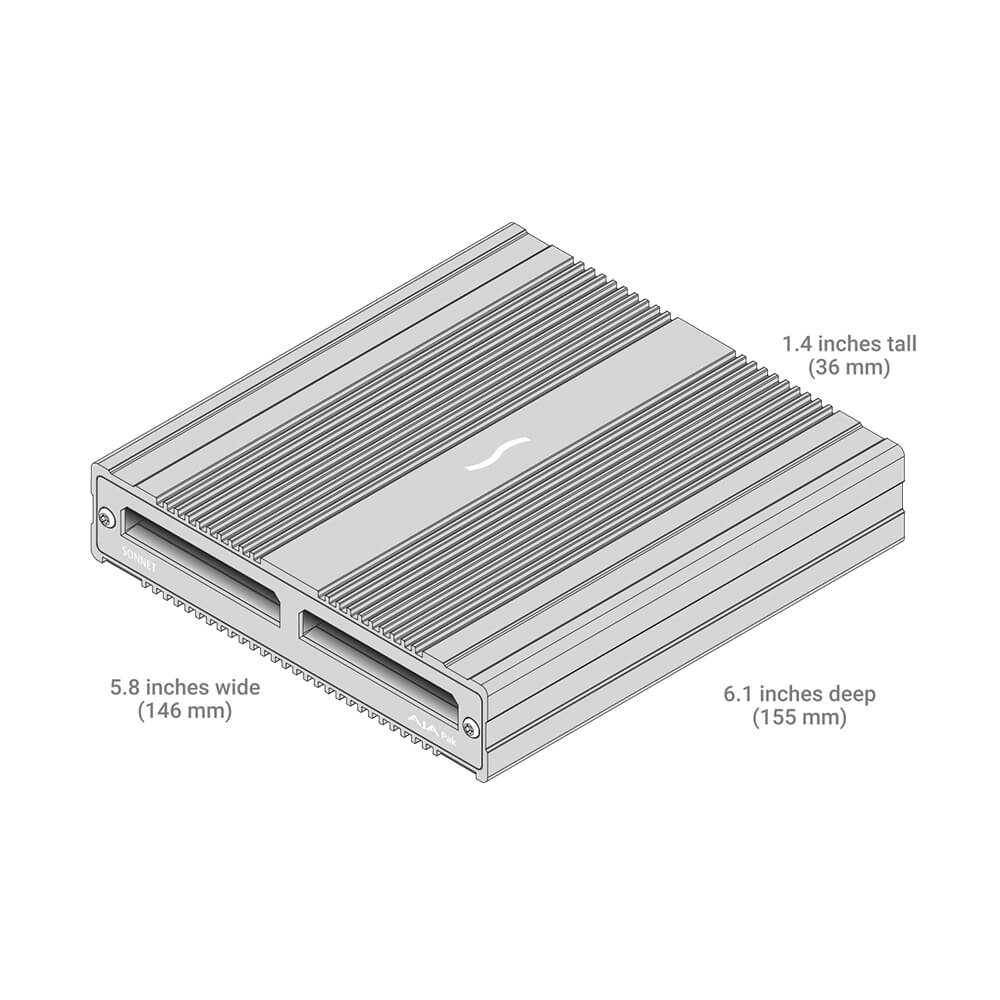

Dimensions | 5.8 x 6.1 x 1.4" / 148 x 155 x 36 mm |
Weight | 2.6 lb / 1.2 kg |
- Sonnet SF3 Series 2-Bay AJA PAK Media Pro Card Reader (Thunderbolt 3)
- Power Adapter & Cable

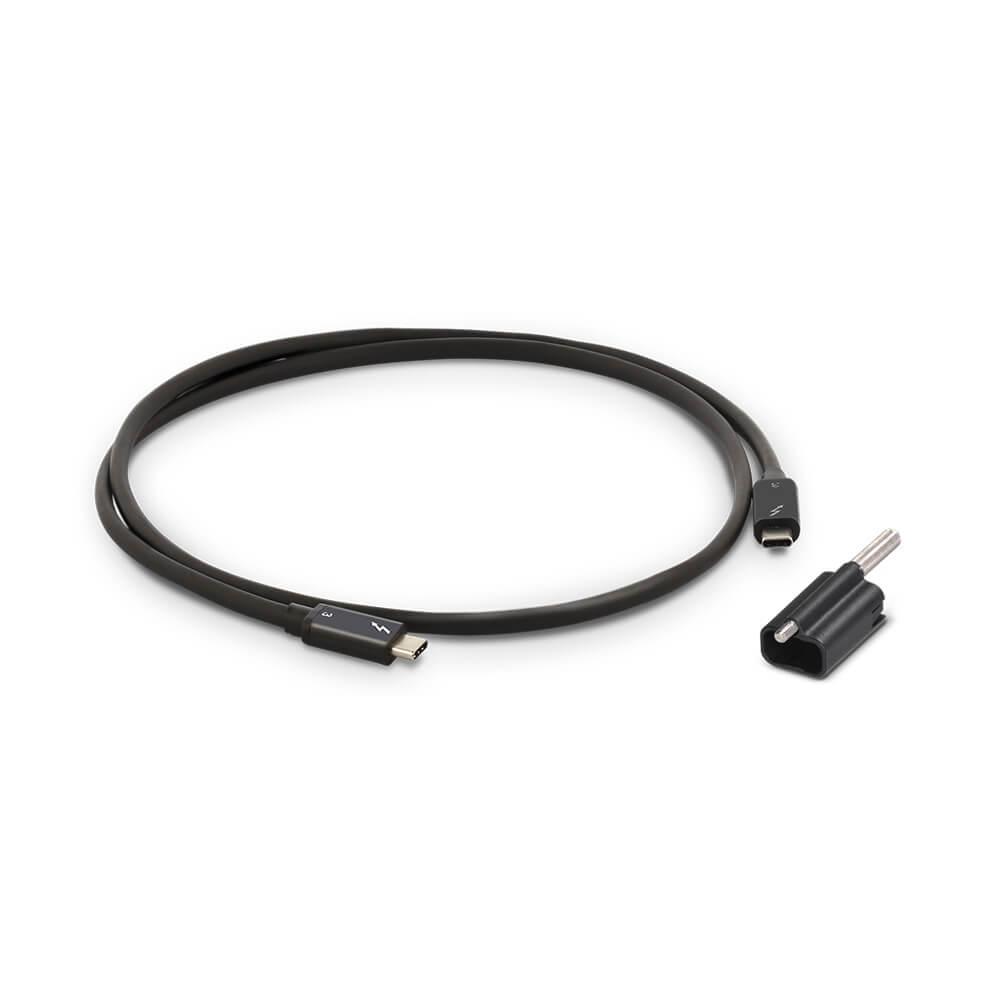

- Thunderbolt Cable (1.6')
- ThunderLok 3 Thunderbolt Retainer Clip
- Limited 2-Year Manufacturer Warranty
