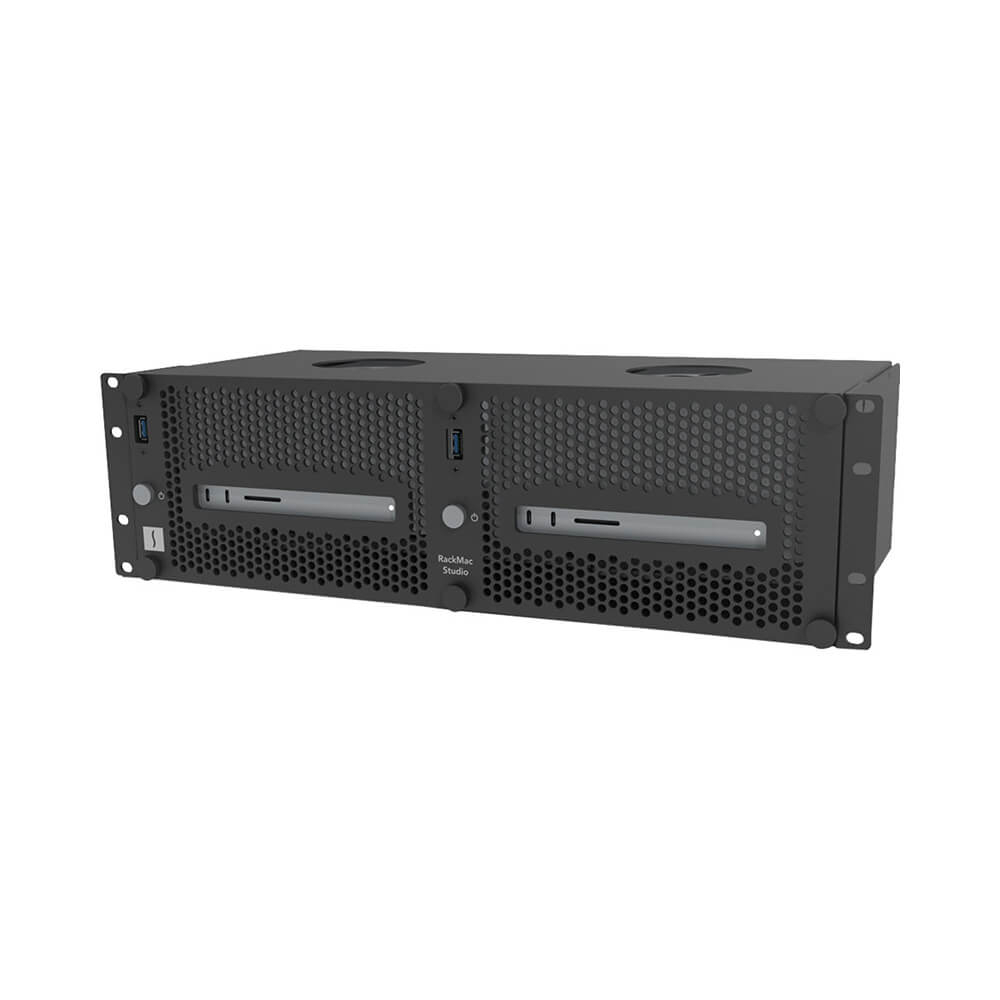

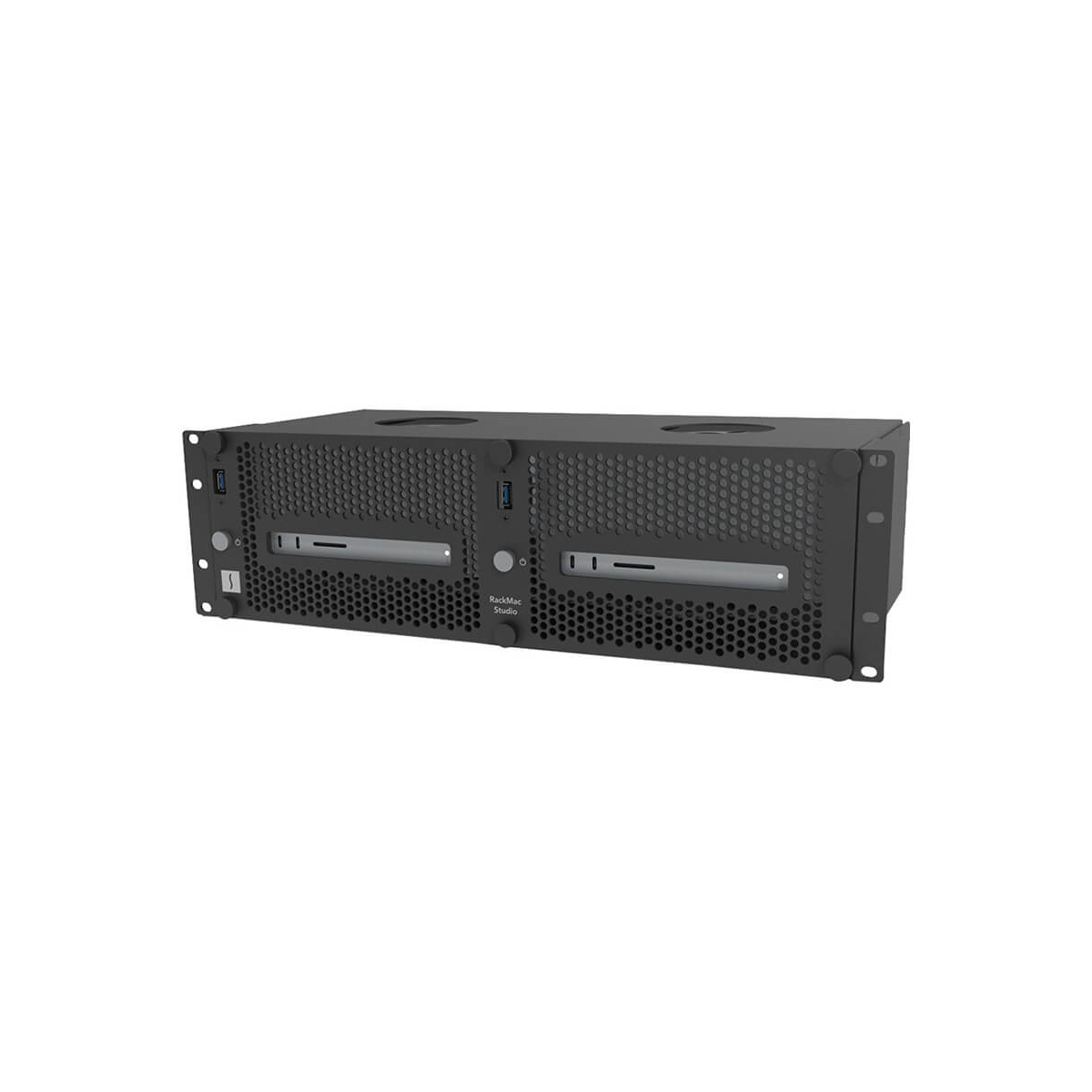

Double down on productivity potential with the RackMac Studio Pro 3U Rackmount Enclosure from Sonnet. Designed to hold two Mac Studio computers, this rack enclosure features a toolless front panel that preserves access to ports and SD card readers. The enclosure also provides one USB-A port per computer, while a dedicated space on its underside holds USB or Thunderbolt 3 SSDs, available separately. A 3U form factor allows for easy installation in standard 19" server racks.
Designed for Professional Workflows
Featuring a 3U enclosure, the RackMac Studio ensures secure installation of one or two Mac Studios to a standard 19" server rack. The RackMac Studio is optimized for professional applications including audio, video, color grading, photography, DITs, productions, and broadcasts.
Control and Connect
RackMac Studio secures one or two Mac Studio computers in a rack, placing them behind a quick and easily removable front panel. Convenient front panel operation allows you to turn Mac Studio computers on with their own dedicated front power buttons, connect USB devices through passthrough USB-A ports, and access the computers' front ports and SD card slots. The RackMac Studio design enables you to connect and disconnect cables easily without needing to remove the computers from the enclosure.
Openings on top of RackMac Studio ensure hindrance-free wireless signal access. The RackMac Studio is designed to allow normal Wi-Fi and Bluetooth wireless operation in most configurations (depending on rack type and position in rack), so you can use wireless devices and iOS device control apps.
Streamlined for Server Rooms
A 3U height and standard mounting holes enable easy installation into any standard server rack.
Easy Access
The removable front panel is secured with thumbscrews and allows easy installation and access to the Mac Studios with no tools required.

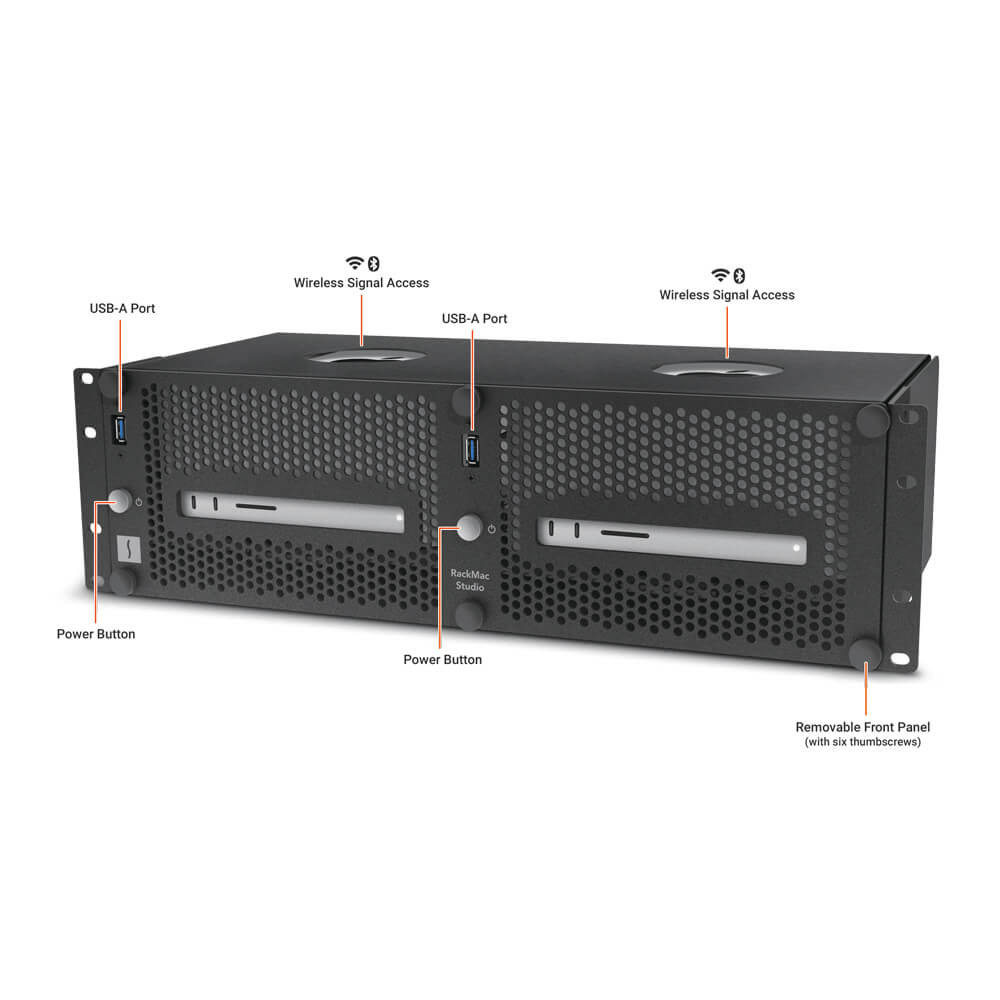

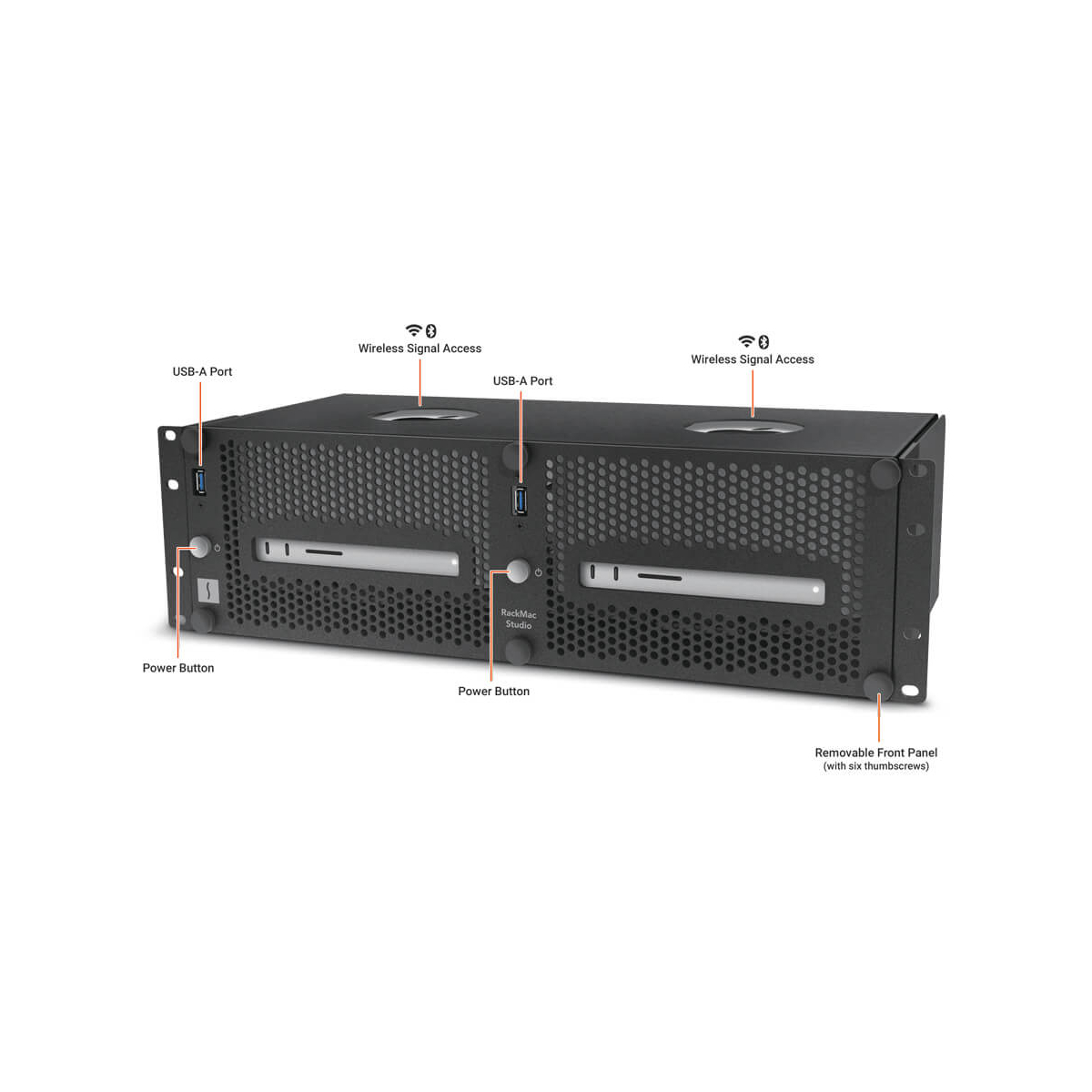

Front Panel Power Switches and USB Ports
Front panel buttons enable easy operation of the Mac Studios rear-mounted power switches; USB-A ports enable the connection of a USB peripheral to each computer.

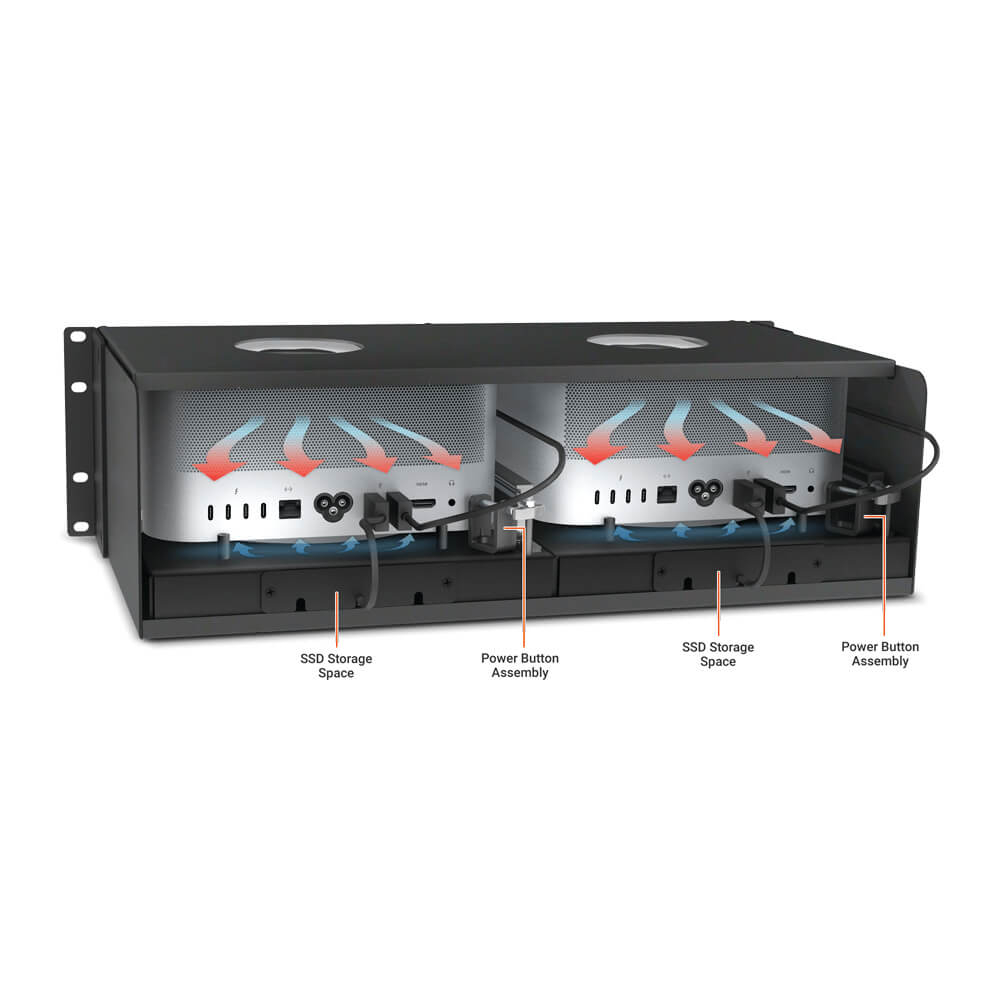

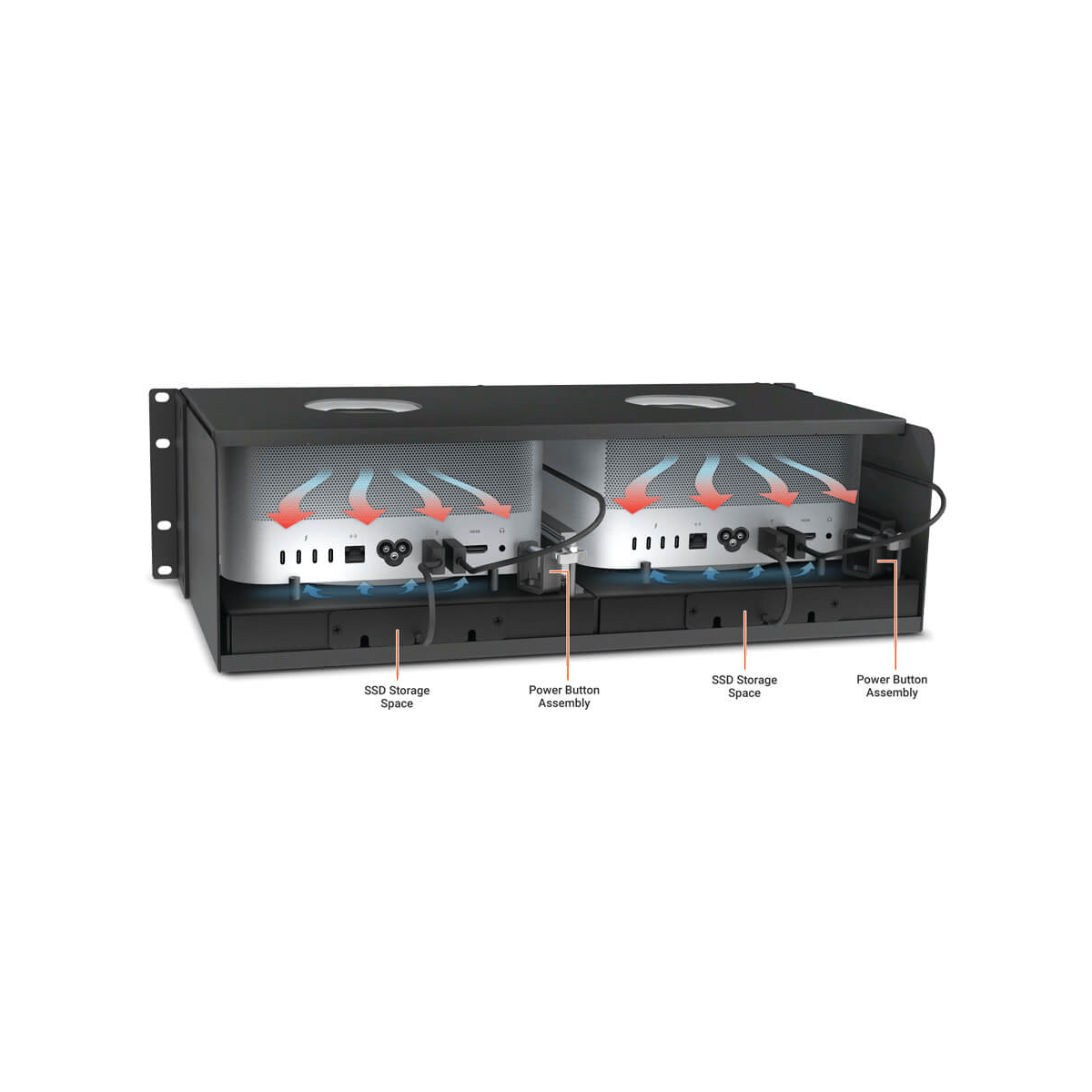

Space for Storage
Behind a covered opening beneath each Mac Studio is a space to place Thunderbolt or USB SSDs, available separately. Two included adhesive-backed magnets secure these drives in place.
Road Trip Ready
Firm rubber cushions hold the Mac Studios securely in place during transport. These cushions, combined with a 9.5" mounting depth, make the RackMac Studio perfect for use in portable racks and shallow molded rack cases.
Front to Back Airflow Management
The RackMac Studio supports direct airflow through each Mac Studio to keep it operating at optimal temperature, even when the enclosure is mounted between two other racked components.
Sonnet RACK-STD-2X Specification |
|
Compatibility | Mac Studio |
External Connectors | 2 x USB-A Ports (1 per Installed Computer) |
Form Factor | 3U Rackmount Enclosure |
SSD Support | 0.7" / 18 mm (Max Height, Inserted from Rear) 0.9" / 23 mm (Max Height, Inserted from Front) |
Certifications | RoHS 3 (Directive 2015/863) |
Dimensions (W x D x H) | 19 x 9.5 x 5.2" / 48.3 x 24 x 13.3 cm |
Weight | 8.6 lb / 3.9 kg |
- Sonnet RackMac Studio Pro 3U Rackmount Enclosure
- 2 x Adhesive-Backed Magnets
- Limited 2-Year Manufacturer Warranty
