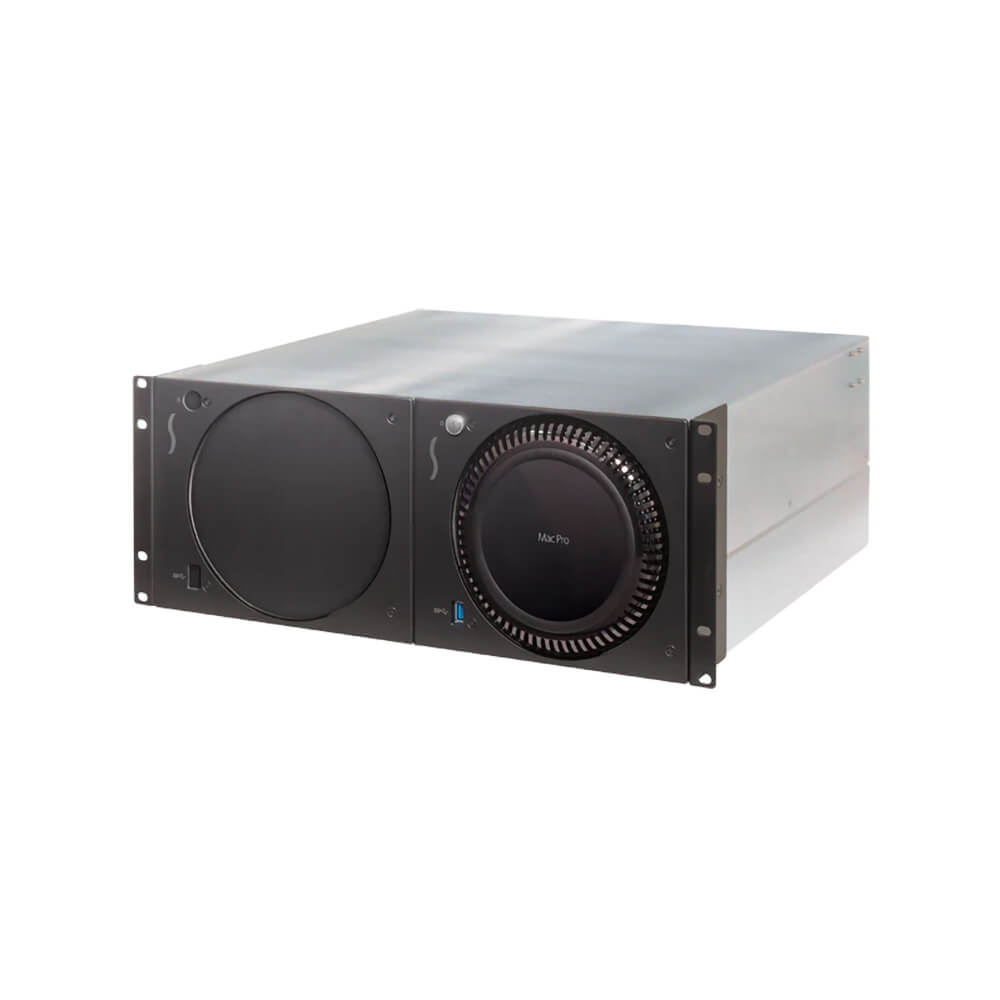

Configured with one mounting bracket to start, the RackMac Pro from Sonnet securely encloses one Mac Pro (late 2013) in a 4 RU rack space. There's a second slot for another Mac Pro so you can mount two of them side by side; however, an optional mounting bracket (sold separately) is required. Constructed of sturdy steel to protect the computer, the RackMac Pro enables unrestricted airflow through the Mac Pro to keep it cool, according to Apple's specifications, even when the RackMac is installed between other equipment in the rack.
A convenient front panel power switch and USB 3.0 port for the Mac Pro enables you to turn the computer on and off, and connect a peripheral to each system without having to access the back of the computer. Panel-mount HDMI, Gigabit Ethernet, USB 3.0, Thunderbolt, and power cables connect the ports on the back of the Mac Pro to ports on the back of the RackMac Pro for convenient external connection.
Secure Rackmount Enclosure
Fits one Mac Pro with room for another using an additional mounting bracket
Wide Compatibility
4 RU height, shallow mounting depth, standard mounting holes, and rackmount extension rails enable user-friendly installation into any standard equipment rack
Front Panel Operation
Front panel buttons enable convenient operation of the power switches of the Mac Pro
Front Panel USB 3.0 Ports
Supports connection of a USB peripheral (keyboard, flash drive, etc.) to the Mac Pro

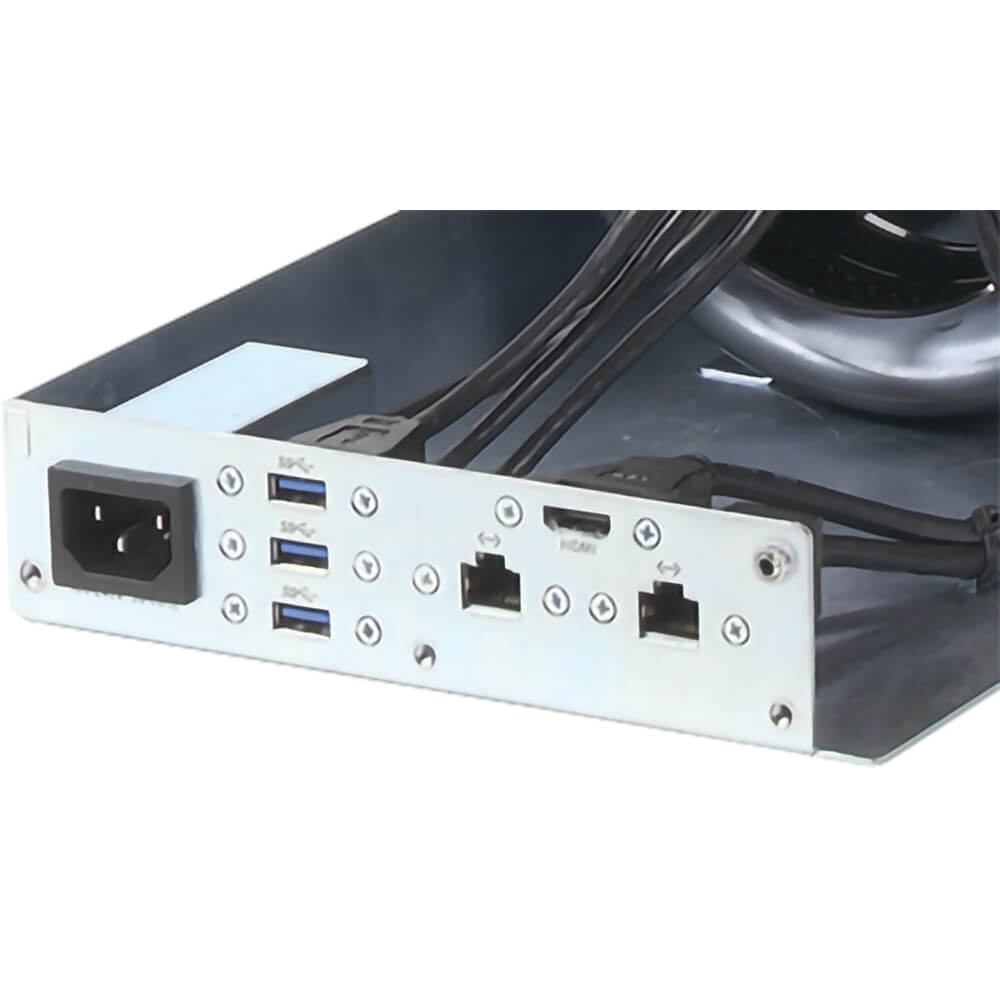

Rear Panel Connectivity
Panel-mount HDMI, Gigabit Ethernet, USB 3.0, and power cables connect the Mac Pro's ports to ports on the back of the RackMac Pro for convenient external cable connection
Makes Your Mac Pro Road Ready

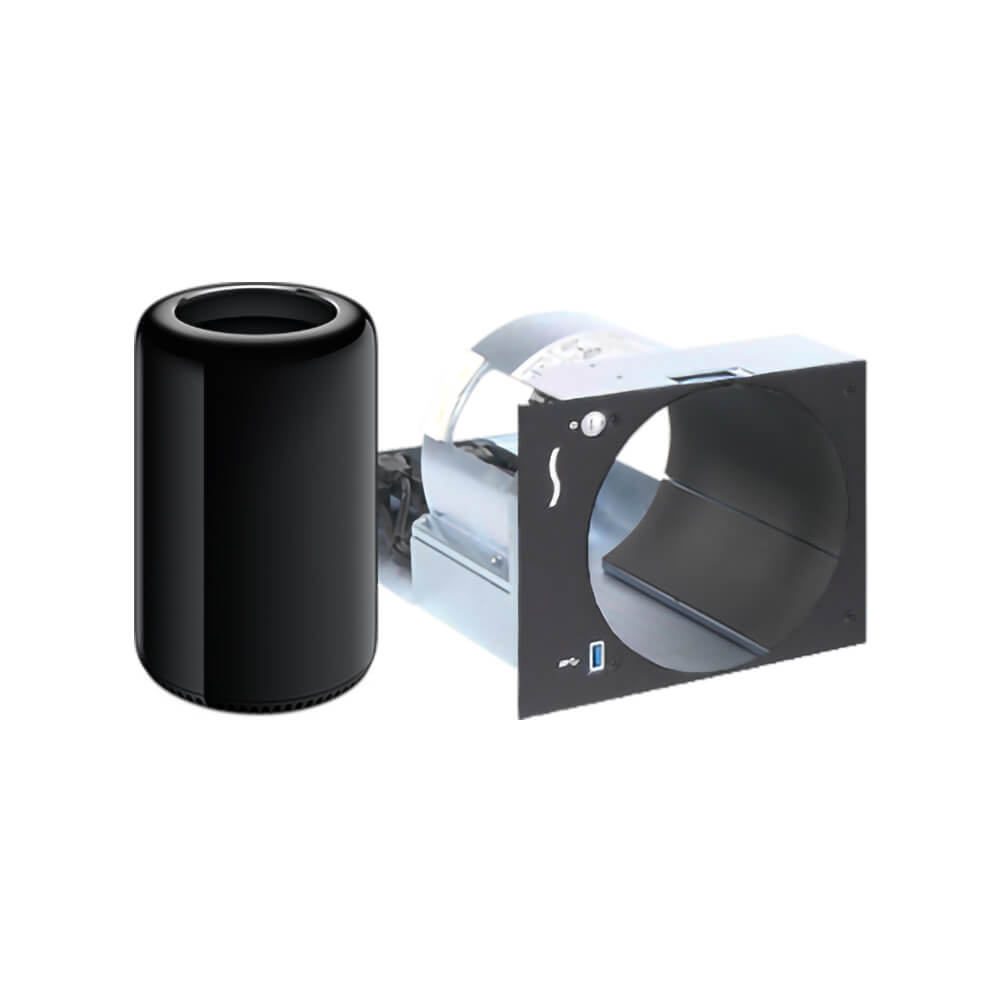

Strong, secure padded Computer Mounting Modules envelop the Mac Pro to protect its finish, hold it firmly in place, and make it road-ready and for portable rack installations
Includes Mounting Support
Can support specialty Network Interface Thunderbolt adapters such as Promise Technology SANLink2 Fibre Channel adapters
Configure As Needed

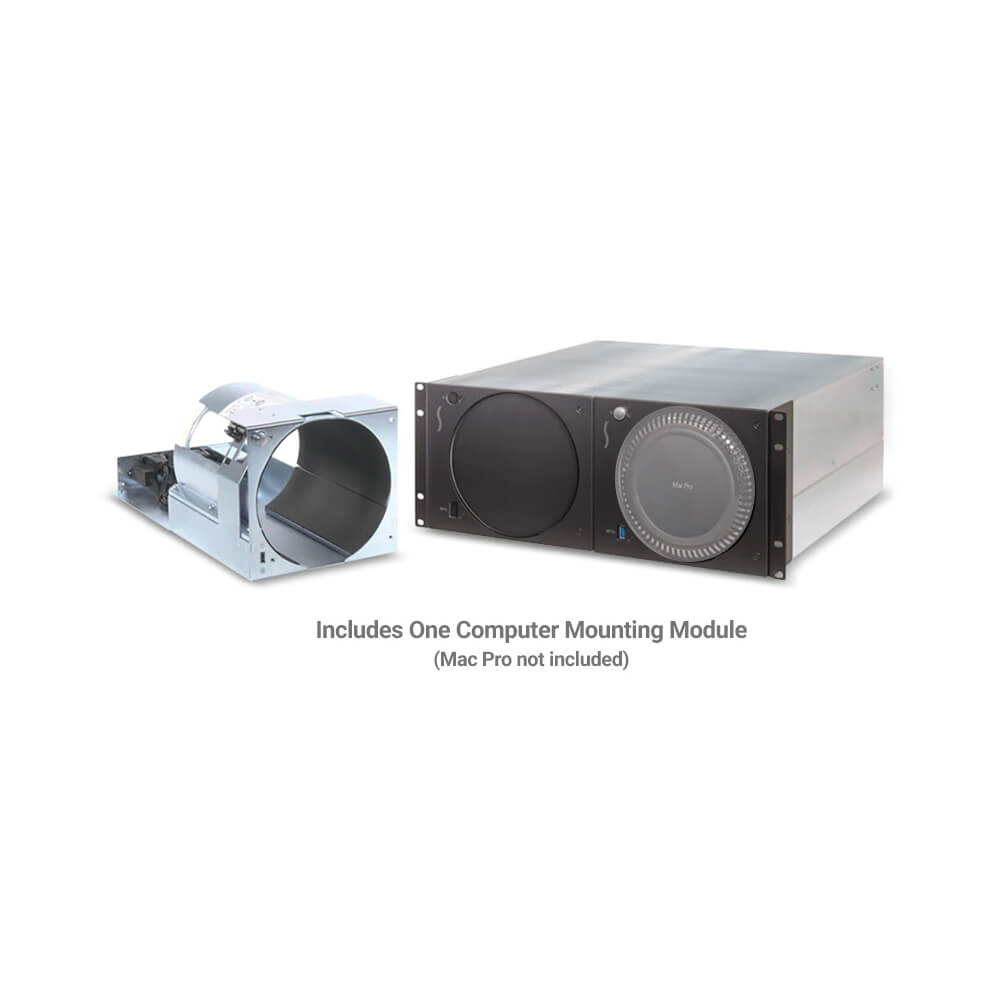

Comes with one pre-installed Computer Mounting Module
Sonnet RackMac Pro Specification |
|
Inputs/Outputs | 2 x RJ45 (Gigabit Ethernet) 4 x USB-A 3.0 / 3.1/3.2 Gen 1 1 x HDMI |
Operating System Support | macOS/OS X |
Certifications | RoHS, as per Manufacturer |
Dimensions | 19 x 16 x 7" / 48.3 x 40.6 x 17.8 cm |
- Sonnet RackMac Pro (with 1 Computer Mounting Module)
- 5/64-Inch Hex Wrench
- Limited 2-Year Manufacturer Warranty
