Render projects and run other hardware-demanding applications with the eGPU Breakaway Box 750ex Enclosure from Sonnet. This external enclosure is designed to accommodate various PCIe 3.0 x16 equipped AMD and NVIDIA graphics cards, allowing you to turn your Thunderbolt 3 enabled notebook into a workstation suitable for running various photo- and video-editing software. The 750ex eGPU is ideal for notebook users who wish to explore their creative side or enjoy some graphically intensive games, without purchasing a whole new system.
The built-in 750-watt power supply gives you two 8-pin (6+2 pin) connectors, allowing you to take advantage of power-hungry GPUs and giving you the ability to charge your notebook with 85-watt power delivery. A wide range of graphics cards can be installed into the 750ex including two-slot, full-length cards such as the AMD Radeon VII, RX, RX Vega, NVIDIA GeForce RTX series, TITAN, and Quadro models. Additionally, this unit includes four USB 3.1 Gen 1 Type-A ports so you can connect peripherals like external drives and controllers. An RJ45 Gigabit Ethernet port is also available for hardwired network connectivity.
Enhanced Graphics Performance
Connect a high-performance GPU to your computer with Thunderbolt 3 technology, significantly improving editing, rendering, color grading, animation, and special-effects performance. While Windows supports both NVIDIA and AMD model GPUs, Mac devices can only support AMD brand cards.
Thunderbolt 3 Connection
Built upon the Thunderbolt 3 foundation, the 750ex eGPU ensures up to 2750 MB/s of PCIe bandwidth is dedicated to the installed card, giving you the power you need to ensure proper workflow. Additionally, you can connect several eGPU Breakaway Boxes to slash task times on supported applications and handle up to 8K resolution workflow efficiently.
Expansive Utility
The 750ex includes four USB 3.1 Gen 1 Type-A ports so you can connect peripherals like external drives and controllers. An RJ45 Gigabit Ethernet port is also available for hardwired network connectivity.
GPU Compatibility
The 750ex eGPU supports a wide range of AMD and NVIDIA GPUs as well as non-GPU PCIe cards, including pro-audio, DSP, and pro video transcoding cards, allowing you to increase productivity within various industries.
Cool and Quiet

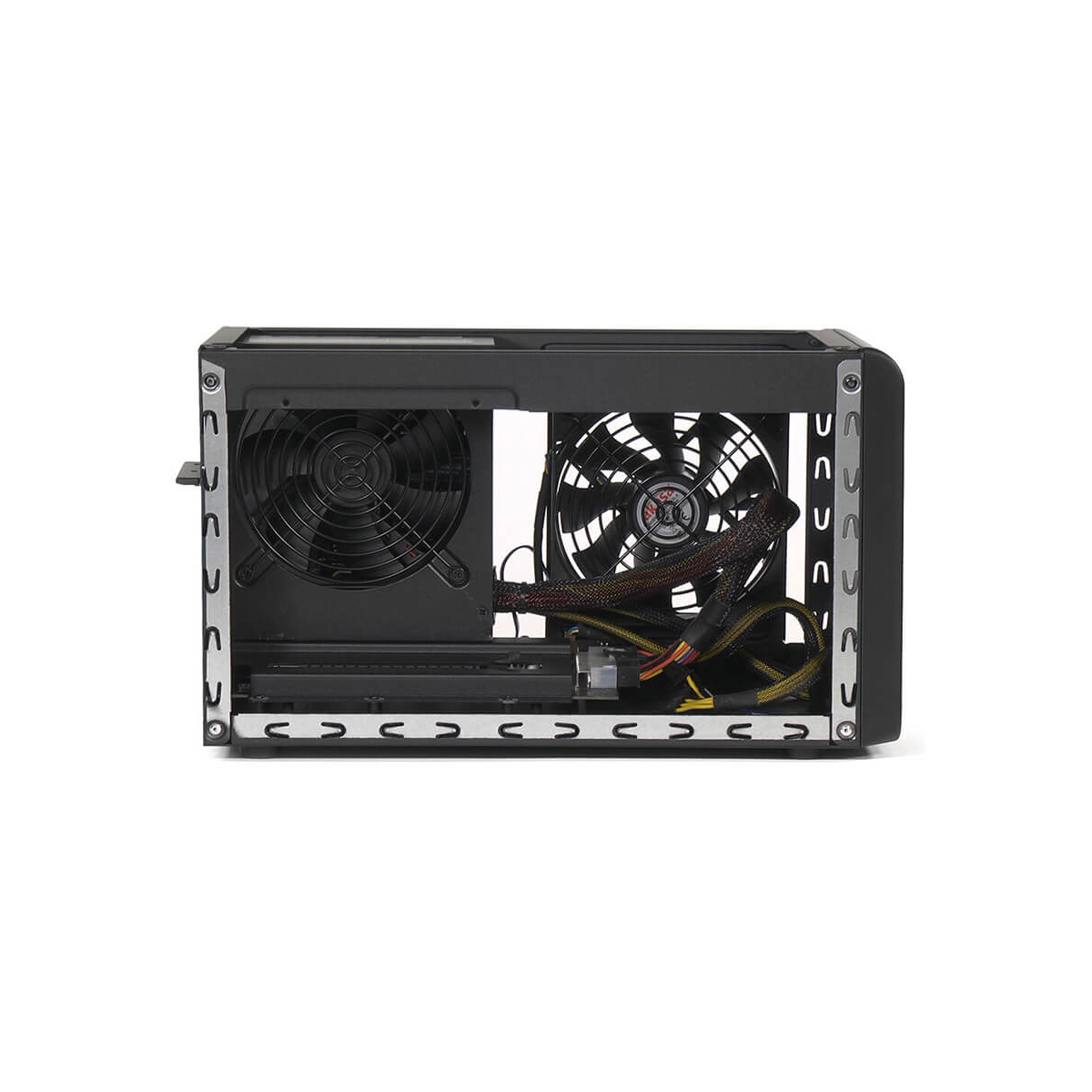

The large variable-speed temperature-controlled fan quietly and effectively cools the installed card and can be comfortably used in noise-sensitive work environments.
Gaming Support
Enjoy a wide variety of graphically demanding games on your notebook that would otherwise deliver a poor experience. Accelerated graphics can be displayed on one, two, or more external monitors or on your notebook's own display panel. The design of the 750ex eGPU allows you to upgrade the graphics card in the box to keep up with the latest GPU technology, which is a feature unavailable in gaming-focused laptops.
Windows and Mac Compatible
The eGPU 750ex is compatible with macOS Big Sur as well as 10.13.6+, 10.14.6+, and 10.15.7+, giving you access to various AMD products line for optimal performance. Windows 10 (64-bit) version 1809 and later can support select AMD and NVIDIA brand graphics cards, ensuring maximum compatibility suitable for your workload.
Sonnet Box 750EX Specification General |
|
Expansion Slots | 1 x PCIe 3.0 x16 |
GPU | NVIDIA |
Supported PCI Card Sizes | Full-Height, Full-Length, Double-Width |
Maximum GPU Length | 12.3" / 312 mm |
System Connection | Thunderbolt 3 |

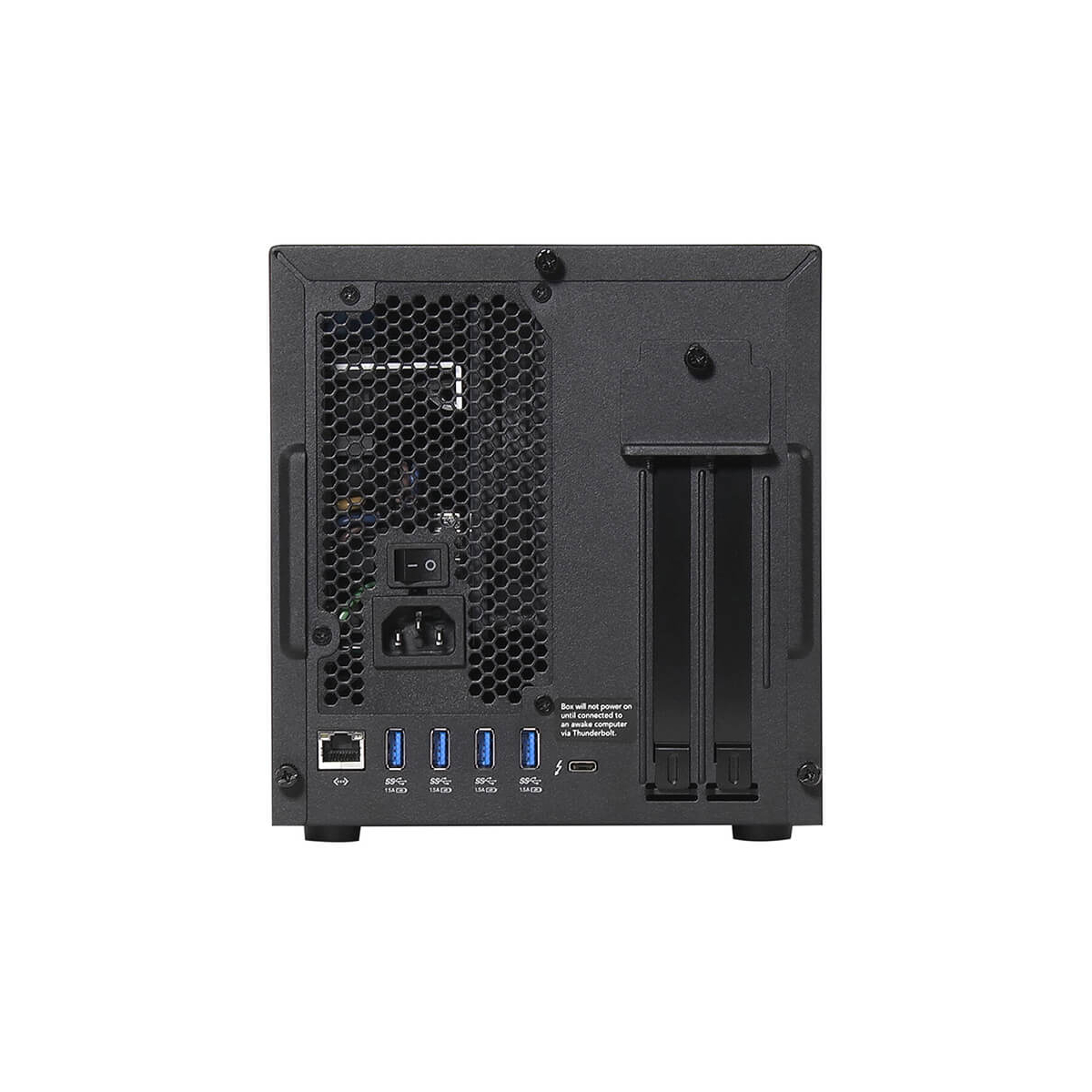

Inputs/Outputs | 1 x USB-C (Thunderbolt 3) 4 x USB-A 1 x RJ45 (Gigabit Ethernet) |
Data Transfer Rates | Thunderbolt 3: 40 Gb/s |
OS Compatibility | Windows 10 to 11 macOS 10.13.6 to 12.2 *As of December, 2022: Check with manufacturer for the most up-to-date compatibility |
Power |
|
Power Source Type | 1 x 750 W Internal PSU |
PCIe Connectors | 2 x 6+2-Pin |
AC Input Power | 100 to 200 VAC, 50 / 60 Hz |
Port Power Delivery | 85 W Max |
Cooling |
|
Fans | 1 |
Environmental |
|
Operating Temperature | 32 to 95°F / 0 to 35°C |
Physical |
|
Form Factor | Desktop |
Certifications | RoHS 3, IEC62368-1, IEC62368-2 *as per Manufacturer |
Status Monitoring | LED Indicator |

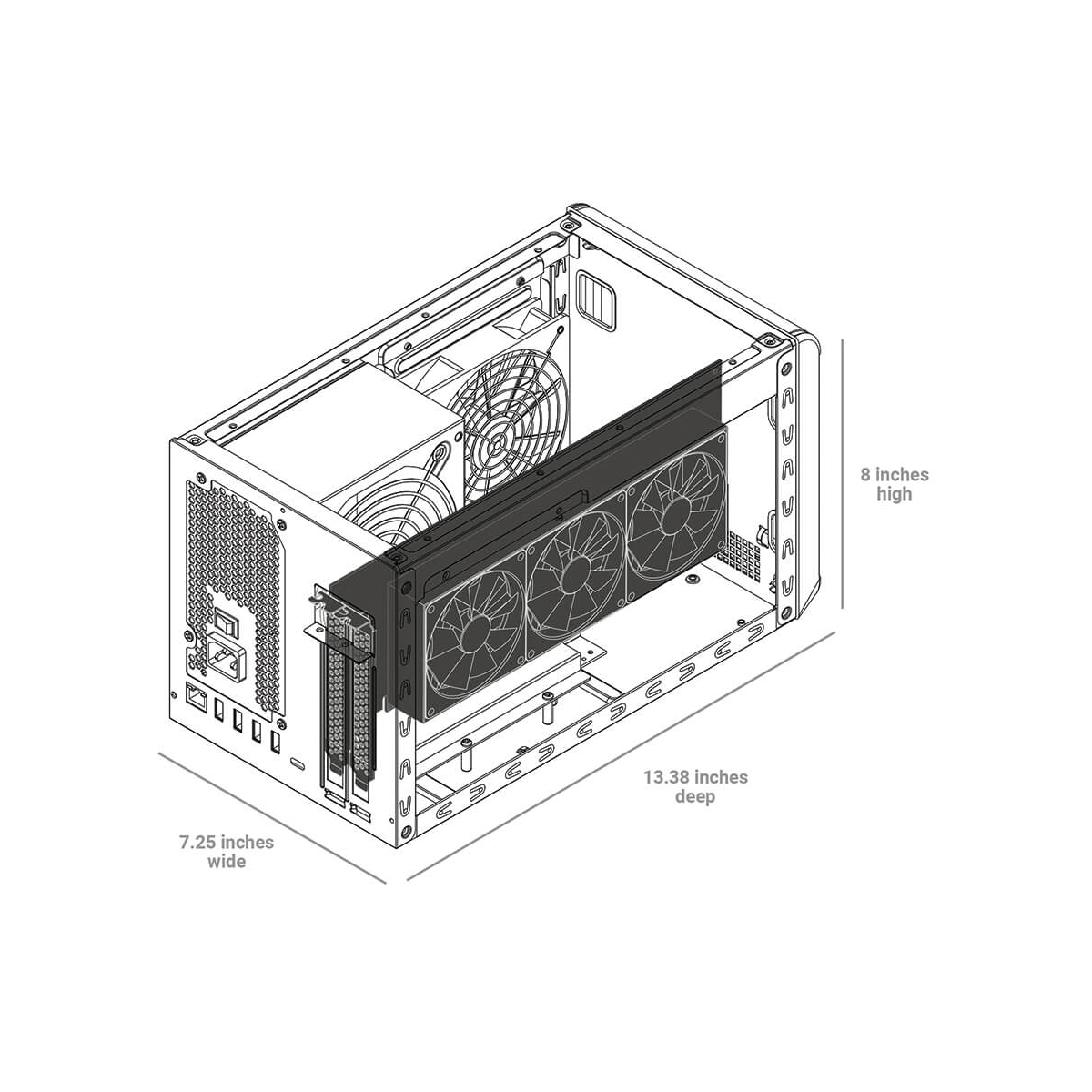

Dimensions | 13.38 x 8 x 7.25" / 33.99 x 20.3 x 18.41 cm |
Weight | 7.1 lb / 3.2 kg |
- Sonnet eGPU Breakaway Box 750ex Enclosure
- Power Cable
- Thunderbolt 3 Cable
- Limited 2-Year Manufacturer Warranty
