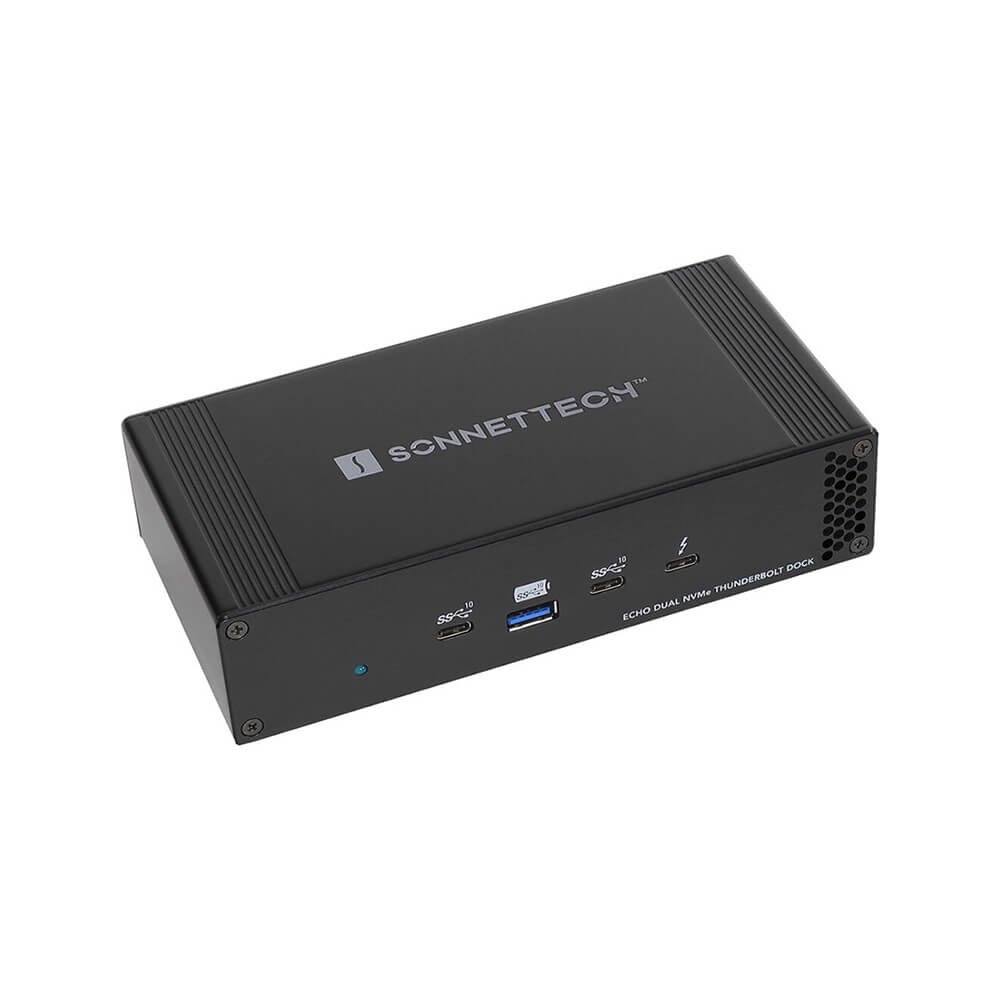

40Gbps Thunderbolt Dock with Internal High Performance Storage Expansion, Fast USB Charging Ports, and Up to 5K Display Support
Mass SSD storage meets desktop dock convenience. Dual NVMe slots support internal high performance storage expansion (SSD sold separately). Transfer and access data in seconds, and effortlessly store large files and media libraries. Convenient, fast peripheral ports provide connectivity and charging for your Thunderbolt™ and USB devices. Compatible with all Thunderbolt 4 computers, all M1/M2 series Macs, all Thunderbolt 3 Mac and Windows computers, and M1/M2 iPad Pro.
SSD Storage – Add up to 16TB of SSD Storage Inside!

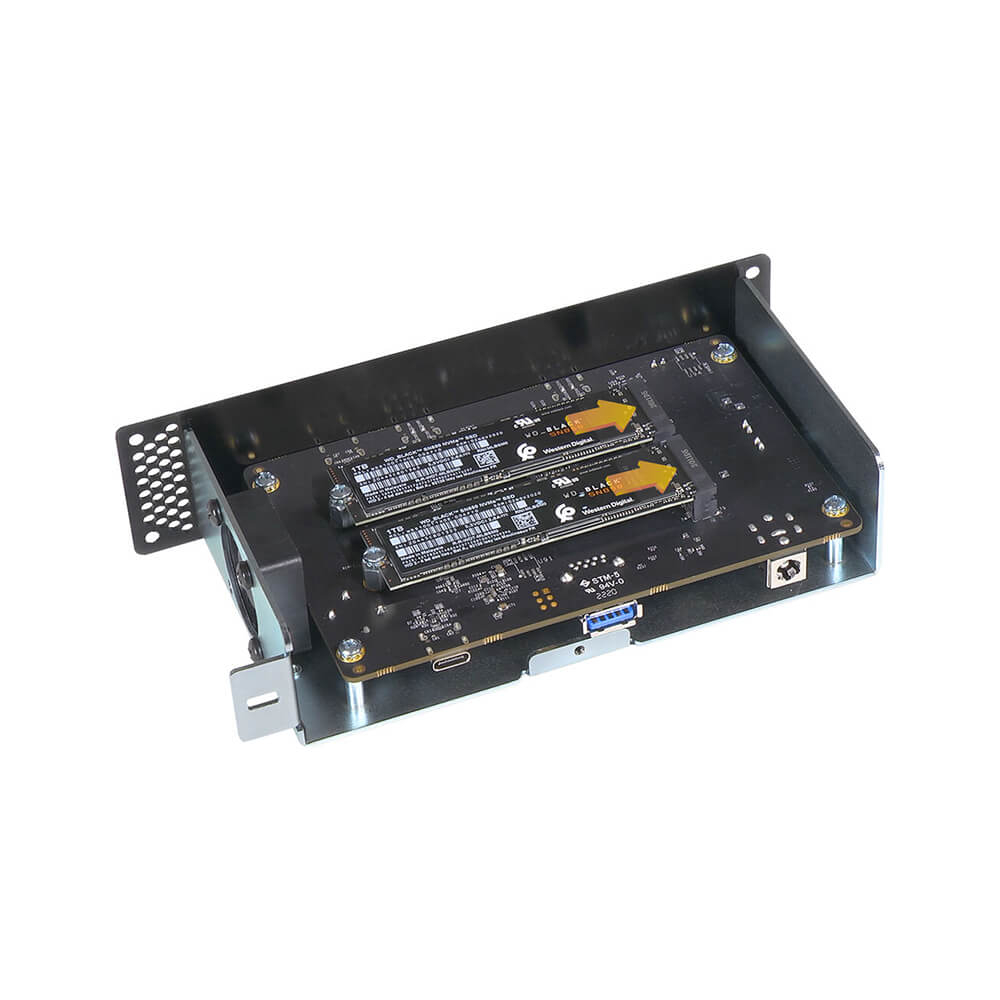

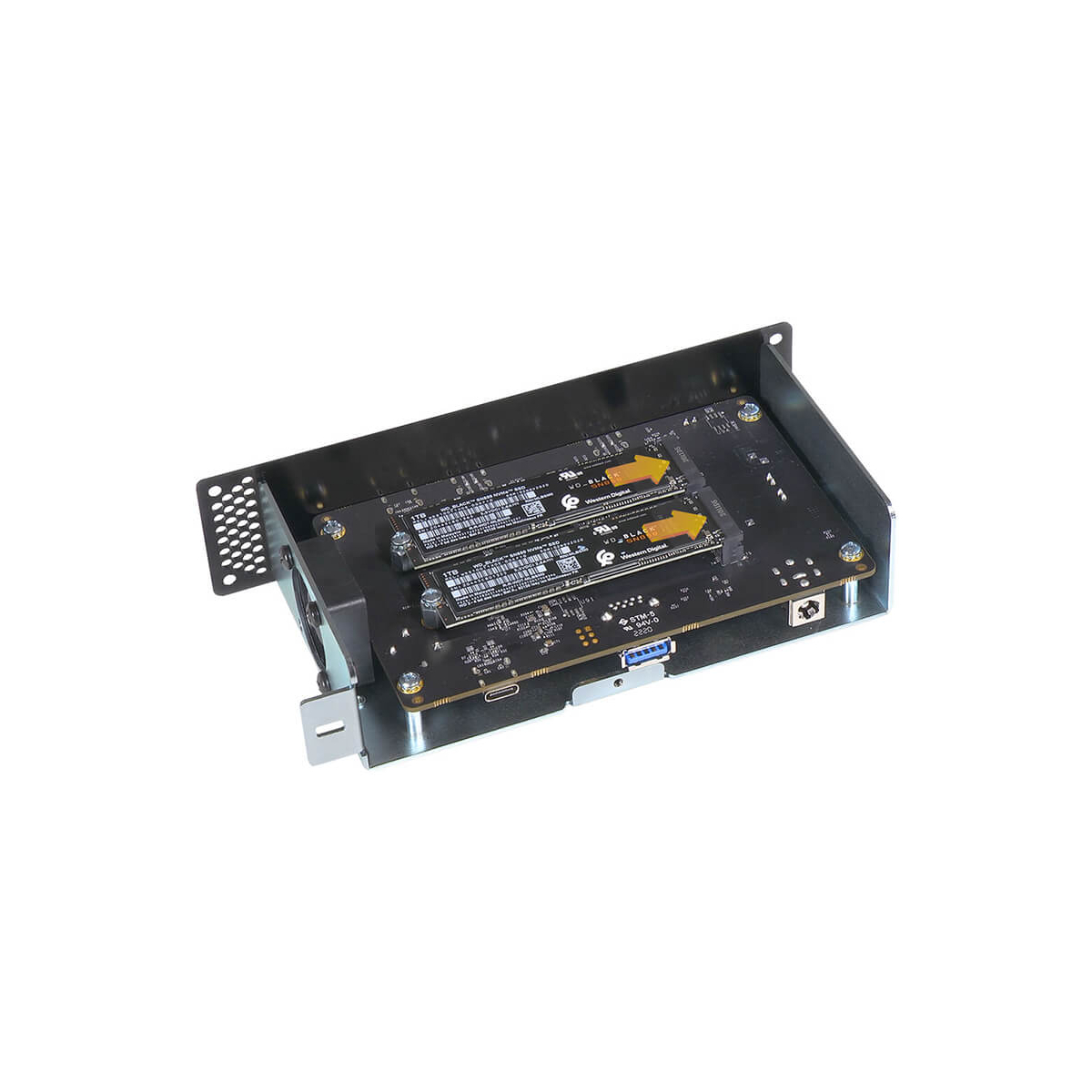

The Echo Dual NVMe Thunderbolt Dock features two M.2 NVMe PCIe SSD slots, enabling you to easily install high performance M.2 NVMe SSDs (sold separately) inside. Because installed SSDs interface with the dock’s Thunderbolt controller, they utilize its bandwidth to deliver the performance of a portable Thunderbolt SSD, but are tucked away neatly within the dock.
Speed – Fast Single SSD Data Transfers. Great RAID 0 Performance.
Single SSDs installed in the Echo Dual NVMe Thunderbolt Dock can each achieve sustained data transfers of up to 1500 MB/s. Configured as a RAID 0 set for even greater performance, data transfers up to 3000 MB/s are possible. Start with one SSD, and add any size SSD later without needing to format the first one.

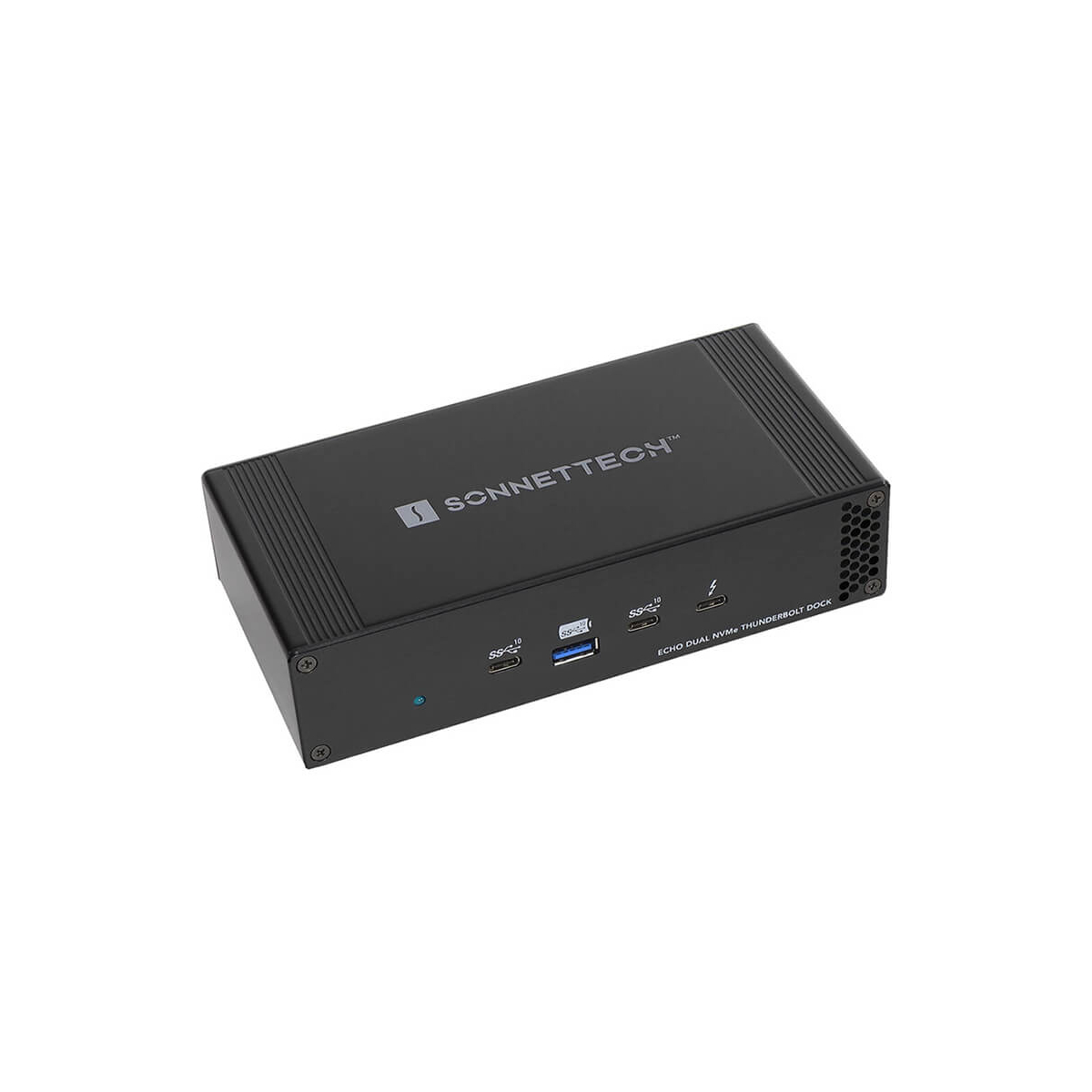

Connect Thunderbolt Peripherals – Convenient Front Panel Thunderbolt Peripheral Port
The Echo Dual NVMe Thunderbolt Dock includes two 40Gbps Thunderbolt ports; one for connection to your computer, the other to daisy chain up to five additional Thunderbolt peripheral devices plus a display. The Thunderbolt peripheral port also offers 10Gbps USB 3.2 Gen 2 support, meaning you can connect another USB device using the proper cable or adapter. The dock’s Thunderbolt peripheral port provides up to 15W, supporting even the most demanding bus-powered Thunderbolt devices.
Peripheral Power – Powerful 10Gbps USB ports

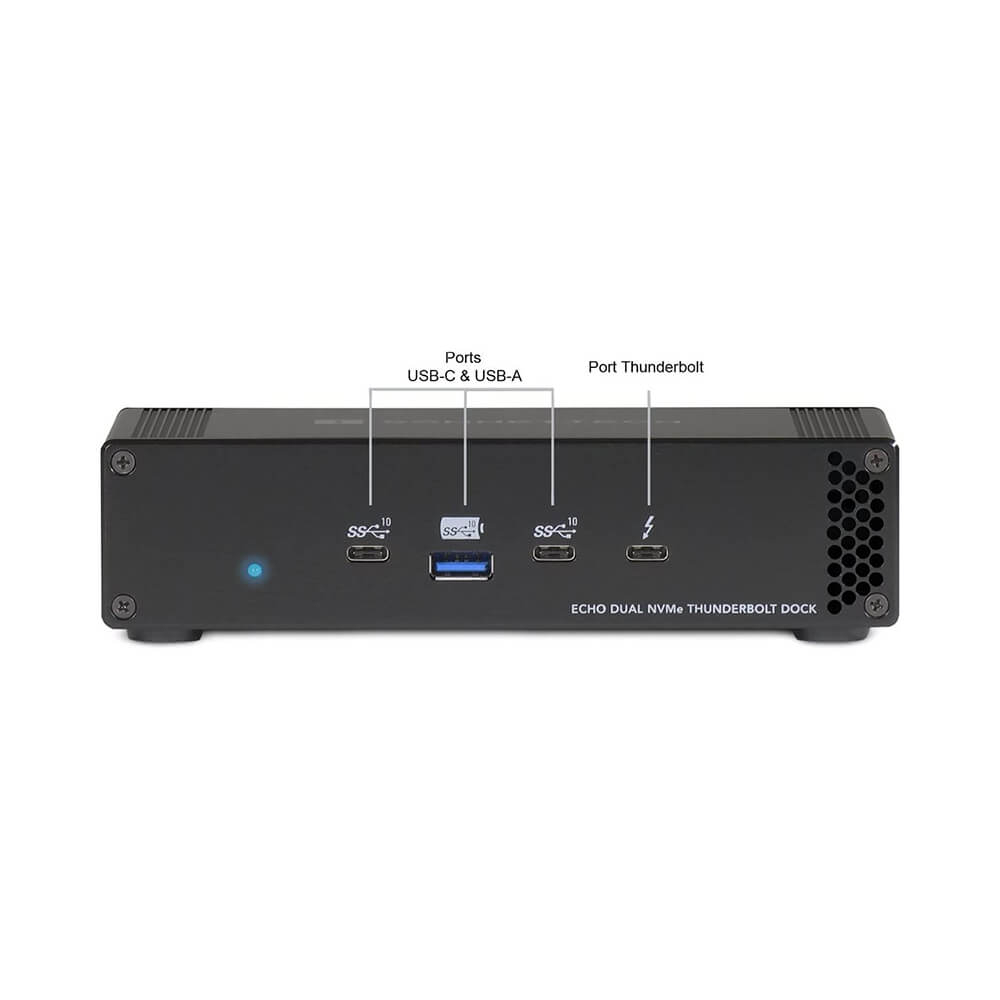

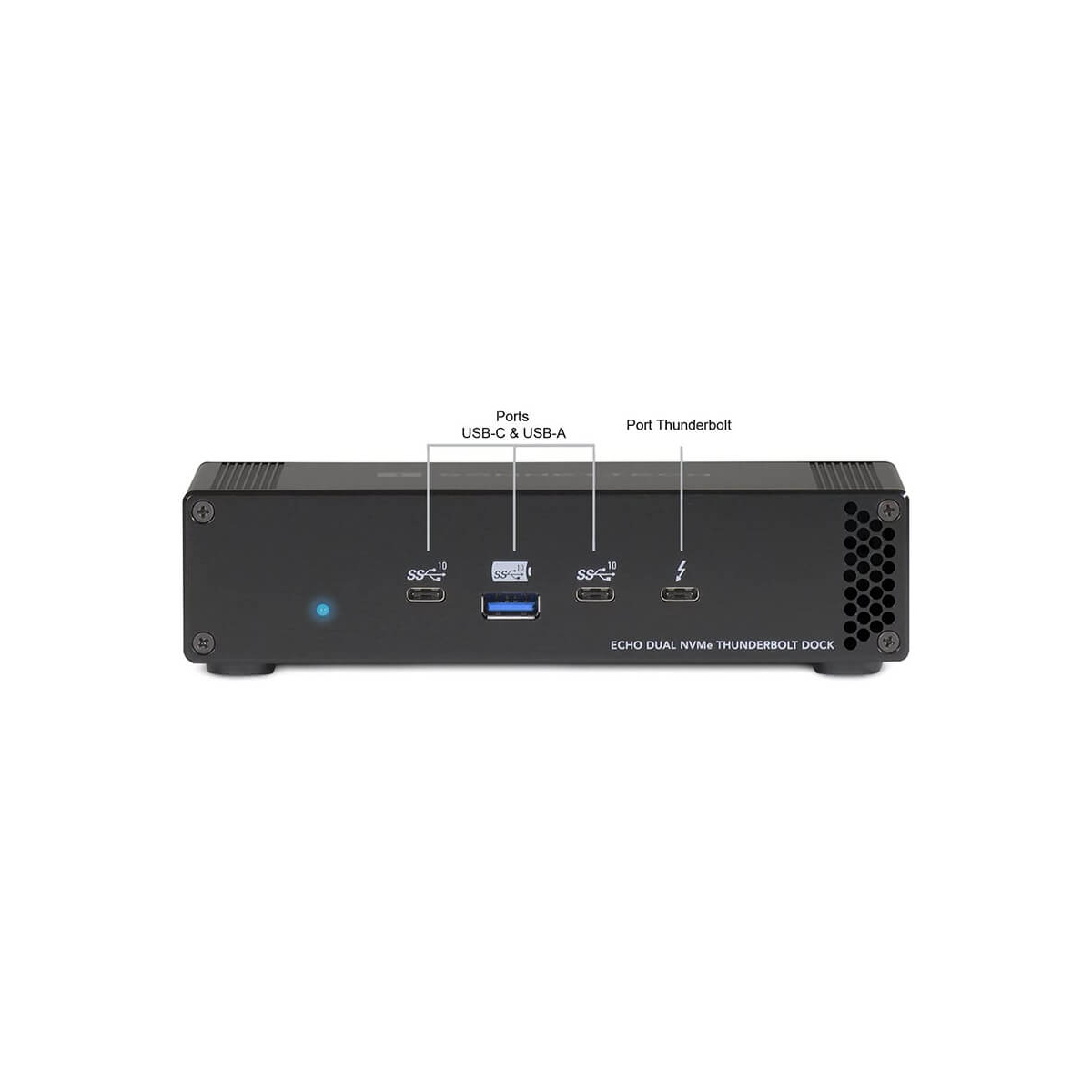

The Echo Dual NVMe Thunderbolt Dock features four versatile USB 3.2 Gen 2 (10Gbps) ports (two Type-C plus two Type A) that support super-fast USB NVMe SSDs at full speed. Each port delivers up to 7.5W to ensure connected bus-powered devices operate without fail, and may be used to charge your iPhone®, iPad®, or other device that charges via USB.
Display Delight – Connect an Apple Pro Display XDR
Through its Thunderbolt peripheral port, the Echo Dual NVMe Thunderbolt Dock supports an Apple Pro Display XDR®, 5K @ 60Hz, 4K @ 75Hz, 1440p @ 165Hz, or 1080p @ 240Hz display, as supported by your computer. You can connect a Thunderbolt or USB-C display directly or at the end of a Thunderbolt device daisy chain. To use an HDMI or DisplayPort display, connect with an active adapter (sold separately).
Lock It – Kensington Lock Ready
The Echo 11 Thunderbolt 4 Dock features three USB 3.2 Gen 2 (10Gbps) Type A ports on the back to support super fast USB NVMe SSDs at up to full speed. And unlike some other docks, the Echo 11 doesn’t skimp on power either — each port provides up to 7.5W, ensuring bus-powered devices will operate without fail.
All the Right Connections – 40Gbps Thunderbolt Cable and ThunderLok 3 Included
Sonnet includes a Thunderbolt cable that supports Thunderbolt’s full 40Gbps bandwidth, and is fully compatible with Thunderbolt 4 and Thunderbolt 3 computers. Sonnet also provides a ThunderLok™ 3 Thunderbolt connector retainer clip that prevents accidental cable disconnections — just slide it over one end of the cable, and then plug in the connector and secure it to the dock by turning a thumbscrew. Because of its unique design, ThunderLok remains on the cable so it won’t get lost when not in use.
Sonnet Technologies Echo Dual NVMe Thunderbolt Dock Specification |
|
Mac Compatibility |
Mac (M1/M2 series)
Mac (Intel) with Thunderbolt 3 ports Mac (Intel) with Thunderbolt 2 or Thunderbolt port with with an Apple Thunderbolt 3 (USB C) to Thunderbolt 2 Adapter plus a Thunderbolt 2 cable macOS 10.12.6+ macOS Ventura compatible |
iPad Pro Compatibility |
M1/M2 series iPad Pro
|
Windows Compatibility |
Windows computer with Thunderbolt 4 or Thunderbolt 3 port(s)
Windows 11 and 10 |
HDR Compatibility | See Apple Support Note for Mac HDR information If your Windows computer supports HDR, see this Microsoft Support Note for Windows HDR information |
NVMe SSDs Compatibility | For a list of compatible NVMe SSDs, see the M.2 NVMe SSDs Compatibility PDF |
Hardware |
|
Form Factor |
Thunderbolt dock
|

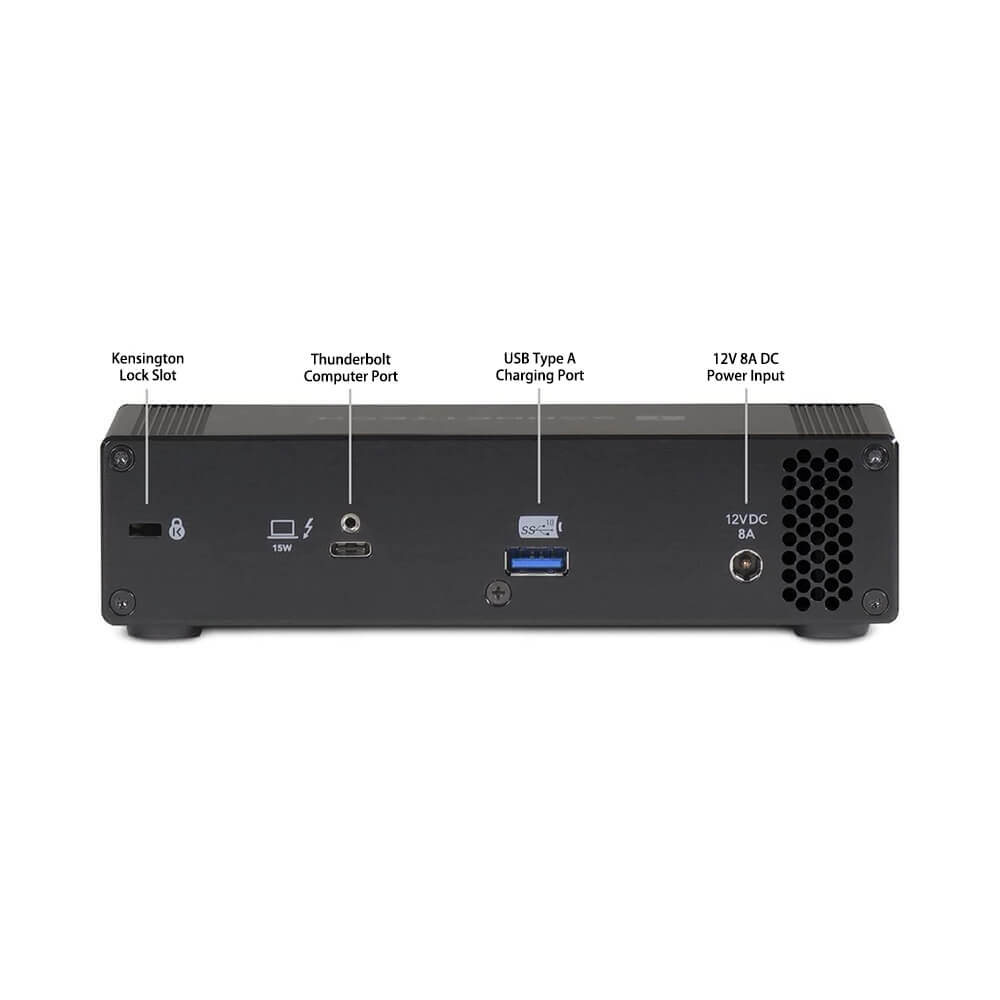

External Connectors | Two Thunderbolt ports Two USB 3.2 (10Gbps) Type-C charging ports Two USB 3.2 Gen 2 (10Gbps) Type A charging ports One power connector |
Thunderbolt 3 Computer Port | Power Delivery - Provides laptop charging up to 15W Cables Supported - Any Thunderbolt 4 cable - Any Thunderbolt 3 (40Gbps) cable |
Thunderbolt 3 Peripherals Port | Connectivity - With USB-C connector - Peripherals Supported - Thunderbolt 3 - Thunderbolt 2 (macOS) USB4 - USB 3, 2.0, and 1.1 devices - Thunderbolt 3 and USB-C monitors - DisplayPort and HDMI monitors |
USB 3.2 Gen 2 Type-C Ports | Connectivity - With USB Type-C connector Peripherals Supported - USB 3, 2.0 and 1.1 devices - Thunderbolt 3-only devices are NOT supported Data Transfer Rate - USB 3.2 Gen 2 (previously USB 3.1 Gen 2) 10Gbps Charging - 7.5W per port for operating or charging - 1.5A per port advertised using USB Type-C Charging - Supports simultaneous charging and syncing |

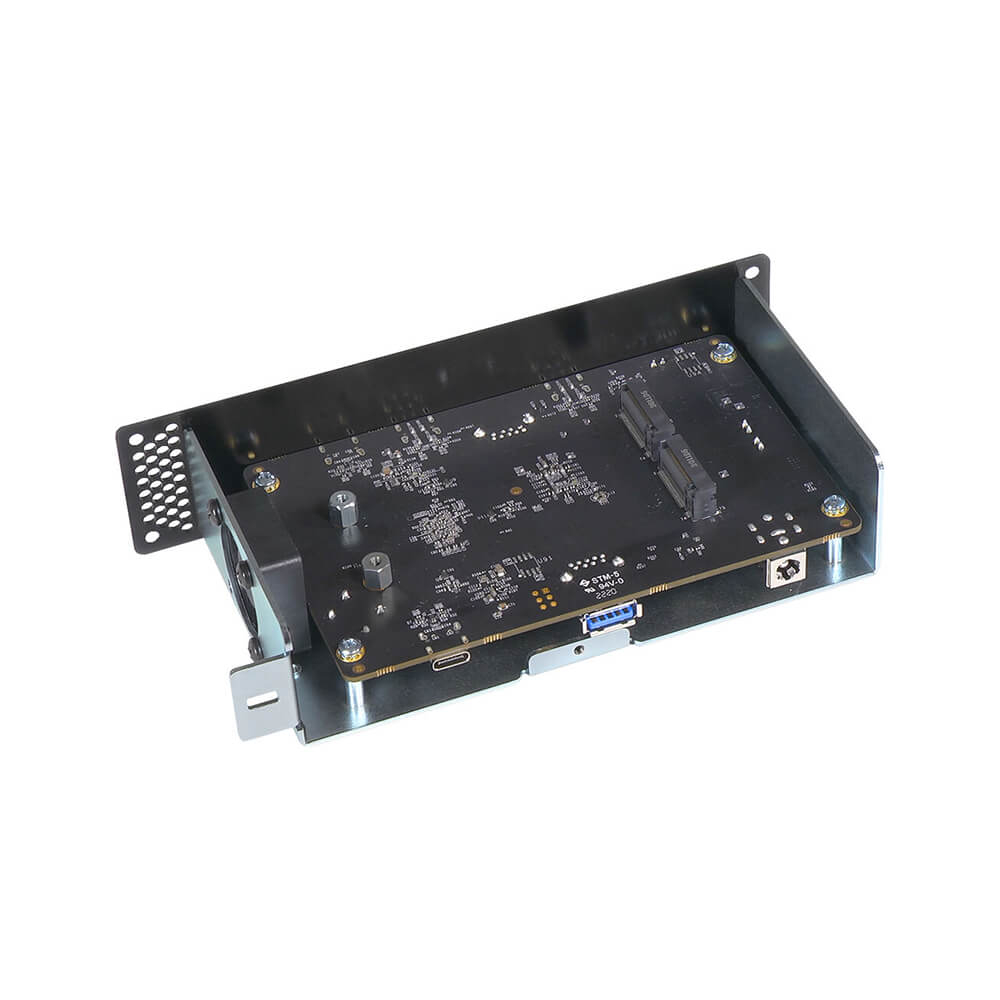

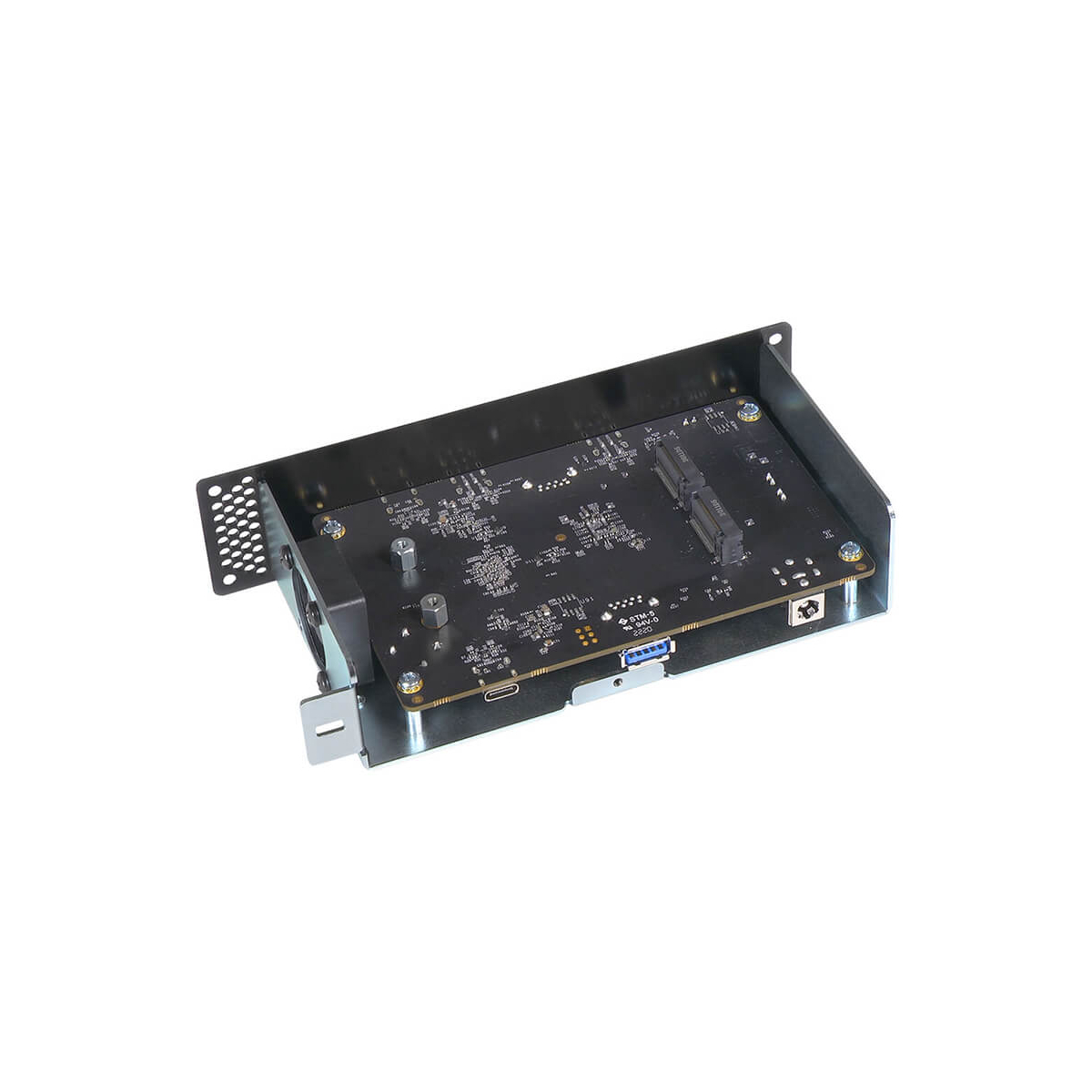

Internal Connectors | Two M-keyed (NVMe) M.2 sockets (each connected at PCIe x2) |
SSDs Supported | Single- and double-sided M.2 2280 NVMe PCIe SSDs (with or without heat sink) M.2 NVMe SSDs Compatibility PDF |
Power Adapter | Universal 96W, 100-240V AC, 50-60Hz |
Kensington Security Slot™ | Supports Standard, MicroSaver®, and MicroSaver 2 Locks |
Operating Temperatures | 0ºC to 35ºC (32ºF to 95ºF) |
Dimensions (WxDxH) | Dock: 6.8 x 3.4 x 1.8 in. (7.3 x 8.6 x 4.44 cm) Power Adapter: 2.8 x 4.9 x 1.0 in. (7.3 x 12.4 x 2.54 cm) |
Weight | Dock and Power Adapter: 2.2 lbs (1.0 kg) Complete Package: 3.2 lbs (1.45 kg) |
Compliance | RoHS 3 (Directive 2015/863) IEC62368-1 and IEC62368-2 Safety |

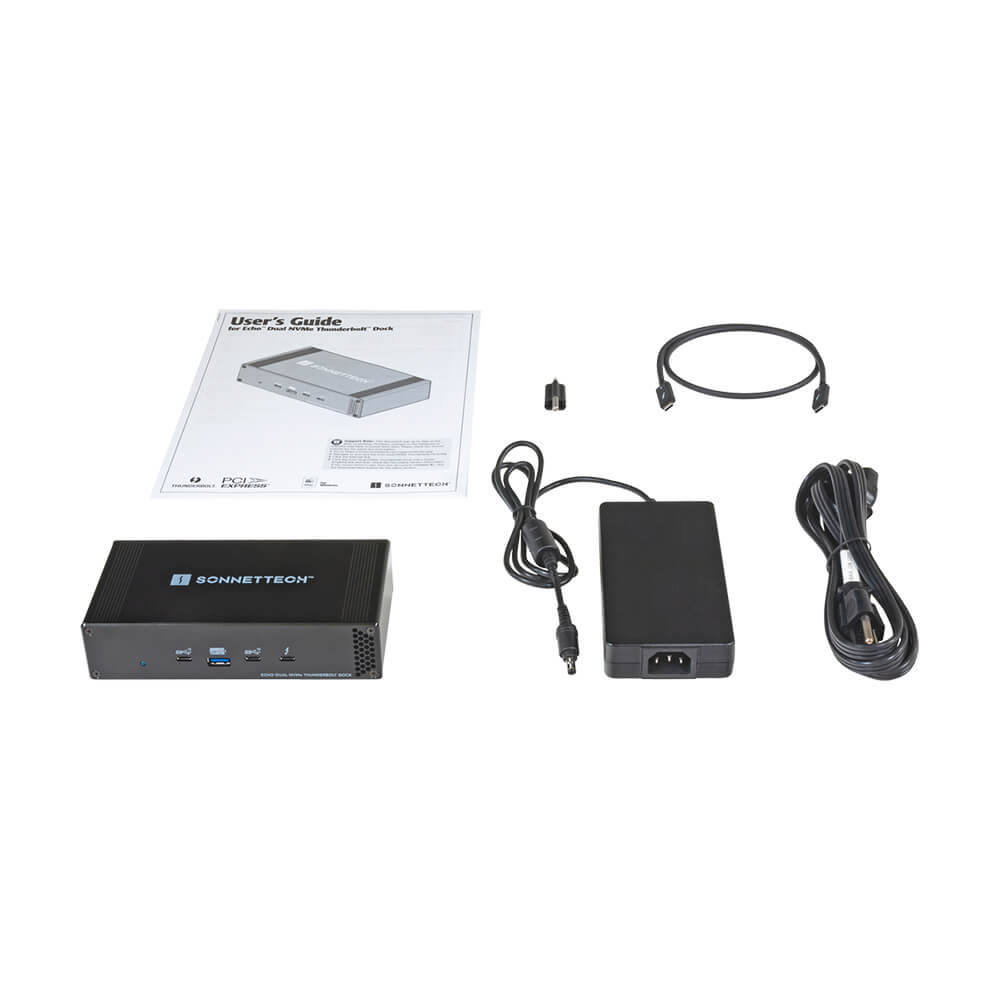

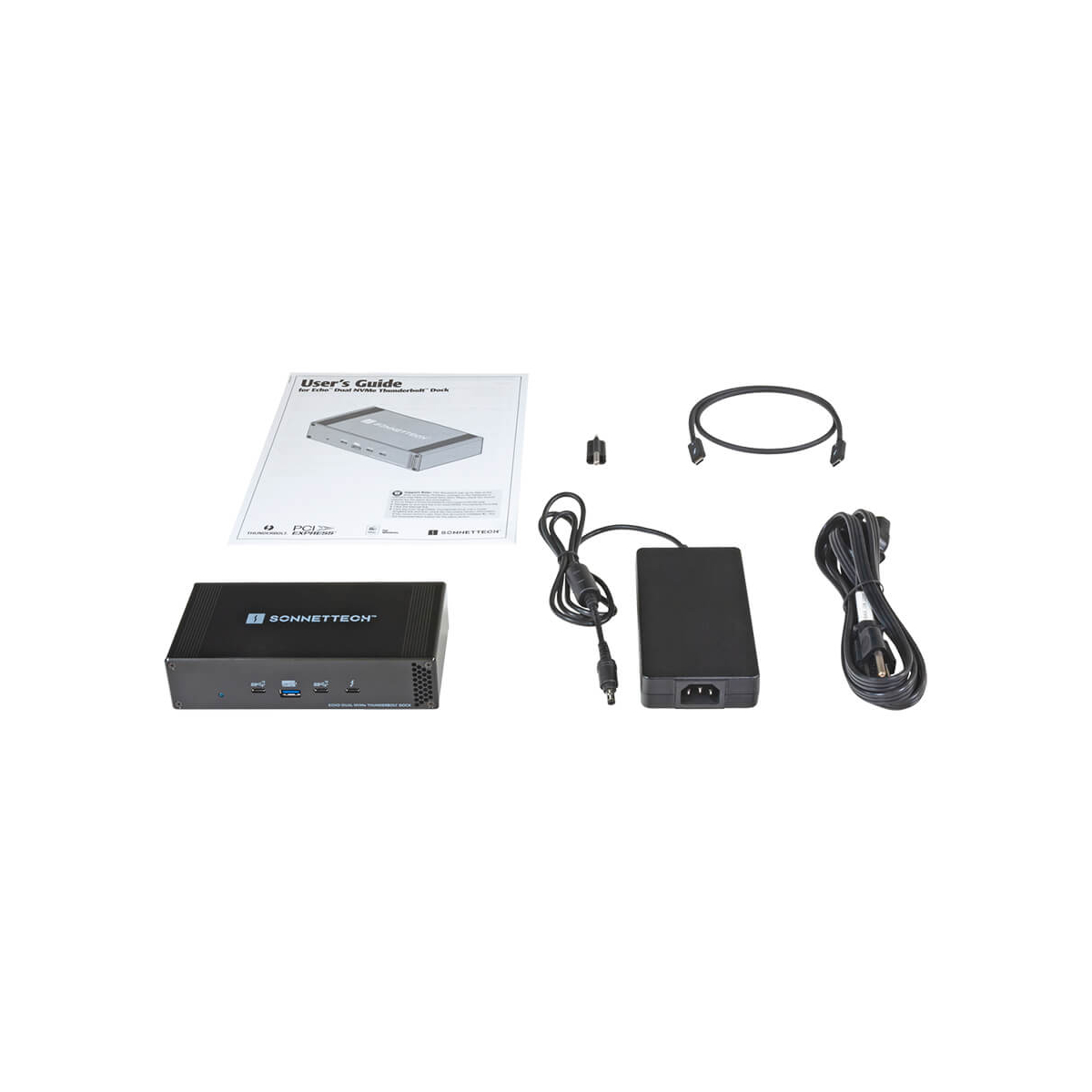

- Echo Dual NVMe Thunderbolt Dock
- Power adapter
- Power cord
- 0.5-meter Thunderbolt 3 (40Gbps) cable
- ThunderLok 3 Thunderbolt connector retainer clip
- 2-years Limited Manufacturer's Warranty
