Key Spec |
|
| USB I/O | 3x USB-C (Thunderbolt 4) 4x USB-C 3.1/3.2 Gen 2 / Supports 7.5 W Output 4x USB-A 3.1/3.2 Gen 2 |
| Network I/O | 1x RJ45 (2.5 Gb/s) |
| Video I/O | 1x HDMI 2.1 |
| Audio I/O | 1x 1/8" / 3.5 mm Headphone/Microphone Combo Jack 1x 1/8" / 3.5 mm Microphone Input 2x 1/8" / 3.5 mm Line-Out |
| Media Card Reader | 1x SDXC (UHS-II [312 MB/s]) |
| System Connection | Thunderbolt |
|
Host Connections |
|
| System Connection | Thunderbolt |
| Connection Type | Detachable Cable |
| Powered Connection | 100 W |
|
General |
|
| Chipset | Realtek RTL8156 |
| HDCP Support | No |
| OS Compatibility | macOS 11 to 13 Windows iPadOS Chrome OS |
| UASP Support | No |
|
Power |
|
| Power Source | AC Adapter |
| Power I/O | Barrel Connector (Unspecified Diameter) |
| Maximum Power Consumption | 150 W |
| Input Power | 100 to 240 VAC, 50 / 60 Hz |
|
Environmental |
|
| Certifications | RoHS 3 (Directive 2015/863), IEC62368-1, IEC62368-2, VCCI-B, FCC Part 15, Subpart B, PSE, UL |
| Operating Temperature | 32 to 95°F / 0 to 35°C |
|
Physical |
|
| Cable Length | 2.3' / 0.7 m |
| LED Indicator | No |
| Lock Slot | Yes, Kensington |
| Dimensions | 9.6 x 4.2 x 1.3" / 24.3 x 10.6 x 3.3 cm |
| Weight | 3.33 lb / 1.51 kg |

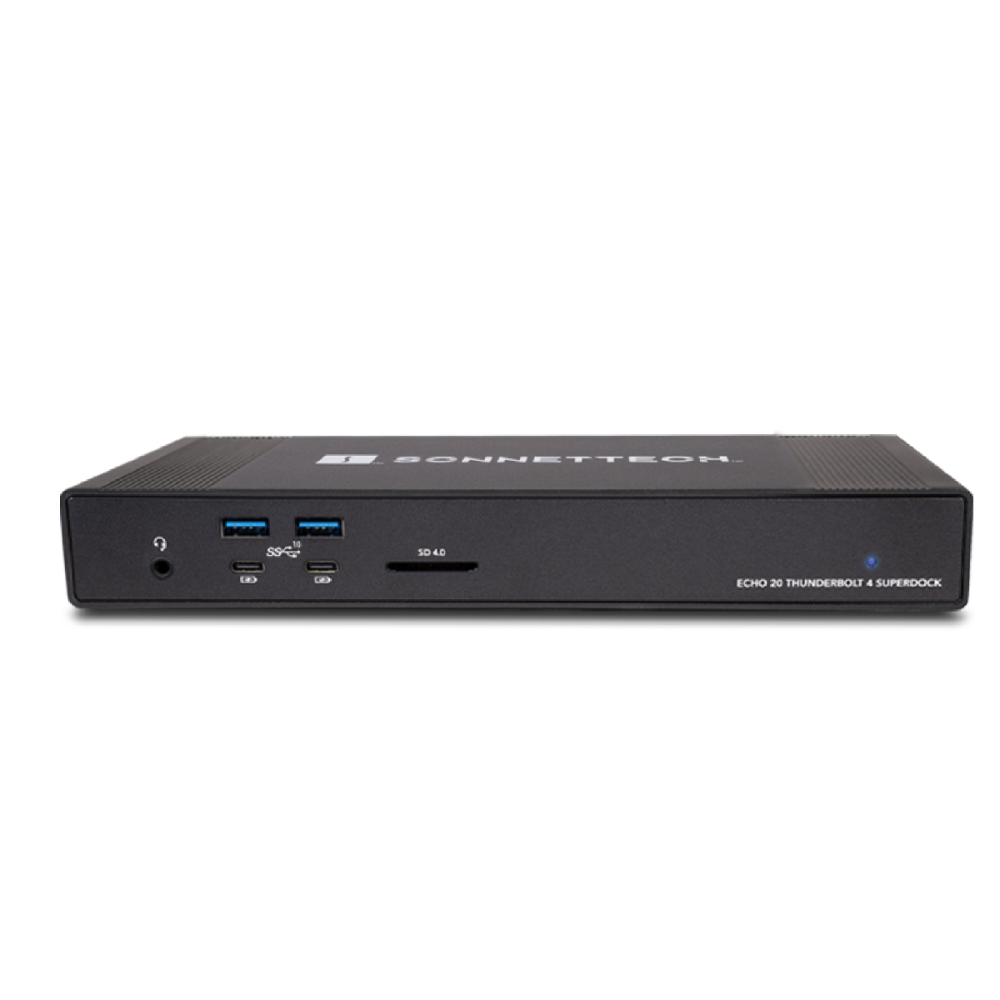

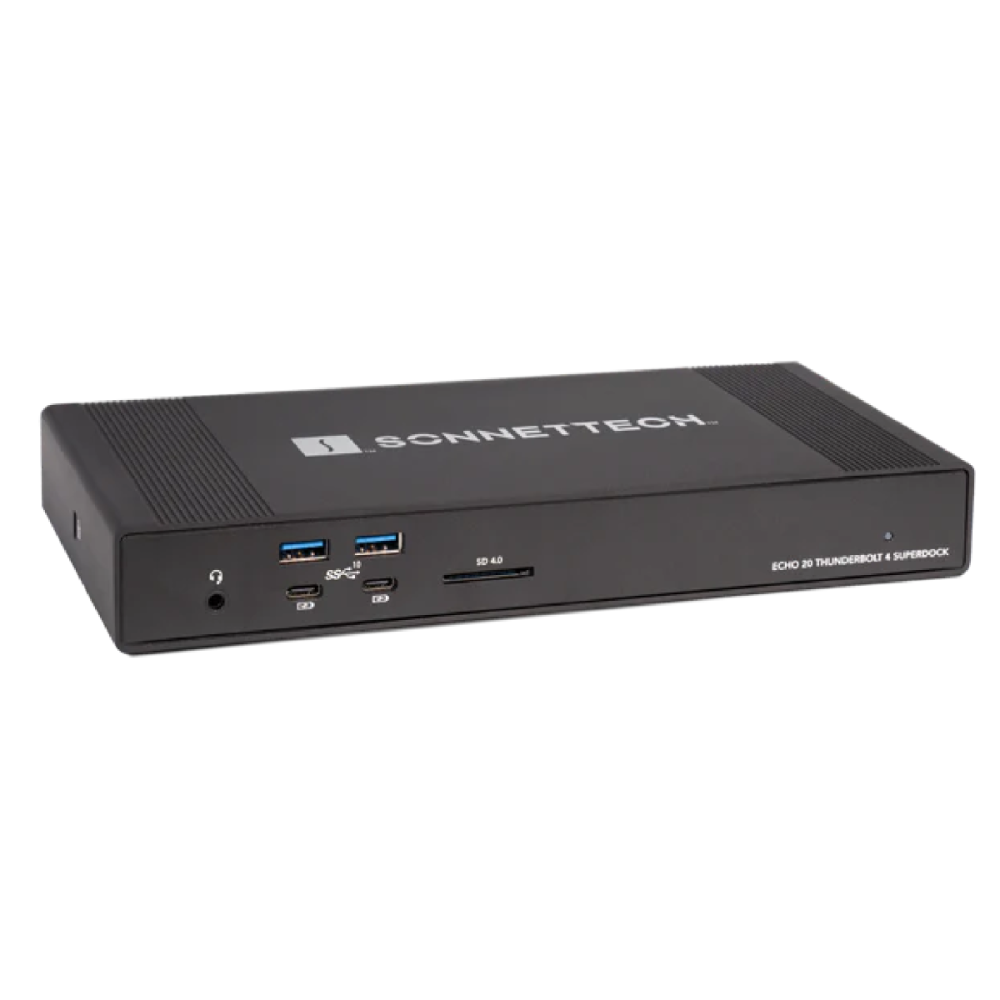

- Sonnet Echo 20 Thunderbolt 4 SuperDock
- Power Adapter
- Power Cord
- Thunderbolt 4 Cable (2.3')
- ThunderLok 4 Thunderbolt Connector Retainer Clip
- Limited 2-Year Manufacturer Warranty
