Mac Compatibility
- Mac (M1/M2/M3) supports one display
- Mac (M3 laptop) supports a second display in closed clamshell mode
- Mac (M1/M2/M3/M4 Pro, M1/M2/M3/M4 Max, M1/M2 Ultra, or M4) supports two displays
- Mac (Intel) with Thunderbolt 3 ports supports two displays
- macOS 15+
- macOS Sequoia compatible
- 8K displays not supported
Windows Compatibility
- Windows computer with a Thunderbolt 5 port and a discrete GPU supports three displays
- Windows computer with a Thunderbolt 5 port and integrated graphics supports two displays
- Windows computer with a Thunderbolt 4 port (Intel CPU with integrated Thunderbolt controller, typically 12th Gen processor or newer) supports two displays
- Windows computer with a USB4 port supports one display (a few may support two)
- Windows 11 (24H2 or later)
Chromebook Compatibility
- Chromebook with a Thunderbolt 5 or 4 port, or USB4 port
iPad Pro Compatibility
- Chromebook with a Thunderbolt 5 or 4 port, or USB4 port
HDR Compatibility
- See Apple Support Note for Mac HDR information
- If your Windows computer supports HDR, see this Microsoft Support Note for Windows HDR information

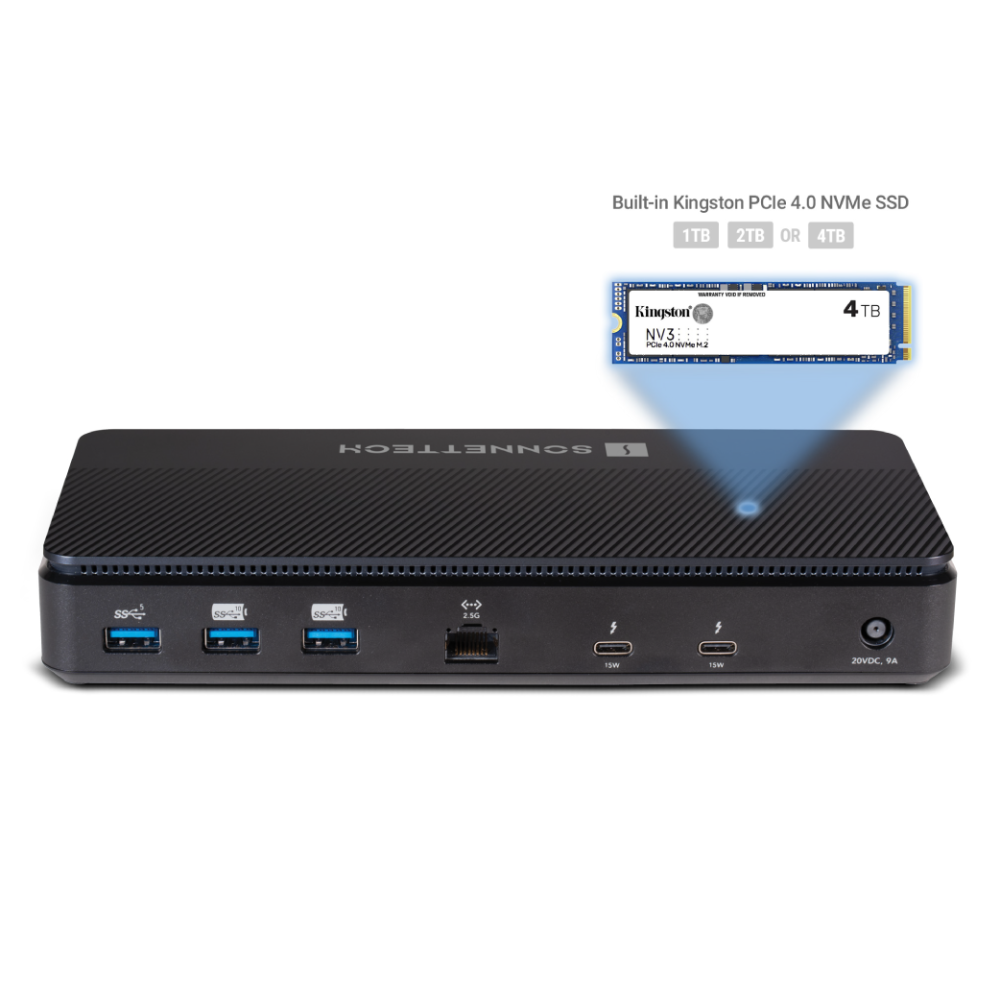

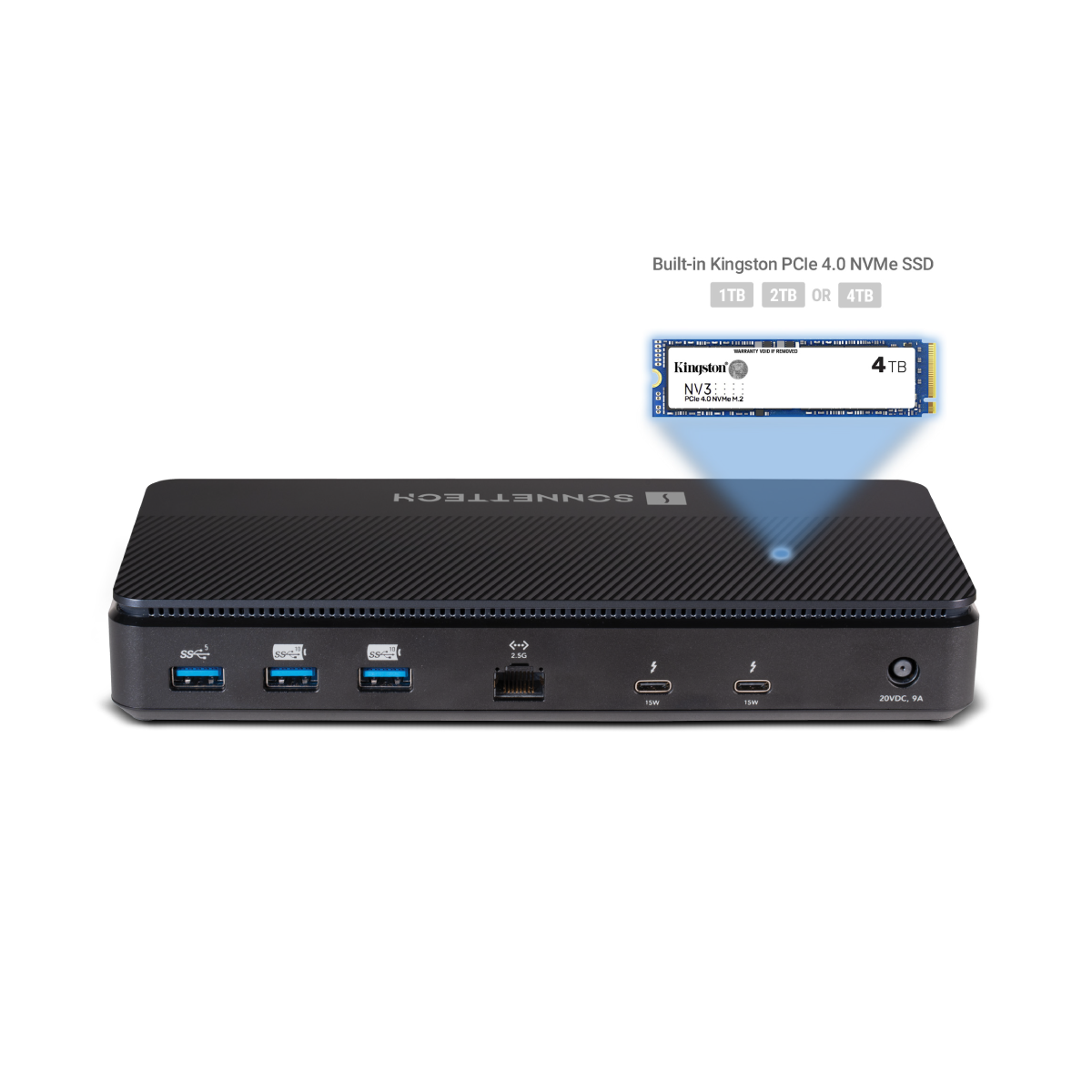

Internal Built-in SSD Storage
- Thunderbolt 5 certified Kingston PCIe 4.0 NVMe SSD
- Configured with 1TB, 2TB, or 4TB module

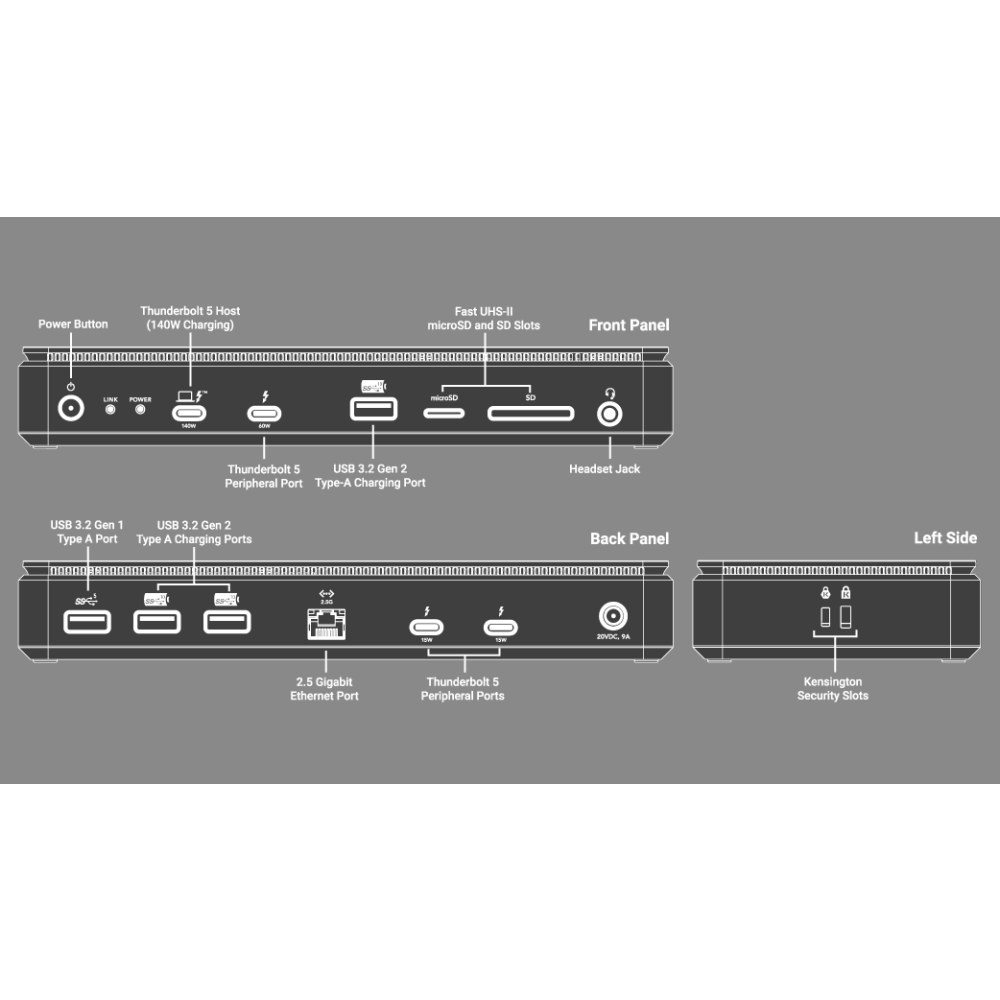

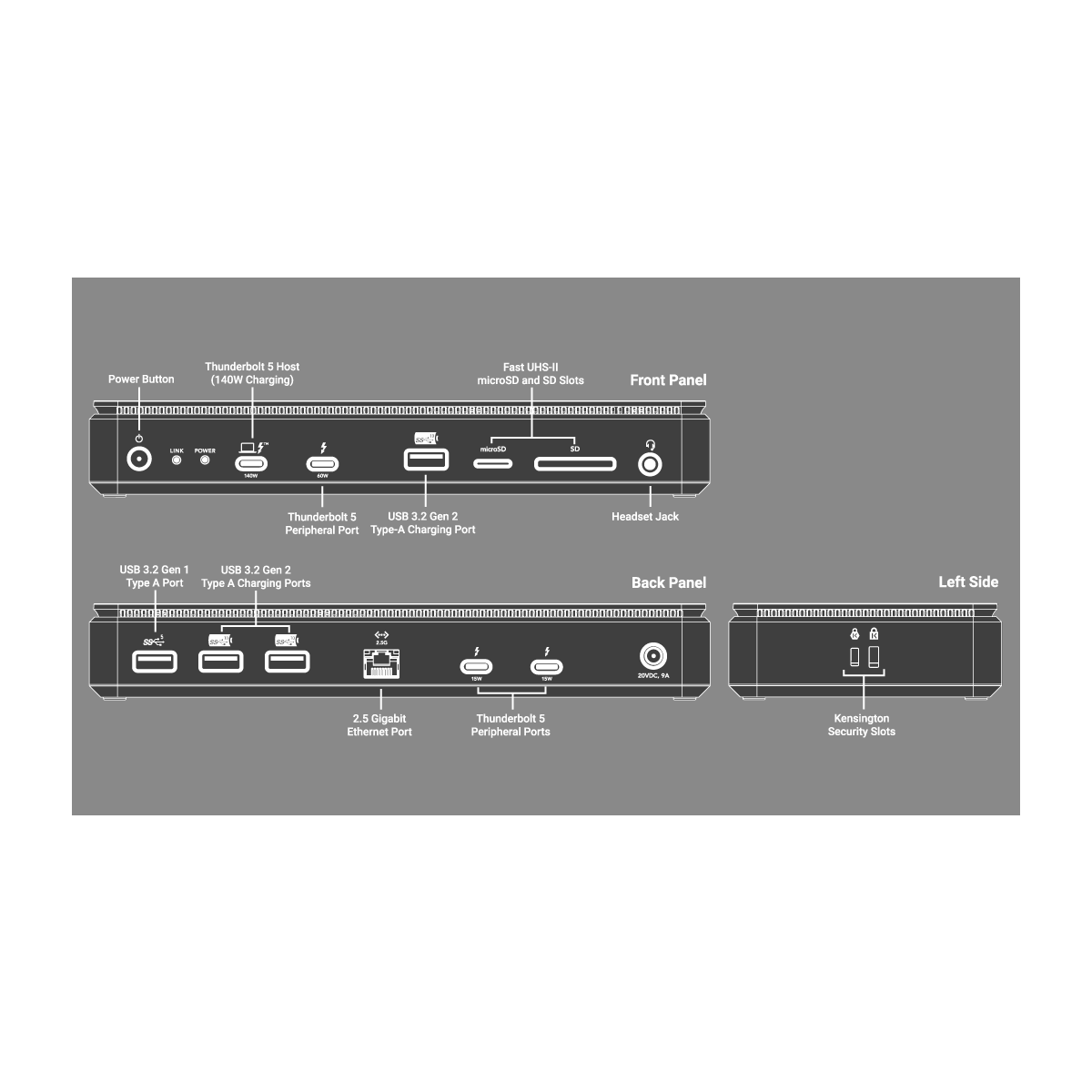

External Connectors
- Four Thunderbolt 5 ports
- Three USB3.2 Gen2 (10Gbps)Type A charging ports
- USB 3.2 Gen 1 (5Gbps) Type A port
- RJ45 2.5 Gigabit Ethernet port
- 3.5 mm combination audio headphone/microphone jack
- UHS-II SD card slot
- UHS-II microSD card slot
- Power connector
Thunderbolt 5 Computer Port
Power Delivery
- Provides laptop charging up to 140W
Cables Supported
- Any Thunderbolt 5 cable (0.8-meter included)
Thunderbolt 5 Peripherals Ports
Connectivity
- With USB-C connector
Peripherals Supported
- Thunderbolt 5
- Thunderbolt 4
- Thunderbolt 3
- USB4 v2
- USB4
- All USB 3, 2.0 and 1.1 devices
- USB hubs
- Thunderbolt 4, Thunderbolt 3, and USB-C monitors
- DisplayPort and HDMI monitors(3)
Charging (Front Panel Peripheral Port)
- 60W capacity to fast charge iPad, iPhone, or other device
- USB Type-C charging
- Supports simultaneous charging and syncing
Charging (Back Panel Peripheral Ports)
- 15W capacity each to charge iPad, iPhone, or other device
- USB Type-C charging
-Supports simultaneous charging and syncing
USB 3.2 Gen 2 Type A Ports
Connectivity
- With USB Type A connector
Peripheral Supported
- USB 3, 2.0, and 1.1 devices
- USB hubs
Data Transfer Rate
- USB 3.2 Gen 2 (previously USB 3.1 Gen 2): 10Gbps
Charging
- 7.5W capacity to charge iPad, iPhone, or other device
- USB Battery Charging 1.2–compliant
- Supports simultaneous charging and syncing
USB 3.2 Gen 1 Type A Port (Rear Panel)
Connectivity
- With USB Type A connector
Peripherals Supported
- USB 3, 2.0, and 1.1 devices
- USB hubs
Data Transfer Rate
- USB 3.2 Gen 1 (previously USB 3.1 Gen 1, USB 3.0): 5Gbps
RJ45 (Ethernet) Port
Network Support
- Supports 2.5GBASE-T, 1000BASE-T, and 100BASE-TX network speeds and Auto-MDI/MDI-X
Standard
- Compliant with 802.3bz-2016 and 10/100/1000 IEEE 802.2 Specifications
Packets
- Maximum packet size: 9000 bytes (Jumbo packets)(4)
Chip
- Realtek RTL8156B
SD and microSD Card Slots
Cards Supported
- SD, SDHC, SDXC
- microSD, microSDHC, and microSDXC
Power Delivery
- Provides laptop charging up to 140W
Power Adapter
- Universal 180W, 100-240V AC, 50-60 Hz
Operating Temperatures
- 0˚C to 35˚C (32˚F to 95˚F)
Dimensions (WxDxH)
- Dock: 8.7 x 3.8 x 1.3 in. (22.0 x 9.7 x 3.4 cm)
- Power Supply: 3.2 x 6.6 x 1 in. (8.2 x 16.8 x 2.6 cm)
Weight
- Dock and Power Supply: 1.75 lbs (0.8 kg)
- Complete Package: 2.65 lbs (1.2 kg)
Compliance
- RoHS 3 (Directive 2015/863)
- IEC62368-1 and IEC62368-2 Safety
- VCCI-B certified
- FCC Part 15, Subpart B
- CISPR 32 / EN 55032
- Power Supply (PSE certified; UL certified)
Package Contents
- Echo 13 Thunderbolt 5 SSD Dock with 1TB, 2TB, or 4TB SSD
- Power adaper
- Region specific power cable (US, Australia, Europe, Japan, Switzerland, or UK)
- 0.8-meter Thunderbolt 5 cable
- Documentation
Thunderbolt 5 Computer Port
Power Delivery
- Provides laptop charging up to 140W
Cables Supported
- Any Thunderbolt 5 cable (0.8-meter included)
Thunderbolt 5 Computer Port
Power Delivery
- Provides laptop charging up to 140W
Cables Supported
- Any Thunderbolt 5 cable (0.8-meter included)
Thunderbolt 5 Computer Port
Power Delivery
- Provides laptop charging up to 140W
Cables Supported
- Any Thunderbolt 5 cable (0.8-meter included)
Thunderbolt 5 Computer Port
Power Delivery
- Provides laptop charging up to 140W
Cables Supported
- Any Thunderbolt 5 cable (0.8-meter included)
- Sonnet Echo 13 Thunderbolt 5 SSD Dock (4TB)
- Power Adapter and Cable
- Thunderbolt 5 Cable (2.6')
