Thunderbolt 4 - Built for today. Designed for tomorrow.
All the connections you expect from a Thunderbolt™ dock plus the Thunderbolt hub you've always wanted. With this extraordinary dock, a single cable connects your laptop to your digital world. Sonnet’s Echo™ 11 Thunderbolt 4 Dock – the universal docking station for today and tomorrow.
Connect Your Peripherals and Power Your Computer with One Cable
Plug in your monitor(s), Thunderbolt devices, USB peripherals, and Ethernet cable. Then connect them all with a single Thunderbolt cable from the dock to your computer. The Echo 11 Thunderbolt 4 Dock will even power your laptop with up to 90W of charging power. When it is time to leave, just unplug the Thunderbolt cable, grab your laptop, and go.
Truly Universal Connectivity for Work and Play
The Echo 11 Dock features four Thunderbolt 4 ports; one for connection/power to your computer, plus three to directly connect Thunderbolt peripheral devices (and daisy chain up to a total of 5 devices). The Thunderbolt ports also support USB4 and USB 3 peripherals. For connected peripherals using bus power, the Dock’s Thunderbolt peripheral ports provide 15W per port, supporting even the most demanding bus-powered Thunderbolt and USB peripherals.
Versatile Thunderbolt Expansion
Perfect for Mac and supported Windows computers, including Apple M1 series Macs with limited Thunderbolt ports. Connect the dock and create three separate independent Thunderbolt expansion chains. Add and disconnect devices from one chain without affecting the others.
Powerful 10Gbps USB Ports for Bus-powered Devices
The Echo 11 Thunderbolt 4 Dock features three USB 3.2 Gen 2 (10Gbps) Type A ports on the back to support super fast USB NVMe SSDs at up to full speed. And unlike some other docks, the Echo 11 doesn’t skimp on power either — each port provides up to 7.5W, ensuring bus-powered devices will operate without fail.
Thunderbolt Certified for Mac, Windows, and iPad Pro
The Echo 11 Thunderbolt 4 Dock is certified for use Thunderbolt 4 computers; Apple M1, M2, M1 Pro, M1 Max, M1 Ultra Macs; Thunderbolt 3 Intel Macs; and M1 iPad Pro with a Thunderbolt port. See Tech Specs for full computer and OS compatibility information.
Display Options - Connect up to One 8K or Two 5K Monitors
Depending on your computer’s video capability, the Echo 11 Thunderbolt 4 Dock supports one (always 4K or 5K; up to 6K or 8K) monitor through its Thunderbolt ports, or up to two 5K or Apple Pro Display XDR monitors; see Tech Specs. You can plug in Thunderbolt 3 or USB-C monitors directly, or, you may connect other display types (HDMI, DisplayPort, etc.) by using a Thunderbolt compatible adapter (sold separately).
Charge - Leave Your Charger In the Backpack
Connected to your portable computer with the included Thunderbolt 4 cable, the Echo 11 Thunderbolt 4 Dock provides up to 90W of power (Power Delivery), meaning it can power and charge your computer while connected, even when not in use, allowing you to leave your computer’s power adapter packed away.
Network Port - Fast Wired Network Connection
The Echo 11 Thunderbolt 4 Dock includes a Gigabit Ethernet port, perfect for connecting your broadband internet directly to your computer without another device competing for bandwidth on your WiFi setup. With the appropriate drivers already installed under macOS and Windows, setup is simple.
Peripheral Charger - Handy Charging Port
The Echo 11 Dock includes a USB 2.0 charging port on the front capable of charging your iPhone®, iPad®, or other device.
Media Reader - Fast UHS-II SD 4.0 Card Reader
The included SD card slot is compatible with SD™, SDHC™, and SDXC™ memory cards, and supports 320 MB/s read speeds with UHS-II SDXC cards to quickly offload images and video.
Sonnet Technologies Echo 11 Thunderbolt 4 Dock Specification |
|
Mac Compatibility |
Mac (M1 and M2) supports only one display
Mac (M1 Pro, M1 Max, and M1 Ultra) supports two displays, including two Apple Pro Display XDRs Mac (Intel) with Thunderbolt 3 ports supports two displays macOS 13 (Ventura), 12 (Monterey), or 11 (Big Sur) required See Displays Compatibility PDF for Mac display support |
iPad Compatibility |
M1 iPad Pro supports only one mirrored monitor
|
Windows Compatibility |
Windows computer with a Thunderbolt 4 port or USB4 port
Not compatible with Thunderbolt 3 Windows computers |
Displays Compatibility | For computers and displays compatibility information, see the Displays Compatibility PDF |
HDR Compatibility | See Apple Support Note for Mac HDR information If your Windows computer supports HDR, see this Microsoft Support Note for Windows HDR information |
Hardware
|
|
Form Factor |
Thunderbolt dock
|

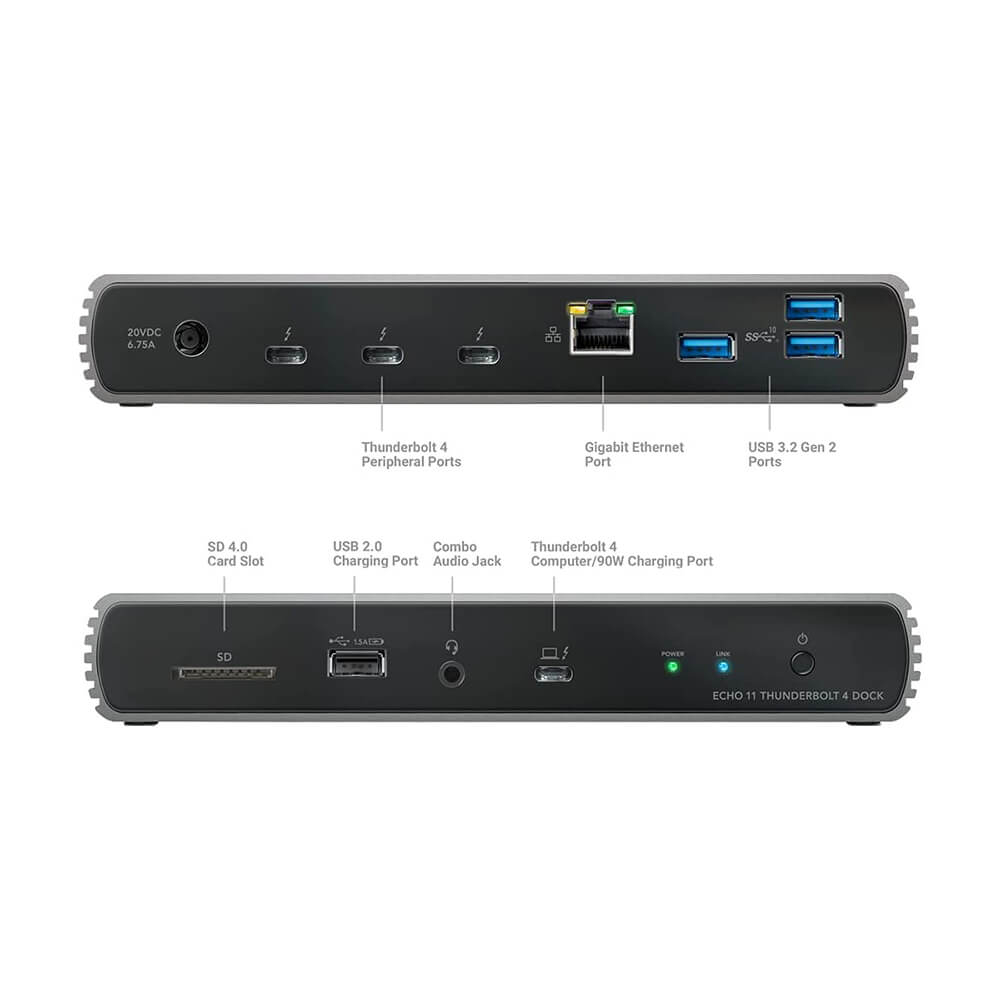

External Connectors | Four Thunderbolt 4 ports Three USB 3.2 Gen 2 (10Gbps) Type A ports One USB 2.0 Type A charging port One RJ45 (Gigabit Ethernet) port One 3.5 mm combination audio headphone/microphone jack One SD 4.0 card slot One power connector |
Thunderbolt 4 Computer Port | Power Delivery - Provides laptop charging up to 90W Cables Supported - Any Thunderbolt 4 cable (0.7-meter included) - 100W 0.2, 0.5, 0.7, 0.8-meter Thunderbolt 3 cables Cables Not Supported - 60W Thunderbolt 3 cables - 1.0, 1.5, 1.8, 2.0-meter Thunderbolt 3 cables |
Thunderbolt 4 Peripherals Ports | Connectivity - With USB-C connector Peripherals Supported - Thunderbolt 3 - Thunderbolt 2 (macOS) - USB4 - USB 3, 2.0 and 1.1 devices - Thunderbolt 3 and USB-C monitors - DisplayPort and HDMI monitors |
USB 3.2 Gen 2 Type A Ports | Connectivity - With USB Type A connector Peripherals Supported - USB 3, 2.0 and 1.1 devices Data Transfer Rate - USB 3.2 Gen 2 (previously USB 3.1 Gen 2): 10Gbps |
USB 2.0 Type A Port (Front Panel) | Connectivity - With standard male USB-A connector Peripheral Supported - USB 3, 2.0 and 1.1 devices - Data Transfer Rate - USB 3 or 2.0 peripherals: 480 Mb/s Charging - 7.5W capacity to charge iPad, iPhone, or other device - USB Battery Charging 1.2–compliant - Supports simultaneous charging and syncing |
RJ45 (Gigabit Ethernet) Port | Network Support - Supports 1000 Mb/s, 100 Mb/s, and 10 Mb/s network speeds and Auto-MDI/MDI-X Standard - Compliant with 10/100/1000 IEEE 802.2 Specification Network - Gigabit Ethernet (1000BaseT, 100BaseTX, 10BaseT) Packets - Maximum packet size: 9000 bytes (Jumbo packets) Chip - Realtek RTL8153B |
SD Card Slot | Cards Supported - SD, SDHC, SDXC |
Power Delivery | Provides laptop charging up to 90W |
Operating Temperatures | 0˚C to 35˚C (32˚F to 95˚F) |
Dimensions (WxDxH) | Dock: 7.9 x 3.0 x 1.2 in. (20.0 x 7.5 x 3.0 cm) Power Supply: 2.5 x 5.7 x 1.2 in. (6.4 x 14.4 x 3.0 cm) |
Weight | Dock and Power Supply: 1.7 lbs (0.79 kg) Complete Package: 3.3 lbs (1.5 kg) |
Compliance | RoHS 3 (Directive 2015/863) IEC62368-1 and IEC62368-2 Safety VCCI certified FCC Part 15, Subpart B CISPR 32 / EN 55032 Power Supply (PSE certified; UL certified) |
- Sonnet Technologies Echo 11 Thunderbolt 4 Dock
- Power adaper
- Power cord
- 0.7-meter Thunderbolt 4 cable
- 2-years Limited Manufacturer's Warranty
